Auction Pricing
Auction Info: Starting on 2026-05-20 Click here to place a bid

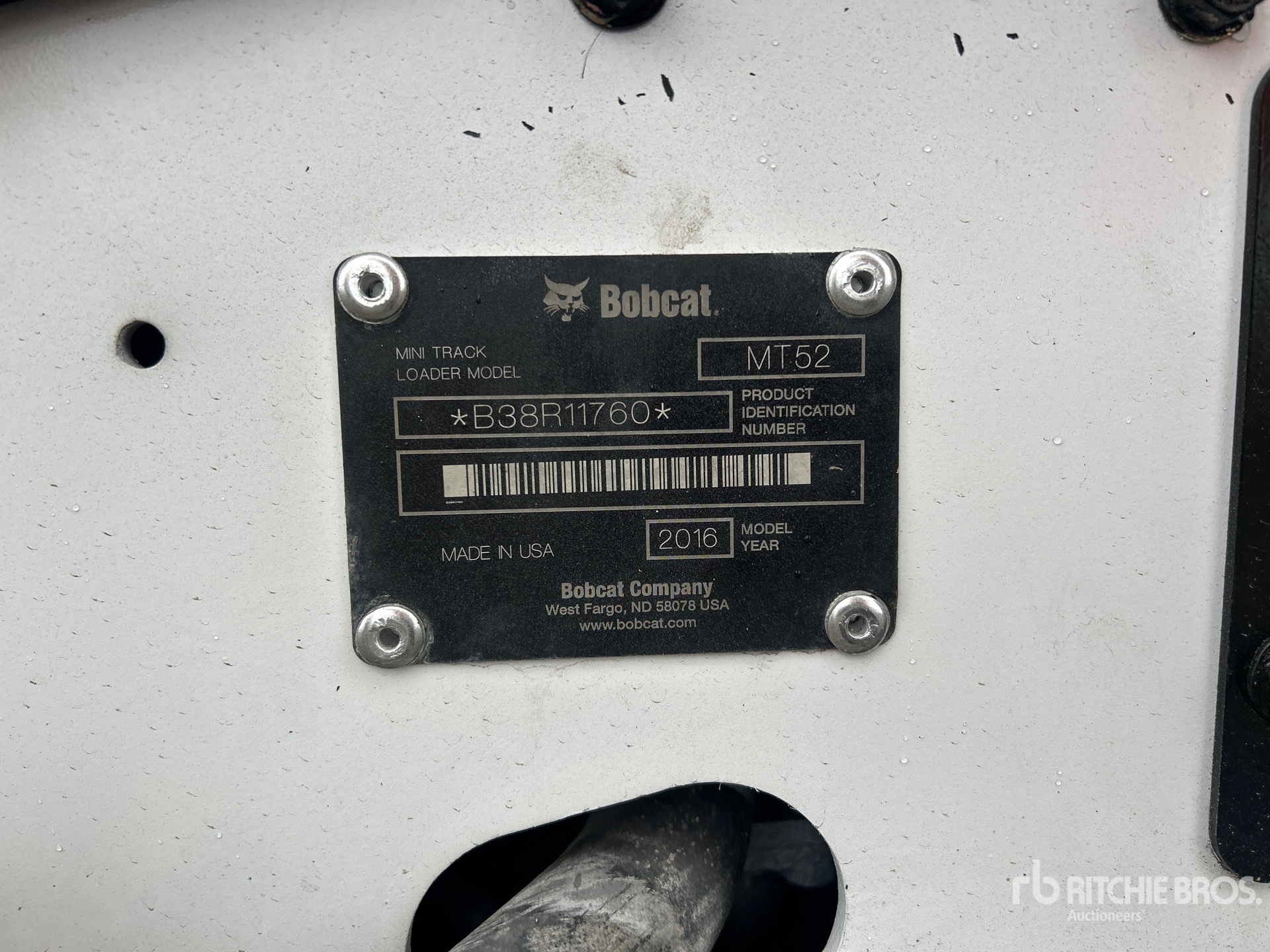

| Serial Number: | B3*R11760 |
| Machine Location: | TORONTO, ON |
Supplied by HeavyEquipmentData.com →
| Dimensions | |
| Dump angle | 50 degrees |
| Dump Height | 18 in (46 cm) |
| Ground Clearance | 5 in (11 cm) |
| Hinge pin height, maximum height | 71 in (181 cm) |
| Length - with Bucket | 8 ft (2 m) |
| Length - without Bucket | 6 ft (2 m) |
| Overall height | 4 ft (1 m) |
| Overall width | 3 ft (1 m) |
| Engine | |
| Bore | 3 in (7 cm) |
| Displacement | 44 cu in (721 cu cm) |
| Engine Make | Kubota |
| Engine Model | D722-E3B-BC-6 |
| Gross Power | 20 hp (15 kw) |
| Number of Cylinders | 3 |
| Peak Torque | 32 lbs ft (44 nm) |
| Power Measured @ | 3,600 rpm |
| Stroke | 3 in (7 cm) |
| Torque Measured @ | 2,600 rpm |
| Hydraulic System | |
| Pump Flow | 12 gpm (45 lpm) |
| Pump Type | Engine driven |
| Relief Valve Pressure | 2,900 psi |
| Loader | |
| Breakout Force | 16,279 lbs (7,384 kg) |
| Tipping Load | 1,601 lbs (726 kg) |
| Operating Specifications | |
| Alternator Supplied Amperage | 40 amps |
| Cooling System Fluid Capacity | 1 gal (5 l) |
| Engine Oil Capacity | 1 gal (3 l) |
| Fuel Capacity | 7 gal (27 l) |
| Hydraulic System Fluid Capacity | 5 gal (20 l) |
| Operating Voltage | 12 volts |
| Operating Weight | 5,688 lbs (2,580 kg) |
| Undercarriage | |
| Ground Pressure | 5 psi |
