For Sale: $50,900.00 USD

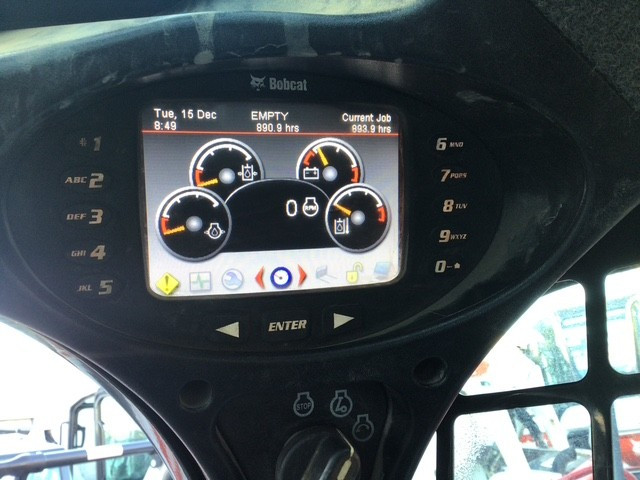

Apply for Financing| Hours: | 890 |

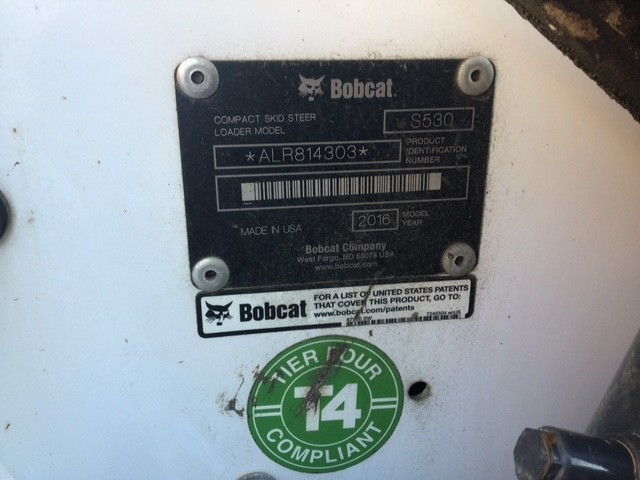

| Stock Number: | ALR814303 |
| Machine Location: | DARTMOUTH, NS |
| More Information: | https://bobcatatlantic.com/inventory/skid+steers/2016-bobcat-s530-dartmouth-ns-6925e0ac12c0d7d63906914e/ |
Supplied by HeavyEquipmentData.com →
| Dimensions | |
| Ground Clearance | 7 in (19 cm) |
| Height - Top of Cab | 7 ft (2 m) |
| Length w/o Bucket | 9 ft (3 m) |
| Length with Bucket | 11 ft (3 m) |
| Wheelbase | 4 ft (1 m) |
| Engine | |
| Bore | 4 in (9 cm) |
| Displacement | 149 cu in (2,433 cu cm) |
| Engine Make | Kubota |
| Engine Model | V2403-MDI-E3B |
| Gross Power | 49 hp (36 kw) |
| Max Torque | 117 lbs ft (159 nm) |
| Number of Cylinders | 4 |
| Power Measured @ | 2,700 rpm |
| Stroke | 4 in (10 cm) |
| Torque Measured @ | 1,600 rpm |
| Hydraulic System | |
| 3.8 | 3.8 sec seconds |
| Dump Time | 2 seconds |
| Lower Time | 3 seconds |
| Pump Flow Capacity | 17 gpm (65 lpm) |
| Pump Type | Engine driven gear type |
| Relief Valve Pressure | 3,500 psi |
| Loader | |
| Operating Load Rating | 1,850 lbs (839 kg) |
| Operating Width | 65 in (164 cm) |
| Tipping load (ISO 14397) | 3,699 lbs (1,678 kg) |
| Operating Specifications | |
| Alternator Supplied Amperage | 90 amps |
| Chain Box Fluid Capacity - each side | 9 gal (33 l) |
| Engine Oil Fluid Capacity | 2 gal (9 l) |
| Fuel Capacity | 25 gal (94 l) |
| Hydraulic System Fluid Capacity | 10 gal (36 l) |
| Max Speed | 7 mph (12 kph) |
| Operating Voltage | 12 volts |
