Boom
Max Elevating Angle	70 degrees
Max Height @ Max Raise Angle - no jib	38 ft (11 m)
Max Lift Capacity	18,000 lbs (8,165 kg)
Max Operating Radius	40 ft (12 m)
Min Height @ Max Raise Angle	20 ft (6 m)
Min Operating Radius	5 ft (2 m)
Number of Sections	3
Swing Speed	2 rpm
Dimensions
Carrier/Base Length	13 ft (4 m)
Ground Clearance	1 ft (0 m)
Transport Height	7 ft (2 m)
Transport Length	18 ft (5 m)
Transport Width	7 ft (2 m)
Upper Structure Tail Swing Radius	5 ft (1 m)
Wheelbase	7 in (18 cm)
Width w/ Outriggers Extended	10 ft (3 m)
Engine
Displacement	181 cu in (2,966 cu cm)
Engine Model	GM 3.0 EFI
Gross Power	69 hp (51 kw)
Max Torque	163 lbs ft (221 nm)
Operating Specifications
Alternator Supplied Amperage	66 amps
Fuel Capacity	20 gal (76 l)
Hydraulic System Fluid Capacity	25 gal (95 l)
Operating Voltage	12 volts
Operating Weight	16,660 lbs (7,557 kg)
Tire Size	10.00x15
Transmission
Max Speed - Forward	20 mph (32 kph)
Max Speed - Reverse	20 mph (32 kph)
Number of Forward Gears	4
Number of Reverse Gears	4
Transmission Type	powershift

Dealer Contact Info:

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Email Ritchie Bros. Auctioneers.

Contact:

Click for Phone Number

Our Main Office

Construction Equipment Guide
470 Maryland Drive
Fort Washington, PA 19034
800-523-2200

About Us

Construction Equipment Guide covers the nation with its four regional newspapers, offering construction and industry news and information along with new and used construction equipment for sale from dealers in your area. Now we extend those services and information to the internet. Making it as easy as possible to find the news and equipment that you need and want.

Contents Copyrighted 2026, by Construction Equipment Guide, which is a Registered Trademark, registered in the U.S. Patent Office. Registration number 0957323. All rights reserved, nothing may be reprinted or reproduced (including framing) in whole or part without written permission from the publisher. All editorial material, photographs, drawings, letters, and other material will be treated as unconditionally assigned for publication and copyright purposes and are subject to Construction Equipment Guide’s unrestricted right to edit and comment editorially. Contributor articles do not necessarily reflect the policy or opinions of this publication.

Read our privacy policy here.
Mastodon

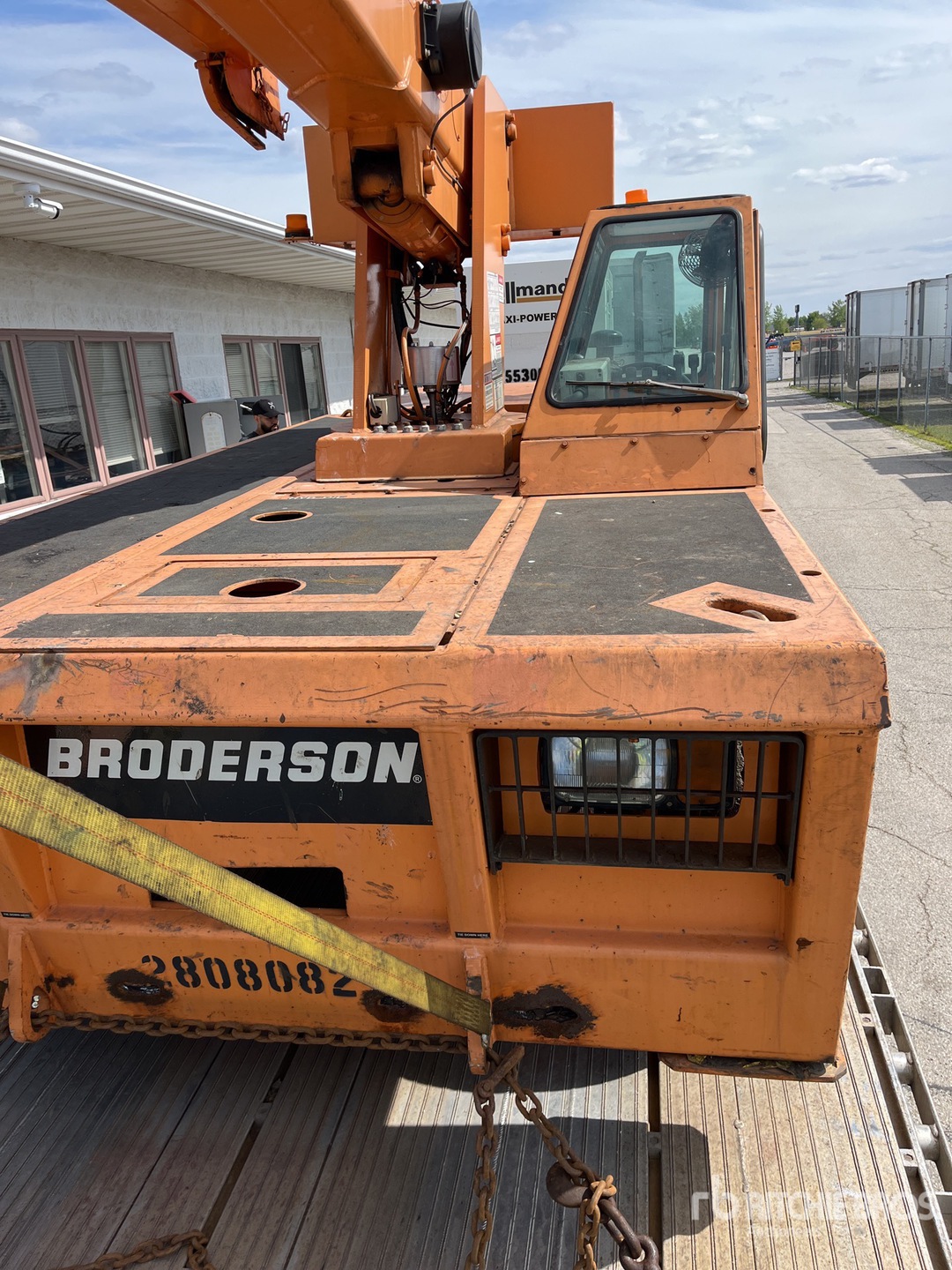

Broderson IC-80-3G For Sale in Chicago, Il
