Equipment ↠ Case ↠ Backhoe Loaders ↠ 2008 Case 580M SERIES 3 4X4

2008 Case 580M SERIES 3 4X4 For Sale in Birmingham, AL

Name: 2008 Case 580M SERIES 3 4X4
Brand: Case
SKU: 87600660
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-05-20

JJ Kane Auctions

JJ Kane Auctions Dealer Info

JJ Kane Auctions Website

Click here to email JJ Kane Auctions.

Click for Phone Number

Machine Info:

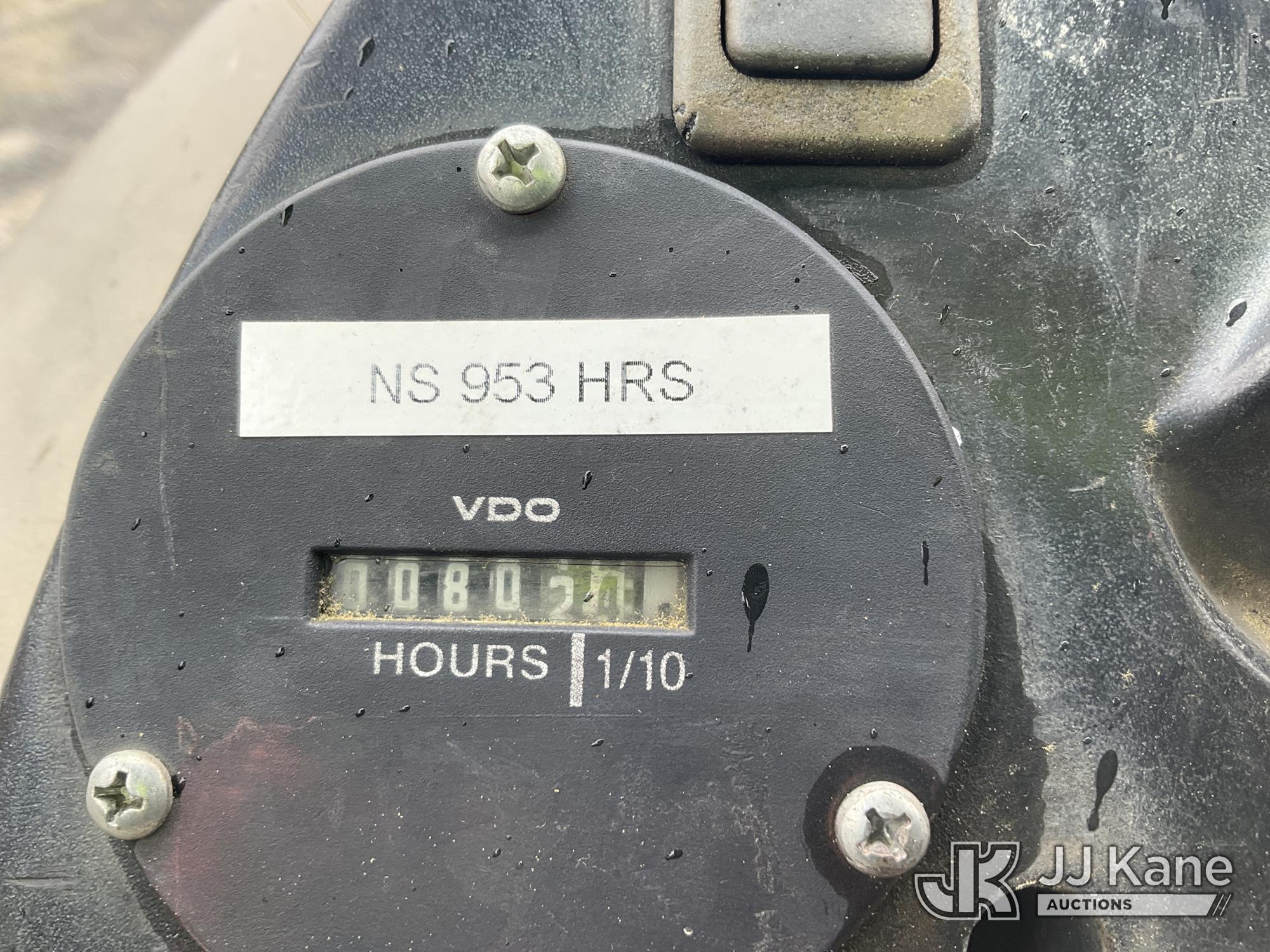

Hours:	802

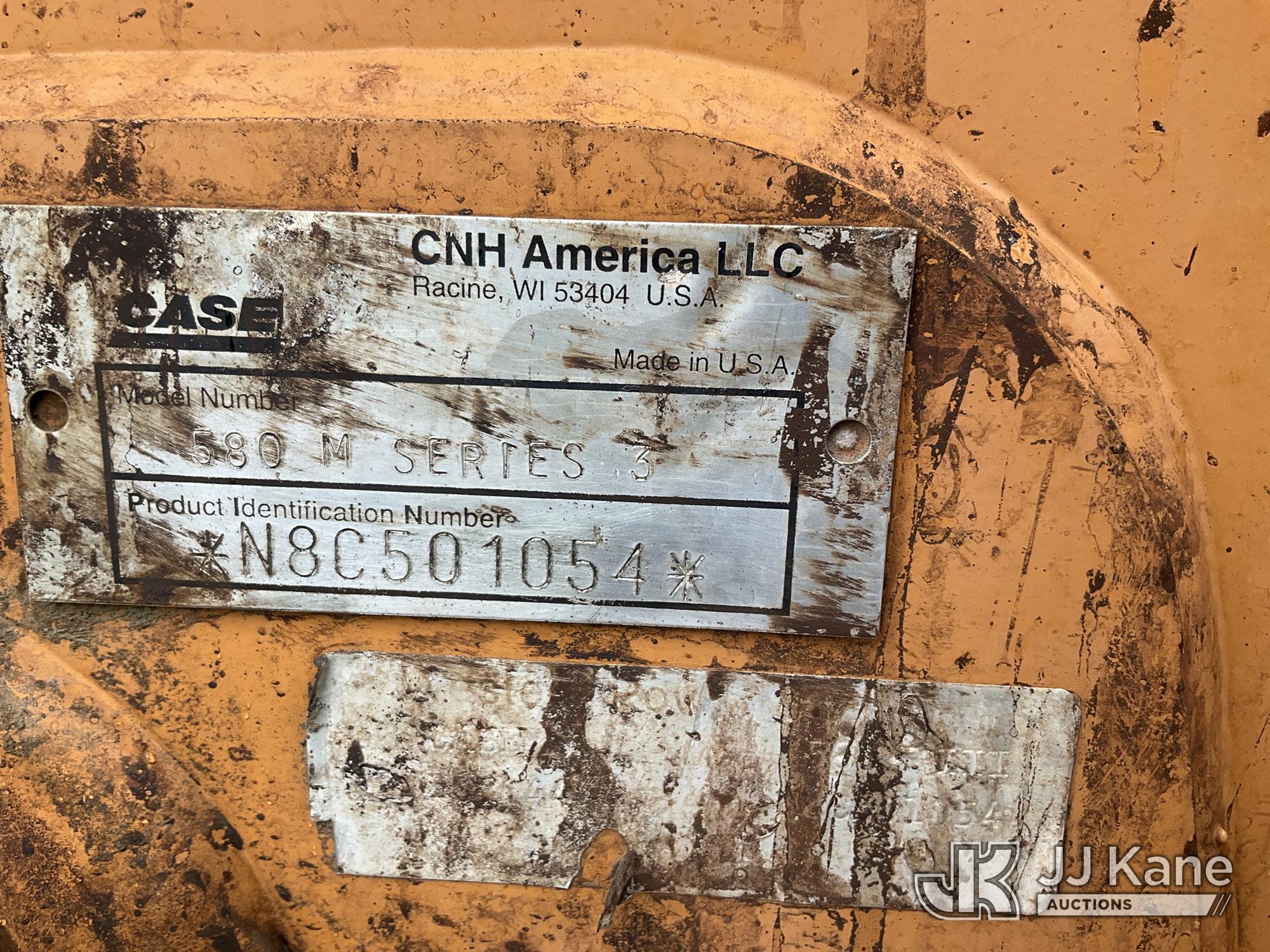

Serial Number:	N8C501054
Machine Location:	BIRMINGHAM, AL

Description:

2008 Case 580M Series 3 4x4 Tractor Loader Backhoe, s/n N8C501054, Diesel, Shuttle, with GP loader bucket, rear aux hydraulics, extendahoe, ROPS, ((Runs, Moves & Operates)) (Reads 802 hours) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in Eatonville, WA. Inspection & preview days for this unit are by appointment only; please contact us at contact@jjkane.com or 84-Go-JJKane for more details. (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Backhoe
Bucket Dig Force	11,212 lbs (5,086 kg)
Bucket Dig Force - Extended	11,212 lbs (5,086 kg)
Dig Depth	14 ft (4 m)
Dig Depth - Extended	18 ft (6 m)
Load Height - Extended	13 ft (4 m)
Reach at Load Height - Extended	12 ft (4 m)
Reach From Swivel	18 ft (5 m)
Reach From Swivel - Extended	22 ft (7 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height to Top of Suspended Cab	9 ft (3 m)
Transport Length	23 ft (7 m)
Transport Width	7 ft (2 m)
Wheelbase	7 ft (2 m)
Engine
Aspiration	turbocharged
Displacement	272 cu in (4,457 cu cm)
Engine Model	Family III 445T/M3 Tier III certified
Gross Power	85 hp (63 kw)
Net Max Torque	271 lbs ft (367 nm)
Net Torque Rise	0
Number of Cylinders	4
Power Measured @	2,200 rpm
Torque Measured @	1,400 rpm
Hydraulic System
Pump Flow Capacity	29 gpm (108 lpm)
Pump Type	gear-type transmission driven
Relief Valve Pressure	3,050 psi
Loader
Bucket Capacity	1 cu yd (1 cu m)
Bucket Width	82 in (208 cm)
Clearance at Max Dump Height	9 ft (3 m)
Dig Depth	8 in (20 cm)
Reach at Max Dump Height	2 ft (1 m)
Operating Specifications
Alternator Supplied Amperage	90 amps
Cooling System Fluid Capacity	5 gal (17 l)
Front Axle Fluid Capacity	2 gal (6 l)
Fuel Capacity	31 gal (119 l)
Hydraulic System Fluid Capacity	28 gal (104 l)
Max Weight	16,510 lbs (7,489 kg)
Oil System Fluid Capacity	4 gal (14 l)
Operating Voltage	12 volts
Operating Weight	13,359 lbs (6,060 kg)
Operating Weight 2wd	13,360 lbs (6,060 kg)
Rear Axle Fluid Capacity	4 gal (14 l)
Tire Size Front - 2wd / 4wd	11Lx16.1/12x16.5
Transmission Fluid Capacity	5 gal (20 l)
Turning Radius	11 ft (3 m)
Tires
Rear Tires Size	17.5Lx24/19.5Lx24
Transmission
Max Speed	24 mph (39 kph)
Max Speed - Reverse	29 mph (47 kph)
Number of Forward Gears	4
Number of Reverse Gears	4
Transmission Type	4-speed synchromesh with hydraulically actuated clutches
