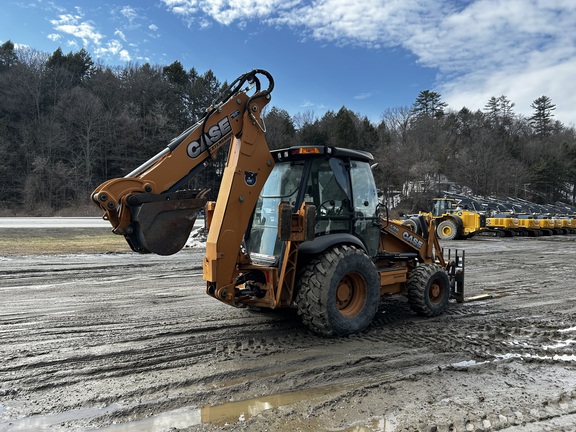

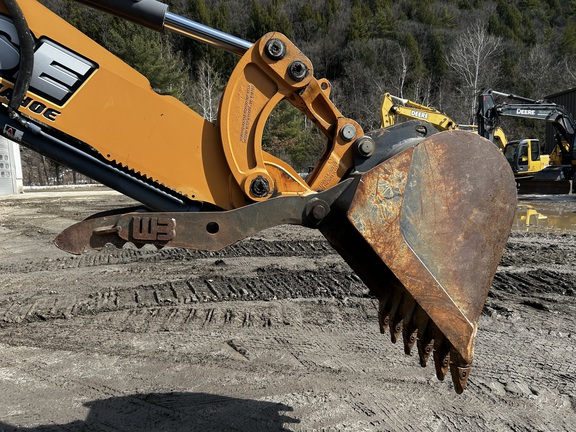

| Backhoe |
|
Dig Depth - Extended |
20 ft (6 m)
|
|
Load Height - Extended |
16 ft (5 m)
|
|
Reach at Load Height - Extended |
8 ft (3 m)
|
|
Reach From Swivel |
20 ft (6 m)
|
|
Reach From Swivel - Extended |
24 ft (7 m)
|
| Brakes |
|
Service brake |
Wet Multi Disc |
| Capacities |
|
Cooling system |
5 gal (18 l)
|
|
Engine oil with filter |
2 gal (8 l)
|
|
Front axle |
525 cu in (8,602 cu cm)
|
|
Fuel Tank |
35 gal (132 l)
|
|
Rear Axle |
4 gal (14 l)
|
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height to Top of Suspended Cab |
9 ft (3 m)
|
|
Transport Length |
24 ft (7 m)
|
|
Transport Width |
8 ft (2 m)
|
|
Wheelbase |
7 ft (2 m)
|

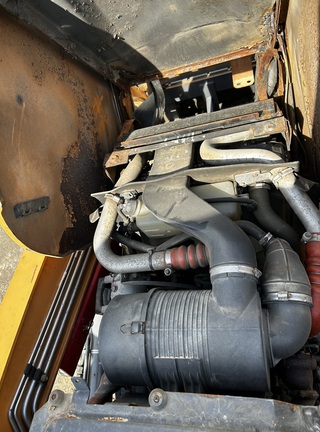

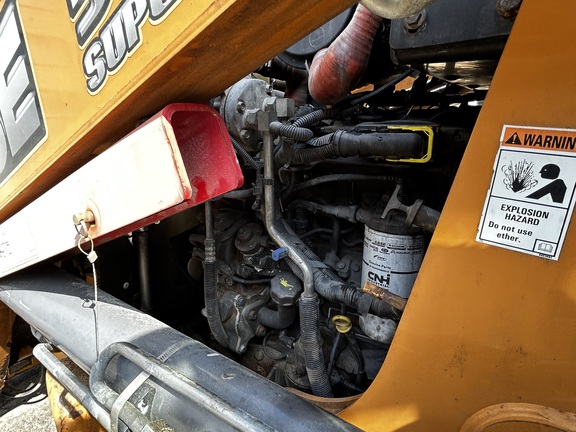

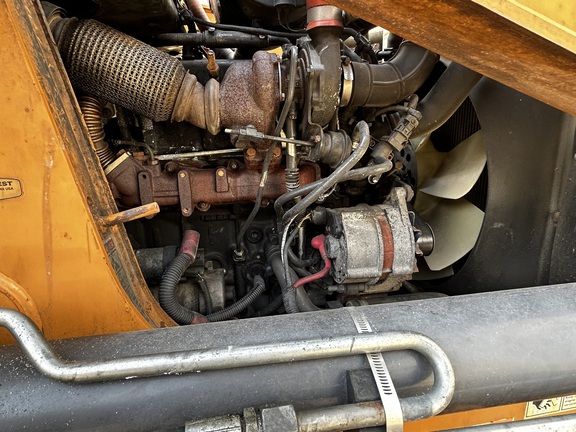

| Engine |
|
Aspiration |
Turbocharged |
|
Bore |
4 in (10 cm)
|
|
Displacement |
208 cu in (3,400 cu cm)
|
|
Emissions Certification |
Tier 4 Final |
|
Engine Make |
CASE |
|
Engine Model |
FPT F5BFL413A |
|
Gross Power |
110 hp (82 kw)
|
|
Net Max Torque |
339 lbs ft (460 nm)
|
|
Net Power |
108 hp (81 kw)
|
|
Net Torque Rise |
0 |
|
Number of Cylinders |
4 |
|
Power Measured @ |
2,200 rpm |
|
Stroke |
4 in (11 cm)
|
|
Torque Measured @ |
1,400 rpm |
| General Specifications |
|
Backhoe Loading Height ft. (m) (Since 2011)
|
13.0 (4.0) |
|
Backhoe Loading Height ft. (m) (2012)
|
13.0 (4.0) |
|
Backhoe Loading Height ft. (m) (Since 2013)
|
13 (4) |
|
Backhoe Loading Height ft. (m) (2014)
|
13 (4) |
|
Backhoe Loading Height ft. (m) (Since 2015)
|
13.1 (4) |
|
Backhoe Loading Height ft. (m) (2016)
|
13.1 (4) |
|
Backhoe Loading Height ft. (m) (2017)
|
13.1 (4) |
|
Backhoe Loading Height ft. (m) (2019)
|
13.1 (4) |
|
Backhoe Loading Height ft. (m) (2023)
|
13.1 (4) |
|
Backhoe Loading Height ft. (m) (Since 2024)
|
15.8 (4.8) |
|
Backhoe Loading Height ft. (m) (2025)
|
15.8 (4.8) |
|
CATEGORY (Since 2017)
|
Backhoe Loaders |
|
Loader Breakout Force lbs. (kg) (Since 2011)
|
11,463 (5,200) |
|
Loader Breakout Force lbs. (kg) (2012)
|
11,463 (5,200) |
|
Loader Breakout Force lbs. (kg) (Since 2013)
|
12,776 (5,795) |
|
Loader Breakout Force lbs. (kg) (2014)
|
12,776 (5,795) |
|
Loader Breakout Force lbs. (kg) (2015)
|
12,776 (5,795) |
|
Loader Breakout Force lbs. (kg) (2016)
|
12,776 (5,795) |
|
Loader Breakout Force lbs. (kg) (2017)
|
12,776 (5,795) |
|
Loader Breakout Force lbs. (kg) (2019)
|
12,776 (5,795) |
|
Loader Breakout Force lbs. (kg) (2023)
|
12,776 (5,795) |
|
Loader Breakout Force lbs. (kg) (Since 2024)
|
12,776 (5,683) |
|
Loader Breakout Force lbs. (kg) (2025)
|
12,776 (5,683) |
|
Loader Lift Capacity lbs. (kg) (Since 2011)
|
8,202 (3,721) |
|
Loader Lift Capacity lbs. (kg) (Since 2012)
|
8,425 (3,821) |
|
Loader Lift Capacity lbs. (kg) (2013)
|
8,425 (3,821) |
|
Loader Lift Capacity lbs. (kg) (2014)
|
8,425 (3,821) |
|
Loader Lift Capacity lbs. (kg) (Since 2015)
|
8202 (3,720) |
|
Loader Lift Capacity lbs. (kg) (2016)
|
8202 (3,720) |
|
Loader Lift Capacity lbs. (kg) (2017)
|
8202 (3,720) |
|
Loader Lift Capacity lbs. (kg) (Since 2019)
|
8,202 (3,720) |
|
Loader Lift Capacity lbs. (kg) (2023)
|
8,202 (3,720) |
|
Loader Lift Capacity lbs. (kg) (Since 2024)
|
8,202 (3,721) |
|
Loader Lift Capacity lbs. (kg) (2025)
|
8,202 (3,721) |
|
Loader SAE HP (kw) (Since 2011)
|
108 (81) |
|
Loader SAE HP (kw) (2012)
|
108 (81) |
|
Loader SAE HP (kw) (2013)
|
108 (81) |
|
Loader SAE HP (kw) (2014)
|
108 (81) |
|
Loader SAE HP (kw) (2015)
|
108 (81) |
|
Loader SAE hp (kW) (Since 2016)
|
108 (81) |
|
Loader SAE hp (kW) (2017)
|
108 (81) |
|
Loader SAE hp (kW) (2019)
|
108 (81) |
|
Loader SAE hp (kW) (Since 2023)
|
110 (82) |
|
Loader SAE hp (kW) (2024)
|
110 (82) |
|
Loader SAE hp (kW) (2025)
|
110 (82) |
|
Max Digging Depth ft. (m) (Since 2011)
|
15.5 (4.7) |
|
Max Digging Depth ft. (m) (2012)
|
15.5 (4.7) |
|
Max Digging Depth ft. (m) (2013)
|
15.5 (4.7) |
|
Max Digging Depth ft. (m) (2014)
|
15.5 (4.7) |
|
Max Digging Depth ft. (m) (Since 2015)
|
15.6 (4.8) |
|
Max Digging Depth ft. (m) (2016)
|
15.6 (4.8) |
|
Max Digging Depth ft. (m) (2017)
|
15.6 (4.8) |
|
Max Digging Depth ft. (m) (2019)
|
15.6 (4.8) |
|
Max Digging Depth ft. (m) (2023)
|
15.6 (4.8) |
|
Max Digging Depth ft. (m) (Since 2024)
|
19.5 (5.9) |
|
Max Digging Depth ft. (m) (2025)
|
19.5 (5.9) |
|
Operating Weight lbs. (kg) (Since 2011)
|
20,458 (9,280) |
|
Operating Weight lbs. (kg) (2012)
|
20,458 (9,280) |
|
Operating Weight lbs. (kg) (2013)
|
20,458 (9,280) |
|
Operating Weight lbs. (kg) (2014)
|
20,458 (9,280) |
|
Operating Weight lbs. (kg) (Since 2015)
|
20532 (9,313) |
|
Operating Weight lbs. (kg) (2016)
|
20532 (9,313) |
|
Operating Weight lbs. (kg) (2017)
|
20532 (9,313) |
|
Operating Weight lbs. (kg) (Since 2019)
|
20,532 (9,313) |
|
Operating Weight lbs. (kg) (2023)
|
20,532 (9,313) |
|
Operating Weight lbs. (kg) (Since 2024)
|
21,325 (9,673) |
|
Operating Weight lbs. (kg) (2025)
|
21,325 (9,673) |
|
Travel Speed 4th Gear Fwd MPH (kmh) (Since 2011)
|
24.2 (38.9) |
|
Travel Speed 4th Gear Fwd MPH (kmh) (2012)
|
24.2 (38.9) |
|
Travel Speed 4th Gear Fwd MPH (kmh) (Since 2013)
|
23 (37) |
|
Travel Speed 4th Gear Fwd MPH (kmh) (2014)
|
23 (37) |
|
Travel Speed 4th Gear Fwd MPH (kmh) (Since 2015)
|
25.2 (40.6) |
|
Travel Speed 4th Gear Fwd MPH (kmh) (2016)
|
25.2 (40.6) |
|
Travel Speed 4th Gear Fwd MPH (kmh) (2017)
|
25.2 (40.6) |
|
Travel Speed 4th Gear Fwd MPH (kmh) (2019)
|
25.2 (40.6) |
|
Travel Speed 4th Gear Fwd mph (kmh) (Since 2023)
|
25.2 (40.6) |
|
Travel Speed 4th Gear Fwd mph (kmh) (Since 2024)
|
25.0 (40.2) |
|
Travel Speed 4th Gear Fwd mph (kmh) (2025)
|
25.0 (40.2) |
| Hydraulic System |
|
Pump Flow Capacity |
43 gpm (163 lpm)
|
|
Pump Type |
Variable Displacement Axial Piston |
|
Relief Valve Pressure |
3,450 psi |

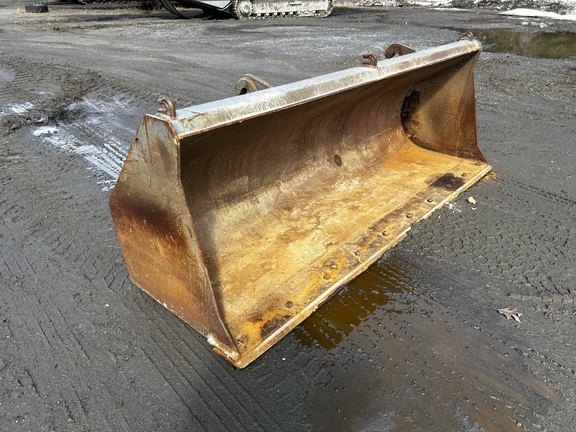

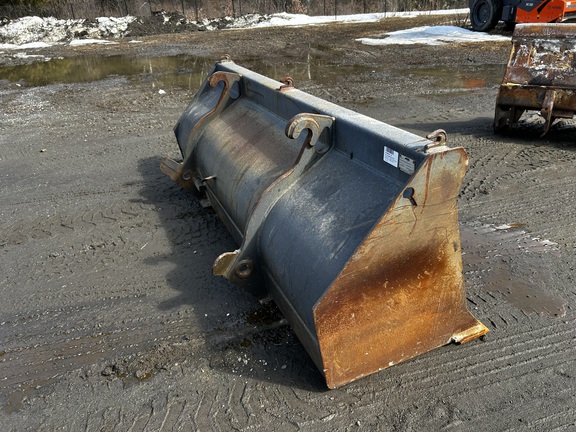

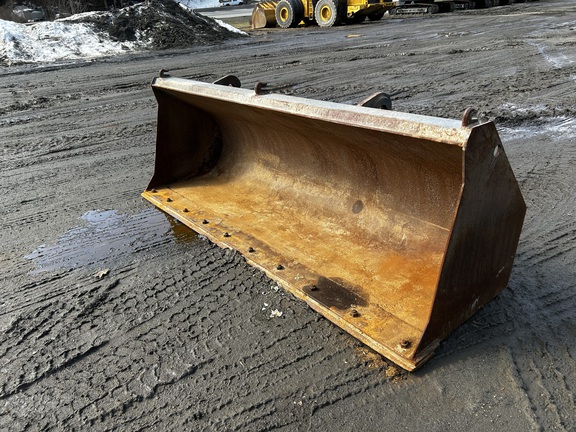

| Loader |
|
Bucket Breakout Force |
11,463 lbs (5,200 kg)
|
|
Bucket Capacity |
1 cu yd (1 cu m)
|
|
Bucket Width |
93 in (236 cm)
|
|
Clearance at Max Dump Height |
9 ft (3 m)
|
|
Dig Depth |
6 in (16 cm)
|
|
Lift Capacity |
8,202 lbs (3,720 kg)
|
|
Reach at Max Dump Height |
3 ft (1 m)
|
| Operating Specifications |
|
Alternator Supplied Amperage |
120 amps |
|
Backhoe Flow- gallons |
43 gpm (163 lpm)
|
|
Cooling System Fluid Capacity |
5 gal (18 l)
|
|
Front Axle Fluid Capacity |
2 gal (9 l)
|
|
Fuel Capacity |
42 gal (159 l)
|
|
Hydraulic System Fluid Capacity |
35 gal (132 l)
|
|
Oil System Fluid Capacity |
4 gal (14 l)
|
|
Operating Voltage |
12 volts |
|
Operating Weight |
20,458 lbs (9,280 kg)
|
|
Operating Weight 4wd |
20,458 lbs (9,280 kg)
|
|
Rear Axle Fluid Capacity |
4 gal (14 l)
|
|
Tire Size Front - 2wd / 4wd |
14x17.5 |
|
Transmission Fluid Capacity |
5 gal (20 l)
|
|
Turning Radius |
13 ft (4 m)
|
| Performance |
|
Dipper stick Lift Capacity |
6,651 lbs (3,017 kg)
|

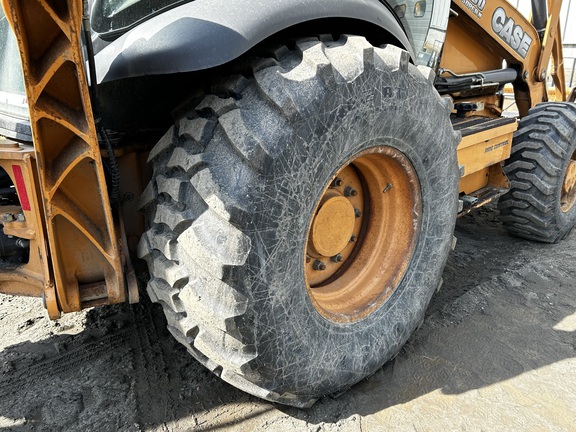

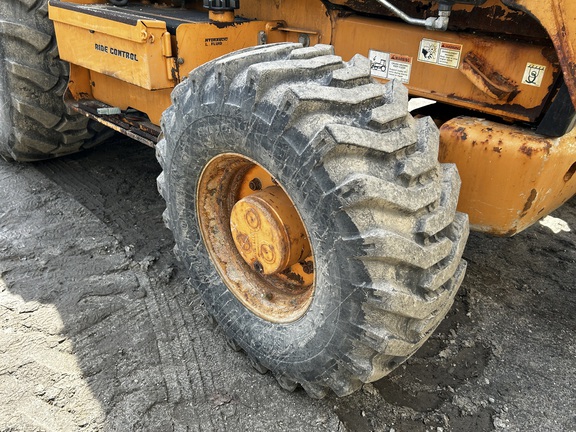

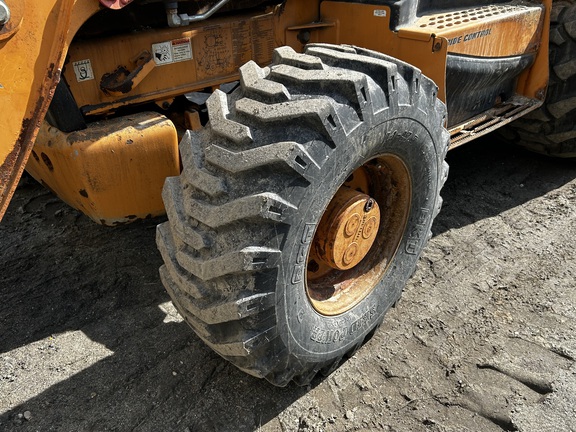

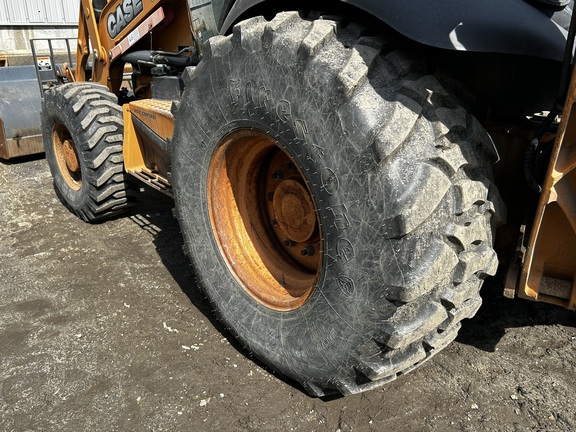

| Tires |
|
Front Tires Size |
14.0L x 17.5 (4WD) |
| Transmission |
|
Max Speed |
24 mph (39 kph)
|
|
Max Speed - Reverse |
16 mph (26 kph)
|
|
Number of Forward Gears |
4 |
|
Number of Reverse Gears |
3 |
|
Transmission Type |
Powershift |
