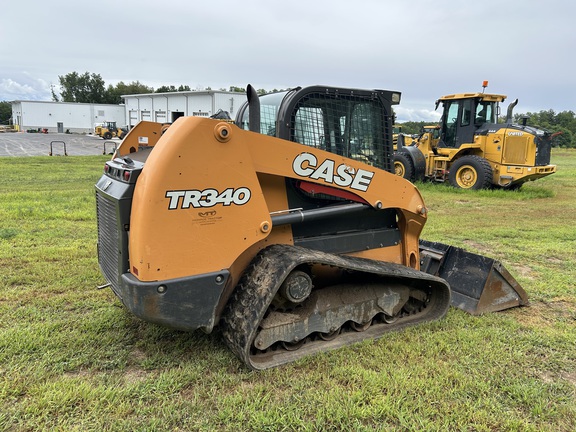

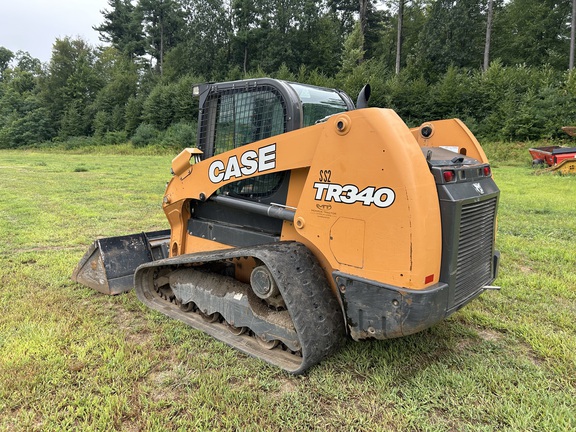

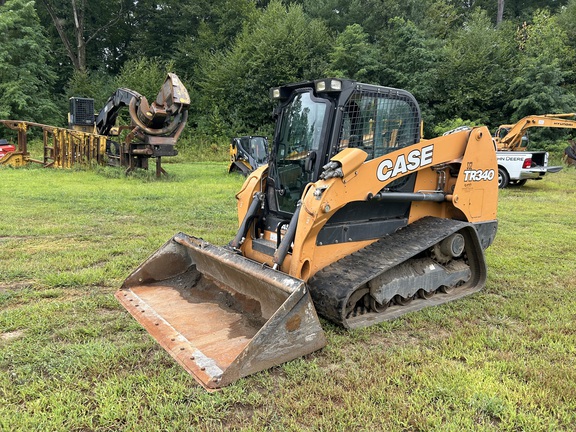

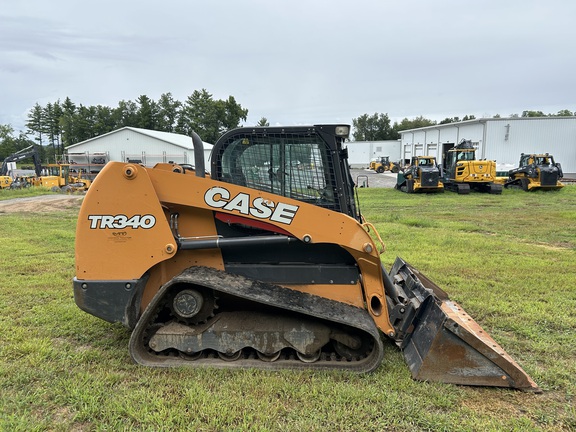

2017 Case TR340 For Sale in Clifton Park, NY

Name: 2017 Case TR340
Brand: Case
SKU: 74296830
Price: 26900 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $26,900.00 USD

Apply for Financing

United Construction & Forestry

United Construction & Forestry Dealer Info

United Construction & Forestry Website

Click here to email United Construction & Forestry.

Contact: Daniel Peabody

Click for Phone Number

Machine Info:

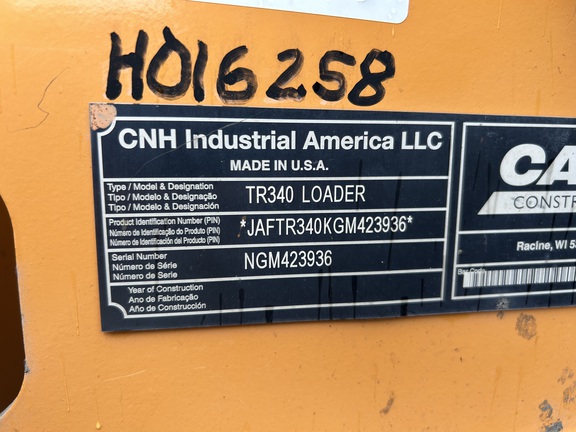

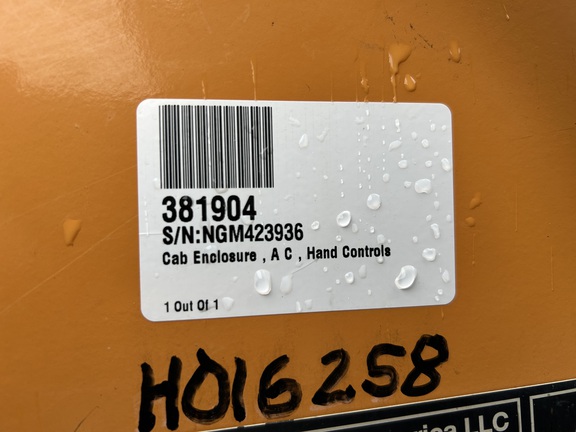

Serial Number:	NGM423936
Stock Number:	381904
Machine Location:	CLIFTON PARK, NY

Description:

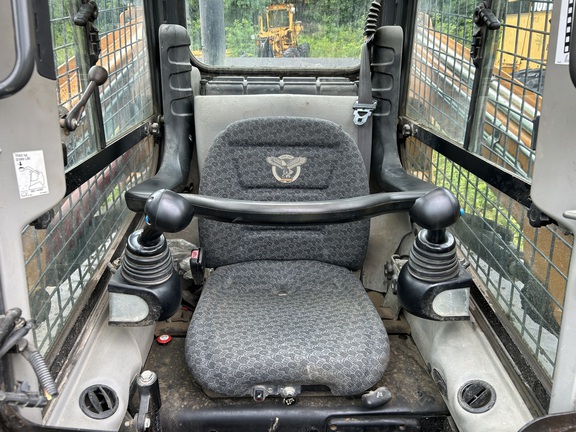

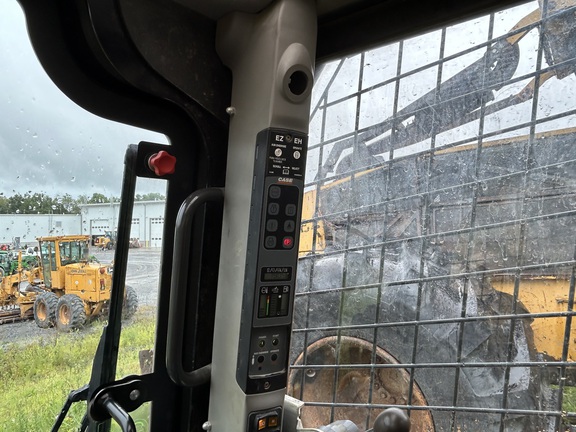

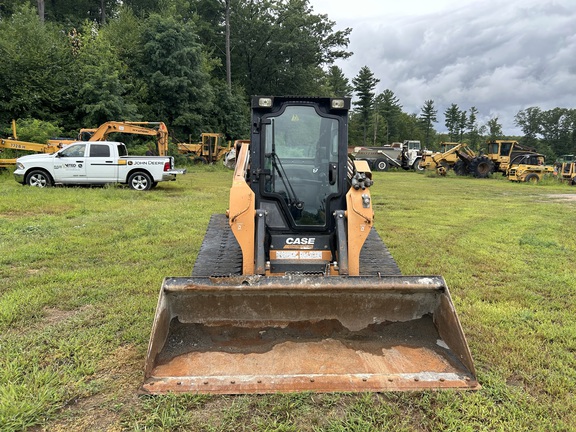

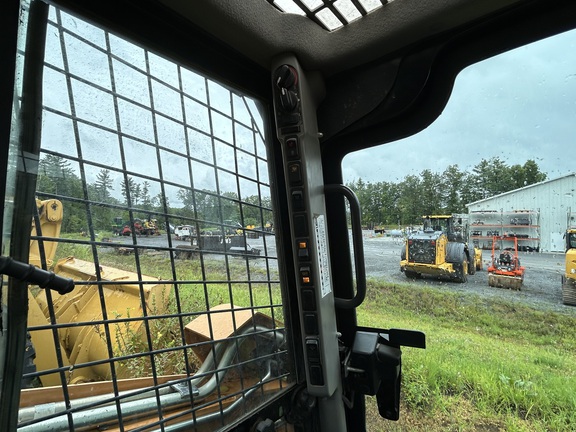

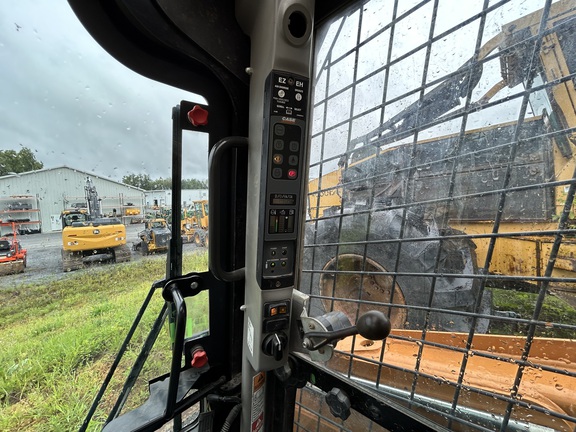

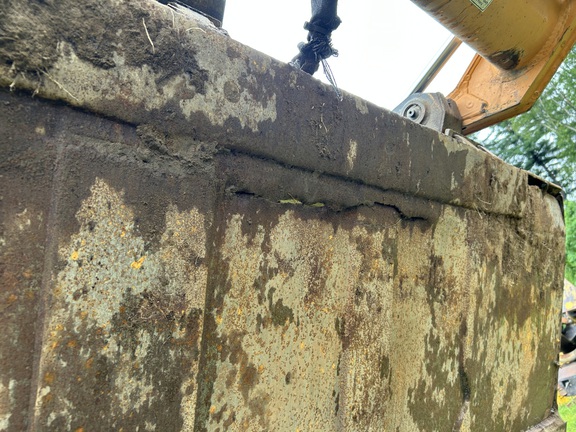

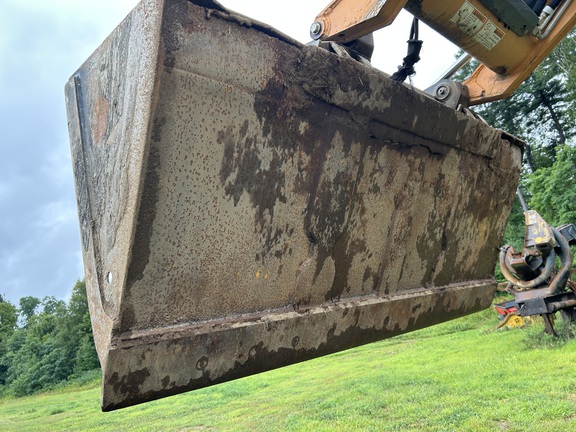

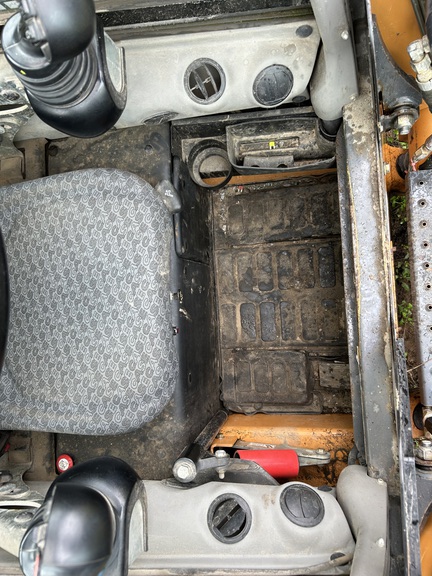

Cab Enclosure, A/C, Hand Controls, Hi-Flo; Aux Hydraulics; 2 Speed; Self-Leveling; Rubber Tracks; 84" Bucket

Machine Details:

General Specifications
Operators Station	Hi-Flo
Attachments	Aux Hydraulics
Powertrain	2 Speed
Booms	Self-Leveling

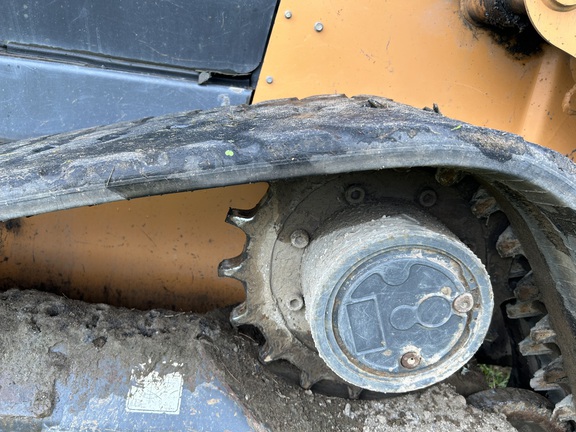

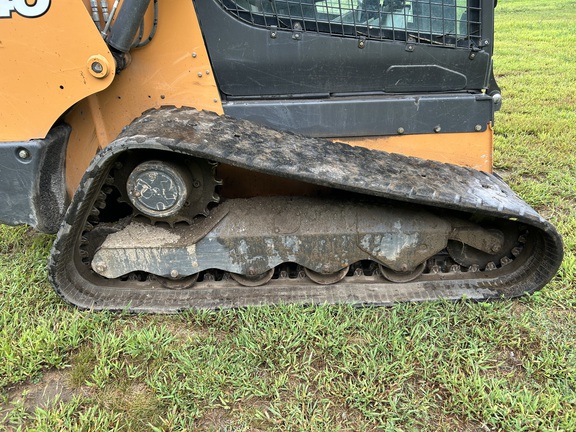

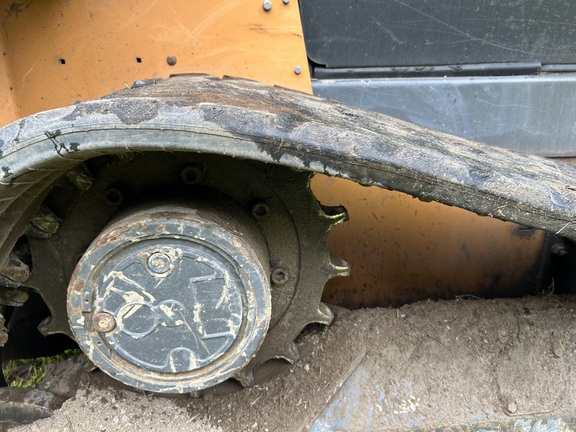

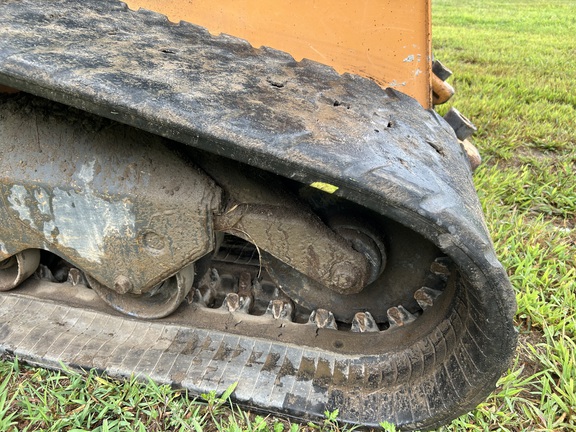

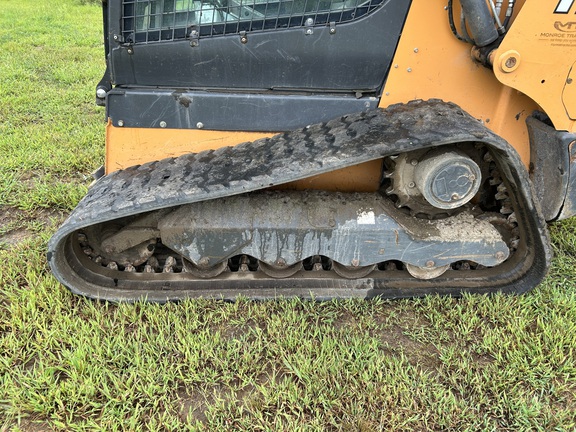

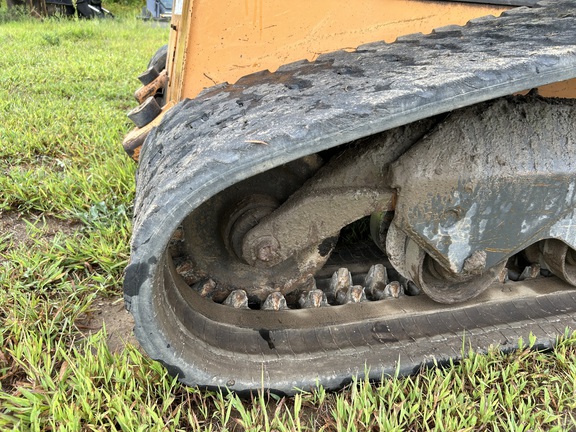

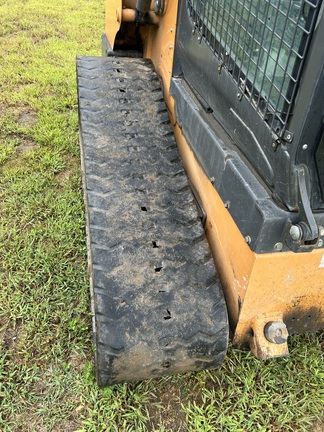

Tracks	Rubber Tracks
Buckets	General Purpose Bkt

From the manufacturer:

Supplied by HeavyEquipmentData.com →

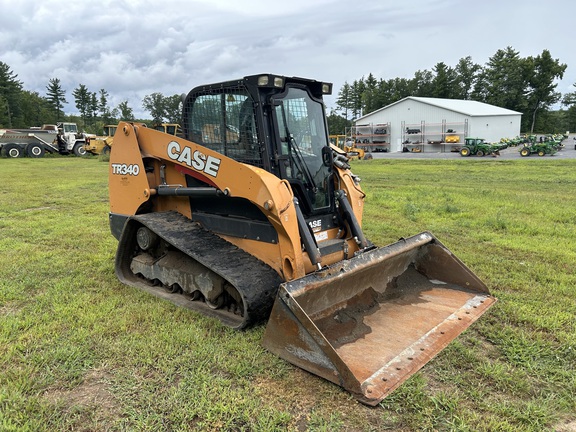

The Case TR340 is a versatile compact track loader designed for heavy-duty construction, landscaping, and agricultural tasks. Featuring a robust engine and advanced hydraulic system, the TR340 delivers high performance and excellent maneuverability on rough or uneven terrain. Its compact size allows for easy access in tight spaces while maintaining strong lifting capacity and stability. The operator cab offers enhanced visibility and ergonomic controls for improved productivity and comfort. Equipped with durable tracks, the Case TR340 ensures superior traction and minimal ground disturbance. This compact track loader is ideal for material handling, grading, excavation, and site preparation applications.

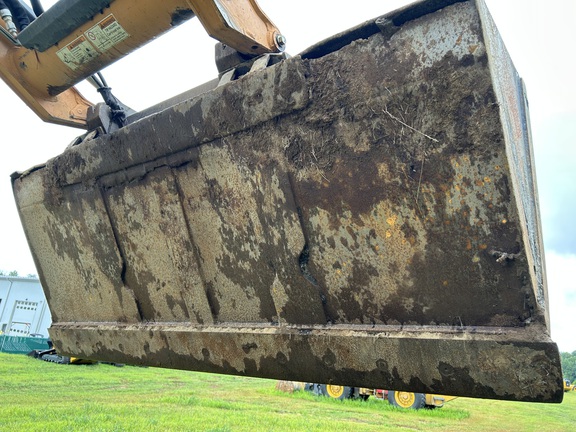

Bucket
Breakout Force	8,700 lbs (3,946 kg)
Bucket Width	7 ft (2 m)
Capacities
Engine oil with filter	2 gal (9 l)
Fuel Tank	26 gal (97 l)
Dimensions
Dump Height with Foundry/ Excavating Bucket	102 in (260 cm)
Ground Clearance	10 in (24 cm)
Height - Top of Cab	7 ft (2 m)
Height - Top of ROPS/FOPS	80 in (204 cm)
Height to Hinge Pin	127 in (321 cm)
Length - with Bucket	12 ft (4 m)
Overall Length with Foundry/ Excavating Bucket	144 in (364 cm)
Track Gauge	58 ft (18 m)

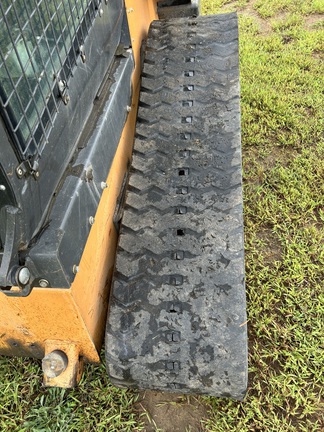

Track Width	18 in (45 cm)

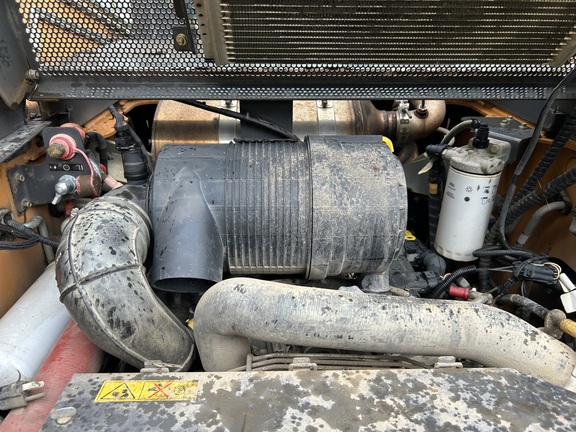

Engine
Alternator	160 amps
Aspiration	Turbo
Battery	12-volt low-maintenance
Bore	4 in (10 cm)
Displacement	207 cu in (3,392 cu cm)
Emissions compliance	Tier 4 Final Certified (CEGR DOC SCR)
Engine Model	FPT F5B FL413 E B002
Fuel	2 Diesel
Gross Power	90 hp (67 kw)
Net Power	84 hp (63 kw)
Number of Cylinders	4
Peak Torque	282 lbs ft (382 nm)
Power Measured @	2,500 rpm

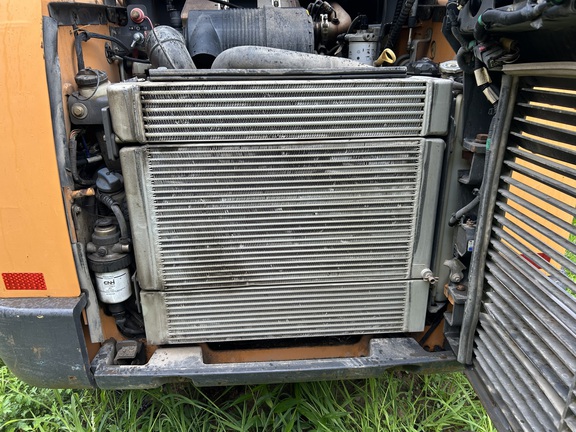

Radiator Core type	Aluminum bar and plate
Starter	4 hp (3 kw)
Stroke	4 in (11 cm)
General Specifications
ENGINE POWER HP (KW) (Since 2017)	90 (67)
ENGINE POWER HP (KW) (2019)	90 (67)
ENGINE POWER HP (KW) (2020)	90 (67)
MODEL (Since 2017)	TR340
MODEL (2019)	TR340
MODEL (2020)	TR340
OPERATING LOAD LBS. (KG) (Since 2017)	3,400 (1,542)
OPERATING LOAD LBS. (KG) (Since 2019)	2,380 (1,079)
OPERATING WIDTH IN. (CM) (Since 2017)	76.0 (1.93)
OPERATING WIDTH IN. (CM) (2019)	76.0 (1.93)
OPERATING WIDTH IN. (CM) (2020)	76.0 (1.93)
RATED OPERATING CAPACITY LBS. (35%) (Since 2020)	2,380 (1,079)
Hydraulic System
Main relief pressure	3,046 psi
Pump Flow	24 gpm (92 lpm)
Pump Type	Gear
Loader
Breakout Force	8,700 lbs (3,946 kg)
Bucket Rollback at Max Height	100 degrees
Dump Clearance at Full Height Discharge	122 in (309 cm)
Dump Reach	25 in (63 cm)
High flow pump output	38 gpm (142 lpm)
Linkage Geometry	Radial
Operating Load	3,400 lbs (1,542 kg)
Operating Load Rating	2,380 lbs (1,080 kg)
Operating Width	76 in (193 cm)
Rollback - Ground Level	30 degrees
Standard hydraulic pump output	24 gpm (92 lpm)
Straight Tipping Load	6,799 lbs (3,084 kg)
Tipping Angle	6,800 degrees
Operating Specifications
Lift Configuration	Radial
Operating Weight	10,000 lbs (4,536 kg)
