Equipment ↠ Case ↠ Crawler Dozers ↠ 2025 Case 1150M

2025 Case 1150M For Sale in Miami, FL

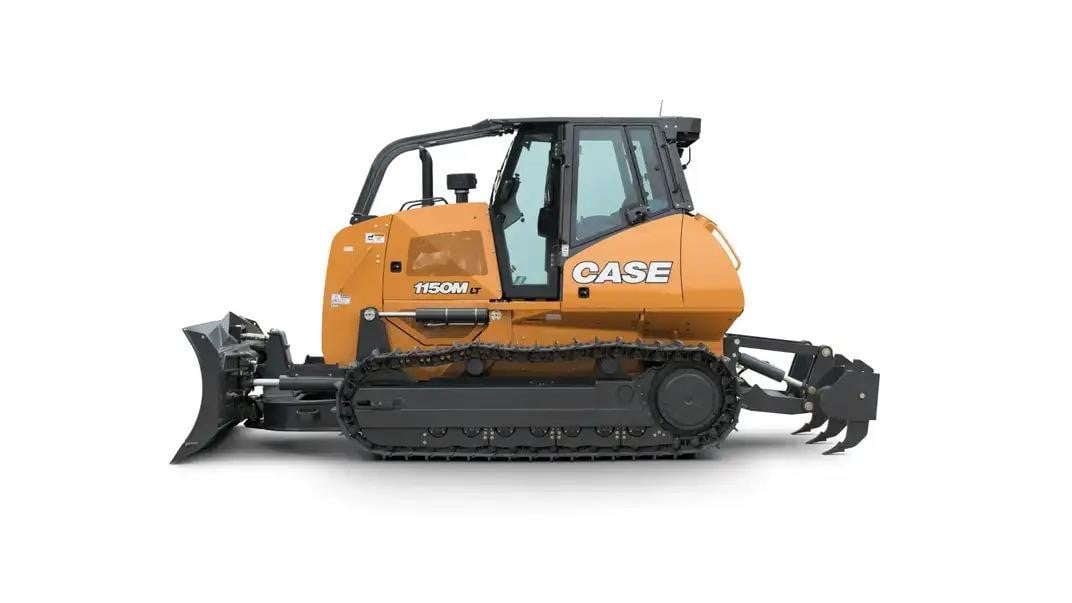

Name: 2025 Case 1150M
Brand: Case
SKU: 85087085
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: Call for Price

Case Power & Equipment

Case Power & Equipment Dealer Info

Case Power & Equipment Website

Click here to email Case Power & Equipment.

Click for Phone Number

Machine Info:

Stock Number:	HBZN1150ESAC02330
Machine Location:	MIAMI, FL
More Information:	https://casepowered.com/inventory/dozers+-+crawler/2025-case-1150m-fort+myers-fl-69835f10cf93bfc64c0f6758/

Description:

2025 CASE, 1150M Dozers - Crawler, *** NEW MACHINE*** Call for Pricing 1150M The CASE 1150M is loaded with control and power. Because control and power equals productivity, and productivity equals money. It starts with industry-leading drawbar pull – 48,000 lbs. of dirt-relocating power. The engine features maintenance-free Tier 4 Final emissions. Coupled with optional machine control and customized operation settings, you can cut fuel costs, save time and take on more jobs. The visibility is unmatched, giving you the ability to grade close to buildings. And with easy access to maintenance points, you can maximize your uptime and grade a better bottom line.

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case 1150M is a heavy-duty crawler dozer designed for earthmoving and construction applications. Equipped with a powerful engine and advanced hydraulic systems, the 1150M delivers reliable performance in grading, pushing, and leveling tasks. Its robust undercarriage and durable tracks provide excellent traction and stability on rough terrain. The operator cabin offers ergonomic controls and enhanced visibility for improved precision and safety. Ideal for mining, forestry, and large-scale construction projects, the Case 1150M crawler dozer combines efficiency with durability. This model supports various blade configurations, making it versatile for multiple job site requirements.

Blades
Blade Capacity	42 cu yd (32 cu m)
Blade Height	44 in (112 cm)
Blade Type	PAT
Blade Width	11 ft (3 m)
Capacities
Engine oil with filter	4 gal (17 l)
Dimensions
Blade depth below ground	20 in (52 cm)
Blade lift above ground	37 in (93 cm)
Cast reach	16 in (41 cm)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	116 in (296 cm)
Height - Top of ROPS/FOPS	116 in (296 cm)
Length of Track on Ground	9 ft (3 m)
Width Over Tracks	8 ft (2 m)
Drive System
Final drive	2 helical gear
Max drawbar pull	47,997 lbs (21,771 kg)
Parking brakes	Heavy-duty spring-applied
Electrical System
Alternator	120 amp
Batteries	2 volts
Battery	12-volt low-maintenance
Engine
Air intake	Cross-Flow
Cooling system	Liquid
Diesel exhaust fluid (DEF) tank capacity	14 gal (52 l)
Displacement	409 cu in (6,701 cu cm)
Emission Tier Level	Tier4
Engine Model	FPT F4HFE613F
Fan	26.0 in(660mm)Diameter
Fuel	2 Diesel
Fuel injection	Common rail
Fuel tank	85 gal (322 l)
Gross Power	138 hp (103 kw)
Net Power	127 hp (95 kw)
Number of Cylinders	6
Power Measured @	2,000 rpm
Pump operating angles - Fore and aft	45 degrees
Pump operating angles -Side-to-side	35 degrees
Transmission Type	Hydrostatic
Hydraulic System
Lift cylinder - Rod diameter	2 in (5 cm)
Lift cylinder - Stroke	19 in (49 cm)
Lift cylinder(s)	2
Lift cylinder-Bore diameter	4 in (11 cm)
Pump type	Variable Displacement Piston
Operating Specifications
center rock guard	296 lbs (134 kg)
Long track	31,134 lbs (14,122 kg)
Low ground pressure	32,637 lbs (14,804 kg)
Operating Weight	32,637 lbs (14,804 kg)
Sweeps	139 lbs (63 kg)
Winch	2,447 lbs (1,110 kg)
Performance
Pump Flow	35 gpm (132 lpm)
Standard Blade
Blade Angle (both directions)	25 degrees
Transmission
Max Speed - Forward	6 mph (9 kph)
Max Speed - Reverse	6 mph (9 kph)
Undercarriage
Number of bottom rollers per side	7
Number of Shoes per Side	43
Number of Upper Rollers	2
Track Gauge	0 ft (0 m)
Width of Shoes	30 in (76 cm)
Weights
Cab	560 lbs (254 kg)
counterweight	948 lbs (430 kg)
Ripper weight	2,377 lbs (1,078 kg)
