2000 Case 850H LGP For Sale in Fort Worth, Tx

Name: 2000 Case 850H LGP
Brand: Case
SKU: 87610433
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-13 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

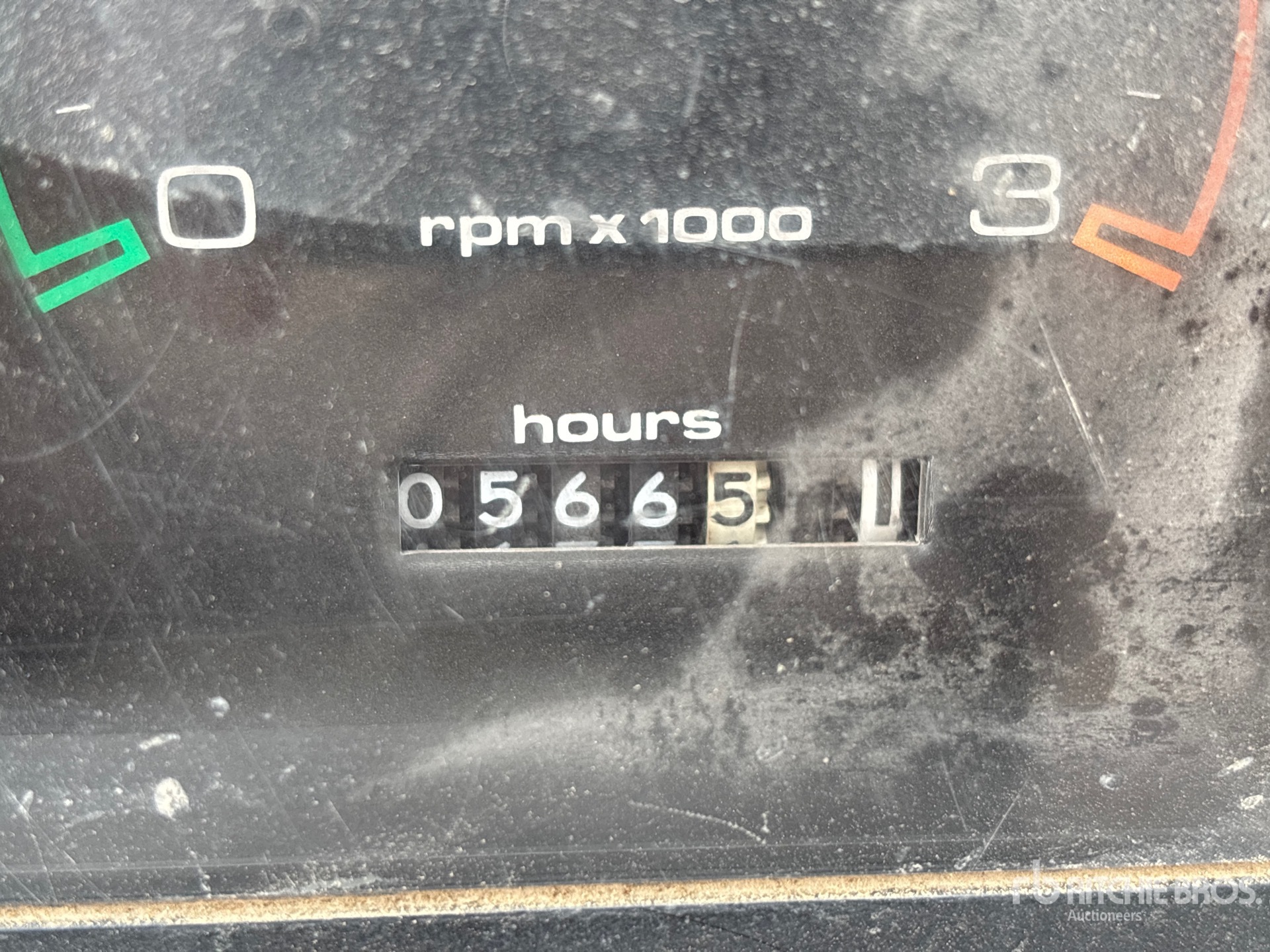

Hours:	566

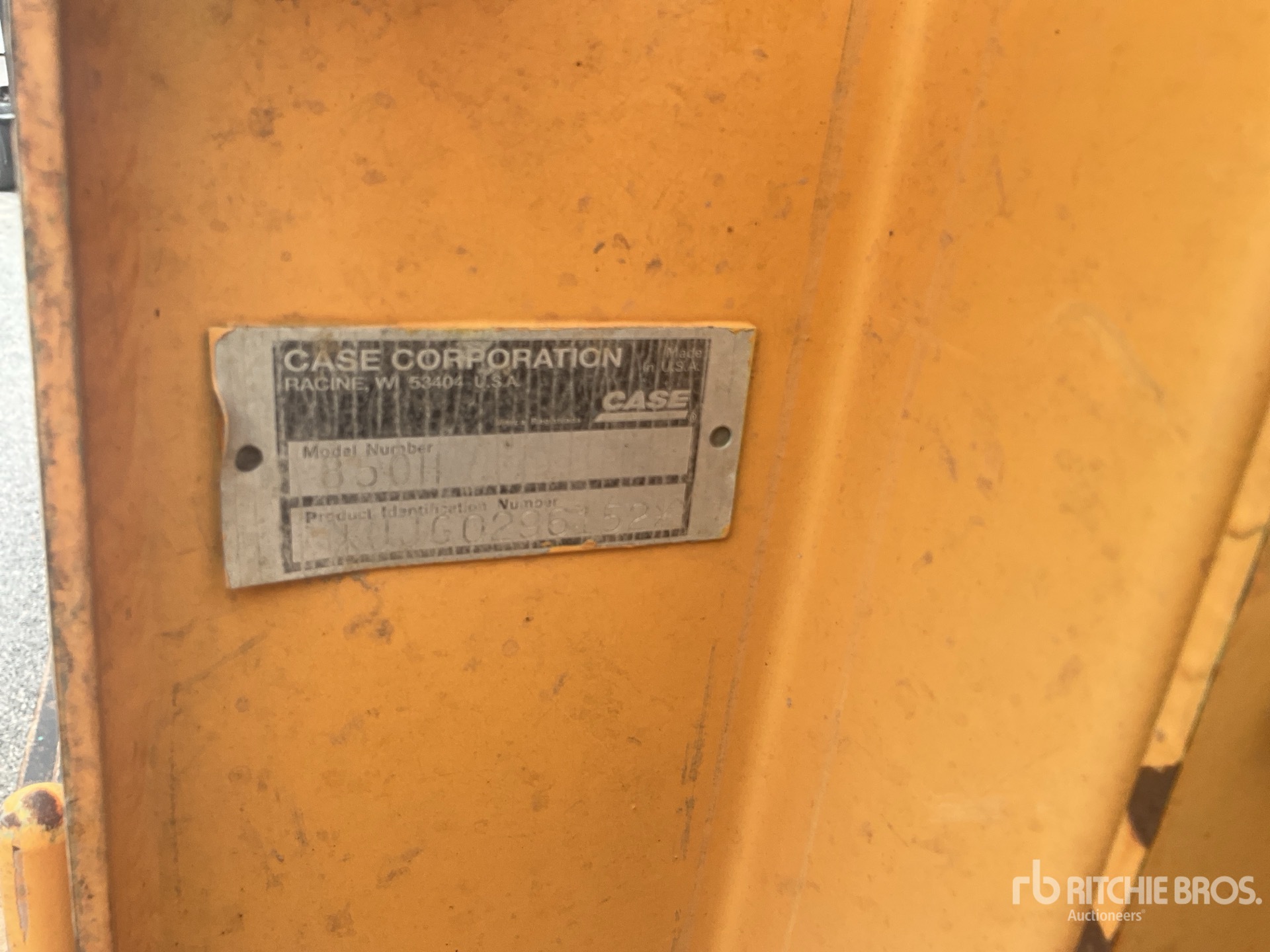

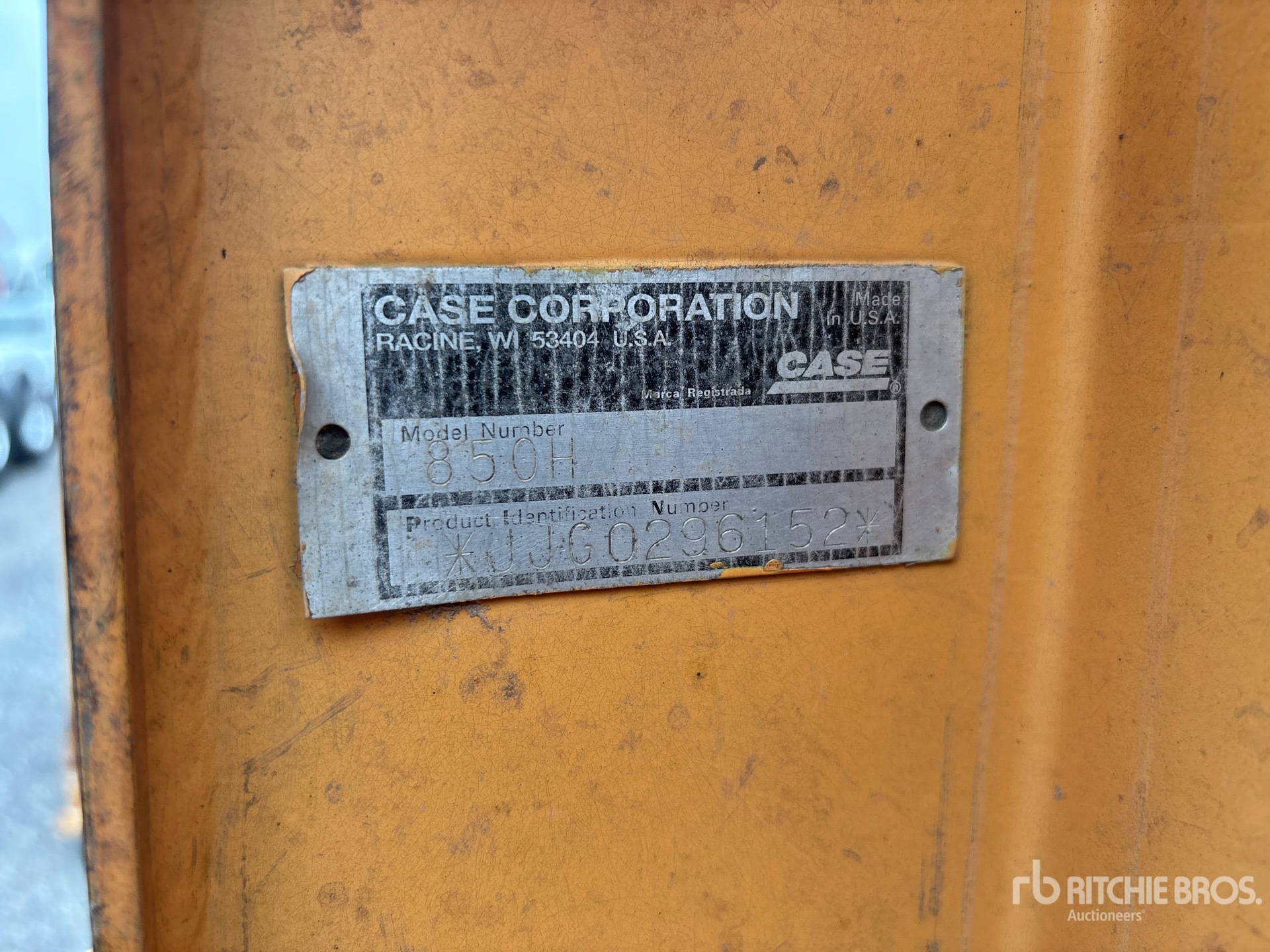

Serial Number:	JJG0296152
Machine Location:	FORT WORTH, TX

Description:

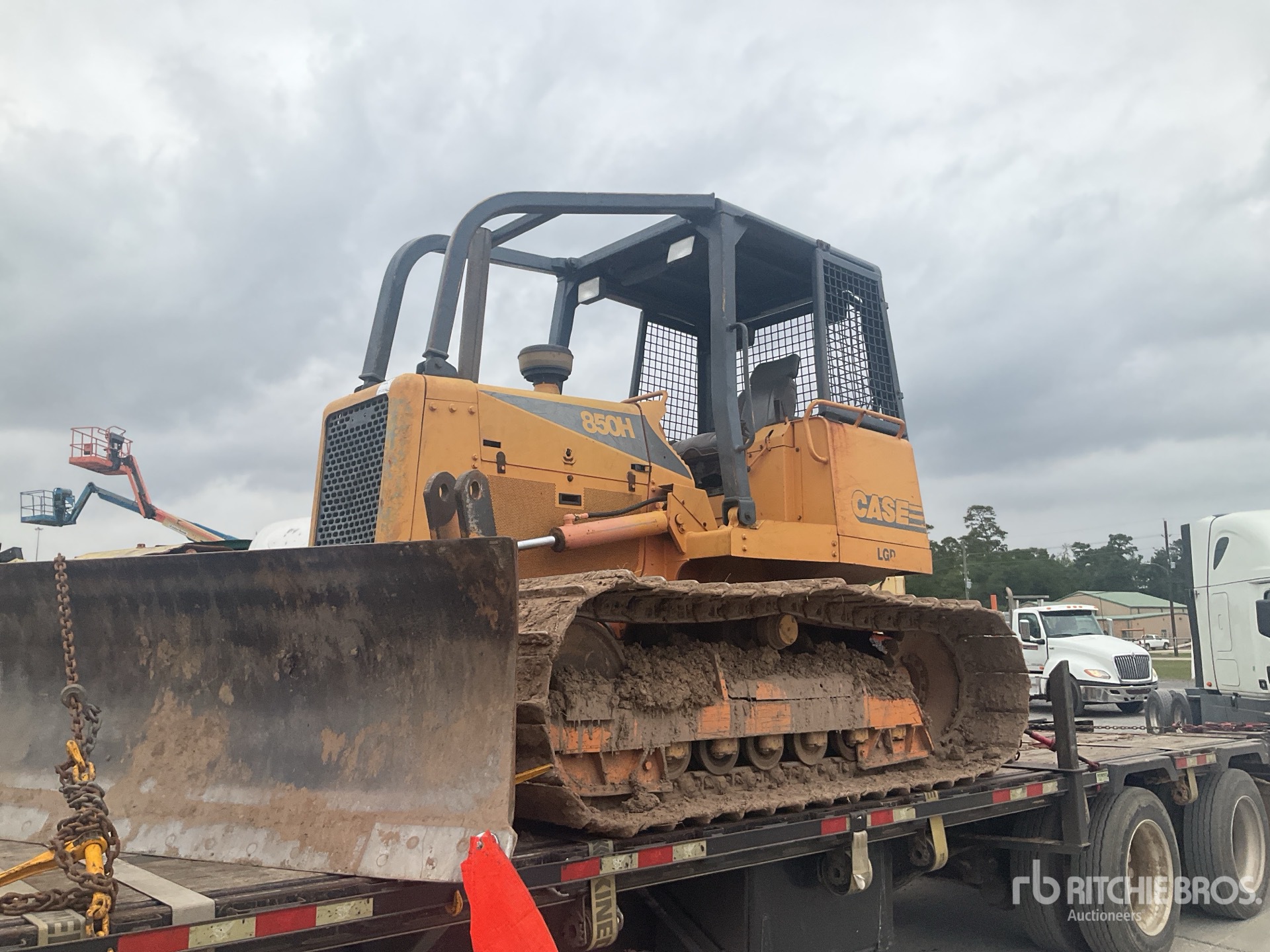

Open Operator Station, Sweeps, 124 in Wide PAT Blade, 28 in Single Grouser Track Shoes Closing Time: 2026-05-13 10:54:02 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	7 ft (2 m)
Length w/ Blade	14 ft (4 m)
Width Over Tracks	8 ft (2 m)
Engine
Displacement	359 cu in (5,883 cu cm)
Engine Model	6T-590
Gross Power	97 hp (72 kw)
Max Torque	286 lbs ft (388 nm)
Net Power	91 hp (68 kw)
Number of Cylinders	6
Power Measured @	2,200 rpm
Torque Measured @	1,200 rpm
Hydraulic System
Pump Flow Capacity	24 gpm (90 lpm)
Relief Valve Pressure	2,200 psi
Operating Specifications
Alternator Supplied Amperage	65 amps
Cooling System Fluid Capacity	5 gal (19 l)
Engine Oil Capacity	4 gal (16 l)
Final Drives Fluid Capacity	2 gal (7 l)
Fuel Capacity	47 gal (178 l)
Hydraulic Fluid Capacity	14 gal (53 l)
Operating Voltage	12 volts
Operating Weight	19,209 lbs (8,713 kg)
Standard Blade
Blade Angle (both directions)	25 degrees
Capacity	3 cu yd (2 cu m)
Height	36 in (91 cm)
Width	10 ft (3 m)
Transmission
Max Speed - Forward	6 mph (9 kph)
Max Speed - Reverse	6 mph (10 kph)
Number of Forward Gears	4
Number of Reverse Gears	4
Transmission Type	Case constant-mesh modulated
Undercarriage
Ground Contact Area	4,911 cu in (80,477 cu cm)
Ground Pressure	4 psi
Number of Carrier Rollers per Side	1
Number of Shoes per Side	38
Number of Track Rollers per Side	6
Standard Shoe Size	28 in (71 cm)
Track Gauge	6 ft (2 m)
Track Pitch	7 in (17 cm)
