2023 Case 850M For Sale in Atlanta, Ga

Name: 2023 Case 850M
Brand: Case
SKU: 86593066
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-27 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

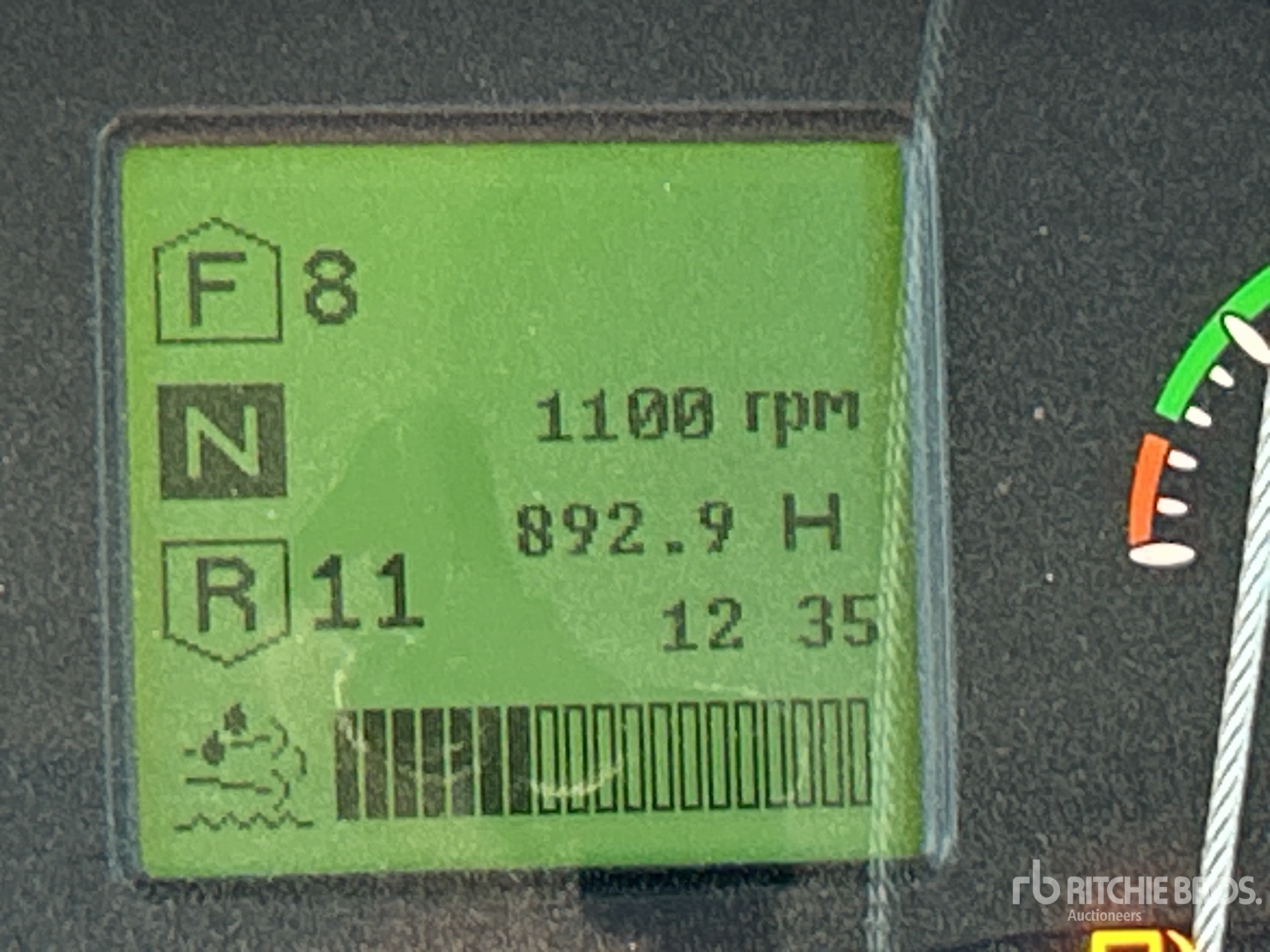

Hours:	892

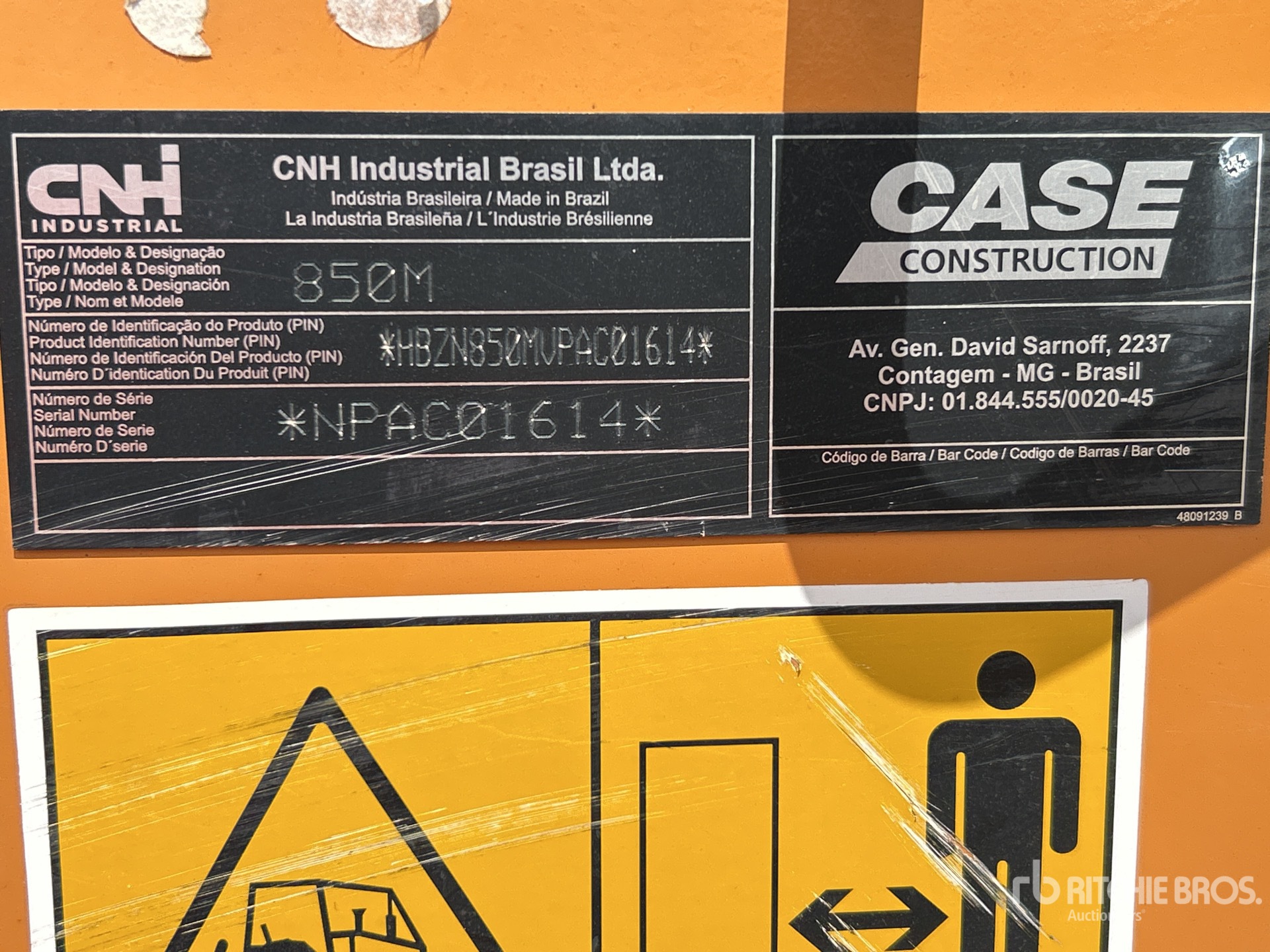

Serial Number:	HBZN850MVPAC01614
Machine Location:	ATLANTA, GA

Description:

Located in Lane 10 Spot 25, Enclosed Cab, Air Conditioner, Requires Diesel Exhaust Fluid, 123 in Wide PAT Blade, 24 in Single Grouser Track Shoes, Drawbar Closing Time: 2026-05-27 09:33:18 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case 850M is a versatile crawler dozer designed for heavy-duty earthmoving and grading tasks. Equipped with a powerful engine and advanced hydraulic system, the 850M delivers efficient performance in construction, mining, and land clearing applications. Its robust undercarriage and durable blade provide excellent traction and material handling capabilities on rough terrain. The operator cabin offers enhanced visibility and ergonomic controls for improved productivity and comfort during long work hours. The Case 850M crawler dozer is engineered for reliability, ease of maintenance, and fuel efficiency, making it a preferred choice for contractors and heavy equipment operators requiring dependable dozing power.

Blades
Blade Capacity	42 cu yd (32 cu m)
Blade Height	44 in (112 cm)
Blade Type	PAT
Blade Width	11 ft (3 m)
Capacities
Engine oil with filter	4 gal (17 l)
Dimensions
Blade depth below ground	19 in (49 cm)
Blade lift above ground	34 in (87 cm)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	116 in (296 cm)
Height - Top of ROPS/FOPS	116 in (296 cm)
Length of Track on Ground	9 ft (3 m)
Width Over Tracks	8 ft (2 m)
Drive System
Final drive	2 helical gear
Max drawbar pull	47,997 lbs (21,771 kg)
Parking brakes	Heavy-duty spring-applied
Electrical System
Alternator	120 amp
Batteries	2 volts
Battery	12-volt low-maintenance
Engine
Air intake	Cross-Flow
Cooling system	Liquid
Diesel exhaust fluid (DEF) tank capacity	14 gal (52 l)
Displacement	409 cu in (6,701 cu cm)
Emission Tier Level	Tier4
Engine Model	FPT F4HFE613F
Fan	26.0 in(660mm)Diameter
Fuel	2 Diesel
Fuel injection	Common rai
Fuel tank	85 gal (322 l)
Gross Power	138 hp (103 kw)
Net Power	127 hp (95 kw)
Number of Cylinders	6
Power Measured @	2,000 rpm
Pump operating angles - Fore and aft	45 degrees
Pump operating angles -Side-to-side	35 degrees
Transmission Type	Hydrostatic
Hydraulic System
Lift cylinder - Rod diameter	2 in (5 cm)
Lift cylinder - Stroke	19 in (49 cm)
Lift cylinder(s)	2
Lift cylinder-Bore diameter	4 in (11 cm)
Pump type	Variable Displacement Piston
Operating Specifications
center rock guard	296 lbs (134 kg)
Long track	31,134 lbs (14,122 kg)
Low ground pressure	32,637 lbs (14,804 kg)
Operating Weight	32,637 lbs (14,804 kg)
Sweeps	139 lbs (63 kg)
Winch	2,447 lbs (1,110 kg)
Performance
Pump Flow	35 gpm (132 lpm)
Standard Blade
Blade Angle (both directions)	25 degrees
Transmission
Max Speed - Forward	6 mph (9 kph)
Max Speed - Reverse	6 mph (9 kph)
Undercarriage
Number of bottom rollers per side	7
Number of Shoes per Side	43
Number of Upper Rollers	2
Track Gauge	0 ft (0 m)
Width of Shoes	30 in (76 cm)
Weights
Cab	560 lbs (254 kg)
counterweight	948 lbs (430 kg)
Ripper weight	2,377 lbs (1,078 kg)
