Equipment ↠ Case ↠ Excavators ↠ 1995 Case 9020B

1995 Case 9020B

Name: 1995 Case 9020B
Brand: Case
SKU: 87408161
Price: 1 USD
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-05-07 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

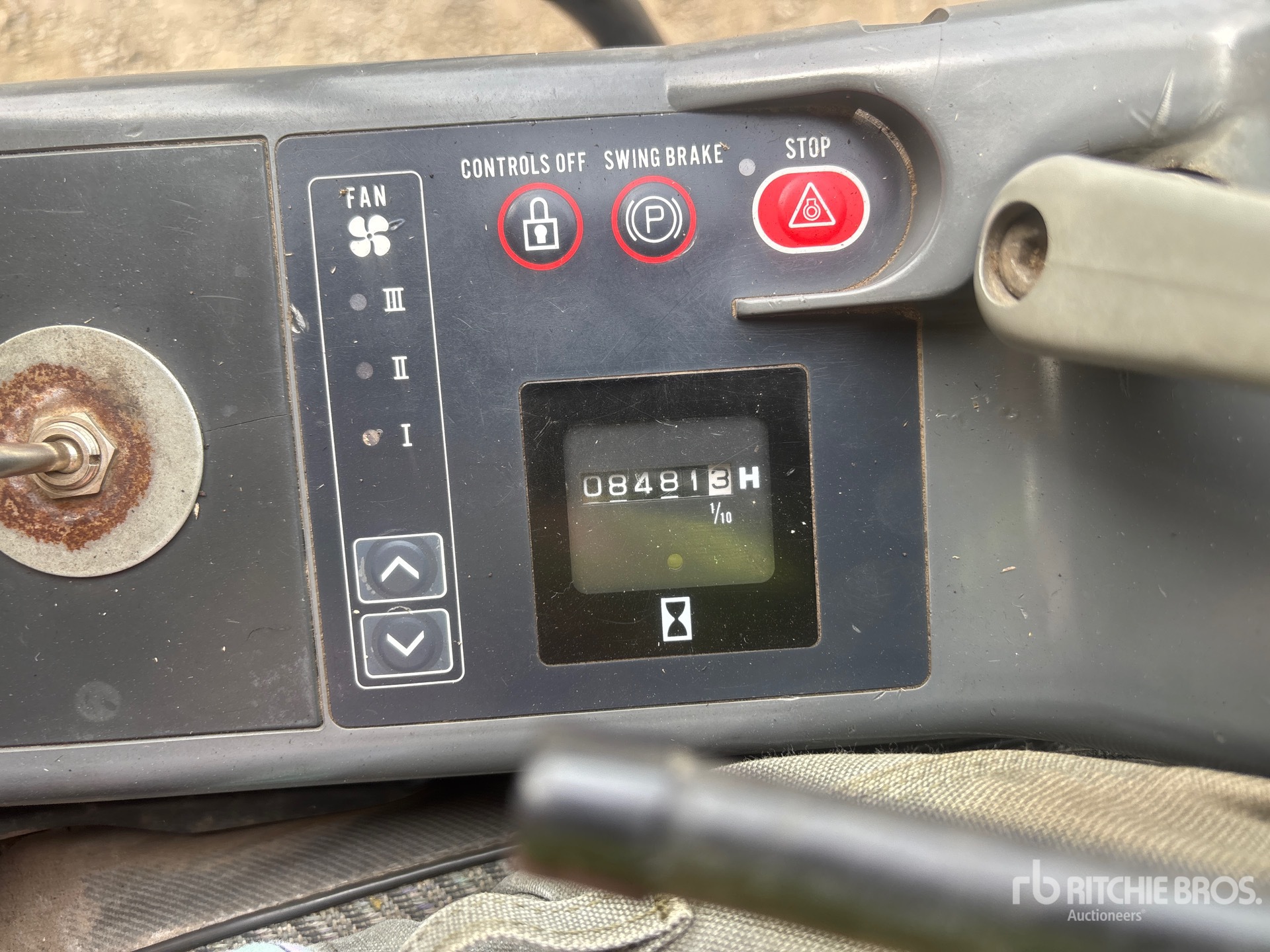

Hours:	8481

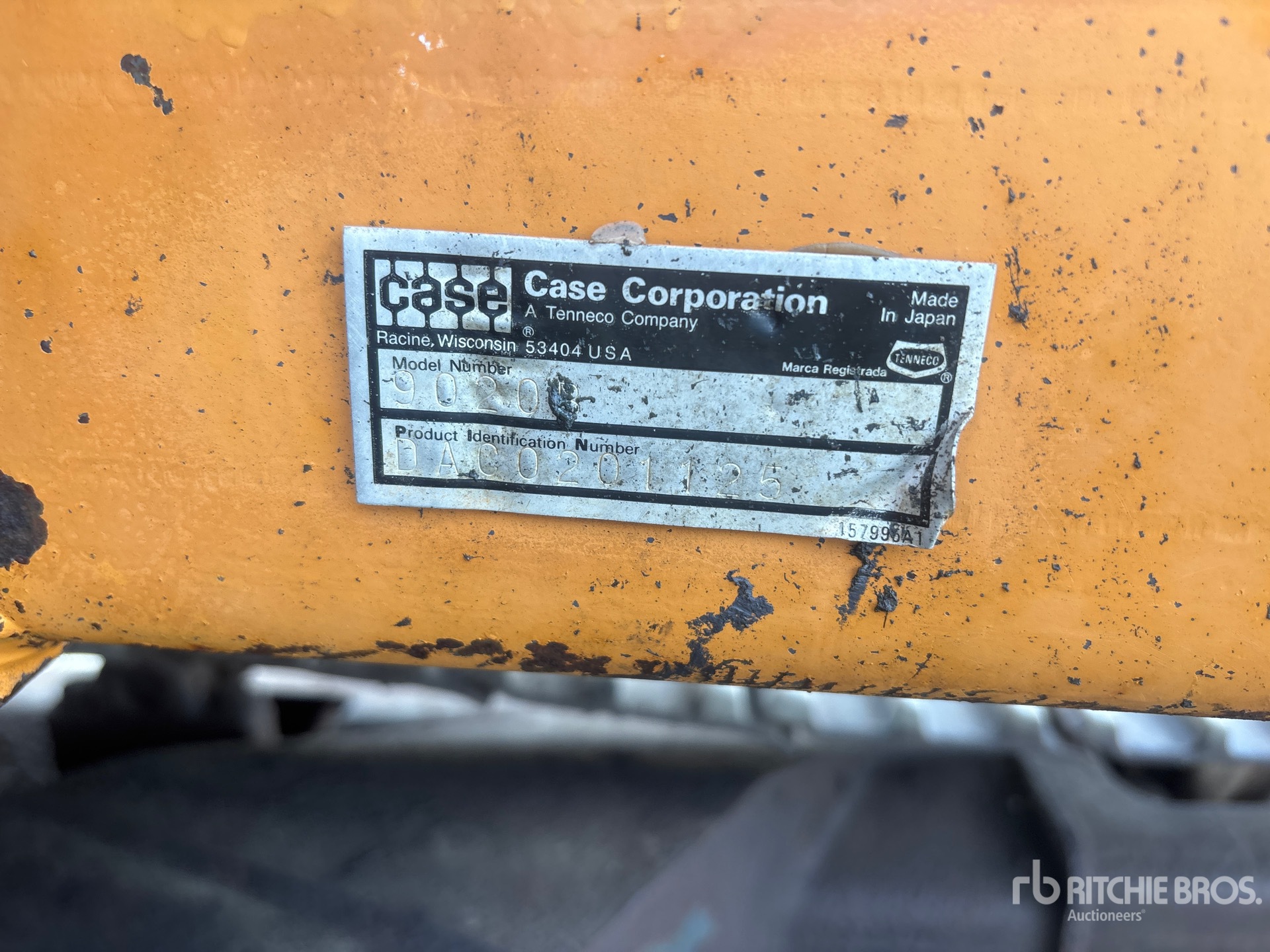

Serial Number:	DAC0201125
Machine Location:	CHEHALIS, WA

Description:

Located in Lane 3 Spot 27, 9 ft Stick, 25 in Triple Grouser Track Shoes, Hydraulic Quick Coupler, 36 in Cleanup Bucket, Hydraulic Thumb Closing Time: 2026-05-07 10:03:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	30 ft (9 m)
Max Digging Depth	20 ft (6 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	29 ft (9 m)
Max Vertical Wall Digging Depth	17 ft (5 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	27 ft (8 m)
Boom/Stick Excavator Option 2
Max Cutting Height	32 ft (10 m)
Max Digging Depth	21 ft (6 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	31 ft (9 m)
Max Vertical Wall Digging Depth	19 ft (6 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	28 ft (8 m)
Bucket
Maximum Bucket Capacity	1 cu yd (1 cu m)
Minimum Bucket Capacity	1 cu yd (0 cu m)
Reference Bucket Capacity	1 cu yd (1 cu m)
Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	10 ft (3 m)
Removal Counterweight Clearance	3 ft (1 m)
Tail Swing Radius	8 ft (2 m)
Width to Outside of Tracks	9 ft (3 m)
Engine
Aspiration	turbocharged and aftercooled
Displacement	239 cu in (3,917 cu cm)
Engine Model	4TA-390
Max Torque	325 lbs ft (441 nm)
Net Power	106 hp (79 kw)
Power Measured @	2,200 rpm
Torque Measured @	1,450 rpm
Operating Specifications
Alternator Supplied Amperage	45 amps
Cooling System Fluid Capacity	4 gal (16 l)
Engine Oil Capacity	3 gal (10 l)
Fuel Capacity	63 gal (238 l)
Hydraulic Pump Flow Capacity	37 gpm (138 lpm)
Hydraulic System Fluid Capacity	38 gal (142 l)
Hydraulic System Relief Valve Pressure	4,550 psi
Operating Voltage	24 volts
Operating Weight	35,274 lbs (16,000 kg)
Swing Drive Fluid Capacity	1 gal (5 l)
Swing Mechanism
Swing Speed	11 rpm
Undercarriage
Drawbar Pull	28,880 lbs (13,100 kg)
Ground Pressure	6 psi
Max Travel Speed	3 mph (5 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	43
Number of Track Rollers per Side	7
Shoe Size	24 in (60 cm)
