Equipment ↠ Case ↠ Excavators ↠ 2005 Case CX210

2005 Case CX210 For Sale in Edmonton, Ab

Name: 2005 Case CX210
Brand: Case
SKU: 87607998
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

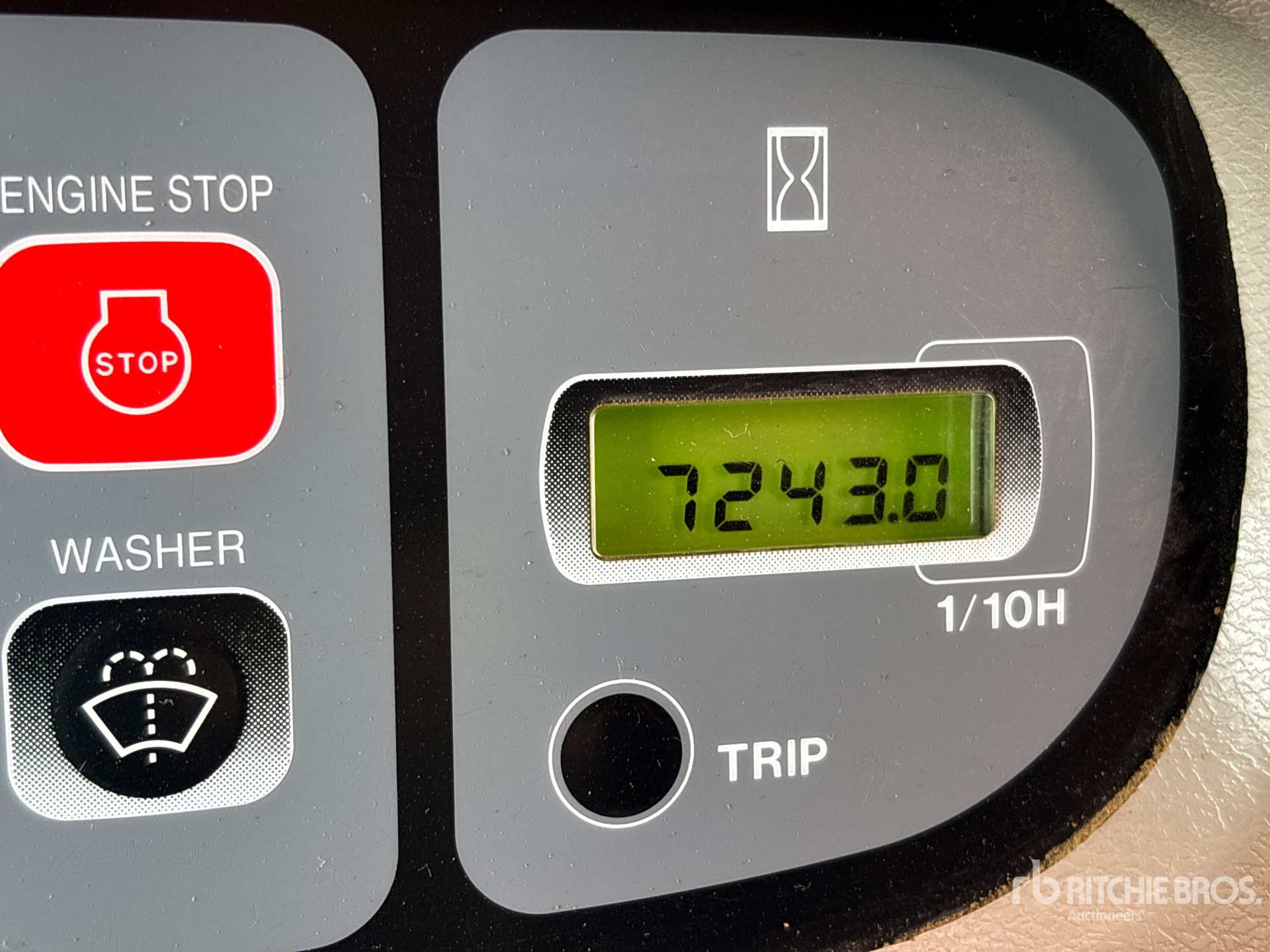

Hours:	7243

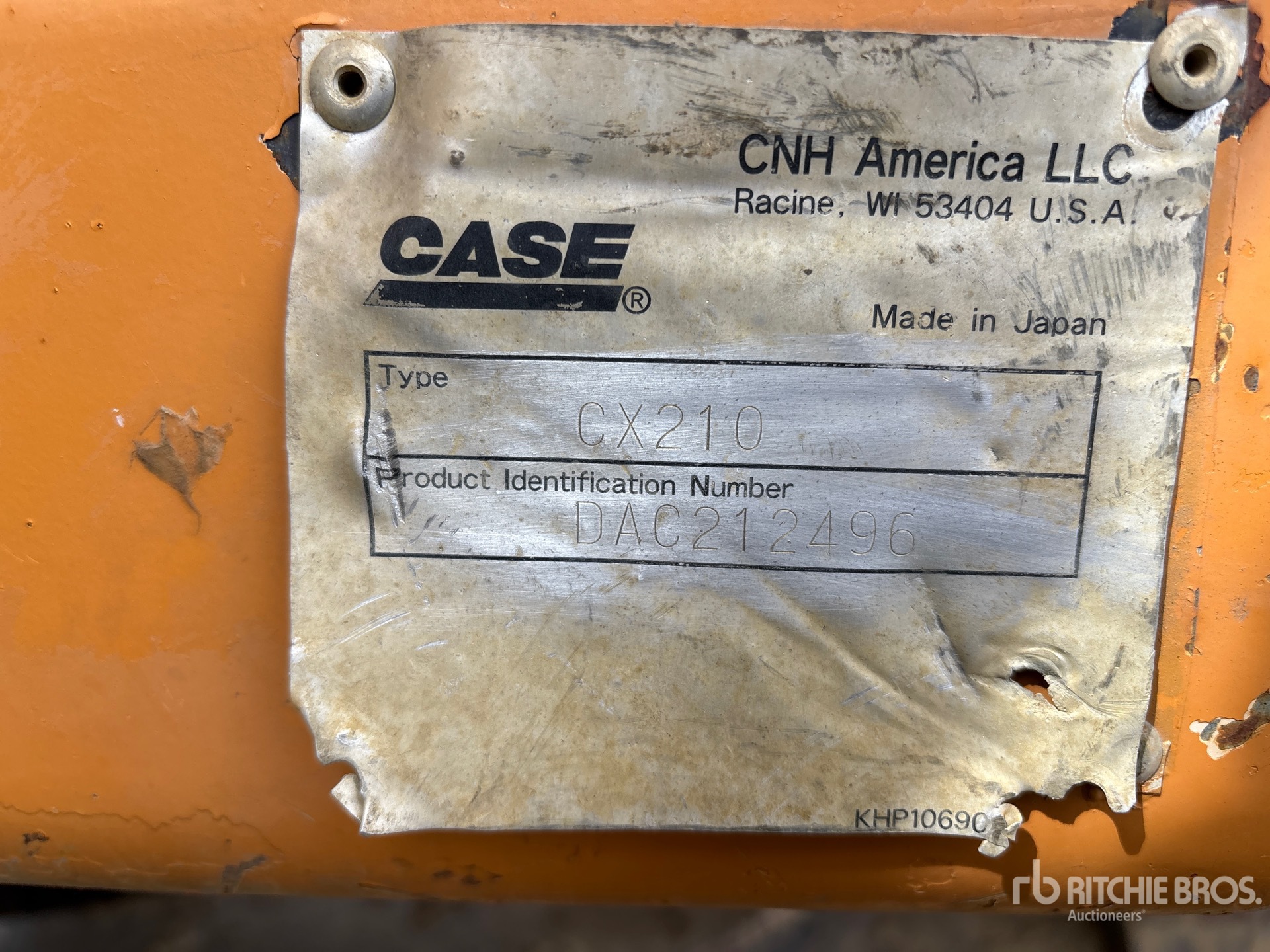

Serial Number:	DAC212496
Machine Location:	EDMONTON, AB

Description:

Air Conditioner, 2005 US EPA Label, Engine Coolant Heater, 9 ft 10 in Stick, Auxiliary Hydraulic Plumbing, 31.5 in Triple Grouser Track Shoes, Manual Quick Coupler, 60 in Cleanup Bucket Closing Time: 2026-05-11 02:29:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

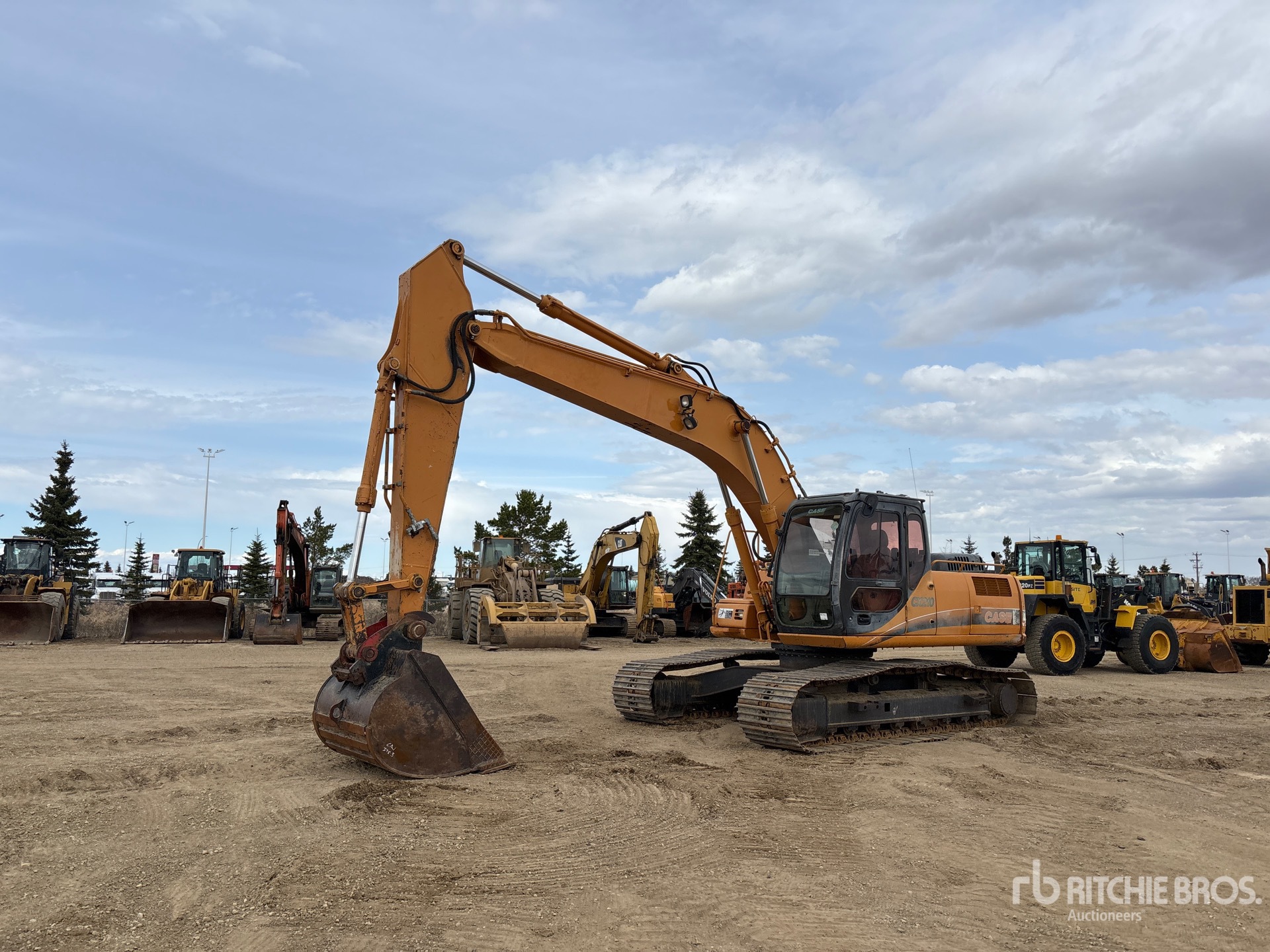

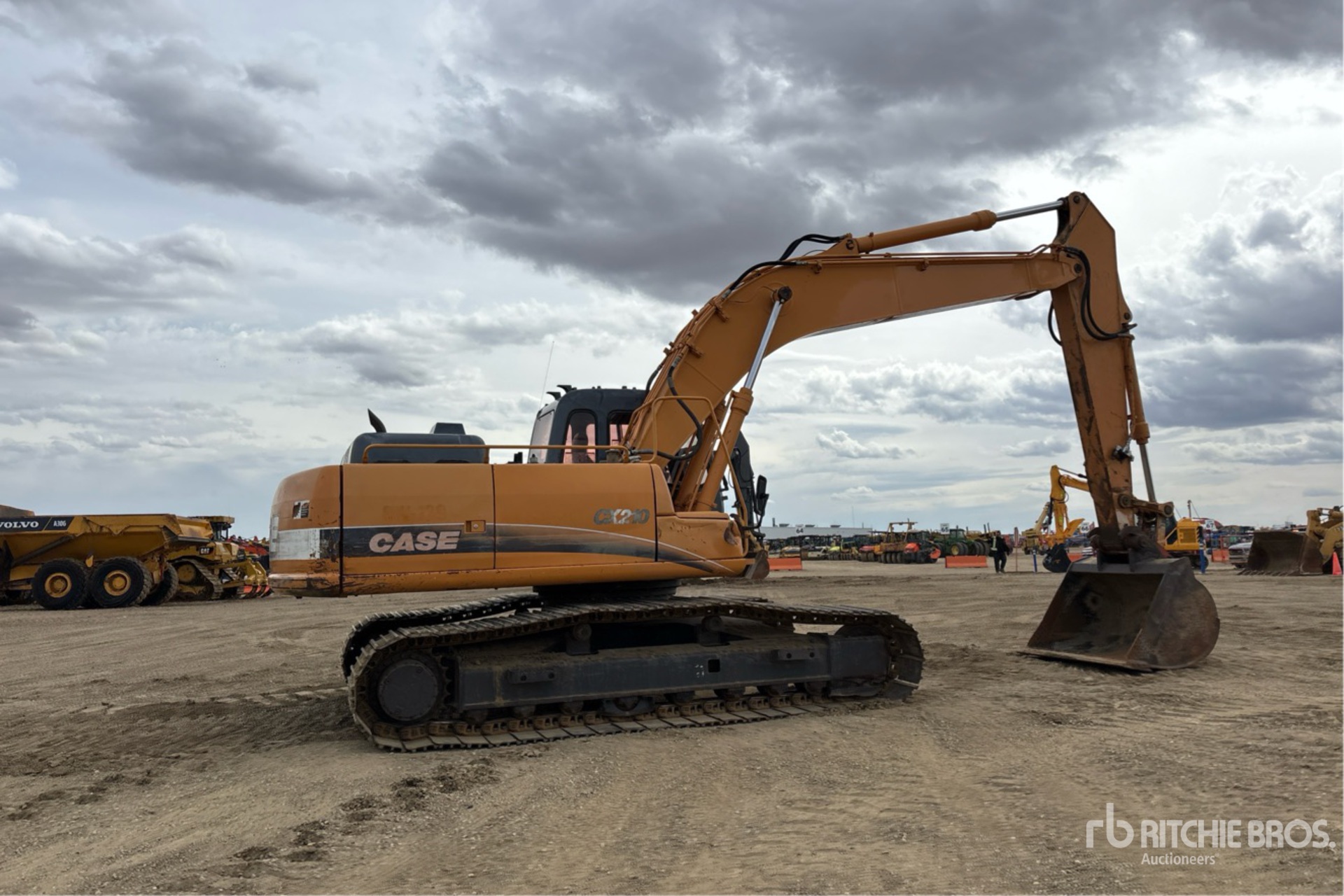

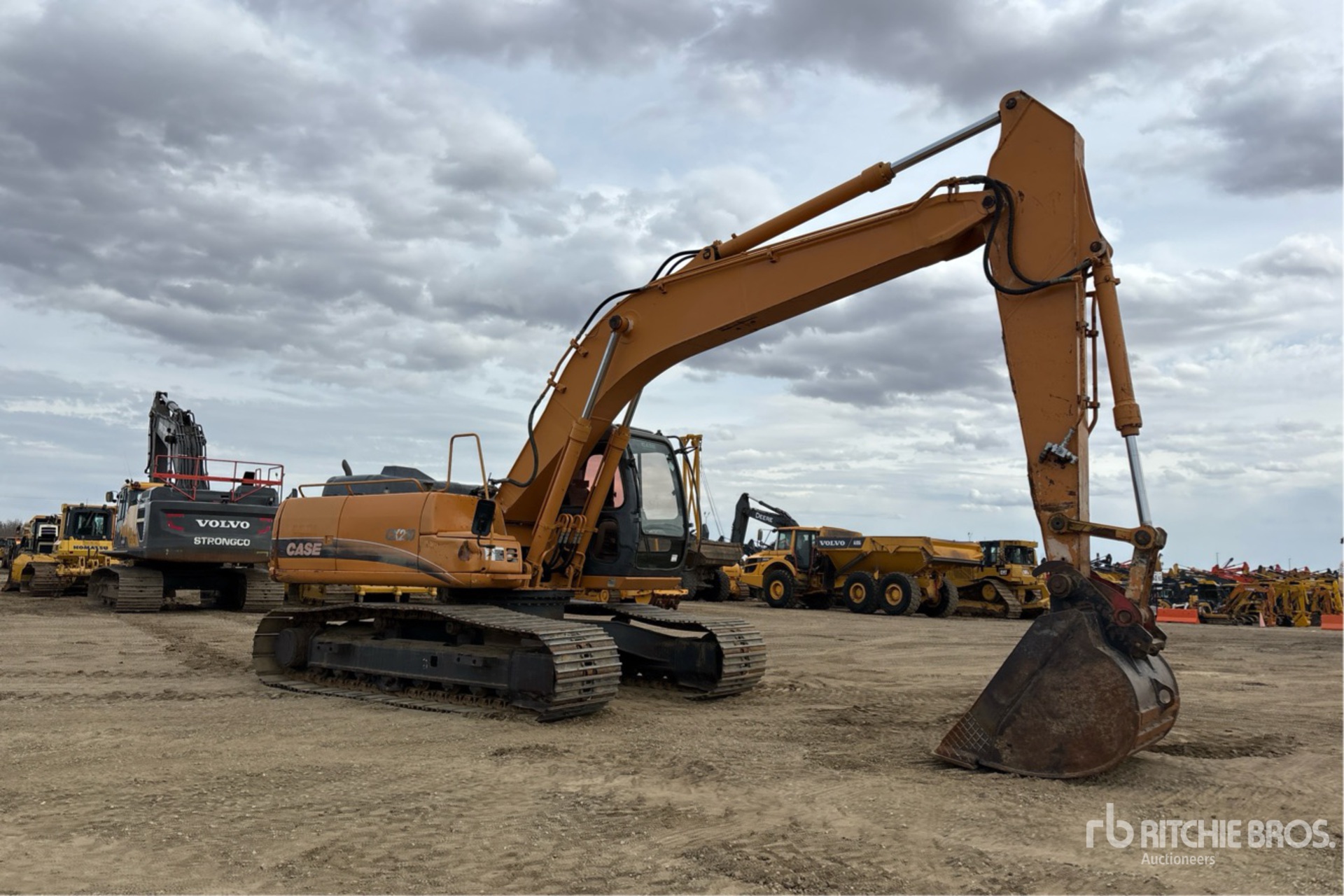

The Case CX210 is a hydraulic excavator in the Case Construction Equipment lineup, designed for general earthmoving, trenching, site preparation, and material handling. It is commonly used in construction, utility, and excavation applications where a mid-size machine is needed for digging performance and versatility. The CX210 typically features a diesel engine, hydraulic boom and arm system, enclosed operator cab, and undercarriage built for tracked mobility on uneven ground. As an excavator, it is suited to tasks requiring reach, breakout force, and controlled digging. Specifications may vary by model year, configuration, and regional market.

Boom/Stick Excavator Option 1
Max Cutting Height	32 ft (10 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	32 ft (10 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	31 ft (9 m)
Boom/Stick Excavator Option 2
Max Cutting Height	31 ft (9 m)
Max Digging Depth	20 ft (6 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	30 ft (9 m)
Max Vertical Wall Digging Depth	18 ft (6 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	31 ft (10 m)
Bucket
Maximum Bucket Capacity	2 cu yd (1 cu m)
Minimum Bucket Capacity	1 cu yd (1 cu m)
Reference Bucket Capacity	1 cu yd (1 cu m)
Dimensions
Digging Depth	22 ft (7 m)
Digging Reach	22 ft (7 m)
Ground Clearance	2 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	12 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	9 ft (3 m)
Width to Outside of Tracks	11 ft (3 m)
Engine
Aspiration	Turbocharged
Displacement	359 cu in (5,883 cu cm)
Engine Model	6TAA-5904
Gross Power	153 hp (114 kw)
Max Torque	450 lbs ft (610 nm)
Net Power	147 hp (110 kw)
Power Measured @	1,950 rpm
Torque Measured @	1,400 rpm
Operating Specifications
Alternator Supplied Amperage	45 amps
Cooling System Fluid Capacity	7 gal (27 l)
Engine Oil Capacity	6 gal (24 l)
Fuel Capacity	90 gal (340 l)
Hydraulic Pump Flow Capacity	53 gpm (201 lpm)
Hydraulic System Fluid Capacity	55 gal (206 l)
Hydraulic System Relief Valve Pressure	4,975 psi
Operating Voltage	24 volts
Operating Weight	44,002 lbs (19,959 kg)
Swing Drive Fluid Capacity	1 gal (5 l)
Swing Mechanism
Swing Speed	12 rpm
Undercarriage
Drawbar Pull	41,140 lbs (18,661 kg)
Ground Pressure	5 psi
Max Travel Speed	3 mph (5 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	49
Number of Track Rollers per Side	8
Shoe Size	32 in (80 cm)
