Equipment ↠ Case ↠ Excavators ↠ 2003 Case CX 330

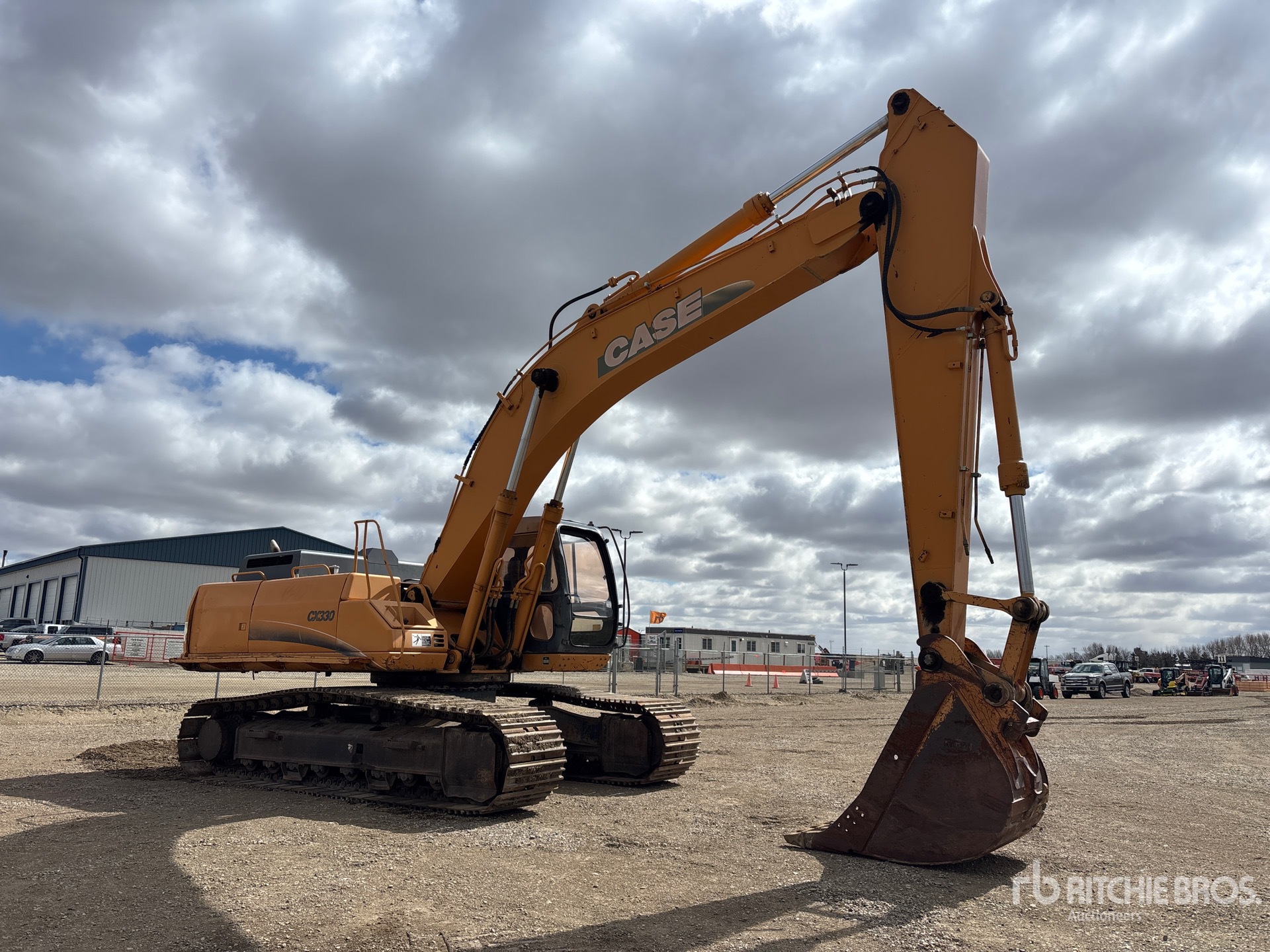

2003 Case CX 330 For Sale in Lethbridge, Ab

Name: 2003 Case CX 330
Brand: Case
SKU: 87461190
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-14 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

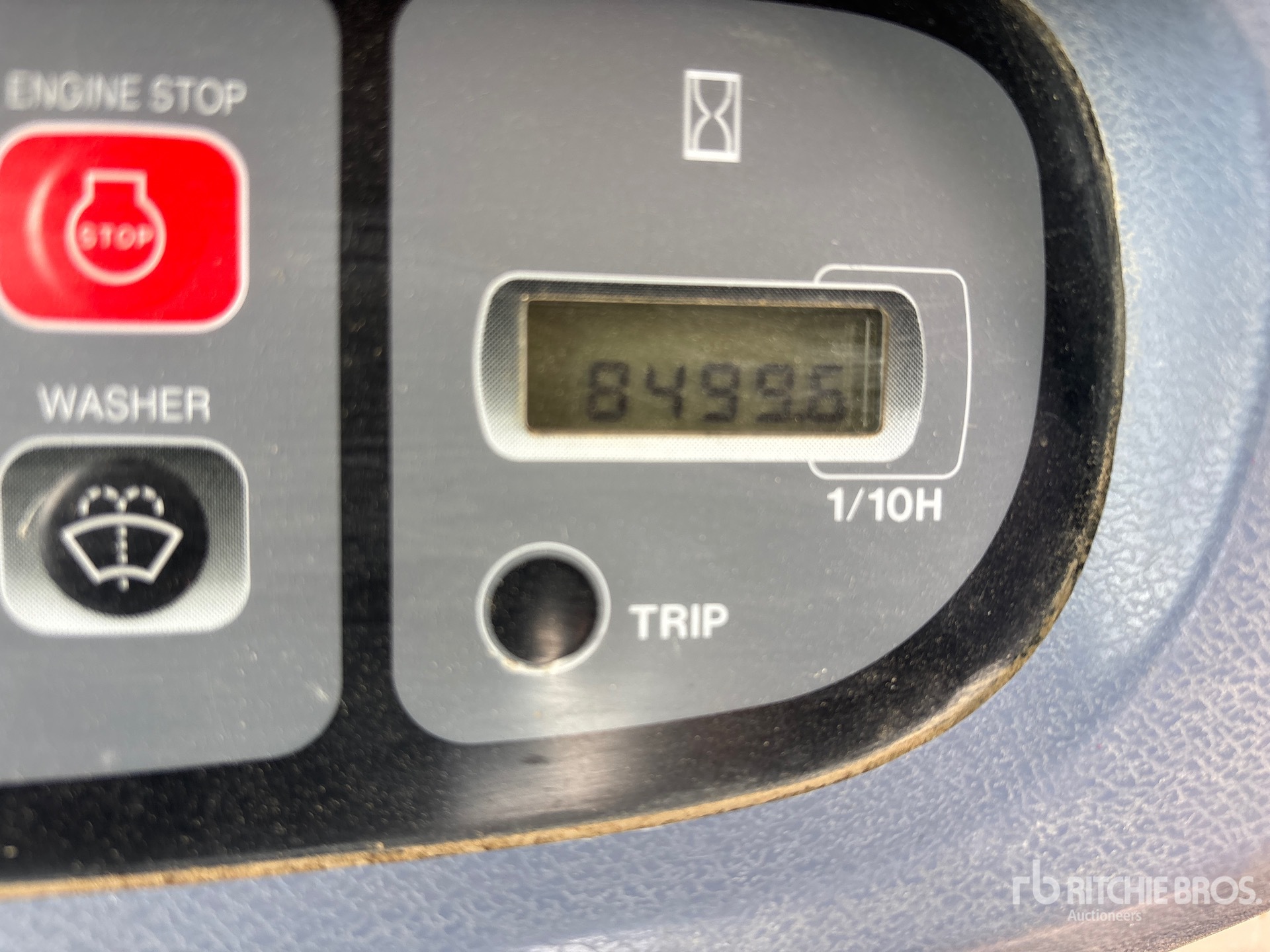

Hours:	8499

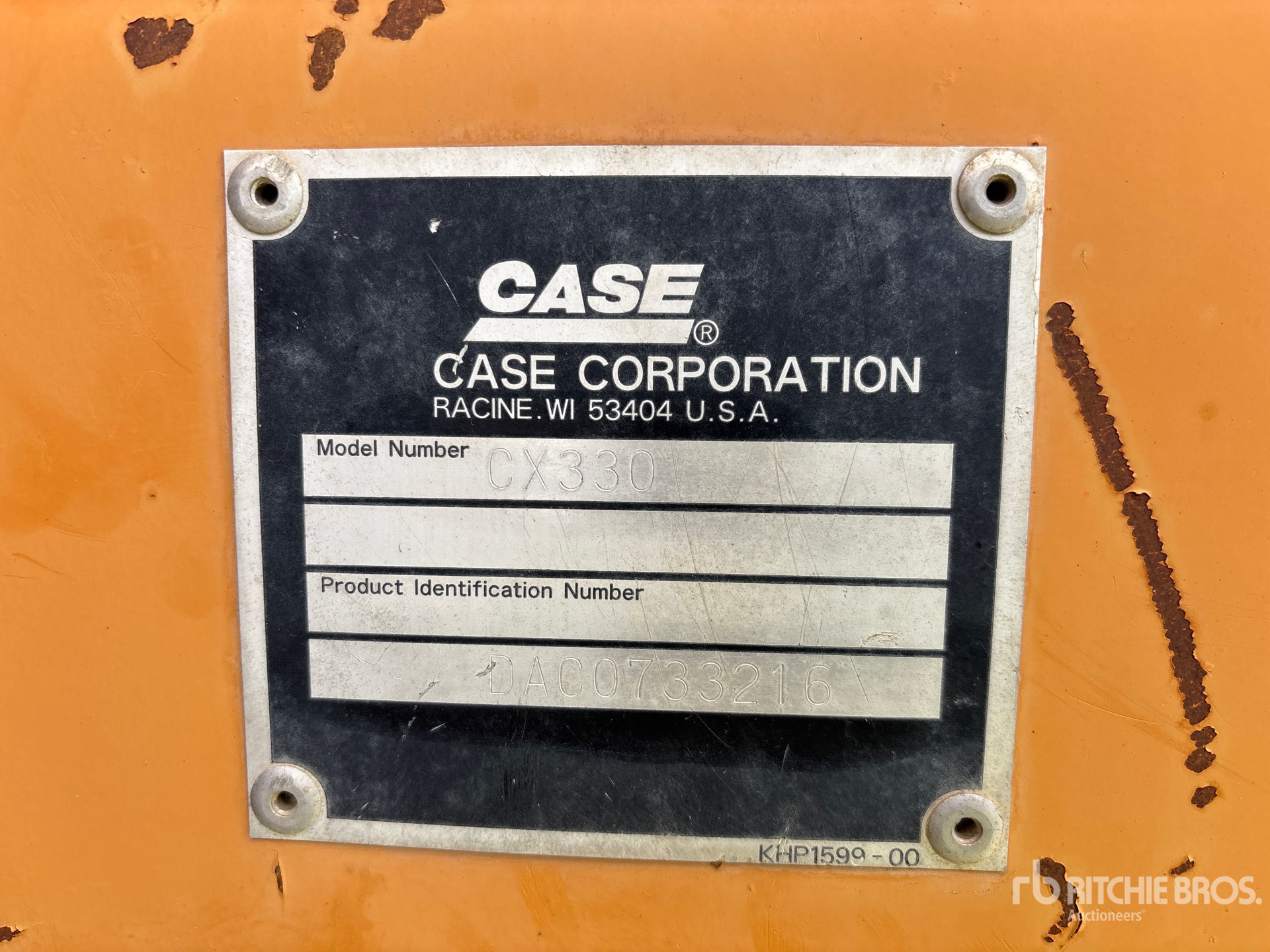

Serial Number:	DAC0733216
Machine Location:	LETHBRIDGE, AB

Description:

Located in Lane 4 Spot 21, Air Conditioner, 13 ft 4 in Stick, Auxiliary Hydraulic Plumbing, 32 in Triple Grouser Track Shoes, Manual Quick Coupler, 32 in Digging Bucket Additional information available - see supporting documents - Closing Time: 2026-05-14 10:33:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	35 ft (11 m)
Max Digging Depth	27 ft (8 m)
Max Loading Height	25 ft (8 m)
Max Reach Along Ground	39 ft (12 m)
Max Vertical Wall Digging Depth	24 ft (7 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	37 ft (11 m)
Boom/Stick Excavator Option 2
Max Cutting Height	34 ft (10 m)
Max Digging Depth	24 ft (7 m)
Max Loading Height	2,375 ft (724 m)
Max Reach Along Ground	36 ft (11 m)
Max Vertical Wall Digging Depth	21 ft (6 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	36 ft (11 m)
Boom/Stick Excavator Option 3
Max Cutting Height	34 ft (10 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	34 ft (10 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	37 ft (11 m)
Bucket
Maximum Bucket Capacity	3 cu yd (2 cu m)
Minimum Bucket Capacity	1 cu yd (1 cu m)
Reference Bucket Capacity	2 cu yd (2 cu m)
Dimensions
Digging Depth	26 ft (8 m)
Digging Reach	26 ft (8 m)
Ground Clearance	19 ft (6 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	13 ft (4 m)
Removal Counterweight Clearance	48 ft (15 m)
Tail Swing Radius	11 ft (3 m)
Width to Outside of Tracks	11 ft (3 m)
Engine
Aspiration	turbocharged
Displacement	475 cu in (7,784 cu cm)
Engine Model	AH-6HKIX Tier III certified
Max Torque	796 lbs ft (1,079 nm)
Net Power	248 hp (185 kw)
Power Measured @	2,000 rpm
Torque Measured @	1,500 rpm
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	8 gal (30 l)
Engine Oil Capacity	10 gal (36 l)
Fuel Capacity	153 gal (579 l)
Hydraulic Pump Flow Capacity	150 gpm (568 lpm)
Hydraulic System Fluid Capacity	92 gal (348 l)
Hydraulic System Relief Valve Pressure	4,975 psi
Operating Voltage	24 volts
Operating Weight	78,043 lbs (35,400 kg)
Swing Drive Fluid Capacity	2 gal (6 l)
Swing Mechanism
Swing Speed	10 rpm
Undercarriage
Drawbar Pull	60,923 lbs (27,634 kg)
Ground Pressure	7 psi
Max Travel Speed	3 mph (5 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	48
Number of Track Rollers per Side	8
Shoe Size	32 in (80 cm)
Track Gauge	9 ft (3 m)
