Equipment ↠ Case ↠ Mini Excavators ↠ 2022 Case CX26C

2022 Case CX26C For Sale in Fort Worth, Tx

Name: 2022 Case CX26C
Brand: Case
SKU: 87459502
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-13 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

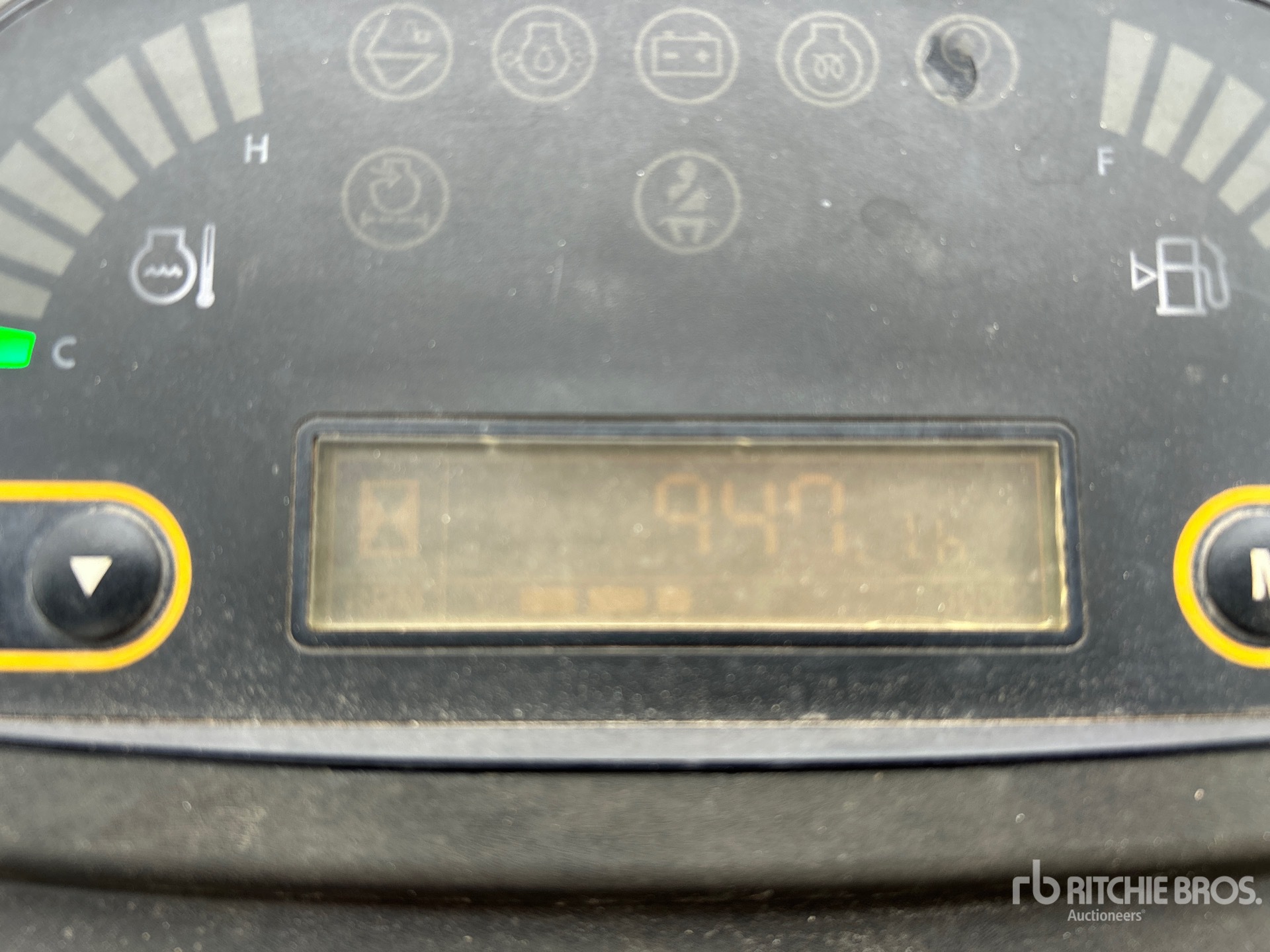

Hours:	947

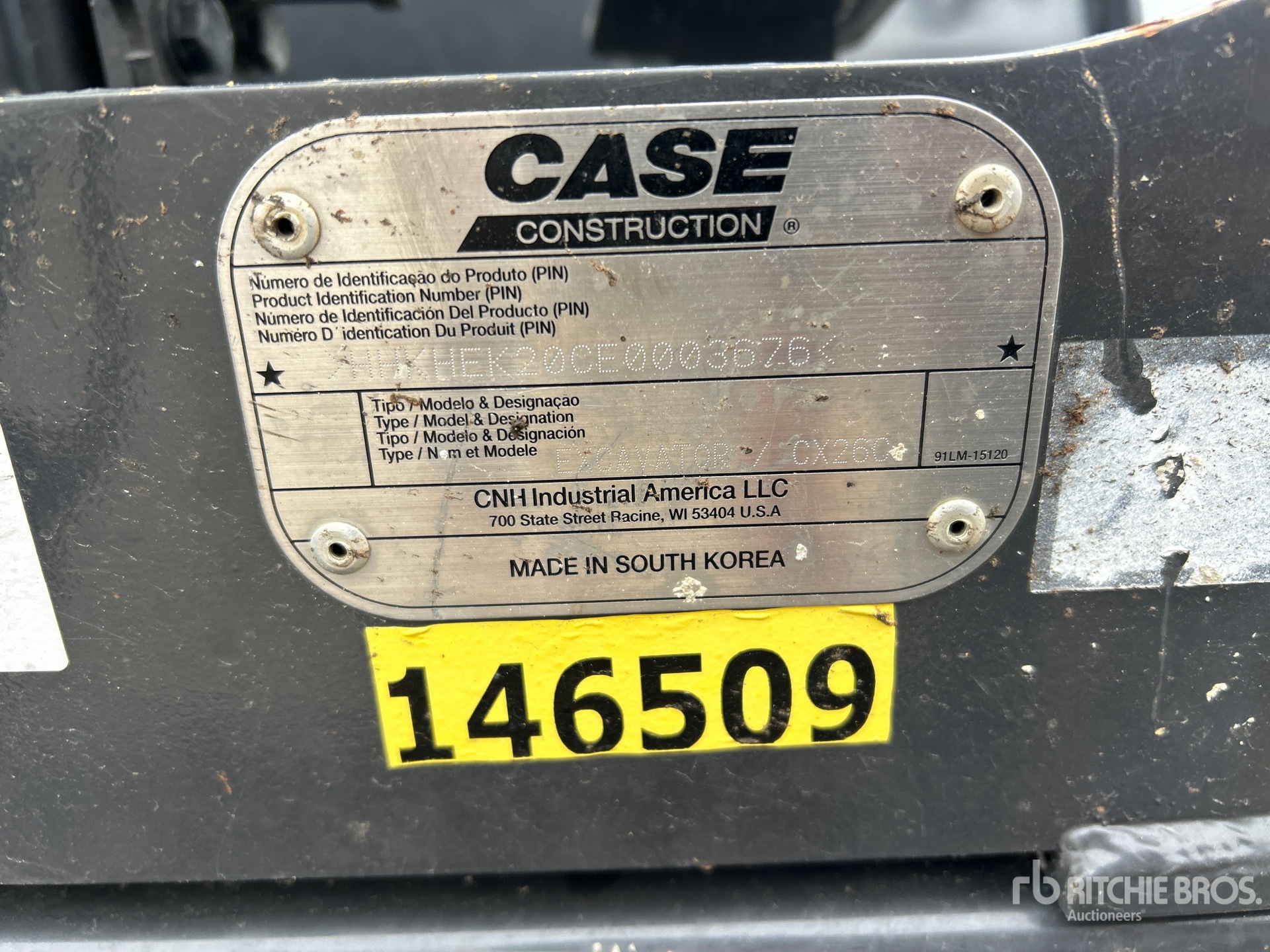

Serial Number:	HHKHEK20CE0003676
Machine Location:	FORT WORTH, TX

Description:

Located in Lane 57, 2021 US EPA Label, Swing Boom, 3 ft 8 in Stick, Auxiliary Hydraulic Plumbing, Stick Check Valve, Backfill Blade, 10 in Rubber Tracks, 12 in Digging Bucket, Thumb Bracket

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case CX26C is a compact mini excavator designed for utility work, landscaping, site preparation, and light construction applications. It features a zero tail swing design for improved maneuverability in confined spaces, a hydraulic system suited for precise digging and grading, and a compact operating footprint for transport and access to restricted job sites. The CX26C is typically used for trenching, backfilling, material handling, and small demolition tasks. As part of Case's mini excavator lineup, it is built for versatility, operator visibility, and efficient performance in urban and residential environments where space limitations are a factor.

Boom
Arm Length	7 ft (2 m)
Boom Length	4 ft (1 m)
Boom/Stick Excavator Option 1
Max Cutting Height	14 ft (4 m)
Max Digging Depth	8 ft (2 m)
Max Loading Height	10 ft (3 m)
Max Reach Along Ground	14 ft (4 m)
Max Vertical Wall Digging Depth	5 ft (1 m)
Max.Dumping Height	10 ft (3 m)
Shipping Height of Unit	8 ft (3 m)
Shipping Length of Unit	13 ft (4 m)
Boom/Stick Excavator Option 2
Max Cutting Height	14 ft (4 m)
Max Digging Depth	9 ft (3 m)
Max Loading Height	10 ft (3 m)
Max Reach Along Ground	15 ft (5 m)
Max Vertical Wall Digging Depth	5 ft (2 m)
Shipping Height of Unit	8 ft (3 m)
Shipping Length of Unit	13 ft (4 m)
Capacities
Engine oil w/ filter change	2 gal (6 l)
Fuel Tank	8 gal (30 l)
Hydraulic Tank	15 gal (55 l)
Radiator	1 gal (5 l)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	8 ft (3 m)
Length of Track on Ground	5 ft (1 m)
Tail Swing Radius	3 ft (1 m)
Width to Outside of Tracks	5 ft (2 m)
Drive System
Gradeability	30 degrees
Ground pressure	5 psi
Max drawbar pull	3,125 lbs (1,417 kg)
Maximum traction force	3,300 lbs (1,497 kg)
Electrical System
Alternator	40 amp
Battery	1 x 12 V x 58 Ah
Voltage	12 V
Engine
Cooling system	Water-cooled
Displacement	77 cu in (1,262 cu cm)
Emissions level	Tier 4 Final
Engine Model	Kubota D1305
Fuel	Diesel
Fuel injection	Mechanical
Gross Power	25 hp (18 kw)
Max speed	3 mph (4 kph)
Max Torque	60 lbs ft (81 nm)
Net Power	23 hp (17 kw)
Number of Cylinders	3
Power Measured @	2,300 rpm
Torque Measured @	1,600 rpm
Hydraulic System
Main pump - Maximum flow	15 gpm (55 lpm)
Relief pressure	3130 psi 220 bar
Lift System
Bucket Breakout Force	4,744 lbs (2,152 kg)
Lift over end Max. reach - lbs	1,698 lbs (770 kg)
Lift over side Max. reach	463 lbs (210 kg)
Operating Specifications
Operating Weight	5,853 lbs (2,655 kg)
Swing Mechanism
Swing Speed	9 rpm
Undercarriage
Number of Track Rollers per Side	3
