Equipment ↠ Case ↠ Mini Excavators ↠ Case CX27B

Case CX27B For Sale in Australia, Aus

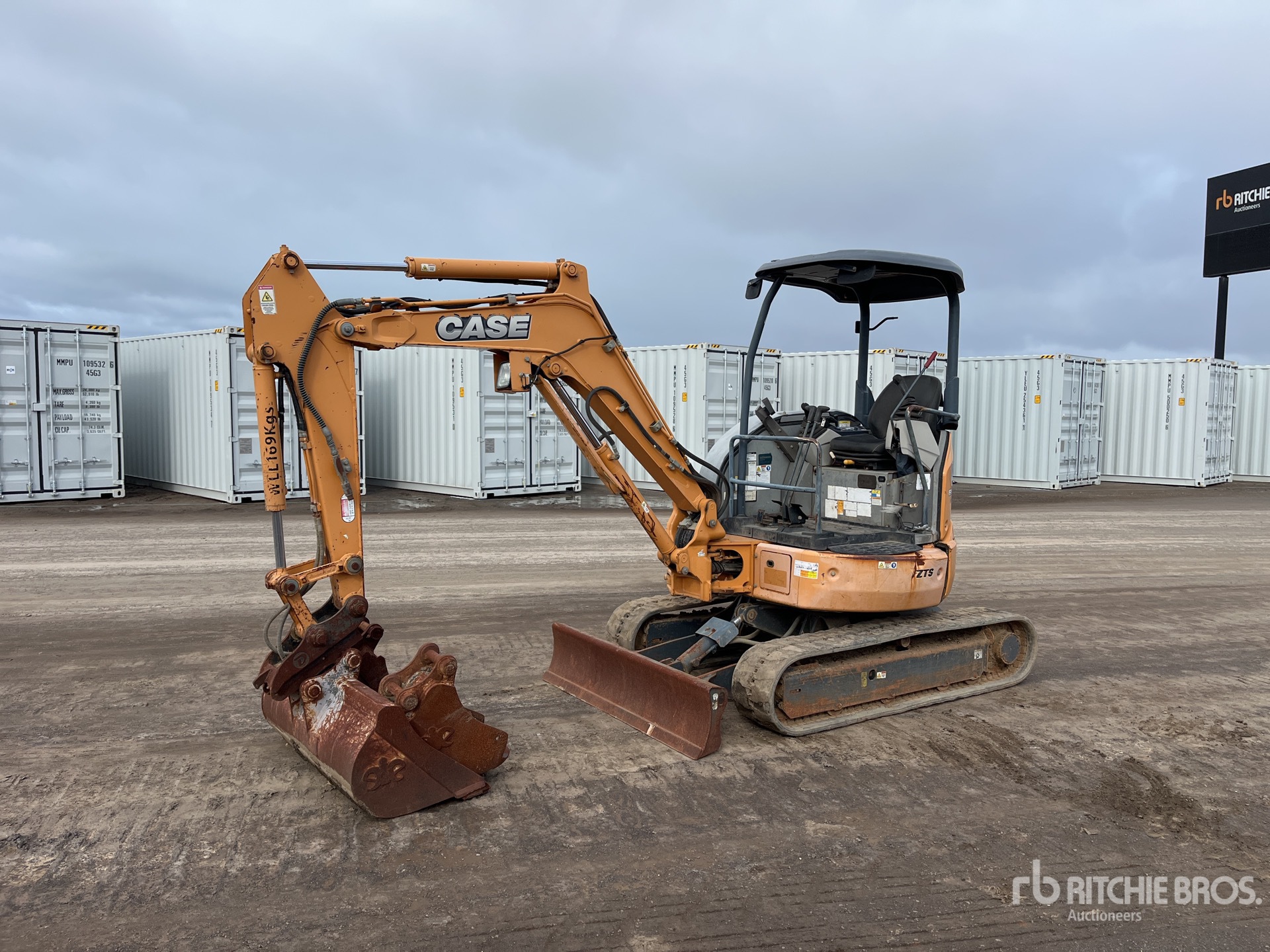

Name: Case CX27B
Brand: Case
SKU: 88514810
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-24 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

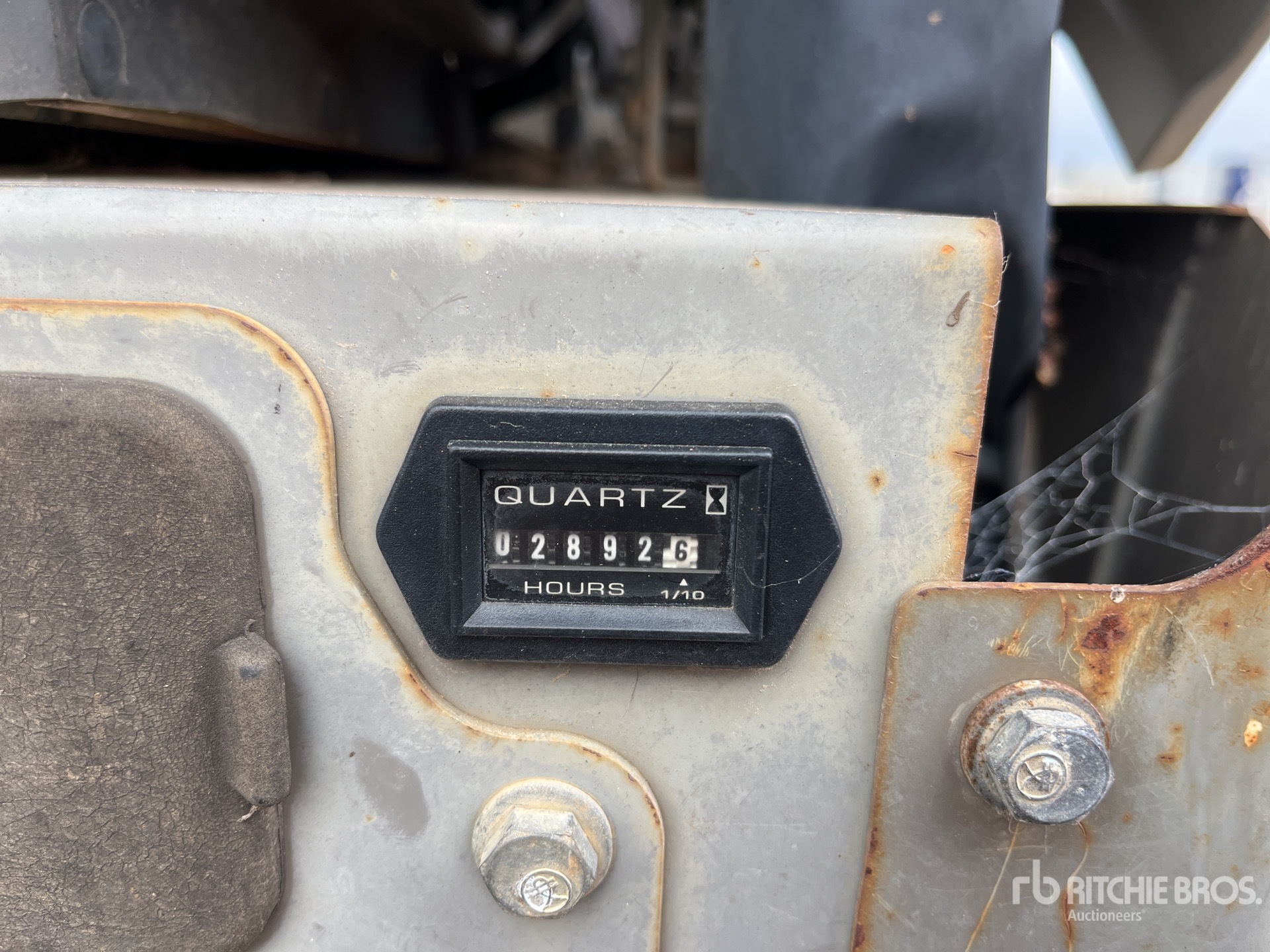

Hours:	2892

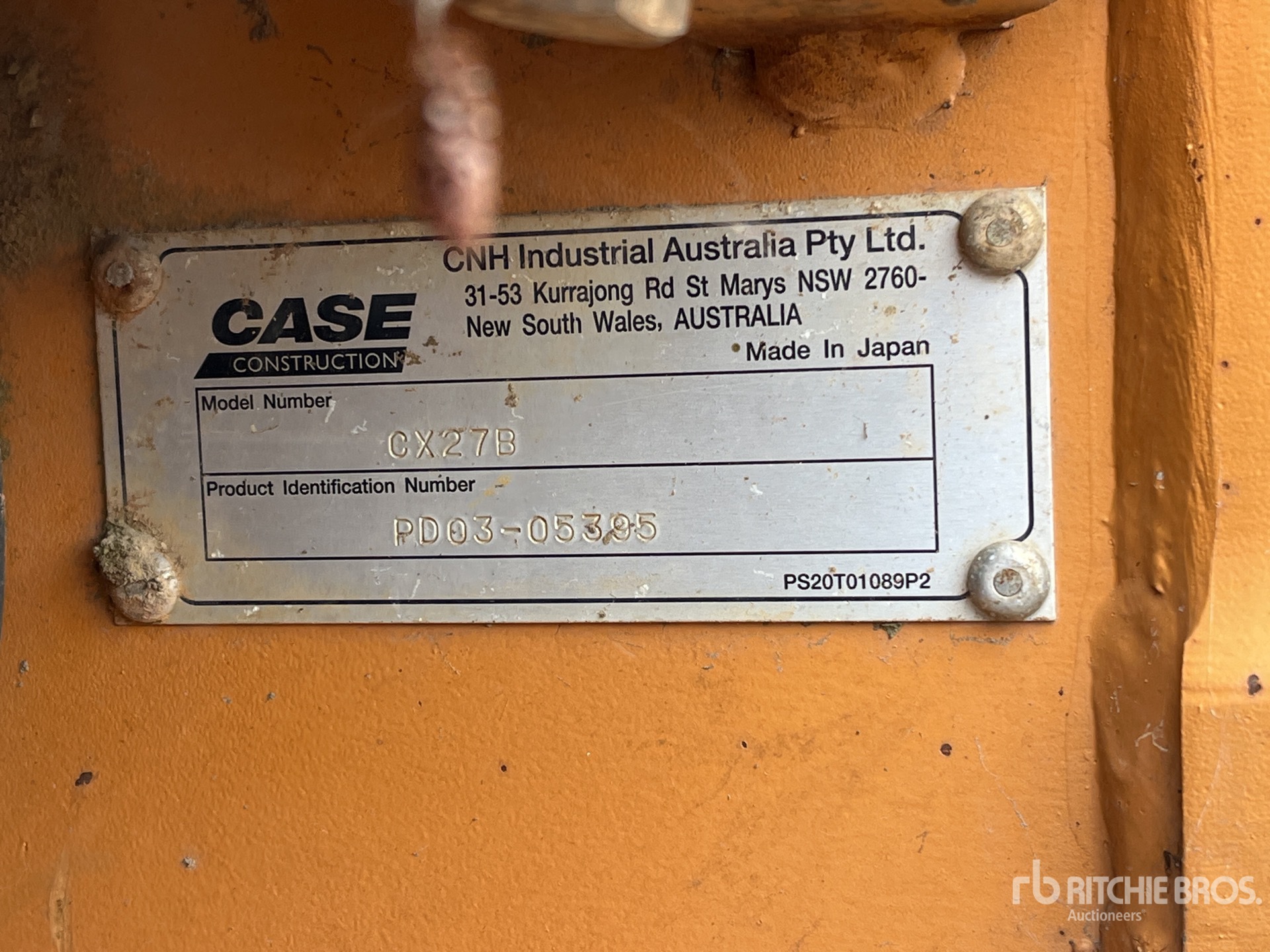

Serial Number:	PD0305395
Machine Location:	AUSTRALIA, AUS

Description:

Straight Travel Pedal, E-Stops, 1000 mm Stick, Backfill Blade, 300 mm Rubber Tracks, Hydraulic Quick Coupler, 1200 mm Cleanup Bucket, Additional 280 mm Digging Bucket, 225 mm Cleanup Bucket, 470 mm Ripper *Please note that this item is subject to a transaction fee of 8.5% of the winning bid; with a minimum fee of $100 per item.

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	15 ft (4 m)
Max Digging Depth	8 ft (3 m)
Max Loading Height	11 ft (3 m)
Max Reach Along Ground	15 ft (5 m)
Max Vertical Wall Digging Depth	8 ft (2 m)
Shipping Height of Unit	8 ft (3 m)
Shipping Length of Unit	14 ft (4 m)
Bucket
Maximum Bucket Capacity	0 cu yd (0 cu m)
Minimum Bucket Capacity	0 cu yd (0 cu m)
Reference Bucket Capacity	0 cu yd (0 cu m)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	8 ft (3 m)
Length of Track on Ground	5 ft (2 m)
Removal Counterweight Clearance	2 ft (1 m)
Tail Swing Radius	3 ft (1 m)
Width to Outside of Tracks	5 ft (2 m)
Engine
Displacement	81 cu in (1,329 cu cm)
Engine Model	3TNV82-A-SYB
Max Torque	58 lbs ft (79 nm)
Net Power	21 hp (16 kw)
Number of Cylinders	3
Power Measured @	2,200 rpm
Torque Measured @	1,320 rpm
Operating Specifications
Alternator Supplied Amperage	20 amps
Cooling System Fluid Capacity	1 gal (4 l)
Engine Oil Capacity	2 gal (6 l)
Fuel Capacity	7 gal (28 l)
Hydraulic Pump Flow Capacity	14 gpm (53 lpm)
Hydraulic System Fluid Capacity	7 gal (25 l)
Hydraulic System Relief Valve Pressure	3,336 psi
Operating Voltage	12 volts
Operating Weight	5,556 lbs (2,520 kg)
Swing Mechanism
Swing Speed	9 rpm
Undercarriage
Drawbar Pull	6,361 lbs (2,885 kg)
Ground Pressure	4 psi
Max Travel Speed	3 mph (4 kph)
Number of Carrier Rollers per Side	1
Number of Track Rollers per Side	4
Shoe Size	10 in (25 cm)
