2019 Case CX37C For Sale in Chehalis, Wa

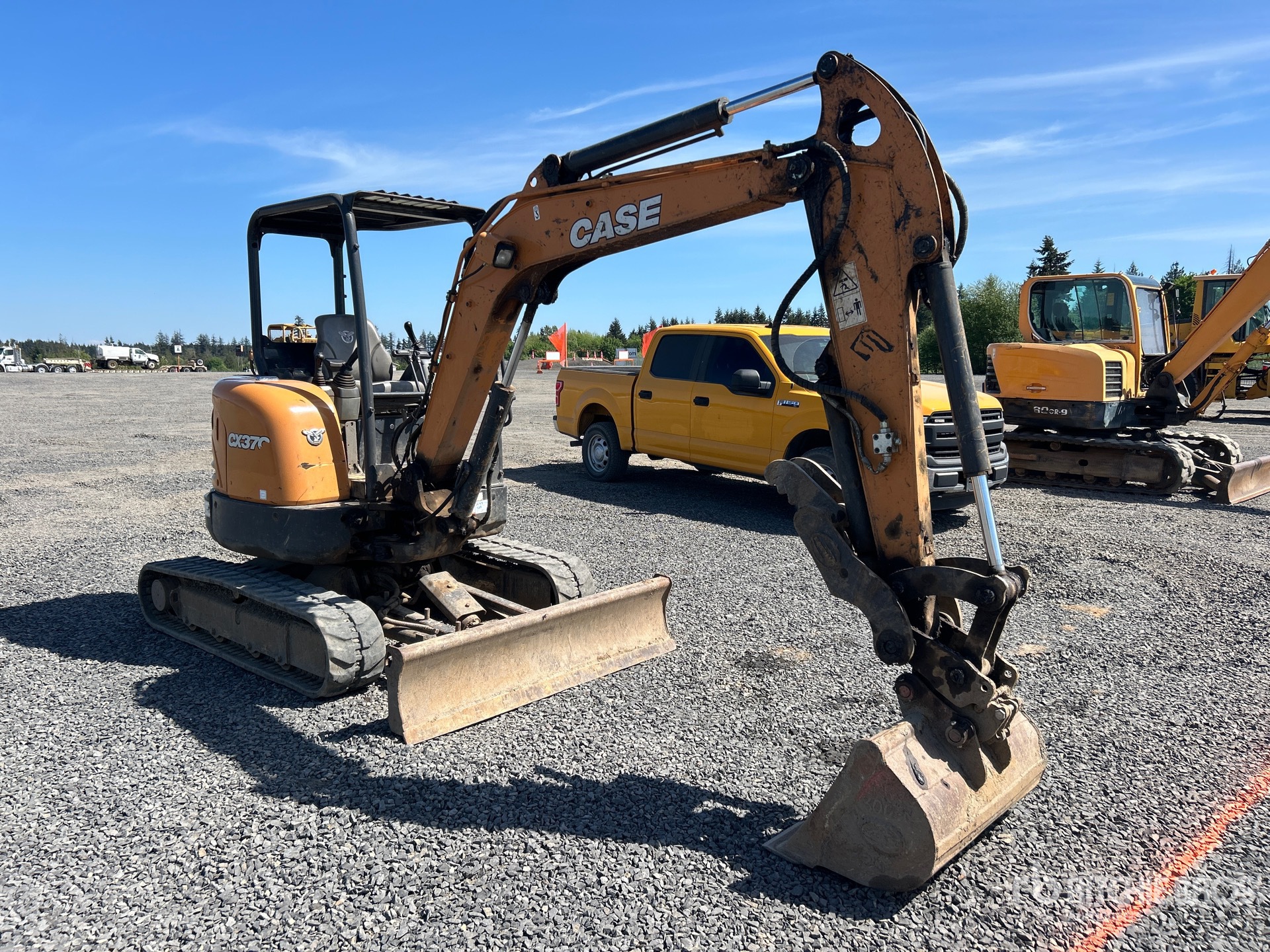

Name: 2019 Case CX37C
Brand: Case
SKU: 87617085
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-07

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

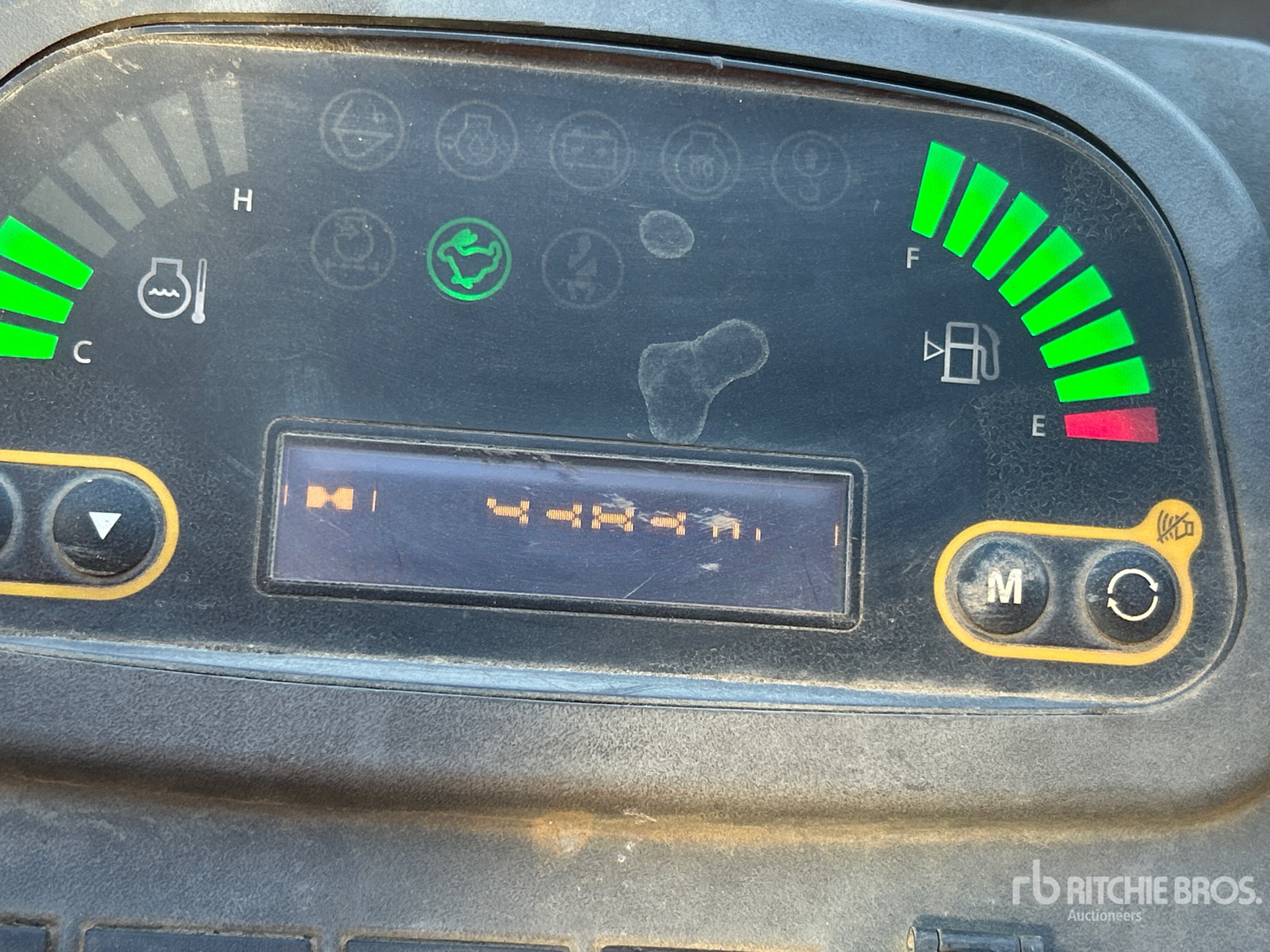

Hours:	4383

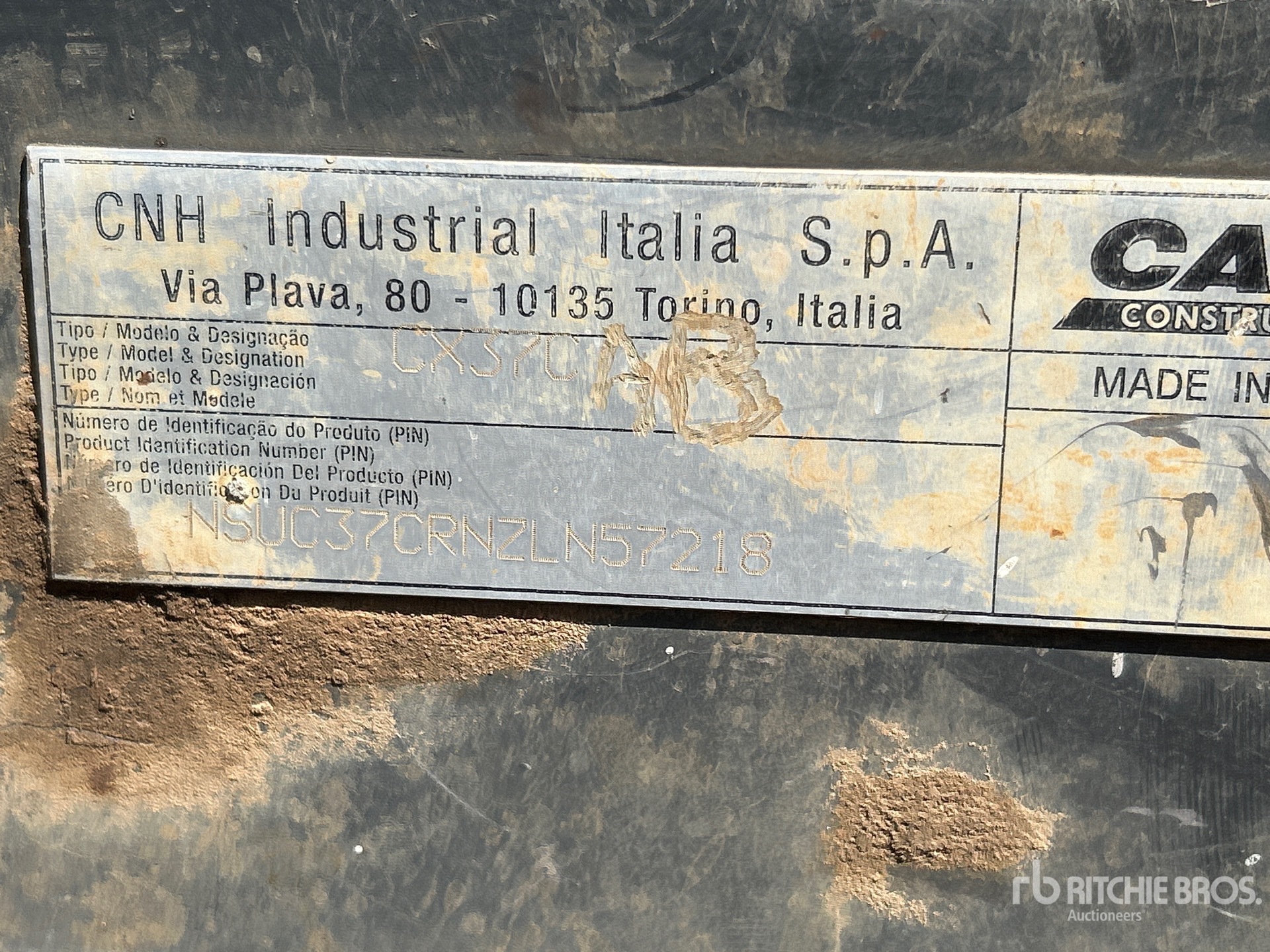

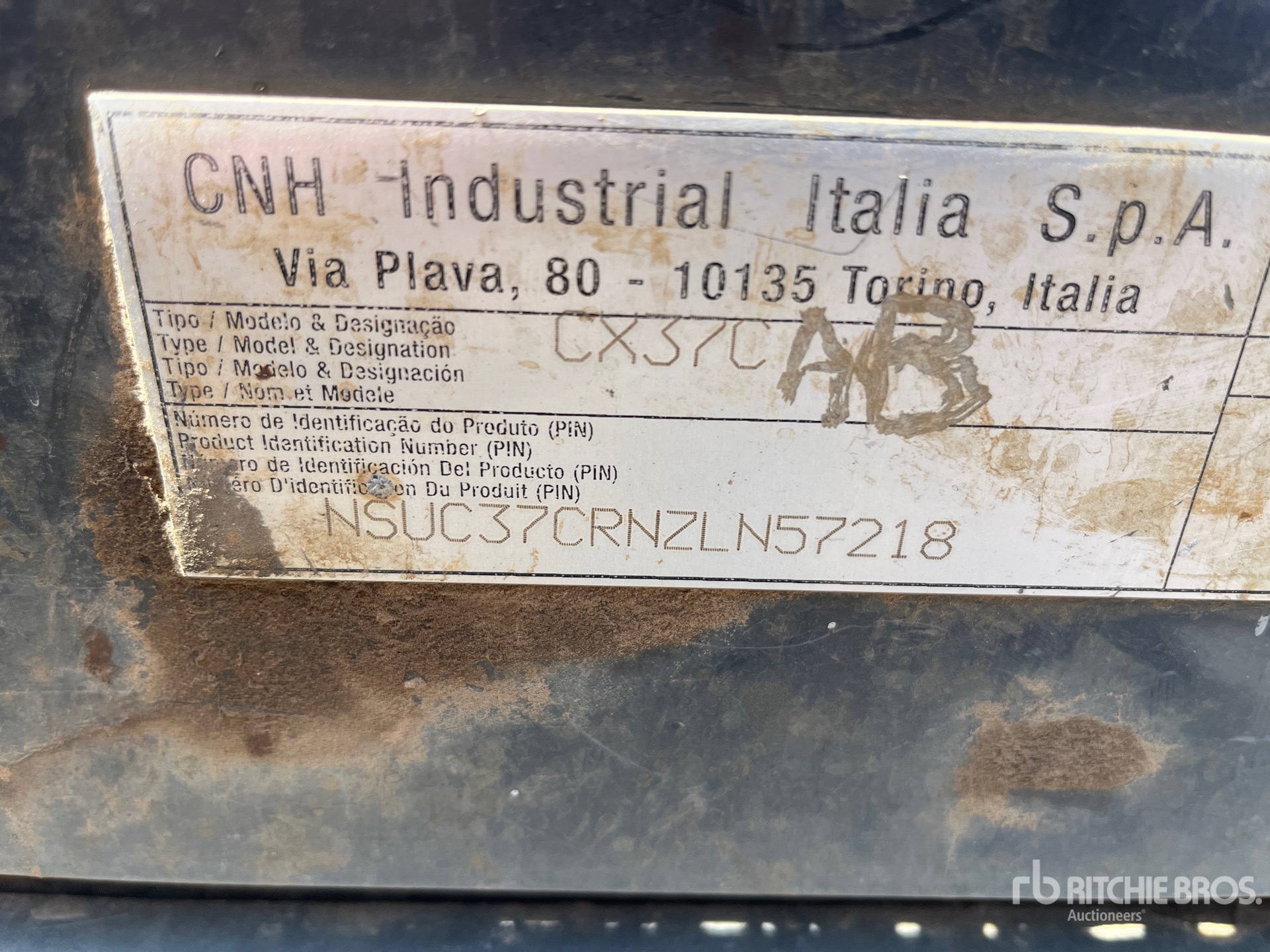

Serial Number:	NSUC37CRNZLN57218
Machine Location:	CHEHALIS, WA

Description:

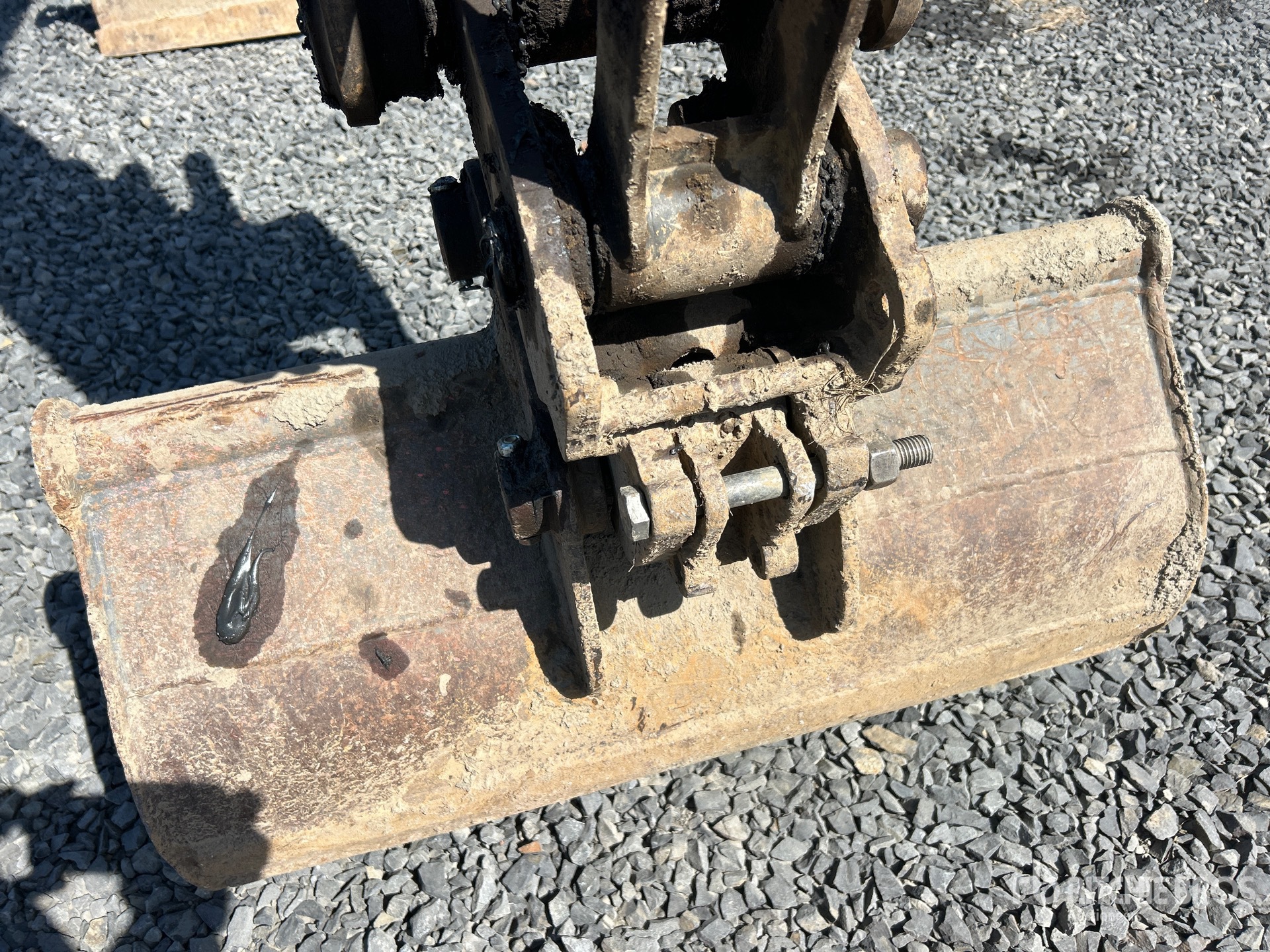

Located in Lane 4 Spot 16, 2018 US EPA Label, Swing Boom, 5 ft 2 in Stick, Auxiliary Hydraulic Plumbing, Power Angle Blade, 11.75 in Rubber Tracks, 36 in Cleanup Bucket, Hydraulic Thumb Closing Time: 2026-05-07 10:09:20 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case CX37C is a compact mini excavator designed for utility work, landscaping, site preparation, and light construction applications. It is part of Case's C Series and is built for maneuverability in confined spaces while providing digging performance for small to medium jobs. The CX37C typically features a zero-tail-swing design, hydraulic controls, and an operator station configured for visibility and ease of use. Common attachments include buckets, augers, and hydraulic breakers. As a mini excavator, the CX37C is suited to residential and commercial projects where access, transportability, and precise control are important.

Boom
Arm Length	8 ft (3 m)
Boom Length	4 ft (1 m)
Boom/Stick Excavator Option 1
Max Cutting Height	16 ft (5 m)
Max Digging Depth	10 ft (3 m)
Max Loading Height	11 ft (3 m)
Max Reach Along Ground	17 ft (5 m)
Max Vertical Wall Digging Depth	7 ft (2 m)
Max.Dumping Height	11 ft (3 m)
Shipping Height of Unit	8 ft (3 m)
Shipping Length of Unit	16 ft (5 m)
Boom/Stick Excavator Option 2
Max Cutting Height	17 ft (5 m)
Max Digging Depth	11 ft (3 m)
Max Loading Height	11 ft (3 m)
Max Reach Along Ground	18 ft (6 m)
Max Vertical Wall Digging Depth	9 ft (3 m)
Shipping Height of Unit	8 ft (3 m)
Shipping Length of Unit	16 ft (5 m)
Capacities
Engine oil w/ filter change	2 gal (7 l)
Fuel Tank	11 gal (40 l)
Hydraulic Tank	16 gal (60 l)
Radiator	2 gal (6 l)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	8 ft (3 m)
Length of Track on Ground	6 ft (2 m)
Tail Swing Radius	3 ft (1 m)
Width to Outside of Tracks	6 ft (2 m)
Drive System
Gradeability	30 degrees
Ground pressure	5 psi
Max drawbar pull	6,834 lbs (3,100 kg)
Maximum traction force	6,835 lbs (3,100 kg)
Electrical System
Alternator	55 amp
Battery	1 x 12 V x 70 Ah
Voltage	12 V
Engine
Cooling system	Water-cooled
Displacement	100 cu in (1,642 cu cm)
Emissions level	Tier 4 Final
Engine Model	Yanmar 3TNV88F-ESHYB
Fuel	Diesel
Fuel injection	Mechanical with electronic governor
Gross Power	24 hp (18 kw)
Max speed	3 mph (4 kph)
Max Torque	70 lbs ft (94 nm)
Net Power	24 hp (18 kw)
Number of Cylinders	3
Power Measured @	2,200 rpm
Torque Measured @	1,200 rpm
Hydraulic System
Main pump - Maximum flow	20 gpm (75 lpm)
Relief pressure	3270 psi 230 bar
Lift System
Bucket Breakout Force	6,902 lbs (3,131 kg)
Lift over end Max. reach - lbs	1,323 lbs (600 kg)
Lift over side Max. reach	750 lbs (340 kg)
Operating Specifications
Operating Weight	8,301 lbs (3,765 kg)
Swing Mechanism
Swing Speed	10 rpm
Undercarriage
Number of Track Rollers per Side	4
