Equipment ↠ Case ↠ Skid Steer Loaders ↠ 2012 Case SR220

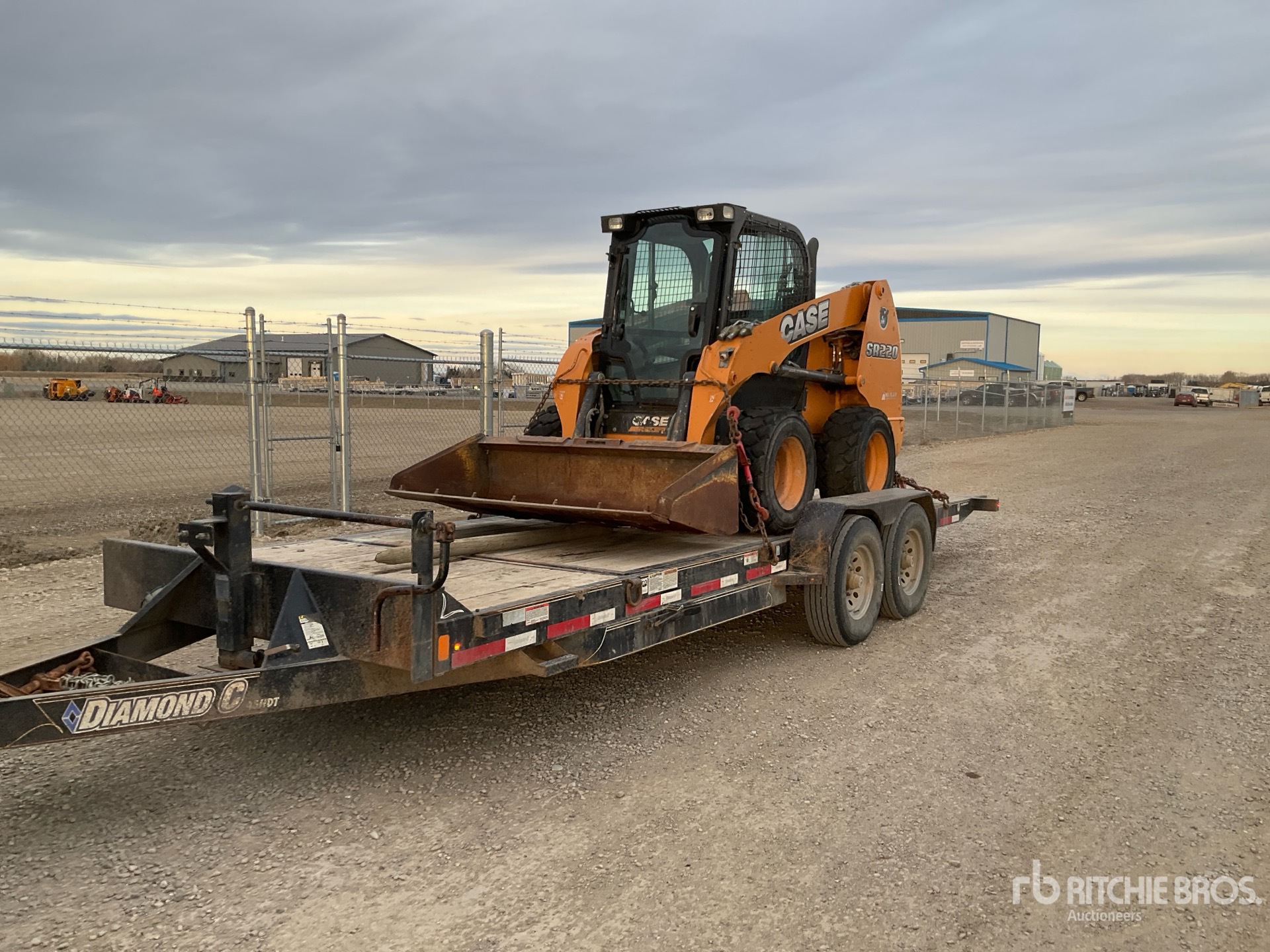

2012 Case SR220 For Sale in Lethbridge, Ab

Name: 2012 Case SR220
Brand: Case
SKU: 87196397
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-14 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

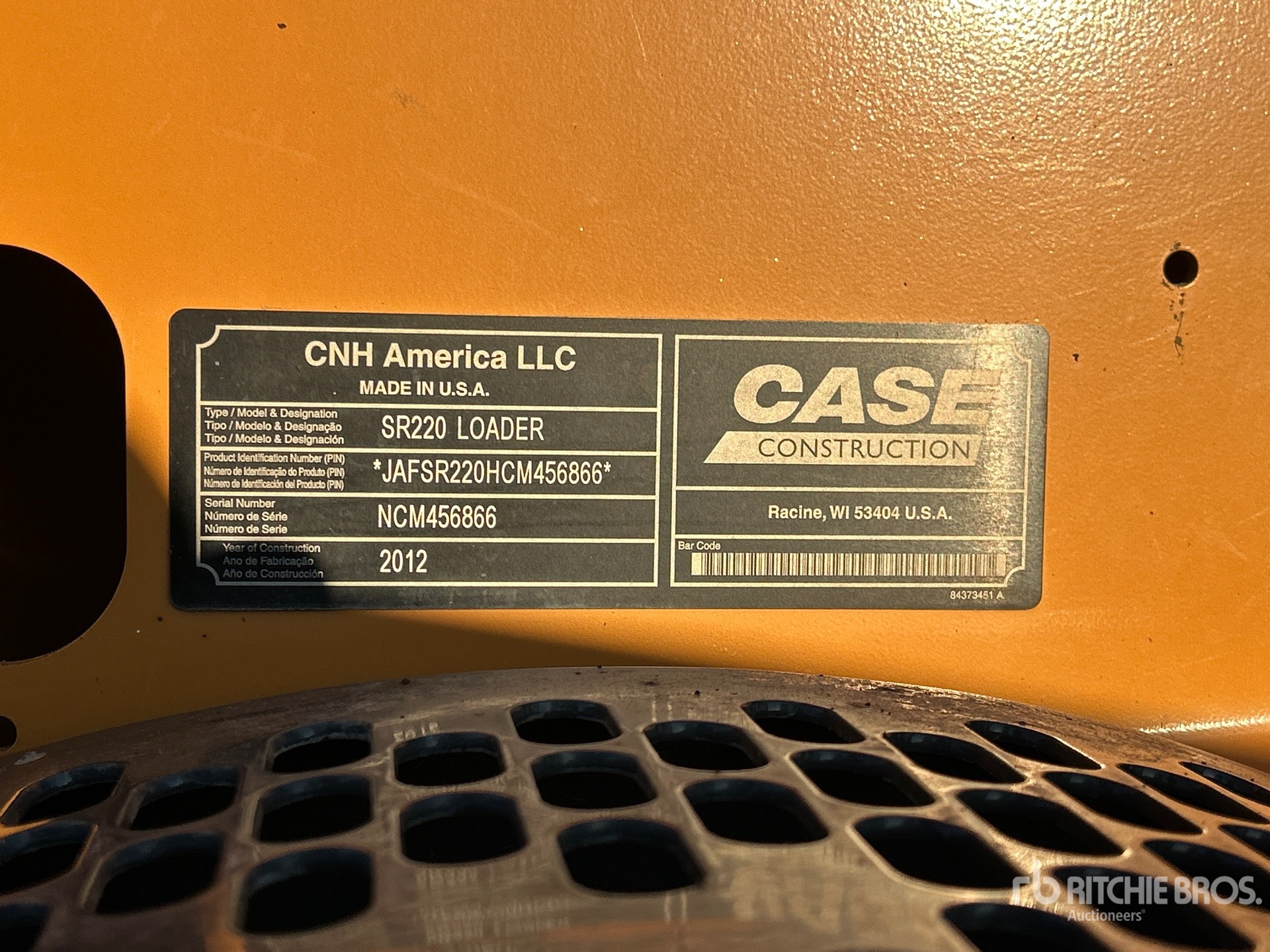

Serial Number:	JAFSR220HCM456866
Machine Location:	LETHBRIDGE, AB

Description:

Enclosed Cab, Air Conditioner, Ride Control, 14 Pin Electric Kit, Hydraulic Coupler, 72 in Bucket Inoperable. Key located in yard office., Closing Time: 2026-05-14 03:39:20 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Dimensions
Clearance at Max Lift and Dump	9 ft (3 m)
Ground Clearance	8 in (20 cm)
Height - Top of Cab	7 ft (2 m)
Length w/o Bucket	10 ft (3 m)
Length with Bucket	12 ft (4 m)
Reach at Max Lift and Dump	20 in (50 cm)
Turning Radius from Center - inc bucket	84 in (214 cm)
Turning Radius from Center - machine rear	70 in (179 cm)
Wheelbase	4 ft (1 m)
Width Over Tires	6 ft (2 m)
Engine
Aspiration	Turbocharged
Displacement	195 cu in (3,195 cu cm)
Engine Model	432T/M3
Gross Power	76 hp (57 kw)
Max Torque	225 lbs ft (305 nm)
Number of Cylinders	4
Power Measured @	2,500 rpm
Torque Measured @	1,400 rpm
Hydraulic System
Pump Flow Capacity	12 gpm (46 lpm)
Pump Type	Gear
Relief Valve Pressure	3,000 psi
Loader
Bucket Capacity	1 cu yd (1 cu m)
Bucket Width	72 in (183 cm)
Operating Load Rating	2,200 lbs (998 kg)
Operating Width	70 in (179 cm)
Tipping Angle	4,400 degrees
Operating Specifications
Alternator Supplied Amperage	95 amps
Chain Box Fluid Capacity - each side	2 gal (8 l)
Engine Oil Fluid Capacity	3 gal (10 l)
Fuel Capacity	26 gal (97 l)
Hydraulic System Fluid Capacity	6 gal (23 l)
Max Speed	12 mph (19 kph)
Operating Speed	7 mph (12 kph)
Operating Voltage	12 volts
Operational Weight	7,400 lbs (3,357 kg)
Tire Size	12 x 16.5
