Equipment ↠ Case ↠ Skid Steer Loaders ↠ 2015 Case SV300

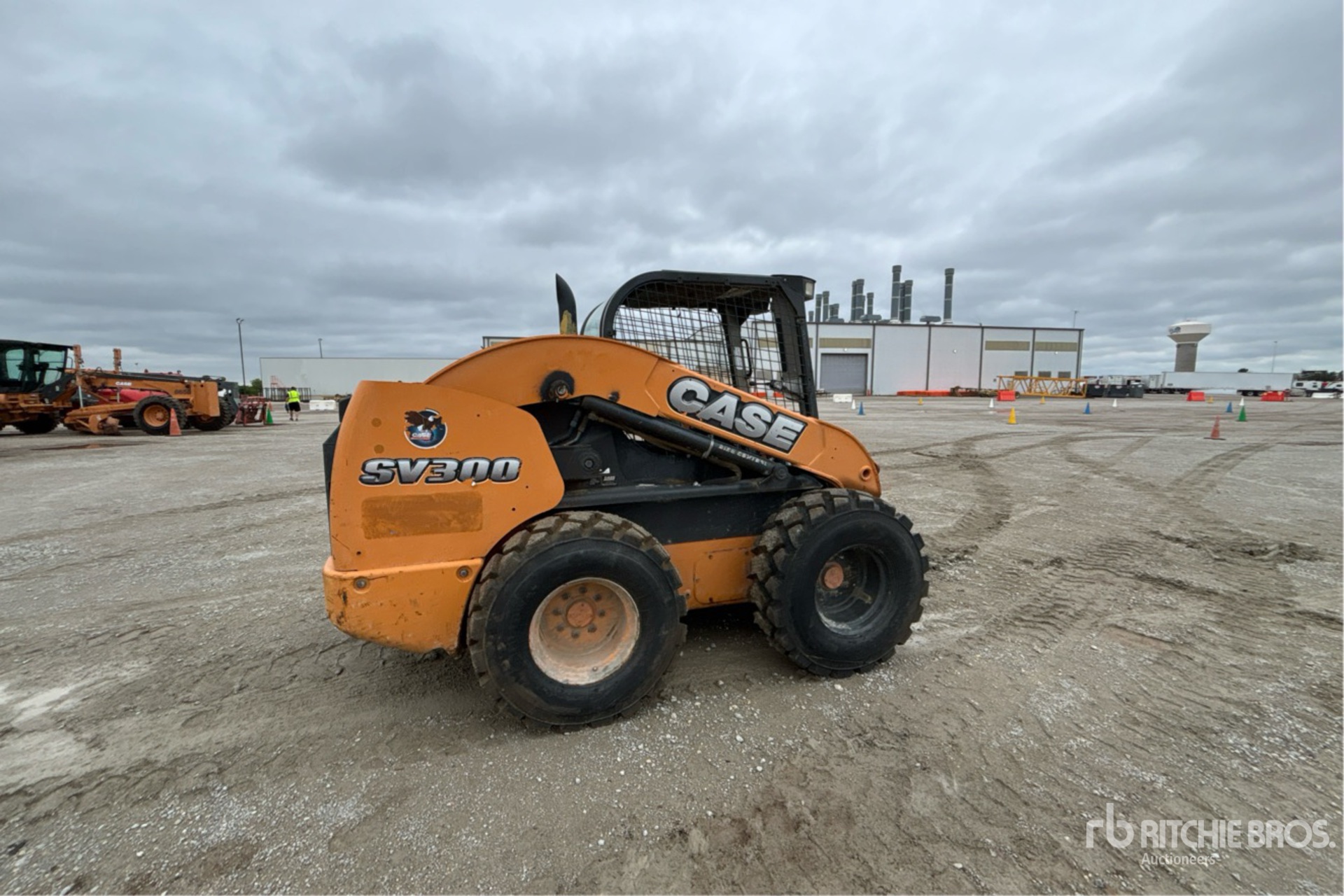

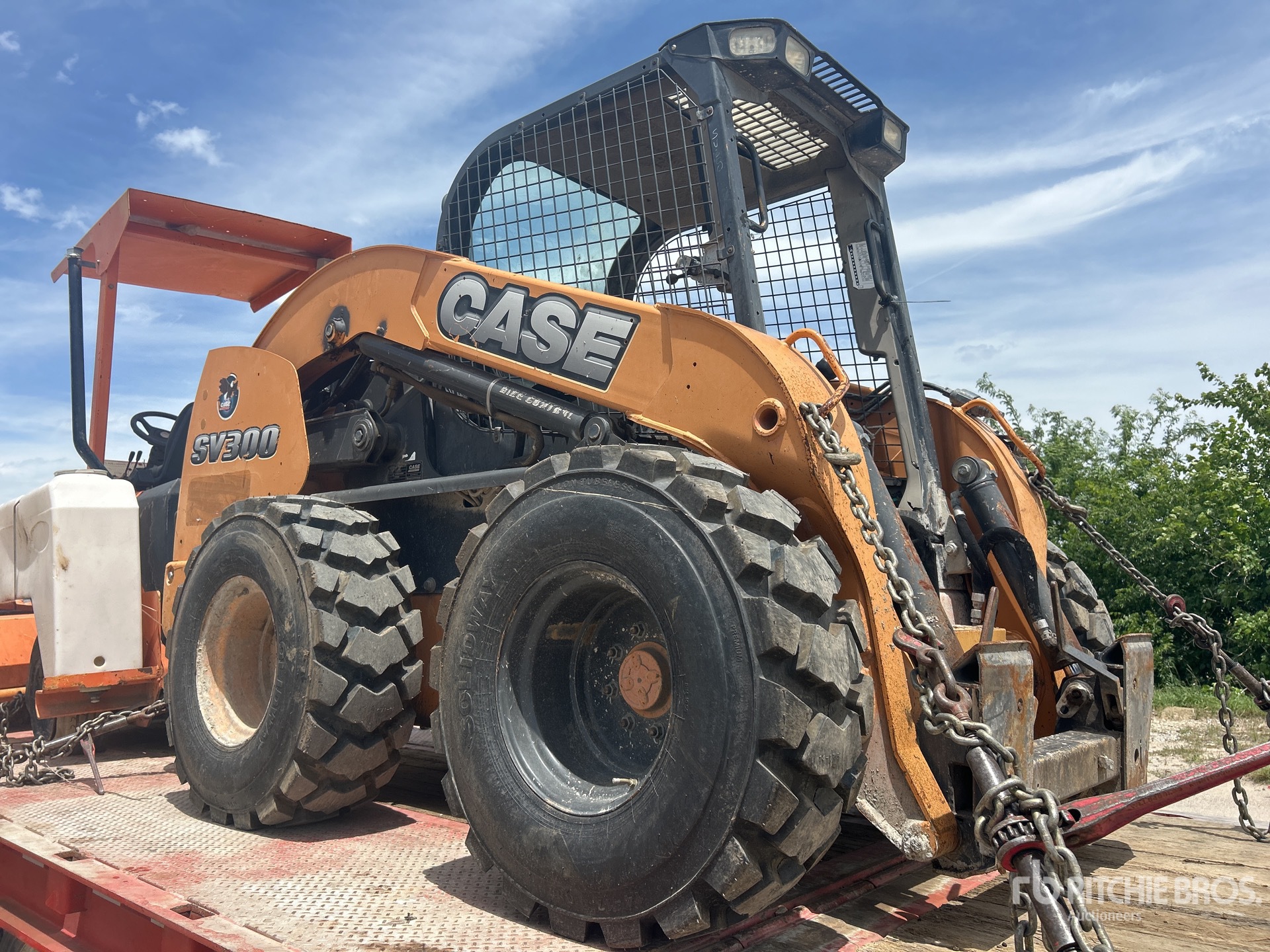

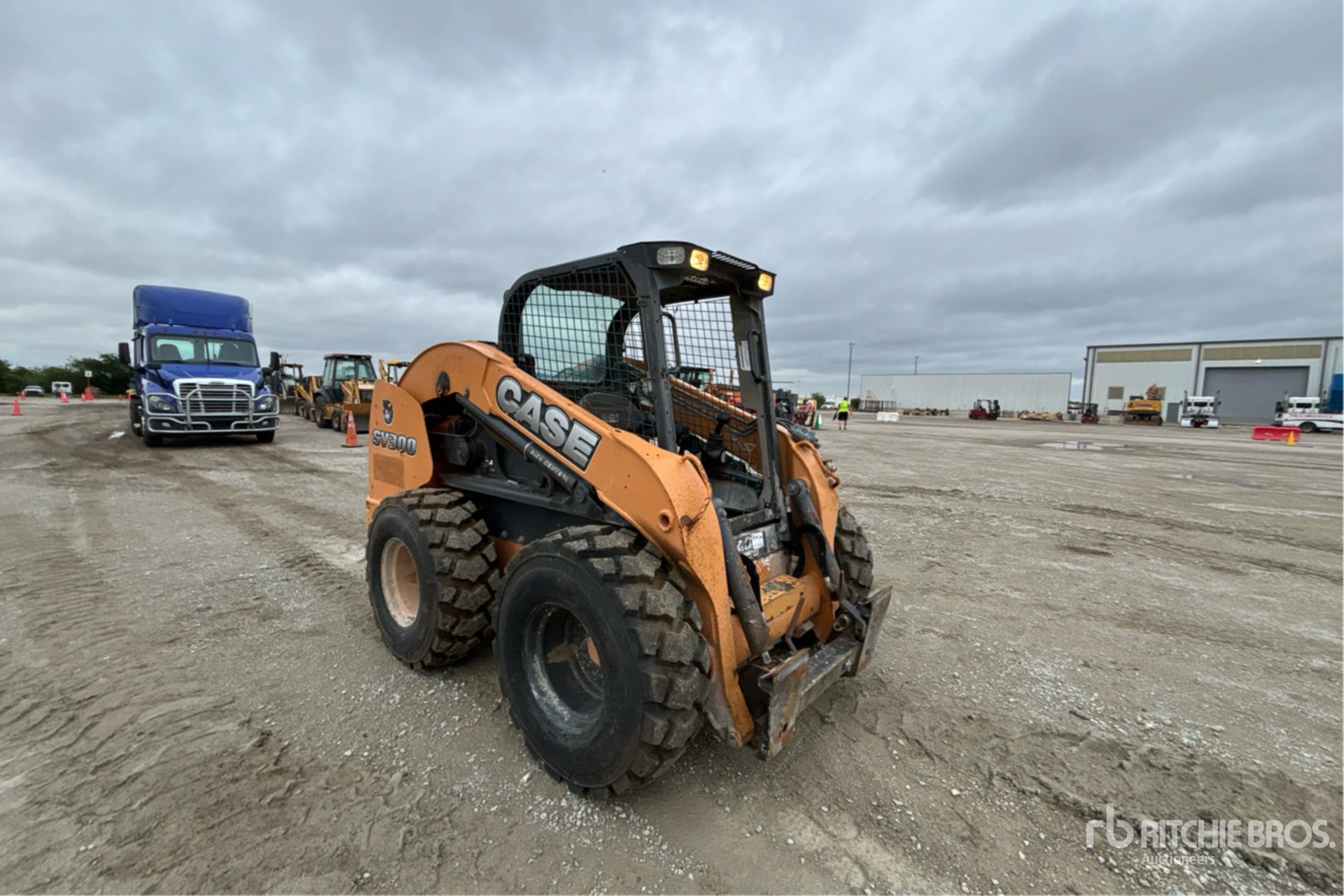

2015 Case SV300 For Sale in Fort Worth, Tx

Name: 2015 Case SV300
Brand: Case
SKU: 87611155
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-13 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

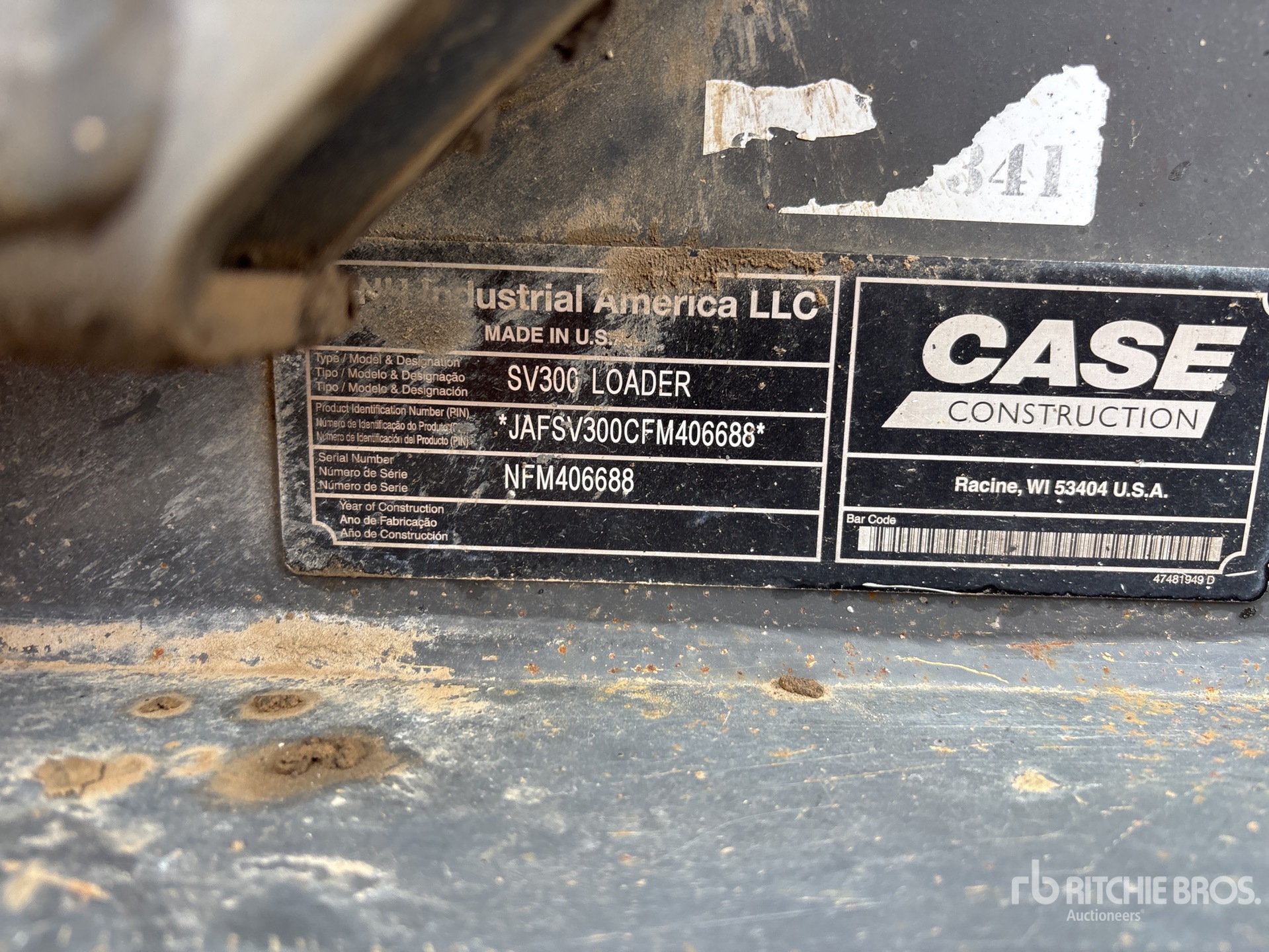

Serial Number:	JAFSV300CFM406688
Machine Location:	FORT WORTH, TX

Description:

Open Operator Station, Joystick Steering, Requires Diesel Exhaust Fluid, Manual Quick Coupler Closing Time: 2026-05-13 10:03:26 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case SV300 is a compact skid steer loader designed for versatility and performance in construction, landscaping, and agricultural applications. Featuring a robust engine and advanced hydraulic system, the SV300 delivers high breakout force and lifting capacity for efficient material handling. Its compact size allows for maneuverability in tight spaces, while the durable frame ensures long-term reliability. The operator cab offers enhanced visibility and ergonomic controls for improved productivity and safety. Compatible with a wide range of attachments, the Case SV300 skid steer loader adapts to various tasks, making it a valuable asset for heavy-duty loading, digging, grading, and site preparation.

Dimensions
Clearance at Max Lift and Dump	9 ft (3 m)
Ground Clearance	8 in (20 cm)
Height - Top of Cab	7 ft (2 m)
Length w/o Bucket	10 ft (3 m)
Length with Bucket	12 ft (4 m)
Reach at Max Lift and Dump	29 in (74 cm)
Turning Radius from Center - inc bucket	84 in (213 cm)
Turning Radius from Center - machine rear	70 in (179 cm)
Wheelbase	4 ft (1 m)
Width Over Tires	6 ft (2 m)
Engine
Aspiration	Turbocharged
Displacement	195 cu in (3,195 cu cm)
Engine Model	432T/M3
Gross Power	84 hp (63 kw)
Max Torque	251 lbs ft (340 nm)
Number of Cylinders	4
Power Measured @	2,500 rpm
Torque Measured @	1,400 rpm
General Specifications
ENGINE POWER HP (KW) (Since 2016)	90 (67)
ENGINE POWER HP (KW) (2017)	90 (67)
MODEL (Since 2016)	SV300
MODEL (2017)	SV300
OPERATING LOAD LBS. (KG) (Since 2016)	3,000 (1364)
OPERATING LOAD LBS. (KG) (2017)	3,000 (1364)
OPERATING WIDTH IN. (CM) (Since 2016)	69.6 (176.7)
OPERATING WIDTH IN. (CM) (2017)	69.6 (176.7)
Hydraulic System
Pump Flow Capacity	12 gpm (46 lpm)
Pump Type	Gear
Relief Valve Pressure	3,000 psi
Loader
Bucket Capacity	1 cu yd (1 cu m)
Bucket Width	72 in (183 cm)
Operating Load Rating	3,000 lbs (1,361 kg)
Operating Width	70 in (177 cm)
Tipping Angle	6,000 degrees
Operating Specifications
Alternator Supplied Amperage	95 amps
Chain Box Fluid Capacity - each side	2 gal (8 l)
Engine Oil Fluid Capacity	3 gal (10 l)
Fuel Capacity	26 gal (97 l)
Hydraulic System Fluid Capacity	6 gal (23 l)
Max Speed	12 mph (19 kph)
Operating Speed	7 mph (12 kph)
Operating Voltage	12 volts
Operational Weight	8,300 lbs (3,765 kg)
Tire Size	12 x 16.5
