Equipment ↠ Case ↠ Wheel Loaders ↠ 2011 Case 1121F

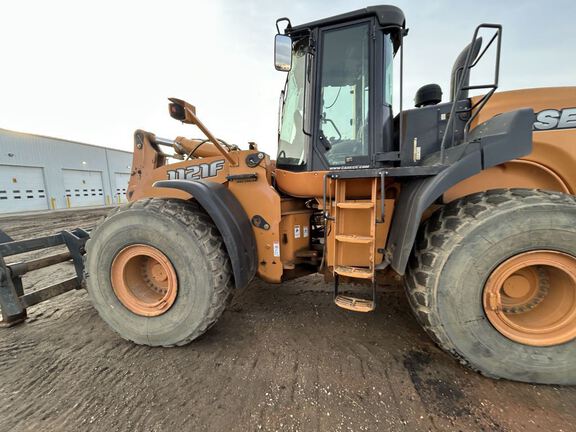

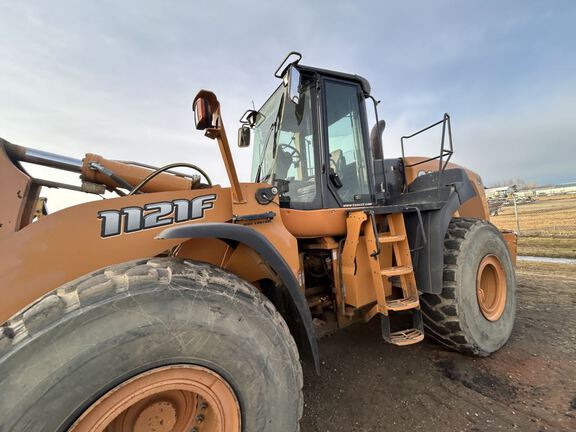

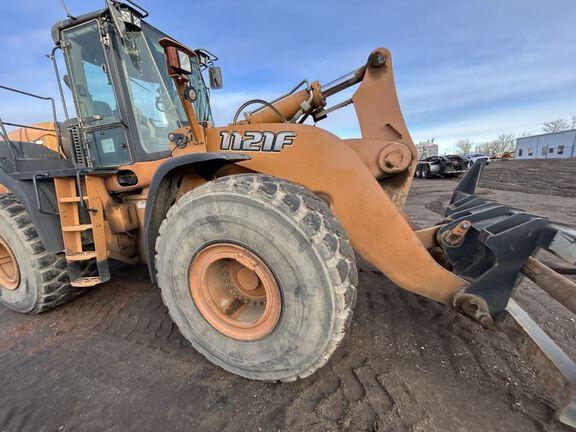

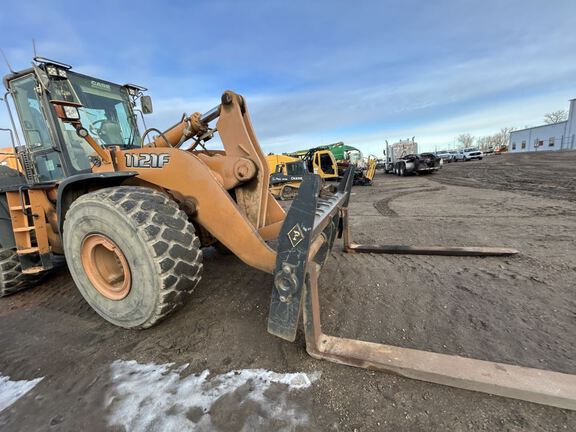

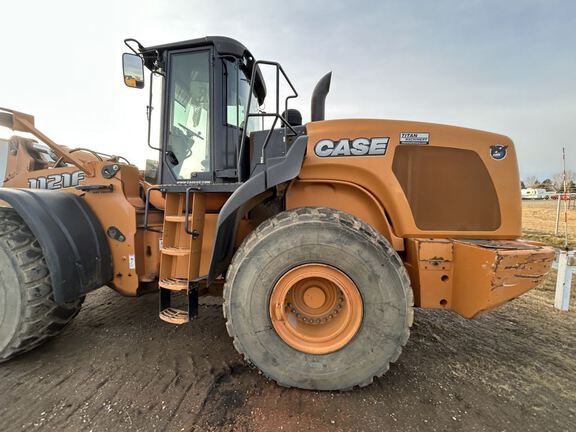

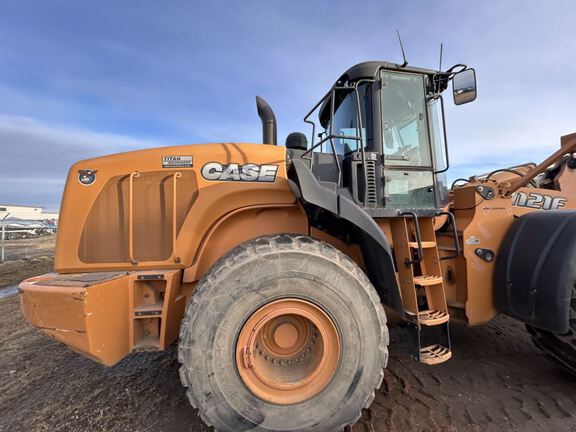

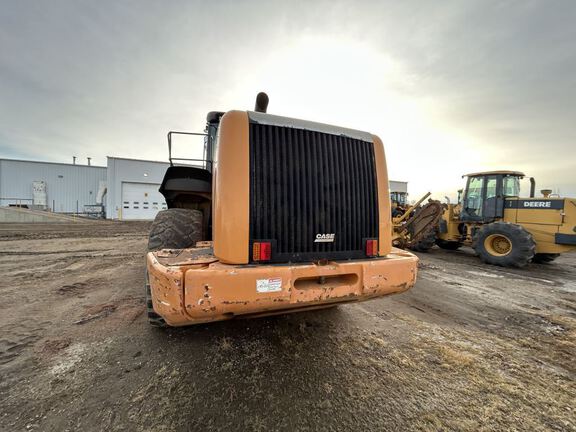

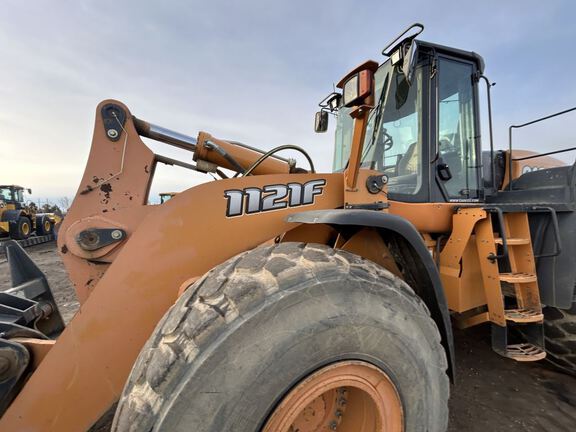

2011 Case 1121F For Sale in MINOT, ND

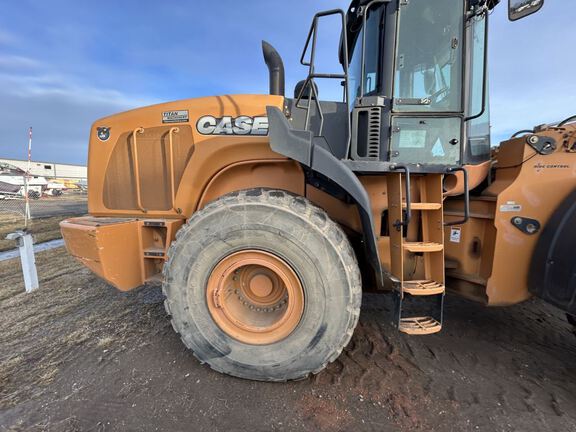

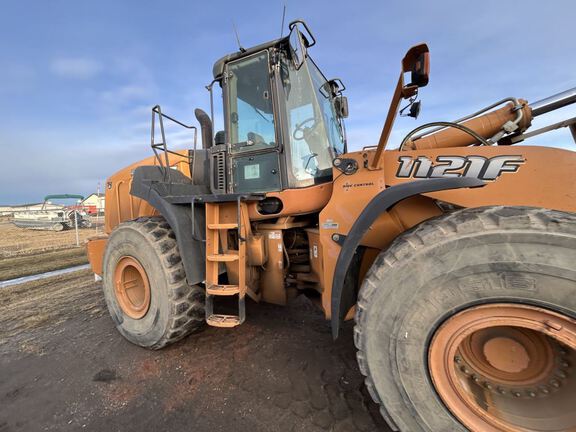

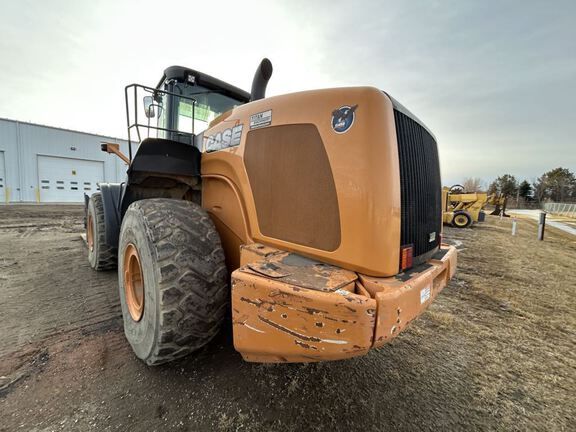

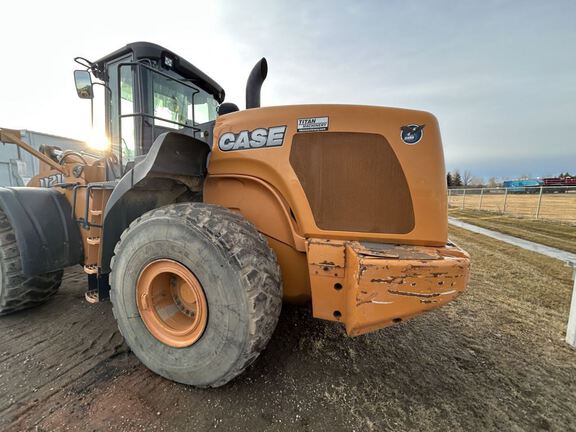

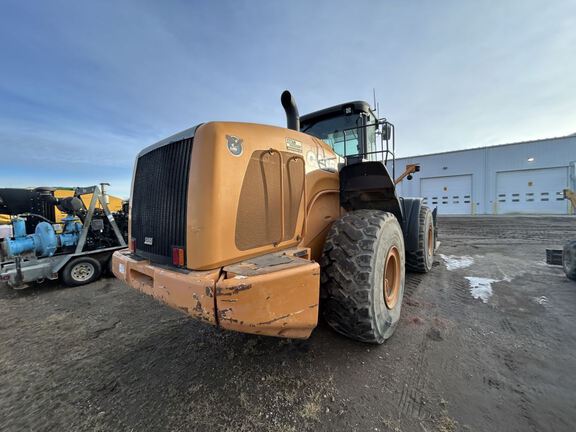

Name: 2011 Case 1121F
Brand: Case
SKU: 86703951
Price: 36310 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $36,310.00 USD

Apply for Financing

RDO Equipment Company

RDO Equipment Company Dealer Info

RDO Equipment Company Website

Click here to email RDO Equipment Company.

Contact: Sales Team

Click for Phone Number

Machine Info:

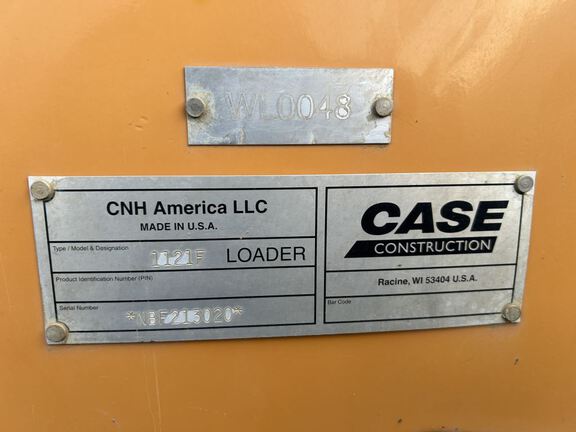

Serial Number:	NBF213020
Stock Number:	Z233021
Machine Location:	MINOT, ND

Description:

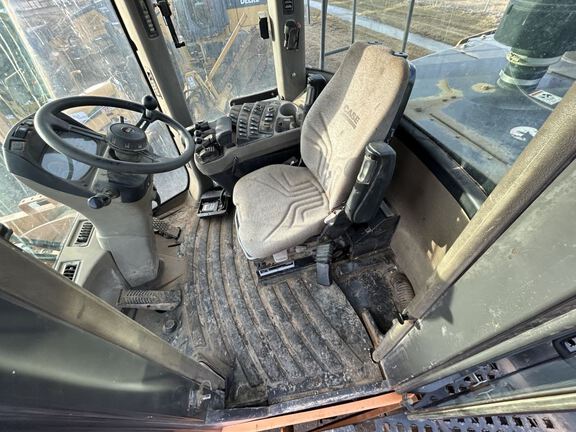

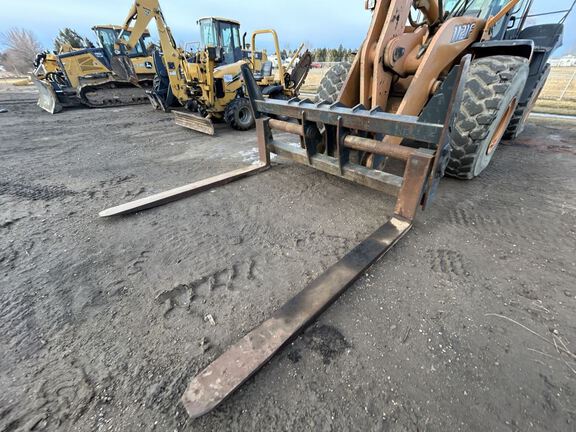

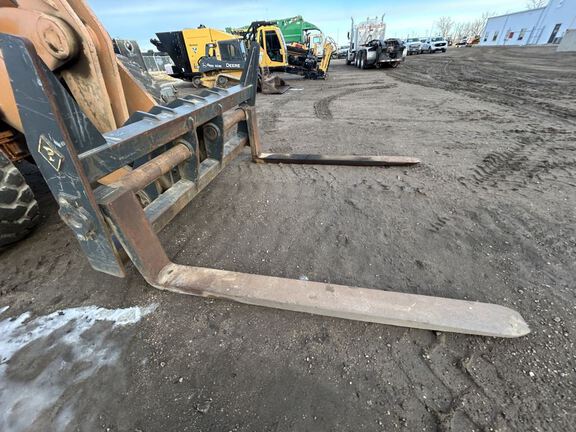

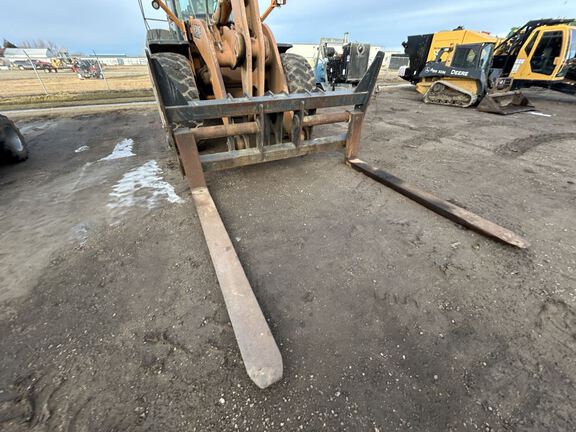

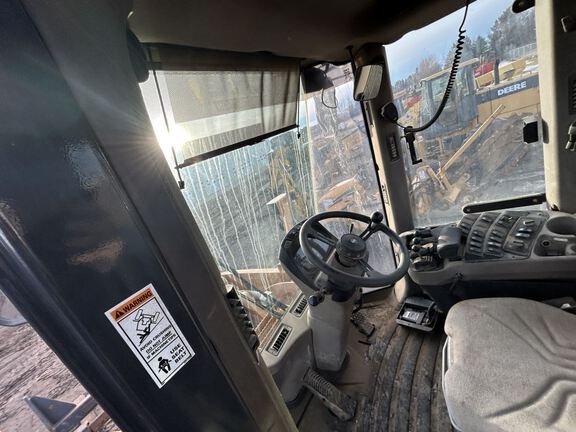

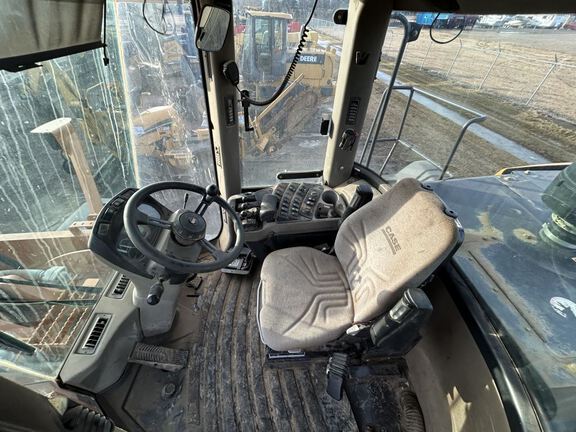

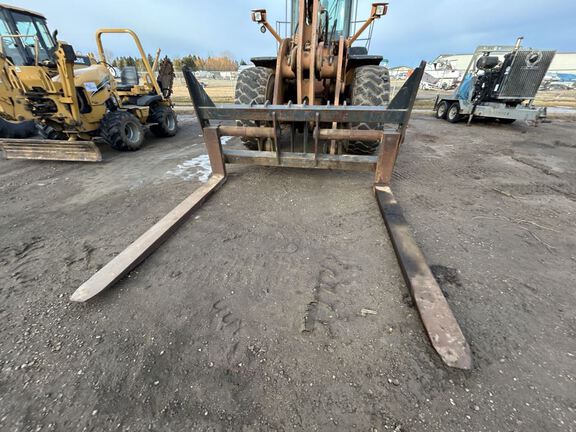

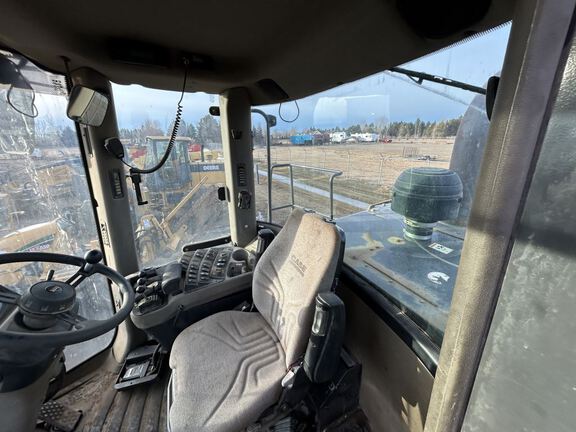

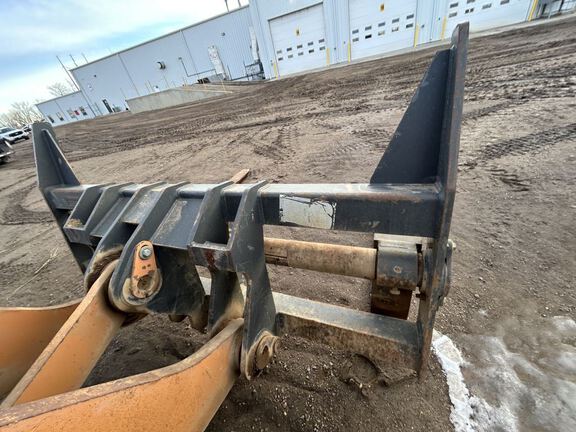

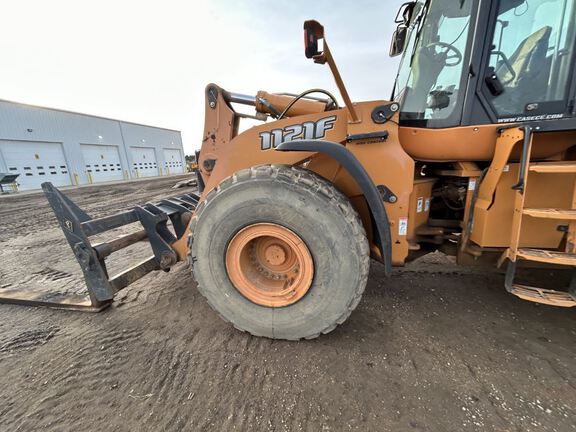

4-Wheel Drive Loader -, CAB/AC/HEAT - AIR SEAT - CLOTH SEAT - TC/PS - FRT DIFF/R STD - 26.5X25 RADIALS - F FNDRS - R FNDRS - NO BKT - FORKS - AUX HYD - 3LVR - RTD - RCTW - DRAWBAR - RADIO - STEERING-WHEEL

Machine Details:

General Specifications
Operators Station	Cab w/ AC
Attachments	Aux Hydraulics
Powertrain	Front Diff Lock
Tires	Radials

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Brakes
Service brake	Wet Multi Disc
Bucket
Breakout Force	49,953 lbs (22,658 kg)
Bucket Capacity - heaped	6 cu yd (5 cu m)
Bucket Capacity - struck	5 cu yd (4 cu m)
Bucket Width	11 ft (3 m)
Dump Clearance at Max Raise	11 ft (3 m)
Dimensions
Dump reach @ full height, 45 degrees dump	4 ft (1 m)
Ground Clearance	2 ft (0 m)
Height - Top of Cab	12 ft (4 m)
Hinge Pin - Max Height	15 ft (4 m)
Length with Bucket on Ground	30 ft (9 m)
Reach at Max Lift and Dump	7 ft (2 m)
Wheelbase	12 ft (4 m)
Width Over Tires	10 ft (3 m)
Engine
Alternator	95 amps
Aspiration	Turbocharged
Displacement	531 cu in (8,702 cu cm)
Emission Tier Level	Interim Tier 4
Engine Model	FPT F2CFE614B
Engine speed - Rated speed, full load	1,800 rpm
Gross Power	347 hp (259 kw)
Make	Case
Max. torque ISO14396	1,183 lbs ft (1,604 nm)
Net Power	320 hp (239 kw)
Number of Cylinders	6
Power Measured @	2,100 rpm
Torque Measured @	1,200 rpm
Torque Rise	50%
General Specifications
Bucket Capacity (Since 2016)	6.3 (4.61)
Engine Power (Since 2016)	320 (238 )
Engine type (Since 2016)	Case/FPT
Max Dump Height (Since 2016)	10.5 (3.2)
Operating Weight (Since 2016)	59,578 (27,024)
Hydraulic cycle times (unloaded)
Total cycle time	11 seconds
Hydraulic System
Dump Time	1 seconds
Lower Time	3 seconds
Maximum system pressure	3,649 psi
Pump Flow Capacity	50 gpm (190 lpm)
Pump Type	Axial Piston Pump
Raise Time	7 seconds
Steering pump type	Articulation
Operating Specifications
Cooling System Fluid Capacity	17 gal (66 l)
Engine Oil Fluid Capacity	8 gal (31 l)
Front Axle/Diff Fluid Capacity	17 gal (64 l)
Fuel Capacity	125 gal (473 l)
Hydraulic System Fluid Capacity	66 gal (250 l)
Operating Weight	59,192 lbs (26,849 kg)
Rated Bucket Capacity	6 cu yd (5 cu m)
Rear Axle/Diff Fluid Capacity	17 gal (64 l)
Static Tipping Weight	39,051 lbs (17,713 kg)
Tire Size	26.5R25
Transmission Fluid Capacity	12 gal (45 l)
Turning Radius	21 ft (6 m)
Transmission
Differential lock	F: LSD / R: LSD
Max Speed - Forward	23 mph (37 kph)
Max Speed - Reverse	16 mph (26 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	Powershift
Weights
Operational Weight	59,191 lbs (26,849 kg)
