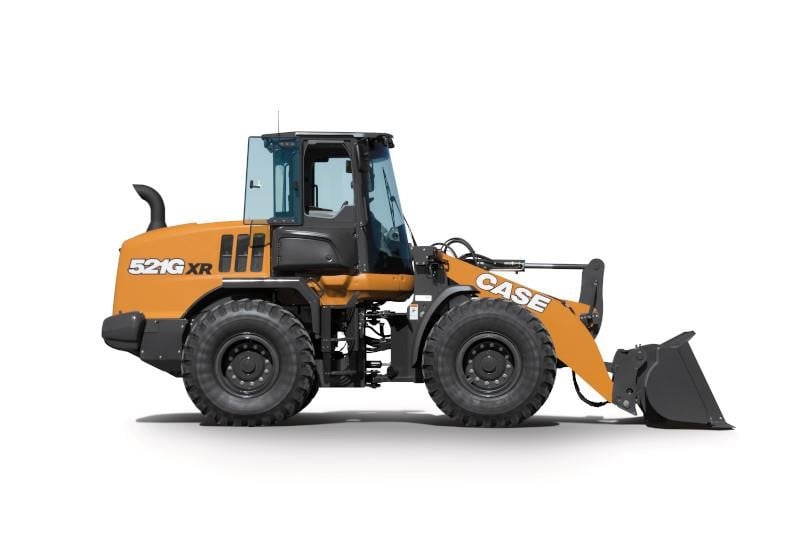

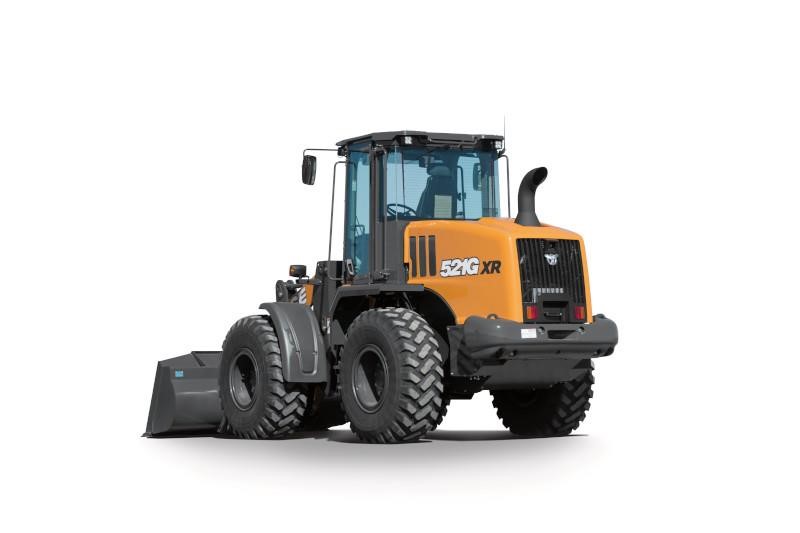

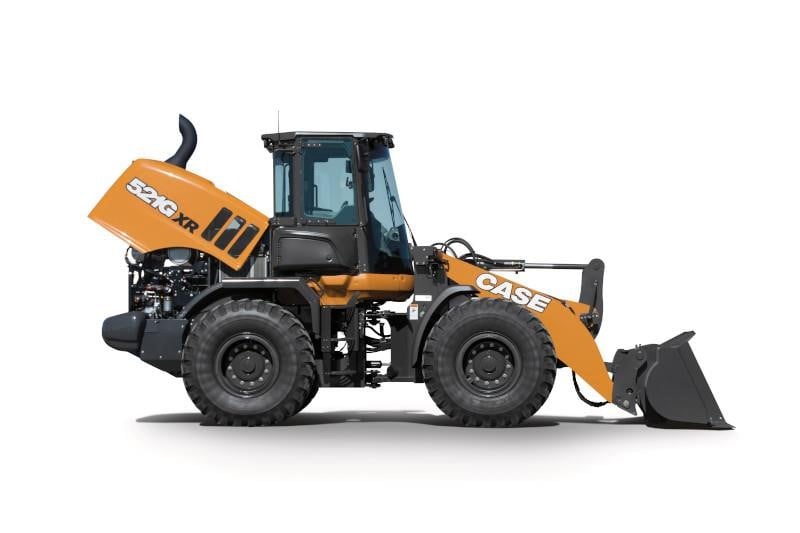

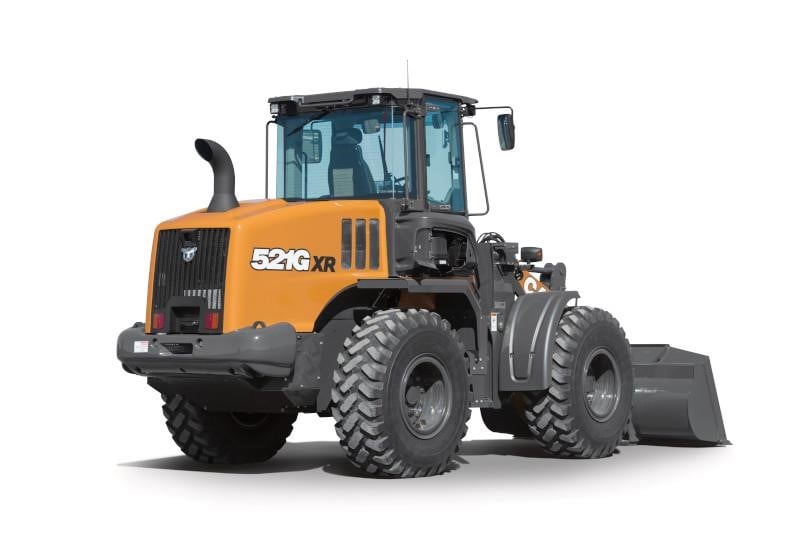

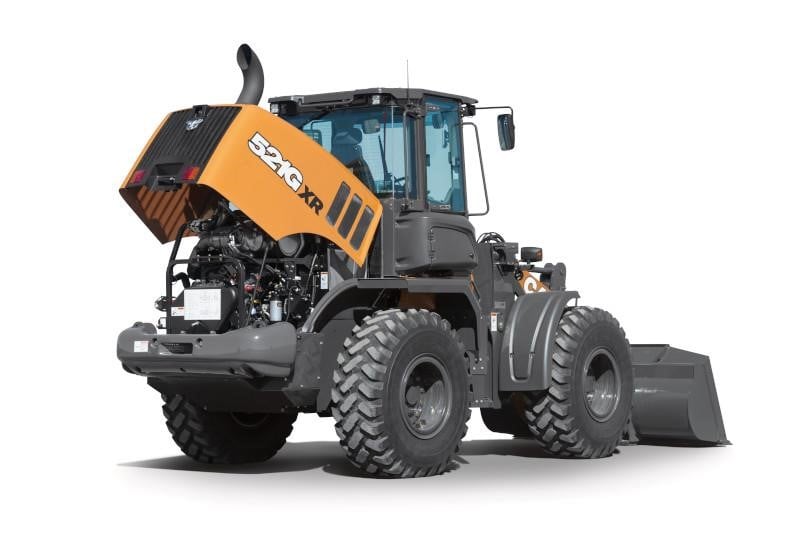

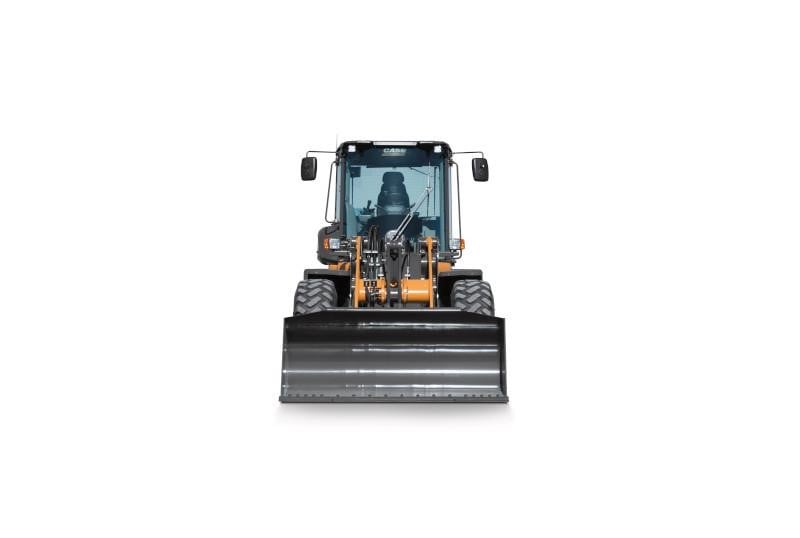

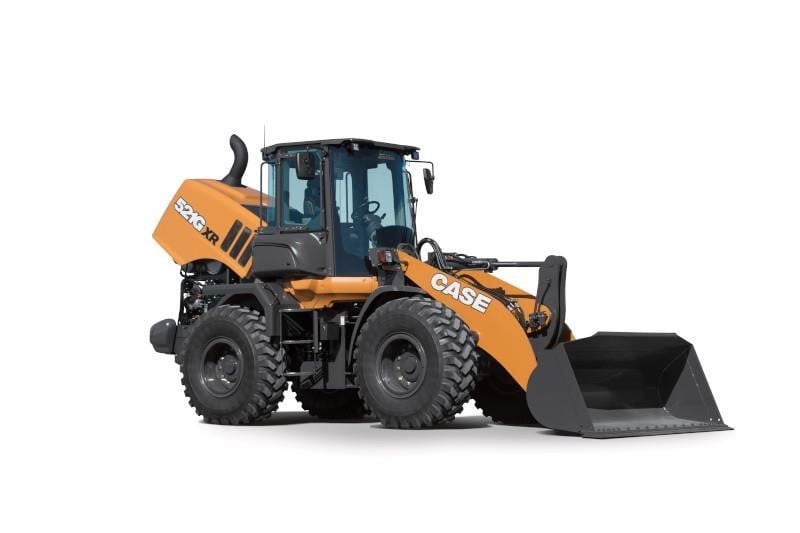

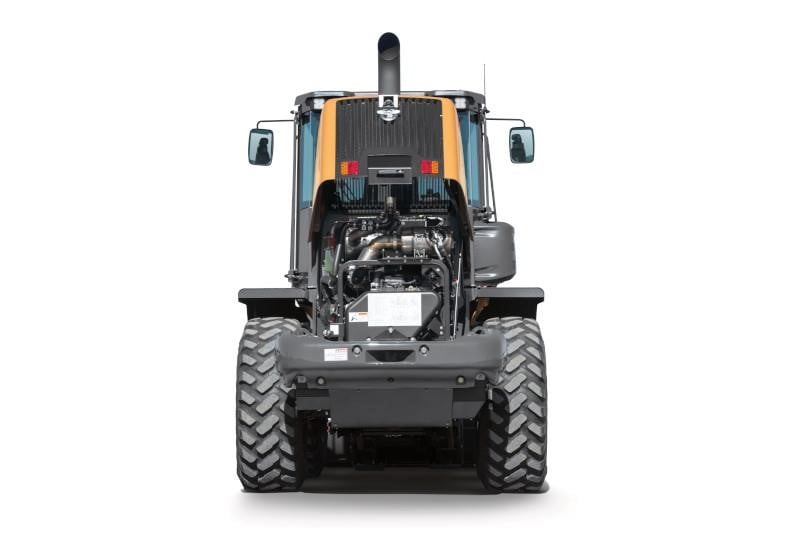

2024 Case 521G For Sale in Miami, FL


/ Save to Watch List

For Sale: Call for Price





Machine Info:

Stock Number:FNH0521GNZHE16690
Machine Location:MIAMI, FL
More Information:https://casepowered.com/inventory/wheel+loaders/2024-case-521g-west+palm+beach-fl-69723b8e30e559a6b609596c/

Description:

2024 CASE, 521G Wheel Loaders, *** NEW MACHINE *** Call for Pricing 521G2 ZBAR STAGE 5 Wheel Loader - Net Horsepower 142hp, Operating weight 24,203 lbs, BUCKET CAP. YD 32.5 Enhanced Cab, Enhanced Visibility Bundle, Limited Slip Axles, Standard Fenders w/LH / RH Steps, Skid Plate Transmission Guard. JRB Coupler Z Bar / XR Coupler 2.1 Yd Bucket & QC A strong performer in all seasons, the 521G wheel loader features the most intuitive, comfortable and operator-friendly cab of any case wheel loader to date – a strong statement from a company already recognized for superior operator environments. The 521G represents the best in both operator experience and performance, featuring best-in-class visibility and breakout force that exceeds 20,000 lbs It also features standard axles with limited slip differentials that transfer torque to the gripping tires to increase traction in slippery conditions.


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The Case 521G is a versatile wheel loader designed for medium-duty construction and material handling tasks. Equipped with a powerful engine and advanced hydraulic system, the 521G delivers efficient performance and reliable operation. Its robust frame and durable components ensure long service life in demanding environments. The operator cab offers ergonomic controls and good visibility for enhanced productivity and safety. The Case 521G wheel loader features a quick coupler system for easy attachment changes, increasing job site flexibility. Suitable for loading, lifting, and transporting materials, the Case 521G is widely used in construction, agriculture, and industrial applications.
Brakes
Service brake Wet Multi Disc
Bucket
Breakout Force 19,356 lbs (8,780 kg)
Bucket Capacity - heaped 2 cu yd (2 cu m)
Dump Clearance at Max Raise 9 ft (3 m)
Dimensions
Bucket reach - fully raised, 45à ° dump 40 in (101 cm)
Dump height - fully raised, 45 degrees dump 107 in (271 cm)
Ground Clearance 1 ft (0 m)
Height - Top of Cab 11 ft (3 m)
Hinge Pin - Max Height 12 ft (4 m)
Operating height - fully raised with spillgaurd 184 in (468 cm)
Overall length (L/bucket) 22 ft (7 m)
Overall width without bucket 96 in (245 cm)
Reach at Max Lift and Dump 5 ft (1 m)
Turning Radius Outside Tires 17 ft (5 m)
Wheelbase 9 ft (3 m)
Width Over Tires 8 ft (2 m)
Engine
Alternator 70 amps
Displacement 275 cu in (4,502 cu cm)
Emissions Tier 4
Engine Model FPT F4HFE413NB
Gross Power 142 hp (106 kw)
Make Case
Max Torque 449 lbs ft (608 nm)
Net Power 129 hp (96 kw)
Number of Cylinders 4
Rated engine speed 2,000 rpm
Torque Rise 21%
General Specifications
Bucket Capacity (Since 2017) 2.3 (1.75)
Bucket Capacity (Since 2024) 2.1 (1.6)
Engine Power (Since 2017) 131 (98)
Engine type (Since 2017) Case/FPT
Max Dump Height (Since 2017) 8.5 (2.6)
Max Dump Height (Since 2024) 9.1 (2.8)
Operating Weight (Since 2017) 24,203 (10,978)
Hydraulic cycle times (unloaded)
Total cycle time 11 seconds
Hydraulic System
Maximum system pressure 3,625 psi
Pump Flow Capacity 35 gpm (134 lpm)
Pump Type Piston
Steering pump type Articulation
Operating Specifications
Cooling System Fluid Capacity 6 gal (22 l)
DEF tank capacity 12 gal (44 l)
Front Axle/Diff Fluid Capacity 6 gal (22 l)
Fuel Capacity 50 gal (189 l)
Operating Voltage 24 volts
Operating Weight 24,291 lbs (11,018 kg)
Rated Bucket Capacity 2 cu yd (2 cu m)
Rear Axle Oscillation 24 degrees
Rear Axle/Diff Fluid Capacity 6 gal (22 l)
Transmission Fluid Capacity 7 gal (26 l)
Performance
Tipping Load 17,683 lbs (8,021 kg)
Transmission
Differential lock F: LSD / R: LSD
Max Speed - Forward 22 mph (36 kph)
Number of Forward Gears 4
Number of Reverse Gears 3
Transmission Type Powershift
Weights
Operational Weight 24,203 lbs (10,978 kg)
