Equipment ↠ Case ↠ Wheel Loaders ↠ 2006 Case 621D XT

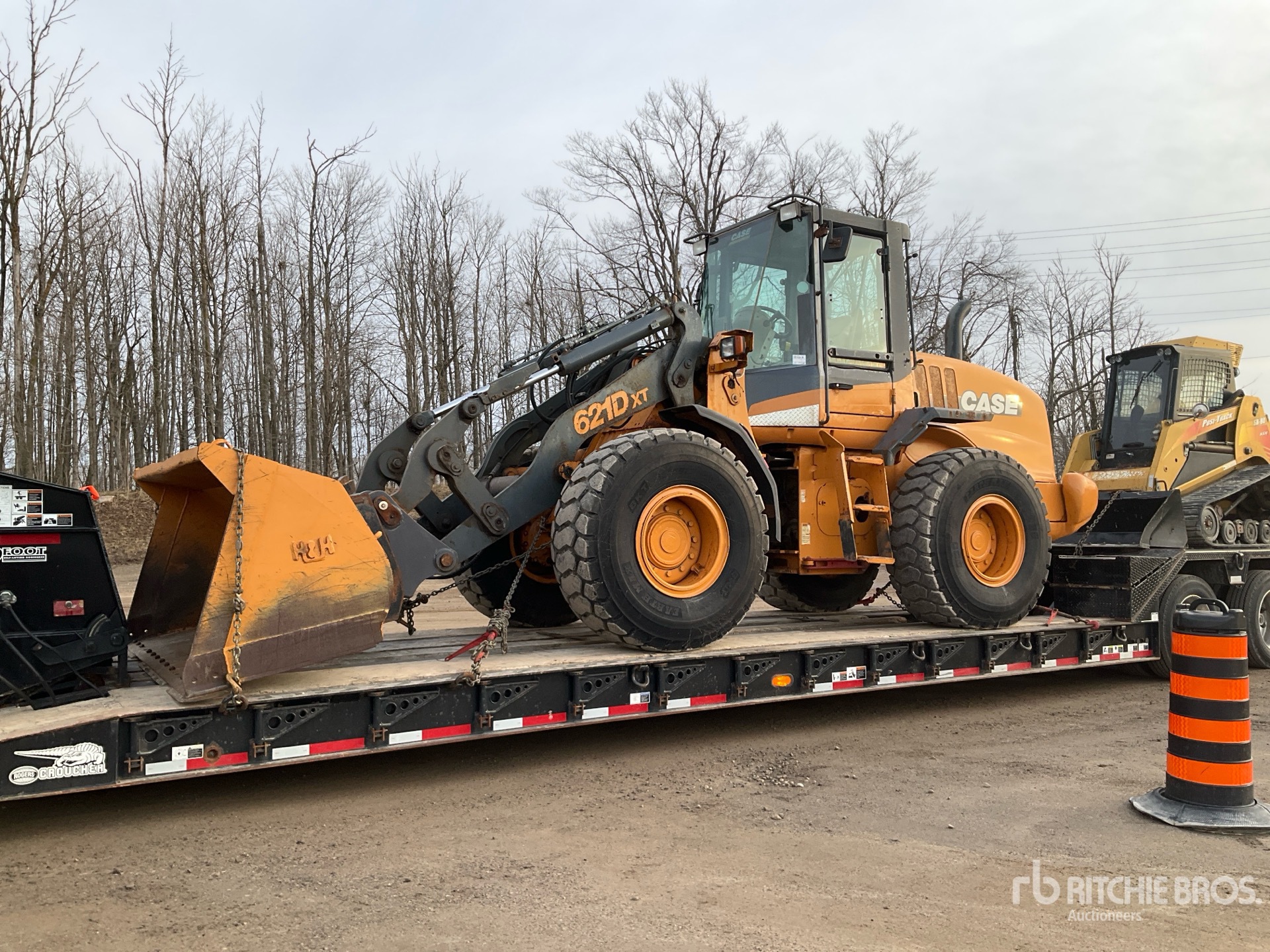

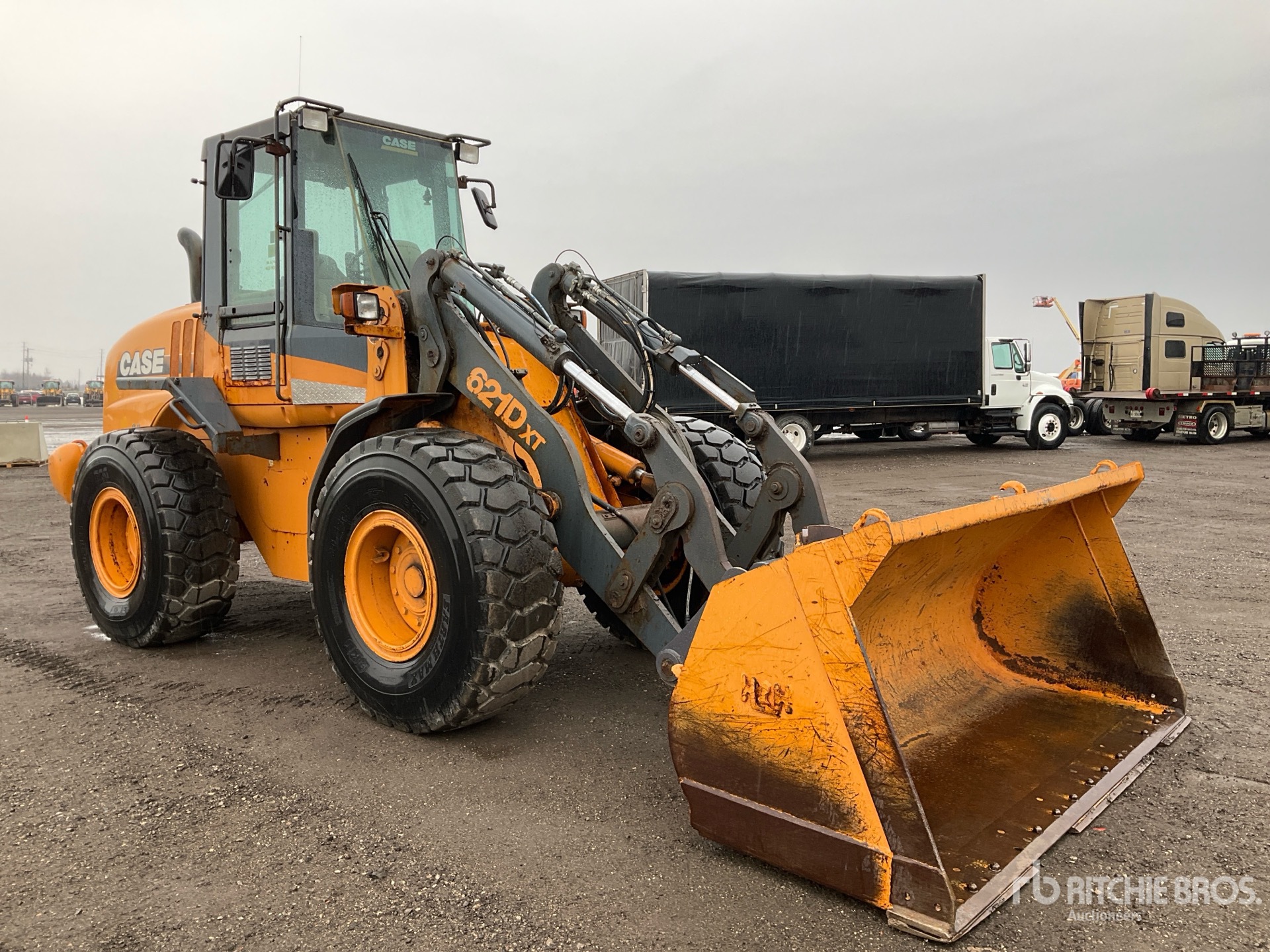

2006 Case 621D XT For Sale in Toronto, On

Name: 2006 Case 621D XT
Brand: Case
SKU: 86444801
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-20 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

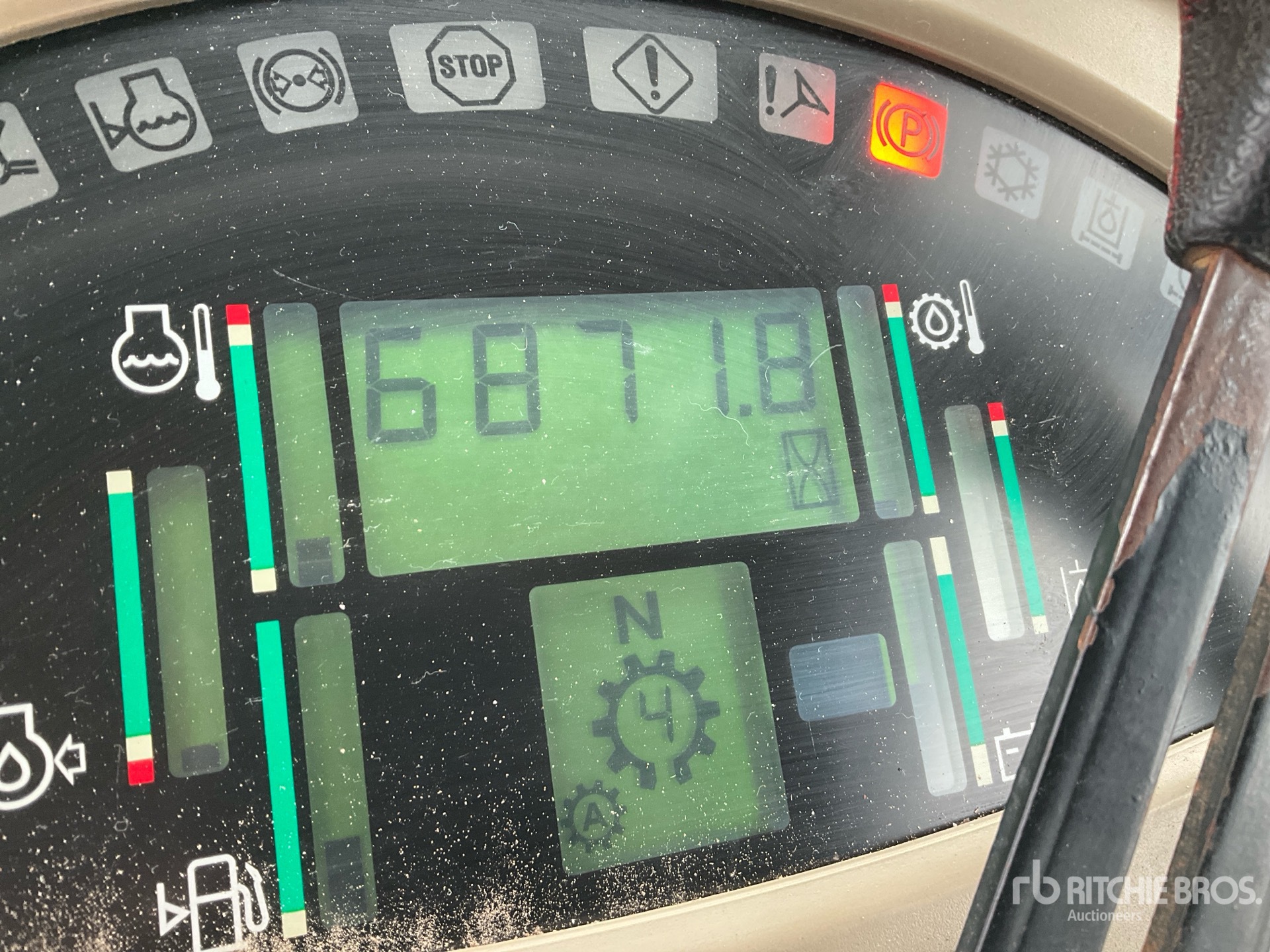

Hours:	6871

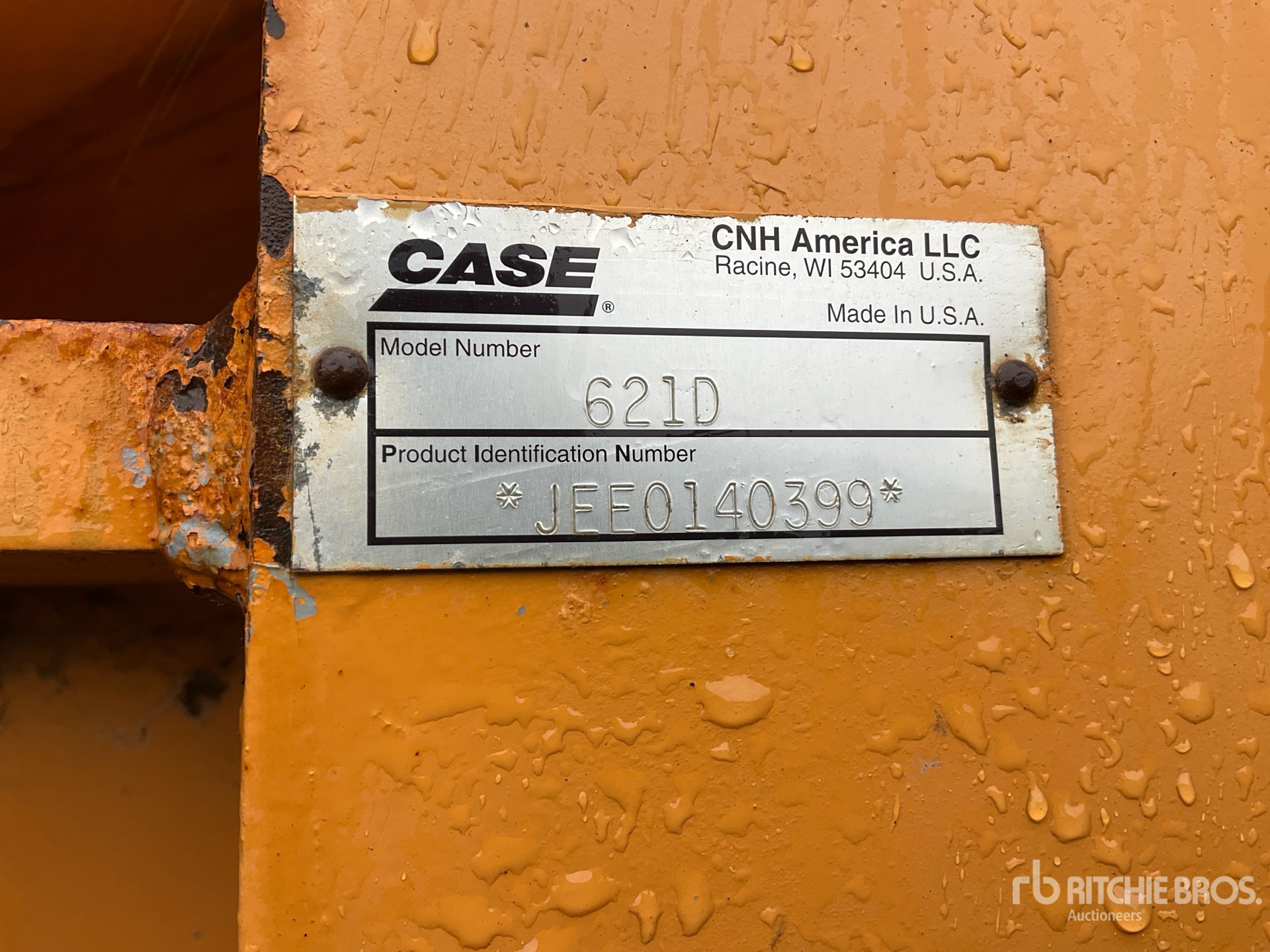

Serial Number:	JEE0140399
Machine Location:	TORONTO, ON

Description:

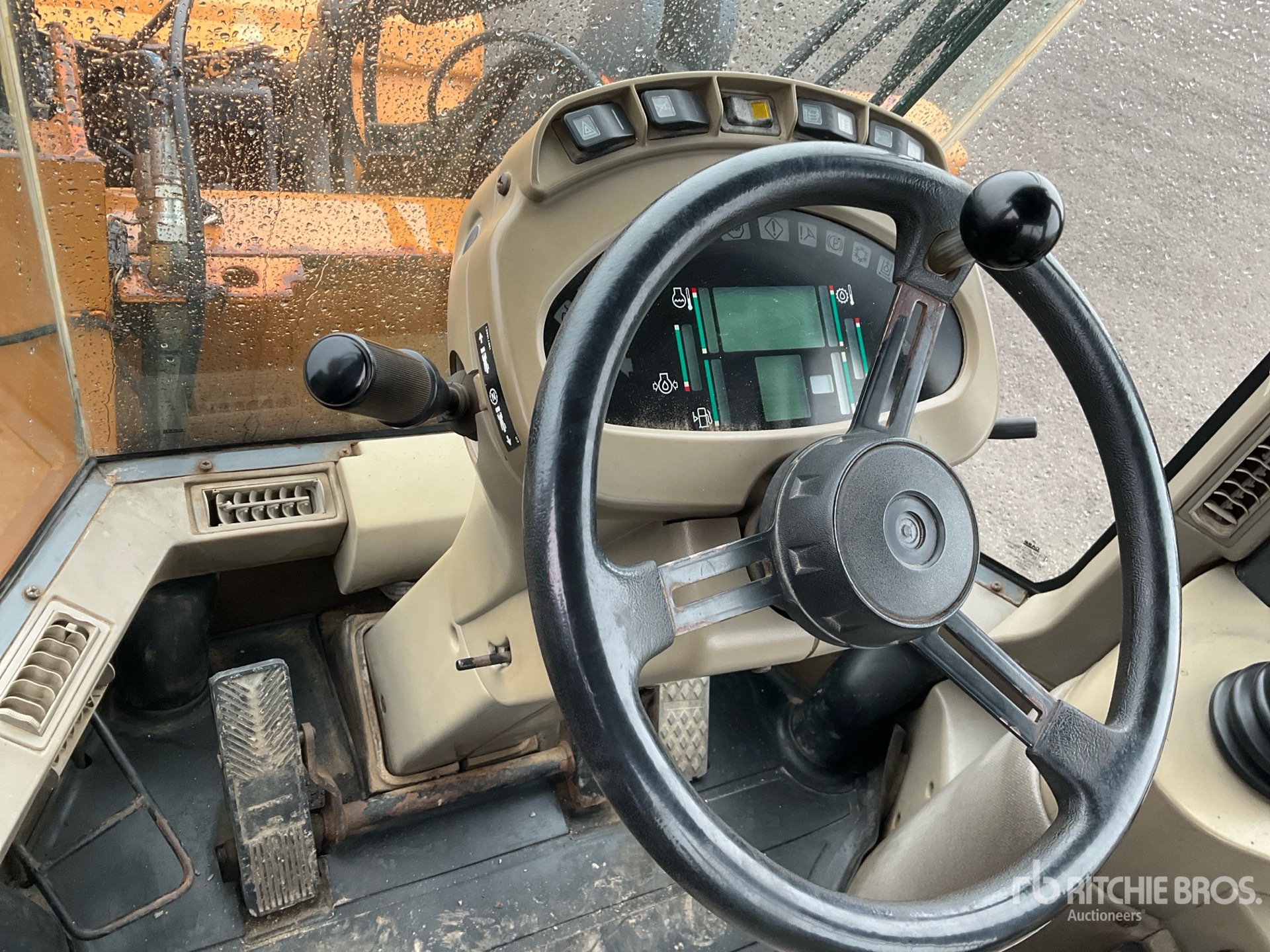

Enclosed Cab, Air Conditioner, Ride Control, Hydraulic Coupler, 2.5 cyd 101 in Bucket, 20.5R25 Tires Closing Time: 2026-05-20 09:00:15 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Bucket
Breakout Force	26,739 lbs (12,129 kg)
Bucket Capacity - struck	3 cu yd (2 cu m)
Dump Clearance at Max Raise	10 ft (3 m)
Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Length with Bucket on Ground	23 ft (7 m)
Reach at Max Lift and Dump	4 ft (1 m)
Wheelbase	10 ft (3 m)
Width Over Tires	8 ft (2 m)
Engine
Aspiration	Turbocharged with Aftercooler
Displacement	409 cu in (6,702 cu cm)
Engine Model	668TA/M2
Gross Power	148 hp (110 kw)
Net Power	136 hp (101 kw)
Number of Cylinders	6
Power Measured @	2,000 rpm
Torque Measured @	1,200 rpm
Torque Rise	33%
Hydraulic System
Dump Time	2 seconds
Lower Time	4 seconds
Pump Flow Capacity	45 gpm (171 lpm)
Pump Type	closed centered variable displacement
Raise Time	5 seconds
Relief Valve Setting	3,625 psi
Operating Specifications
Alternator Supplied Amperage	70 amps
Cooling System Fluid Capacity	6 gal (24 l)
Engine Oil Fluid Capacity	4 gal (16 l)
Front Axle/Diff Fluid Capacity	6 gal (22 l)
Fuel Capacity	50 gal (189 l)
Hydraulic System Fluid Capacity	30 gal (114 l)
Operating Voltage	24 volts
Operating Weight	27,877 lbs (12,645 kg)
Rear Axle Oscillation	24 degrees
Rear Axle/Diff Fluid Capacity	6 gal (22 l)
Static Tipping Weight	20,318 lbs (9,216 kg)
Tire Size	20.5x25
Transmission Fluid Capacity	5 gal (19 l)
Turning Radius	17 ft (5 m)
Transmission
Max Speed - Forward	24 mph (39 kph)
Max Speed - Reverse	16 mph (25 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
