Equipment ↠ Case ↠ Wheel Loaders ↠ 2014 Case 721F

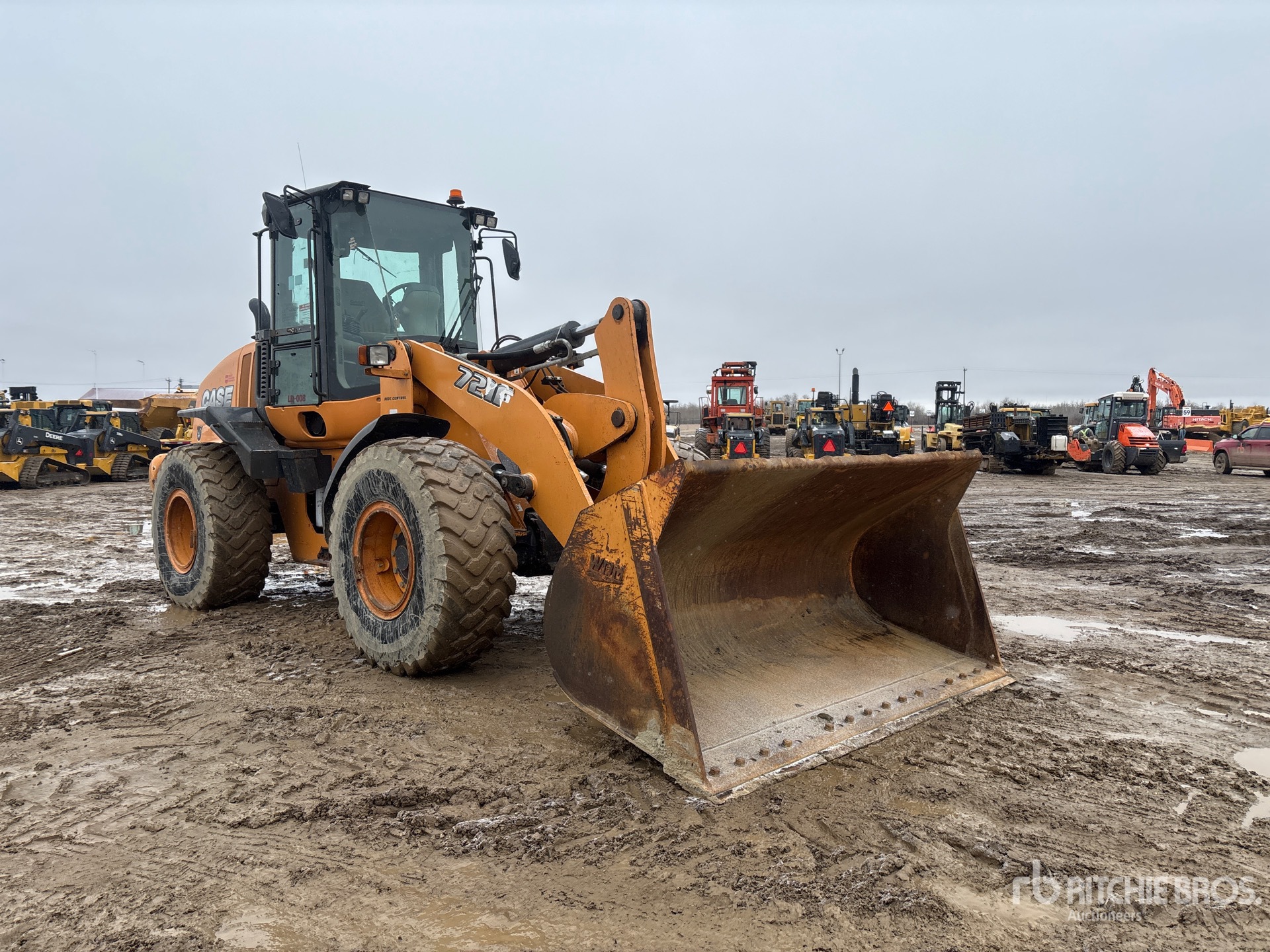

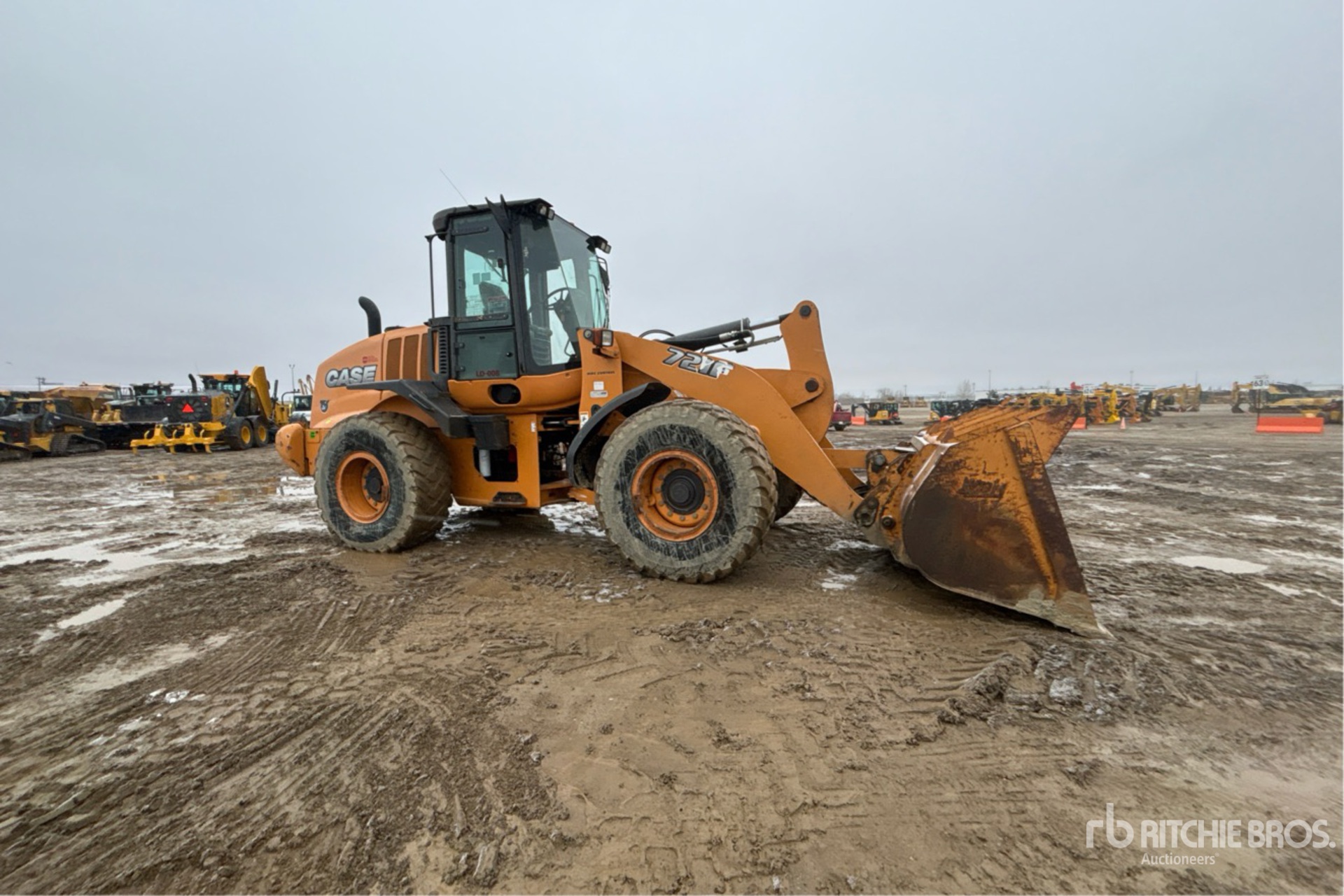

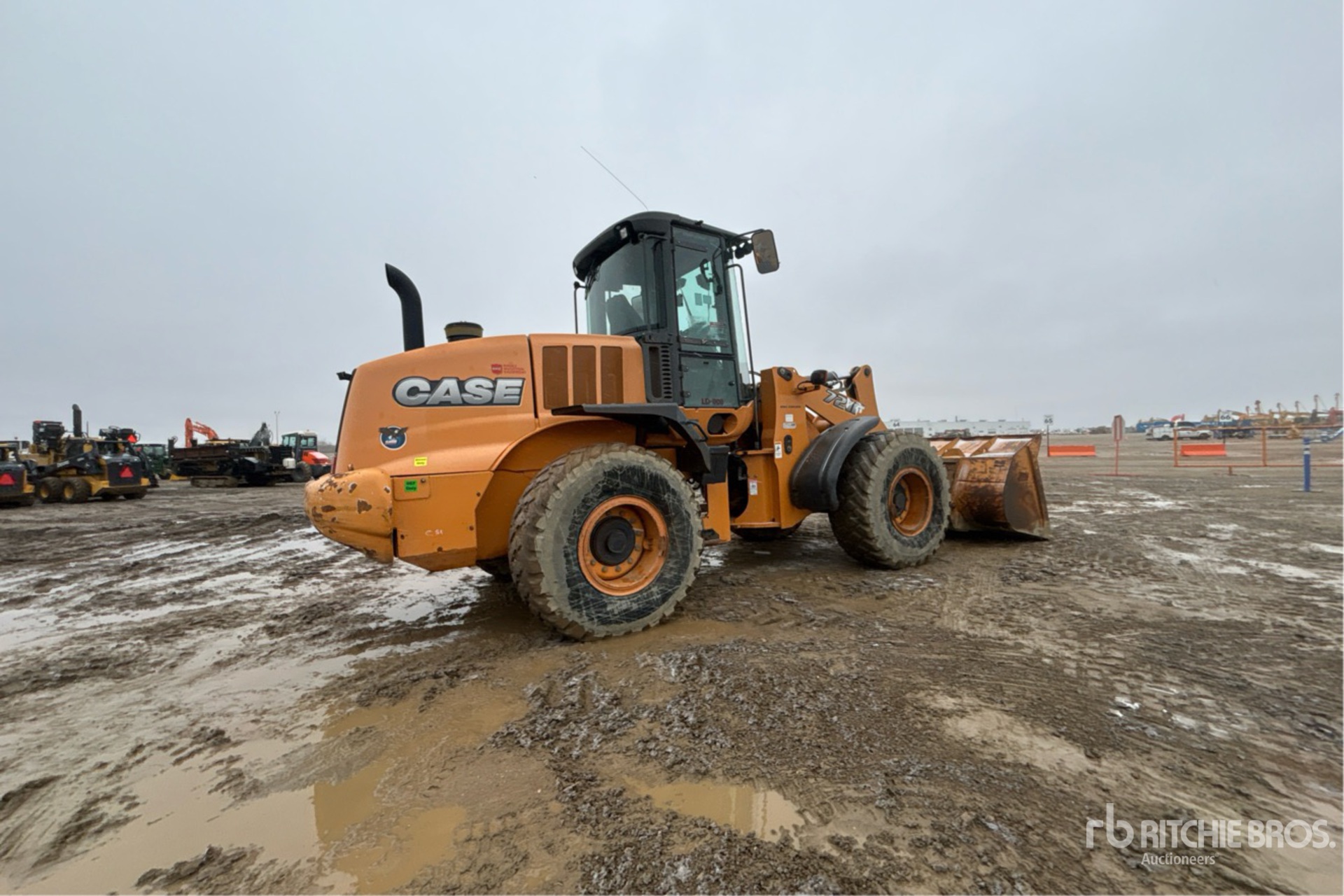

2014 Case 721F For Sale in Edmonton, Ab

Name: 2014 Case 721F
Brand: Case
SKU: 86987422
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

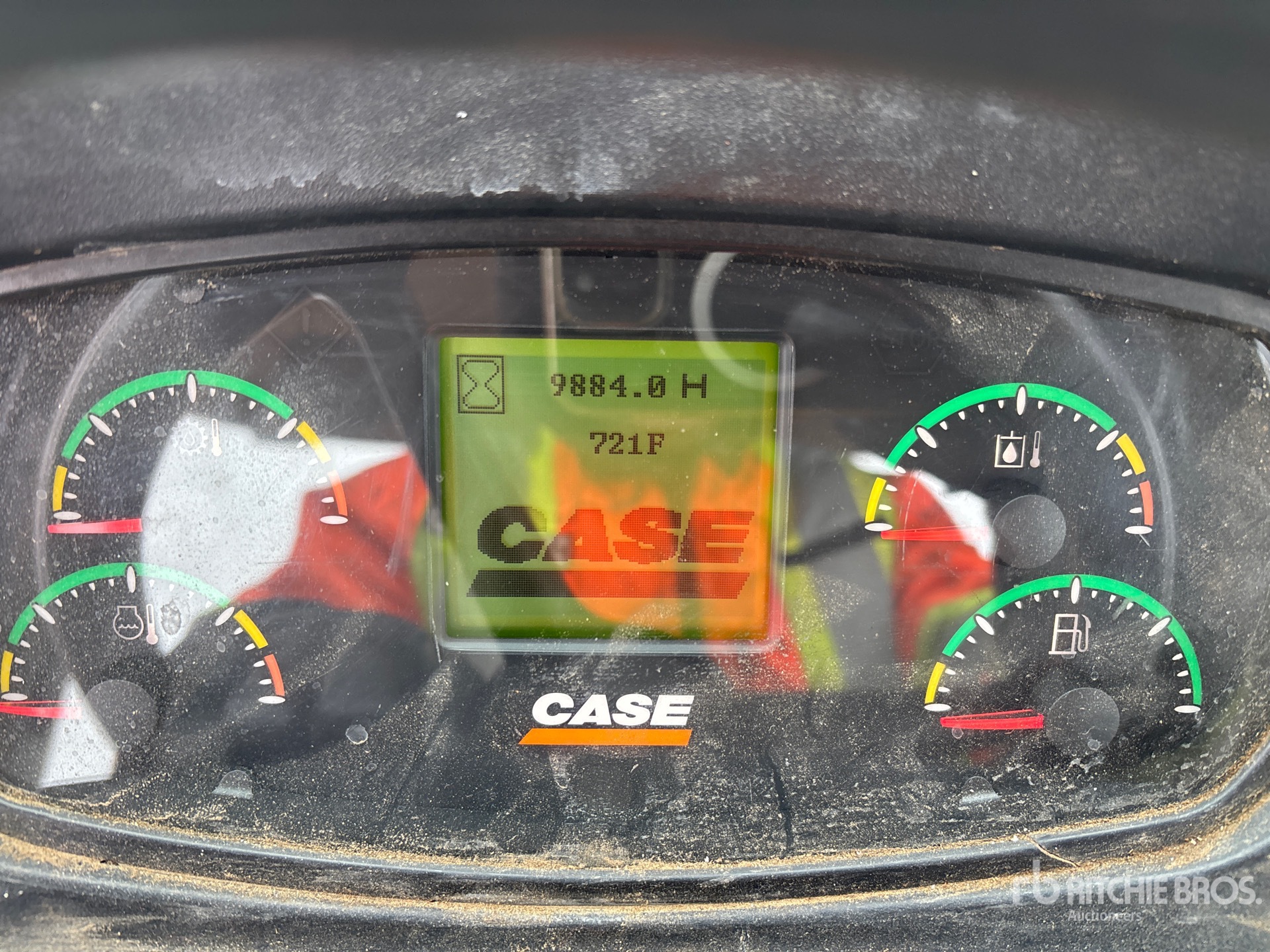

Hours:	9884

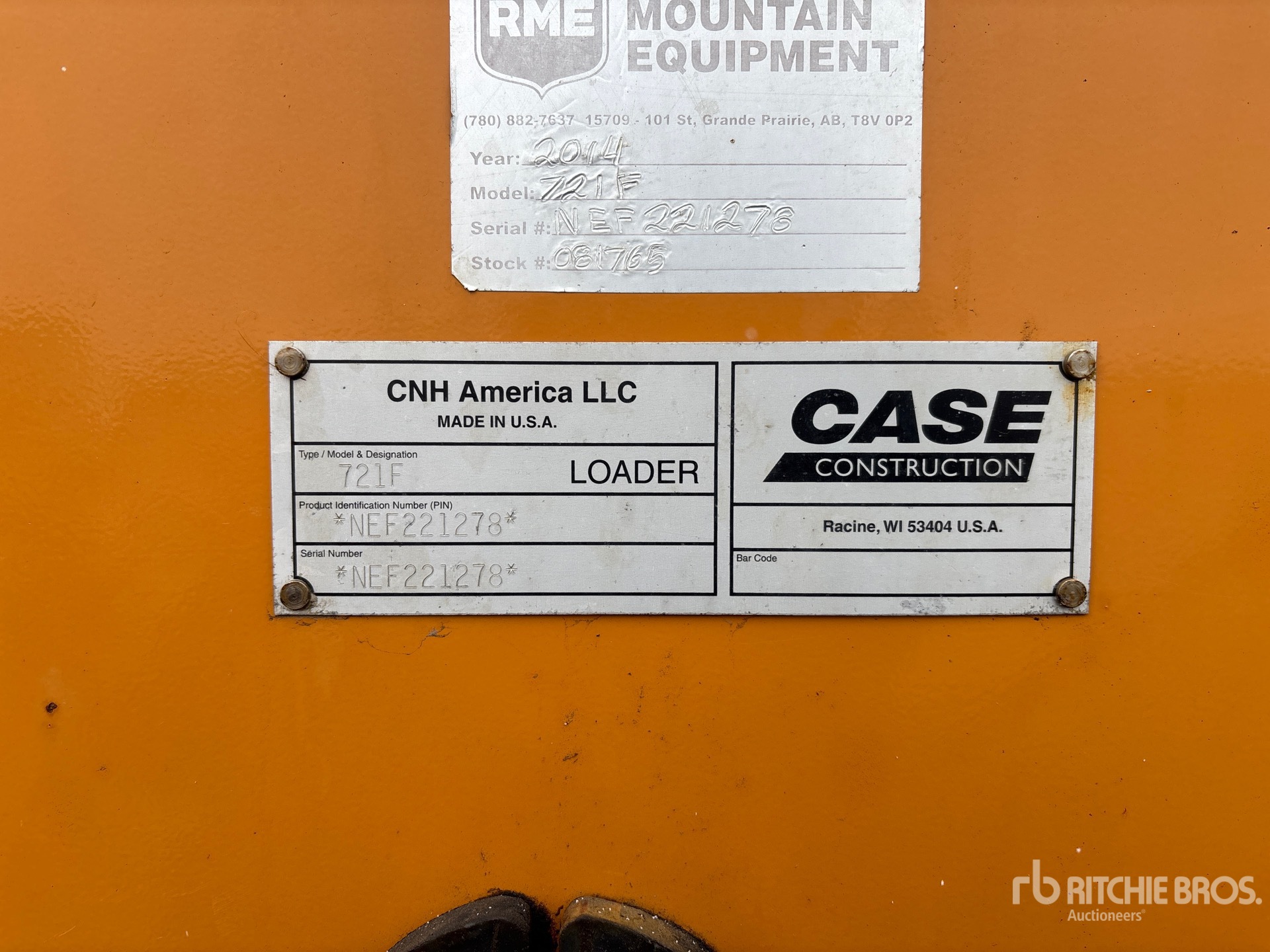

Serial Number:	NEF221278
Machine Location:	EDMONTON, AB

Description:

Located in Lane 62 Spot 41, Enclosed Cab, Air Conditioner, Auxiliary Hydraulics, Hydraulic Coupler, 105 in Bucket, 20.5R25 Tires, "NOTICE-TO-US-BIDDERS: this asset is likely exempt from US import tariffs as it was manufactured in the US. Bidders are responsible for confirming with their customs broker." Closing Time: 2026-05-11 10:24:30 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case 721F is a wheel loader designed for material handling, stockpiling, truck loading, and general construction site work. It is part of Case's F Series and is commonly used in aggregate, landscaping, municipal, and industrial applications. The 721F features a diesel engine, hydrostatic or powershift drivetrain depending on configuration, articulated steering, and a front-mounted loader arm with a standard bucket or optional attachments. Operator controls, visibility, and service access are designed for productivity and maintenance efficiency. The machine is typically selected for balanced lift performance, maneuverability, and versatility in medium-duty loading operations.

Brakes
Service brake	Wet Multi Disc
Bucket
Breakout Force	31,361 lbs (14,225 kg)
Bucket Capacity - heaped	3 cu yd (3 cu m)
Bucket Capacity - struck	3 cu yd (2 cu m)
Bucket Width	9 ft (3 m)
Dump Clearance at Max Raise	10 ft (3 m)
Dimensions
Dump reach @ full height, 45 degrees dump	4 ft (1 m)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Length with Bucket on Ground	25 ft (8 m)
Reach at Max Lift and Dump	6 ft (2 m)
Wheelbase	11 ft (3 m)
Width Over Tires	9 ft (3 m)
Engine
Alternator	120 amps
Aspiration	Turbocharged
Displacement	411 cu in (6,735 cu cm)
Emissions level	Tier 4
Engine Model	FPT F4HFE613T
Engine speed - Rated speed, full load	2,000 rpm
Gross Power	195 hp (145 kw)
Make	Case
Max. torque ISO14396	701 lbs ft (950 nm)
Net Power	178 hp (133 kw)
Number of Cylinders	6
Power Measured @	2,000 rpm
Torque Measured @	1,300 rpm
Torque Rise	37%
General Specifications
Bucket Capacity (Since 2016)	5.5 (4.21)
Engine Power (Since 2016)	178 (133)
Engine type (Since 2016)	Case/FPT
Max Dump Height (Since 2016)	9.3 (2.8)
Operating Weight (Since 2016)	31,508 (14,291)
Hydraulic cycle times (unloaded)
Total cycle time	9 seconds
Hydraulic System
Dump Time	1 seconds
Lower Time	2 seconds
Maximum system pressure	3,625 psi
Pump Flow Capacity	32 gpm (120 lpm)
Pump Type	Axial Piston Pump
Raise Time	5 seconds
Relief Valve Setting	3,625 psi
Steering pump type	Articulation
Operating Specifications
Alternator Supplied Amperage	65 amps
Cooling System Fluid Capacity	8 gal (29 l)
Engine Oil Fluid Capacity	4 gal (15 l)
Front Axle/Diff Fluid Capacity	9 gal (35 l)
Fuel Capacity	65 gal (246 l)
Hydraulic System Fluid Capacity	47 gal (178 l)
Operating Voltage	24 volts
Operating Weight	31,508 lbs (14,292 kg)
Rated Bucket Capacity	6 cu yd (4 cu m)
Rear Axle Oscillation	24 degrees
Rear Axle/Diff Fluid Capacity	6 gal (23 l)
Static Tipping Weight	23,371 lbs (10,601 kg)
Transmission Fluid Capacity	9 gal (34 l)
Turning Radius	19 ft (6 m)
Transmission
Differential lock	F: LSD / R: LSD
Max Speed - Forward	24 mph (38 kph)
Max Speed - Reverse	16 mph (26 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	Powershift
Weights
Operational Weight	31,510 lbs (14,293 kg)
