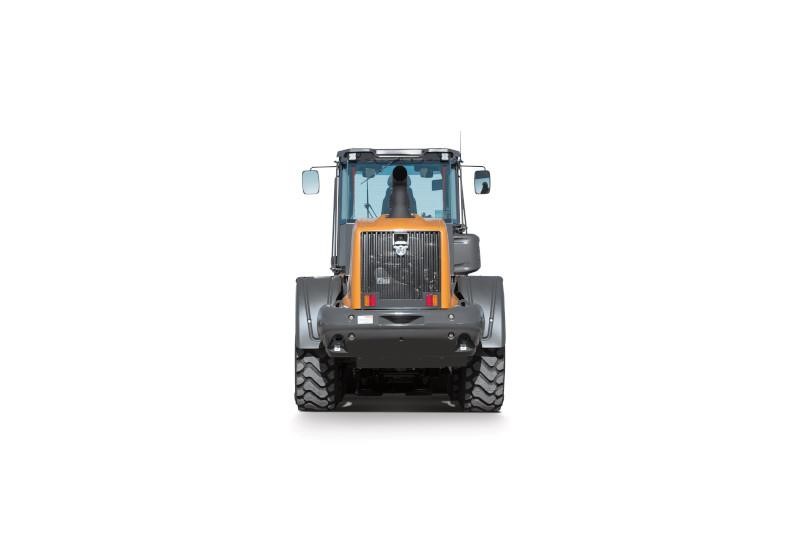

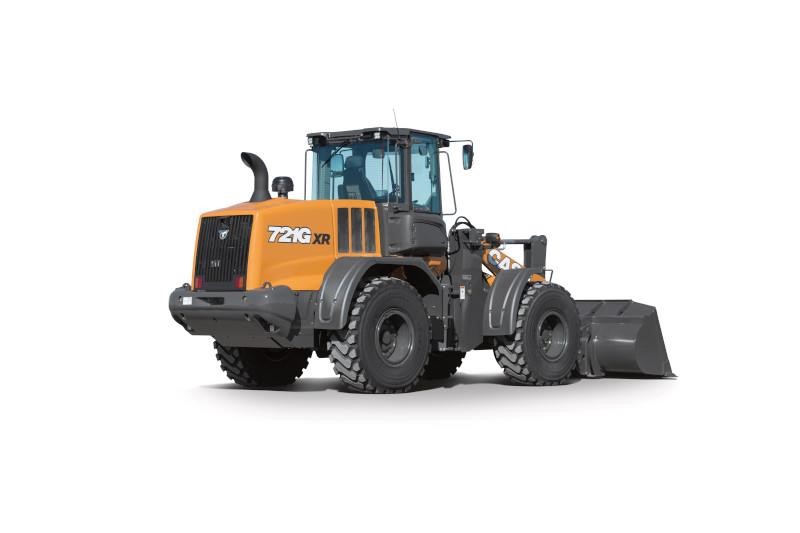

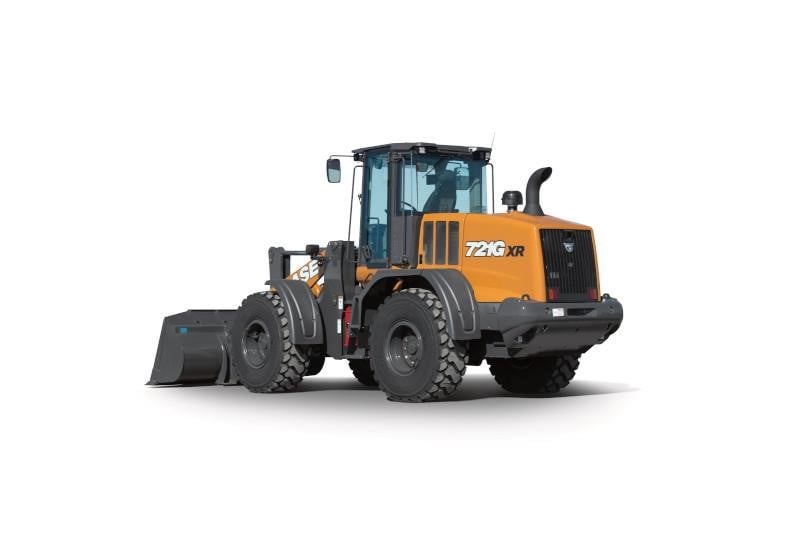

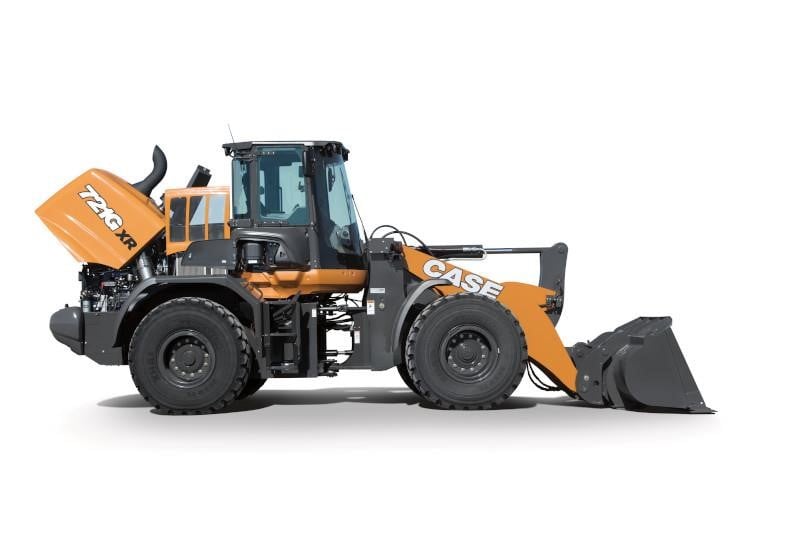

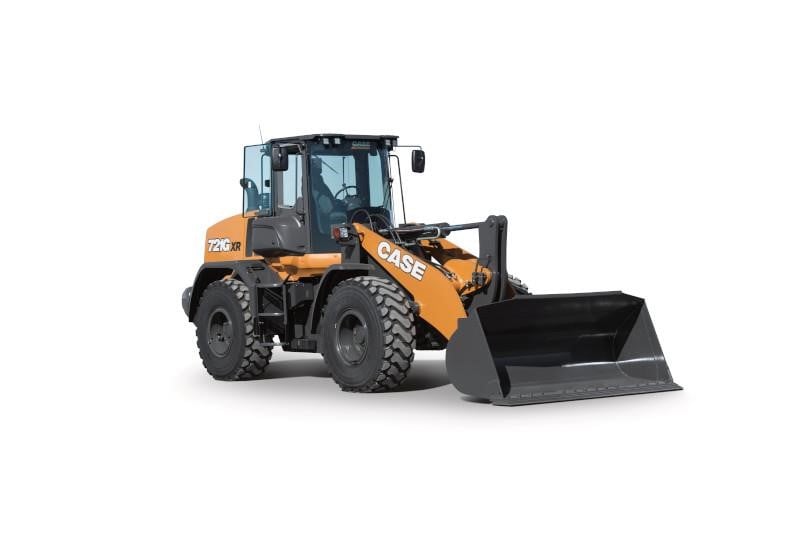

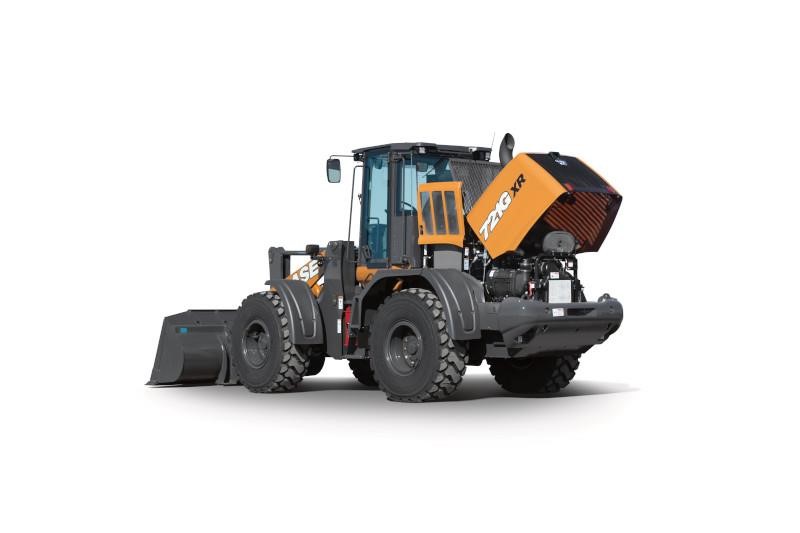

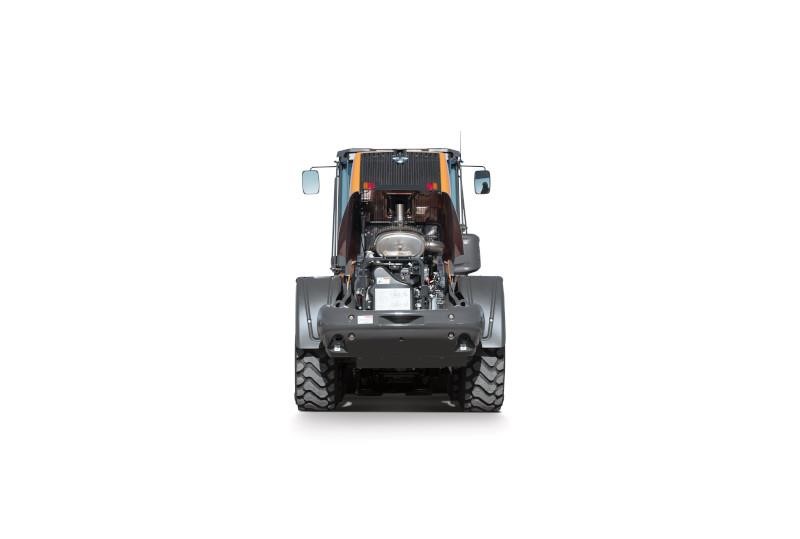

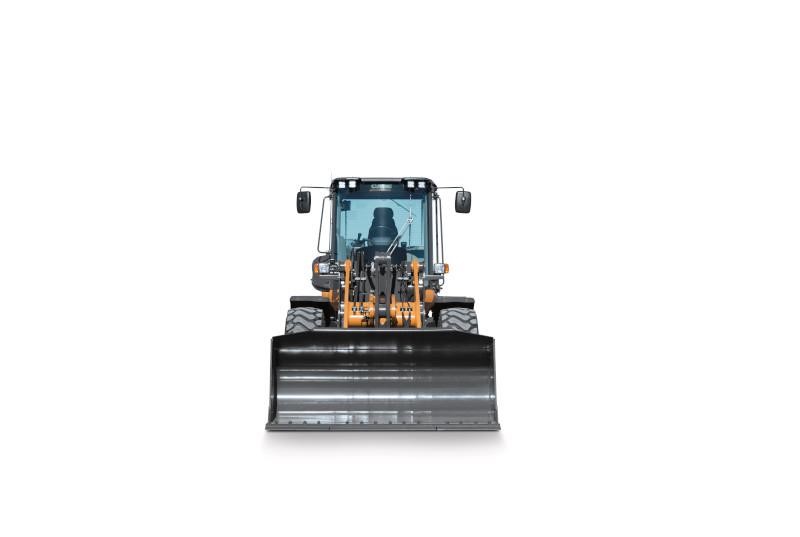

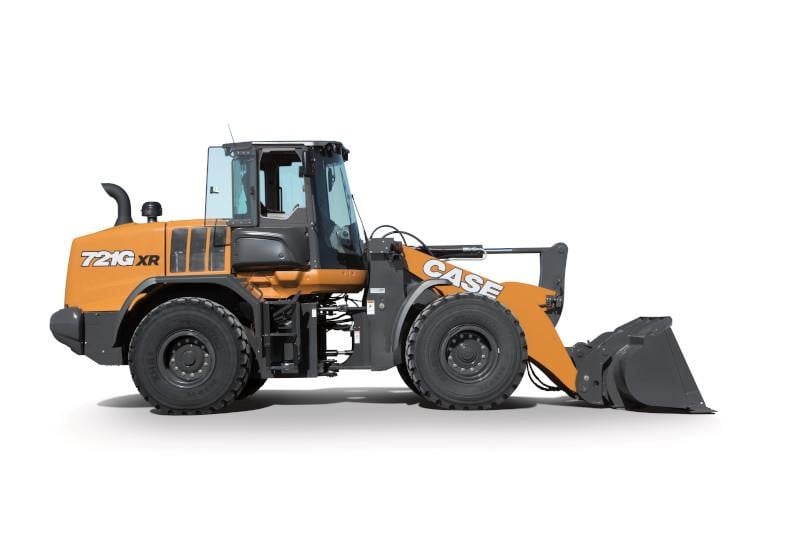

2023 Case 721G For Sale in Miami, FL


/ Save to Watch List

For Sale: Call for Price





Machine Info:

Stock Number:NPF260090
Machine Location:MIAMI, FL
More Information:https://casepowered.com/inventory/wheel+loaders/2023-case-721g-fort+myers-fl-6900e92985b0484ddc068b6a/

Description:

2023 CASE, 721G Wheel Loaders, *** NEW MACHINE*** Call for Pricing 721G The 721G offers 33,000 lbs of breakout force, as well as a 5-speed transmission with lock-up torque converter that provides faster acceleration and travel speeds up to 25 mph (40 kph). Additionally, CASE's SCR engine solution offers unmatched fuel efficiency with no diesel particulate filters, no regeneration, and no extreme exhaust temperatures. Add to this ground-line serviceability – a hallmark of CASE – and youve got a powerful and efficient machine committed to increasing productivity and reducing downtime.


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The Case 721G is a wheel loader designed for material handling, aggregate, construction, and site preparation applications. It is part of Case Construction Equipment's G Series and is commonly used for loading trucks, stockpiling material, and moving bulk products in quarry, municipal, and general construction environments. The 721G typically features a diesel engine, hydrostatic or power shift drivetrain depending on configuration, articulated steering, and a front-mounted loader bucket with optional attachments. Known for its balance of lift capacity, breakout force, and operator visibility, the Case 721G is used in medium-duty loading tasks where productivity and maneuverability are required.
Brakes
Service brake Wet Multi Disc
Bucket
Breakout Force 32,148 lbs (14,582 kg)
Bucket Capacity - heaped 3 cu yd (3 cu m)
Dump Clearance at Max Raise 9 ft (3 m)
Dimensions
Dump reach @ full height, 45 degrees dump 4 ft (1 m)
Ground Clearance 1 ft (0 m)
Height - Top of Cab 11 ft (3 m)
Hinge Pin - Max Height 13 ft (4 m)
Length with Bucket on Ground 25 ft (8 m)
Reach at Max Lift and Dump 6 ft (2 m)
Turning Radius Outside Tires 19 ft (6 m)
Wheelbase 11 ft (3 m)
Width Over Tires 8 ft (3 m)
Engine
Alternator 120 amps
Displacement 411 cu in (6,735 cu cm)
Emissions Tier 4
Engine Model FPT F4HFE613T
Gross Power 195 hp (145 kw)
Make Case
Max Torque 701 lbs ft (950 nm)
Net Power 179 hp (133 kw)
Number of Cylinders 6
Rated engine speed 2,000 rpm
Torque Rise 37%
General Specifications
Bucket Capacity (Since 2017) 3 (2,29)
Bucket Capacity (Since 2024) 3.5 (2.7)
Engine Power (Since 2017) 179 (133)
Engine type (Since 2017) Case/FPT
Max Dump Height (Since 2017) 9.4 (2.9)
Max Dump Height (Since 2024) 9.8 (3)
Operating Weight (Since 2017) 32,492 (14,738)
Operating Weight (Since 2024) 36,011 (16,334)
Hydraulic cycle times (unloaded)
Total cycle time 9 seconds
Hydraulic System
Maximum system pressure 3,625 psi
Pump Flow Capacity 32 gpm (120 lpm)
Pump Type Piston
Steering pump type Articulation
Operating Specifications
Cooling System Fluid Capacity 8 gal (29 l)
DEF tank capacity 16 gal (59 l)
Front Axle/Diff Fluid Capacity 9 gal (35 l)
Fuel Capacity 65 gal (246 l)
Operating Voltage 24 volts
Operating Weight 32,492 lbs (14,738 kg)
Rated Bucket Capacity 3 cu yd (2 cu m)
Rear Axle Oscillation 24 degrees
Rear Axle/Diff Fluid Capacity 9 gal (35 l)
Transmission Fluid Capacity 9 gal (34 l)
Performance
Tipping Load 23,651 lbs (10,728 kg)
Transmission
Differential lock F: LSD / R: LSD
Max Speed - Forward 24 mph (38 kph)
Number of Forward Gears 4
Number of Reverse Gears 3
Transmission Type Powershift
Weights
Operational Weight 32,492 lbs (14,738 kg)

Dealer Contact Info:

Case Power & Equipment

Click for Phone Number
