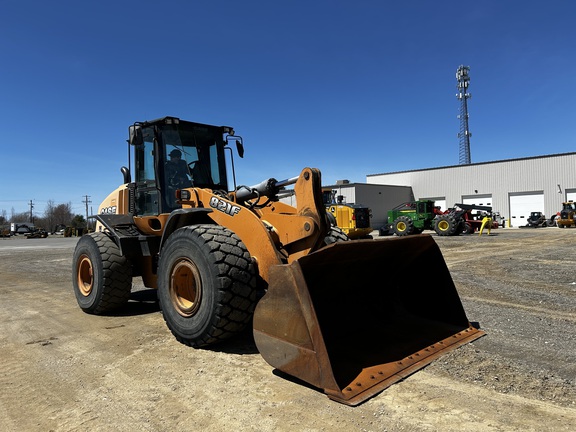

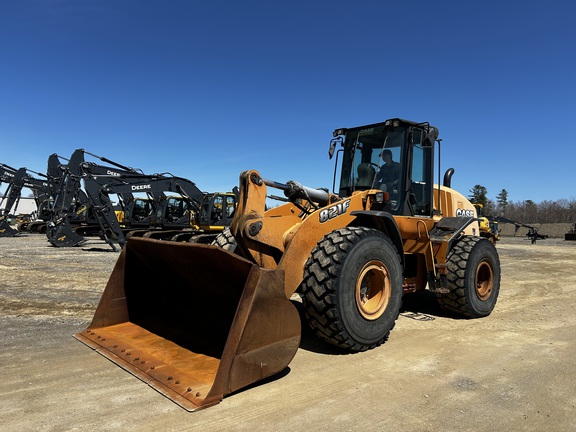

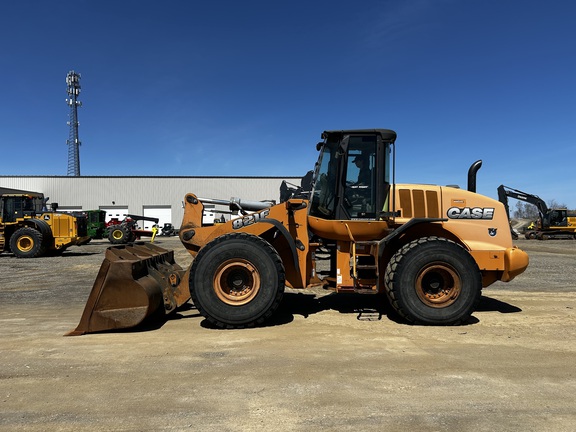

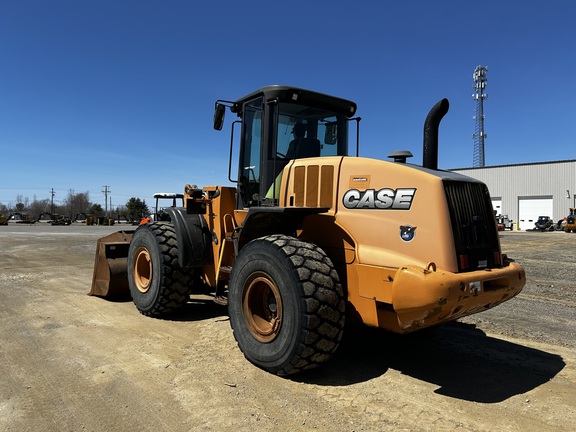

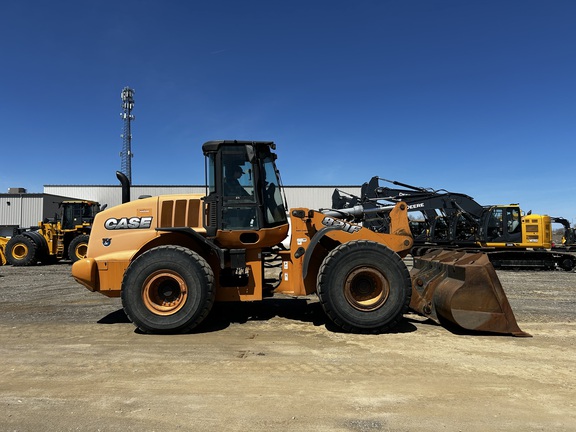

2014 Case 821F For Sale in Hermon, ME

Name: 2014 Case 821F
Brand: Case
SKU: 86242650
Price: 45000 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $45,000.00 USD

Apply for Financing

United Construction & Forestry

United Construction & Forestry Dealer Info

United Construction & Forestry Website

Click here to email United Construction & Forestry.

Contact: Daniel Peabody

Click for Phone Number

Machine Info:

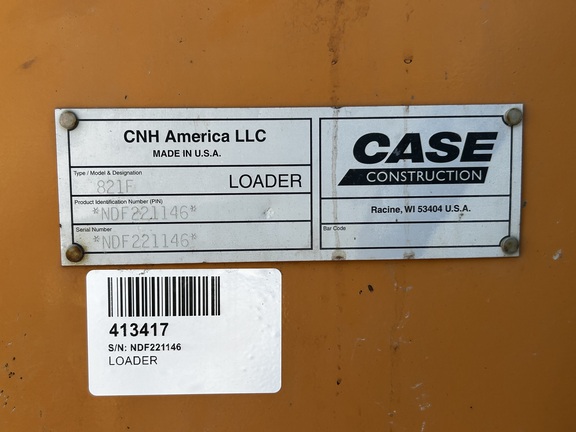

Serial Number:	NDF221146
Stock Number:	413417
Machine Location:	HERMON, ME

Description:

Cab w/ AC; General Purpose Bkt

Machine Details:

General Specifications

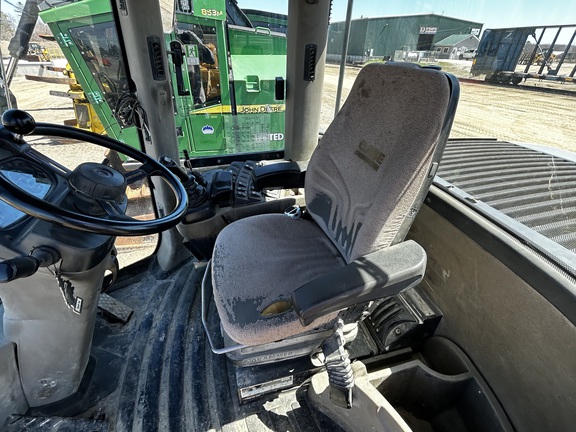

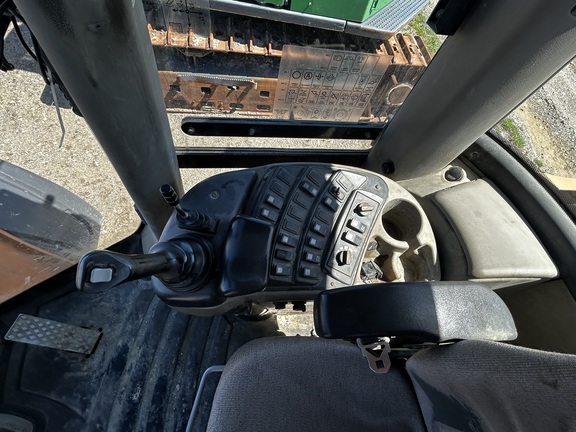

Operators Station	Cab w/ AC

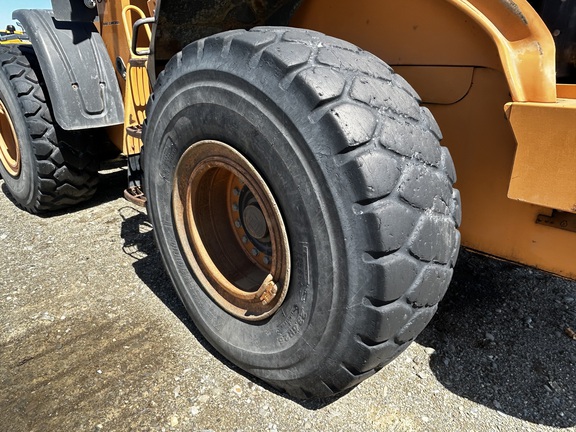

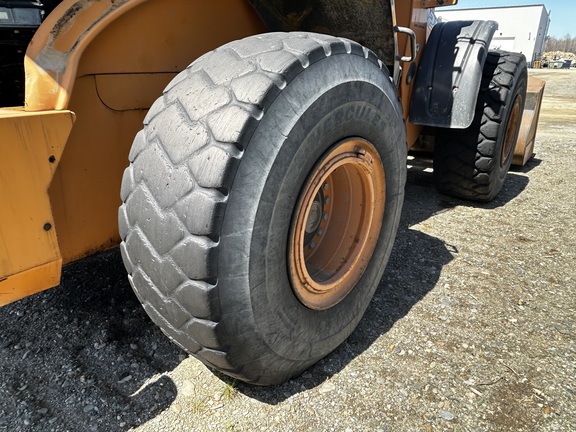

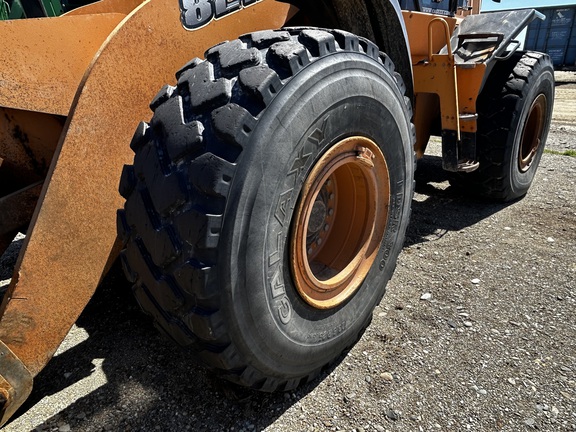

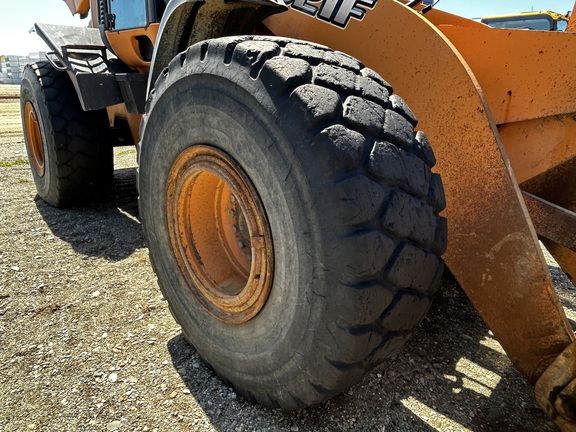

Tires	23.5 Tires

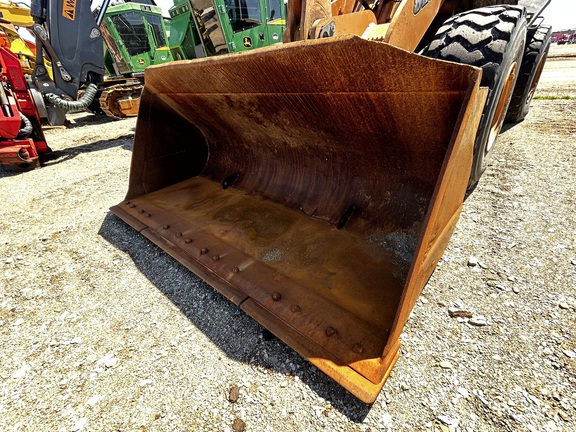

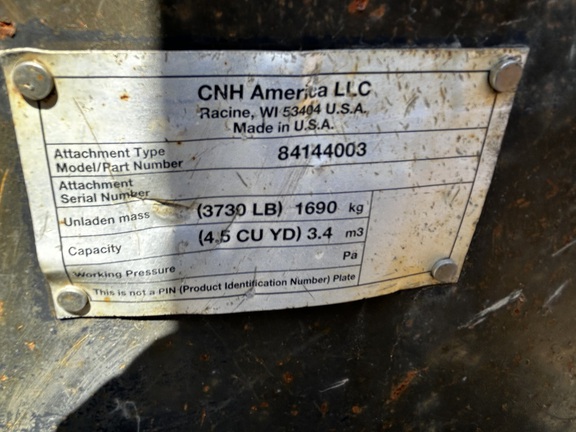

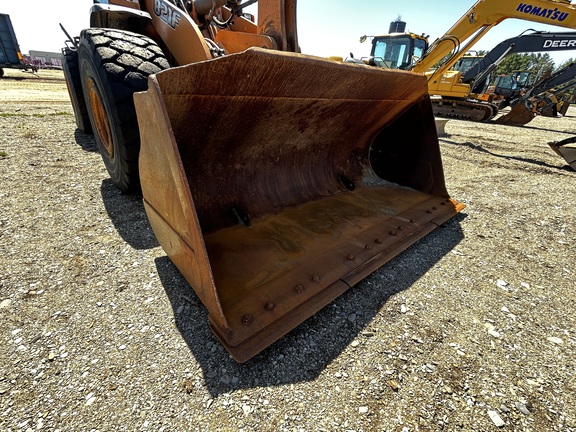

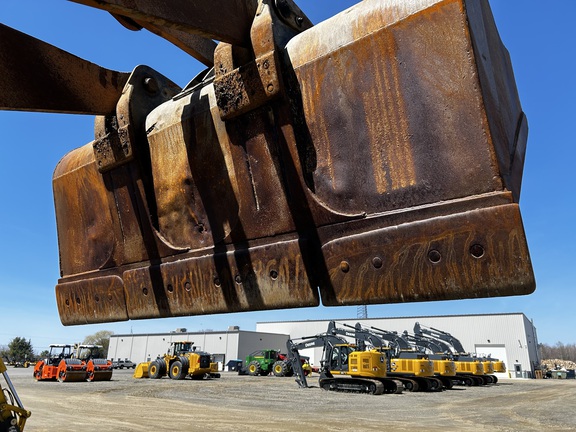

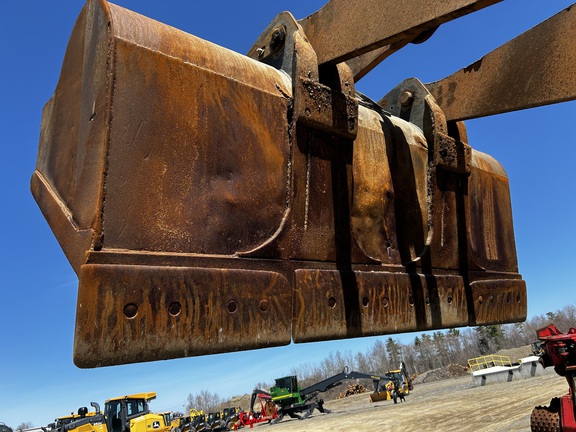

Buckets	General Purpose Bkt

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case 821F is a versatile wheel loader designed for heavy-duty construction, mining, and material handling applications. Featuring a robust engine and advanced hydraulic system, the 821F delivers high performance and fuel efficiency. Its durable frame and reinforced components ensure long service life under demanding conditions. The operator cabin offers ergonomic controls and excellent visibility for improved safety and productivity. With a large bucket capacity and powerful breakout force, the Case 821F wheel loader efficiently handles loading, lifting, and transport tasks. This model is widely used in earthmoving, quarrying, and industrial operations requiring reliable and efficient wheel loader equipment.

Brakes
Service brake	Wet Multi Disc

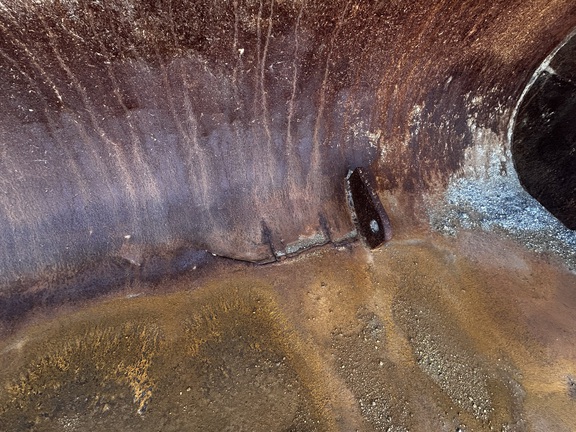

Bucket
Breakout Force	35,318 lbs (16,020 kg)
Bucket Capacity - heaped	4 cu yd (3 cu m)
Bucket Capacity - struck	4 cu yd (3 cu m)
Bucket Width	10 ft (3 m)
Dump Clearance at Max Raise	10 ft (3 m)
Dimensions
Dump reach @ full height, 45 degrees dump	4 ft (1 m)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin - Max Height	14 ft (4 m)
Length with Bucket on Ground	26 ft (8 m)
Reach at Max Lift and Dump	4 ft (1 m)
Wheelbase	11 ft (3 m)
Width Over Tires	10 ft (3 m)

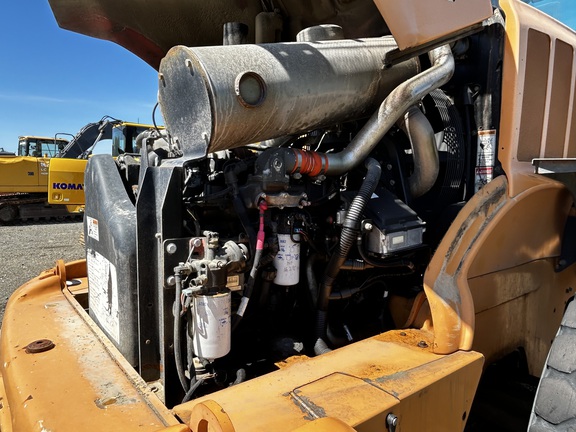

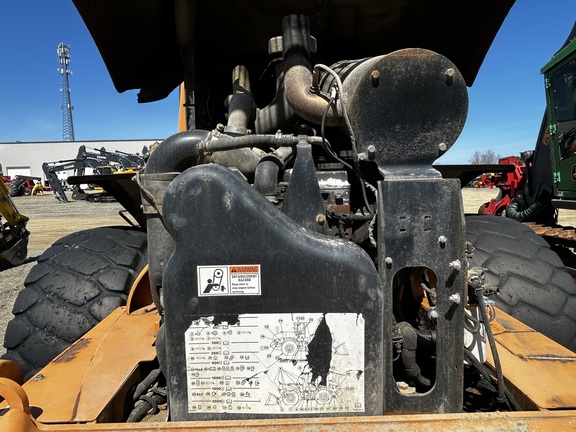

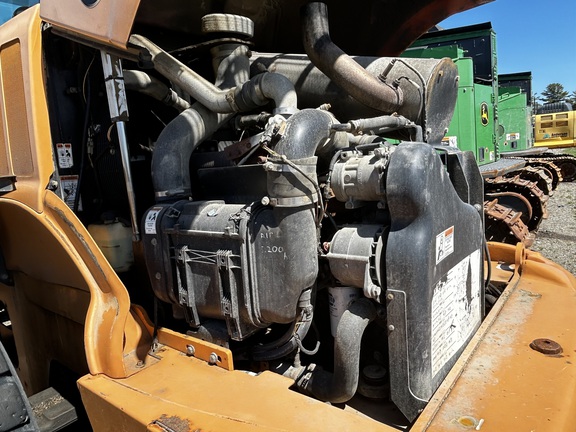

Engine
Alternator	120 amps
Aspiration	Turbocharged
Displacement	411 cu in (6,735 cu cm)
Emissions level	Tier 4
Engine Model	FPT F4HFE613
Engine speed - Rated speed, full load	2,000 rpm
Gross Power	231 hp (172 kw)
Make	Case
Max. torque ISO14396	873 lbs ft (1,184 nm)
Net Power	205 hp (153 kw)
Number of Cylinders	6
Power Measured @	1,800 rpm
Torque Measured @	1,300 rpm
Torque Rise	47%
General Specifications
Bucket Capacity (Since 2016)	4.5 (3.44)
Engine Power (Since 2016)	212 (158)
Engine type (Since 2016)	Case/FPT
Max Dump Height (Since 2016)	9.8 (3)
Operating Weight (Since 2016)	38,874 (17,633)
Hydraulic cycle times (unloaded)
Total cycle time	10 seconds
Hydraulic System
Dump Time	1 seconds
Lower Time	3 seconds
Maximum system pressure	3,625 psi
Pump Flow Capacity	32 gpm (120 lpm)
Pump Type	Axial Piston Pump
Raise Time	6 seconds
Relief Valve Setting	3,625 psi
Steering pump type	Articulation
Operating Specifications
Alternator Supplied Amperage	65 amps
Cooling System Fluid Capacity	8 gal (30 l)
Engine Oil Fluid Capacity	4 gal (15 l)
Front Axle/Diff Fluid Capacity	11 gal (40 l)
Fuel Capacity	76 gal (288 l)
Hydraulic System Fluid Capacity	47 gal (178 l)
Operating Voltage	24 volts
Operating Weight	38,874 lbs (17,633 kg)
Rated Bucket Capacity	5 cu yd (3 cu m)
Rear Axle Oscillation	24 degrees
Rear Axle/Diff Fluid Capacity	11 gal (40 l)
Static Tipping Weight	27,225 lbs (12,349 kg)
Tire Size	23.5 x 25 L3
Transmission Fluid Capacity	9 gal (34 l)
Turning Radius	20 ft (6 m)
Transmission
Max Speed - Forward	23 mph (37 kph)
Max Speed - Reverse	15 mph (24 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	Powershift
Weights
Operational Weight	38,874 lbs (17,633 kg)
