2021 Case 821G For Sale in Maltby, Gbr

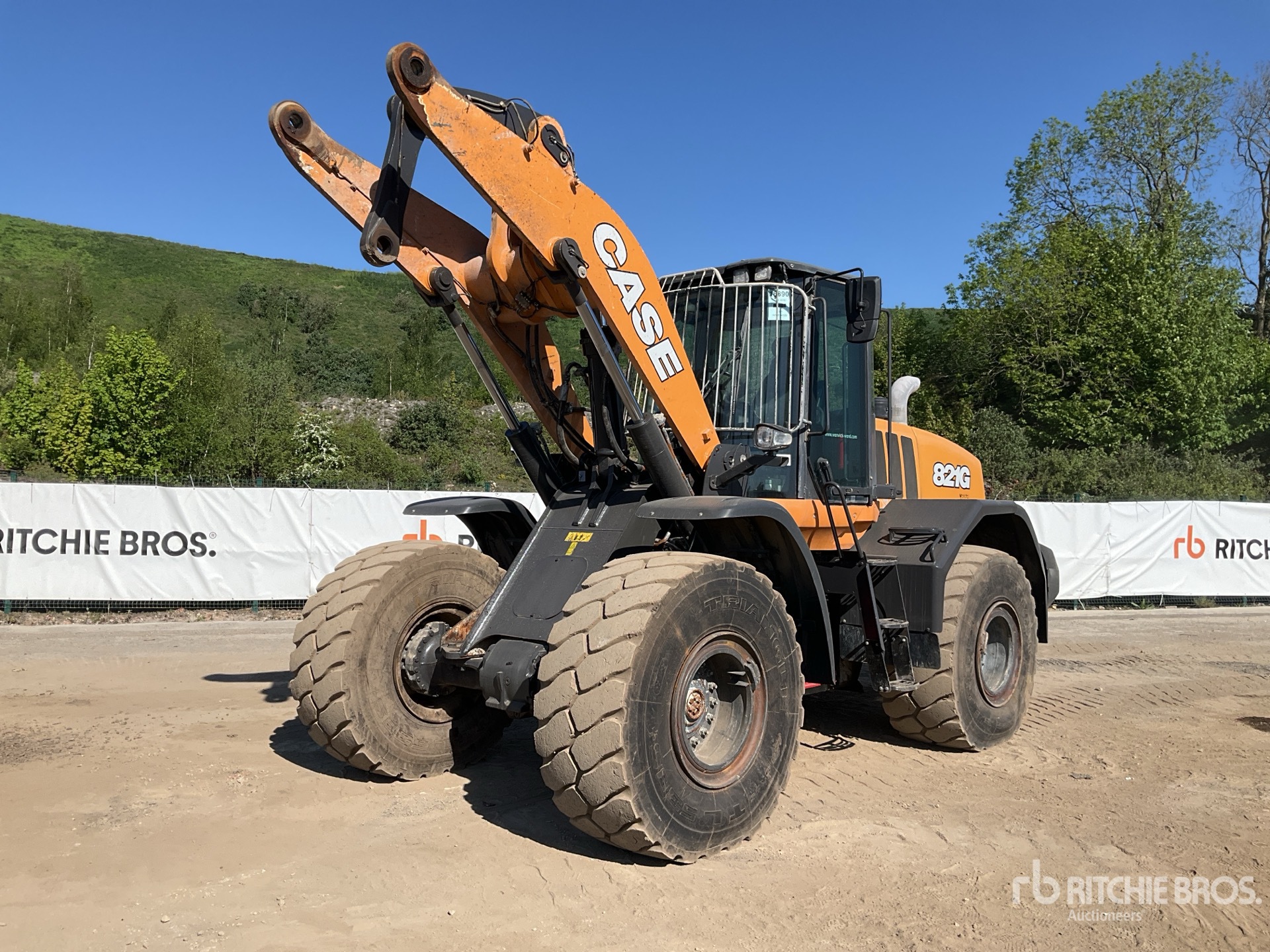

Name: 2021 Case 821G
Brand: Case
SKU: 87461029
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-13 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

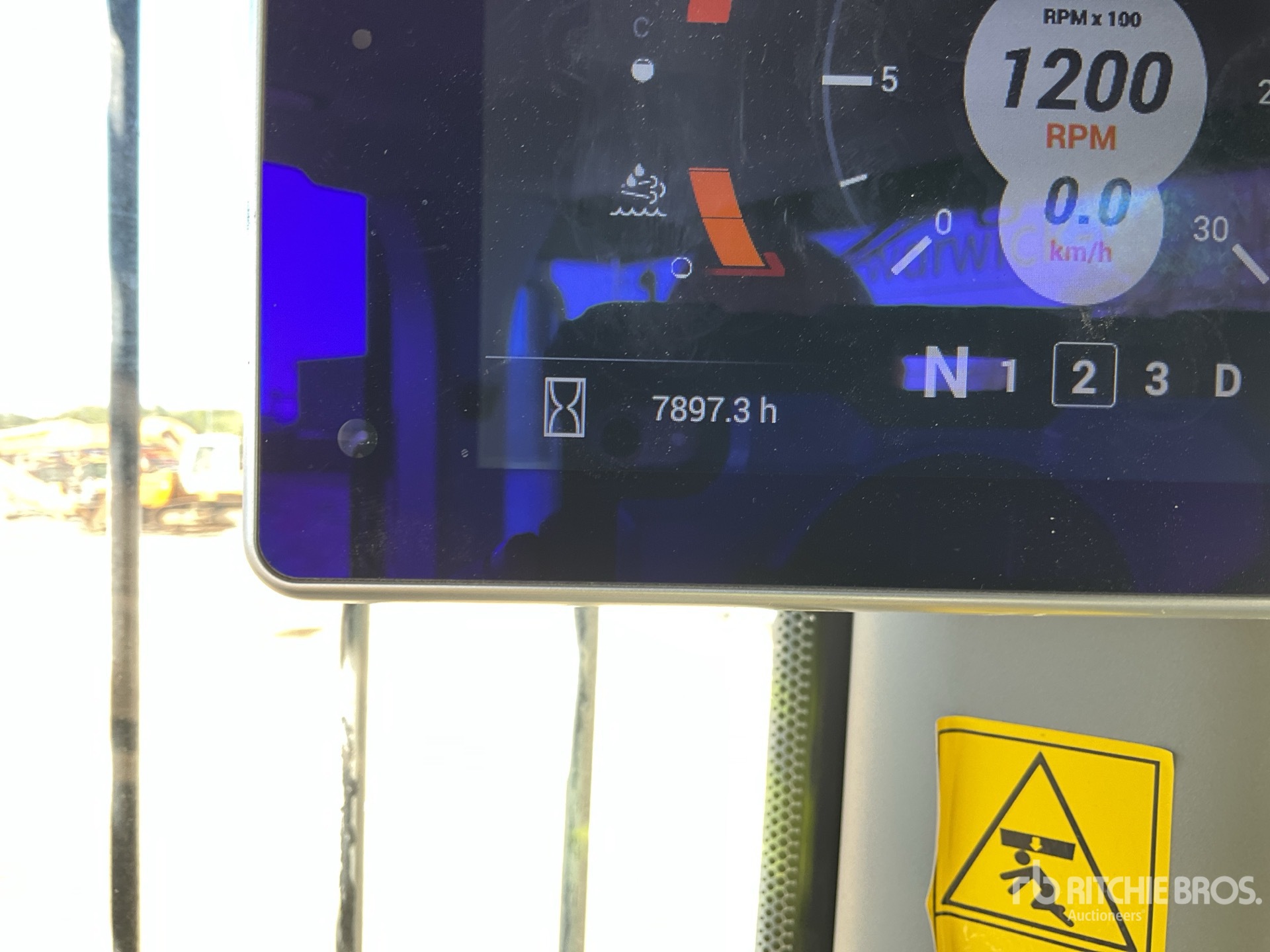

Hours:	7897

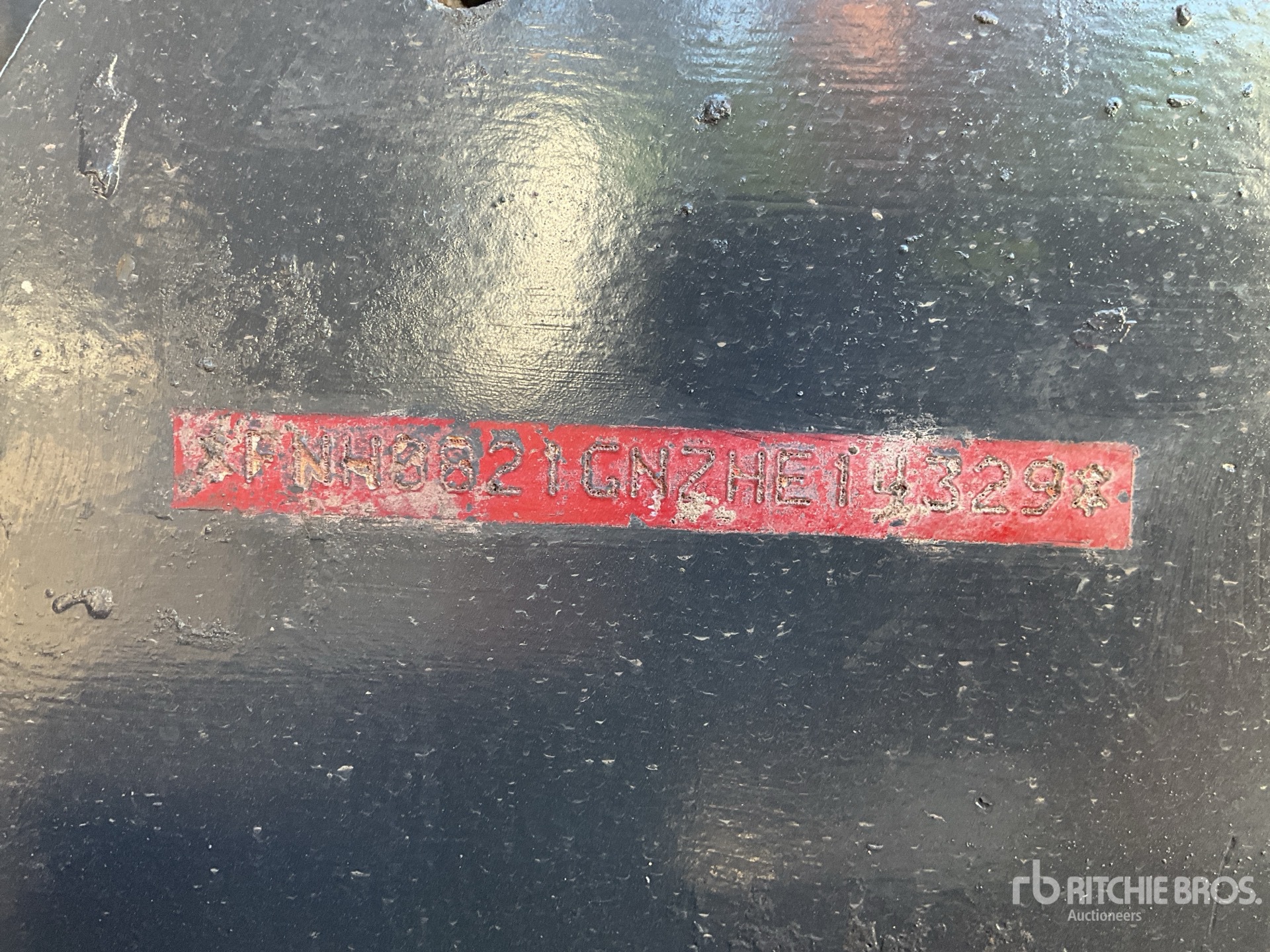

Serial Number:	FNH0821GNZHE14329
Machine Location:	MALTBY, GBR

Description:

Enclosed Cab, Air Conditioner, Rear View Camera, Air Ride Seat, Ride Control, Autoshift, Traction Control, Requires AdBlue, Auxiliary Hydraulics, Auto Lube, 23.5R25 Tires Closing Time: 2026-05-13 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case 821G is a versatile wheel loader designed for heavy-duty construction, mining, and material handling applications. Featuring a robust engine and advanced hydraulic system, the 821G delivers high performance and fuel efficiency. Its durable frame and reinforced components ensure long service life under demanding conditions. The operator cabin offers ergonomic controls and excellent visibility for enhanced safety and productivity. With a strong lift capacity and precise maneuverability, the Case 821G wheel loader is suitable for loading, transporting, and stockpiling various materials. This model is widely used in earthmoving, quarrying, and industrial sectors requiring reliable wheel loader equipment.

Brakes
Service brake	Wet Multi Disc
Bucket
Breakout Force	35,273 lbs (15,999 kg)
Bucket Capacity - heaped	4 cu yd (3 cu m)
Dump Clearance at Max Raise	9 ft (3 m)
Dimensions
Bucket reach - fully raised, 45Ã Â° dump	43 in (110 cm)
Dump height - fully raised, 45 degrees dump	117 in (298 cm)
Dump reach @ full height, 45 degrees dump	4 ft (1 m)
Ground Clearance	2 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin - Max Height	14 ft (4 m)
Operating height - fully raised with spillgaurd	215 in (547 cm)
Overall length (L/bucket)	26 ft (8 m)
Overall width without bucket	111 in (283 cm)
Reach at Max Lift and Dump	6 ft (2 m)
Turning Radius Outside Tires	20 ft (6 m)
Wheelbase	11 ft (3 m)
Width Over Tires	9 ft (3 m)
Engine
Alternator	120 amps
Displacement	411 cu in (6,735 cu cm)
Emissions	Tier 4
Engine Model	FPT F4HFE613S
Gross Power	230 hp (172 kw)
Make	Case
Max Torque	873 lbs ft (1,184 nm)
Net Power	206 hp (154 kw)
Number of Cylinders	6
Rated engine speed	2,000 rpm
Torque Rise	47%
General Specifications
Bucket Capacity (Since 2017)	4.3 (3,28)
Bucket Capacity (2019)	4.3 (3,28)
Bucket Capacity (2020)	4.3 (3,28)
Bucket Capacity (2021)	4.3 (3,28)
Bucket Capacity (2022)	4.3 (3,28)
Bucket Capacity (2023)	4.3 (3,28)
Bucket Capacity (Since 2024)	4 (3.1)
Engine Power (Since 2017)	211 (158)
Engine Power (2019)	211 (158)
Engine Power (2020)	211 (158)
Engine Power (2021)	211 (158)
Engine Power (2022)	211 (158)
Engine Power (2023)	211 (158)
Engine Power (Since 2024)	213 (159)
Engine type (Since 2017)	Case/FPT
Engine type (2019)	Case/FPT
Engine type (2020)	Case/FPT
Engine type (2021)	Case/FPT
Engine type (2022)	Case/FPT
Engine type (2023)	Case/FPT
Engine type (2024)	Case/FPT
Max Dump Height (Since 2017)	9.4 (2.9)
Max Dump Height (2019)	9.4 (2.9)
Max Dump Height (2020)	9.4 (2.9)
Max Dump Height (2021)	9.4 (2.9)
Max Dump Height (2022)	9.4 (2.9)
Max Dump Height (2023)	9.4 (2.9)
Max Dump Height (Since 2024)	9.8 (3)
Operating Weight (Since 2017)	40,057 (18,169)
Operating Weight (2019)	40,057 (18,169)
Operating Weight (2020)	40,057 (18,169)
Operating Weight (2021)	40,057 (18,169)
Operating Weight (2022)	40,057 (18,169)
Operating Weight (2023)	40,057 (18,169)
Operating Weight (Since 2024)	42,414 (19,239)
Hydraulic cycle times (unloaded)
Total cycle time	10 seconds
Hydraulic System
Maximum system pressure	3,625 psi
Pump Flow Capacity	32 gpm (120 lpm)
Pump Type	Piston
Steering pump type	Articulation
Operating Specifications
Cooling System Fluid Capacity	8 gal (30 l)
DEF tank capacity	16 gal (59 l)
Front Axle/Diff Fluid Capacity	11 gal (40 l)
Fuel Capacity	76 gal (288 l)
Operating Voltage	24 volts
Operating Weight	40,058 lbs (18,170 kg)
Rated Bucket Capacity	4 cu yd (3 cu m)
Rear Axle Oscillation	24 degrees
Rear Axle/Diff Fluid Capacity	11 gal (40 l)
Transmission Fluid Capacity	9 gal (34 l)
Performance
Bucket breakout force, SAE	35,273 lbs (15,999 kg)
Tipping Load	28,504 lbs (12,929 kg)
Transmission
Differential lock	F: LSD / R: LSD
Max Speed - Forward	23 mph (37 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	Powershift
Weights
Operational Weight	40,057 lbs (18,170 kg)
