Equipment ↠ Case ↠ Wheel Loaders ↠ 1981 Case W18

1981 Case W18 For Sale in Orlando, Fl

Name: 1981 Case W18
Brand: Case
SKU: 87169618
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-21 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

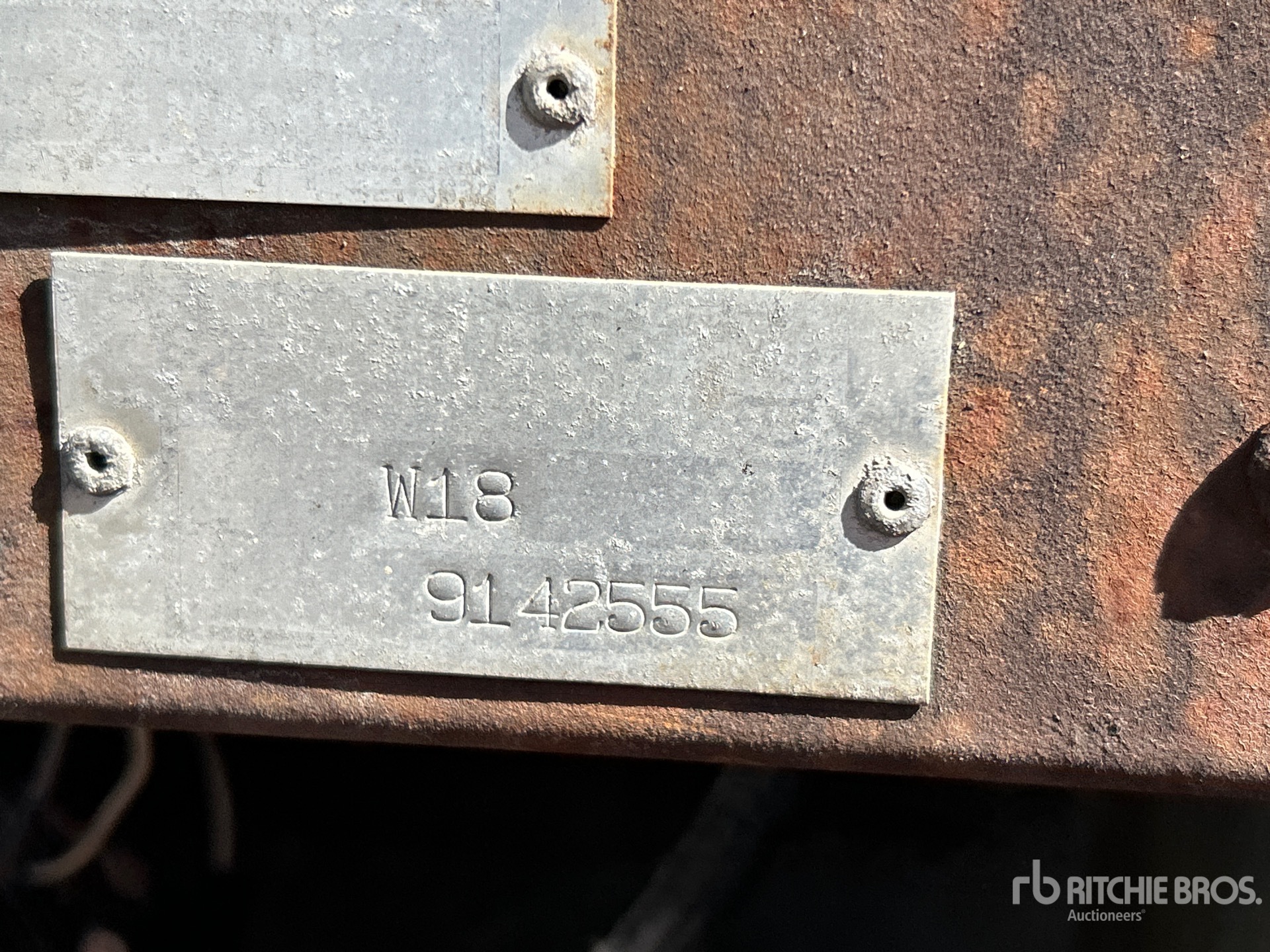

Serial Number:	9142555
Machine Location:	ORLANDO, FL

Description:

Open Operator Station, 94 in Bucket, 17.5-25 Tires Closing Time: 2026-05-21 12:53:12 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Bucket
Bucket Capacity - heaped	2 cu yd (1 cu m)
Bucket Capacity - struck	2 cu yd (1 cu m)
Dump Clearance at Max Raise	9 ft (3 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Hinge Pin - Max Height	15 ft (5 m)
Length with Bucket on Ground	19 ft (6 m)
Reach at Max Lift and Dump	7 ft (2 m)
Wheelbase	9 ft (3 m)
Width Over Tires	7 ft (2 m)
Engine
Air cleaner	Two element dry type
Bore	4 in (11 cm)
Displacement	401 cu in (6,571 cu cm)
Engine Model	Case A401BD
Gross Power	114 hp (85 kw)
Net Power	103 hp (77 kw)
Number of Cylinders	6
Power Measured @	220 rpm
Stroke	5 in (13 cm)
Torque	298 lbs ft (404 nm)
Torque Measured @	1,450 rpm
Hydraulic System
Dump Time	4 seconds
Lower Time	2 seconds
Raise Time	6 seconds
Operating Specifications
Alternator Supplied Amperage	40 amps
Cooling System Fluid Capacity	13 gal (49 l)
Engine Oil Fluid Capacity	3 gal (11 l)
Front Axle/Diff Fluid Capacity	5 gal (17 l)
Fuel Capacity	50 gal (189 l)
Hydraulic System Fluid Capacity	29 gal (110 l)
Operating Voltage	24 volts
Rear Axle Oscillation	24 degrees
Rear Axle/Diff Fluid Capacity	5 gal (17 l)
Tire Size	1400X24G2
Transmission Fluid Capacity	9 gal (34 l)
Turning Radius	33 ft (10 m)
Transmission
Max Speed - Forward	23 mph (37 kph)
Max Speed - Reverse	10 mph (15 kph)
Number of Forward Gears	4
Number of Reverse Gears	2
