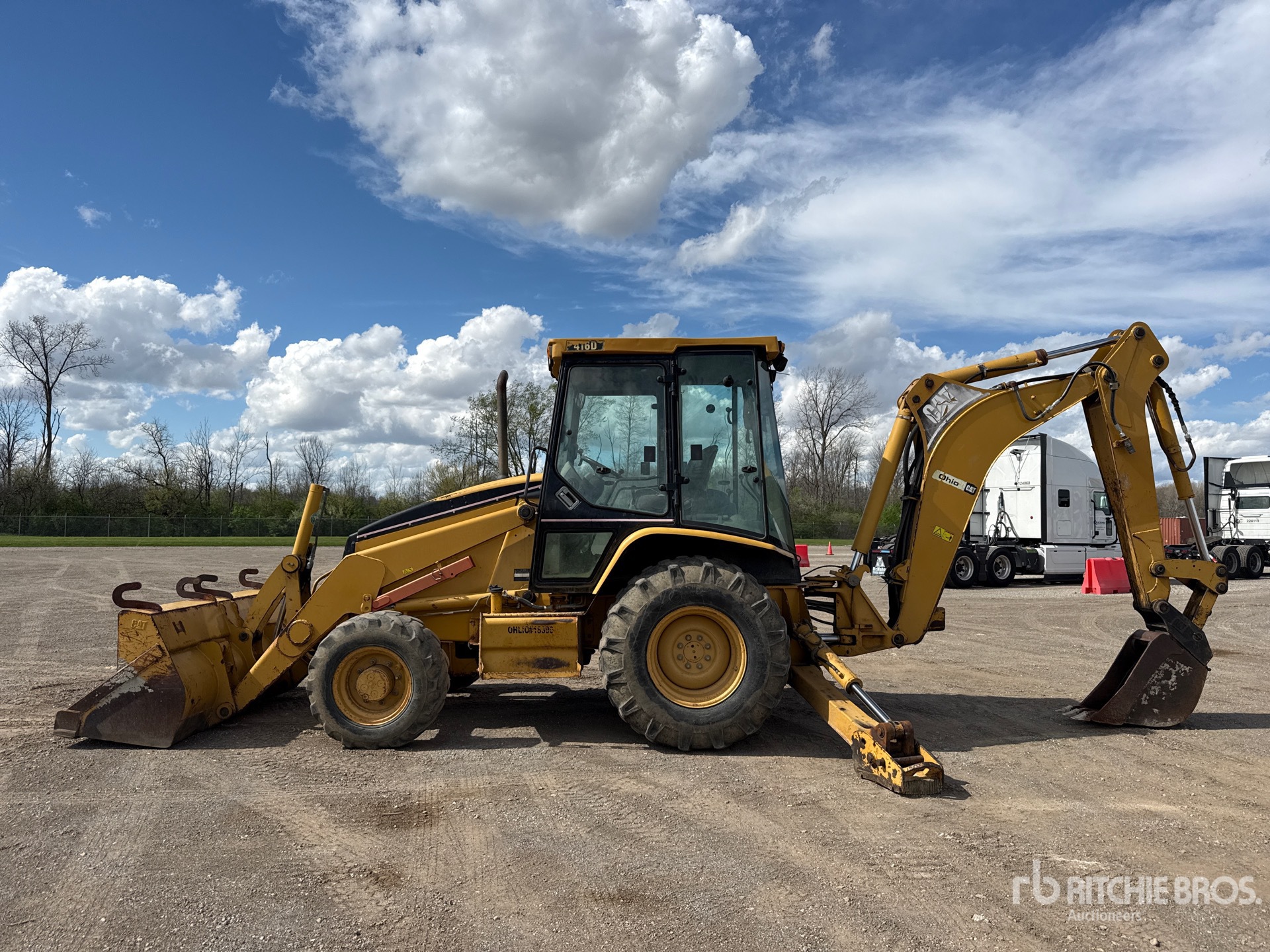

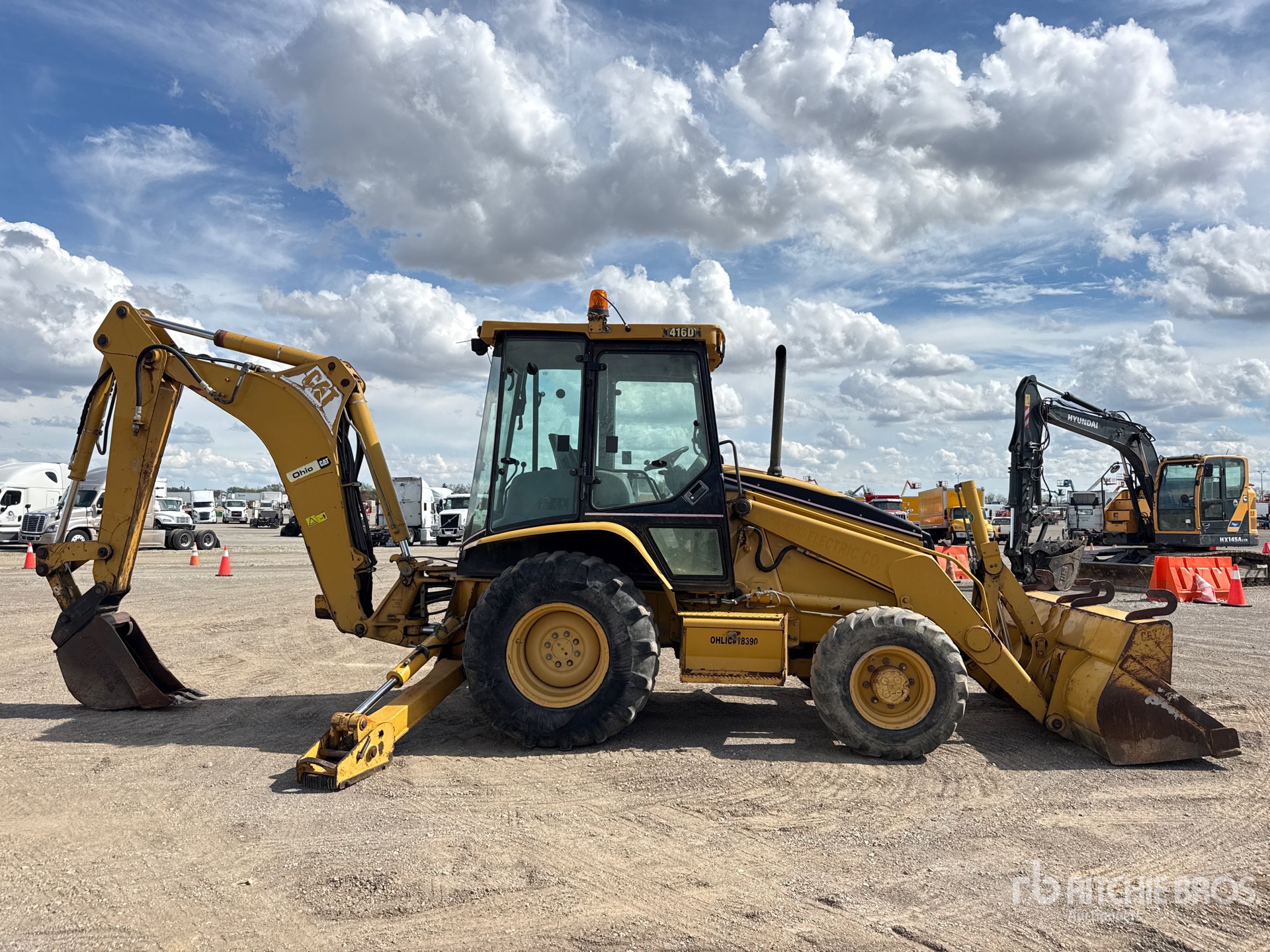

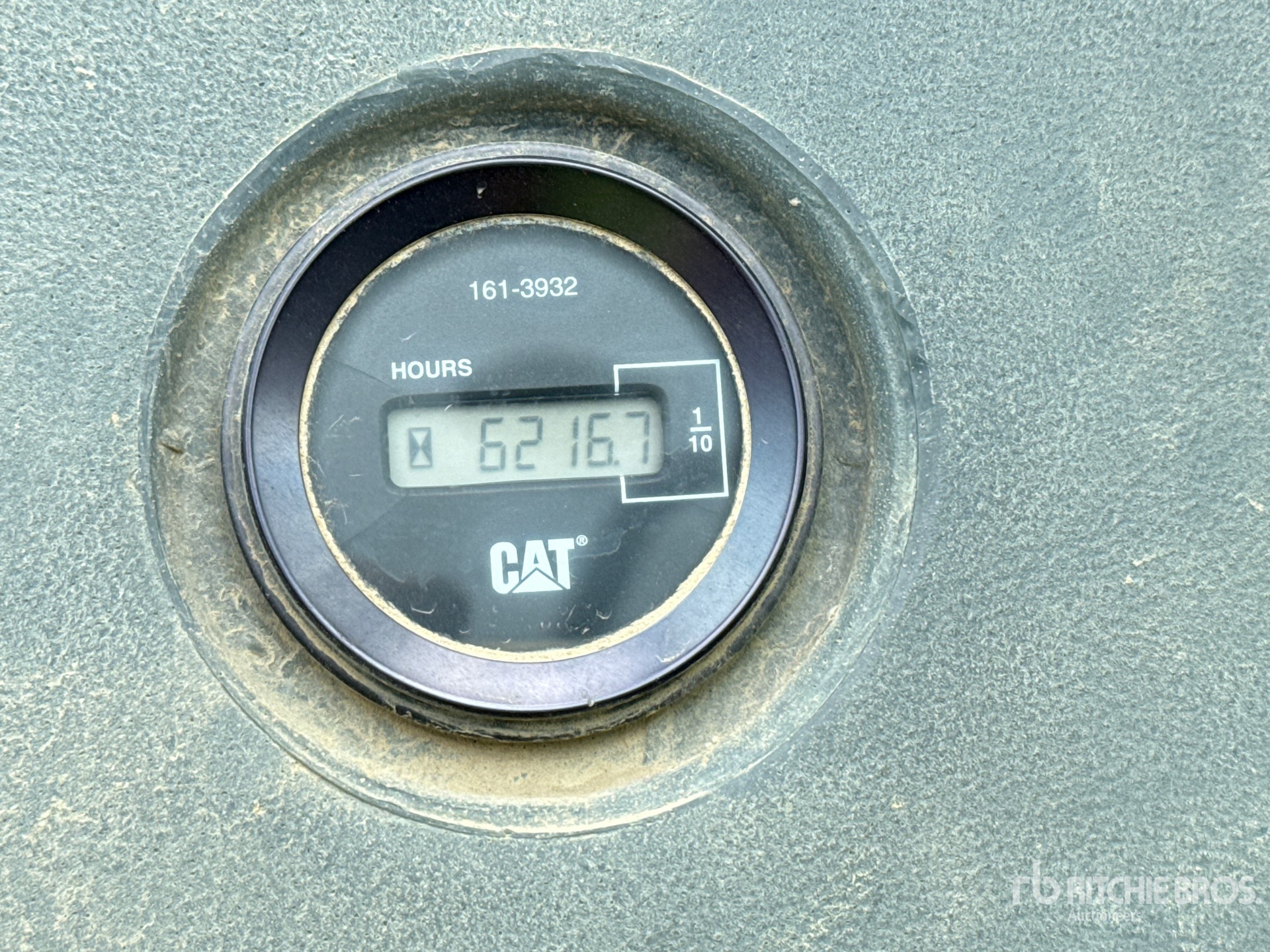

| Axle Ratings |
|
Dynamic (1) |
6,983 lbs (3,167 kg)
|
|
Dynamic (2) |
20,418 lbs (9,261 kg)
|

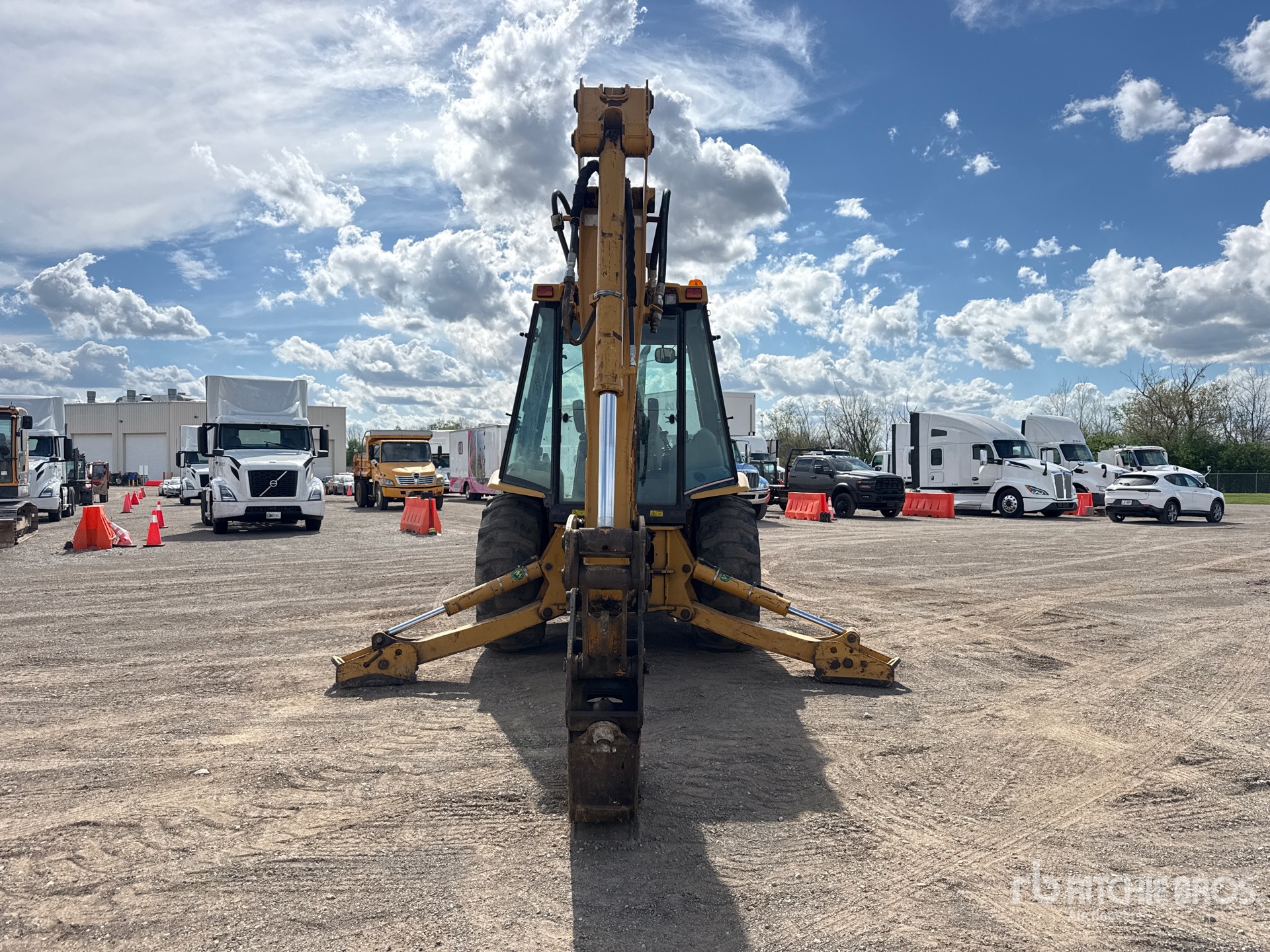

| Backhoe |
|
Bucket Dig Force |
11,702 lbs (5,308 kg)
|
|
Bucket Rotation |
205 degrees |
|
Dig Depth |
15 ft (4 m)
|
|
E-Stick Extended (1) |
18 ft (6 m)
|
|
E-Stick Extended (2) |
21 ft (6 m)
|
|
E-Stick Extended (3) |
11,599 lbs (5,261 kg)
|
|
E-Stick Extended (4) |
5,661 lbs (2,568 kg)
|
|
E-Stick Extended (5) |
2,912 lbs (1,321 kg)
|
|
E-Stick Retracted (1) |
15 ft (5 m)
|
|
E-Stick Retracted (2) |
19 ft (6 m)
|
|
E-Stick Retracted (3) |
11,599 lbs (5,261 kg)
|
|
E-Stick Retracted (4) |
7,693 lbs (3,489 kg)
|
|
E-Stick Retracted (5) |
4,279 lbs (1,941 kg)
|
|
Loading Height |
11 ft (3 m)
|
|
Loading Reach |
6 ft (2 m)
|
|
Reach from Swing Pivot |
19 ft (6 m)
|
|
Reach From Swivel |
19 ft (6 m)
|
|
Stick Dig Force |
7,841 lbs (3,557 kg)
|
|
Stick Lift at 2440 mm (8 ft) |
4,638 lbs (2,104 kg)
|
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height to Top of Suspended Cab |
9 ft (3 m)
|
|
Transport Length |
23 ft (7 m)
|
|
Transport Width |
8 ft (2 m)
|
|
Wheelbase |
7 ft (2 m)
|
| Engine |
|
Bore |
4 in (11 cm)
|
|
Displacement |
268 cu in (4,392 cu cm)
|
|
Gross Power |
77 hp (57 kw)
|
|
Gross Power - SAE J1995 |
78 hp (58 kw)
|
|
Net Peak Torque - 1400 rpm - Standard - SAE J1349 |
219 lbs ft (297 nm)
|
|
Net Power |
74 hp (55 kw)
|
|
Net Power - EEC 80/1269 |
75 hp (56 kw)
|
|
Net Power - ISO 9249 |
75 hp (56 kw)
|
|
Net Power - SAE J1349 |
74 hp (55 kw)
|
|
Net Torque Rise - 1,400 rpm - Standard |
27% |
|
Number of Cylinders |
4 |
|
Power Measured @ |
2,200 rpm |
|
Stroke |
5 in (13 cm)
|
| General Specifications |
|
4th Gear Fwd mph (kmh) (Since 2004)
|
20.4 (32.8) |
|
4th Gear Fwd mph (kmh) (2006)
|
20.4 (32.8) |
|
Breakout Force lbs (kgs) (Since 2004)
|
8,980 (4,073) |
|
Breakout Force lbs (kgs) (2006)
|
8,980 (4,073) |
|
Digging Depth ft (m) (Since 2004)
|
18.1 (5.5) |
|
Digging Depth ft (m) (Since 2006)
|
5 (13.5) |
|
Lift Capacity lbs (kgs) (Since 2004)
|
5,453 (2,473) |
|
Lift Capacity lbs (kgs) (Since 2006)
|
5,292 (2,400) |
|
Loading Height ft (m) (Since 2004)
|
13.7 (4.2) |
|
Loading Height ft (m) (2006)
|
13.7 (4.2) |
|
Operating Weight lbs (kg) (Since 2004)
|
15,257 (6,920) |
|
Operating Weight lbs (kg) (Since 2006)
|
11,376 (5,160) |
|
SAE Net hp (kW) (Since 2004)
|
74 (55) |
|
SAE Net hp (kW) (2006)
|
74 (55) |
| Hydraulic System |
|
4WD Cylinder - Bore |
3 in (7 cm)
|
|
Brake System |
Inboard/ oil-immersed |
|
Circuit Type |
Load-sensing closed-center |
|
Power Steering |
Hydrostatic |
|
Pump Capacity at 2,200 rpm |
37 gpm (140 lpm)
|
|
Pump Flow Capacity |
37 gpm (139 lpm)
|
|
Relief Valve Pressure |
3,002 psi |
|
Steering Type |
Front wheel |

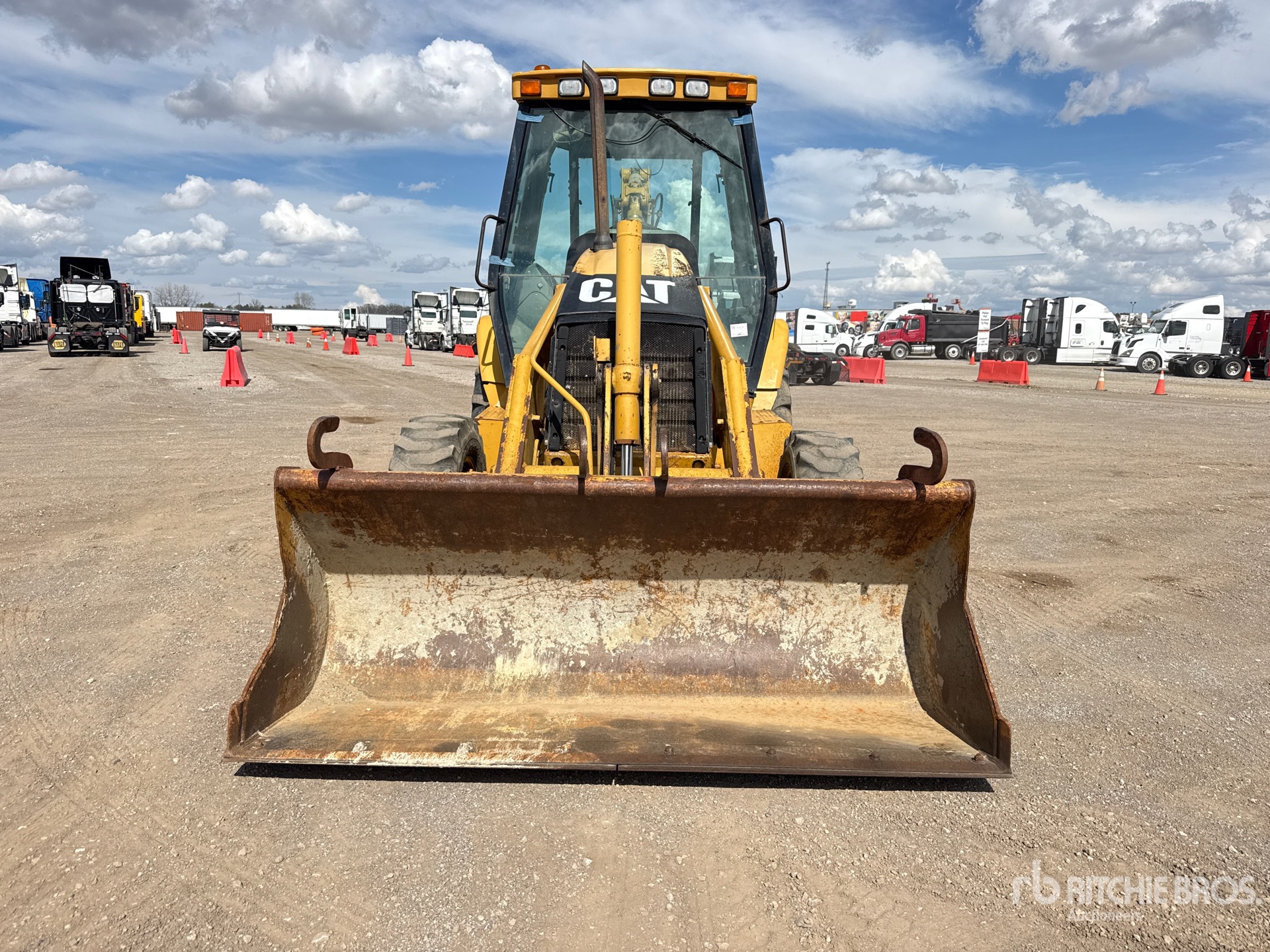

| Loader |
|
Bucket Breakout Force |
8,980 lbs (4,073 kg)
|
|
Bucket Breakout Force - Single Tilt |
8,524 lbs (3,866 kg)
|
|
Bucket Capacity |
1 cu yd (1 cu m)
|
|
Bucket Capacity - General Purpose |
1 cu yd (1 cu m)
|
|
Bucket Width |
89 in (226 cm)
|
|
Bucket Width - General Purpose |
89 ft (27 m)
|
|
Clearance at Max Dump Height |
9 ft (3 m)
|
|
Dig Depth |
5 in (14 cm)
|
|
Dig Depth - Single Tilt |
5 in (13 cm)
|
|
Dump Height at Maximum Angle - Single Tilt |
8 ft (3 m)
|
|
Dump Reach at Maximum Angle - Single Tilt |
3 ft (1 m)
|
|
Lift Capacity at Full Height - Single Tilt |
5,292 lbs (2,400 kg)
|
|
Reach at Max Dump Height |
3 ft (1 m)
|
| Operating Specifications |
|
Fuel Capacity |
34 gal (128 l)
|
|
Operating Weight 4wd |
15,212 lbs (6,900 kg)
|
|
Tire Size Front - 2wd / 4wd |
11Lx1612PR/12.5 / 80x1810PR |
|
Turning Circle - Outside - Front Wheels |
26 ft (8 m)
|
|
Turning Circle - Outside, Widest Loading Bucket |
34 ft (10 m)
|
|
Turning Radius |
18 ft (5 m)
|
| Power Train |
|
Forward - 2nd |
6 mph (9 kph)
|
|
Forward - 3rd |
12 mph (19 kph)
|
|
Forward - 4th |
20 mph (33 kph)
|
|
Power Shuttle Transmission - Forward 1st |
4 mph (6 kph)
|
|
Power Shuttle Transmission - Reverse 1st |
4 mph (6 kph)
|
|
Reverse - 2nd |
6 mph (9 kph)
|
|
Reverse - 3rd |
12 mph (19 kph)
|
| Service Refill |
|
Cooling System - A/C |
4 gal (16 l)
|
|
Cooling System - High-Ambient |
4 gal (17 l)
|
|
Engine Oil - With Filter |
2 gal (8 l)
|
|
Front Axle (4WD) |
2 gal (8 l)
|
|
Front Axle - Planetaries |
0 gal (1 l)
|
|
Fuel Tank |
34 gal (129 l)
|
|
Hydraulic System |
21 gal (79 l)
|
|
Hydraulic Tank |
10 gal (38 l)
|
|
Rear Axle |
6 gal (24 l)
|
|
Transmission - Torque Converter - Power Shuttle - 2WD |
4 gal (15 l)
|
| Standards |
|
Cab - ROPS |
SAE J397 SAE J1040 May 1994 ISO 3741 1994 |
|
Cab - Sound |
ANSI/SAE J1166 Oct 98 is 78.5 dB(A) |
|
Exterior Sound |
SAE J88 April 95 is 73.0 dB(A) |
|
Front Axle (2WD) - Static |
30,319 lbs (13,752 kg)
|
|
Front Axle (4WD) - Static |
27,029 lbs (12,260 kg)
|
|
Rear Axle - Static |
61,233 lbs (27,775 kg)
|
| Tires |
|
Rear Tires Size |
19.5x2410PR / 19.5L2410PR |
| Transmission |
|
Max Speed |
20 mph (33 kph)
|
|
Max Speed - Reverse |
20 mph (33 kph)
|
|
Number of Forward Gears |
4 |
|
Number of Reverse Gears |
4 |
|
Transmission Type |
power shuttle |
| Weights |
|
Counterweights - Option 1 |
320 lbs (145 kg)
|
|
Operating Weight - Maximum |
21,605 lbs (9,800 kg)
|
|
Operating Weight - Nominal |
15,257 lbs (6,920 kg)
|
