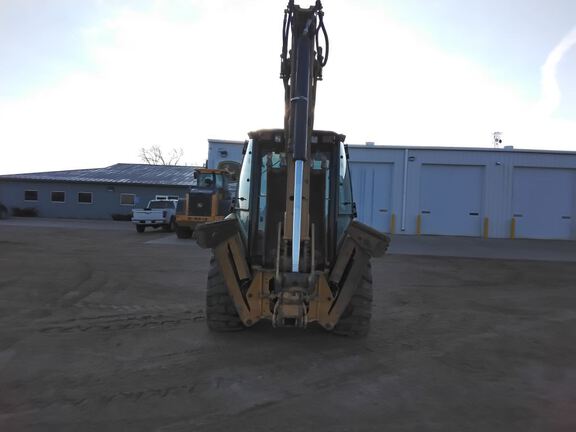

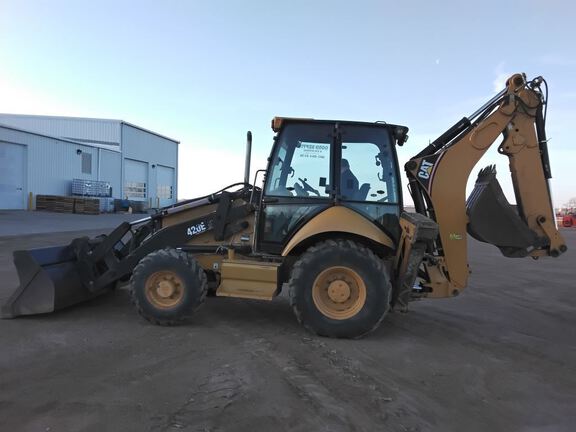

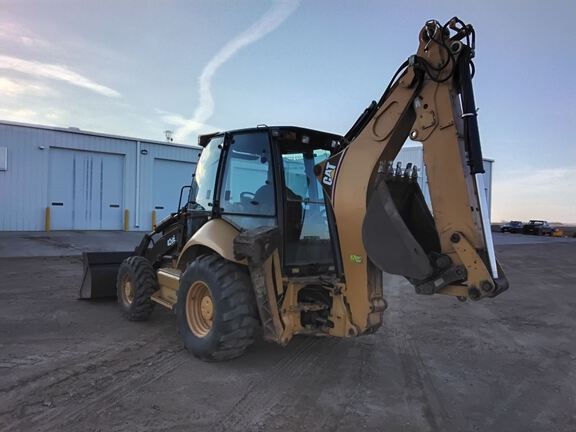

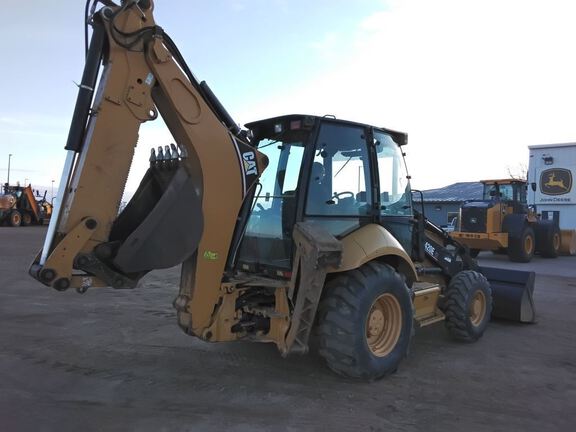

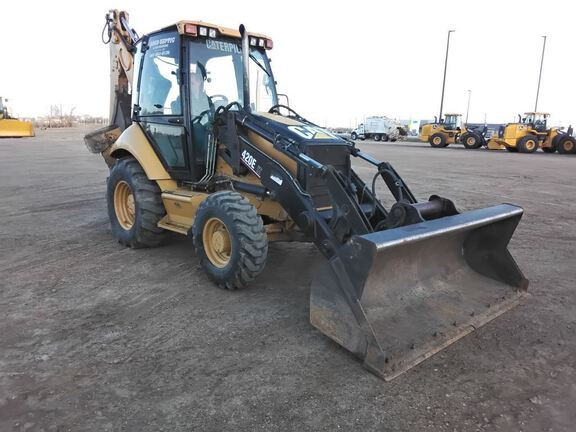

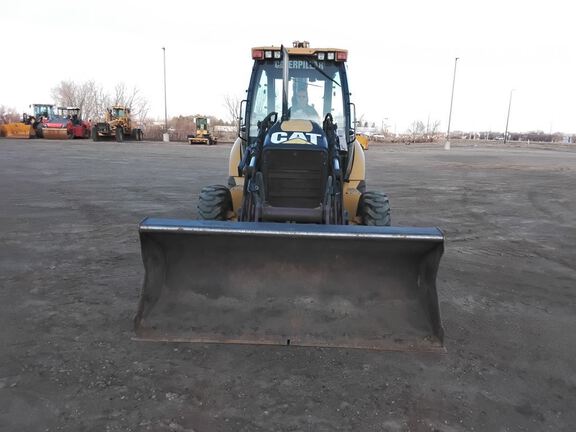

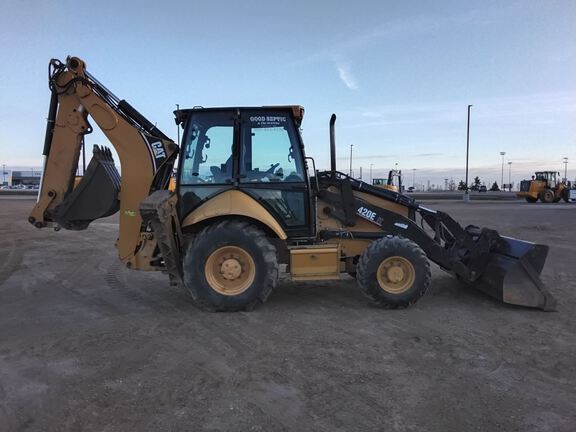

2007 Caterpillar 420E IT For Sale in MARSHALL, MN


/ Save to Watch List

For Sale: $50,000.00 USD

Apply for Financing

Machine Info:

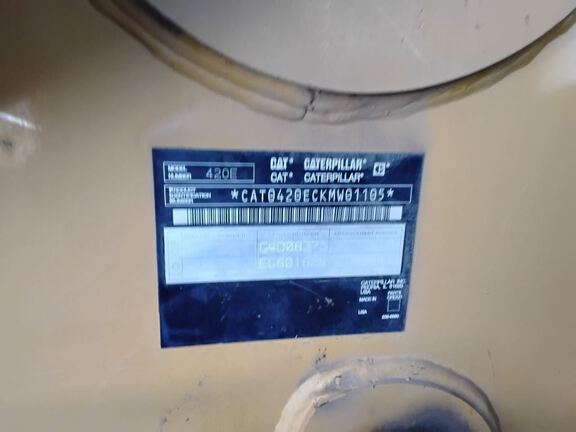

Serial Number:CAT0420ECKMW01105
Stock Number:Z251365
Machine Location:MARSHALL, MN

Description:

BACKHOE LOADER -, CAB/AC/HEAT - 2DR - CLOTH SEAT - PS/TC TRANS - 4WD - 12.5/80X18 FRT TIRES - 19.5-24 R-TIRES - EXT DIP - PILOT CTRL - 1.3 YD GP LDR BKT - BOE - 900CTW - F AUX HYD - R AUX HYD - F CPLR - R CPLR - RADIO - TURBO - 24" BKT

Machine Details:

General Specifications

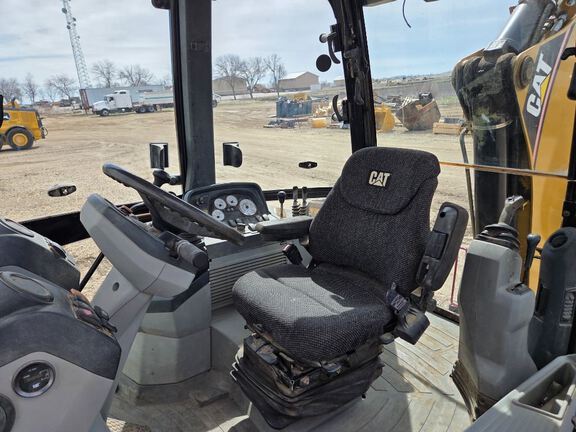

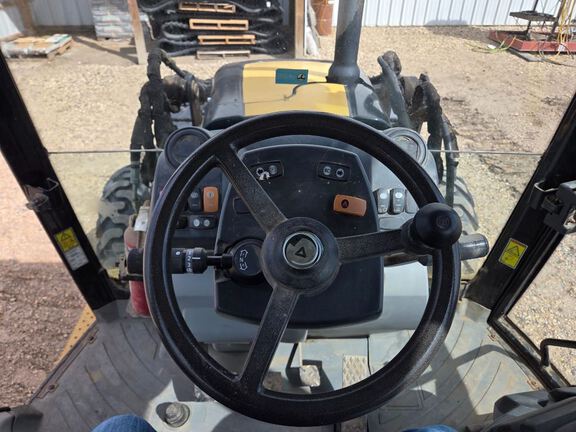

Operators StationCab w/ AC
PowertrainTurbo
ArmsExtendible Dipper
AttachmentsFront Coupler
Buckets24" Bucket
Tires19.5 Tires


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The Caterpillar 420E IT is a backhoe loader designed for construction, utility, and site preparation work. It combines a front loader with a rear backhoe attachment, providing digging, loading, trenching, and material handling capability in one machine. The IT designation refers to integrated toolcarrier features, supporting a range of attachments for increased versatility. The 420E IT is commonly used on job sites that require maneuverability, hydraulic performance, and multi-purpose operation. As part of Caterpillar's backhoe loader lineup, it is built for general earthmoving, utility installation, landscaping, and maintenance applications where a single machine must perform multiple tasks efficiently.
Backhoe
Bucket Dig Force 13,875 lbs (6,294 kg)
Bucket Dig Force - Extended 13,863 lbs (6,288 kg)
Dig Depth 14 ft (4 m)
Dig Depth - Extended 18 ft (5 m)
Load Height - Extended 14 ft (4 m)
Reach at Load Height - Extended 9 ft (3 m)
Reach From Swivel 19 ft (6 m)
Reach From Swivel - Extended 22 ft (7 m)
Dimensions
Ground Clearance 1 ft (0 m)
Height to Top of Suspended Cab 9 ft (3 m)
Transport Length 24 ft (7 m)
Transport Width 8 ft (2 m)
Wheelbase 7 ft (2 m)
Engine
Displacement 268 cu in (4,392 cu cm)
Engine Model C4.4 DIT
Gross Power 101 hp (75 kw)
Net Max Torque 301 lbs ft (408 nm)
Net Power 93 hp (69 kw)
Net Torque Rise 0
Power Measured @ 2,200 rpm
Torque Measured @ 1,400 rpm
General Specifications
Backhoe Loading Height ft. (m) (Since 2011) 11.9 (3.6)
Loader Breakout Force lbs. (kg) (Since 2011) 10,076 (4,570)
Loader Lift Capacity lbs. (kg) (Since 2011) 6,340 (2,876)
Loader SAE HP (kw) (Since 2011) 93 (69.3)
Max Digging Depth ft. (m) (Since 2011) 14.3 (4.4)
Operating Weight lbs. (kg) (Since 2011) 15,474 (7,019)
Travel Speed 4th Gear Fwd MPH (kmh) (Since 2011) 25 (40.0)
Hydraulic System
Pump Flow Capacity 43 gpm (163 lpm)
Pump Type variable-flow axial piston
Relief Valve Pressure 3,611 psi
Loader
Bucket Capacity 1 cu yd (1 cu m)
Bucket Width 8 in (19 cm)
Clearance at Max Dump Height 9 ft (3 m)
Dig Depth 4 in (10 cm)
Reach at Max Dump Height 3 ft (1 m)
Operating Specifications
Cooling System Fluid Capacity 4 gal (17 l)
Front Axle Fluid Capacity 3 gal (11 l)
Fuel Capacity 38 gal (144 l)
Hydraulic System Fluid Capacity 21 gal (79 l)
Max Weight 24,251 lbs (11,000 kg)
Oil System Fluid Capacity 2 gal (8 l)
Operating Voltage 12 volts
Operating Weight 15,474 lbs (7,019 kg)
Operating Weight 4wd 16,921 lbs (7,675 kg)
Rear Axle Fluid Capacity 4 gal (17 l)
Tire Size Front - 2wd / 4wd 11L-16 F-3/12.5/80-18 (10ply) 1-3 Super Traction
Transmission Fluid Capacity 5 gal (19 l)
Turning Radius 18 ft (5 m)
Tires
Rear Tires Size 19.5L-24 (12 ply) R4 ATU/ 19.5L-24 (12 ply) IT 525
Transmission
Max Speed - Reverse 25 mph (40 kph)
Number of Forward Gears 4
Number of Reverse Gears 4

Dealer Contact Info:

RDO Equipment Company



Contact: Sales Team

Click for Phone Number
