2012 Caterpillar 420E IT For Sale in Fort Worth, Tx

Name: 2012 Caterpillar 420E IT
Brand: Caterpillar
SKU: 87460464
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-13 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

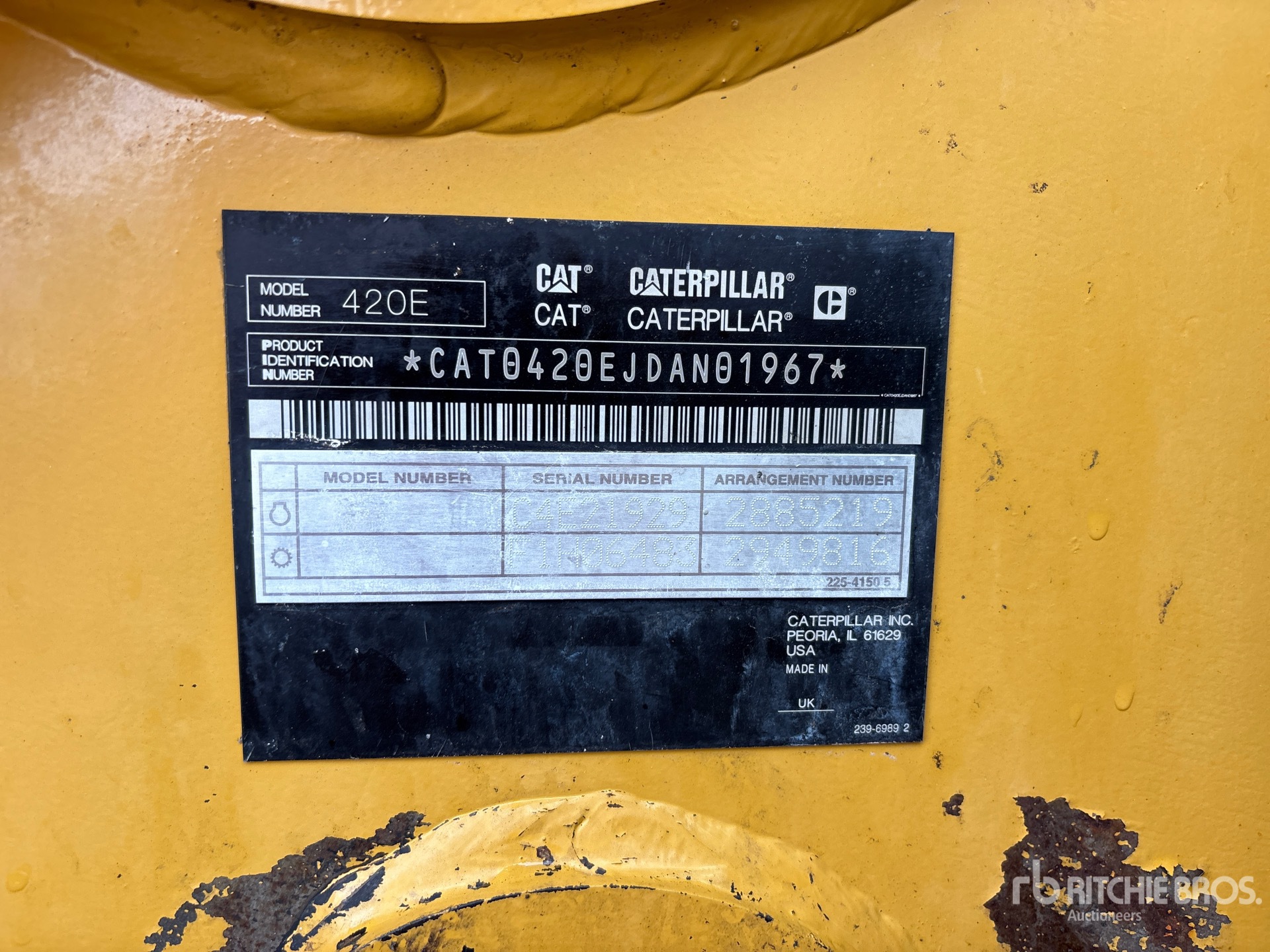

Serial Number:	CAT0420EJDAN01967
Machine Location:	FORT WORTH, TX

Description:

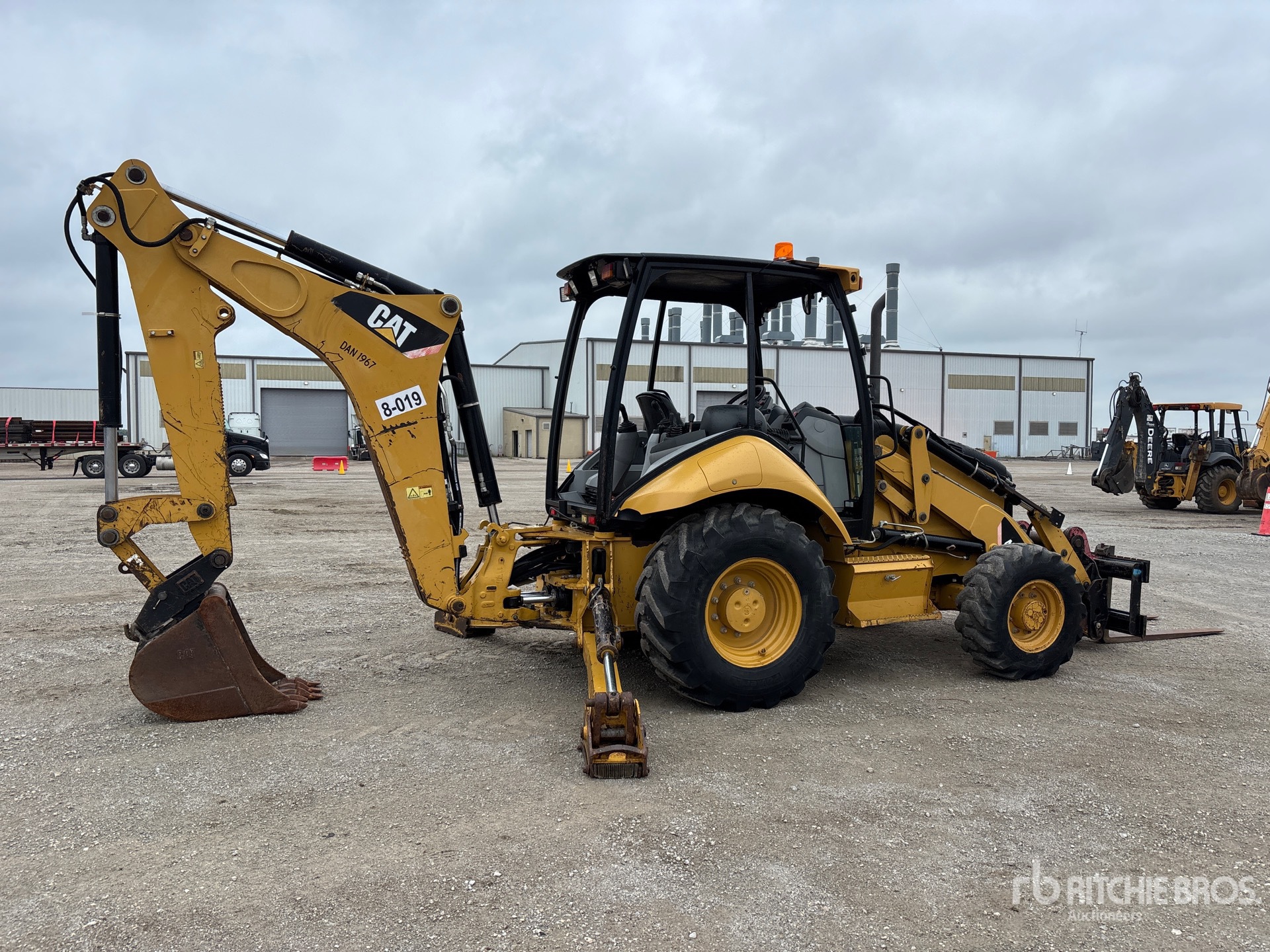

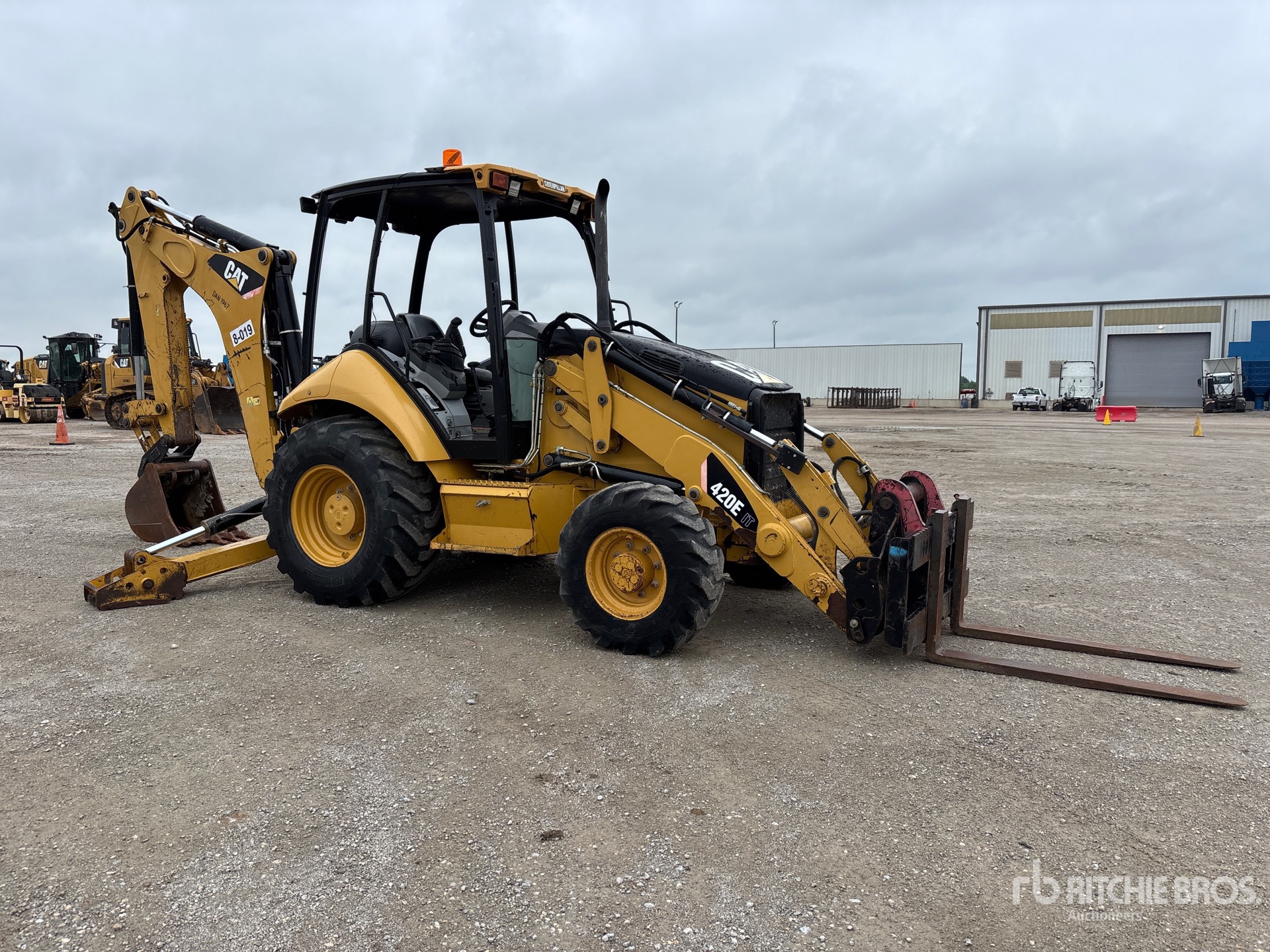

Located in Lane 5 Spot 6, Open Operator Station, Backhoe Pilot Controls, Hydraulic Coupler, 54 in Forks, Quick Coupler, 24 in Backhoe Digging Bucket, Thumb Bracket Closing Time: 2026-05-13 10:16:16 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 420E IT is a backhoe loader designed for construction, utility, and site preparation work. It combines a front loader with a rear backhoe attachment, providing digging, loading, trenching, and material handling capability in one machine. The IT designation refers to integrated toolcarrier features, supporting a range of attachments for increased versatility. The 420E IT is commonly used on job sites that require maneuverability, hydraulic performance, and multi-purpose operation. As part of Caterpillar's backhoe loader lineup, it is built for general earthmoving, utility installation, landscaping, and maintenance applications where a single machine must perform multiple tasks efficiently.

Backhoe
Bucket Dig Force	13,875 lbs (6,294 kg)
Bucket Dig Force - Extended	13,863 lbs (6,288 kg)
Dig Depth	14 ft (4 m)
Dig Depth - Extended	18 ft (5 m)
Load Height - Extended	14 ft (4 m)
Reach at Load Height - Extended	9 ft (3 m)
Reach From Swivel	19 ft (6 m)
Reach From Swivel - Extended	22 ft (7 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height to Top of Suspended Cab	9 ft (3 m)
Transport Length	24 ft (7 m)
Transport Width	8 ft (2 m)
Wheelbase	7 ft (2 m)
Engine
Displacement	268 cu in (4,392 cu cm)
Engine Model	C4.4 DIT
Gross Power	101 hp (75 kw)
Net Max Torque	301 lbs ft (408 nm)
Net Power	93 hp (69 kw)
Net Torque Rise	0
Power Measured @	2,200 rpm
Torque Measured @	1,400 rpm
General Specifications
Backhoe Loading Height ft. (m) (Since 2011)	11.9 (3.6)
Loader Breakout Force lbs. (kg) (Since 2011)	10,076 (4,570)
Loader Lift Capacity lbs. (kg) (Since 2011)	6,340 (2,876)
Loader SAE HP (kw) (Since 2011)	93 (69.3)
Max Digging Depth ft. (m) (Since 2011)	14.3 (4.4)
Operating Weight lbs. (kg) (Since 2011)	15,474 (7,019)
Travel Speed 4th Gear Fwd MPH (kmh) (Since 2011)	25 (40.0)
Hydraulic System
Pump Flow Capacity	43 gpm (163 lpm)
Pump Type	variable-flow axial piston
Relief Valve Pressure	3,611 psi
Loader
Bucket Capacity	1 cu yd (1 cu m)
Bucket Width	8 in (19 cm)
Clearance at Max Dump Height	9 ft (3 m)
Dig Depth	4 in (10 cm)
Reach at Max Dump Height	3 ft (1 m)
Operating Specifications
Cooling System Fluid Capacity	4 gal (17 l)
Front Axle Fluid Capacity	3 gal (11 l)
Fuel Capacity	38 gal (144 l)
Hydraulic System Fluid Capacity	21 gal (79 l)
Max Weight	24,251 lbs (11,000 kg)
Oil System Fluid Capacity	2 gal (8 l)
Operating Voltage	12 volts
Operating Weight	15,474 lbs (7,019 kg)
Operating Weight 4wd	16,921 lbs (7,675 kg)
Rear Axle Fluid Capacity	4 gal (17 l)
Tire Size Front - 2wd / 4wd	11L-16 F-3/12.5/80-18 (10ply) 1-3 Super Traction
Transmission Fluid Capacity	5 gal (19 l)
Turning Radius	18 ft (5 m)
Tires
Rear Tires Size	19.5L-24 (12 ply) R4 ATU/ 19.5L-24 (12 ply) IT 525
Transmission
Max Speed - Reverse	25 mph (40 kph)
Number of Forward Gears	4
Number of Reverse Gears	4
