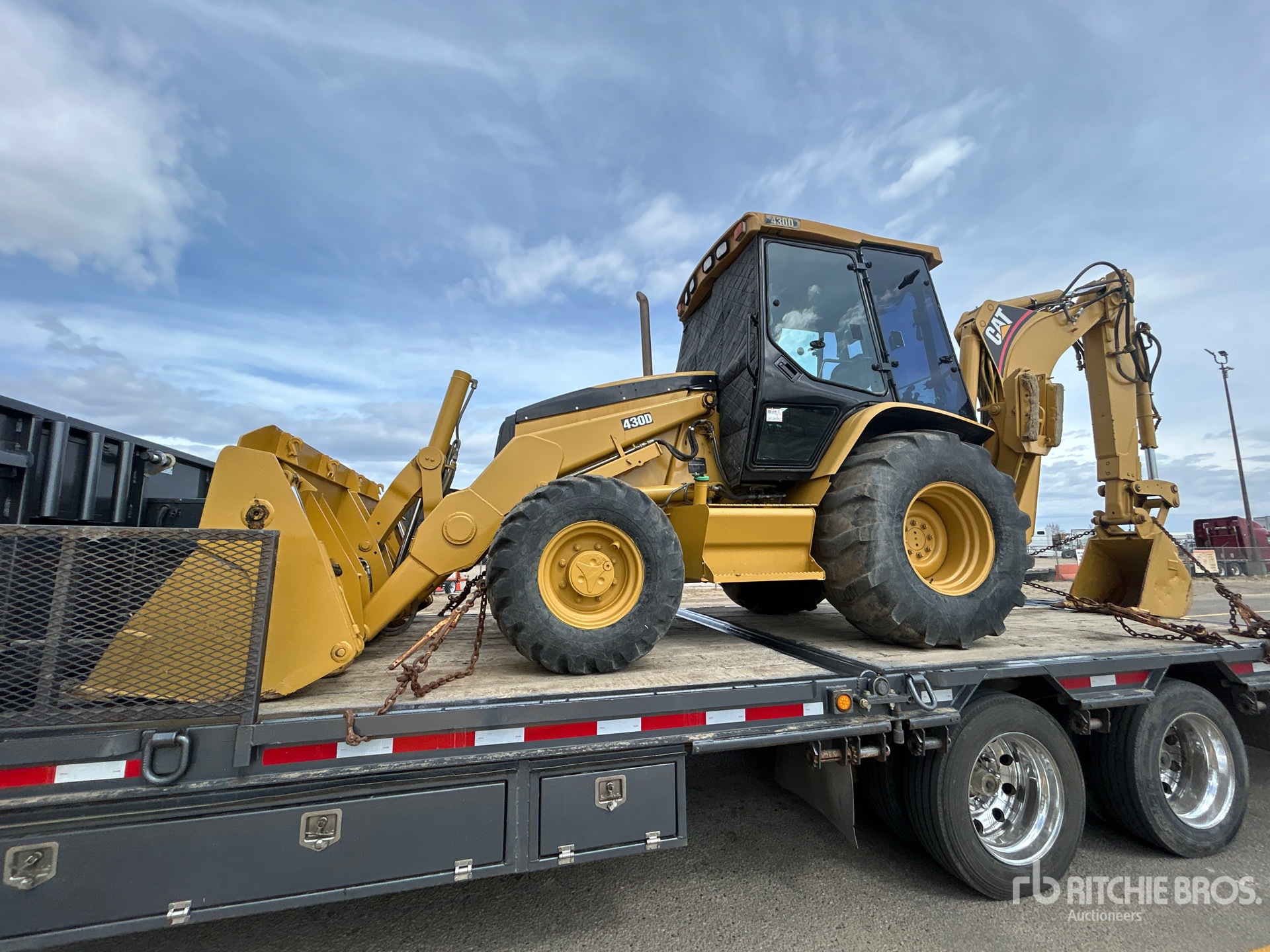

| Axle Ratings |
|
Dynamic (1) |
6,983 lbs (3,167 kg)
|
|
Dynamic (2) |
20,418 lbs (9,261 kg)
|

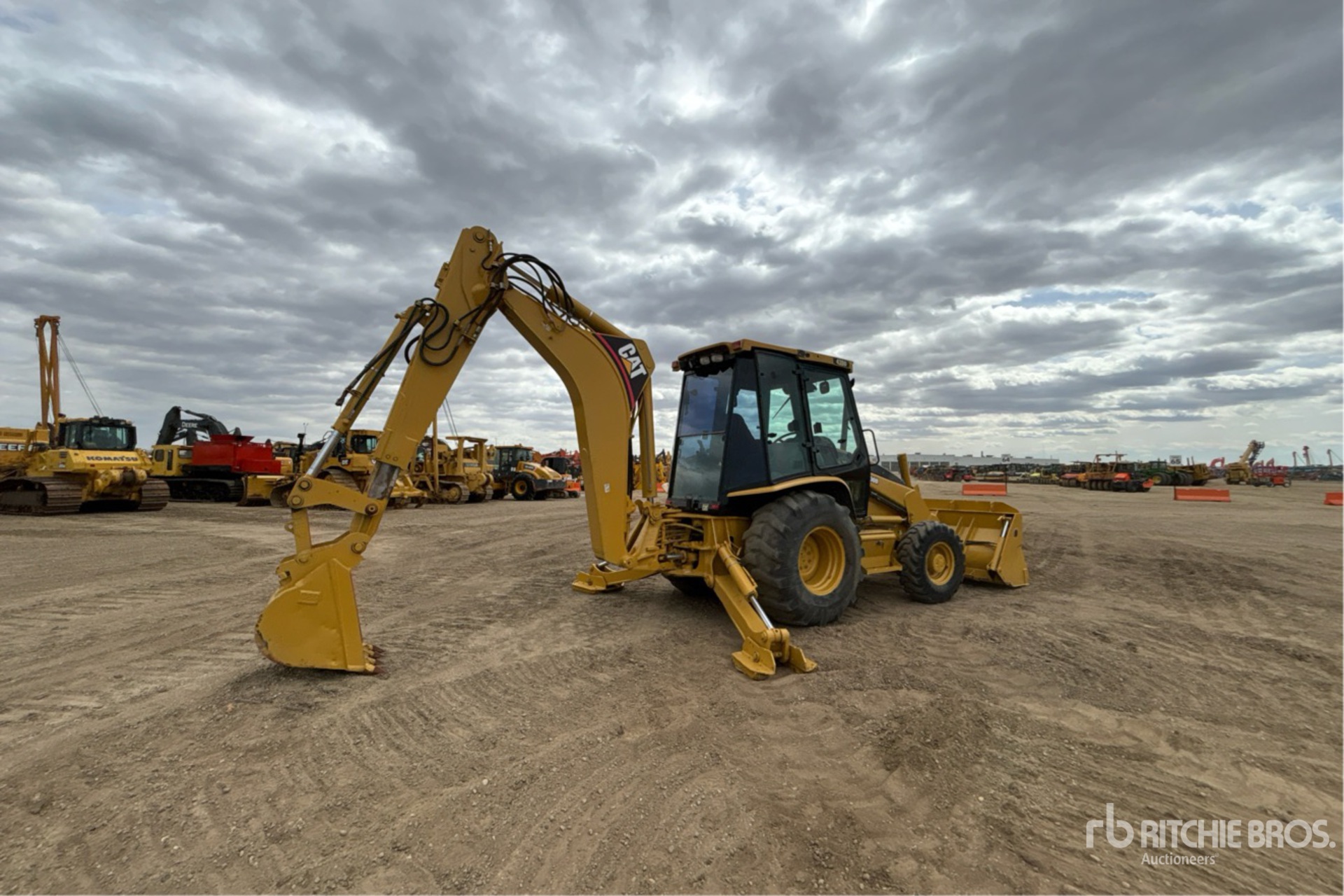

| Backhoe |
|
Bucket Dig Force |
14,732 lbs (6,682 kg)
|
|
Bucket Dig Force - Extended |
14,602 lbs (6,623 kg)
|
|
Bucket Rotation |
205 degrees |
|
Dig Depth |
15 ft (5 m)
|
|
Dig Depth - Extended |
20 ft (6 m)
|
|
E-Stick Extended (1) |
20 ft (6 m)
|
|
E-Stick Extended (2) |
24 ft (7 m)
|
|
E-Stick Extended (3) |
14,602 lbs (6,623 kg)
|
|
E-Stick Extended (4) |
6,430 lbs (2,917 kg)
|
|
E-Stick Extended (5) |
4,064 lbs (1,843 kg)
|
|
E-Stick Retracted (1) |
16 ft (5 m)
|
|
E-Stick Retracted (2) |
20 ft (6 m)
|
|
E-Stick Retracted (3) |
14,602 lbs (6,623 kg)
|
|
E-Stick Retracted (4) |
8,865 lbs (4,021 kg)
|
|
E-Stick Retracted (5) |
7,855 lbs (3,563 kg)
|
|
Load Height - Extended |
15 ft (5 m)
|
|
Loading Height |
13 ft (4 m)
|
|
Loading Reach |
6 ft (2 m)
|
|
Reach at Load Height - Extended |
10 ft (3 m)
|
|
Reach from Swing Pivot |
20 ft (6 m)
|
|
Reach From Swivel |
23 ft (7 m)
|
|
Reach From Swivel - Extended |
28 ft (8 m)
|
|
Stick Dig Force |
9,448 lbs (4,286 kg)
|
|
Stick Lift at 2440 mm (8 ft) |
14,821 lbs (6,723 kg)
|
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height to Top of Suspended Cab |
9 ft (3 m)
|
|
Transport Length |
24 ft (7 m)
|
|
Transport Width |
8 ft (2 m)
|
|
Wheelbase |
7 ft (2 m)
|

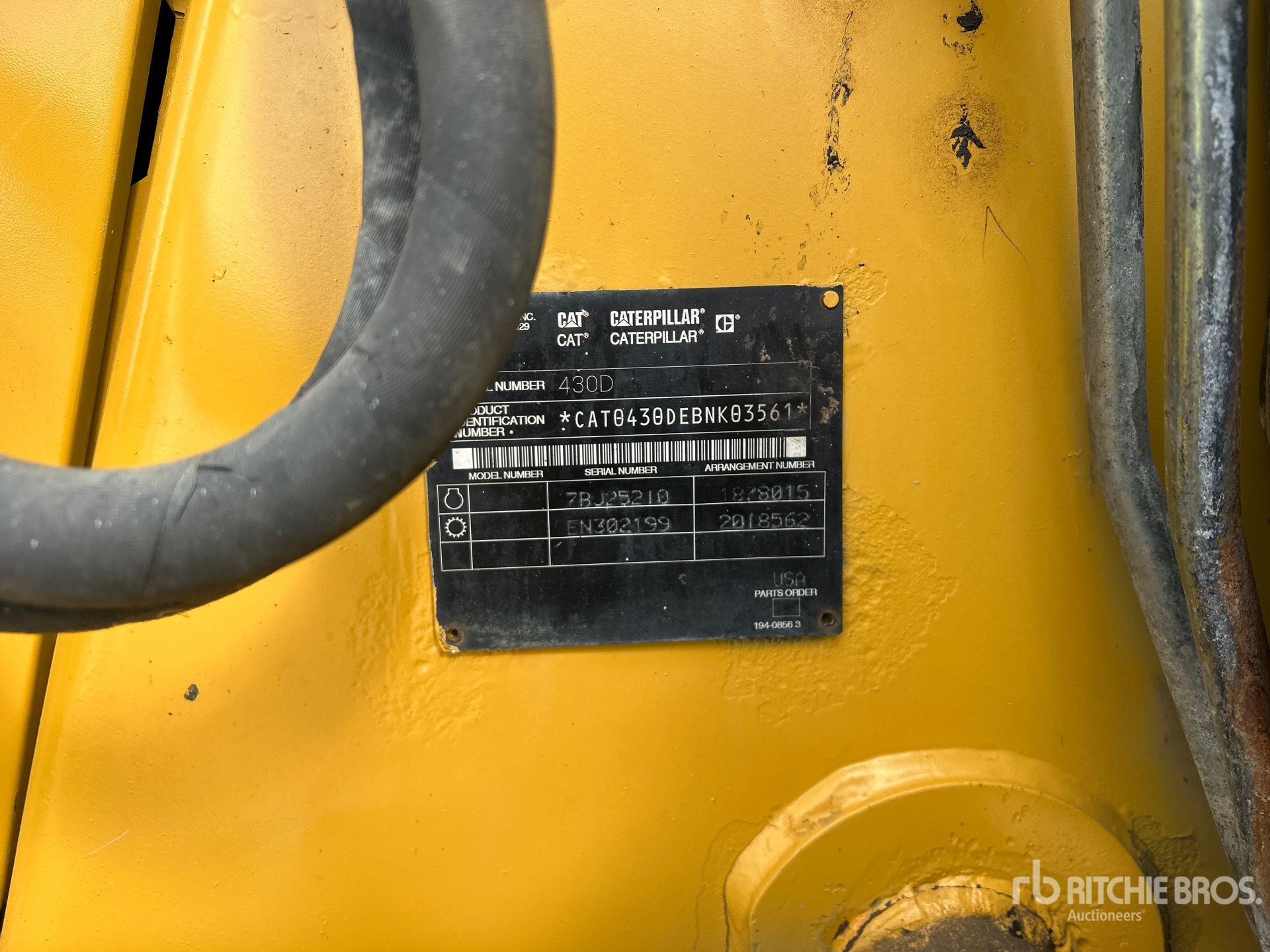

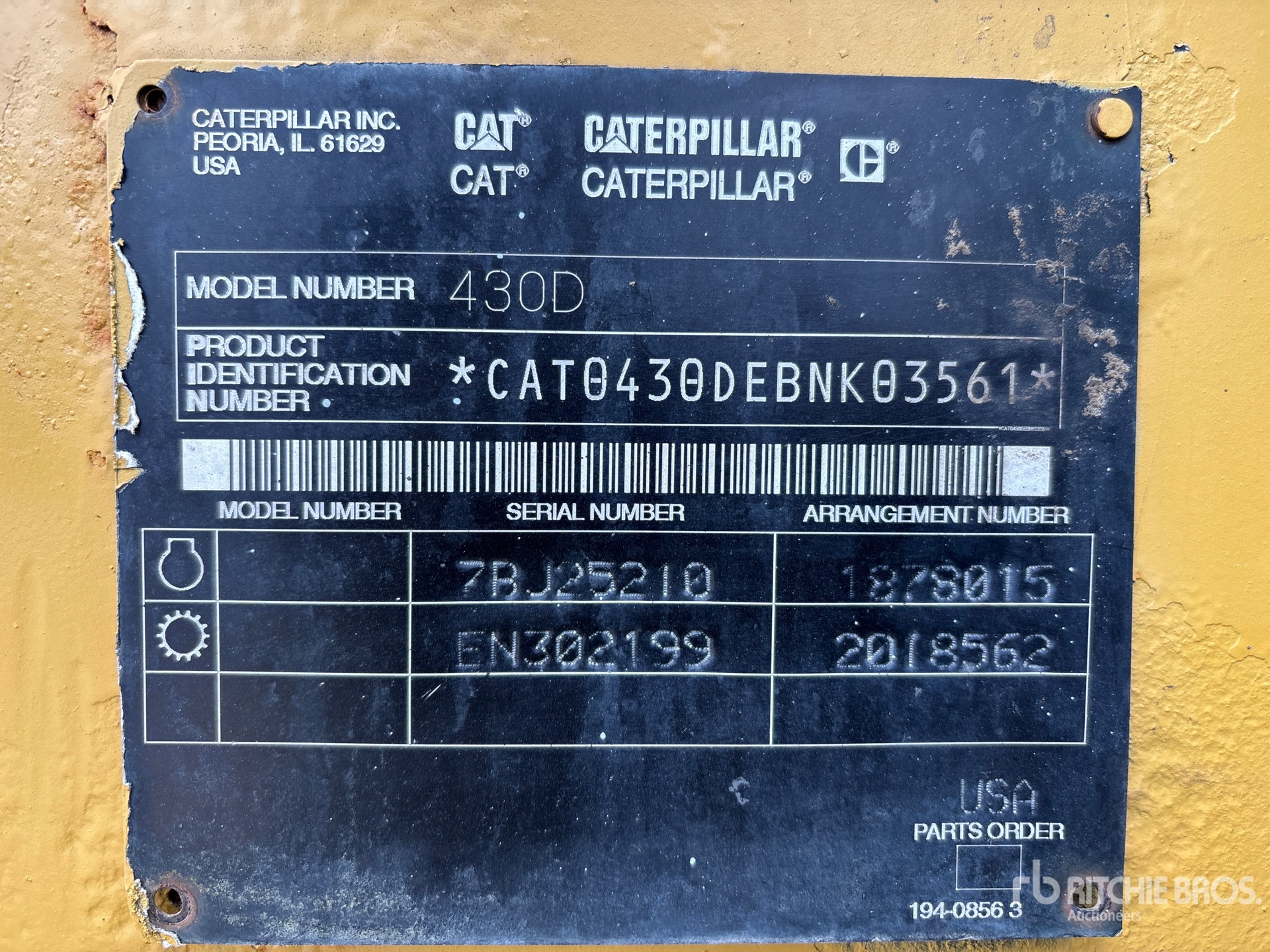

| Engine |
|
Bore |
4 in (10 cm)
|
|
Displacement |
243 cu in (3,982 cu cm)
|
|
Engine Model |
Cat 3054T |
|
Gross Power |
98 hp (73 kw)
|
|
Gross Power - SAE J1995 |
98 hp (73 kw)
|
|
Net Peak Torque - 1400 rpm - Standard - SAE J1349 |
277 lbs ft (376 nm)
|
|
Net Power |
94 hp (70 kw)
|
|
Net Power - SAE J1349 |
94 hp (70 kw)
|
|
Net Torque Rise - 1,400 rpm - Standard |
23.1% |
|
Number of Cylinders |
4 |
|
Power Measured @ |
2,200 rpm |
|
Stroke |
5 in (13 cm)
|
| General Specifications |
|
4th Gear Fwd mph (kmh) (Since 2004)
|
20.9 (33.6) |
|
Breakout Force lbs (kgs) (Since 2004)
|
10,269 (4,658) |
|
Digging Depth ft (m) (Since 2004)
|
19.9 (6.1) |
|
Lift Capacity lbs (kgs) (Since 2004)
|
6,391 (2,899) |
|
Loading Height ft (m) (Since 2004)
|
22 (6.7) |
|
Operating Weight lbs (kg) (Since 2004)
|
15,772 (7,154) |
|
SAE Net hp (kW) (Since 2004)
|
94 (70) |
| Hydraulic System |
|
4WD Cylinder - Bore |
3 in (7 cm)
|
|
Brake System |
Inboard oil-immersed |
|
Circuit Type |
Load-sensing closed-center |
|
Power Steering |
Hydrostatic |
|
Pump Capacity at 2,200 rpm |
43 gpm (163 lpm)
|
|
Pump Flow Capacity |
43 gpm (163 lpm)
|
|
Relief Valve Pressure |
3,300 psi |
|
Steering Type |
Front wheel |

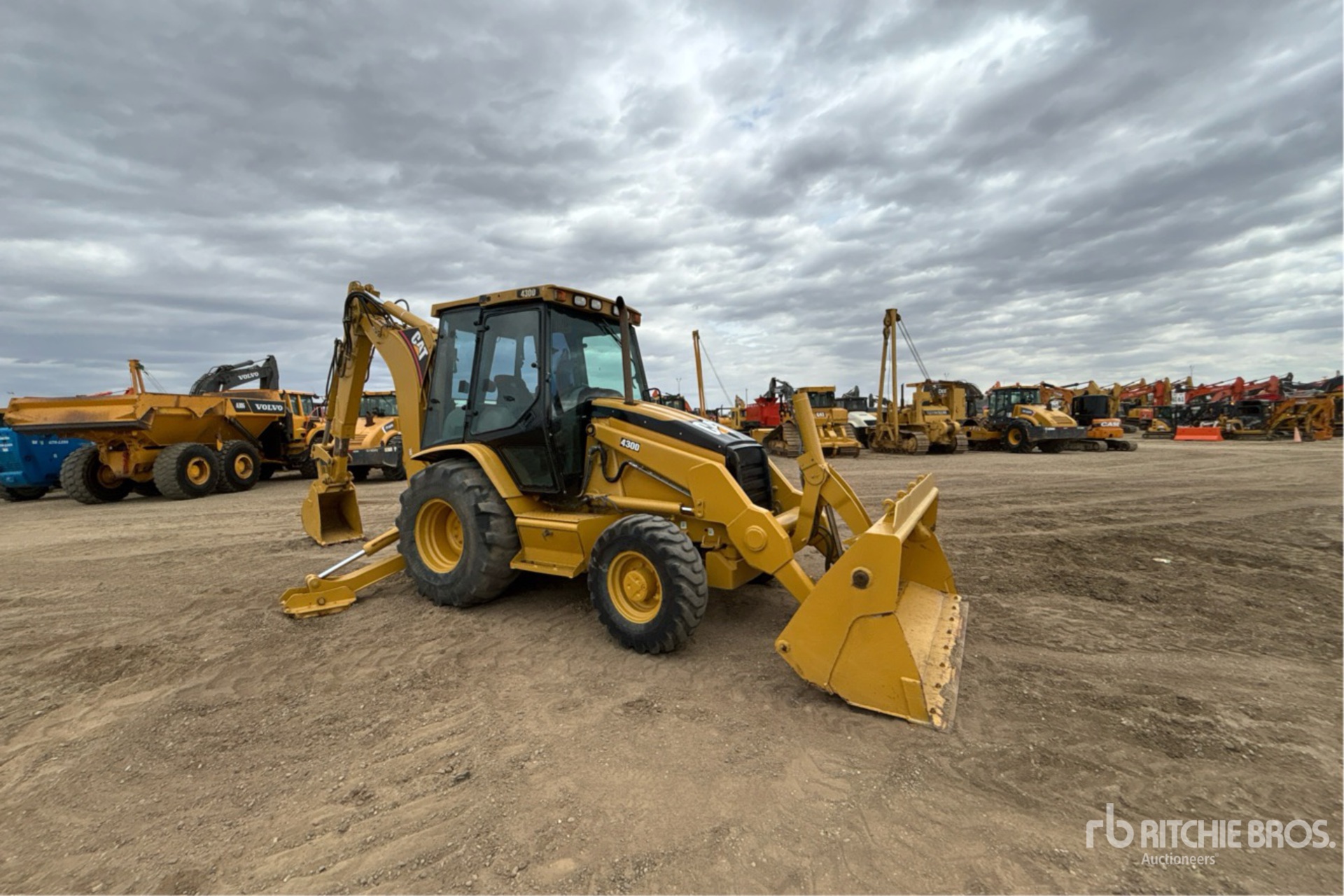

| Loader |
|
Bucket Breakout Force |
10,274 lbs (4,660 kg)
|
|
Bucket Breakout Force - Single Tilt |
10,269 lbs (4,658 kg)
|
|
Bucket Capacity |
1 cu yd (1 cu m)
|
|
Bucket Capacity - General Purpose |
1 cu yd (1 cu m)
|
|
Bucket Width |
95 in (241 cm)
|
|
Bucket Width - General Purpose |
95 ft (29 m)
|
|
Clearance at Max Dump Height |
9 ft (3 m)
|
|
Dig Depth |
5 in (14 cm)
|
|
Dig Depth - Single Tilt |
7 in (17 cm)
|
|
Dump Height at Maximum Angle - Single Tilt |
9 ft (3 m)
|
|
Dump Reach at Maximum Angle - Single Tilt |
3 ft (1 m)
|
|
Lift Capacity at Full Height - Single Tilt |
6,391 lbs (2,899 kg)
|
|
Reach at Max Dump Height |
3 ft (1 m)
|
| Operating Specifications |
|
Fuel Capacity |
34 gal (128 l)
|
|
Operating Weight 4wd |
16,215 lbs (7,355 kg)
|
|
Tire Size Front - 2wd / 4wd |
11Lx1612PR / 12.5/80x1810PR |
|
Turning Circle - Outside - Front Wheels |
27 ft (8 m)
|
|
Turning Circle - Outside, Widest Loading Bucket |
36 ft (11 m)
|
|
Turning Radius |
18 ft (5 m)
|
| Power Train |
|
Power Shuttle Transmission - Forward 1st |
4 mph (6 kph)
|
|
Power Shuttle Transmission - Reverse 1st |
4 mph (6 kph)
|
| Service Refill |
|
Cooling System - A/C |
4 gal (16 l)
|
|
Cooling System - High-Ambient |
4 gal (17 l)
|
|
Engine Oil - With Filter |
2 gal (8 l)
|
|
Front Axle (4WD) |
2 gal (8 l)
|
|
Front Axle - Planetaries |
0 gal (1 l)
|
|
Fuel Tank |
34 gal (129 l)
|
|
Hydraulic System |
21 gal (79 l)
|
|
Hydraulic Tank |
10 gal (38 l)
|
|
Rear Axle |
6 gal (24 l)
|
|
Transmission - Torque Converter - Power Shuttle - 2WD |
4 gal (15 l)
|
| Standards |
|
Cab - ROPS |
SAE J397/SAE J1040 May 1994/ISO 3741 1994 |
|
Cab - Sound |
ANSI/SAE J1166 Oct 98 is 78.5 dB(A) |
|
Exterior Sound |
SAE J88 April 95 is 73.0 dB(A) |
|
Front Axle (2WD) - Static |
30,319 lbs (13,752 kg)
|
|
Front Axle (4WD) - Static |
27,029 lbs (12,260 kg)
|
|
Rear Axle - Static |
61,233 lbs (27,775 kg)
|
| Tires |
|
Rear Tires Size |
12.5/80x1810PR / 19.5x2410PR |
| Transmission |
|
Max Speed |
21 mph (34 kph)
|
|
Max Speed - Reverse |
21 mph (34 kph)
|
|
Number of Forward Gears |
4 |
|
Number of Reverse Gears |
4 |
|
Transmission Type |
power shuttle |
| Weights |
|
Counterweights - Option 1 |
320 lbs (145 kg)
|
|
Operating Weight - Maximum |
21,605 lbs (9,800 kg)
|
|
Operating Weight - Nominal |
16,217 lbs (7,356 kg)
|
