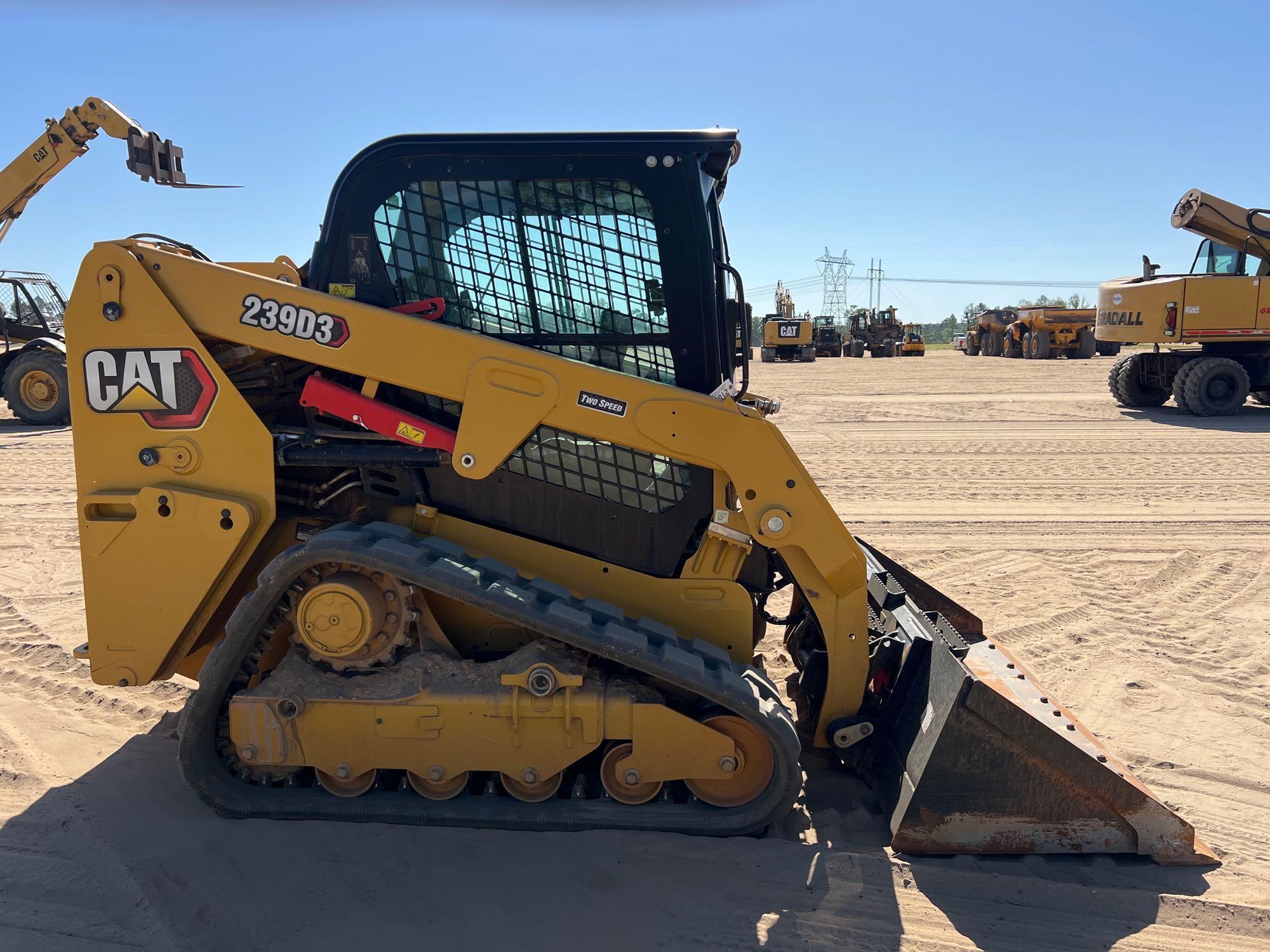

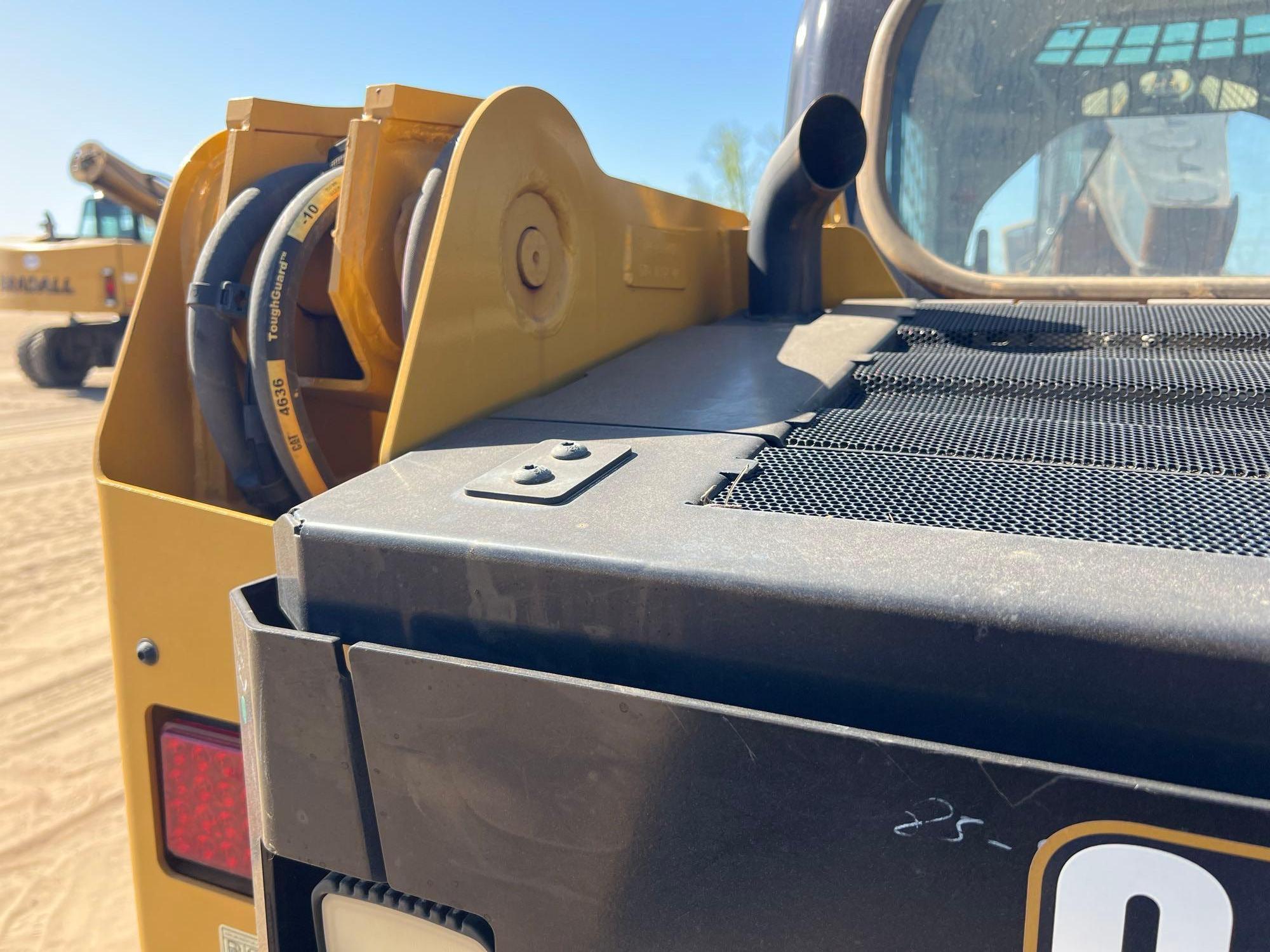

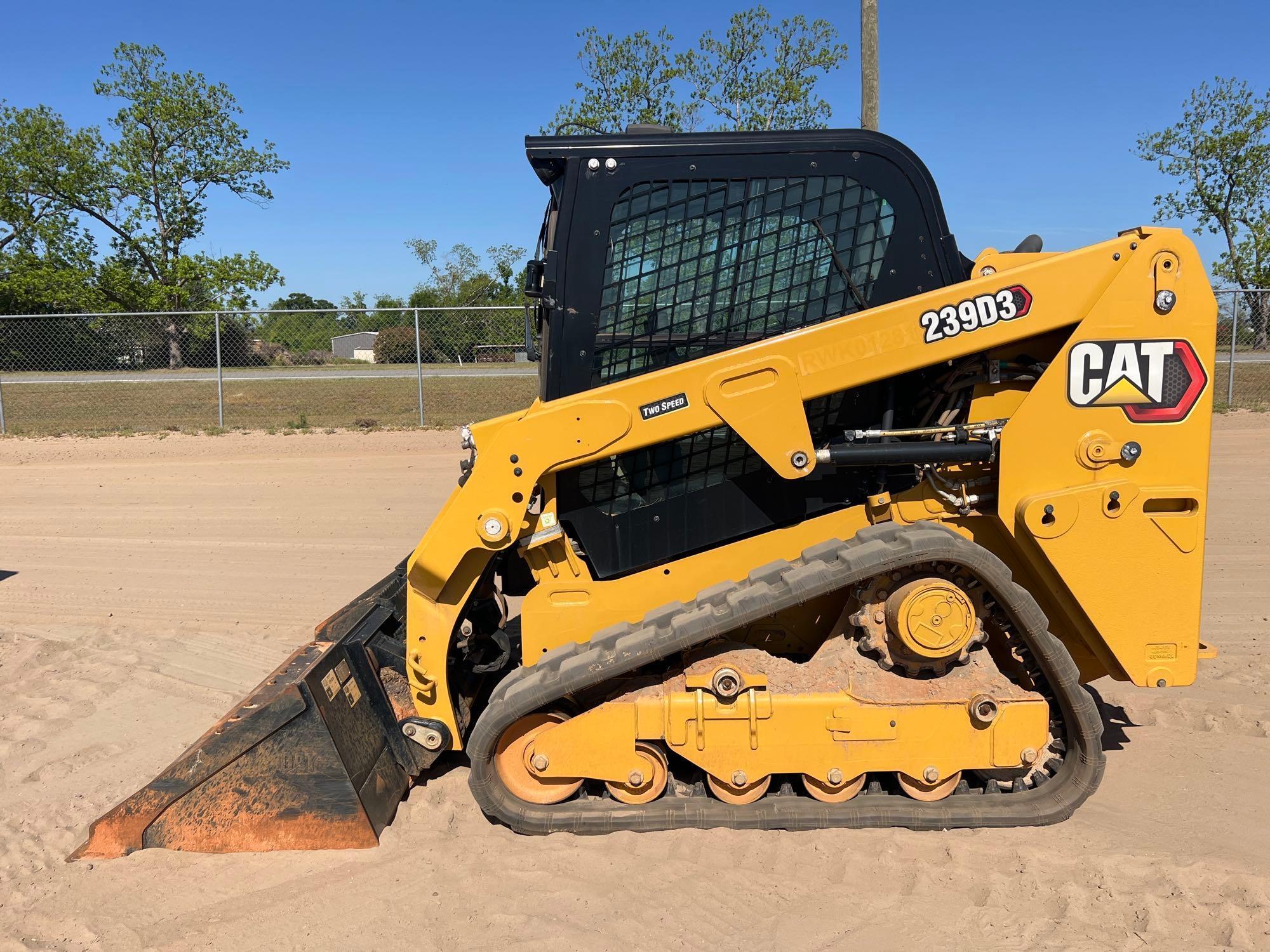

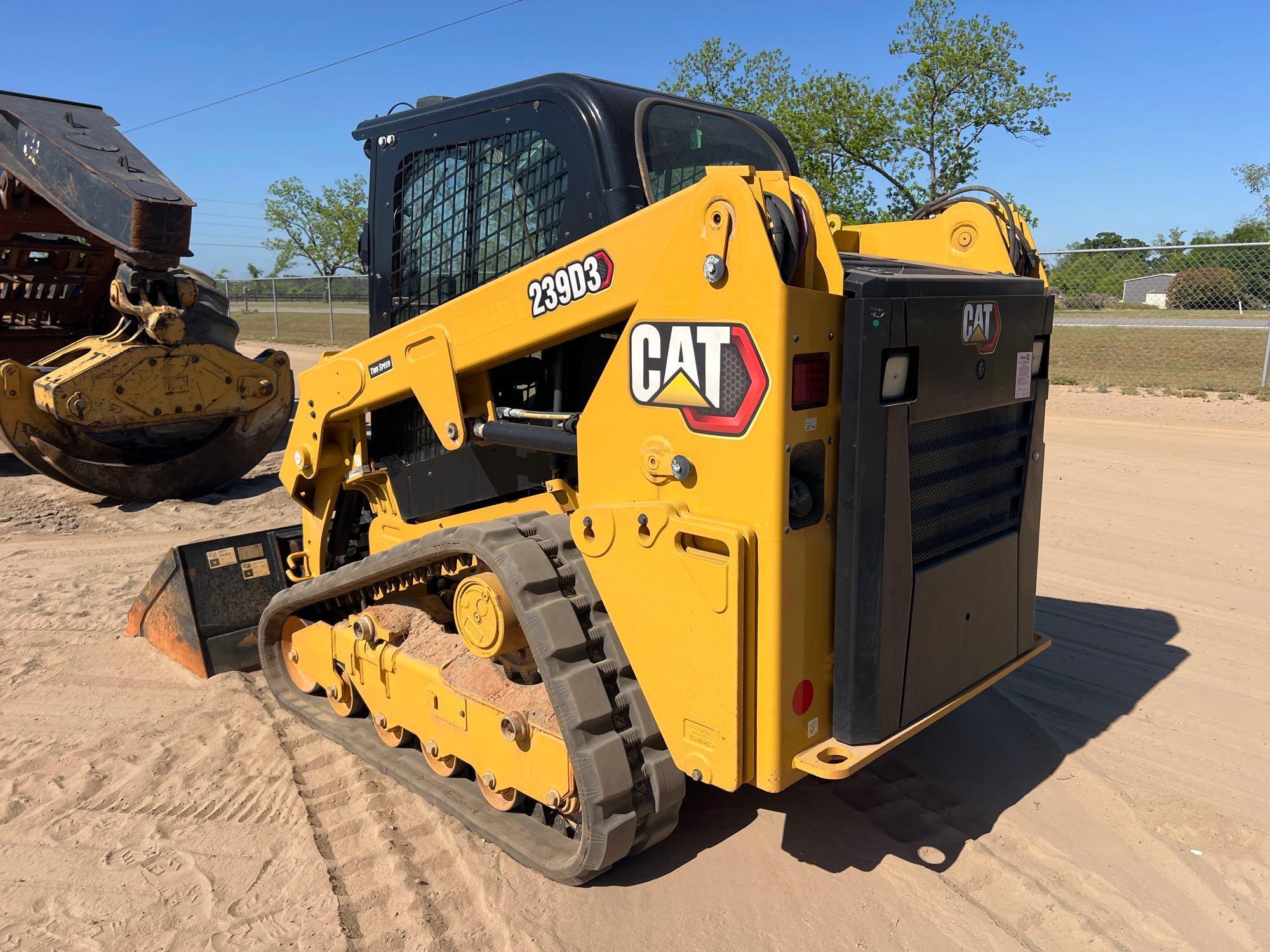

| Air Conditioning System |
|
Air Conditioning |
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. |

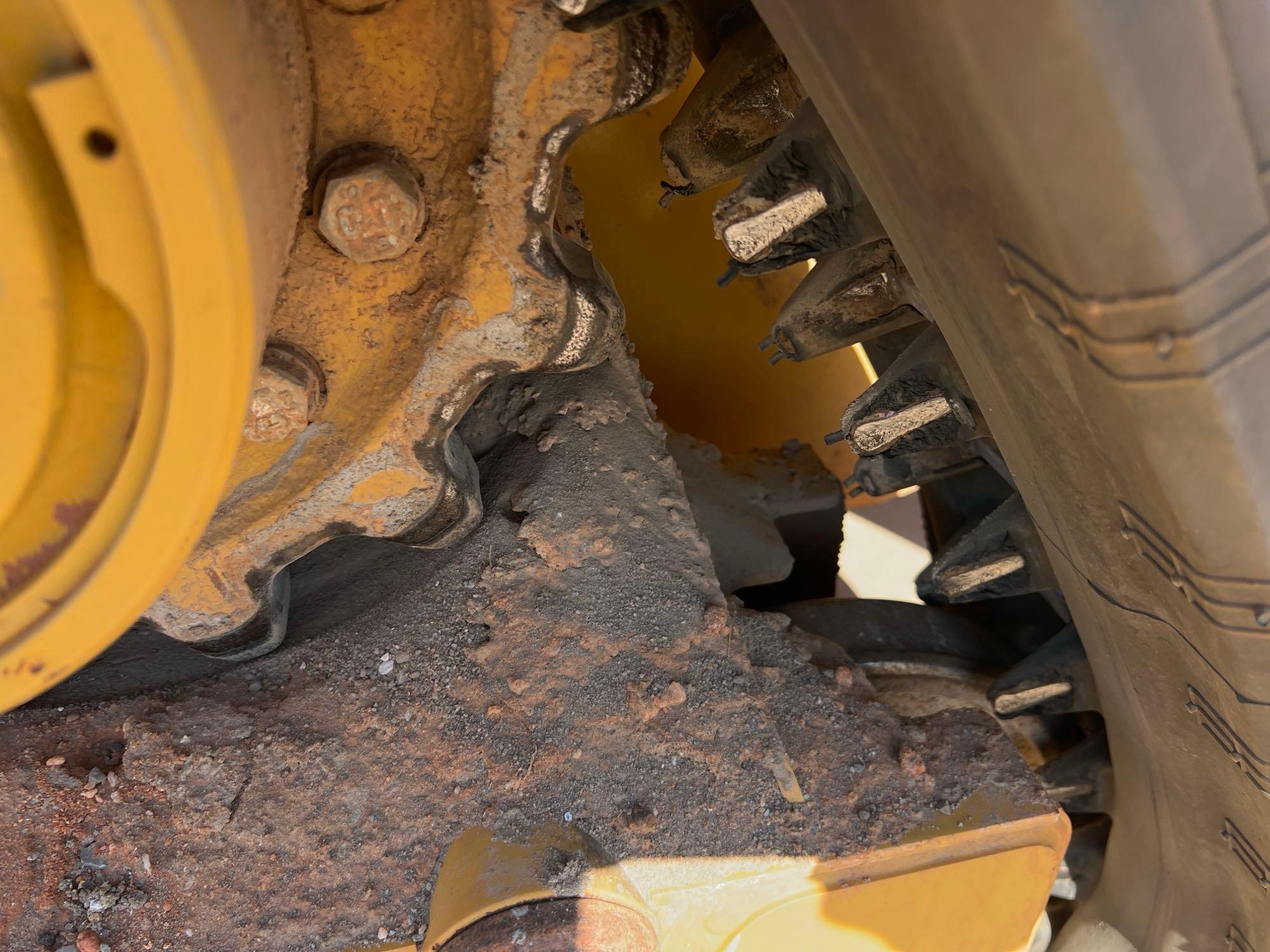

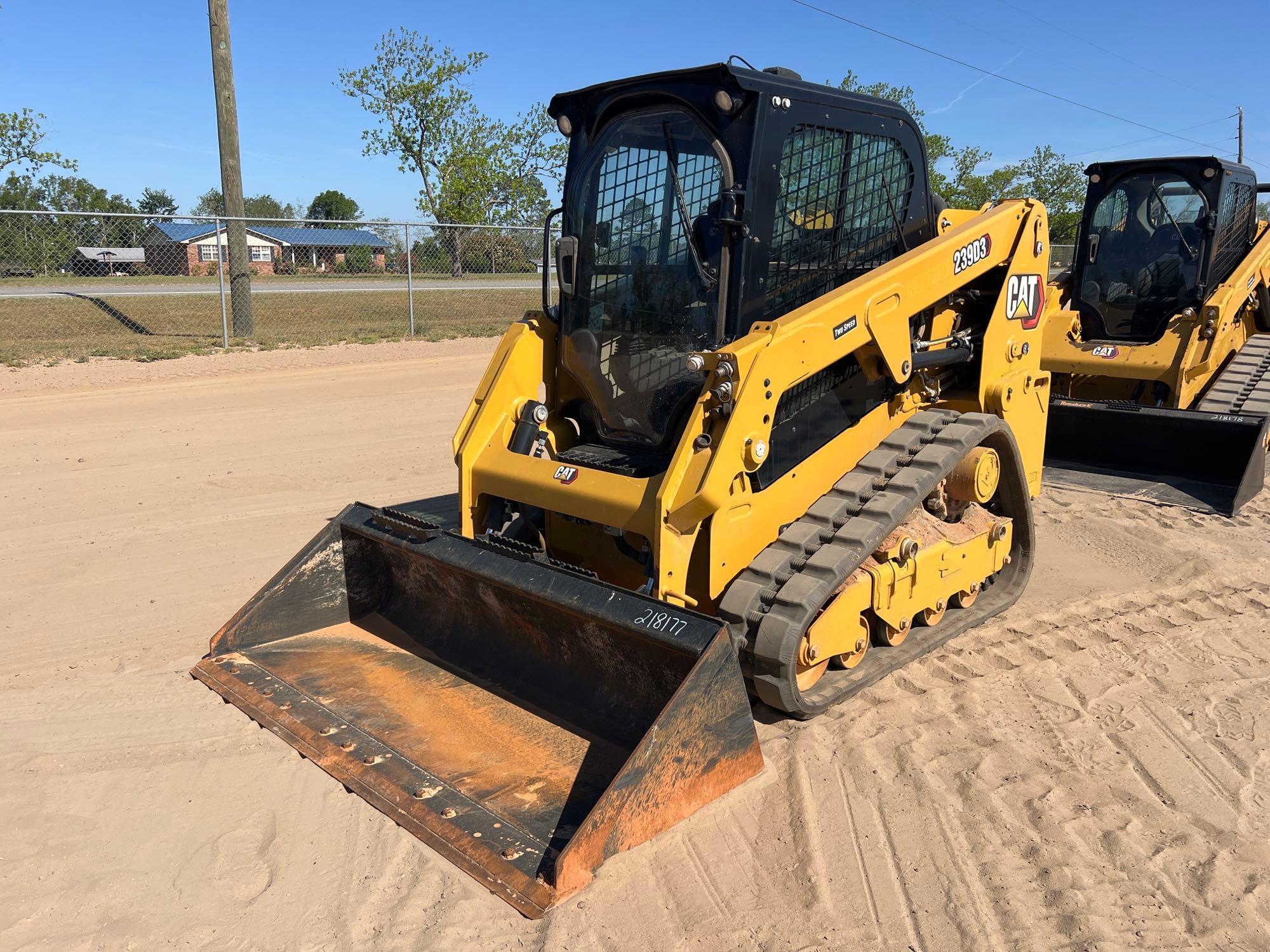

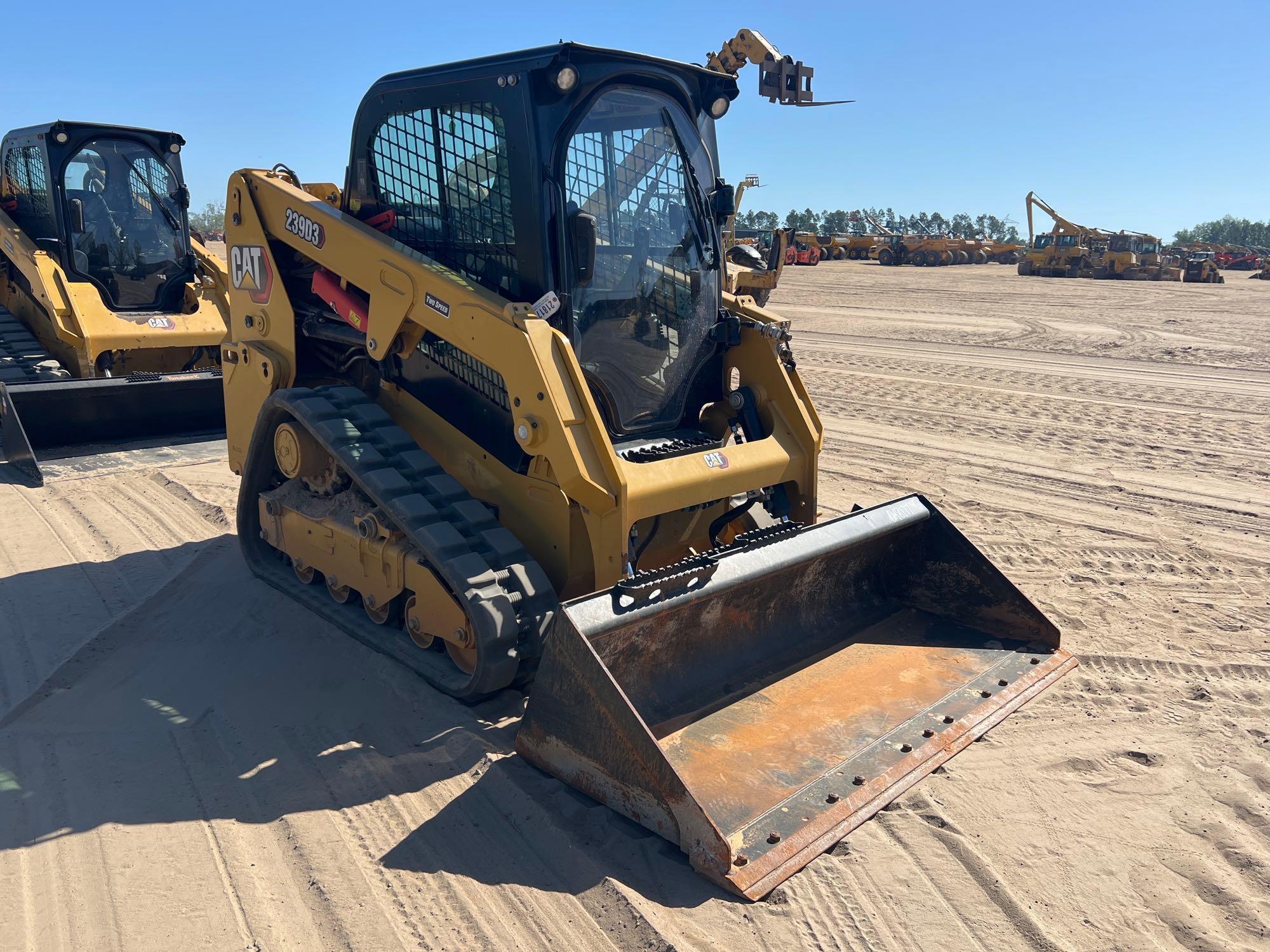

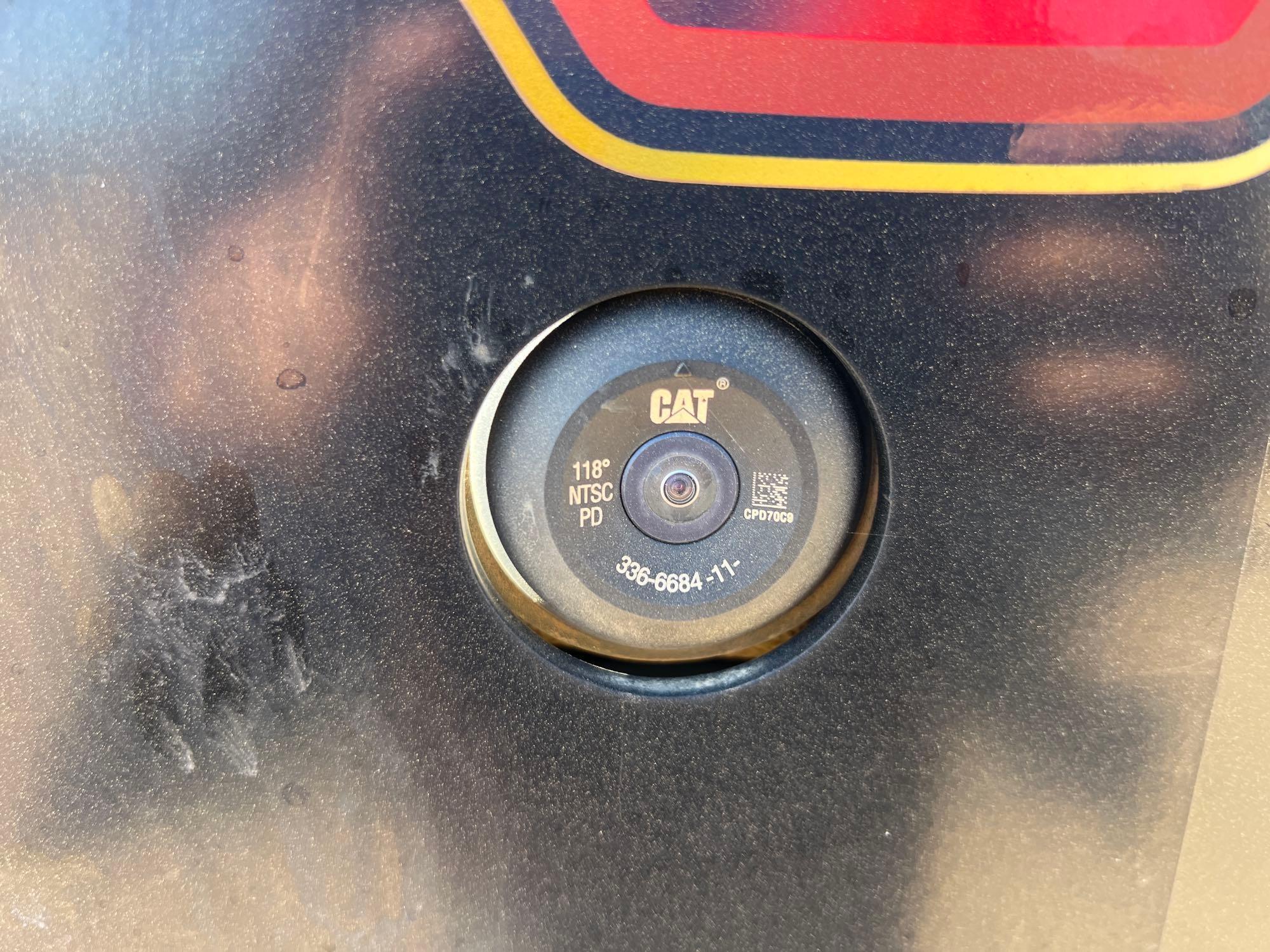

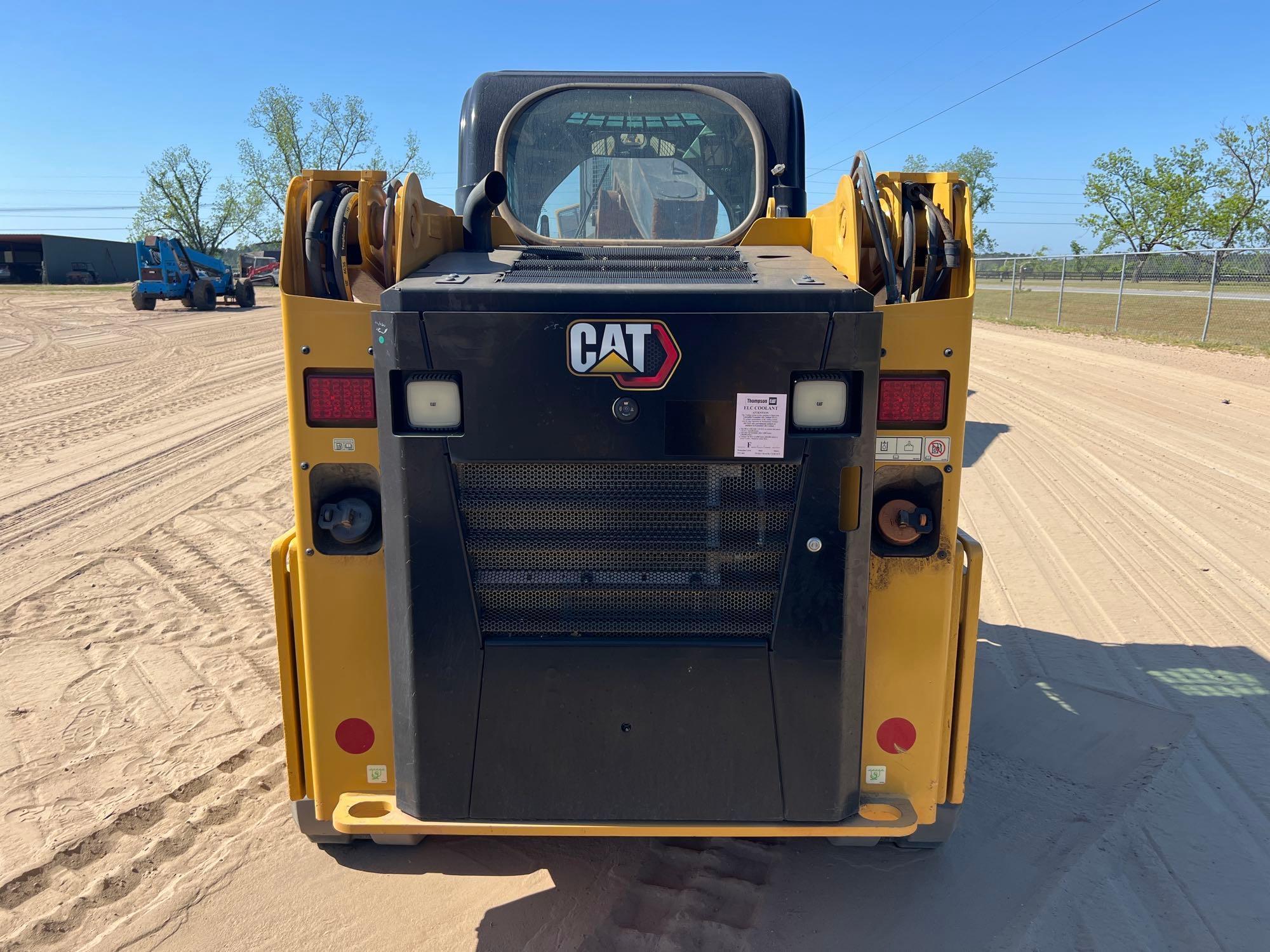

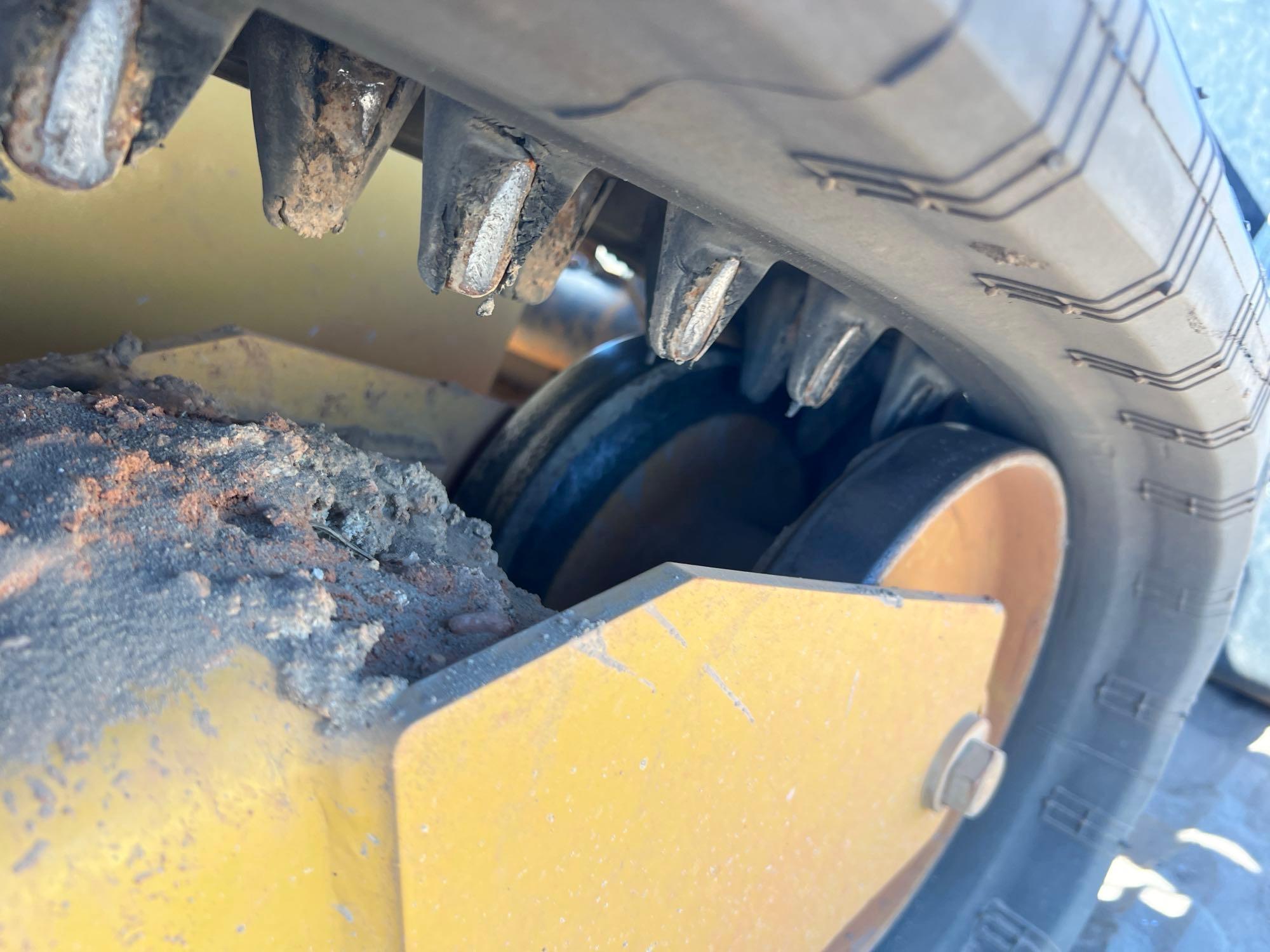

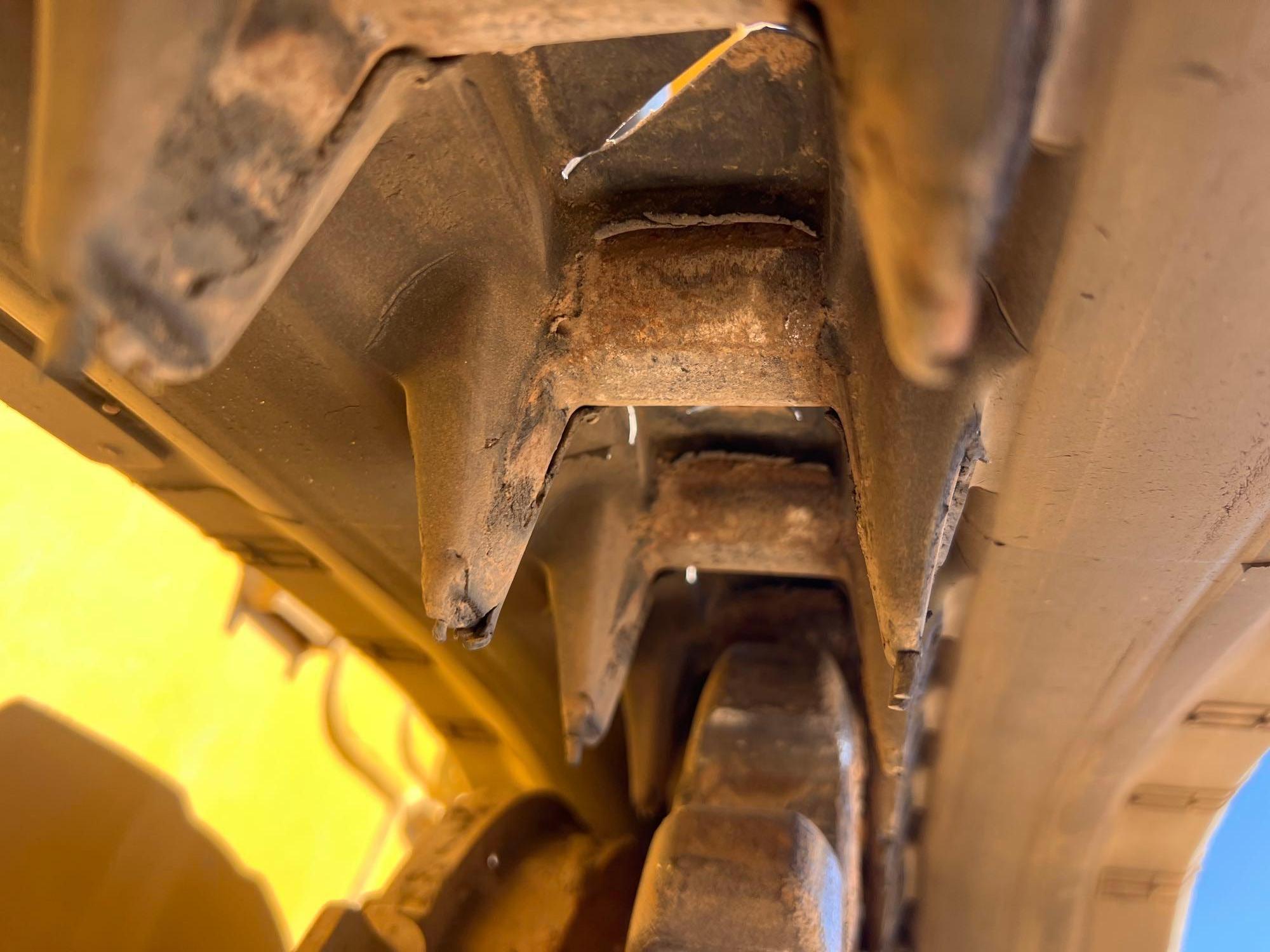

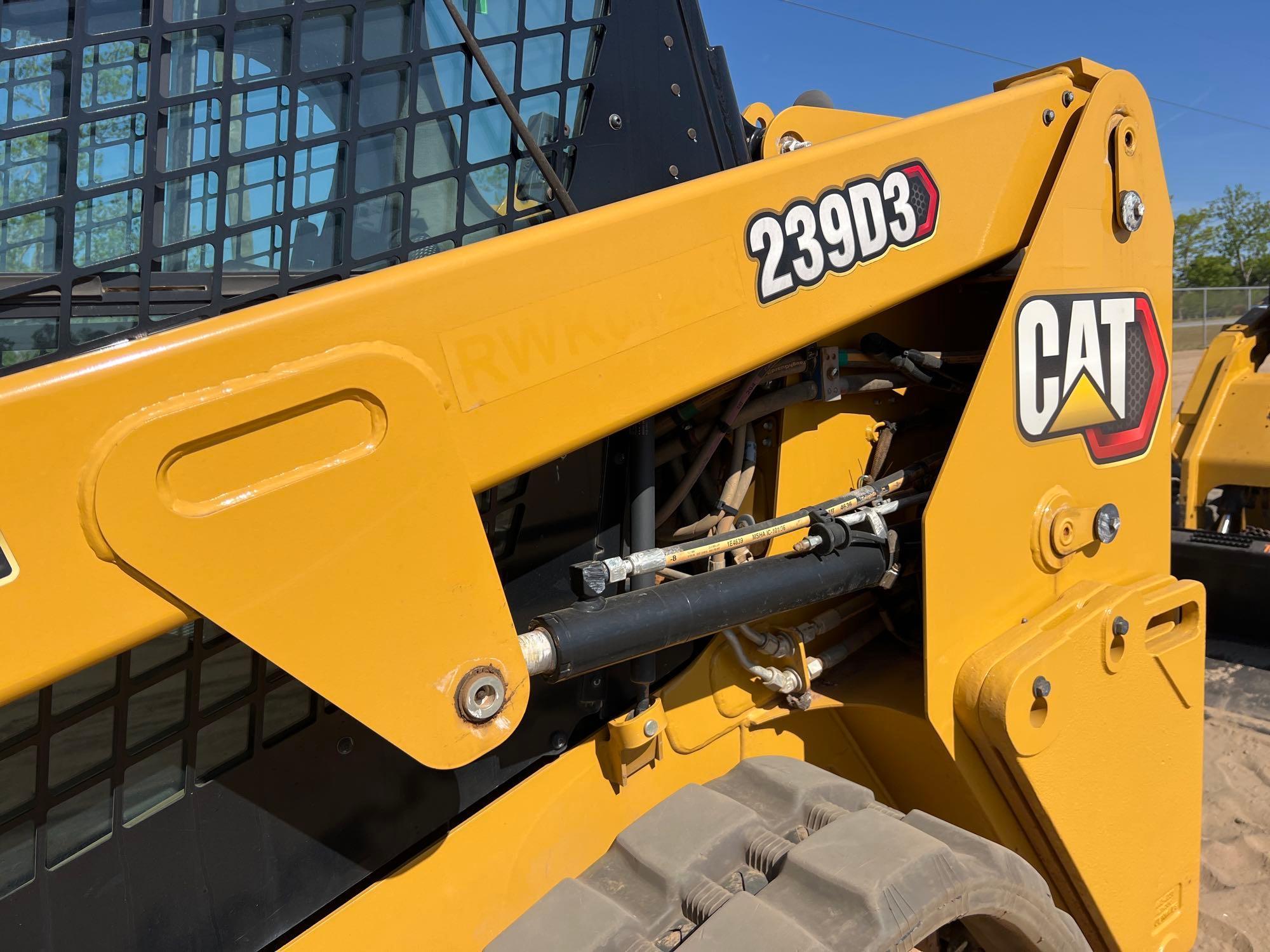

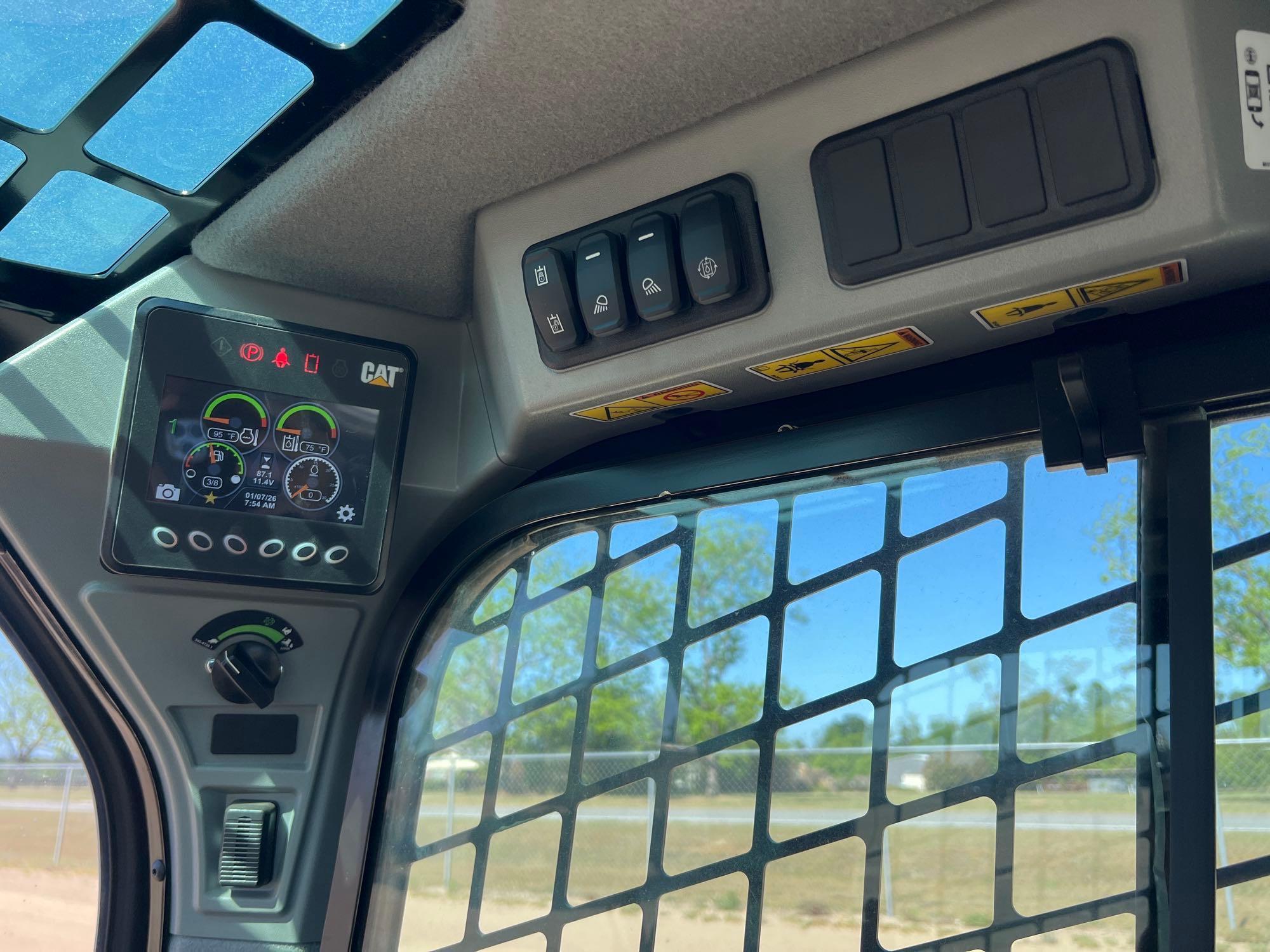

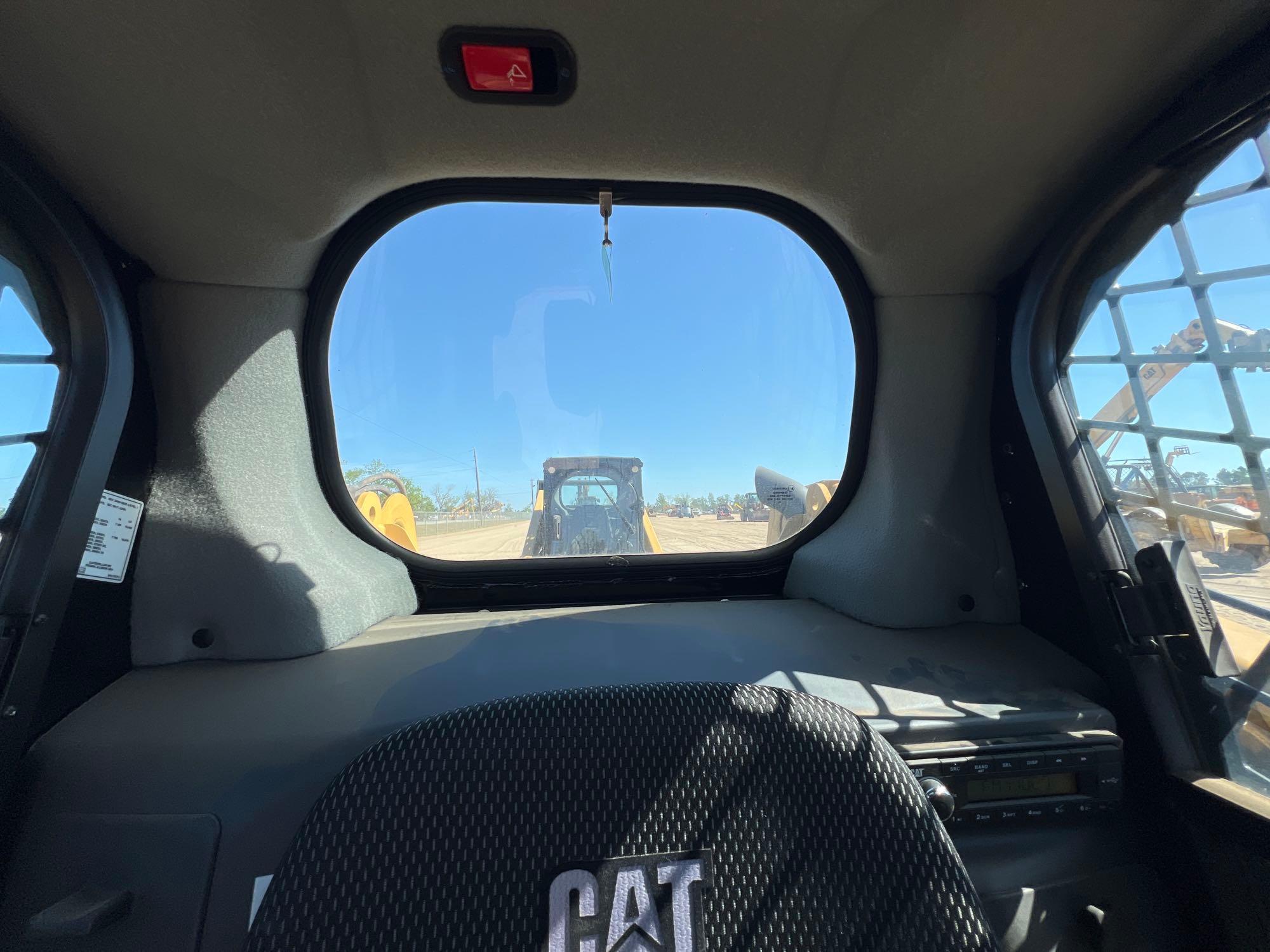

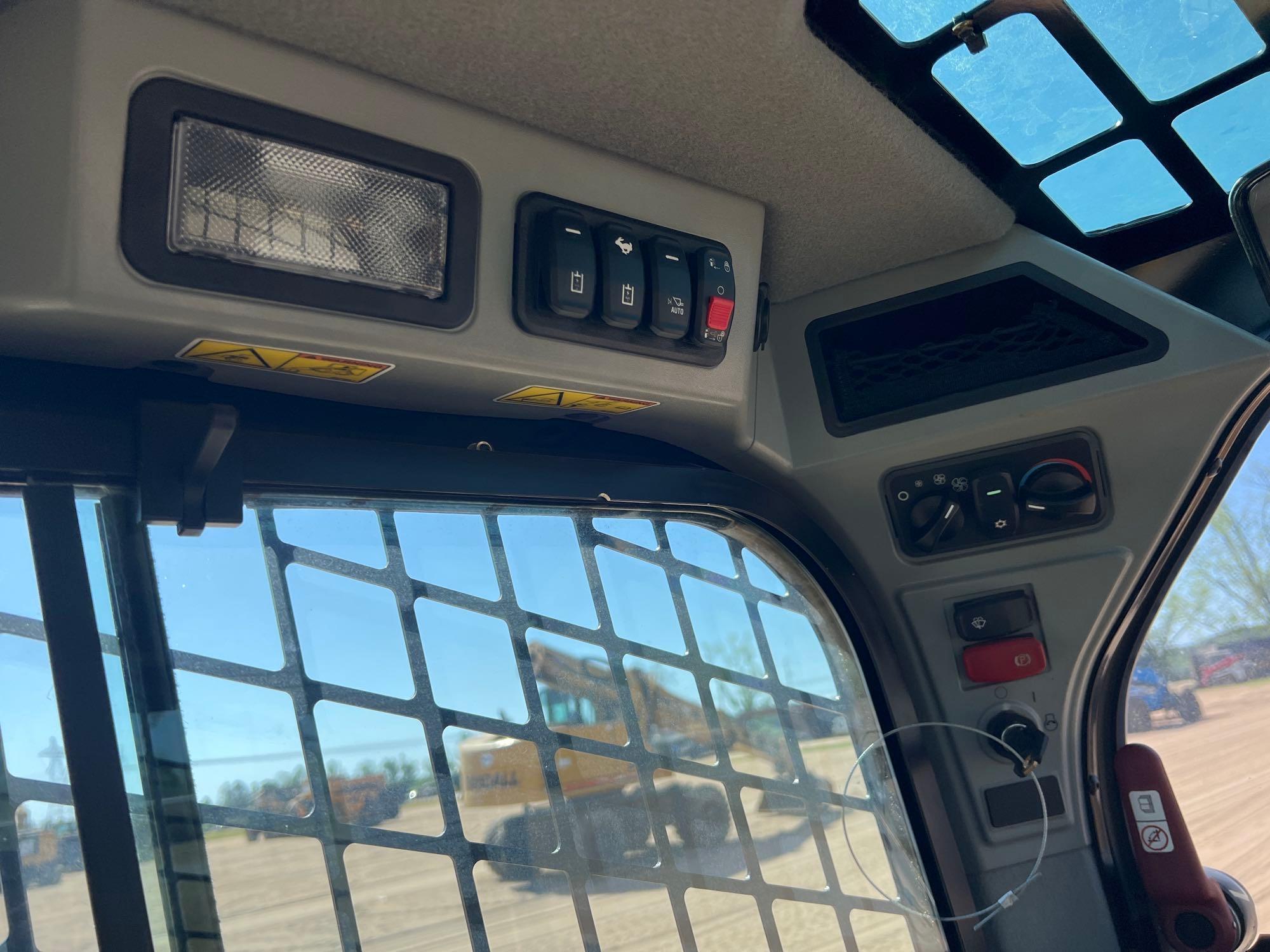

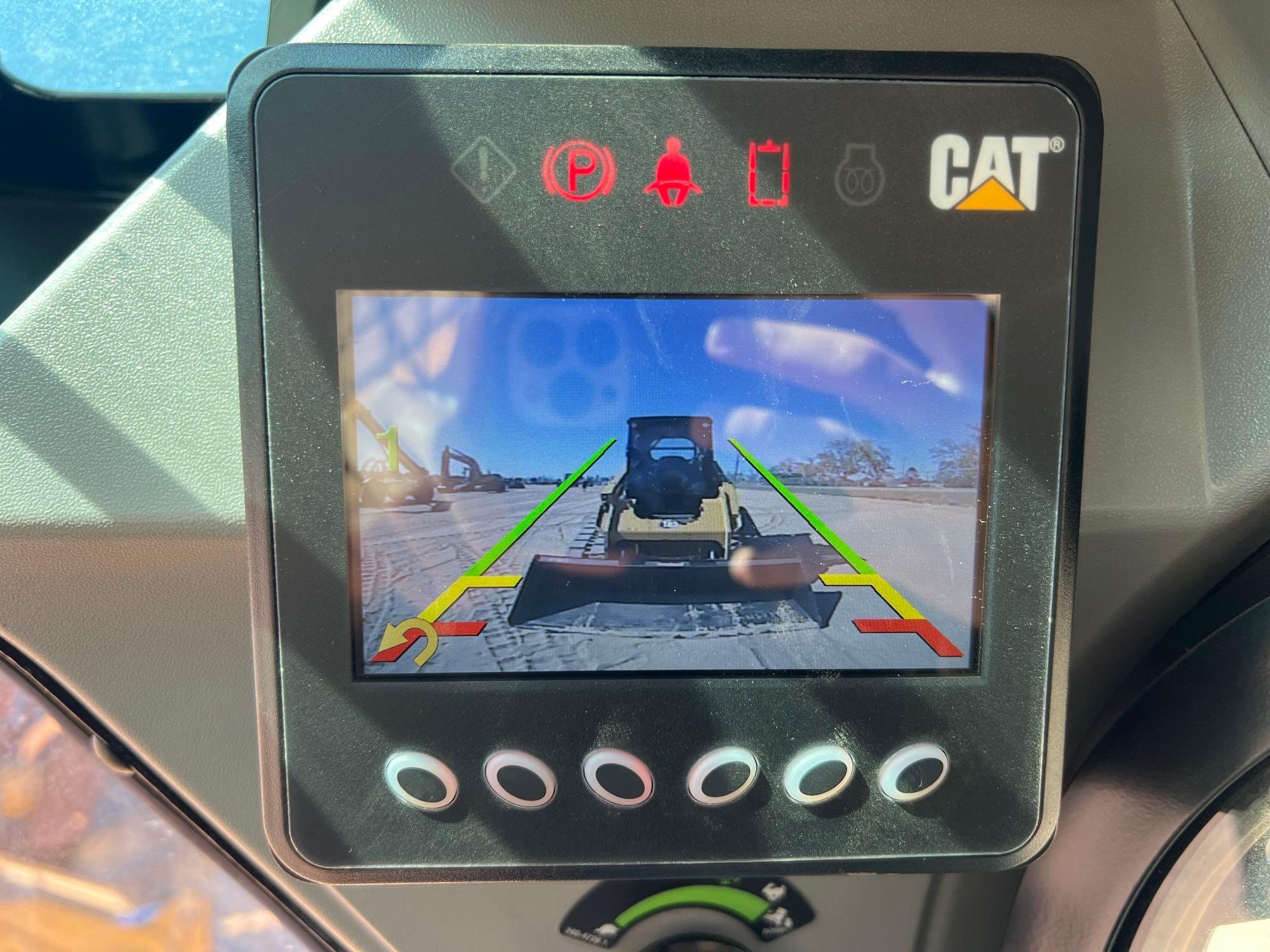

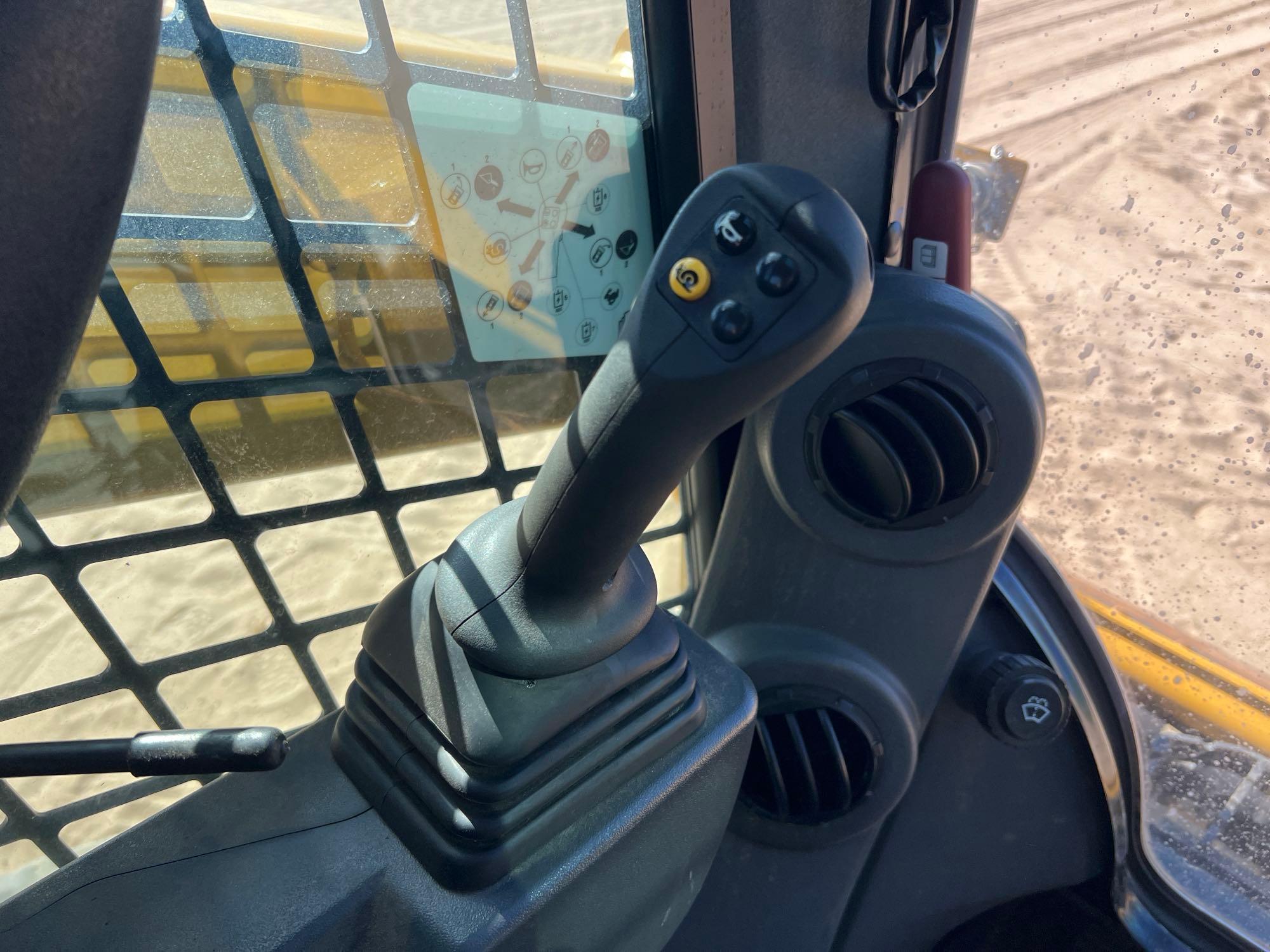

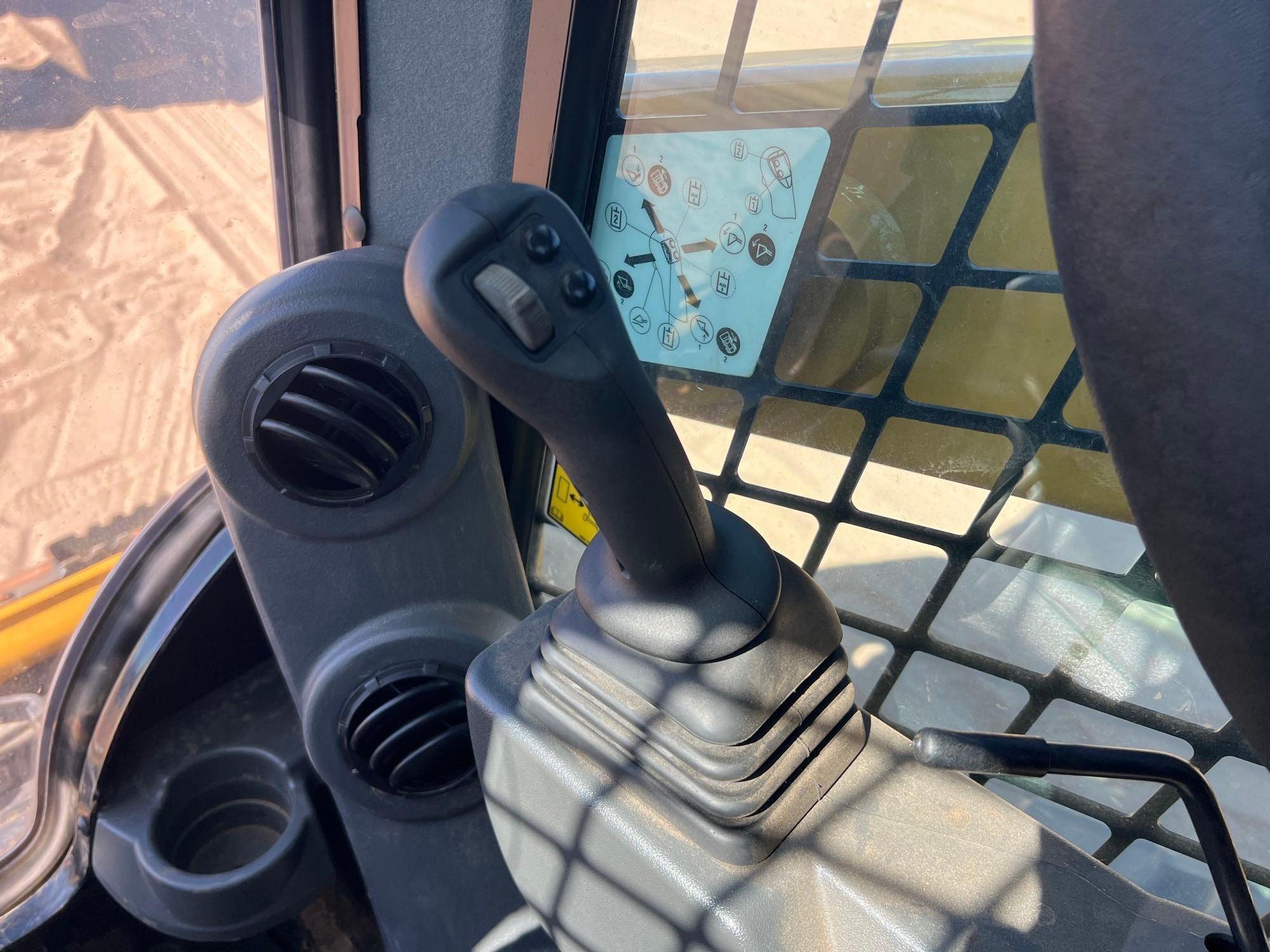

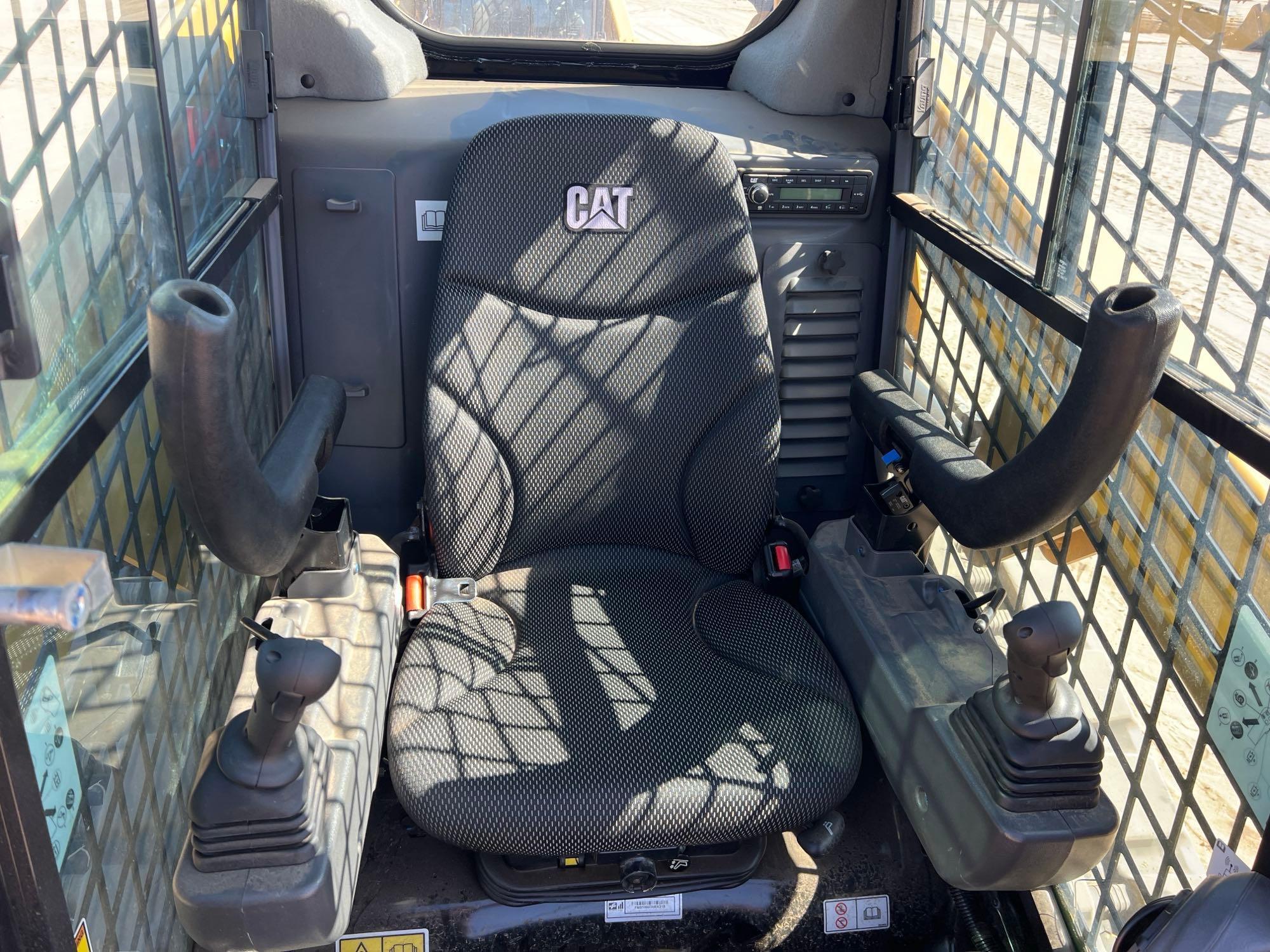

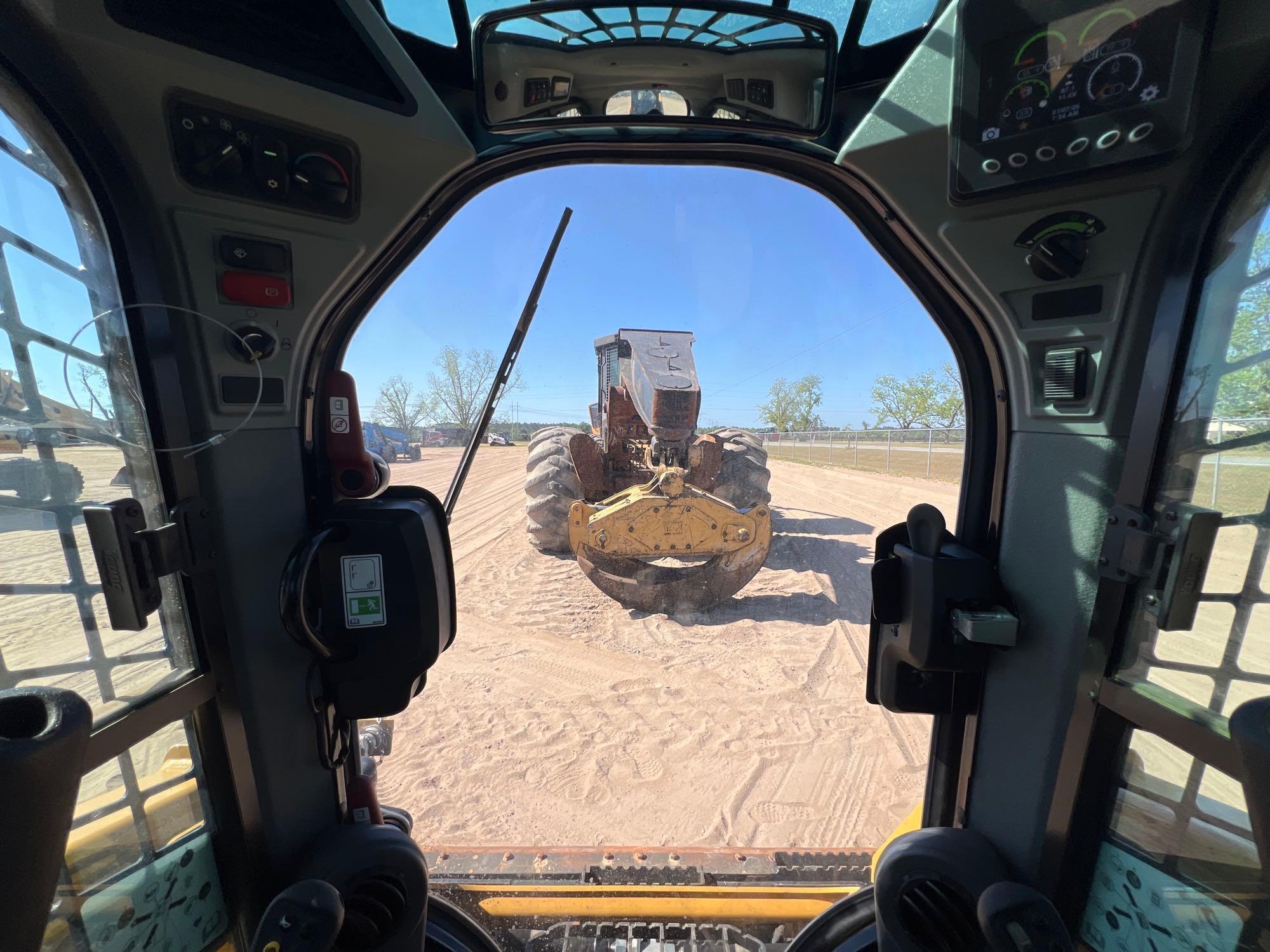

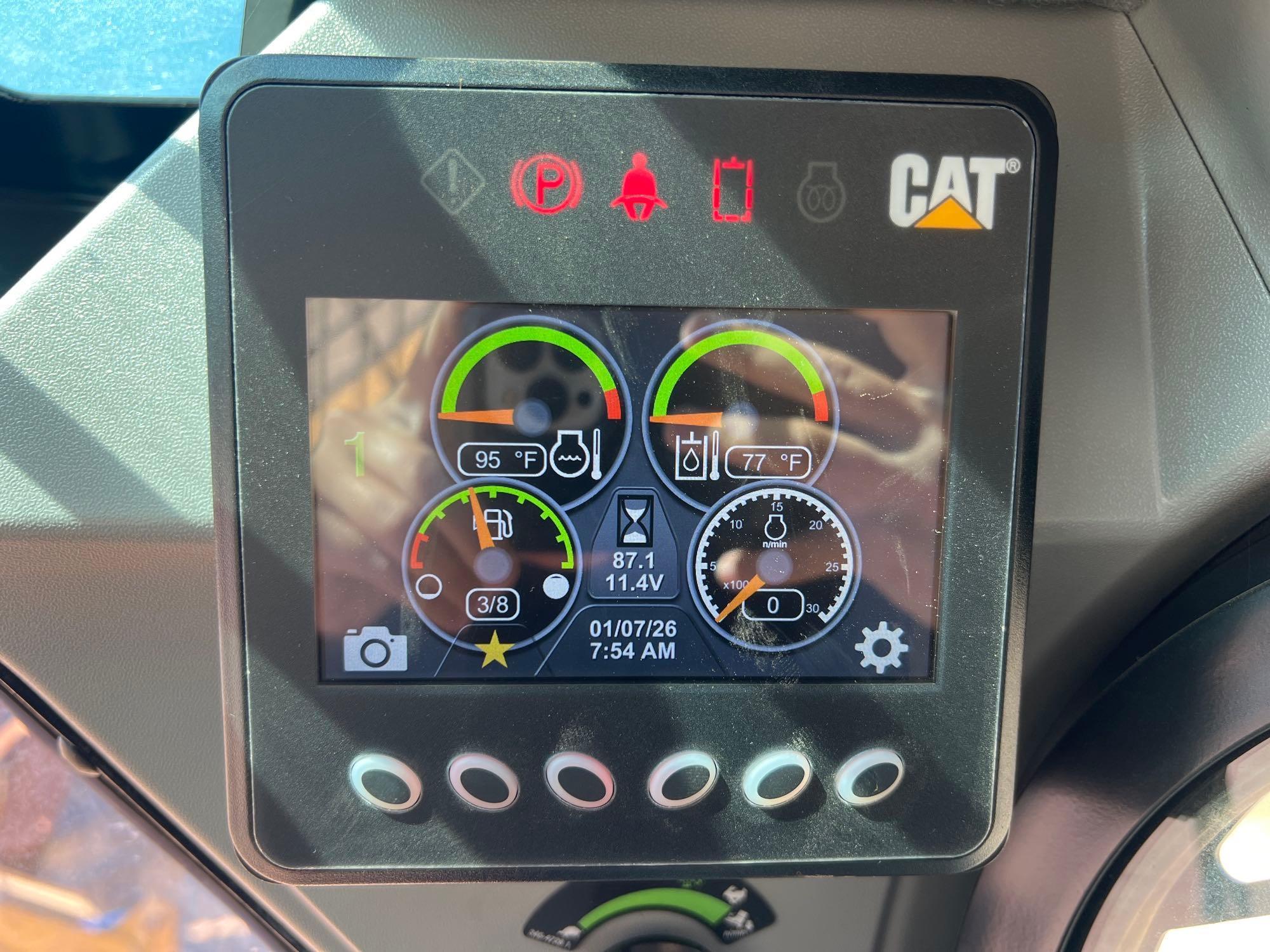

| Cab |
|
FOPS |
ISO 3449:2005 Level I |
|
FOPS Level II |
ISO 3449:2005 Level II |
|
ROPS |
ISO 3471:2008 |

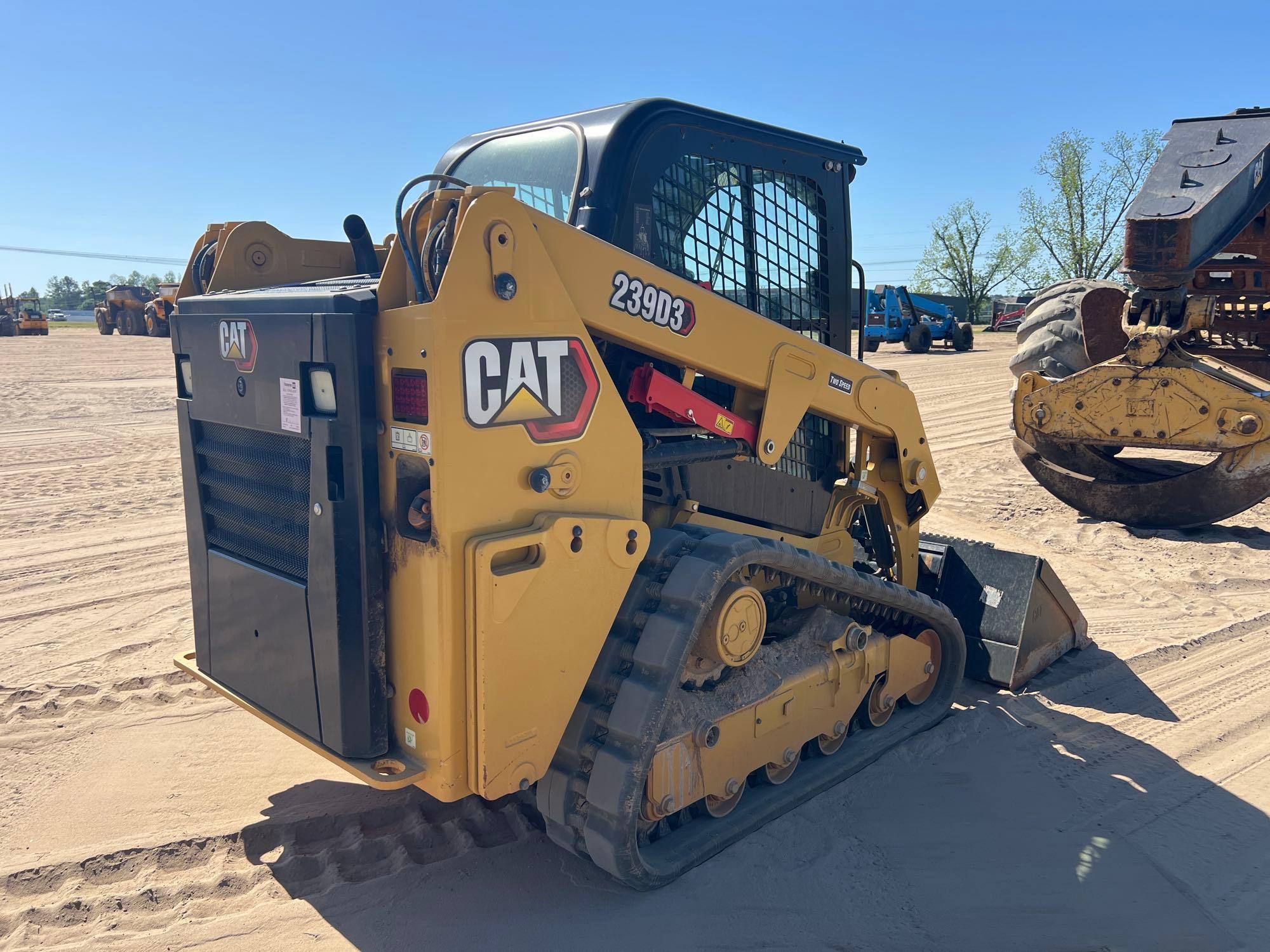

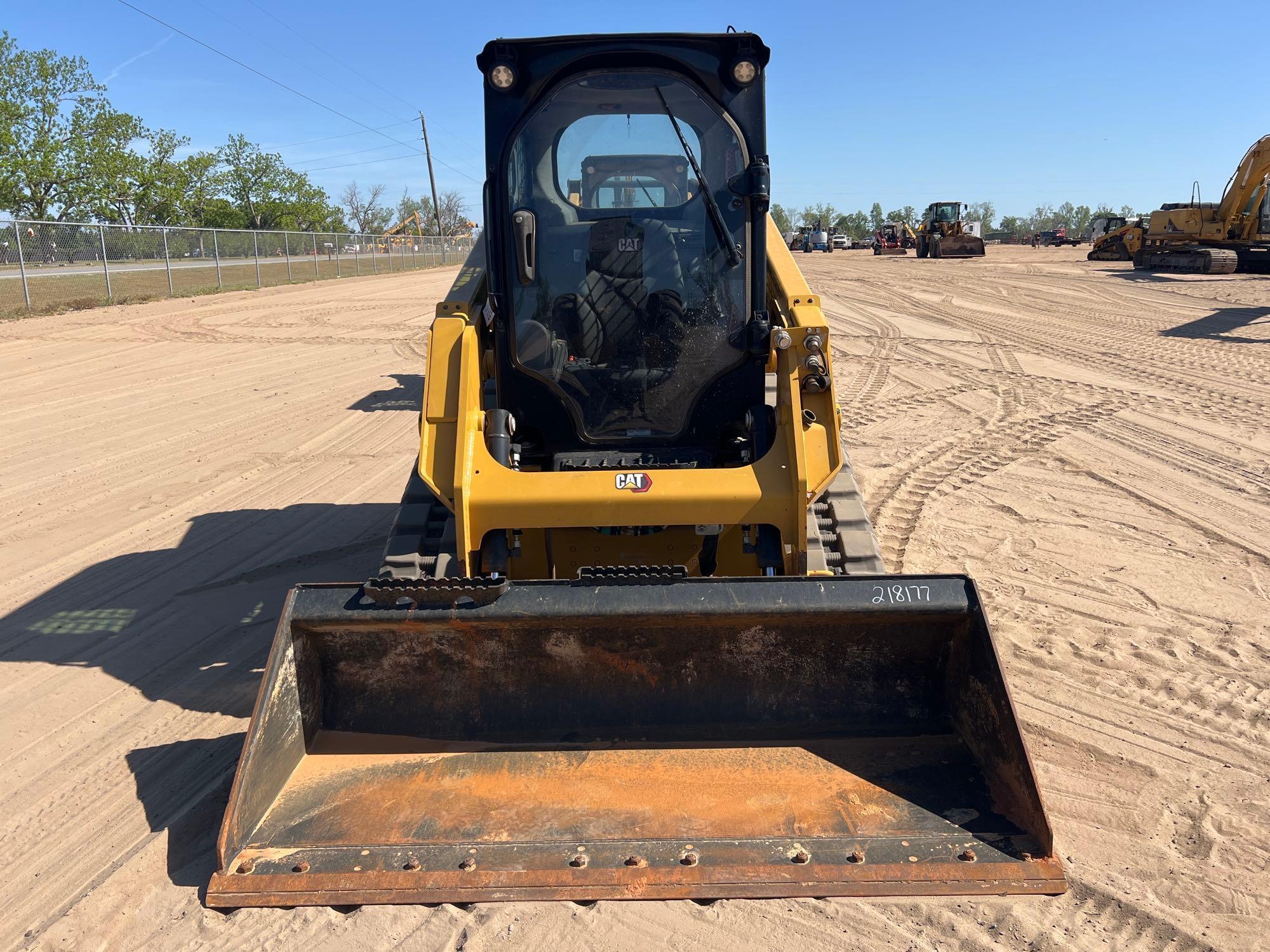

| Dimensions |
|
Bucket Pin Height - Carry Position |
9 in (22 cm)
|
|
Bucket Pin Height - Maximum Lift |
9 ft (3 m)
|
|
Clearance at Maximum Lift and Dump |
81 in (206 cm)
|
|
Departure Angle |
35 degrees |
|
Ground Clearance |
1 ft (0 m)
|
|
Height - Top of Cab |
7 ft (2 m)
|
|

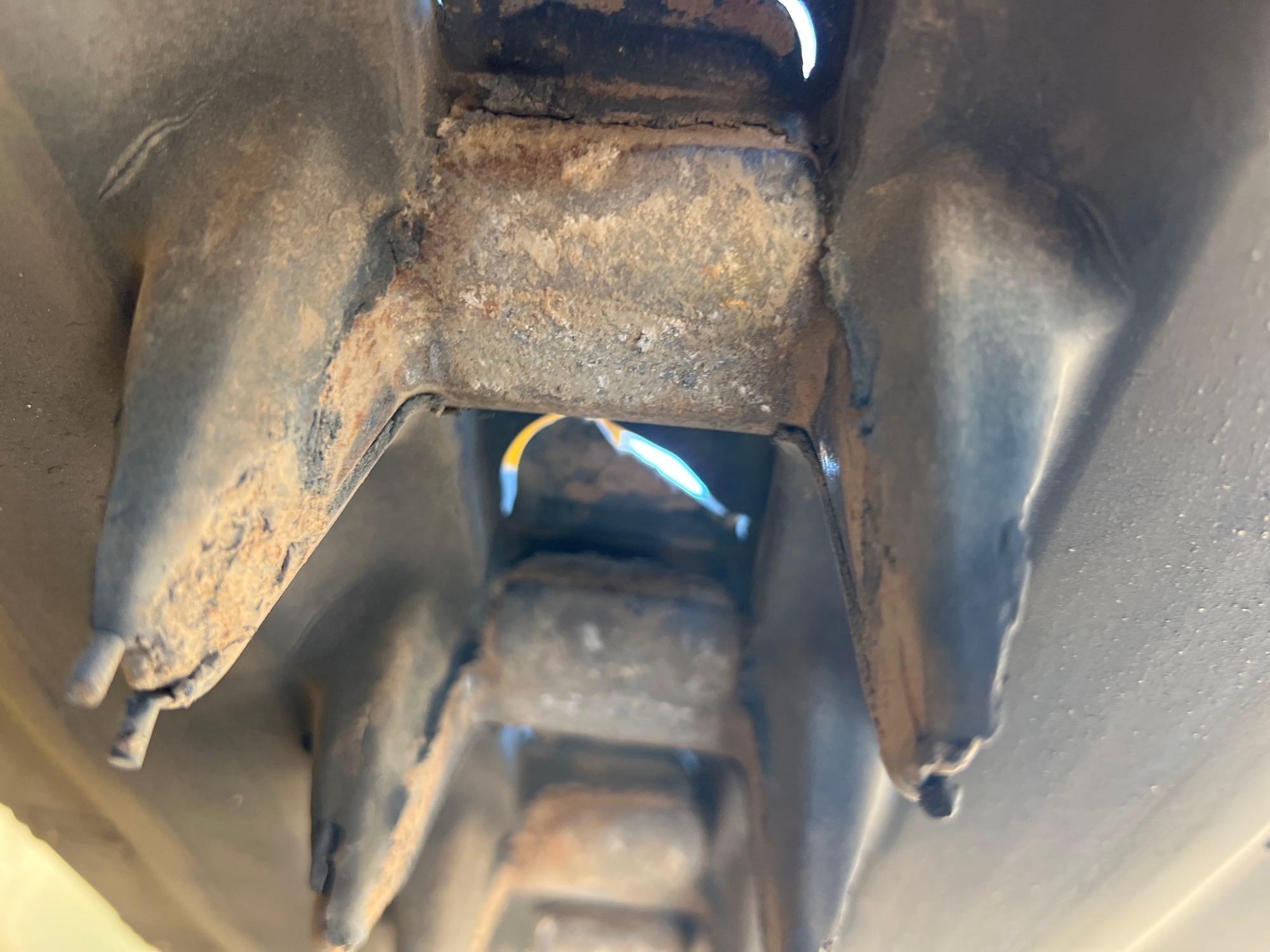

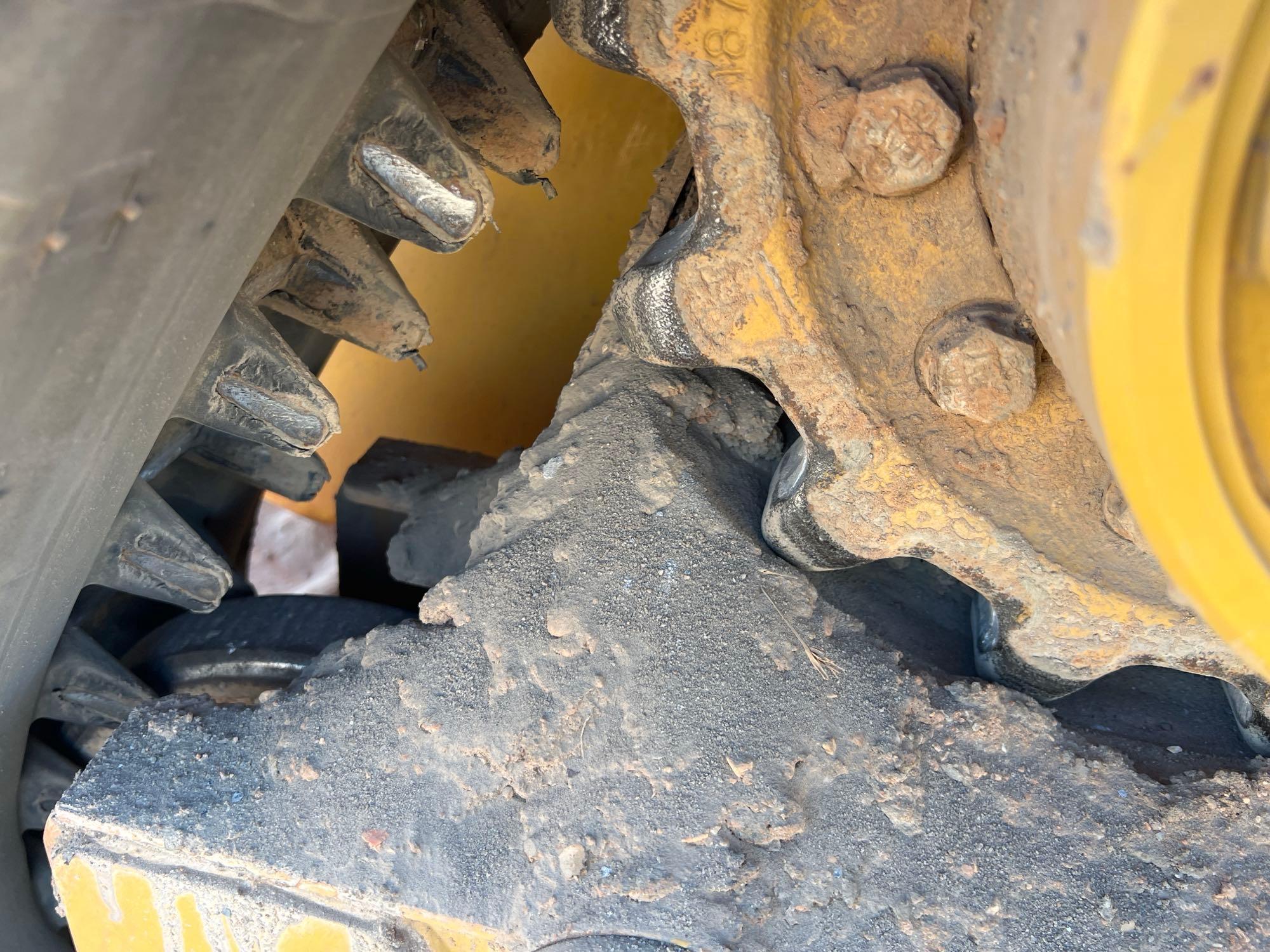

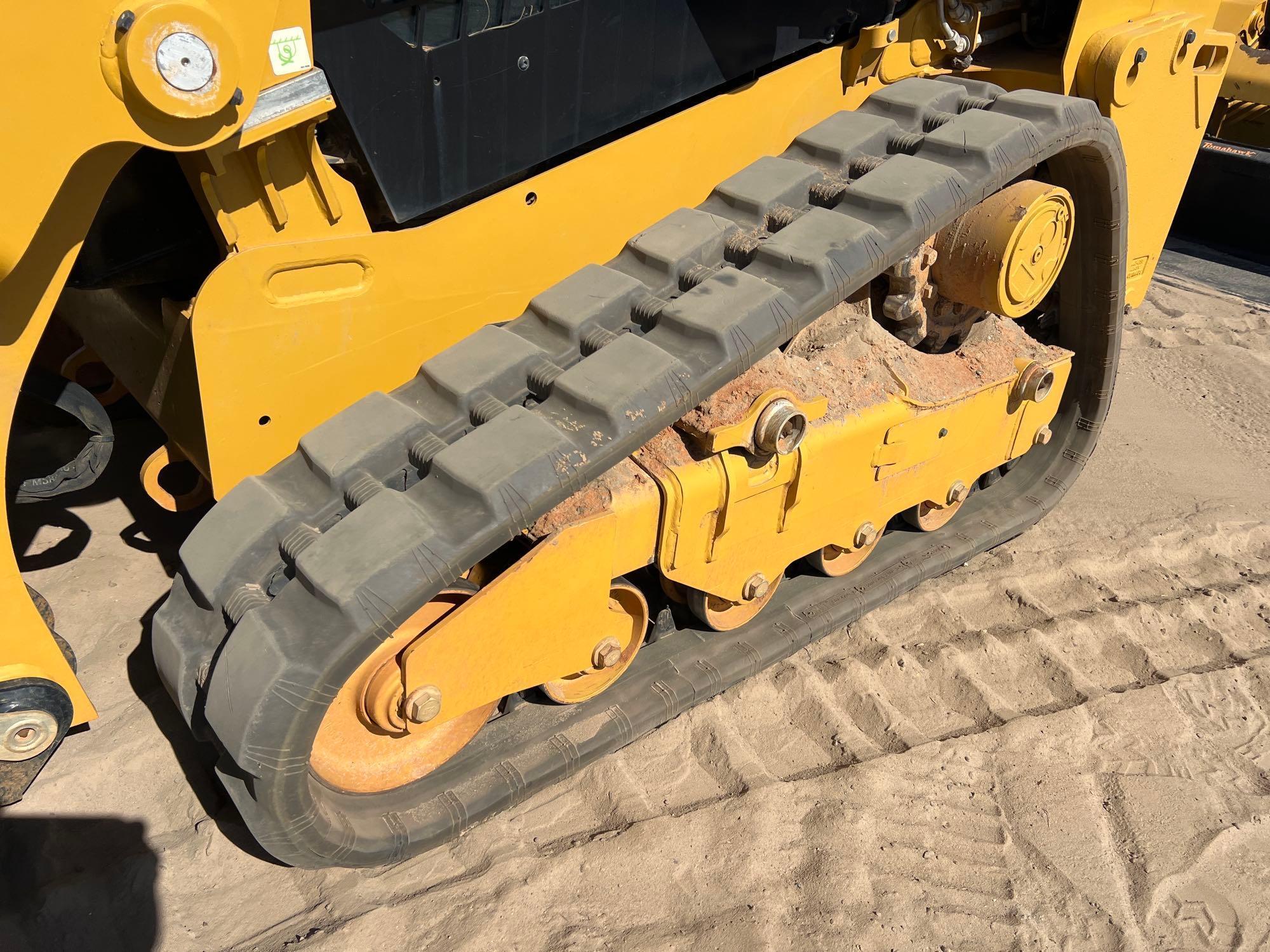

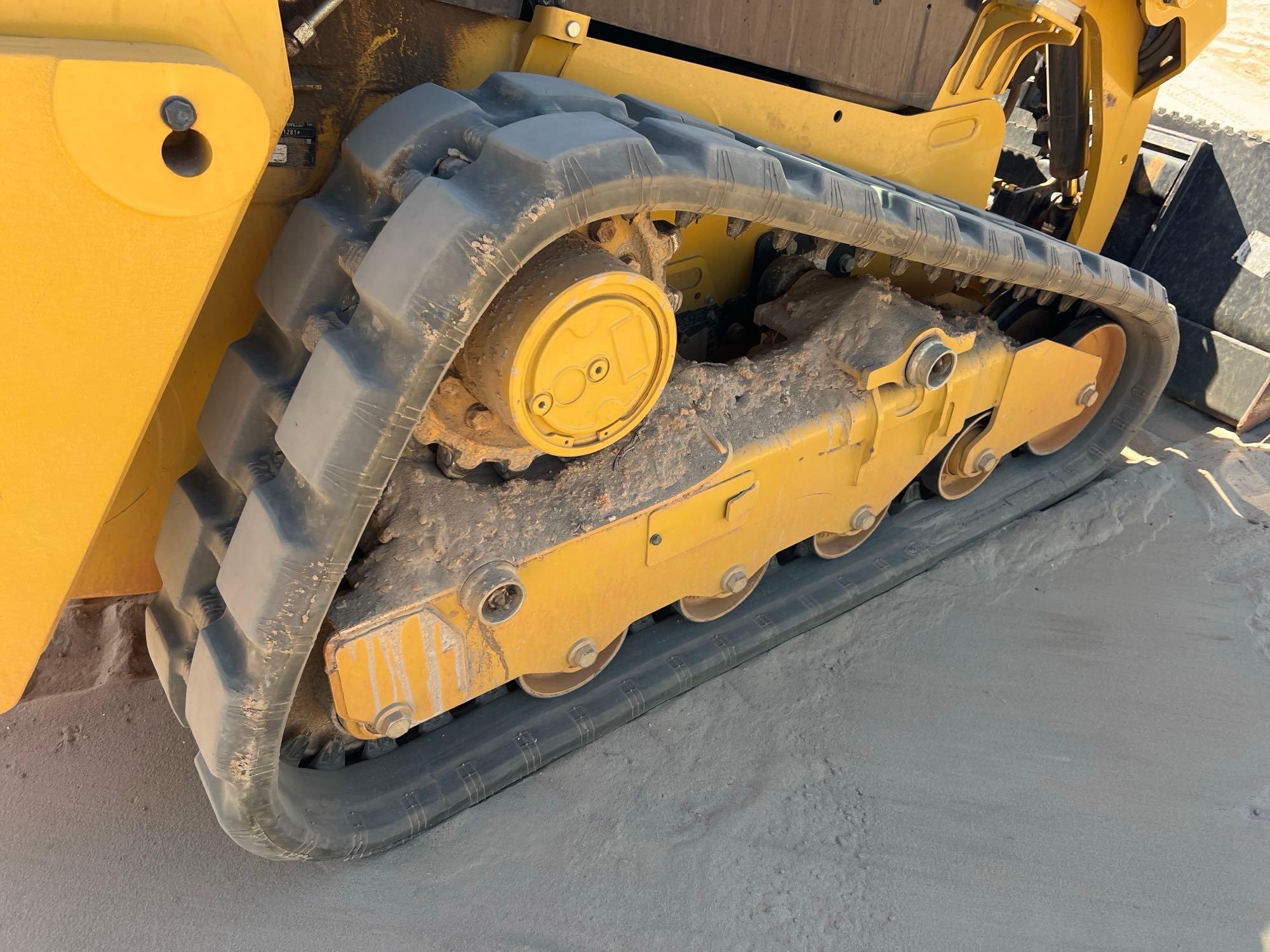

Length - Track on Ground |
55 in (138 cm)
|
|
Length - With Bucket on Ground |
127 in (323 cm)
|
|
Length - Without Bucket |
99 in (252 cm)
|
|
Maximum Dump Angle |
50 degrees |
|
Maximum Overall Height |
144 in (364 cm)
|
|
Maximum Reach - With Arms Parallel to Ground |
53 in (136 cm)
|
|
Overall Length - Track |
71 in (181 cm)
|
|
Rack Back Angle - Maximum Height |
86 degrees |
|
Reach - Maximum Lift/Dump |
22 in (56 cm)
|
|
Turning Radius from Center - Bucket |
82 in (207 cm)
|
|
Turning Radius from Center - Coupler |
46 in (116 cm)
|
|
Turning Radius from Center - Machine Rear |
57 in (146 cm)
|
|
Vehicle Width (320 mm/12.6 in tracks) |
66 in (168 cm)
|
|
Vehicle Width (400 mm/15.7 in tracks) |
69 in (176 cm)
|

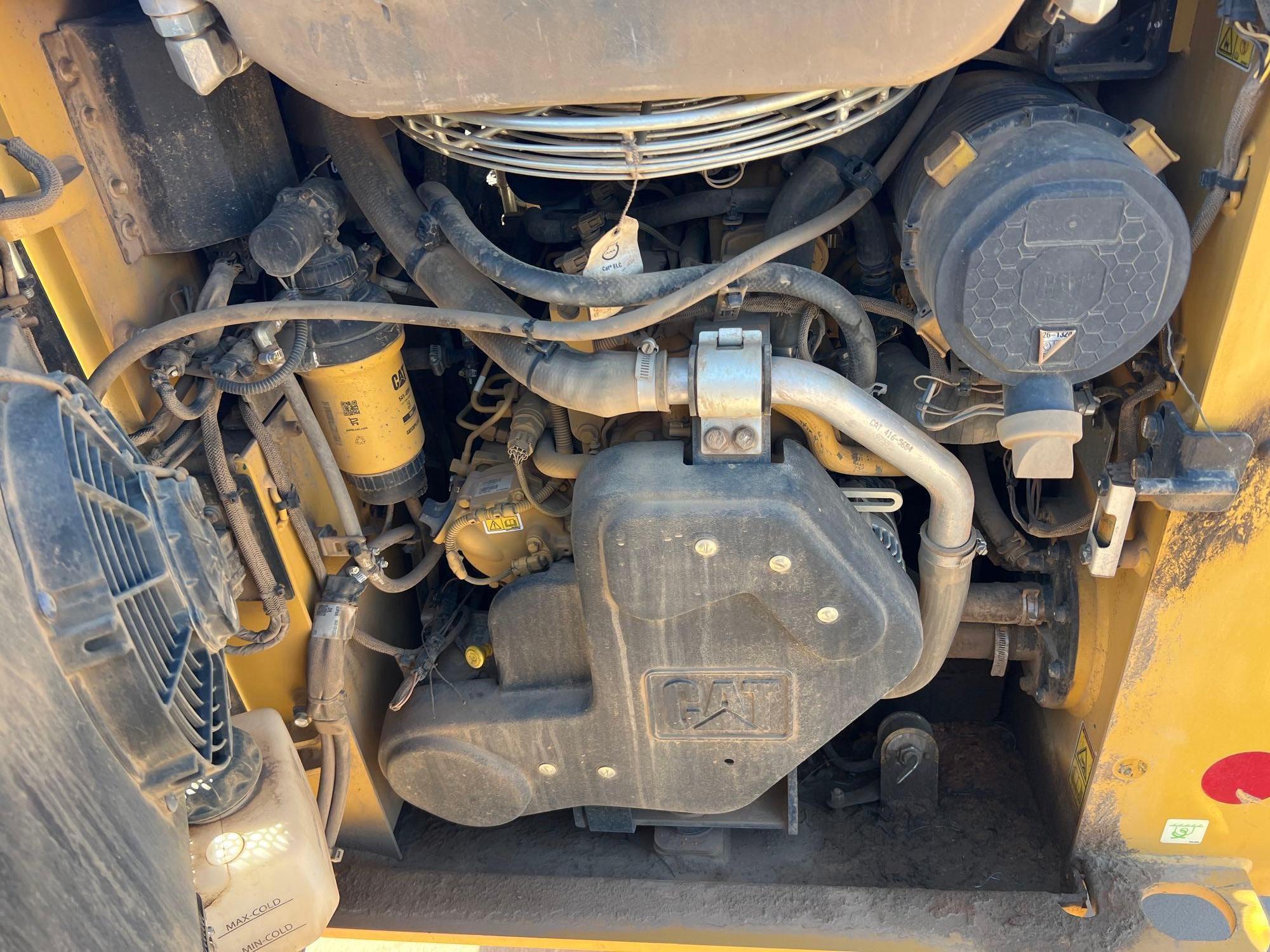

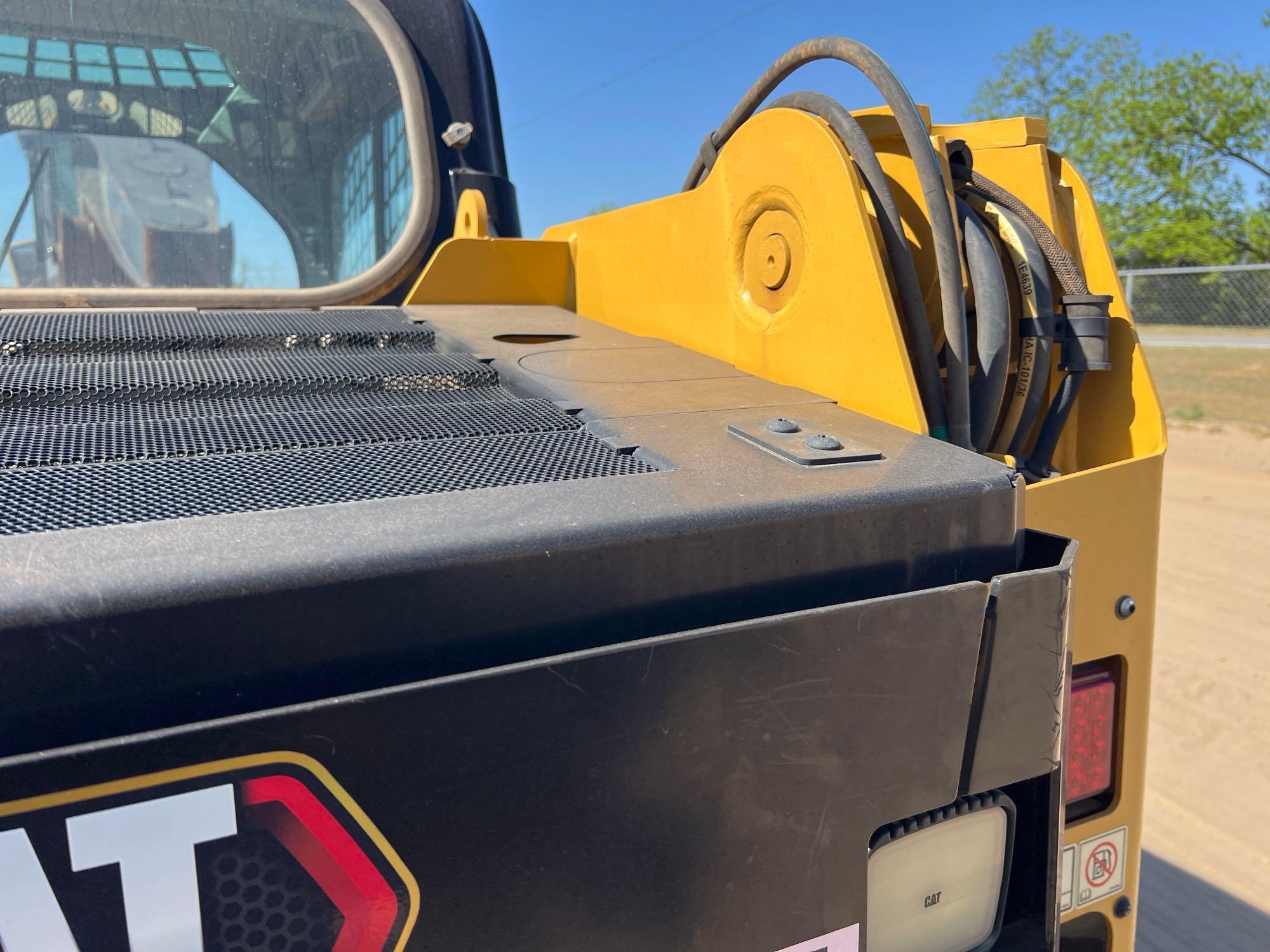

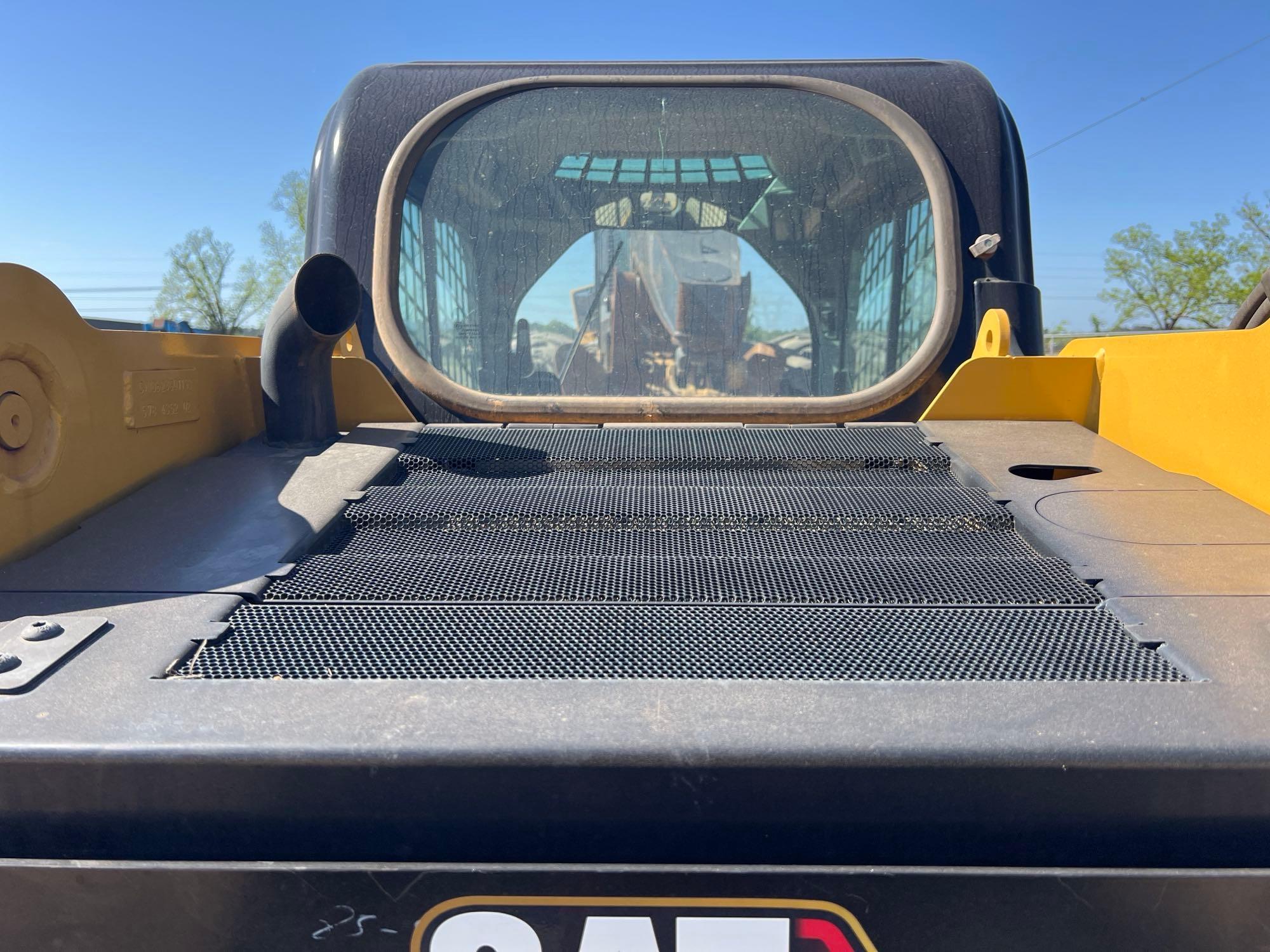

| Engine |
|
Bore |
3 in (8 cm)
|
|
Displacement |
134 cu in (2,201 cu cm)
|
|
Engine Model |
Cat C2.2 CRDI |
|
Gross Power |
60 hp (45 kw)
|
|
Gross Power - SAE J1995 |
67 hp (50 kw)
|
|
Net Power |
66 hp (49 kw)
|
|
Net Power - ISO 9249 |
67 hp (50 kw)
|
|
Net Power - SAE 1349 |
66 hp (49 kw)
|
|
Peak Torque - 1,500 rpm - SAE J1995 |
153 ft (47 m)
|
|
Stroke |
4 in (10 cm)
|

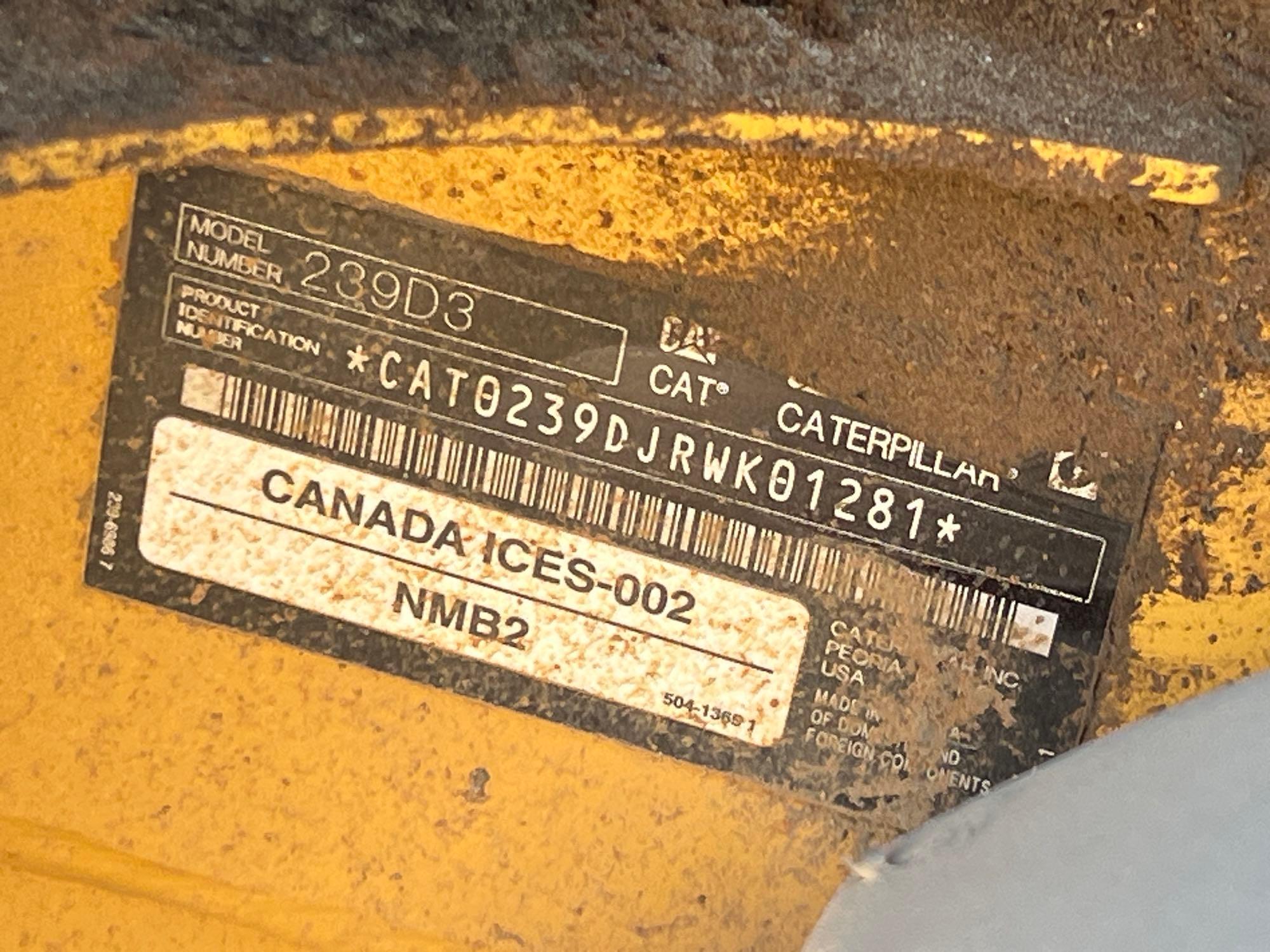

| General Specifications |
|
category (Since 2020)
|
COMPACT TRACK LOADERS |
|
ENGINE POWER HP (KW) (Since 2016)
|
60 (45) |
|
ENGINE POWER HP (KW) (2017)
|
60 (45) |
|
ENGINE POWER HP (KW) (Since 2019)
|
67 (50) |
|
ENGINE POWER HP (KW) (2020)
|
67 (50) |
|
MODEL (Since 2016)
|
239D |
|
MODEL (2017)
|
239D |
|
MODEL (2019)
|
239D |
|
MODEL (2020)
|
239D |
|
OPERATING LOAD LBS. (KG) (Since 2016)
|
2,050 (930) |
|
OPERATING LOAD LBS. (KG) (2017)
|
2,050 (930) |
|
OPERATING WIDTH IN. (CM) (Since 2016)
|
66 (168) |
|
OPERATING WIDTH IN. (CM) (2017)
|
66 (168) |
|
OPERATING WIDTH IN. (CM) (2019)
|
66 (168) |
|
OPERATING WIDTH IN. (CM) (2020)
|
66 (168) |
|
RATED OPERATING CAPACITY LBS. (KG) (35%) (Since 2020)
|
1,435 (651) |
|
RATED OPERATING CAPACITY LBS. (KG) (50%) (Since 2019)
|
1,435 (651) |
| Hydraulic System |
|
Hydraulic Flow - High Flow - Hydraulic Power (Calculated) |
51 hp (38 kw)
|
|
Hydraulic Flow - High Flow - Loader Hydraulic Flow |
26 gpm (98 lpm)
|
|
Hydraulic Flow - High Flow - Loader Hydraulic Pressure |
3,336 psi |
|
Hydraulic Flow - Standard - Hydraulic Power (Calculated) |
36 hp (26 kw)
|
|
Hydraulic Flow - Standard - Loader Hydraulic Flow |
18 gpm (68 lpm)
|
|
Hydraulic Flow - Standard - Loader Hydraulic Pressure |
3,336 psi |

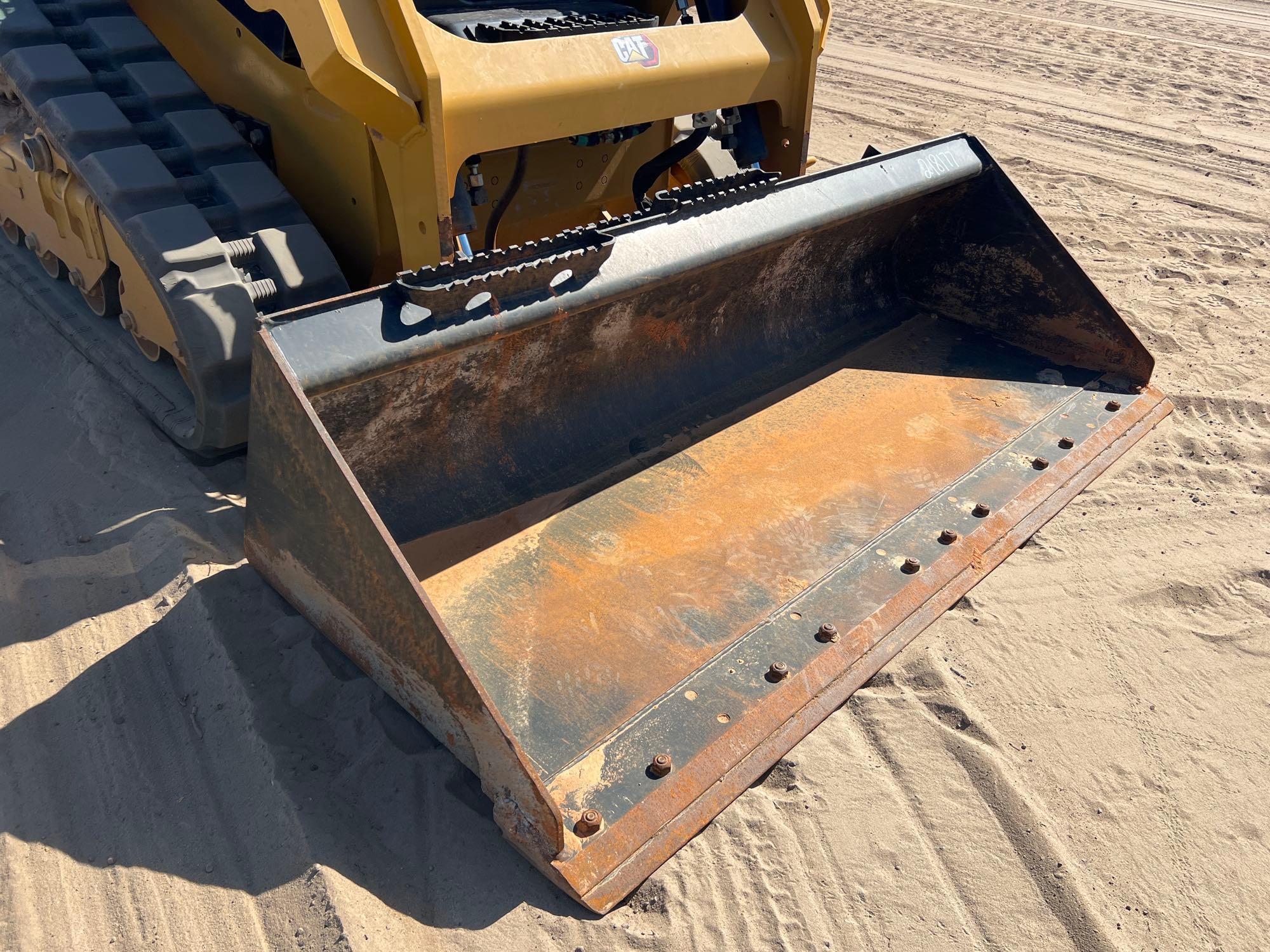

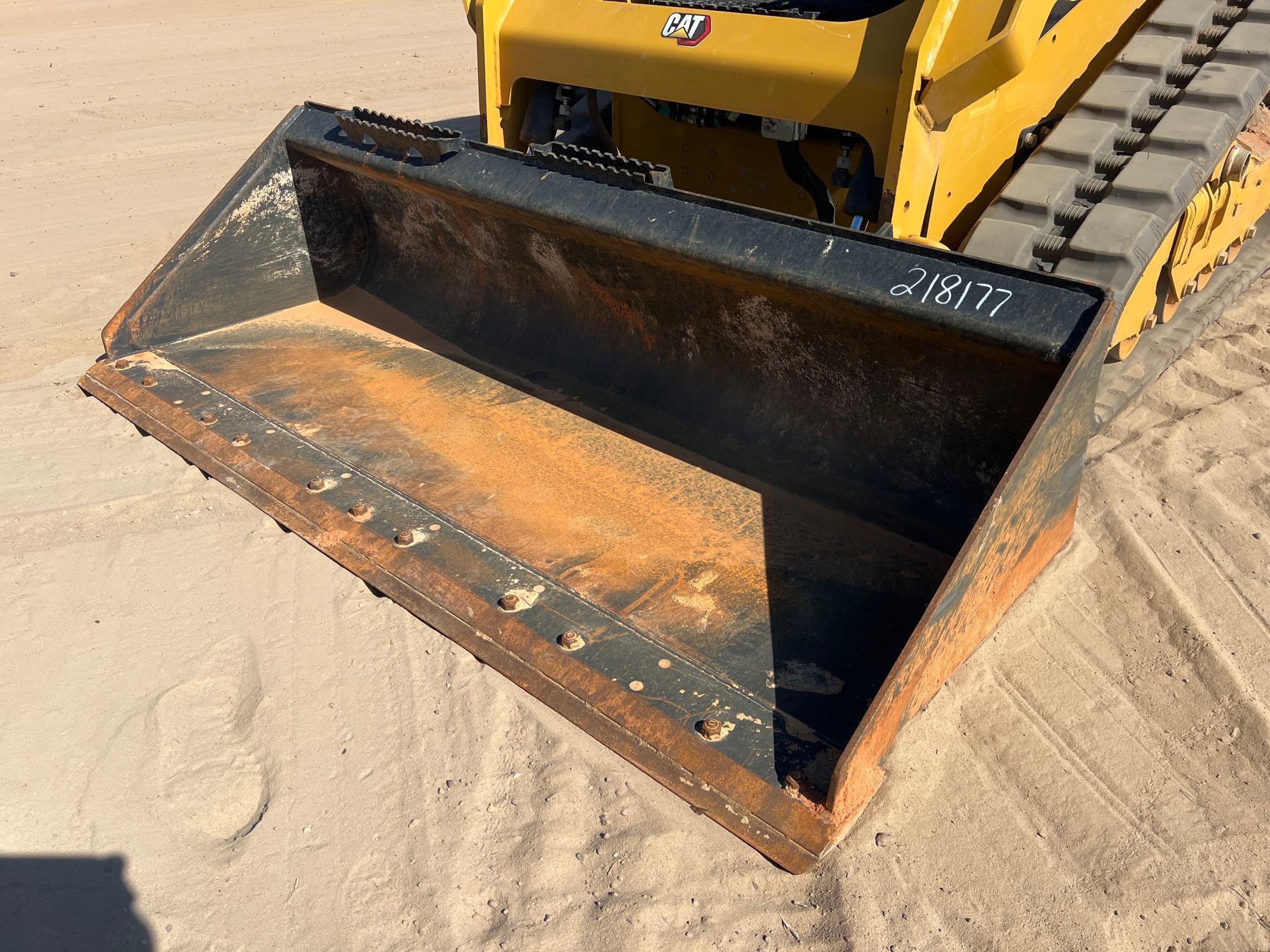

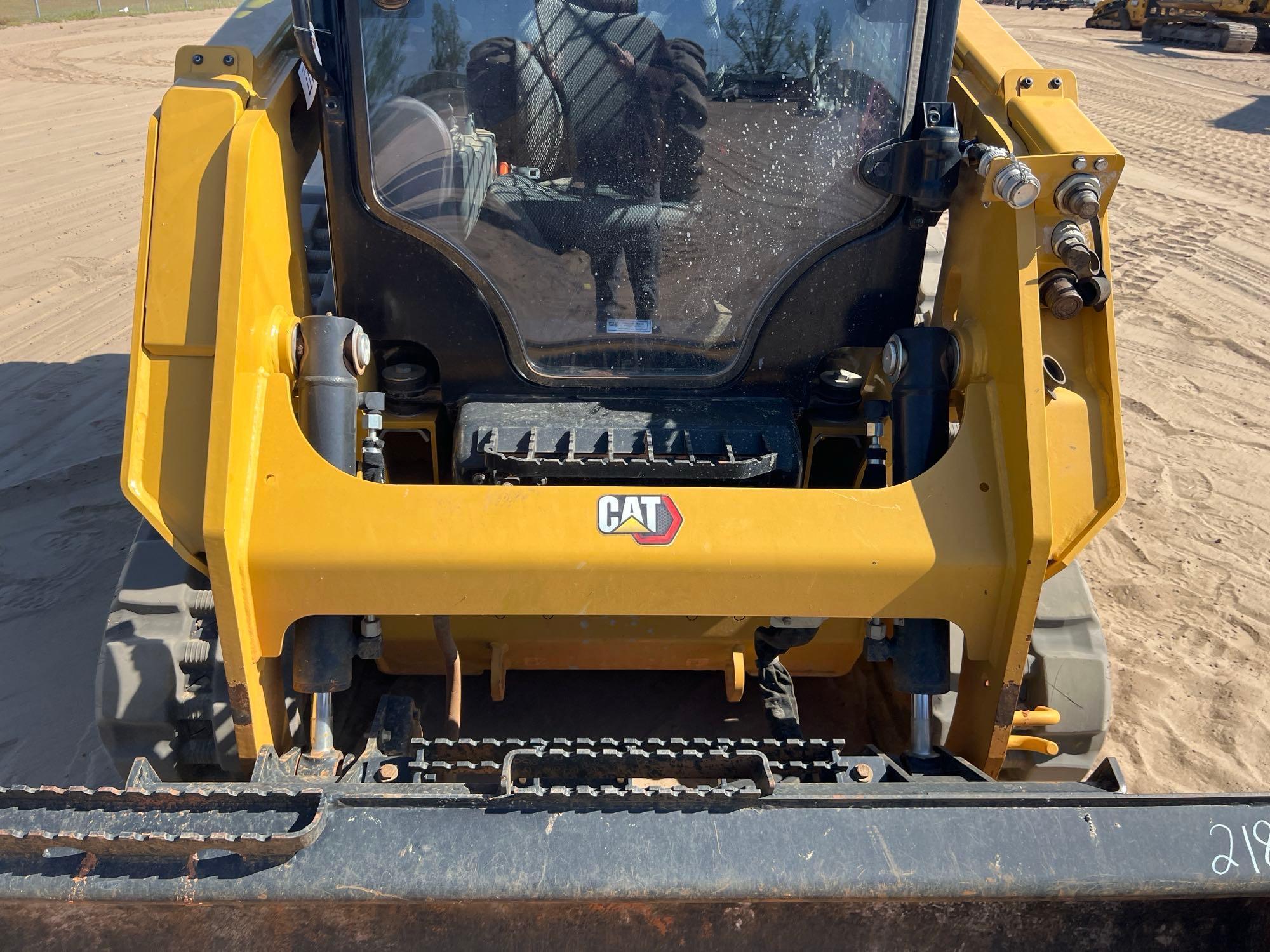

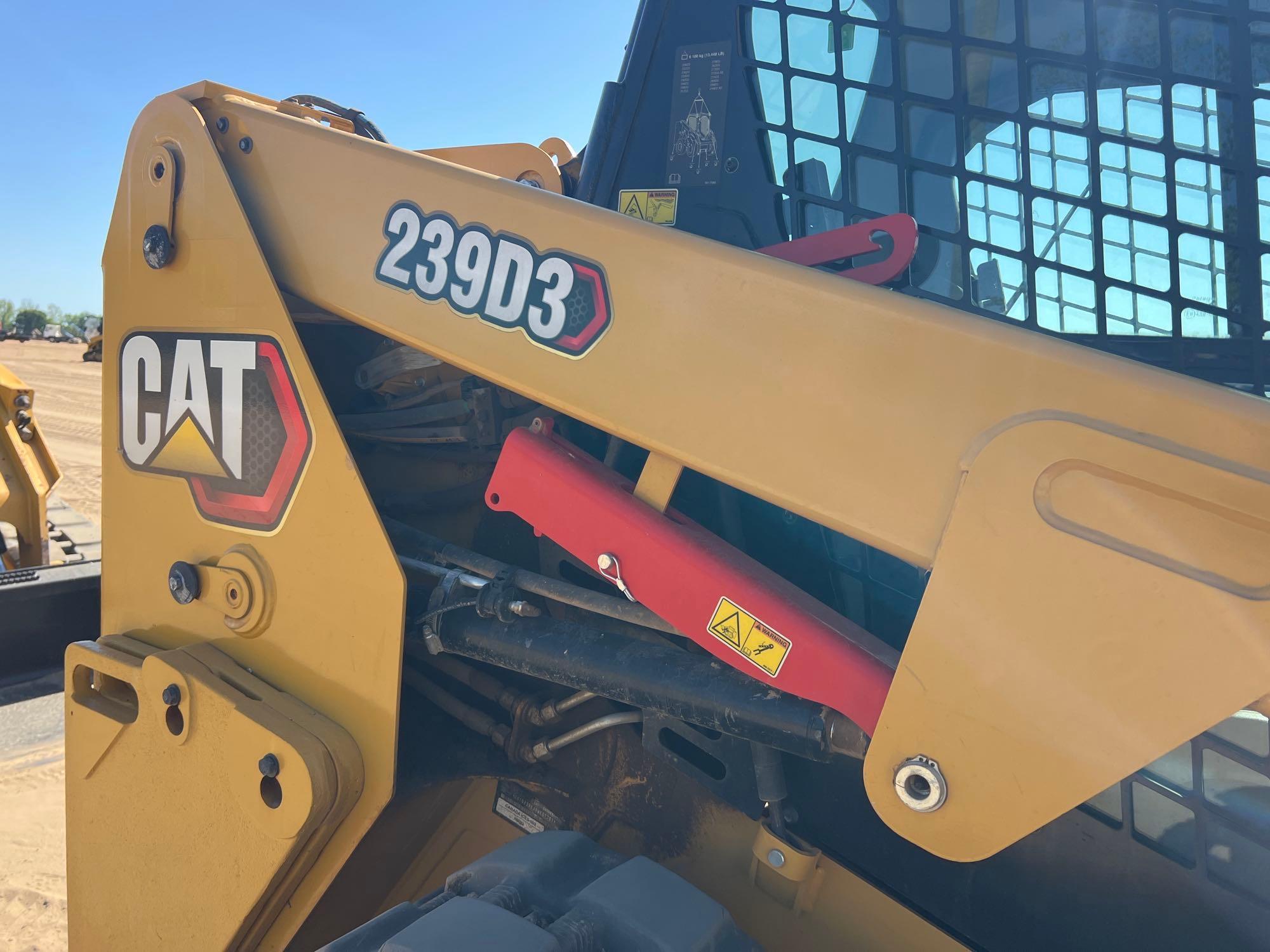

| Loader |
|
Operating Load Rating |
2,050 lbs (930 kg)
|
|
Operating Width |
66 in (168 cm)
|
| Noise Level |
|
Inside Cab* |
83 dB(A) |
|
Note (1) |
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
|
Note (3) |
***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
|
Outside Cab** |
103 dB(A) |
| Operating Specifications |
|
Breakout Force - Tilt Cylinder |
3,969 lbs (1,800 kg)
|
|
Ground Contact Area - With 320 mm/12.6 in Track |
1,373 cu in (22,499 cu cm)
|
|
Ground Contact Area - With 400 mm/15.7 in Track |
1,716 cu in (28,120 cu cm)
|
|
Ground Pressure - With 320 mm/12.6 in Track |
5 psi |
|
Ground Pressure - With 400 mm/15.7 in Track |
4 psi |
|
Rated Operating Capacities - 35% Tipping Load |
1,435 lbs (651 kg)
|
|
Rated Operating Capacities - 50% Tipping Load |
2,050 lbs (930 kg)
|
|
Rated Operating Capacity with Optional Counterweight |
2,250 lbs (1,021 kg)
|
|
Tipping Load |
4,100 lbs (1,860 kg)
|
| Service Refill Capacities |
|
Cooling System |
3 gal (12 l)
|
|
Engine Crankcase |
3 gal (10 l)
|
|
Fuel Tank |
15 gal (57 l)
|
|
Hydraulic System |
12 gal (45 l)
|
|
Hydraulic Tank |
9 gal (34 l)
|
