Equipment ↠ Caterpillar ↠ Compact Track Loaders ↠ 2008 Caterpillar 247B2

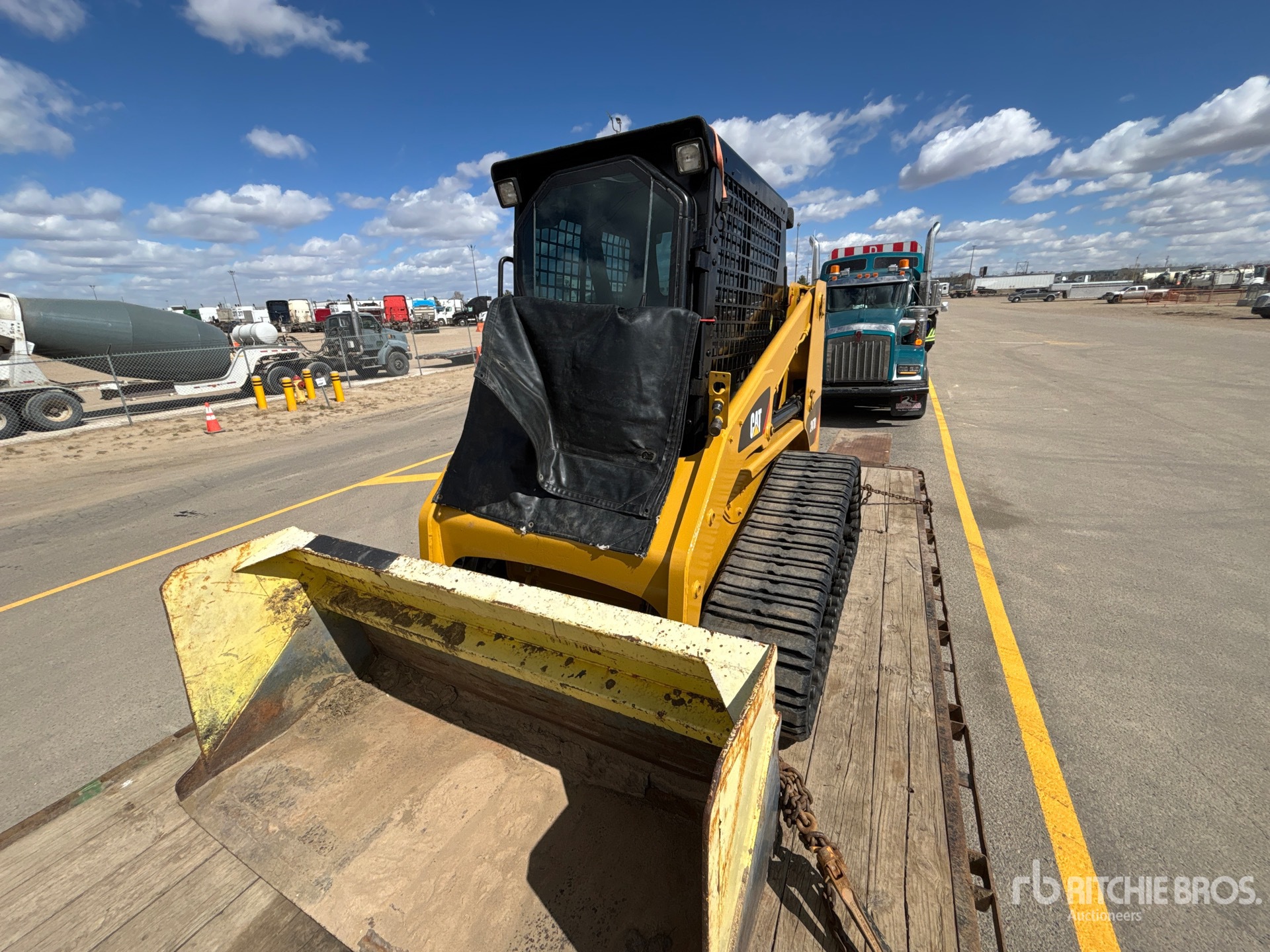

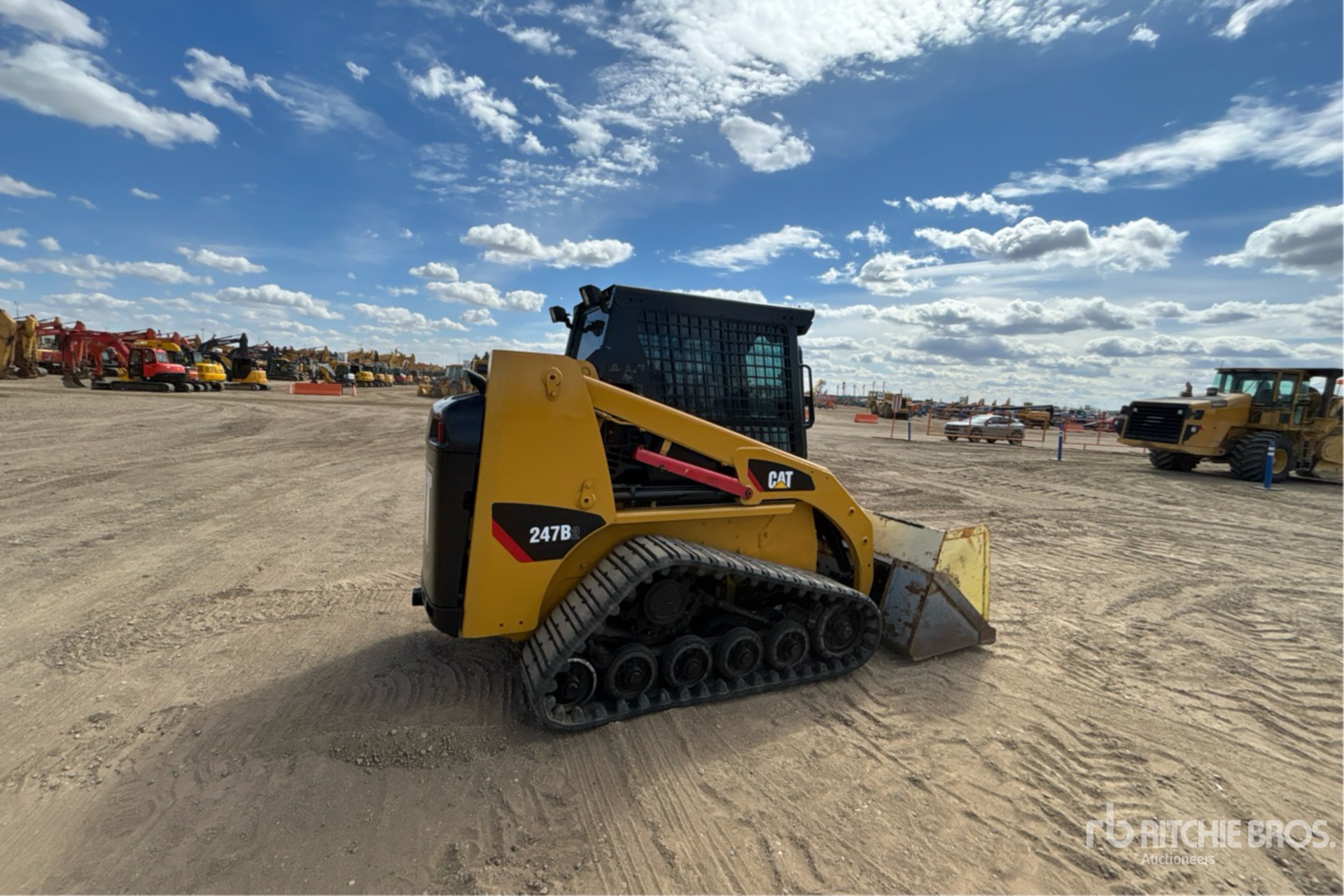

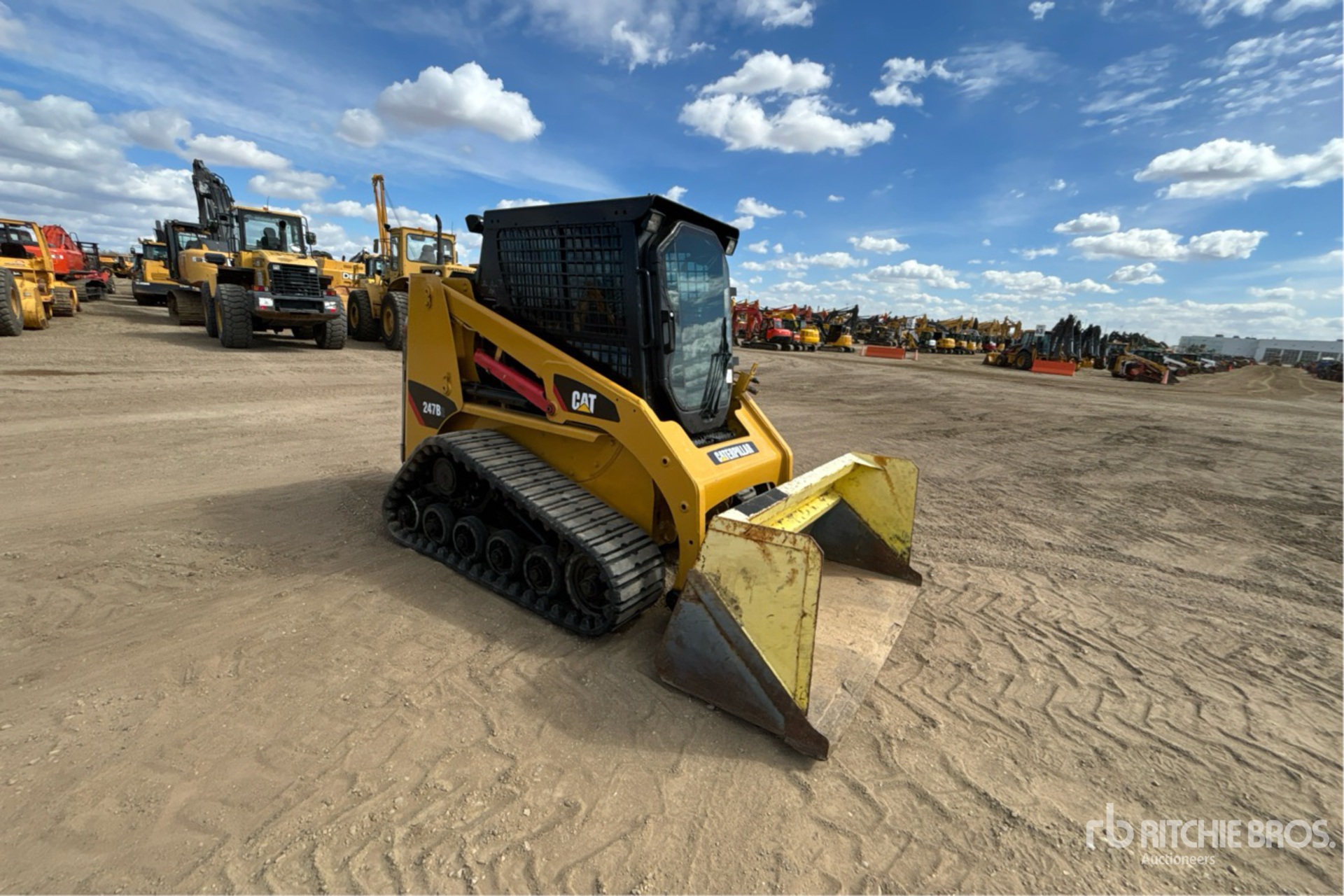

2008 Caterpillar 247B2 For Sale in Edmonton, Ab

Name: 2008 Caterpillar 247B2
Brand: Caterpillar
SKU: 87609006
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

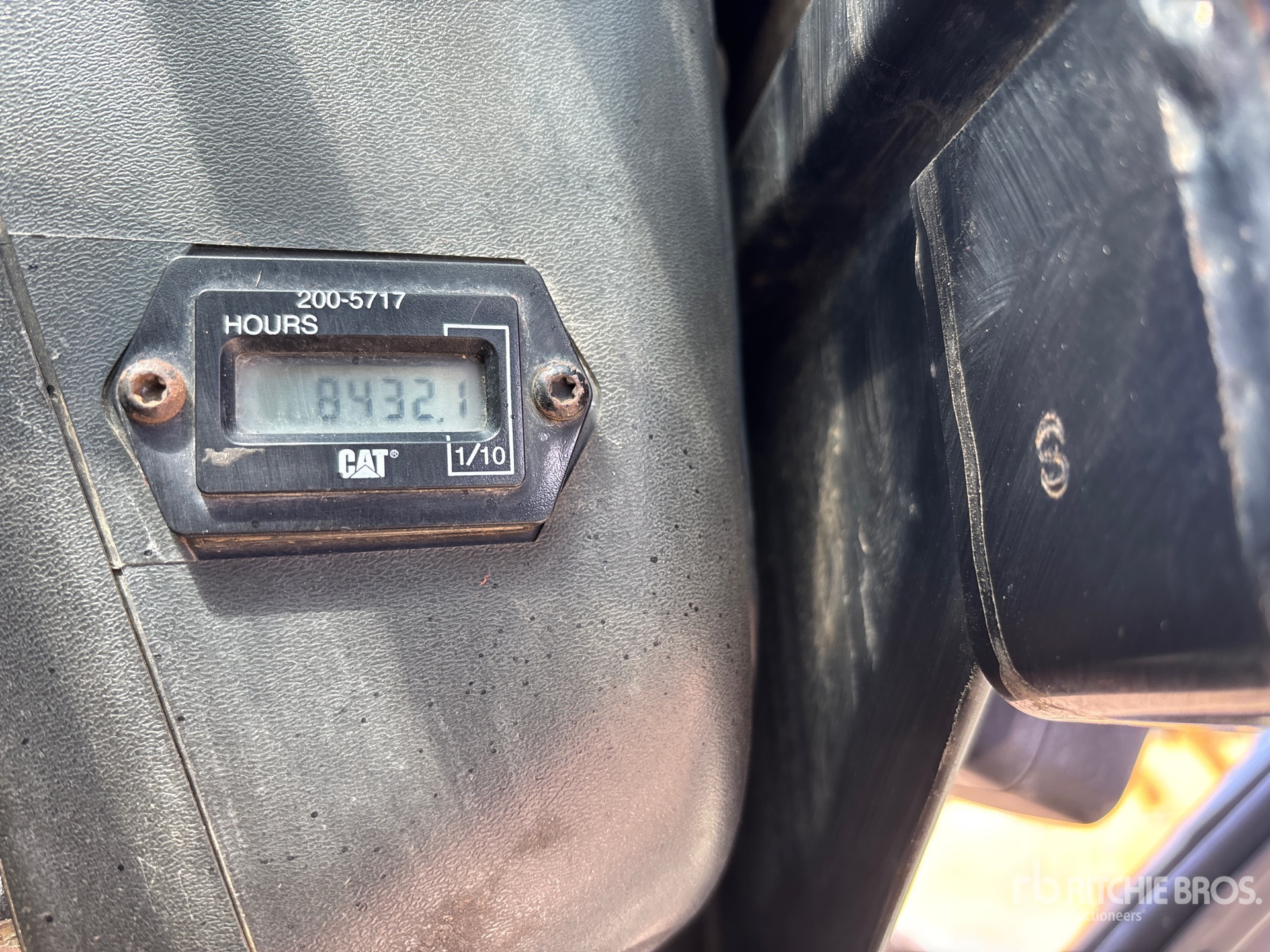

Hours:	8432
Serial Number:	CAT0247BCMTL06311
Machine Location:	EDMONTON, AB

Description:

Enclosed Cab, Air Conditioner, Joystick Steering, 15 in Track Belts, Manual Quick Coupler, 66 in Bucket Closing Time: 2026-05-11 09:29:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Cab
FOPS	SAE J1043 SEPT87 ISO 3449:1992 Level I
FOPS Level II	SAE J231 JAN81 ISO 3449:1992 Level II
ROPS	SAE J1040 MAY94 ISO 3471:1994
Dimensions
Bucket Pin Height - Carry Position	9 in (24 cm)
Bucket Pin Height - Maximum Lift	9 ft (3 m)
Clearance at Max Lift and Dump	7 ft (2 m)
Clearance at Maximum Lift and Dump	84 in (213 cm)
Departure Angle	41 degrees
Length - Track on Ground	59 in (150 cm)
Length - with Bucket	11 ft (3 m)
Length - With Bucket on Ground	129 in (328 cm)
Maximum Dump Angle	40 degrees
Maximum Overall Height	150 in (381 cm)
Maximum Reach - With Arms Parallel	55 in (139 cm)
Overall Length - Track	75 in (191 cm)
Rack Back Angle - Maximum Height	97 degrees
Reach at Max Lift and Dump	2 ft (1 m)
Reach at Maximum Lift/Dump	25 in (64 cm)
Turn Radius from Center - Bucket	85 in (216 cm)
Turn Radius from Center - Coupler	52 in (132 cm)
Turn Radius from Center - Rear	53 in (136 cm)
Turning Radius from Center - inc bucket	85 in (216 cm)
Turning Radius from Center - machine rear	53 in (136 cm)
Vehicle Width	66 in (168 cm)
Width Over Tracks	6 ft (2 m)
Engine
Bore	3 in (8 cm)
Displacement	134 cu in (2,196 cu cm)
Gross Power	61 hp (45 kw)
Gross Power - SAE J1995	61 hp (45 kw)
Net Power	56 hp (42 kw)
Net Power - SAE 1349	56 hp (42 kw)
Stroke	4 in (10 cm)
Hydraulic System
Hydraulic Flow	Standard
Hydraulic Power	30 hp (23 kw)
Loader Hydraulic Flow	16 gpm (59 lpm)
Loader Hydraulic Pressure	3,335 psi
Pump Flow	16 gpm (60 lpm)
Relief Valve Pressure	3,335 psi
Loader
Breakout Force	4,060 lbs (1,842 kg)
Operating Load	2,050 lbs (930 kg)
Tipping Angle	4,100 degrees
Operating Specifications
Alternator Supplied Amperage	85 amps
Breakout Force - Tilt Cylinder	4,060 lbs (1,842 kg)
Cooling System Fluid Capacity	3 gal (10 l)
Engine Oil Capacity	3 gal (10 l)
Fuel Capacity	17 gal (65 l)
Ground Contact Area	1,770 cu in (29,005 cu cm)
Ground Pressure	4 psi
Hydraulic System Fluid Capacity	15 gal (55 l)
Max Speed - high range	8 mph (12 kph)
Max Speed - low range	8 mph (12 kph)
Operating Voltage	12 volts
Operating Weight	6,997 lbs (3,174 kg)
Rated Operating Capacities - 35% Tipping Load	1,435 lbs (651 kg)
Rated Operating Capacities - 50% Tipping Load	2,050 lbs (930 kg)
Tipping Load	4,100 lbs (1,860 kg)
Power Train
Travel Speed Forward	8 mph (12 kph)
Travel Speed Reverse	8 mph (12 kph)
Service Refill Capacities
Cooling System	3 gal (10 l)
Engine Crankcase	3 gal (10 l)
Fuel Tank	17 gal (64 l)
Hydraulic System	15 gal (55 l)
Hydraulic Tank	9 gal (35 l)
Undercarriage
Ground Contact Area	1,770 cu in (29,005 cu cm)
Ground Pressure	4 psi
Length of Track on Ground	5 ft (2 m)
