Equipment ↠ Caterpillar ↠ Compact Track Loaders ↠ 2010 Caterpillar 247B3

2010 Caterpillar 247B3 For Sale in Australia, Aus

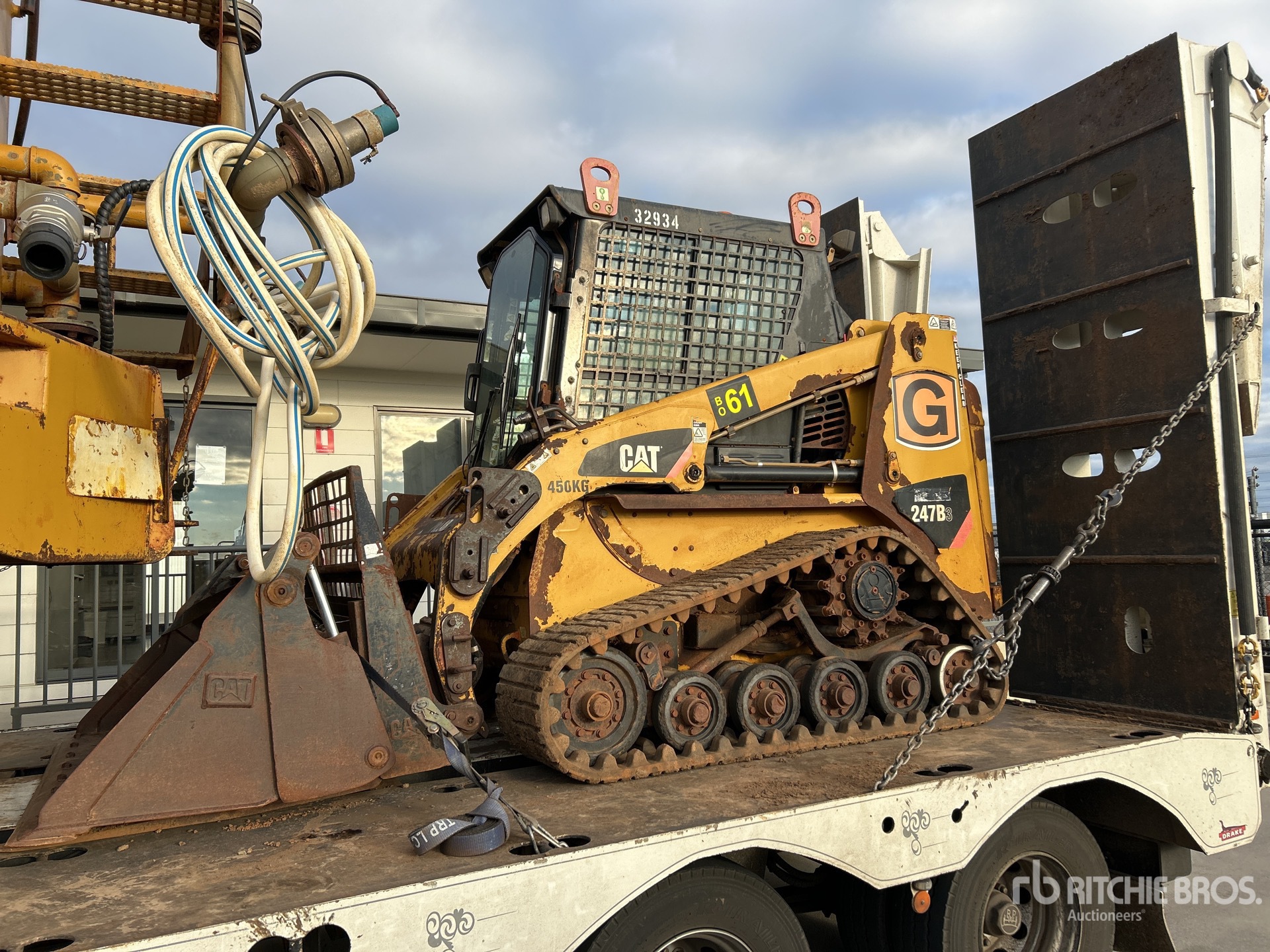

Name: 2010 Caterpillar 247B3
Brand: Caterpillar
SKU: 87245468
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-24 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

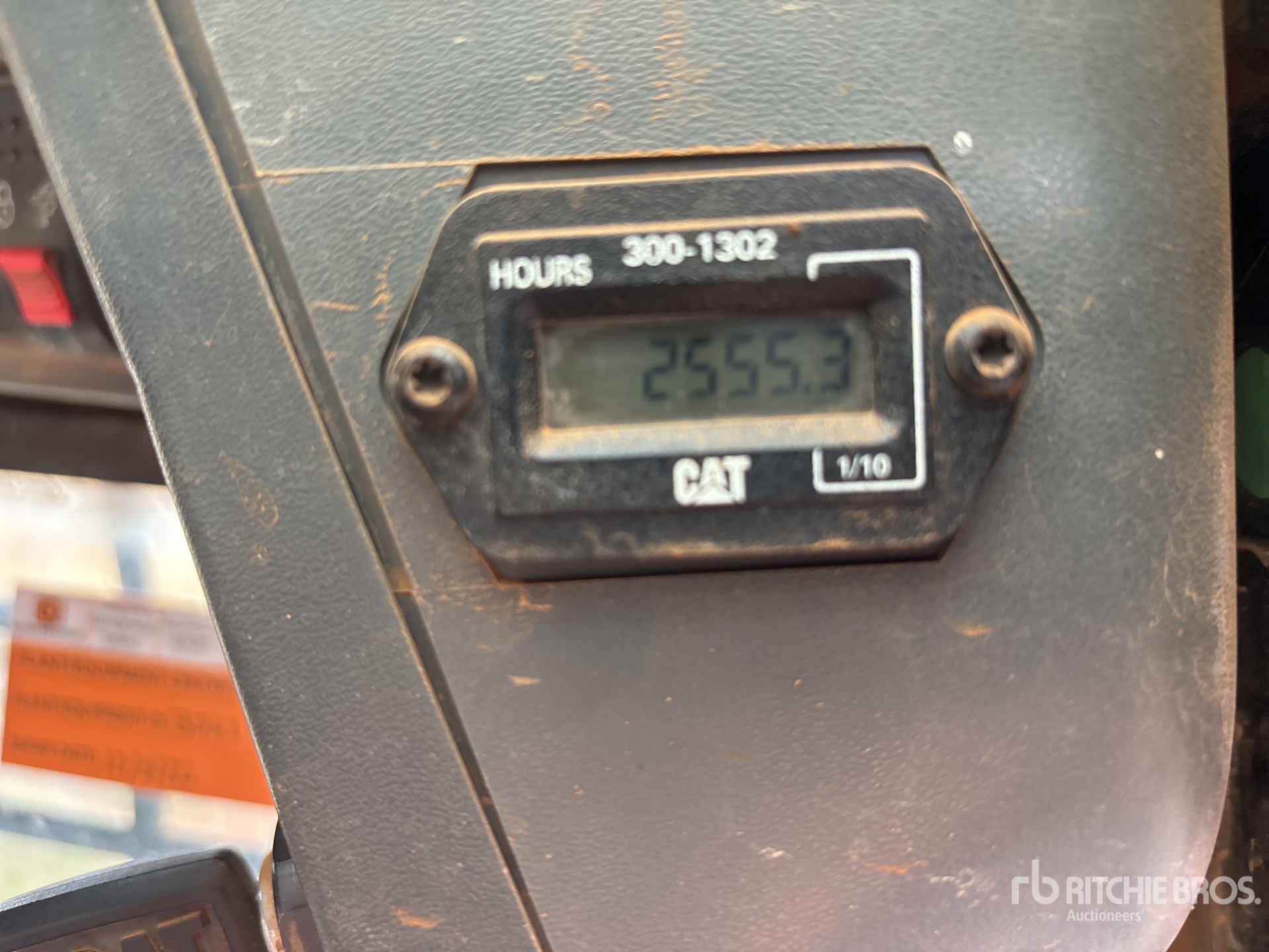

Hours:	2555

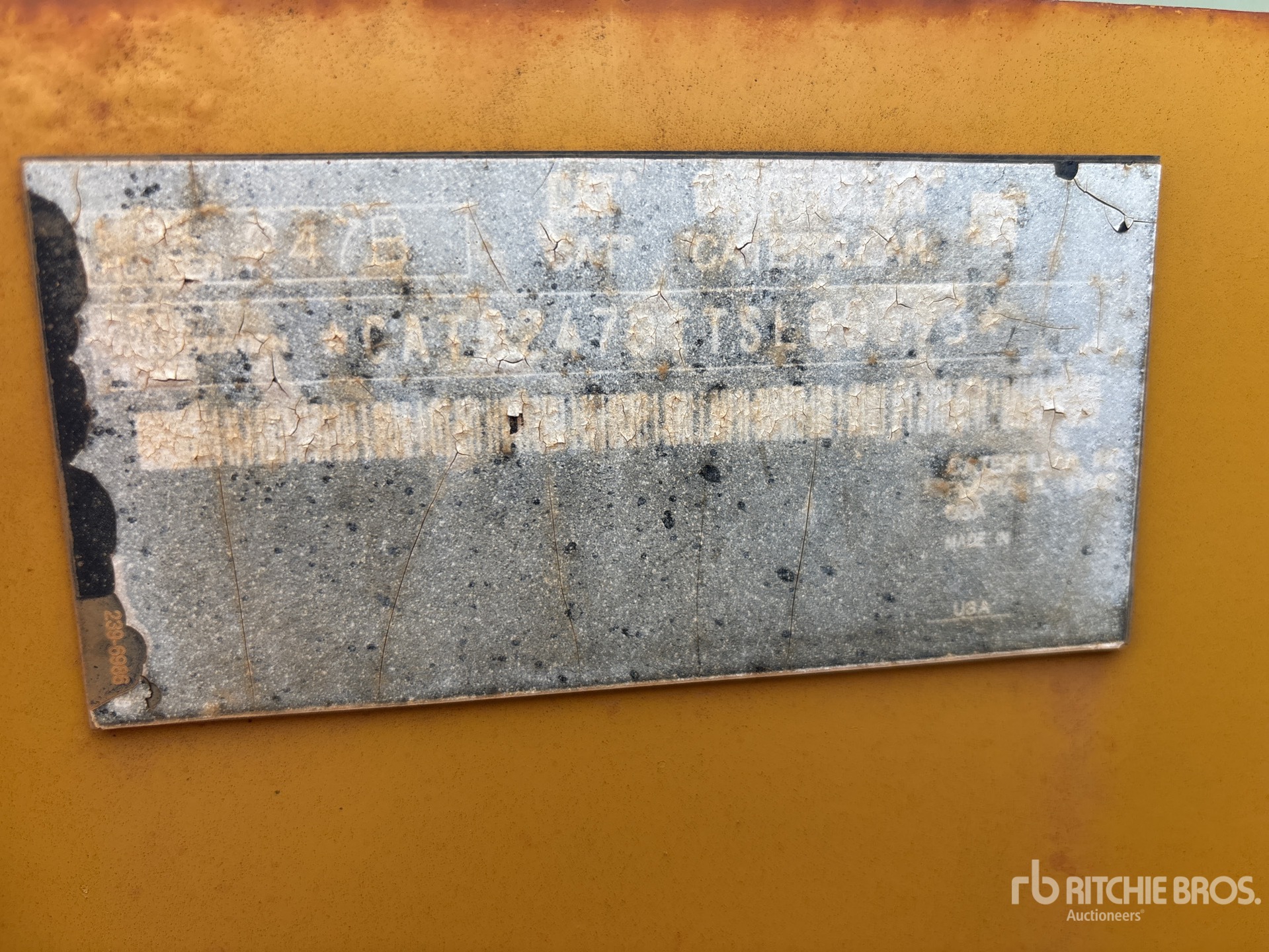

Serial Number:	CAT0247BTTSL00393
Machine Location:	AUSTRALIA, AUS

Description:

Enclosed Cab, Air Conditioner, Joystick Steering, E-Stops, 380 mm Track Belts, Hydraulic Coupler, 1730 mm Multi-Purpose Bucket Closing Time: 2026-06-24 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 247B3 is a versatile compact track loader designed for construction, landscaping, and agricultural applications. Featuring a robust Cat C3.3B engine, it delivers reliable power and fuel efficiency. The 247B3 offers enhanced stability and traction with its durable rubber tracks, enabling operation on various terrains including mud, sand, and uneven surfaces. Its advanced hydraulic system provides smooth, precise control for attachments such as buckets, augers, and pallet forks. The operator cab is ergonomically designed for comfort and visibility, improving productivity. With a rated operating capacity of approximately 2,700 pounds, the Caterpillar 247B3 is ideal for medium-duty loading and material handling tasks.

Cab
FOPS	SAE J1043 SEPT87 ISO 3449:1992 Level I
FOPS Level II	SAE J231 JAN81 ISO 3449:1992 Level II
ROPS	SAE J1040 MAY94 ISO 3471:1994
Dimensions
Bucket Pin Height - Carry Position	9 in (22 cm)
Bucket Pin Height - Maximum Lift	9 ft (3 m)
Clearance at Max Lift and Dump	7 ft (2 m)
Clearance at Maximum Lift and Dump	84 in (213 cm)
Departure Angle	41 degrees
Ground Clearance	10 in (25 cm)
Length - Track on Ground	59 in (150 cm)
Length - with Bucket	11 ft (3 m)
Length - With Bucket on Ground	129 in (328 cm)
Maximum Dump Angle	40 degrees
Maximum Overall Height	150 in (381 cm)
Maximum Reach - With Arms Parallel	53 in (135 cm)
Overall Length - Track	75 in (191 cm)
Rack Back Angle - Maximum Height	82 degrees
Reach at Max Lift and Dump	2 ft (1 m)
Reach at Maximum Lift/Dump	25 in (64 cm)
Turn Radius from Center - Bucket	82 in (208 cm)
Turn Radius from Center - Coupler	52 in (132 cm)
Turn Radius from Center - Rear	54 in (137 cm)
Turning Radius from Center - inc bucket	83 in (210 cm)
Turning Radius from Center - machine rear	54 in (138 cm)
Vehicle Width	66 in (168 cm)
Width Over Tracks	6 ft (2 m)
Engine
Bore	3 in (8 cm)
Displacement	134 cu in (2,196 cu cm)
Engine Model	Cat C2.2 T
Gross Power - SAE J1995	62 hp (46 kw)
Net Power	56 hp (42 kw)
Net Power - ISO 9249 EEC	56 hp (42 kw)
Net Power - SAE 1349	56 hp (42 kw)
Stroke	4 in (10 cm)
Hydraulic System
Hydraulic Flow	Standard
Hydraulic Power	31 hp (23 kw)
Loader Hydraulic Flow	16 gpm (61 lpm)
Loader Hydraulic Pressure	3,335 psi
Pump Flow	16 gpm (61 lpm)
Relief Valve Pressure	3,335 psi
Loader
Breakout Force	4,060 lbs (1,842 kg)
Operating Load	2,150 lbs (975 kg)
Operating Load Rating	1,505 lbs (683 kg)
Operating Width	66 in (168 cm)
Tipping Angle	4,299 degrees
Operating Specifications
Alternator Supplied Amperage	85 amps
Breakout Force - Tilt Cylinder	4,060 lbs (1,842 kg)
Cooling System Fluid Capacity	3 gal (10 l)
Engine Oil Capacity	3 gal (10 l)
Fuel Capacity	17 gal (65 l)
Ground Contact Area	1,770 cu in (29,005 cu cm)
Ground Pressure	4 psi
Hydraulic System Fluid Capacity	15 gal (55 l)
Max Speed - low range	7 mph (11 kph)
Operating Voltage	12 volts
Operating Weight	6,997 lbs (3,174 kg)
Rated Operating Capacities - 35% Tipping Load	1,505 lbs (683 kg)
Rated Operating Capacities - 50% Tipping Load	2,150 lbs (975 kg)
Tipping Load	4,300 lbs (1,950 kg)
Power Train
Travel Speed Forward	7 mph (11 kph)
Travel Speed Reverse	7 mph (11 kph)
Service Refill Capacities
Cooling System	3 gal (10 l)
Engine Crankcase	3 gal (10 l)
Fuel Tank	17 gal (64 l)
Hydraulic System	15 gal (55 l)
Hydraulic Tank	9 gal (35 l)
Undercarriage
Ground Contact Area	1,770 cu in (29,005 cu cm)
Ground Pressure	4 psi
Length of Track on Ground	5 ft (2 m)
Weights
Operating Weight	6,997 lbs (3,174 kg)
