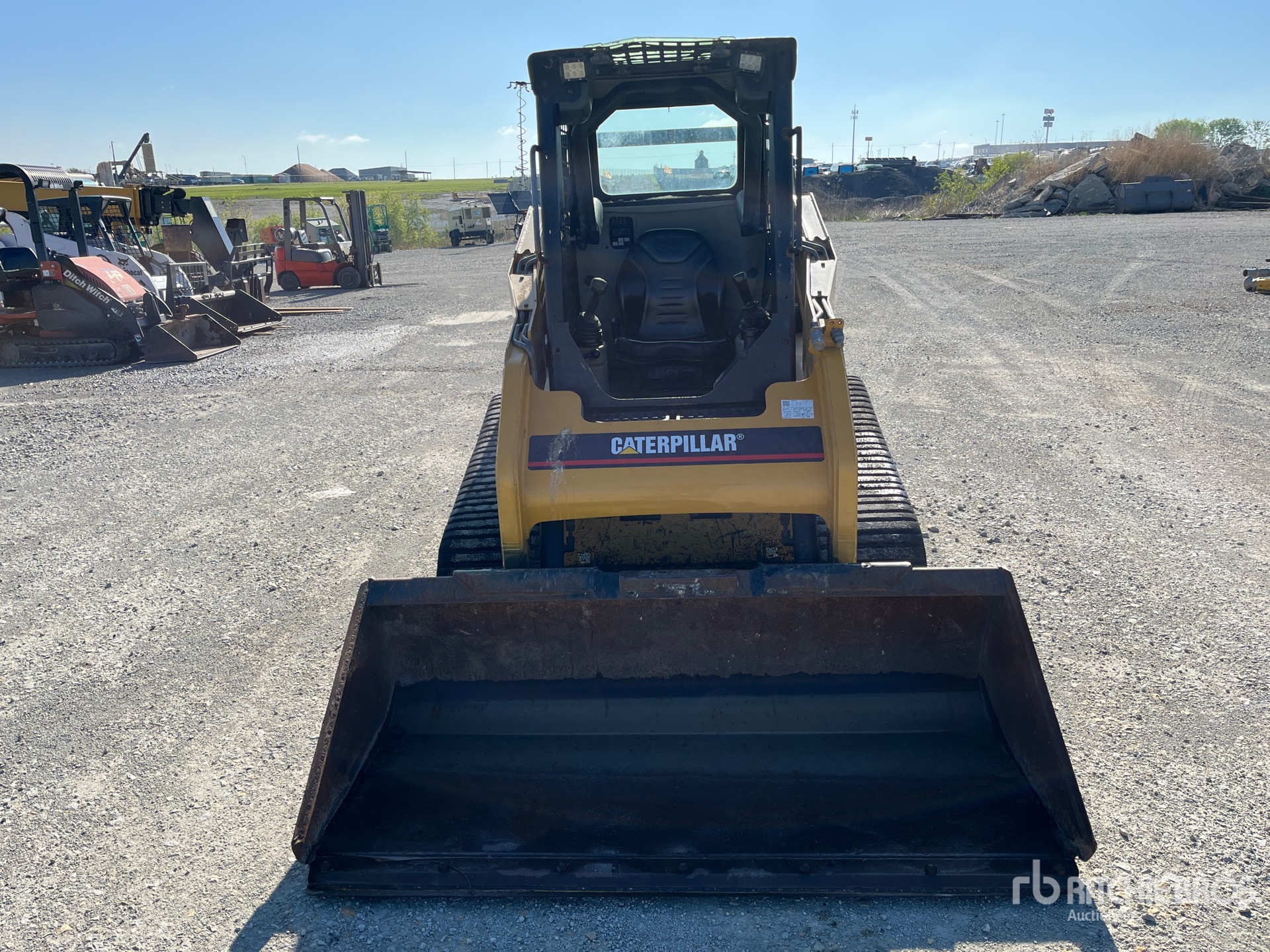

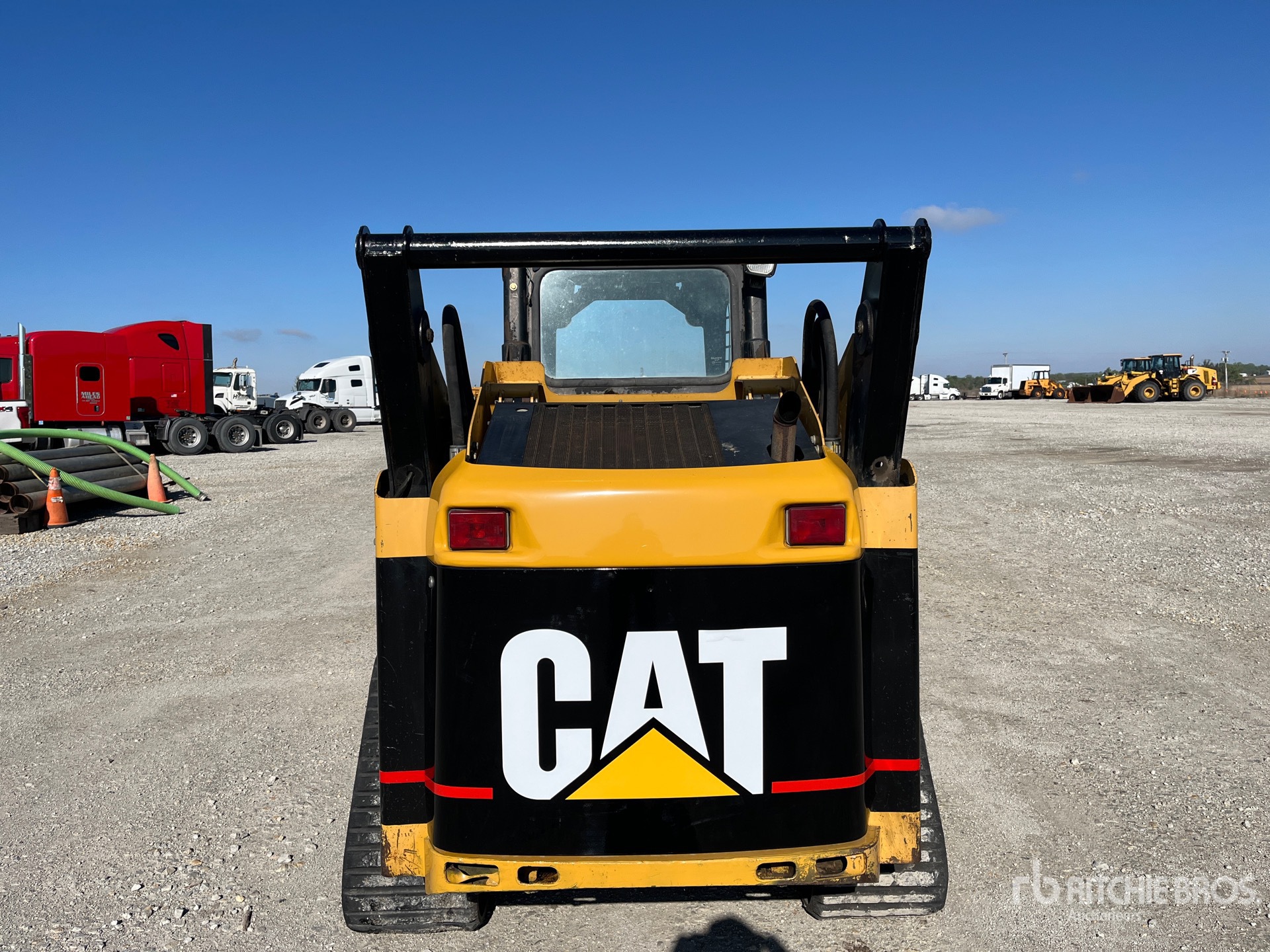

2003 Caterpillar 257 For Sale in Chicago, Il

Name: 2003 Caterpillar 257
Brand: Caterpillar
SKU: 87413004
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-12 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

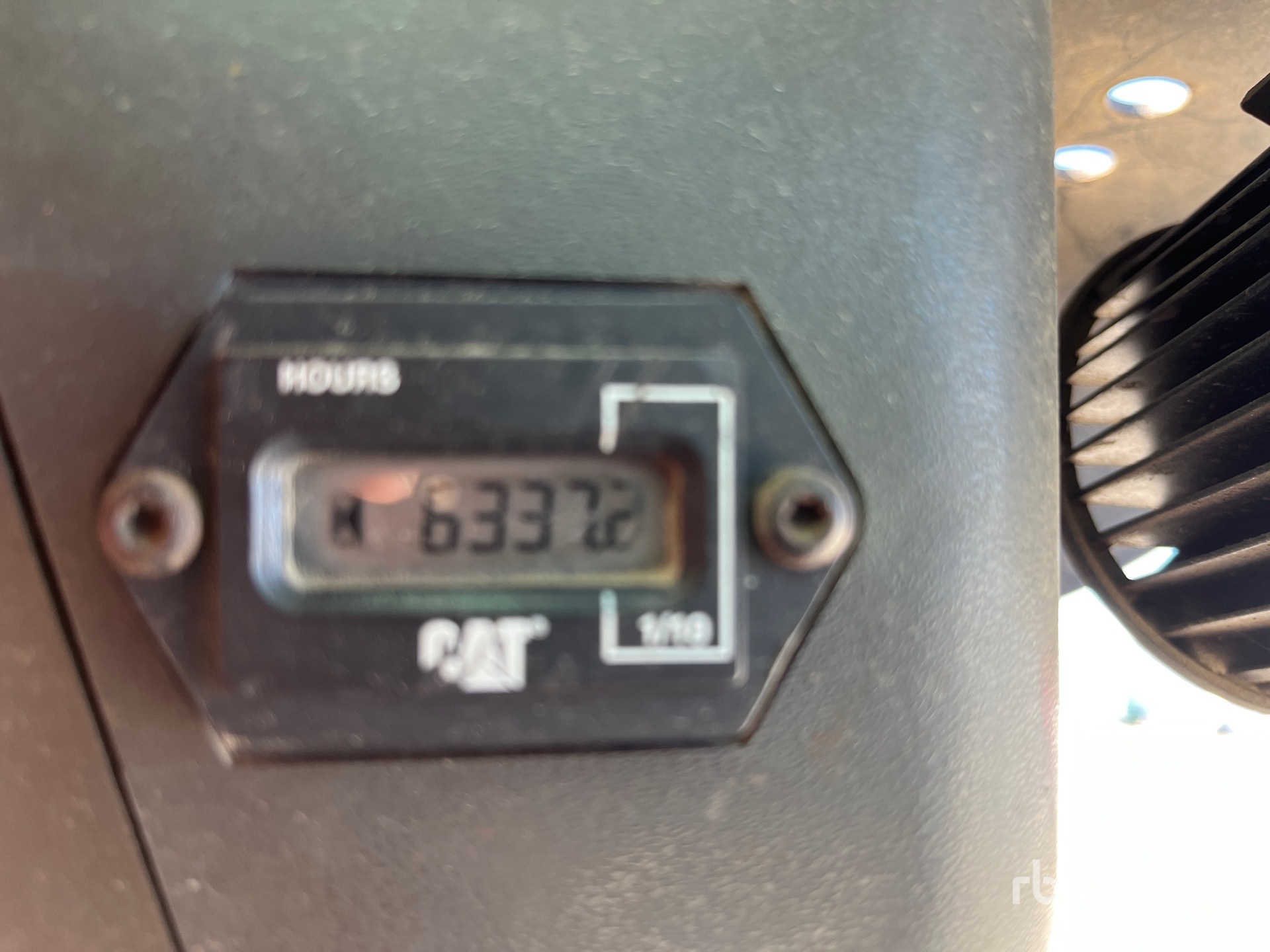

Hours:	6337

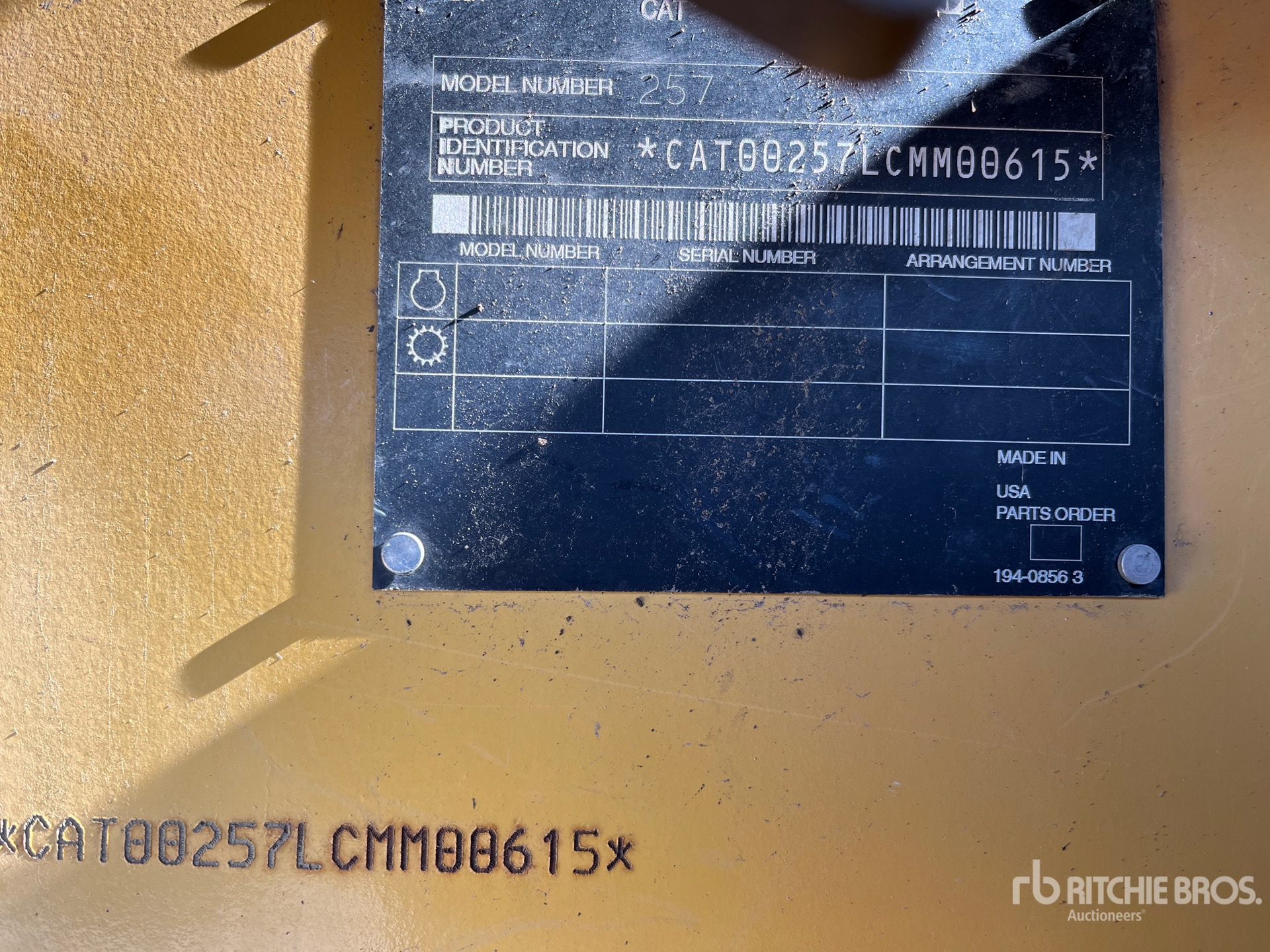

Serial Number:	CAT00257LCMM00615
Machine Location:	CHICAGO, IL

Description:

Enclosed Cab (Door missing), Joystick Steering, Tier 1, 14.5 in Track Belts, Hydraulic Coupler, 71 in Bucket, Electric Brakes Closing Time: 2026-05-12 09:26:15 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Dimensions
Clearance at Max Lift and Dump	8 ft (2 m)
Ground Clearance	10 in (26 cm)
Height - Top of Cab	7 ft (2 m)
Length - with Bucket	12 ft (4 m)
Length - without Bucket	9 ft (3 m)
Reach at Max Lift and Dump	3 ft (1 m)
Turning Radius from Center - inc bucket	90 in (229 cm)
Width Over Tracks	6 ft (2 m)
Engine
Aspiration	Turbocharged
Bore	4 in (10 cm)
Displacement	183 cu in (2,999 cu cm)
Engine Model	Cat 3034 naturally aspirated
Gross Power	63 hp (47 kw)
Net Power	59 hp (44 kw)
Number of Cylinders	4
Power Measured @	2,600 rpm
Stroke	4 in (10 cm)
Hydraulic System
Pump Flow	15 gpm (58 lpm)
Loader
Bucket Capacity	1 cu yd (0 cu m)
Operating Load	2,350 lbs (1,066 kg)
Tipping Angle	4,473 degrees
Operating Specifications
Breakout Force - Lift Cylinder	3,490 lbs (1,583 kg)
Breakout Force - Tilt Cylinder	3,532 lbs (1,602 kg)
Fuel Capacity	24 gal (90 l)
Ground Contact Area	1,770 cu in (29,005 cu cm)
Ground Pressure	4 psi
Hydraulic System Fluid Capacity	15 gal (55 l)
Max Speed - high range	7 mph (11 kph)
Operating Weight	7,676 lbs (3,482 kg)
Rated Operating Capacities - 35% Tipping Load	1,614 lbs (732 kg)
Rated Operating Capacities - 50% Tipping Load	2,306 lbs (1,046 kg)
Tipping Load	4,610 lbs (2,091 kg)
Power Train
Travel Speed Forward	8 mph (12 kph)
Travel Speed Reverse	8 mph (12 kph)
Service Refill Capacities
Cooling System	3 gal (10 l)
Engine Crankcase	2 gal (7 l)
Fuel Tank	24 gal (90 l)
Hydraulic System	15 gal (55 l)
Hydraulic Tank	9 gal (35 l)
Undercarriage
Length of Track on Ground	5 ft (2 m)
Width of Track	15 in (38 cm)
Weights
Operating Weight	7,628 lbs (3,460 kg)
