Equipment ↠ Caterpillar ↠ Compact Track Loaders ↠ 2011 Caterpillar 259B3

2011 Caterpillar 259B3 For Sale in Chehalis, Wa

Name: 2011 Caterpillar 259B3
Brand: Caterpillar
SKU: 86474049
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-07 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

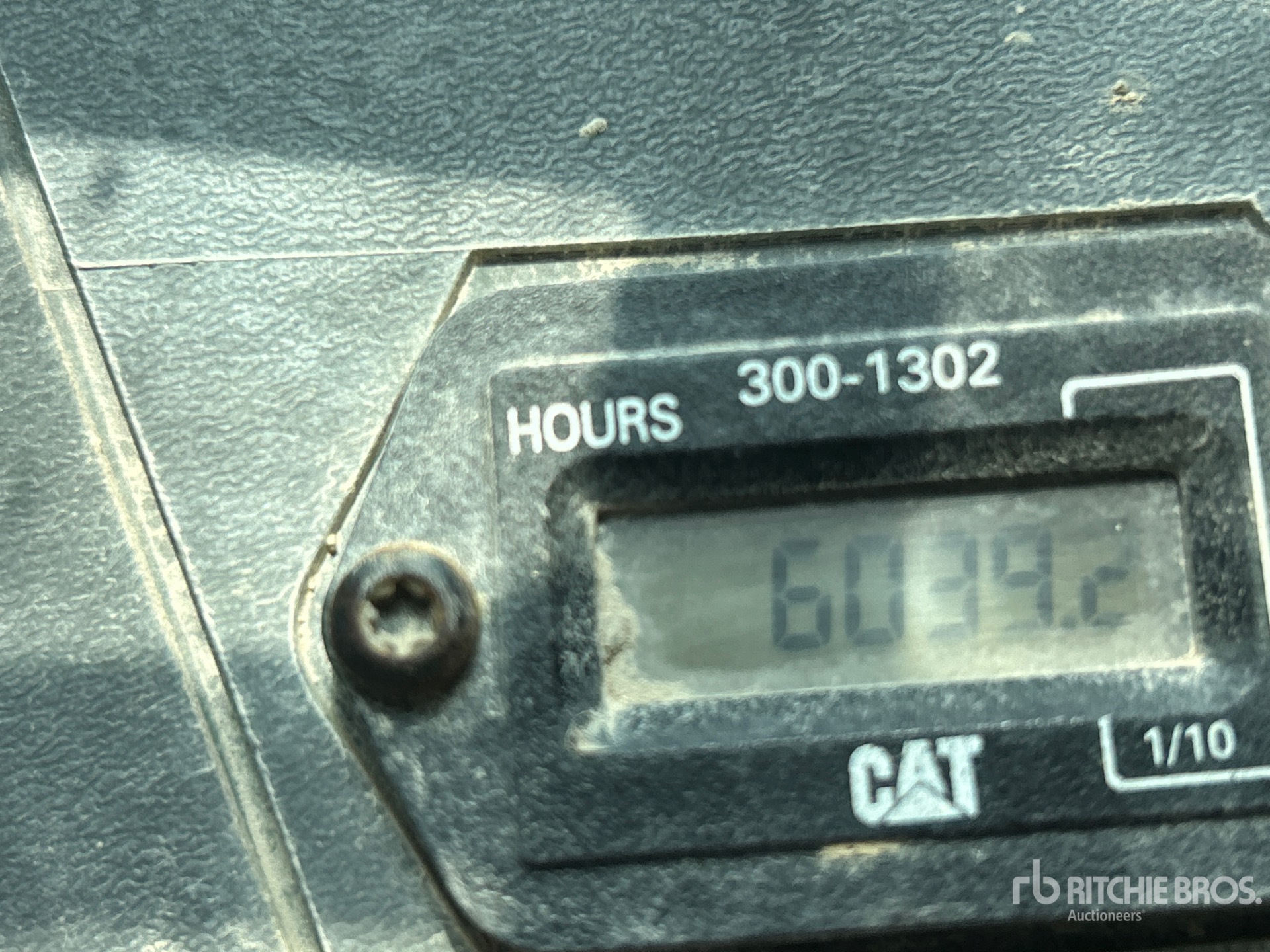

Hours:	6039
Serial Number:	CAT0259BCYYZ01390
Machine Location:	CHEHALIS, WA

Description:

Enclosed Cab, 13 in Track Belts, Equipment-from-JMAC-Resources Inoperable - Buyer responsible for load out - Pick up by appointment only, Closing Time: 2026-05-07 02:15:40 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 259B3 is a versatile compact track loader designed for construction, landscaping, and agricultural applications. Featuring a robust Cat C3.3B engine, it delivers reliable power and fuel efficiency. The 259B3 offers enhanced stability and traction with its rubber tracks, enabling operation on various terrains including mud, sand, and uneven surfaces. Its advanced hydraulic system provides precise control and increased lifting capacity, improving productivity. The operator cab is designed for comfort and visibility, with ergonomic controls and optional climate control. The Caterpillar 259B3 compact track loader supports multiple attachments, making it suitable for digging, grading, loading, and material handling tasks.

Cab
FOPS	SAE J1043 SEPT87 ISO 3449:1992 Level I
FOPS Level II	SAE J231 JAN81 ISO 3449:1992 Level II
ROPS	SAE J1040 MAY94 ISO 3471:1994
Dimensions
Bucket Pin Height - Carry Position	8 in (20 cm)
Bucket Pin Height - Maximum Lift	10 ft (3 m)
Clearance at Max Lift and Dump	7 ft (2 m)
Clearance at Maximum Lift and Dump	88 in (224 cm)
Departure Angle	35 degrees
Ground Clearance	9 in (23 cm)
Length - Track on Ground	59 in (150 cm)
Length - with Bucket	11 ft (3 m)
Length - With Bucket on Ground	135 in (343 cm)
Maximum Dump Angle	50 degrees
Maximum Overall Height	152 in (386 cm)
Maximum Reach - With Arms Parallel	53 in (135 cm)
Overall Length - Track	79 in (201 cm)
Rack Back Angle - Maximum Height	87 degrees
Reach at Max Lift and Dump	3 ft (1 m)
Reach at Maximum Lift/Dump	29 in (74 cm)
Turn Radius from Center - Bucket	86 in (218 cm)
Turn Radius from Center - Coupler	55 in (140 cm)
Turn Radius from Center - Rear	58 in (147 cm)
Turning Radius from Center - inc bucket	86 in (217 cm)
Turning Radius from Center - machine rear	58 in (147 cm)
Vehicle Width	66 in (168 cm)
Width Over Tracks	6 ft (2 m)
Engine
Bore	4 in (9 cm)
Displacement	201 cu in (3,294 cu cm)
Engine Model	Cat C3.4T
Gross Power	74 hp (55 kw)
Gross Power - SAE J1995	74 hp (55 kw)
Net Power	71 hp (53 kw)
Net Power - SAE 1349	71 hp (53 kw)
Stroke	5 in (12 cm)
Hydraulic System
Hydraulic Flow (1)	Standard
Hydraulic Flow (2)	High Flow
Hydraulic Power	43 hp (32 kw)
Hydraulic Power - Calculated	60 hp (45 kw)
Loader Hydraulic Pressure	3,335 psi
Pump Flow	22 gpm (83 lpm)
Relief Valve Pressure	3,335 psi
Loader
Breakout Force	4,509 lbs (2,045 kg)
Operating Load	2,950 lbs (1,338 kg)
Tipping Angle	5,900 degrees
Operating Specifications
Alternator Supplied Amperage	90 amps
Breakout Force - Tilt Cylinder	4,508 lbs (2,045 kg)
Cooling System Fluid Capacity	3 gal (10 l)
Engine Oil Capacity	2 gal (9 l)
Fuel Capacity	22 gal (84 l)
Ground Contact Area	1,495 cu in (24,499 cu cm)
Ground Pressure	6 psi
Hydraulic System Fluid Capacity	15 gal (55 l)
Max Speed - high range	9 mph (14 kph)
Max Speed - low range	6 mph (10 kph)
Operating Voltage	12 volts
Operating Weight	9,226 lbs (4,185 kg)
Rated Operating Capacities - 35% Tipping Load	2,065 lbs (937 kg)
Rated Operating Capacities - 50% Tipping Load	2,950 lbs (1,338 kg)
Rated Operating Capacity with Optional Counterweight	3,000 lbs (1,361 kg)
Tipping Load	5,900 lbs (2,676 kg)
Power Train
Travel Speed Forward	6 mph (10 kph)
Travel Speed Forward - 2-Speed	9 mph (14 kph)
Travel Speed Reverse	6 mph (10 kph)
Travel Speed Reverse - 2-Speed	9 mph (14 kph)
Service Refill Capacities
Cooling System	3 gal (10 l)
Engine Crankcase	2 gal (9 l)
Fuel Tank	22 gal (84 l)
Hydraulic System	15 gal (55 l)
Hydraulic Tank	9 gal (35 l)
Undercarriage
Ground Contact Area	1,848 cu in (30,283 cu cm)
Ground Pressure	5 psi
Length of Track on Ground	5 ft (2 m)
Width of Track	16 in (40 cm)
Weights
Operating Weight	8,934 lbs (4,052 kg)
