Equipment ↠ Caterpillar ↠ Compact Track Loaders ↠ 2005 Caterpillar 277B

2005 Caterpillar 277B For Sale in Chicago, Il

Name: 2005 Caterpillar 277B
Brand: Caterpillar
SKU: 87339979
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-25 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

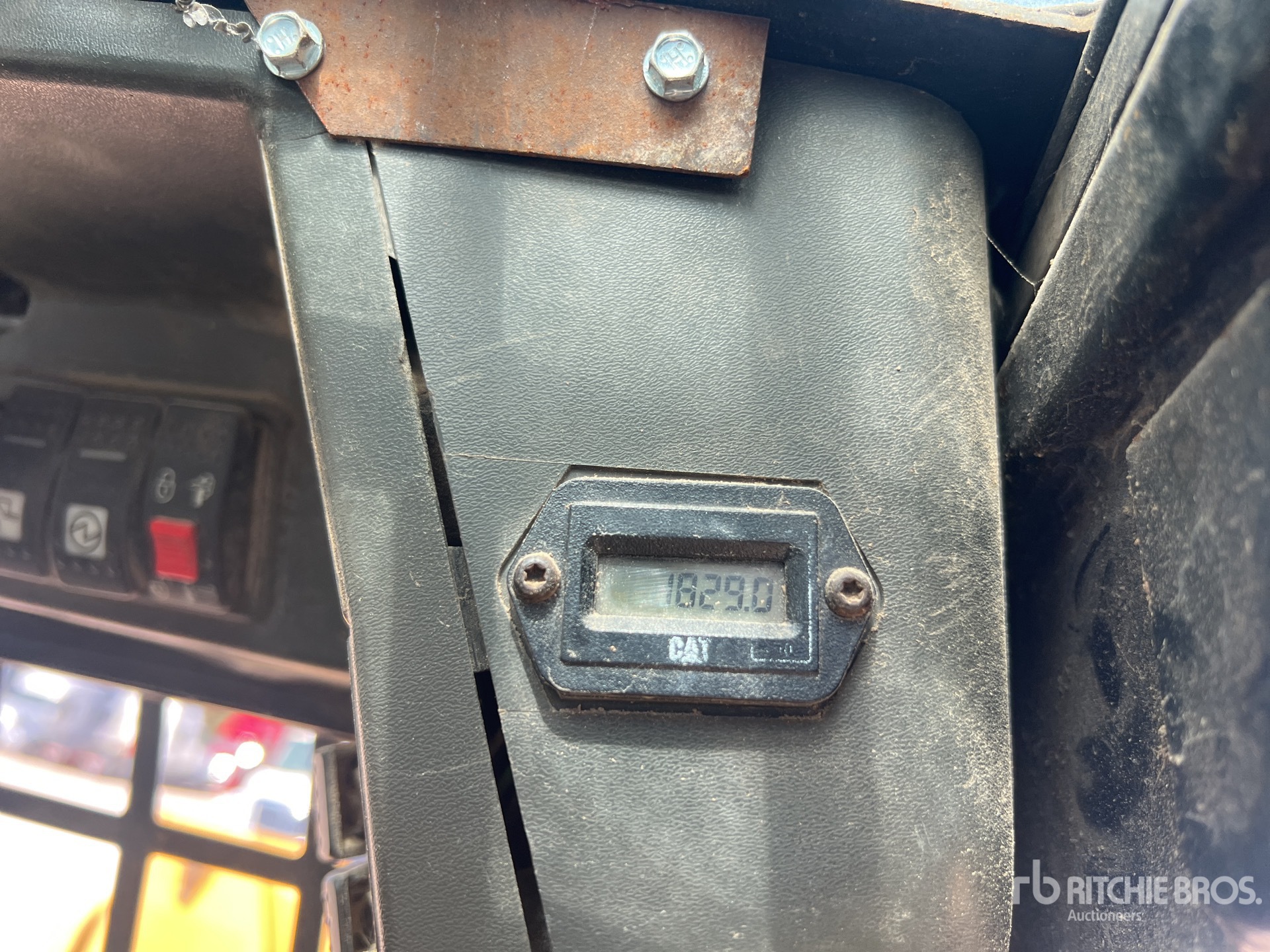

Hours:	1829
Serial Number:	CAT0277BPMDH02202
Machine Location:	CHICAGO, IL

Description:

Enclosed Cab, Joystick Steering, 18 in Track Belts, Manual Coupler Closing Time: 2026-06-25 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Cab
FOPS	SAE J/ISO 3449 APR98 Level I ISO 3449:1992 Level I
FOPS Level II	SAE J/ISO 3449 APR98 Level II ISO 3449:1992 Level II
ROPS	SAE J1040 MAY94 ISO 3471:1994
Dimensions
Bucket Pin Height - Carry Position	10 in (25 cm)
Bucket Pin Height - Maximum Lift	10 ft (3 m)
Clearance at Max Lift and Dump	8 ft (2 m)
Clearance at Maximum Lift and Dump	93 in (236 cm)
Ground Clearance	14 in (36 cm)
Height - Top of Cab	7 ft (2 m)
Length - Track on Ground	81 in (206 cm)
Length - with Bucket	12 ft (4 m)
Length - With Bucket on Ground	145 in (368 cm)
Maximum Overall Height	158 in (401 cm)
Maximum Reach - With Arms Parallel	57 in (146 cm)
Overall Length - Track	98 in (249 cm)
Reach at Max Lift and Dump	2 ft (1 m)
Reach at Maximum Lift/Dump	27 in (69 cm)
Turn Radius from Center - Bucket	99 in (251 cm)
Turn Radius from Center - Coupler	63 in (160 cm)
Turn Radius from Center - Rear	61 in (154 cm)
Turning Radius from Center - inc bucket	99 in (251 cm)
Turning Radius from Center - machine rear	61 in (155 cm)
Vehicle Width	75 in (191 cm)
Width Over Tracks	6 ft (2 m)
Engine
Aspiration	turbocharged
Bore	4 in (9 cm)
Displacement	201 cu in (3,294 cu cm)
Engine Model	Cat 3044C DIT
Engine Power - ISO 14396	80 hp (60 kw)
Gross Power	82 hp (61 kw)
Gross Power - SAE J1995	82 hp (61 kw)
Net Power	78 hp (58 kw)
Net Power - EEC 80/1269	78 hp (58 kw)
Net Power - ISO 9249 EEC	78 hp (58 kw)
Net Power - SAE 1349	78 hp (58 kw)
Stroke	5 in (12 cm)
Hydraulic System
Hydraulic Flow	Standard
Hydraulic Power	43 hp (32 kw)
Loader Hydraulic Flow	22 gpm (83 lpm)
Loader Hydraulic Pressure	3,335 psi
Pump Flow	22 gpm (83 lpm)
Relief Valve Pressure	3,336 psi
Loader
Breakout Force	5,483 lbs (2,487 kg)
Operating Load	2,950 lbs (1,338 kg)
Tipping Angle	5,900 degrees
Operating Specifications
Alternator Supplied Amperage	90 amps
Breakout Force - Tilt Cylinder	5,484 lbs (2,488 kg)
Cooling System Fluid Capacity	3 gal (10 l)
Engine Oil Capacity	3 gal (10 l)
Fuel Capacity	25 gal (95 l)
Ground Contact Area	2,898 cu in (47,490 cu cm)
Ground Pressure	3 psi
Hydraulic System Fluid Capacity	14 gal (52 l)
Max Speed - high range	7 mph (11 kph)
Operating Voltage	12 volts
Operating Weight	9,370 lbs (4,250 kg)
Rated Operating Capacities - 35% Tipping Load	2,065 lbs (937 kg)
Rated Operating Capacities - 50% Tipping Load	2,950 lbs (1,338 kg)
Tipping Load	5,900 lbs (2,676 kg)
Power Train
Travel Speed Forward	7 mph (11 kph)
Travel Speed Reverse	7 mph (11 kph)
Service Refill Capacities
Cooling System	3 gal (10 l)
Engine Crankcase	3 gal (10 l)
Fuel Tank	25 gal (95 l)
Hydraulic System	14 gal (52 l)
Hydraulic Tank	9 gal (35 l)
Undercarriage
Ground Contact Area	2,899 cu in (47,500 cu cm)
Ground Pressure	3 psi
Length of Track on Ground	7 ft (2 m)
Weights
Operating Weight	9,411 lbs (4,269 kg)
