Equipment ↠ Caterpillar ↠ Compact Track Loaders ↠ 2015 Caterpillar 277D

2015 Caterpillar 277D For Sale in Miami, FL

Name: 2015 Caterpillar 277D
Brand: Caterpillar
SKU: 85087107
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: Call for Price

Case Power & Equipment

Case Power & Equipment Dealer Info

Case Power & Equipment Website

Click here to email Case Power & Equipment.

Click for Phone Number

Machine Info:

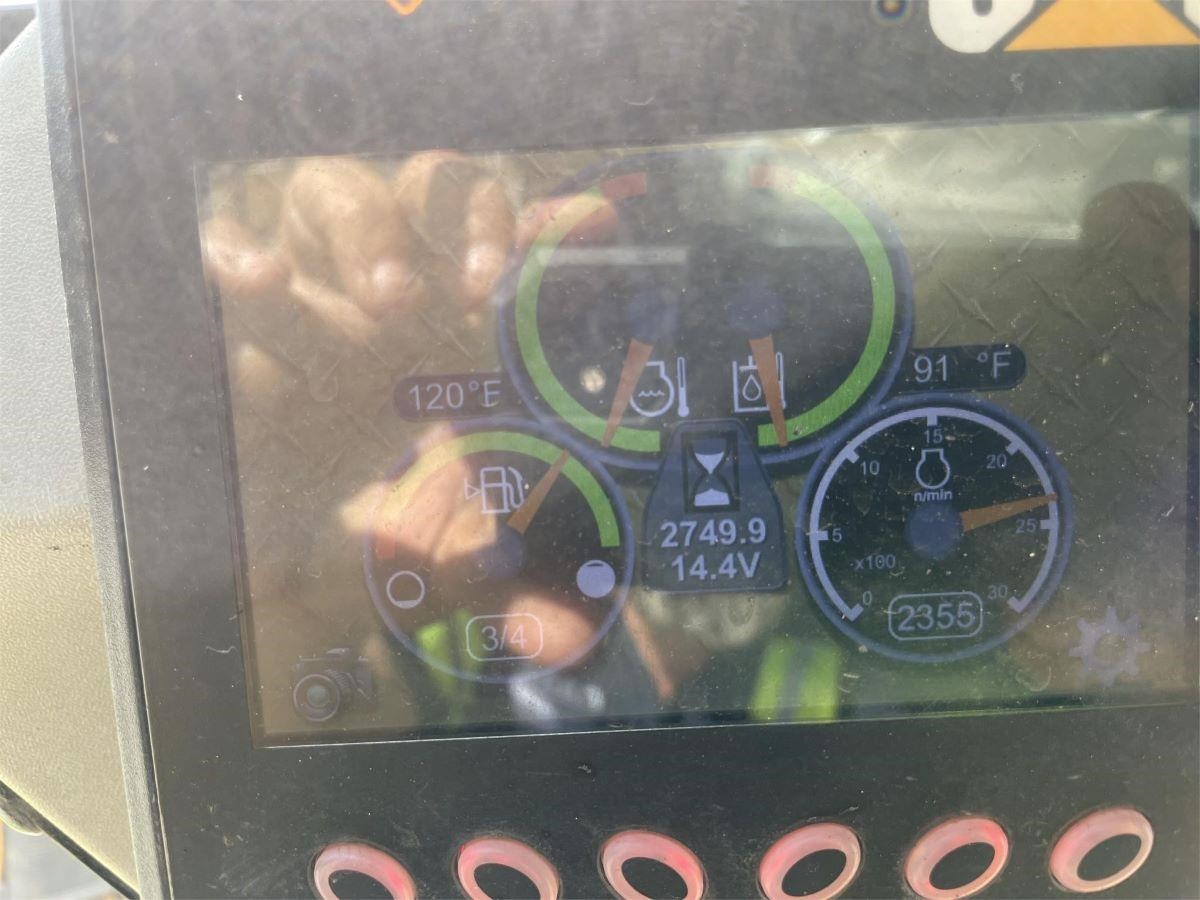

Hours:	2760

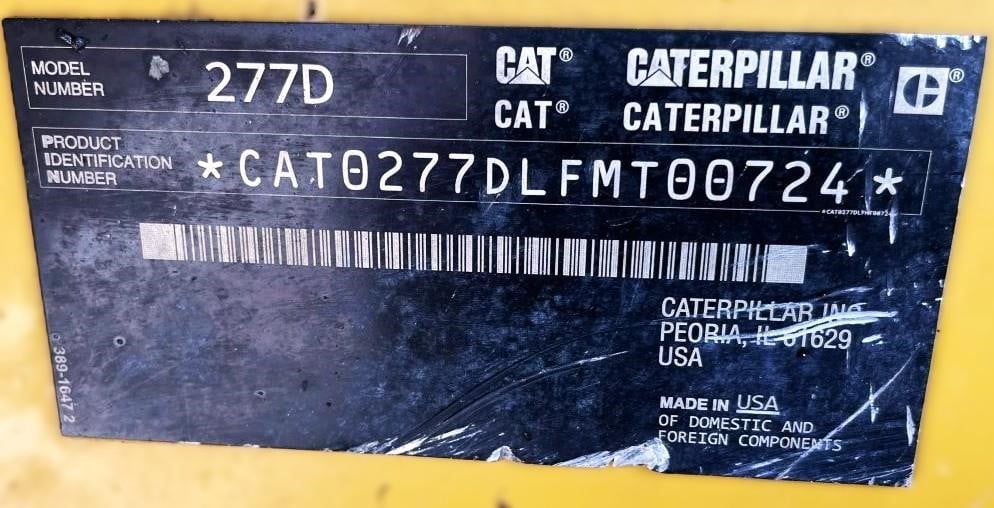

Stock Number:	CAT0277DLFMT00724
Machine Location:	MIAMI, FL
More Information:	https://casepowered.com/inventory/skid+steers+-+track/2015-caterpillar-277d-lake+worth-fl-69835f10cf93bfc64c0f6762/

Description:

2015 CATERPILLAR, 277D Skid Steers - Track, *** Call for Price *** Open cab, Gross Horse Power 74.3, Operating weight 9,293 lbs, Radial lift, Rated operating capacity 3,290 lbs

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 277D is a versatile compact track loader designed for construction, landscaping, and agricultural applications. Featuring a powerful Cat C3.3B engine, the 277D delivers reliable performance and fuel efficiency. Its advanced hydraulic system provides precise control and increased breakout force for heavy lifting and material handling. The compact track design offers superior traction and stability on various terrains, including soft or uneven ground. Operator comfort is enhanced with an ergonomic cab, improved visibility, and intuitive controls. The Caterpillar 277D supports multiple attachments, making it adaptable for digging, grading, loading, and site preparation tasks. This model balances productivity and maneuverability in a compact footprint.

Air Conditioning System
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.
Cab
FOPS	ISO 3449:2005 Level I
FOPS Level II	ISO 3449:2005 Level II
ROPS	ISO 3471:2008
Dimensions
Bucket Pin Height - Carry Position	8 in (20 cm)
Bucket Pin Height - Maximum Lift	11 ft (3 m)
Clearance at Maximum Lift and Dump	98 in (249 cm)
Departure Angle	38 degrees
Ground Clearance	1 ft (0 m)
Height - Top of Cab	7 ft (2 m)
Length - Track on Ground	71 in (181 cm)
Length - With Bucket on Ground	146 in (371 cm)
Length - Without Bucket	118 in (299 cm)
Maximum Dump Angle	39 degrees
Maximum Overall Height	160 in (405 cm)
Maximum Reach - With Arms Parallel to Ground	55 in (139 cm)
Overall Length - Track	90 in (229 cm)
Rack Back Angle - Maximum Height	94 degrees
Reach - Maximum Lift/Dump	24 in (60 cm)
Turning Radius from Center - Bucket	92 in (234 cm)
Turning Radius from Center - Coupler	59 in (149 cm)
Turning Radius from Center - Machine Rear	67 in (171 cm)
Vehicle Width	78 in (198 cm)
Engine
Bore	4 in (9 cm)
Displacement	203 cu in (3,327 cu cm)
Engine Model	Cat C3.3B DIT (turbo)
Gross Power - SAE J1995	74 hp (55 kw)
Net Power	73 hp (54 kw)
Net Power - ISO 9249	74 hp (55 kw)
Net Power - SAE 1349	73 hp (54 kw)
Peak Torque - 1,500 rpm - SAE J1995	195 ft (59 m)
Stroke	5 in (12 cm)
General Specifications
ENGINE POWER HP (KW) (Since 2016)	73 (54)
ENGINE POWER HP (KW) (2017)	73 (54)
MODEL (Since 2016)	277D
MODEL (2017)	277D
OPERATING LOAD LBS. (KG) (Since 2016)	3,290 (1,492)
OPERATING LOAD LBS. (KG) (2017)	3,290 (1,492)
OPERATING WIDTH IN. (CM) (Since 2016)	78 (198)
OPERATING WIDTH IN. (CM) (2017)	78 (198)
Hydraulic System
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)	76 hp (57 kw)
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow	32 gpm (121 lpm)
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure	4,061 psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated)	44 hp (33 kw)
Hydraulic Flow - Standard - Loader Hydraulic Flow	23 gpm (87 lpm)
Hydraulic Flow - Standard - Loader Hydraulic Pressure	3,335 psi
Loader
Operating Load Rating	2,303 lbs (1,045 kg)
Operating Width	78 in (198 cm)
Noise Level
Inside Cab*	81 dB(A)
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (3)	***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Outside Cab**	103 dB(A)
Operating Specifications
Breakout Force - Tilt Cylinder	7,285 lbs (3,304 kg)
Ground Contact Area	2,561 cu in (41,967 cu cm)
Ground Pressure	4 psi
Rated Operating Capacities - 35% Tipping Load	2,303 lbs (1,045 kg)
Rated Operating Capacities - 50% Tipping Load	3,290 lbs (1,492 kg)
Rated Operating Capacity with Optional Counterweight	3,540 lbs (1,606 kg)
Tipping Load	6,580 lbs (2,985 kg)
Power Train
Travel Speed - Forward or Reverse - One Speed	5 mph (8 kph)
Travel Speed - Forward or Reverse - Two Speed	8 mph (13 kph)
Service Refill Capacities
Cooling System	4 gal (14 l)
Engine Crankcase	3 gal (11 l)
Fuel Tank	25 gal (94 l)
Hydraulic System	14 gal (52 l)
Hydraulic Tank	10 gal (39 l)
