Equipment ↠ Caterpillar ↠ Compact Track Loaders ↠ 2011 Caterpillar 289C

2011 Caterpillar 289C For Sale in Moerdijk, Nld

Name: 2011 Caterpillar 289C
Brand: Caterpillar
SKU: 86683890
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-06 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

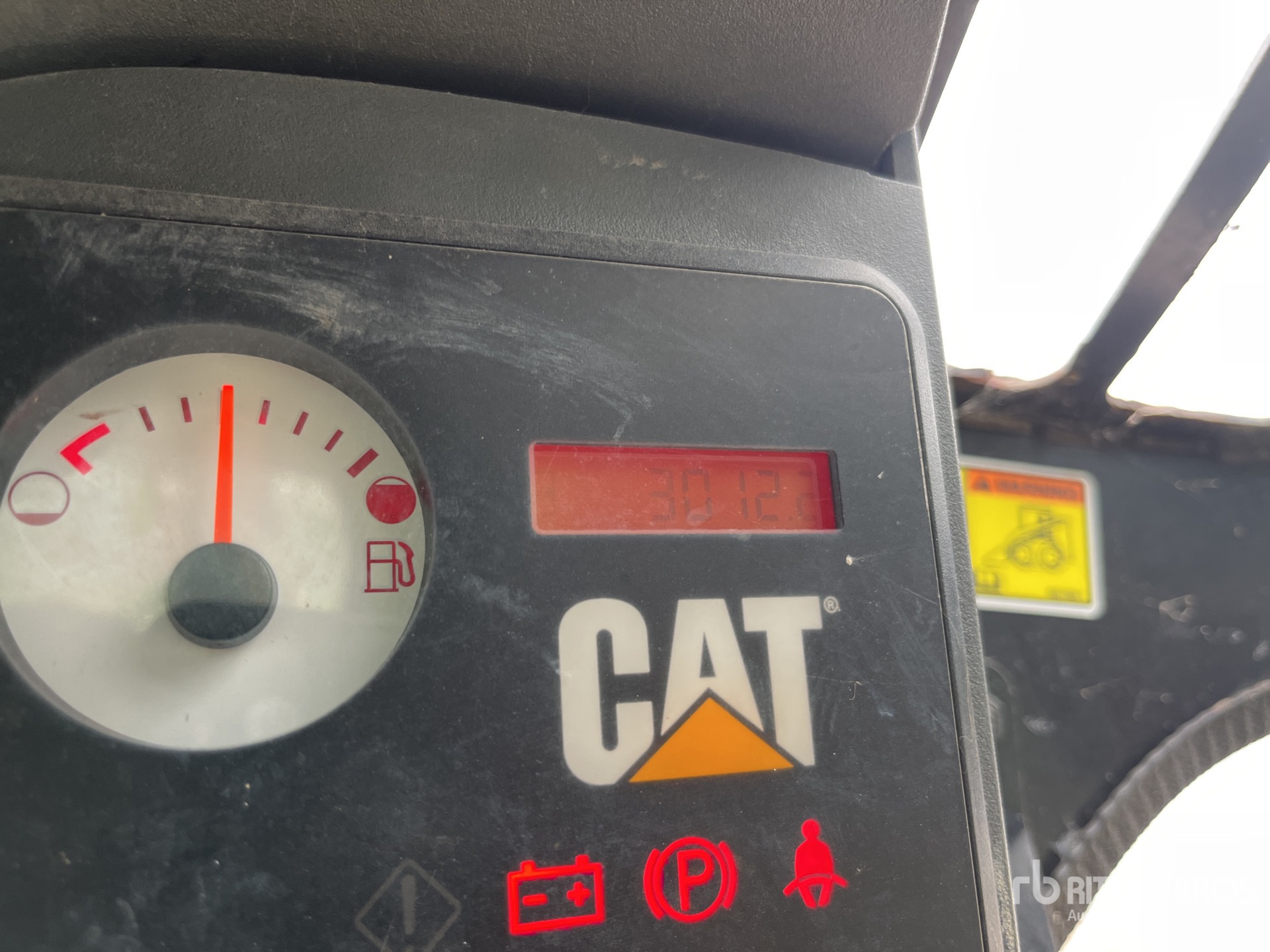

Hours:	3012

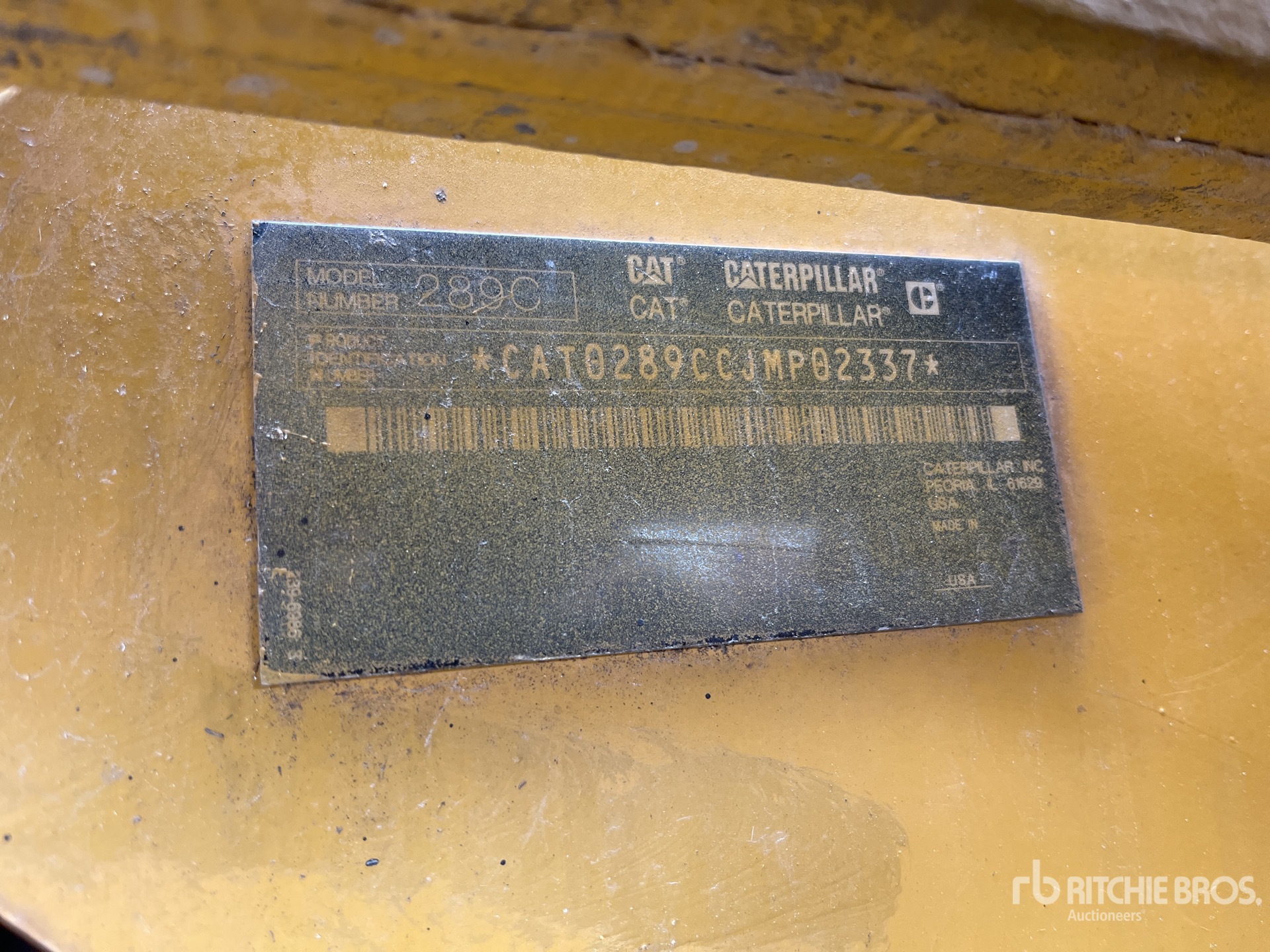

Serial Number:	CAT0289CCJMP02337
Machine Location:	MOERDIJK, NLD

Description:

Enclosed Cab, Air Conditioner, Joystick Steering, 450 mm Track Belts, 8 Pin Electric Kit, Hydraulic Coupler, 2000 mm Bucket ** Non Duty Free Circulation EU **

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 289C is a versatile compact track loader designed for construction, landscaping, and agricultural applications. Featuring a powerful Cat engine and advanced hydraulic system, the 289C delivers efficient performance and precise control. Its compact size and rubber tracks provide excellent maneuverability and traction on various terrains, including mud, sand, and gravel. The operator cab offers enhanced visibility and comfort with ergonomic controls. The Caterpillar 289C supports multiple attachments, increasing its functionality for digging, grading, lifting, and material handling tasks. Known for durability and reliability, the 289C compact track loader is suitable for demanding job sites requiring agility and power.

Cab
FOPS	SAE J1043 SEPT87 ISO 3449:1992 Level I
FOPS Level II	SAE J231 JAN81 ISO 3449:1992 Level II
ROPS	SAE J1040 MAY94 ISO 3471:1994
Dimensions
Bucket Pin Height - Carry Position	8 in (20 cm)
Bucket Pin Height - Maximum Lift	11 ft (3 m)
Bucket Pin Reach - Maximum Lift	15 in (37 cm)
Clearance at Max Lift and Dump	8 ft (2 m)
Clearance at Maximum Lift and Dump	97 in (246 cm)
Departure Angle	44 degrees
Ground Clearance	9 in (23 cm)
Height - Top of Cab	7 ft (2 m)
Length - Track on Ground	70 in (177 cm)
Length - with Bucket	12 ft (4 m)
Length - With Bucket on Ground	145 in (368 cm)
Maximum Dump Angle	50 degrees
Maximum Overall Height	161 in (408 cm)
Maximum Reach - With Arms Parallel	51 in (128 cm)
Overall Length - Track	89 in (227 cm)
Rack Back Angle - Maximum Height	85 degrees
Reach at Max Lift and Dump	3 ft (1 m)
Reach at Maximum Lift/Dump	31 in (78 cm)
Turn Radius from Center - Bucket	91 in (231 cm)
Turn Radius from Center - Coupler	58 in (147 cm)
Turn Radius from Center - Rear	65 in (164 cm)
Turning Radius from Center - inc bucket	91 in (232 cm)
Turning Radius from Center - machine rear	65 in (164 cm)
Vehicle Width	78 in (198 cm)
Width Over Tracks	7 ft (2 m)
Engine
Aspiration	Turbocharged
Bore	4 in (9 cm)
Displacement	201 cu in (3,294 cu cm)
Engine Model	Cat C3.4T
Gross Power	84 hp (63 kw)
Gross Power - SAE J1995	84 hp (63 kw)
Net Power	82 hp (61 kw)
Net Power - SAE 1349	82 hp (61 kw)
Number of Cylinders	4
Power Measured @	2,500 rpm
Stroke	5 in (12 cm)
Hydraulic System
Hydraulic Flow (1)	Standard
Hydraulic Flow (2)	High Flow XPS
Hydraulic Power	43 hp (32 kw)
Loader Hydraulic Flow	22 gpm (83 lpm)
Loader Hydraulic Pressure	3,335 psi
Maximum Loader Hydraulic Flow	33 gpm (125 lpm)
Maximum Loader Hydraulic Pressure	4,061 psi
Pump Flow	22 gpm (84 lpm)
Relief Valve Pressure	3,335 psi
Loader
Breakout Force	7,308 lbs (3,315 kg)
Bucket Capacity	1 cu yd (0 cu m)
Operating Load	3,850 lbs (1,746 kg)
Tipping Angle	7,721 degrees
Operating Specifications
Alternator Supplied Amperage	90 amps
Breakout Force - Tilt Cylinder	7,308 lbs (3,315 kg)
Cooling System Fluid Capacity	4 gal (14 l)
Engine Oil Capacity	3 gal (10 l)
Fuel Capacity	26 gal (98 l)
Ground Contact Area	2,504 cu in (41,033 cu cm)
Ground Pressure	4 psi
Hydraulic System Fluid Capacity	15 gal (57 l)
Max Speed - high range	9 mph (14 kph)
Max Speed - low range	5 mph (8 kph)
Operating Voltage	12 volts
Operating Weight	10,365 lbs (4,701 kg)
Rated Operating Capacities - 35% Tipping Load	2,695 lbs (1,222 kg)
Rated Operating Capacities - 50% Tipping Load	3,850 lbs (1,746 kg)
Rated Operating Capacity with Optional Counterweight	4,101 lbs (1,860 kg)
Tipping Load	7,721 lbs (3,502 kg)
Power Train
Travel Speed Forward	5 mph (8 kph)
Travel Speed Forward - 2-Speed	9 mph (14 kph)
Travel Speed Reverse	5 mph (8 kph)
Travel Speed Reverse - 2-Speed	9 mph (14 kph)
Service Refill Capacities
Cooling System	4 gal (14 l)
Engine Crankcase	3 gal (10 l)
Fuel Tank	26 gal (98 l)
Hydraulic System	15 gal (57 l)
Hydraulic Tank	11 gal (42 l)
Undercarriage
Ground Contact Area	2,504 cu in (41,033 cu cm)
Ground Pressure	4 psi
Length of Track on Ground	6 ft (2 m)
Weights
Operating Weight	10,365 lbs (4,701 kg)
