Enclosed Cab, Air Conditioner, Fast Fuel System, 4900 mm Wide Semi-U Blade w/ Dual Tilt, 610 mm Single Grouser Track Shoes, 4 Cylinder Single-Shank Ripper, Top rollers support welded** Closing Time: 2026-05-12 07:00:00 PM

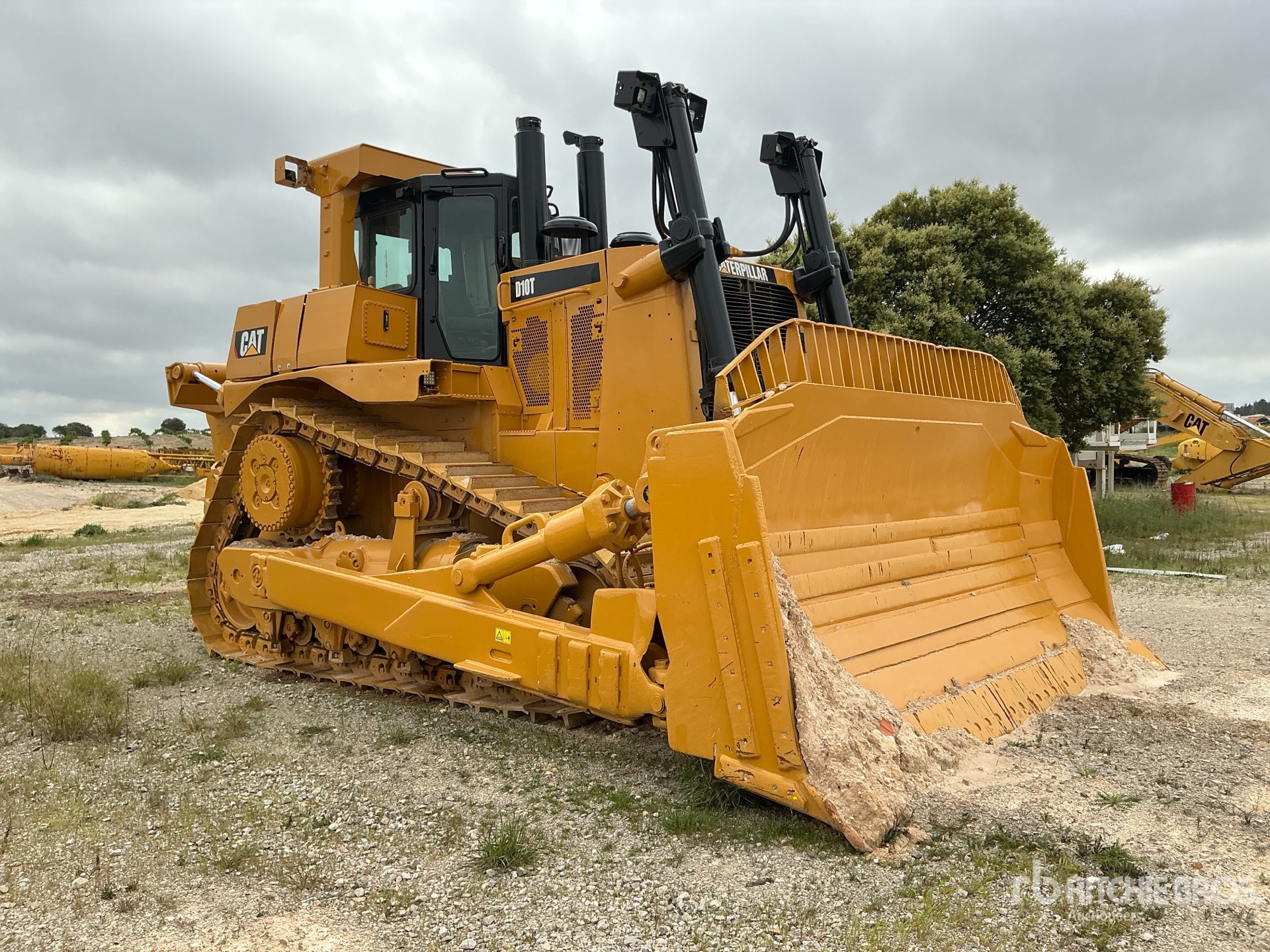

The Caterpillar D10T is a heavy-duty crawler dozer designed for large-scale earthmoving and construction projects. Equipped with a powerful engine and advanced hydraulic systems, the D10T delivers high performance and durability in demanding environments. Its robust undercarriage and reinforced blade provide excellent stability and material handling capabilities. The operator cabin features ergonomic controls and enhanced visibility for improved safety and efficiency. Commonly used in mining, quarrying, and heavy construction, the Caterpillar D10T crawler dozer is engineered to handle tough terrain and heavy loads. This model is recognized for reliability, fuel efficiency, and ease of maintenance in the crawler dozer category.
Dimensions
Ground Clearance
2 ft (1 m)
Ground Clearance
2 ft (1 m)
Height - Top of Cab
13 ft (4 m)
Height - Top of Cab
13 ft (4 m)
Length of Track on Ground
13 ft (4 m)
Length of Track on Ground
13 ft (4 m)
Length w/ Blade
30 ft (9 m)
Length w/ Blade
25 ft (8 m)
Length w/o Blade
18 ft (5 m)
Length w/o Blade
18 ft (5 m)
Width Over Tracks
10 ft (3 m)
Width Over Tracks
10 ft (3 m)
Engine
Aspiration
Turbocharged
Aspiration
Turbocharged
Bore
5 in (14 cm)
Displacement
1,648 cu in (26,998 cu cm)
Displacement
1,648 cu in (26,998 cu cm)
Engine Model
Cat C27 ACERT
Engine Model
C27 ACERT
Flywheel Power
580 hp (433 kw)
Gross Power
661 hp (493 kw)
Gross Power
646 hp (482 kw)
Make
Cat
Net Power
580 hp (433 kw)
Net Power
580 hp (433 kw)
Number of Cylinders
12
Number of Cylinders
12
Power Measured @
1,800 rpm
Power Measured @
1,800 rpm
Stroke
6 in (15 cm)
Hydraulic System
Pump Flow Capacity
107 gpm (405 lpm)
Pump type
gear driven
Relief Valve Pressure
2,725 psi
Operating Specifications
Alternator Supplied Amperage
95 amps
Alternator Supplied Amperage
95 amps
Cooling System Fluid Capacity
35 gal (132 l)
Engine Oil Capacity
18 gal (68 l)
Final Drives Fluid Capacity
6 gal (23 l)
Fuel Capacity
318 gal (1,204 l)
Fuel Capacity
293 gal (1,109 l)
Hydraulic Fluid Capacity
38 gal (144 l)
Operating Voltage
24 volts
Operating Voltage
24 volts
Operating Weight
146,500 lbs (66,451 kg)
Operating Weight
144,986 lbs (65,765 kg)
Service Refill Capacities
Fuel Tank
318 gal (1,204 l)
Standard Blade
Capacity
24 cu yd (19 cu m)
Capacity
64 cu yd (49 cu m)
Height
81 in (206 cm)
Width
16 ft (5 m)
Width
17 ft (5 m)
Standards
FOPS
SAE J/ISO 3449 APR98 Level II ISO 3449:1992 Level II
