2007 Caterpillar D3G XL For Sale in Chicago, Il

Name: 2007 Caterpillar D3G XL
Brand: Caterpillar
SKU: 87712779
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-12

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

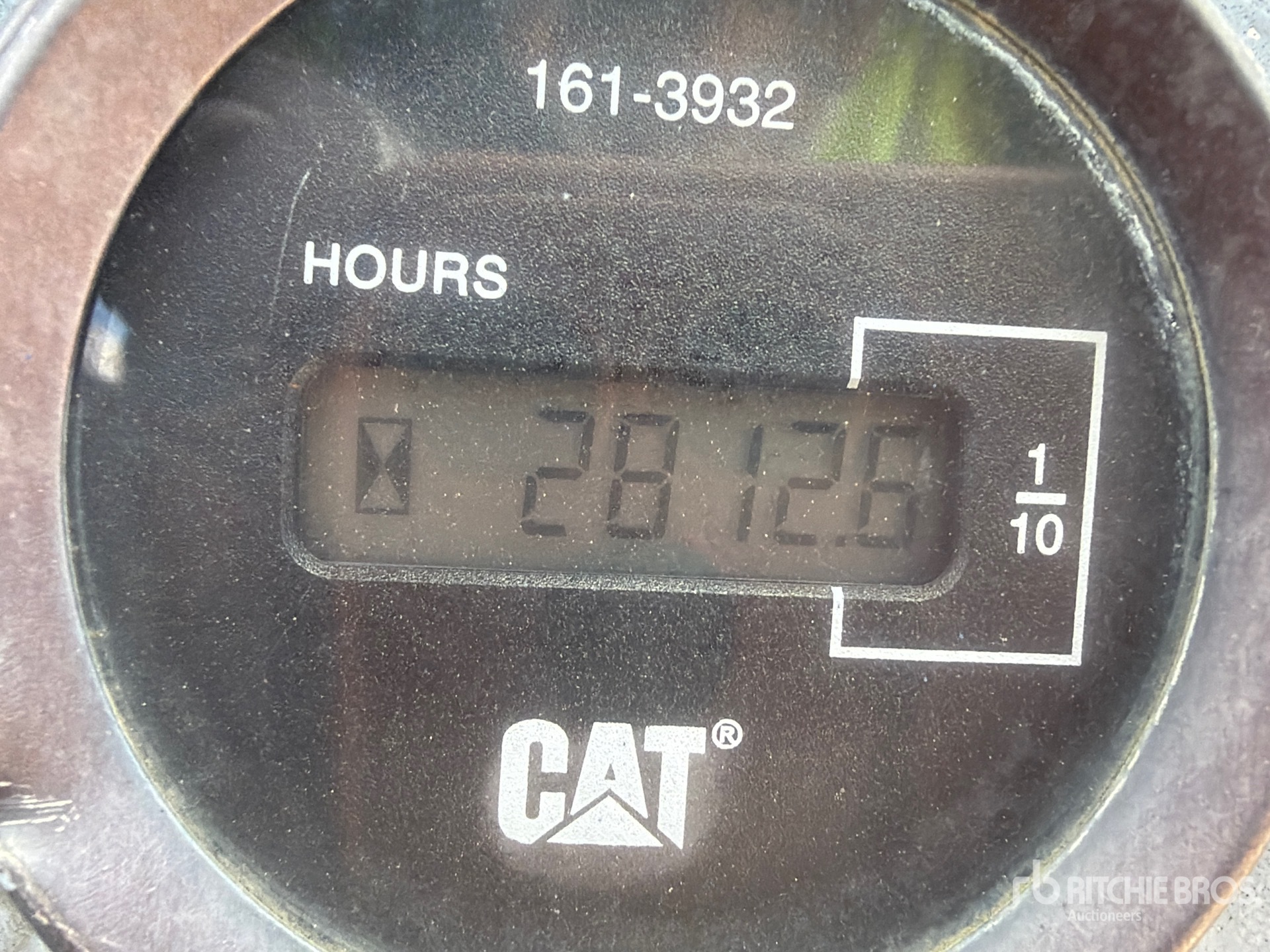

Hours:	2812

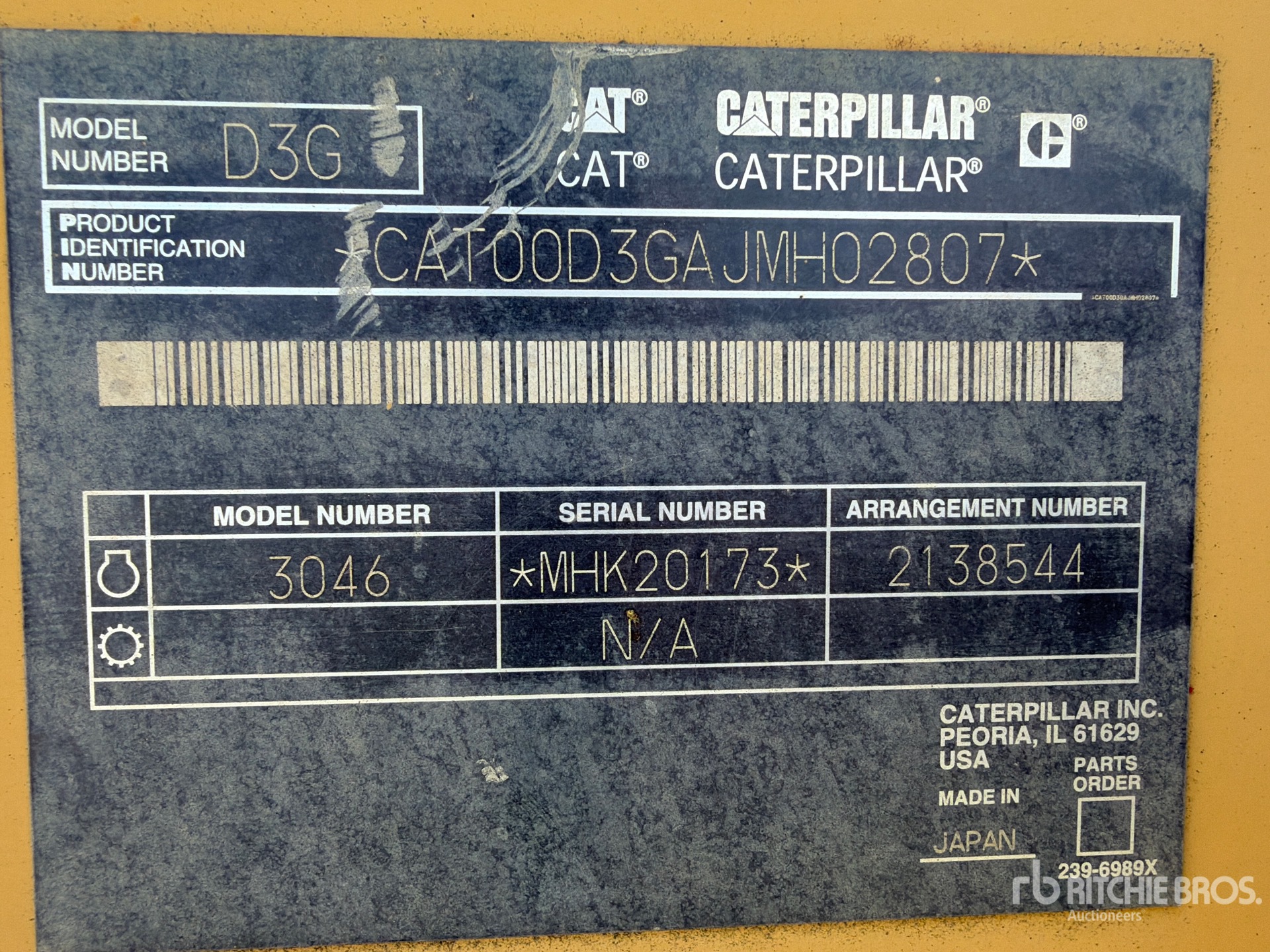

Serial Number:	CAT00D3GAJMH02807
Machine Location:	CHICAGO, IL

Description:

Enclosed Cab, Air Conditioner, 90 in Wide PAT Blade, 16 in Single Grouser Track Shoes Closing Time: 2026-05-12 09:48:15 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar D3G XL is a versatile crawler dozer designed for medium-duty earthmoving tasks. Equipped with a powerful engine and an extended undercarriage (XL), it offers enhanced stability and traction on various terrains. The D3G XL features advanced hydraulic controls, a comfortable operator station, and durable components for reliable performance in construction, landscaping, and agricultural applications. Its efficient fuel consumption and easy maintenance contribute to lower operating costs. The crawler dozer's blade options provide flexibility for grading, pushing, and leveling materials. The Caterpillar D3G XL is widely used in site preparation, land clearing, and material handling projects.

Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Length of Track on Ground	7 ft (2 m)
Length w/ Blade	13 ft (4 m)
Length w/o Blade	10 ft (3 m)
Width Over Tracks	6 ft (2 m)
Engine
Displacement	305 cu in (4,998 cu cm)
Engine Model	3046T
Gross Power	77 hp (57 kw)
Net Power	70 hp (52 kw)
Hydraulic System
Pump Flow Capacity	16 gpm (61 lpm)
Relief Valve Pressure	2,900 psi
Operating Specifications
Alternator Supplied Amperage	120 amps
Cooling System Fluid Capacity	6 gal (21 l)
Engine Oil Capacity	3 gal (13 l)
Final Drives Fluid Capacity	4 gal (14 l)
Fuel Capacity	44 gal (165 l)
Hydraulic Fluid Capacity	12 gal (45 l)
Operating Voltage	12 volts
Operating Weight	16,227 lbs (7,360 kg)
Standard Blade
Blade Angle (both directions)	25 degrees
Capacity	2 cu yd (1 cu m)
Height	37 in (93 cm)
Width	8 ft (2 m)
Transmission
Max Speed - Forward	6 mph (9 kph)
Max Speed - Reverse	6 mph (10 kph)
Number of Forward Gears	1
Number of Reverse Gears	1
Transmission Type	Hydrostatic
Undercarriage
Ground Contact Area	2,586 cu in (42,377 cu cm)
Ground Pressure	6 psi
Number of Shoes per Side	39
Number of Track Rollers per Side	6
Standard Shoe Size	16 in (41 cm)
Track Gauge	5 ft (1 m)
