Equipment ↠ Caterpillar ↠ Crawler Dozers ↠ 2006 Caterpillar D5G LGP

2006 Caterpillar D5G LGP For Sale in Edmonton, Ab

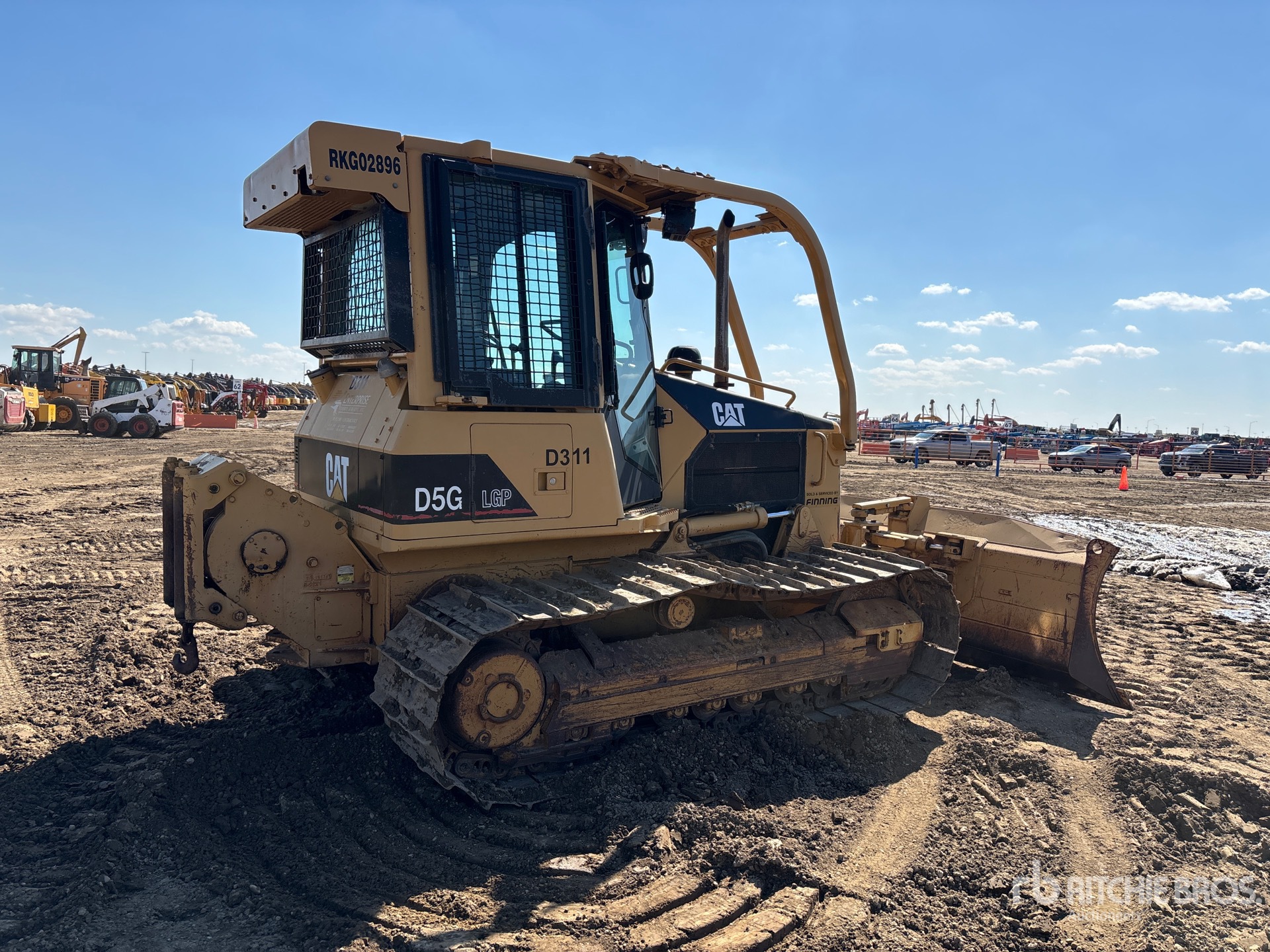

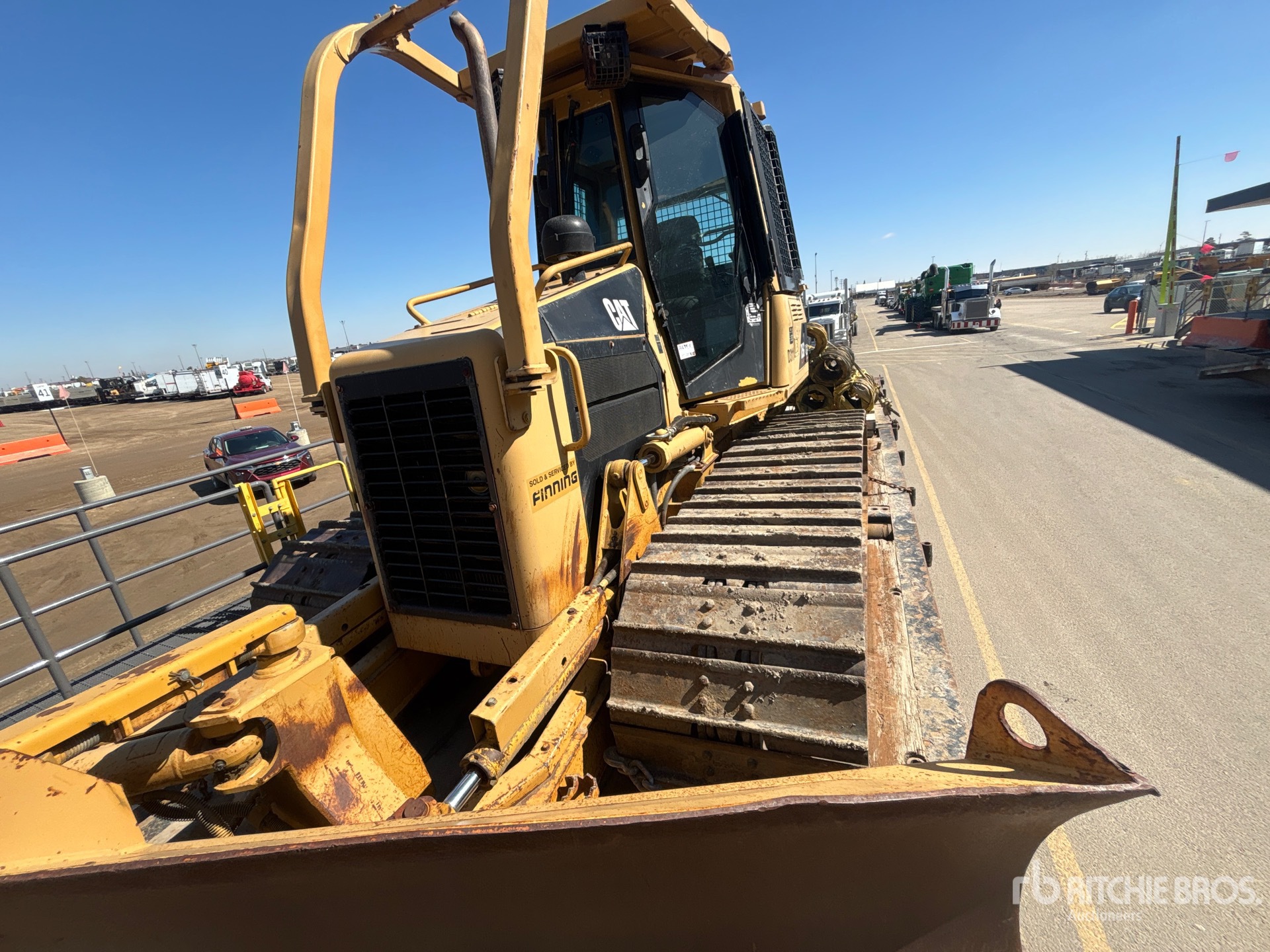

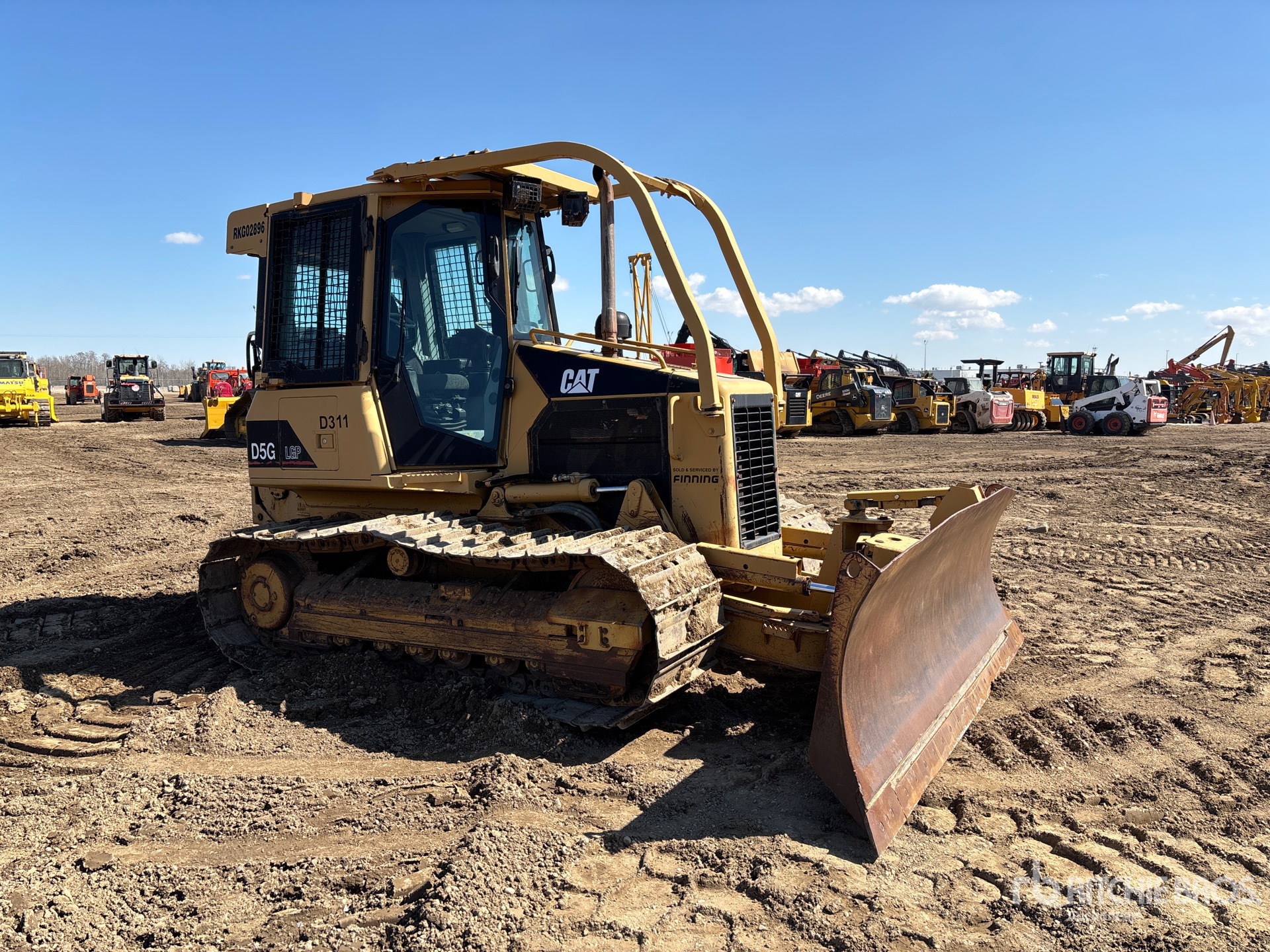

Name: 2006 Caterpillar D5G LGP
Brand: Caterpillar
SKU: 87399436
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

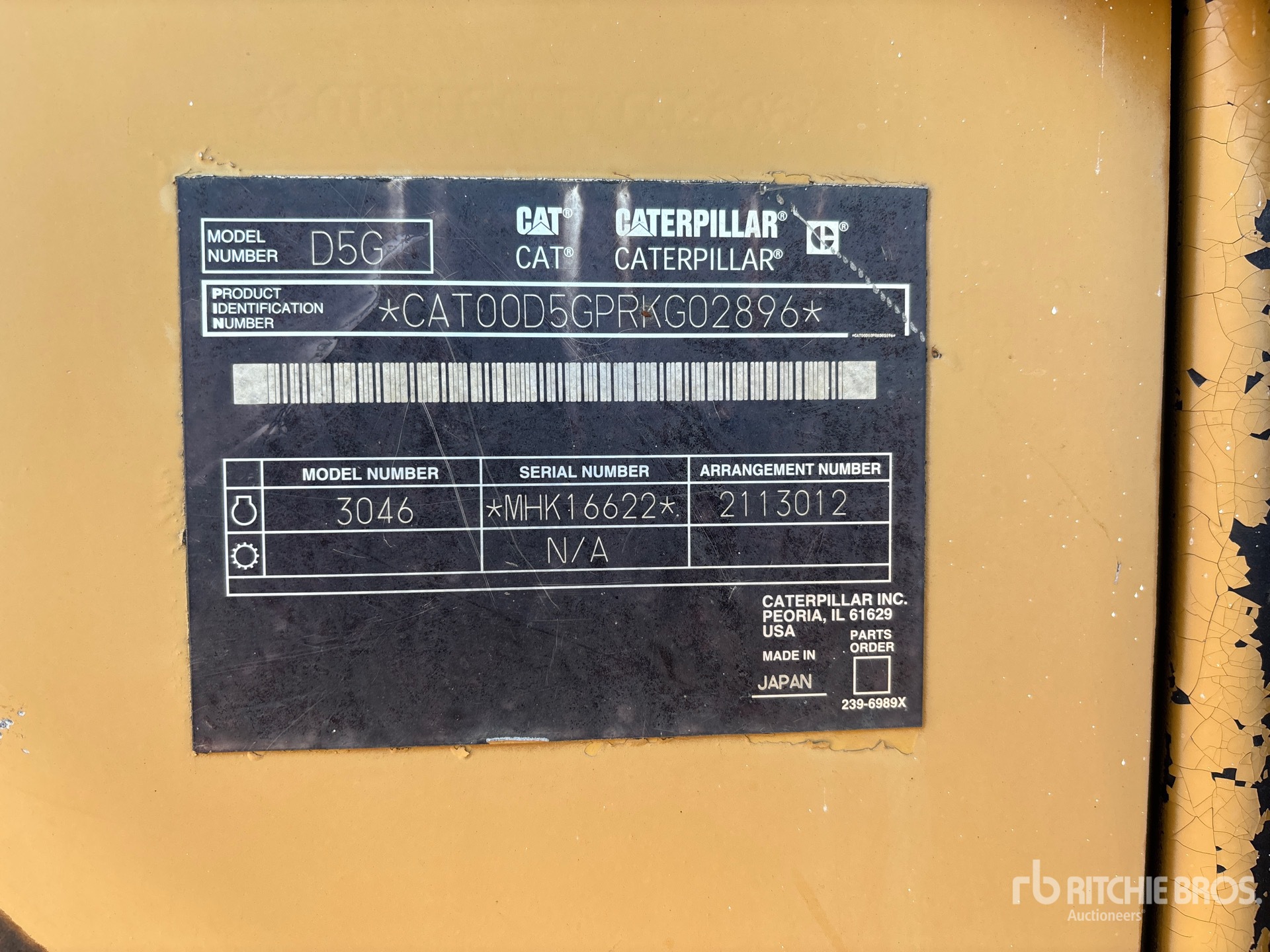

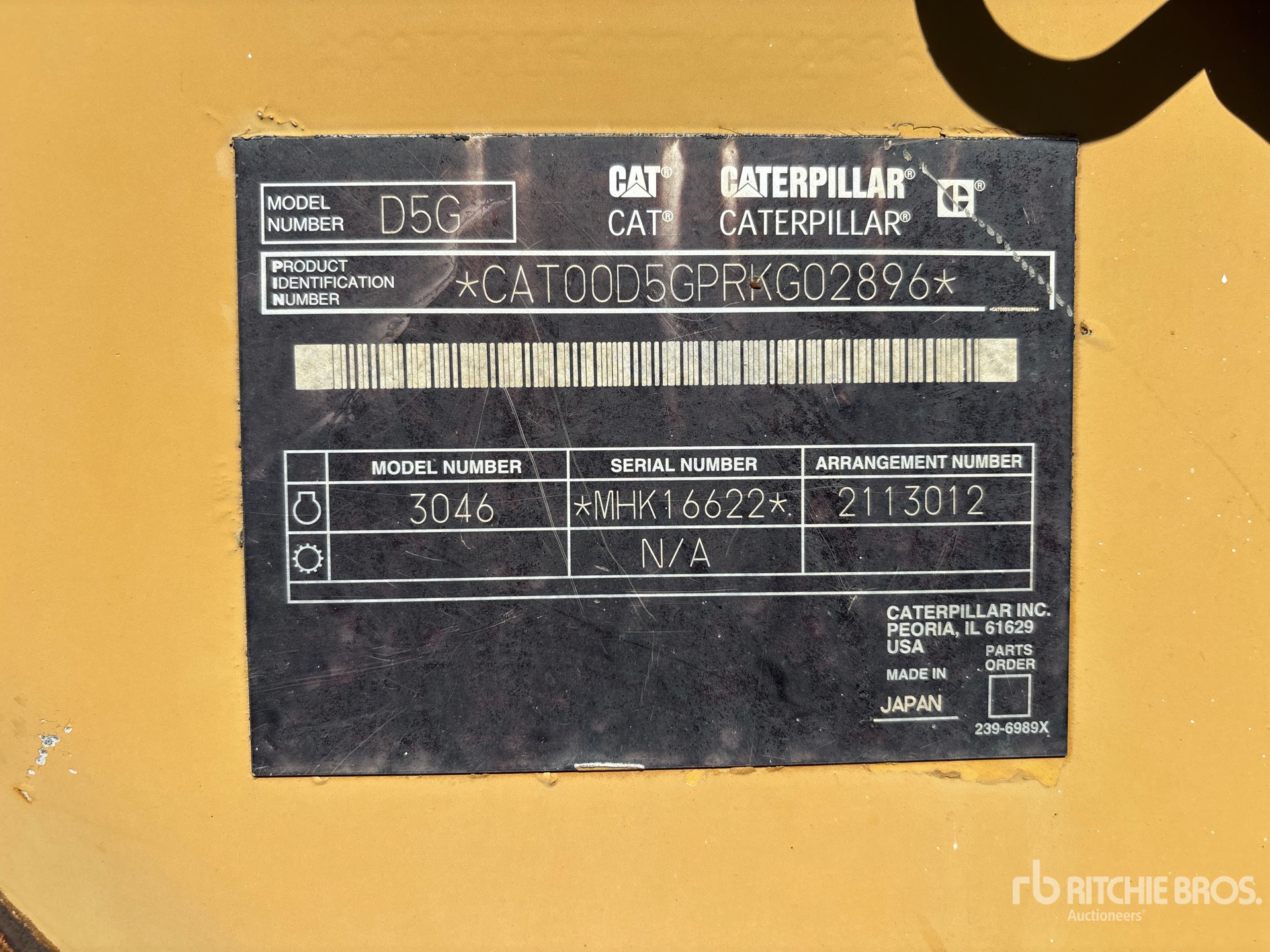

Serial Number:	CAT00D5GPRKG02896
Machine Location:	EDMONTON, AB

Description:

Enclosed Cab, Air Conditioner, Positive Air Shutoff, Sweeps, 128 in Wide PAT Blade, 26 in Single Grouser Track Shoes, Winch Closing Time: 2026-05-11 11:46:30 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar D5G LGP is a crawler dozer designed for grading, dozing, and site preparation in soft or low-ground-pressure conditions. The LGP designation indicates a wide-track undercarriage that helps reduce ground pressure and improve flotation on wet, sandy, or sensitive terrain. As part of the D5G series, it is commonly used in construction, land clearing, road work, and utility projects where traction and maneuverability are important. Typical features include a hydrostatic drive system, a front blade, and a rear ripper option depending on configuration. The Caterpillar D5G LGP is recognized for compact size, controlled operation, and versatile earthmoving performance.

Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Length of Track on Ground	8 ft (2 m)
Length w/ Blade	14 ft (4 m)
Length w/o Blade	11 ft (3 m)
Width Over Tracks	8 ft (2 m)
Engine
Displacement	305 cu in (4,998 cu cm)
Engine Model	3046T
Gross Power	99 hp (74 kw)
Net Power	90 hp (67 kw)
Power Measured @	2,200 rpm
Hydraulic System
Pump Flow Capacity	16 gpm (61 lpm)
Relief Valve Pressure	2,900 psi
Operating Specifications
Alternator Supplied Amperage	120 amps
Cooling System Fluid Capacity	4 gal (16 l)
Engine Oil Capacity	3 gal (13 l)
Final Drives Fluid Capacity	6 gal (22 l)
Fuel Capacity	49 gal (184 l)
Hydraulic Fluid Capacity	12 gal (45 l)
Operating Voltage	12 volts
Operating Weight	20,434 lbs (9,269 kg)
Standard Blade
Blade Angle (both directions)	25 degrees
Capacity	3 cu yd (2 cu m)
Height	41 in (103 cm)
Width	11 ft (3 m)
Transmission
Max Speed - Forward	6 mph (9 kph)
Max Speed - Reverse	6 mph (10 kph)
Number of Forward Gears	1
Number of Reverse Gears	1
Transmission Type	Hydrostatic
Undercarriage
Ground Contact Area	4,741 cu in (77,691 cu cm)
Ground Pressure	4 psi
Number of Shoes per Side	39
Number of Track Rollers per Side	7
Standard Shoe Size	26 in (66 cm)
Track Gauge	6 ft (2 m)
