Equipment ↠ Caterpillar ↠ Crawler Dozers ↠ 1994 Caterpillar D5H LGP

1994 Caterpillar D5H LGP For Sale in Edmonton, Ab

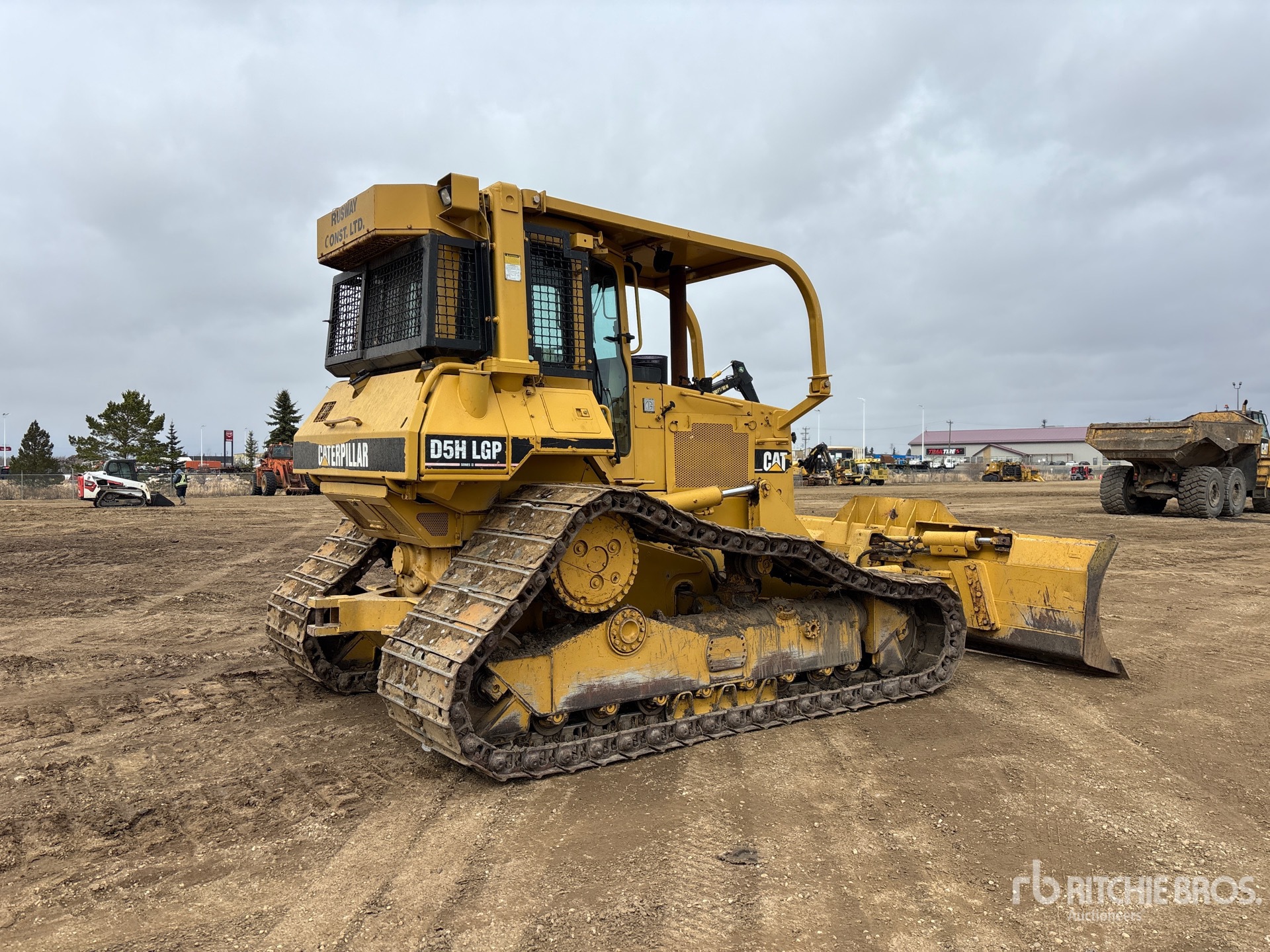

Name: 1994 Caterpillar D5H LGP
Brand: Caterpillar
SKU: 87193091
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

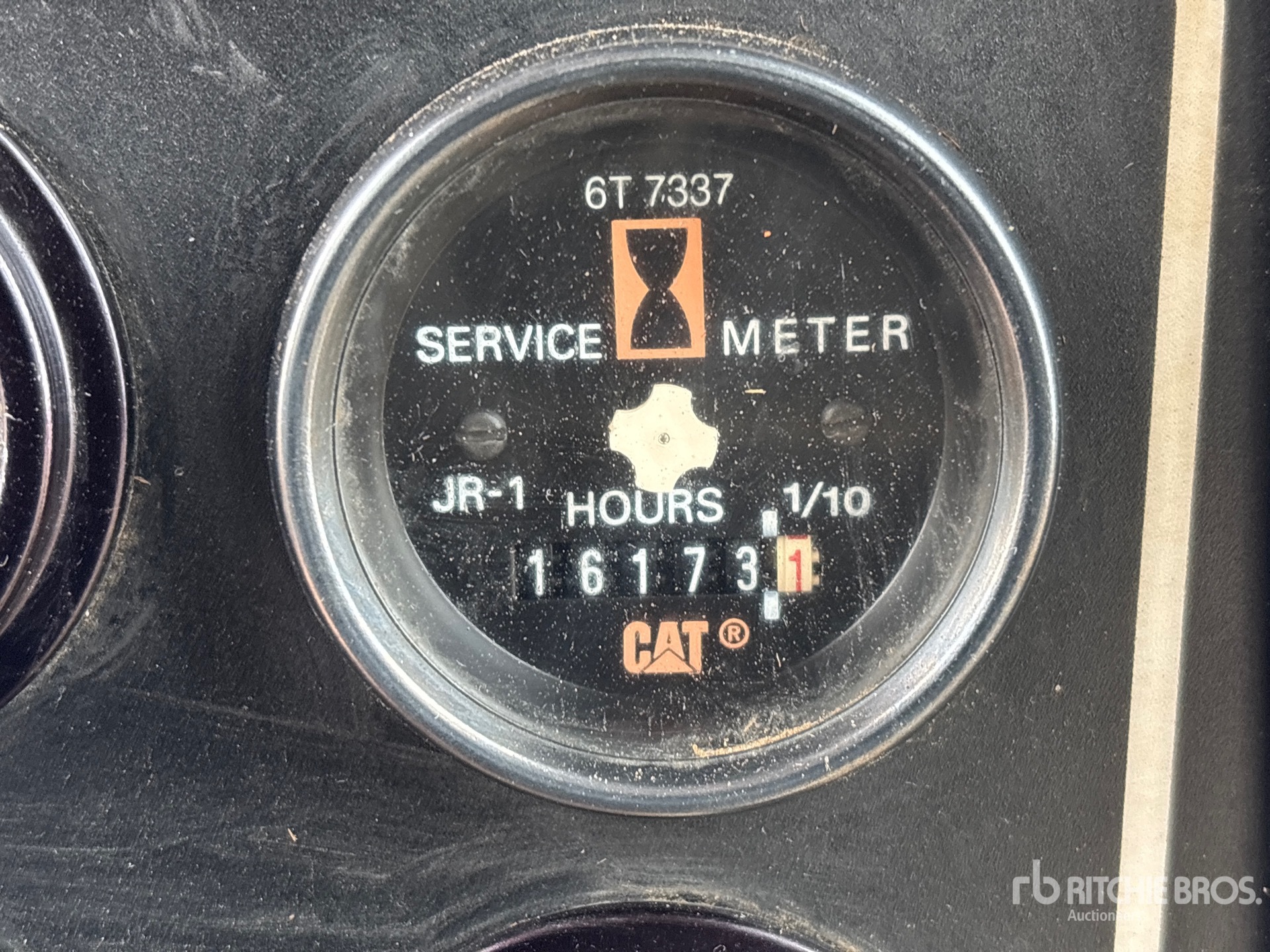

Hours:	16173

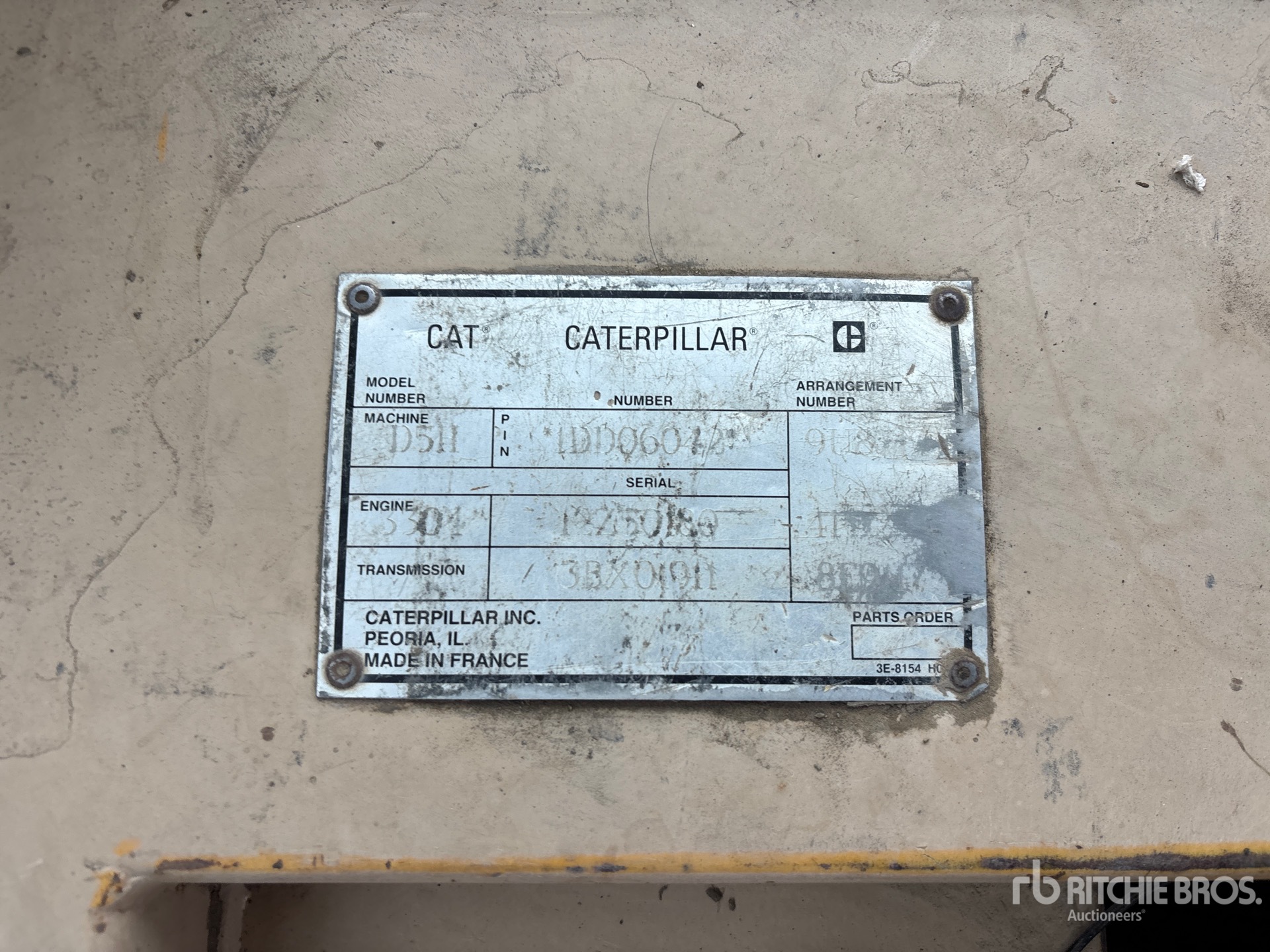

Serial Number:	1DD06042
Machine Location:	EDMONTON, AB

Description:

Located in Lane 54 Spot 24, Enclosed Cab, Air Conditioner, Sweeps, 162 in Wide PAT Blade, 34 in Single Grouser Track Shoes, Drawbar Closing Time: 2026-05-11 11:47:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar D5H LGP is a crawler dozer designed for grading, pushing, and site preparation in soft or low-ground-pressure conditions. The LGP configuration uses wider tracks to reduce ground pressure and improve flotation on wet, sandy, or unstable terrain. The D5H series is known for its durable undercarriage, reliable diesel power, and balanced blade control for earthmoving and land clearing applications. Common uses include road building, forestry work, agricultural land development, and general construction. As a mid-size Caterpillar crawler dozer, the D5H LGP combines traction, stability, and maneuverability for demanding earthmoving tasks.

Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	10 ft (3 m)
Length w/ Blade	17 ft (5 m)
Length w/o Blade	14 ft (4 m)
Width Over Tracks	10 ft (3 m)
Engine
Aspiration	turbocharged
Displacement	427 cu in (7,001 cu cm)
Engine Model	3,304
Gross Power	129 hp (96 kw)
Net Power	120 hp (89 kw)
Number of Cylinders	4
Power Measured @	2,200 rpm
Hydraulic System
Pump Flow Capacity	29 gpm (109 lpm)
Pump type	Load sensing hydraulics variable displacement piston pump
Relief Valve Pressure	3,000 psi
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	7 gal (28 l)
Engine Oil Capacity	5 gal (18 l)
Final Drives Fluid Capacity	2 gal (7 l)
Fuel Capacity	65 gal (246 l)
Hydraulic Fluid Capacity	19 gal (70 l)
Operating Voltage	24 volts
Operating Weight	32,380 lbs (14,687 kg)
Standard Blade
Capacity	4 cu yd (3 cu m)
Height	40 in (103 cm)
Width	13 ft (4 m)
Transmission
Max Speed - Forward	6 mph (10 kph)
Max Speed - Reverse	8 mph (13 kph)
Number of Forward Gears	3
Number of Reverse Gears	3
Transmission Type	Planetary powershift
Undercarriage
Ground Contact Area	8,308 cu in (136,146 cu cm)
Ground Pressure	4 psi
Number of Shoes per Side	46
Number of Track Rollers per Side	8
Standard Shoe Size	34 in (86 cm)
Track Gauge	7 ft (2 m)
