Equipment ↠ Caterpillar ↠ Crawler Dozers ↠ 1993 Caterpillar D6H LGP

1993 Caterpillar D6H LGP For Sale in Toronto, On

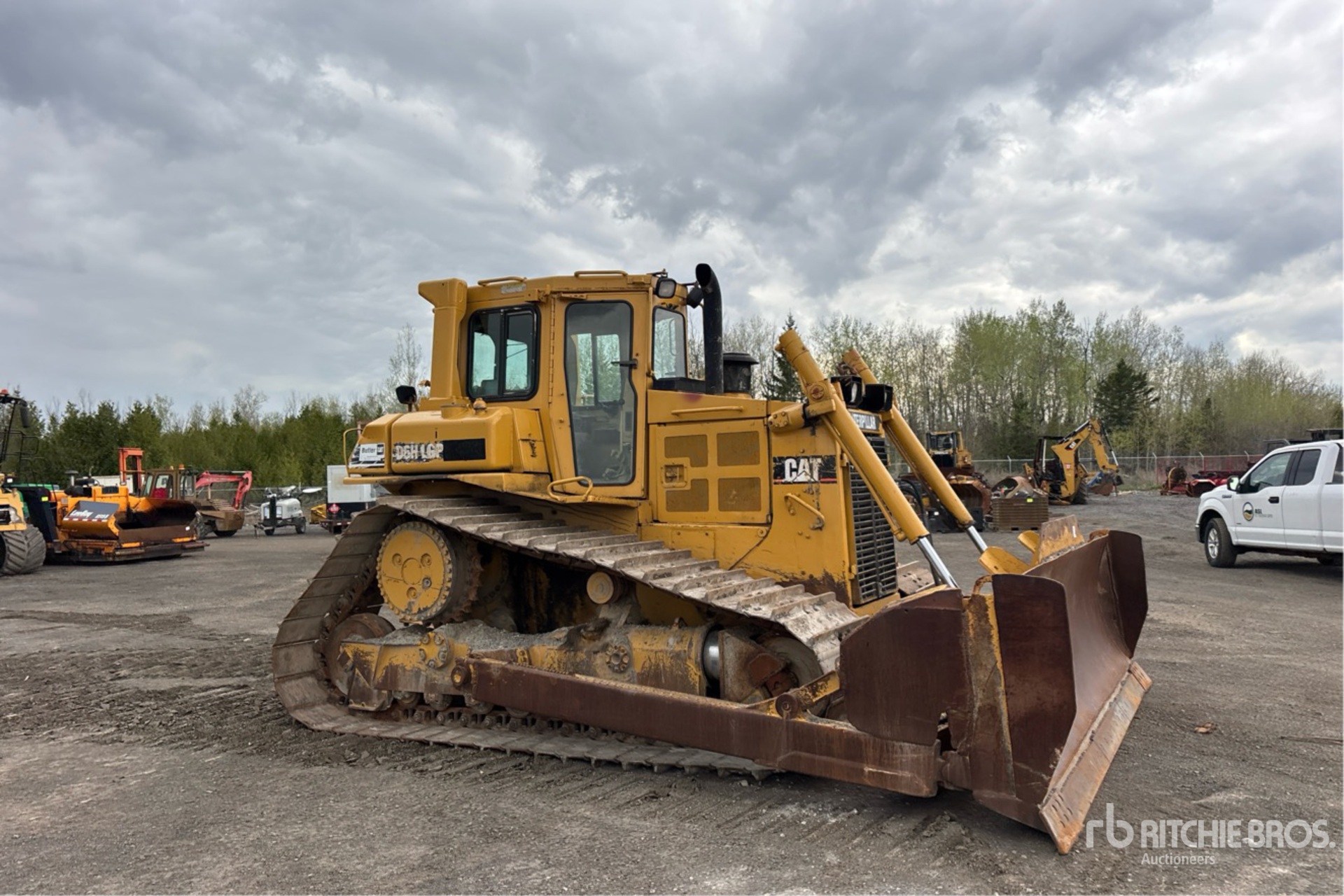

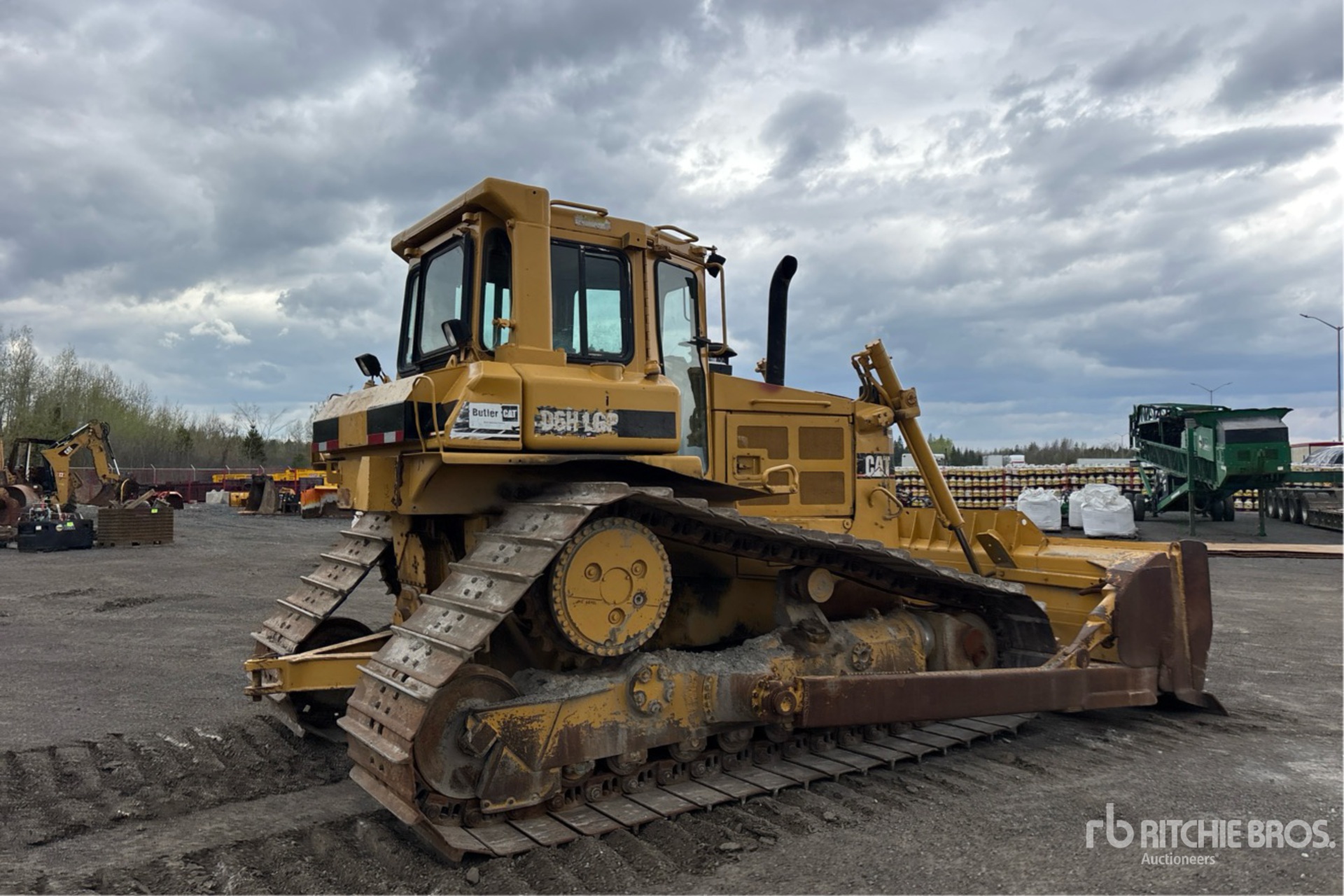

Name: 1993 Caterpillar D6H LGP
Brand: Caterpillar
SKU: 86840357
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-20 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Hours:	18000
Serial Number:	3YG05654
Machine Location:	TORONTO, ON

Description:

Enclosed Cab, 150 in Wide Straight Blade 36 in Single Grouser Track Shoes, Drawbar Additional information available online Closing Time: 2026-05-20 09:13:30 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar D6H LGP is a crawler dozer designed for low ground pressure applications in soft, wet, or unstable terrain. Part of Caterpillar's D6H series, the LGP configuration uses wider tracks and a larger track footprint to reduce soil compaction and improve flotation. It is commonly used in land clearing, site preparation, grading, road building, and general earthmoving. The D6H LGP typically features a diesel engine, hydrostatic or powershift drivetrain depending on configuration, and a heavy-duty undercarriage built for durability. Its balance of traction, blade control, and ground protection makes it suitable for demanding construction and forestry work.

Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	11 ft (3 m)
Length w/ Blade	17 ft (5 m)
Length w/o Blade	15 ft (5 m)
Width Over Tracks	10 ft (3 m)
Engine
Aspiration	turbocharged
Displacement	641 cu in (10,501 cu cm)
Engine Model	3,306
Gross Power	179 hp (133 kw)
Net Power	165 hp (123 kw)
Number of Cylinders	6
Power Measured @	1,800 rpm
Hydraulic System
Pump Flow Capacity	19 gpm (73 lpm)
Pump type	Gear pump
Relief Valve Pressure	2,875 psi
Operating Specifications
Alternator Supplied Amperage	35 amps
Cooling System Fluid Capacity	10 gal (38 l)
Engine Oil Capacity	7 gal (28 l)
Final Drives Fluid Capacity	4 gal (13 l)
Fuel Capacity	85 gal (322 l)
Operating Voltage	24 volts
Operating Weight	43,354 lbs (19,665 kg)
Standard Blade
Capacity	5 cu yd (4 cu m)
Height	43 in (110 cm)
Width	13 ft (4 m)
Transmission
Max Speed - Forward	7 mph (11 kph)
Max Speed - Reverse	9 mph (14 kph)
Number of Forward Gears	3
Number of Reverse Gears	3
Transmission Type	Planetary powershift
Undercarriage
Ground Contact Area	9,252 cu in (151,613 cu cm)
Ground Pressure	5 psi
Number of Shoes per Side	45
Number of Track Rollers per Side	8
Standard Shoe Size	36 in (92 cm)
Track Gauge	7 ft (2 m)
