Equipment ↠ Caterpillar ↠ Crawler Dozers ↠ 2002 Caterpillar D6R XL

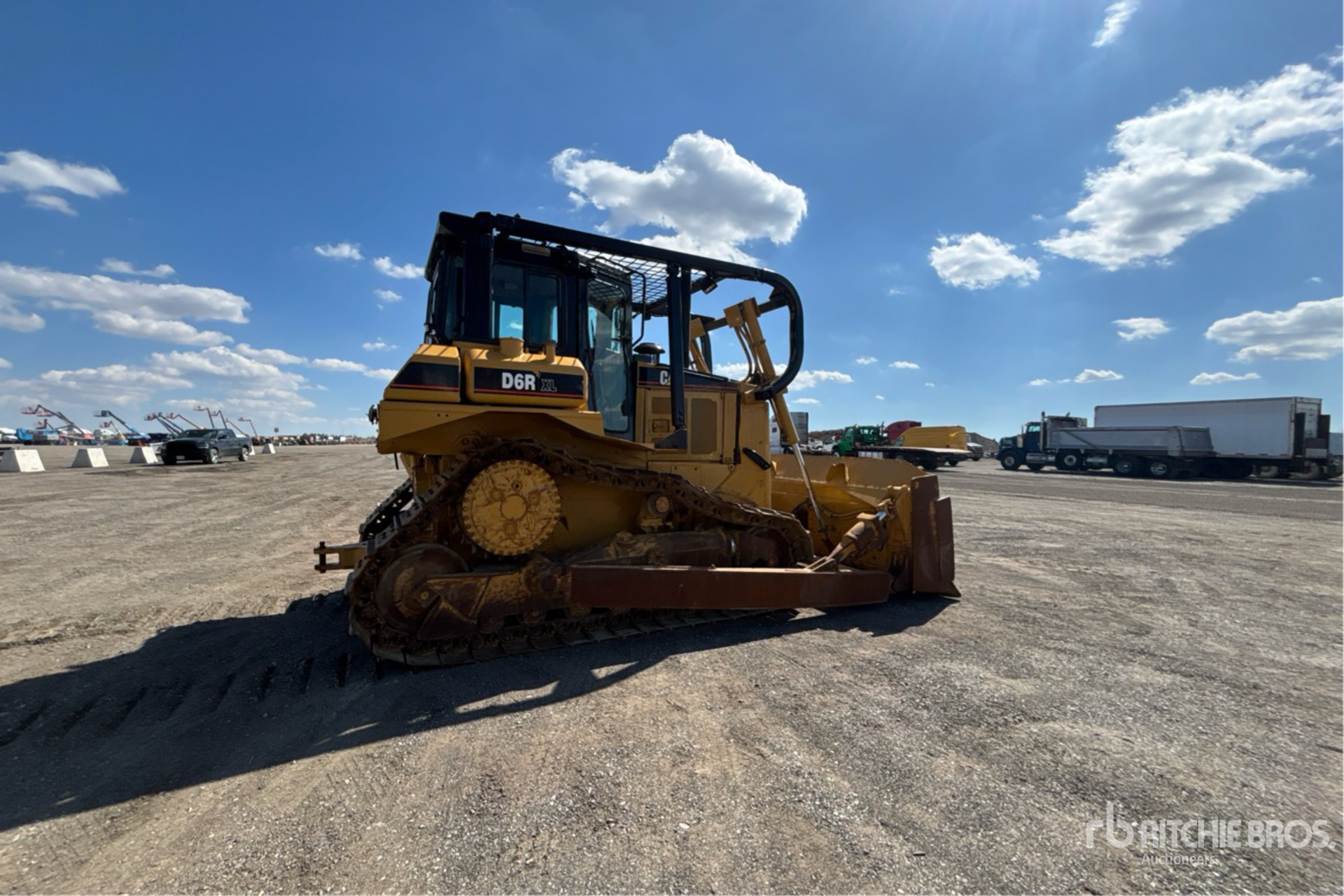

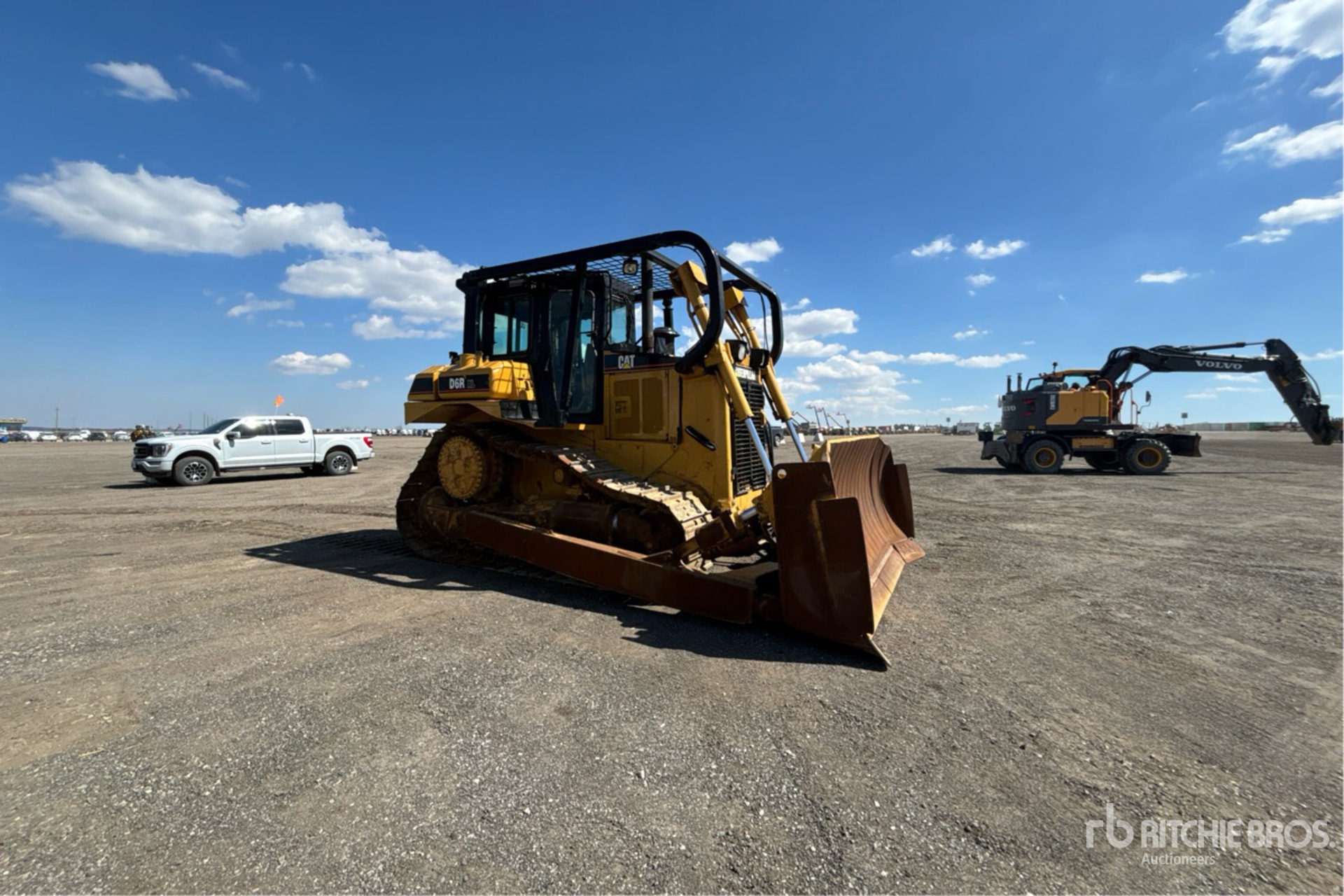

2002 Caterpillar D6R XL For Sale in Toronto, On

Name: 2002 Caterpillar D6R XL
Brand: Caterpillar
SKU: 87198569
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-20 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

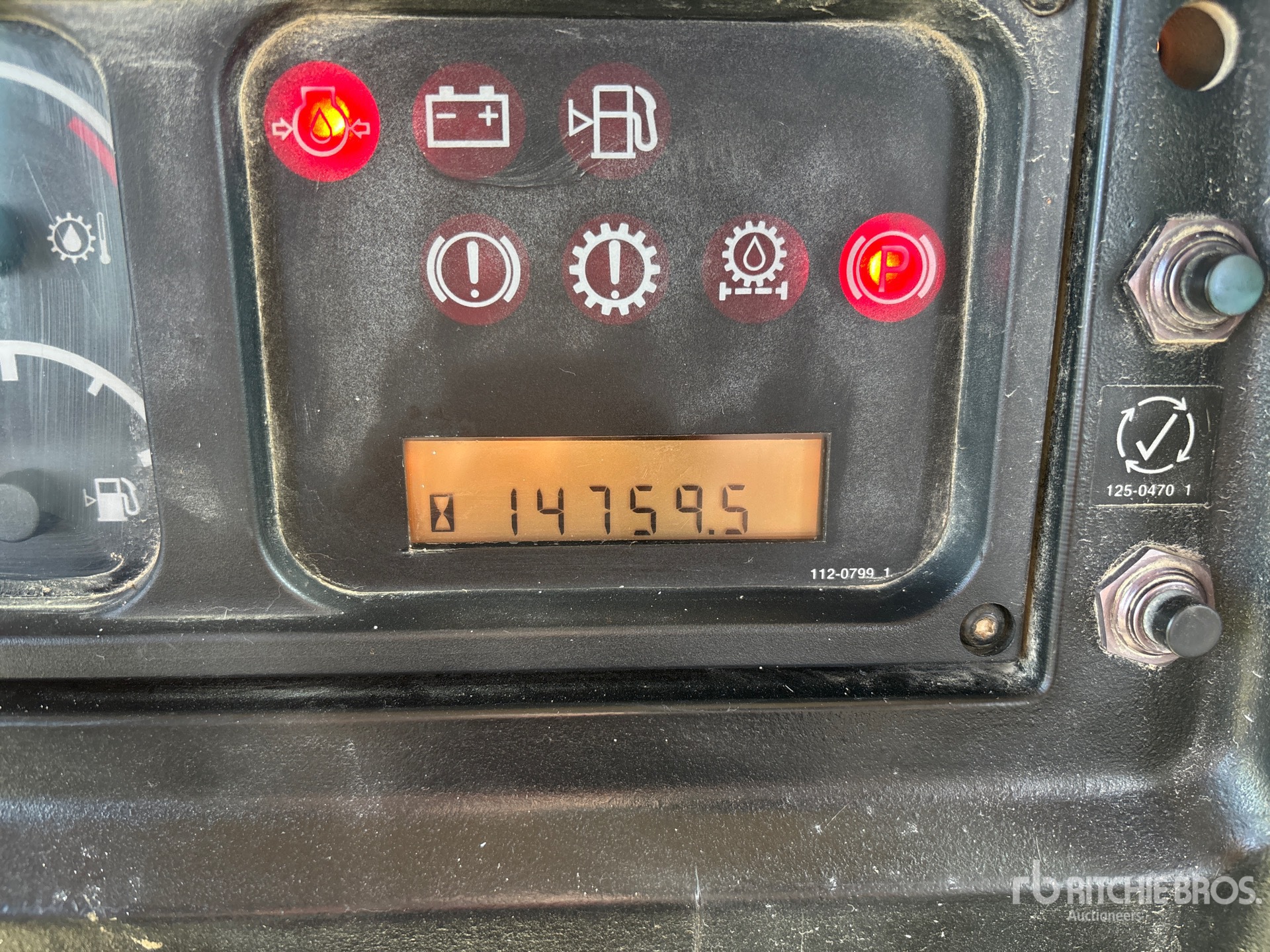

Hours:	14759

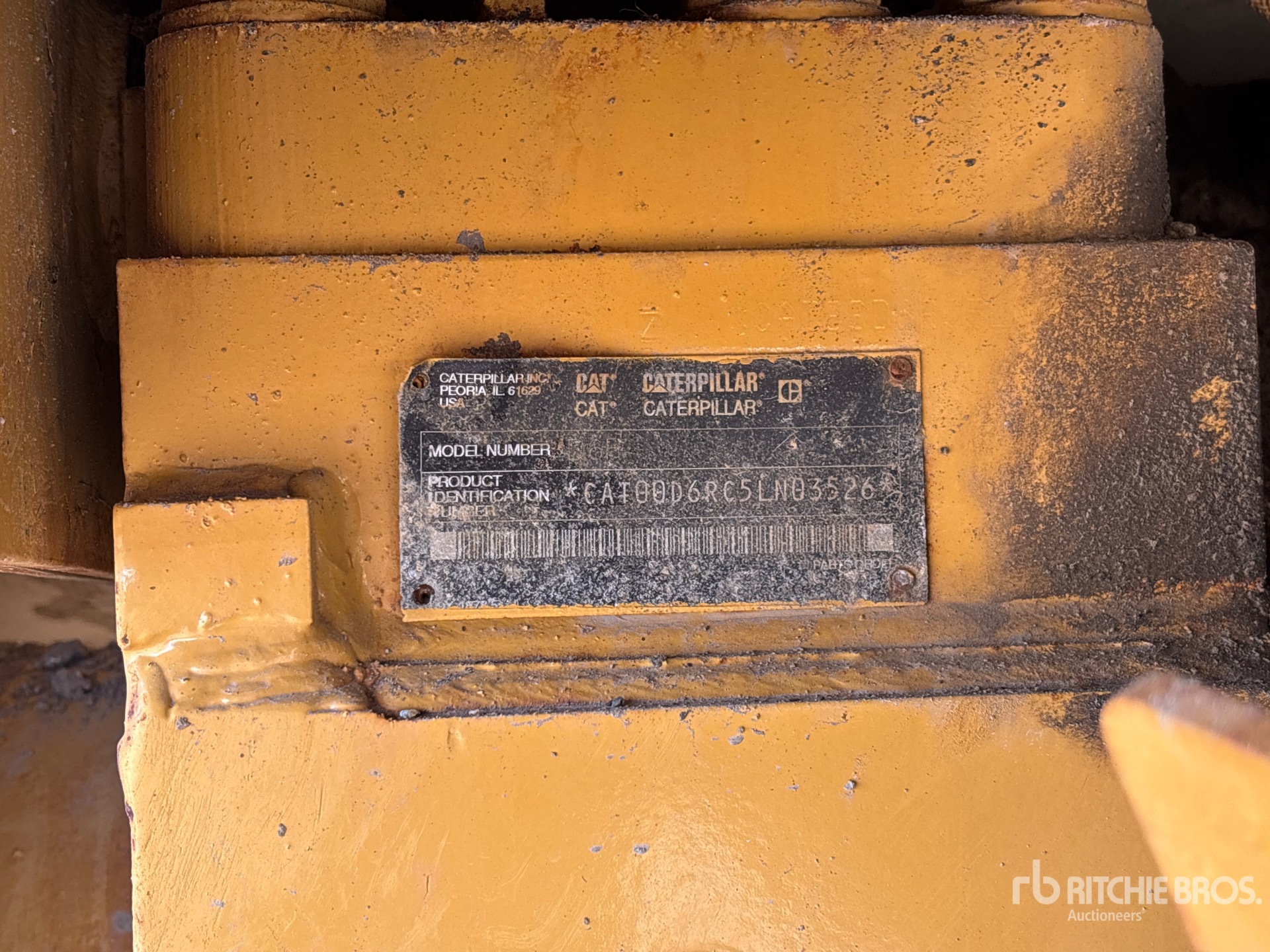

Serial Number:	CAT00D6RC5LN03526
Machine Location:	TORONTO, ON

Description:

Enclosed Cab, Sweeps, 127 in Wide Semi-U Blade w/ Single Tilt, 22 in Single Grouser Track Shoes, Drawbar

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar D6R XL is a versatile crawler dozer designed for medium to heavy earthmoving tasks. Equipped with a powerful engine and an extended undercarriage (XL), it offers enhanced stability and traction on rough terrain. The D6R XL features advanced hydraulic systems for precise blade control, improving grading and pushing efficiency. Its durable construction includes reinforced components to withstand demanding job site conditions. Commonly used in construction, mining, and forestry, the Caterpillar D6R XL delivers reliable performance in land clearing, road building, and site preparation. This crawler dozer combines power, durability, and operator comfort for efficient earthmoving operations.

Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Length of Track on Ground	9 ft (3 m)
Length w/ Blade	18 ft (5 m)
Length w/o Blade	13 ft (4 m)
Width Over Tracks	8 ft (2 m)
Engine
Aspiration	Turbocharged
Displacement	641 cu in (10,501 cu cm)
Engine Model	3306 T
Flywheel Power	175 hp (131 kw)
Gross Power	189 hp (141 kw)
Maximum Flywheel Power	189 hp (141 kw)
Net Power	175 hp (131 kw)
Number of Cylinders	6
Power Measured @	1,900 rpm
Hydraulic System
Pump Flow Capacity	50 gpm (190 lpm)
Pump type	Piston
Relief Valve Pressure	2,800 psi
Operating Specifications
Alternator Supplied Amperage	70 amps
Cooling System Fluid Capacity	20 gal (74 l)
Engine Oil Capacity	7 gal (28 l)
Final Drives Fluid Capacity	4 gal (14 l)
Fuel Capacity	101 gal (383 l)
Hydraulic Fluid Capacity	20 gal (76 l)
Operating Voltage	24 volts
Operating Weight	41,900 lbs (19,006 kg)
Ripper
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole	20 in (51 cm)
Maximum Penetration	20 in (50 cm)
Number of Pockets	3
Overall Beam Width	87 in (220 cm)
Ripper Type	Parallelogram
Service Refill Capacities
Cooling System	20 gal (74 l)
Engine Crankcase	7 gal (28 l)
Final Drive - Each	4 gal (14 l)
Fuel Tank	101 gal (383 l)
Hydraulic Tank	20 gal (76 l)
Power Train	41 gal (155 l)
Standard Blade
Capacity	7 cu yd (6 cu m)
Height	56 in (141 cm)
Width	11 ft (3 m)
Transmission
1 Forward	3 mph (4 kph)
1 Reverse	3 mph (5 kph)
2 Forward	4 mph (7 kph)
2 Reverse	5 mph (9 kph)
3 Forward	7 mph (11 kph)
3 Reverse	9 mph (15 kph)
Max Speed - Forward	7 mph (12 kph)
Max Speed - Reverse	10 mph (15 kph)
Number of Forward Gears	3
Number of Reverse Gears	3
Transmission Type	Power Shift
Undercarriage
Ground Clearance	1 ft (0 m)
Ground Contact Area	4,888 cu in (80,100 cu cm)
Ground Pressure	9 psi
Number of Shoes per Side	41
Number of Track Rollers per Side	7
Standard Shoe Size	22 in (56 cm)
Track Gauge	6 ft (2 m)
Track Pitch	8 in (20 cm)
Winch
Drum Diameter	10 in (26 cm)
Drum Width	10 in (25 cm)
Flange Diameter	13 in (33 cm)
Increased Tractor Length - STD	20 in (52 cm)
Oil Capacity	18 gal (67 l)
Weight	2,502 lbs (1,135 kg)
Winch and Bracket Length	47 in (120 cm)
Winch Case - Width	38 in (98 cm)
