Equipment ↠ Caterpillar ↠ Crawler Dozers ↠ 2009 Caterpillar D9T

2009 Caterpillar D9T For Sale in Saskatoon, SK

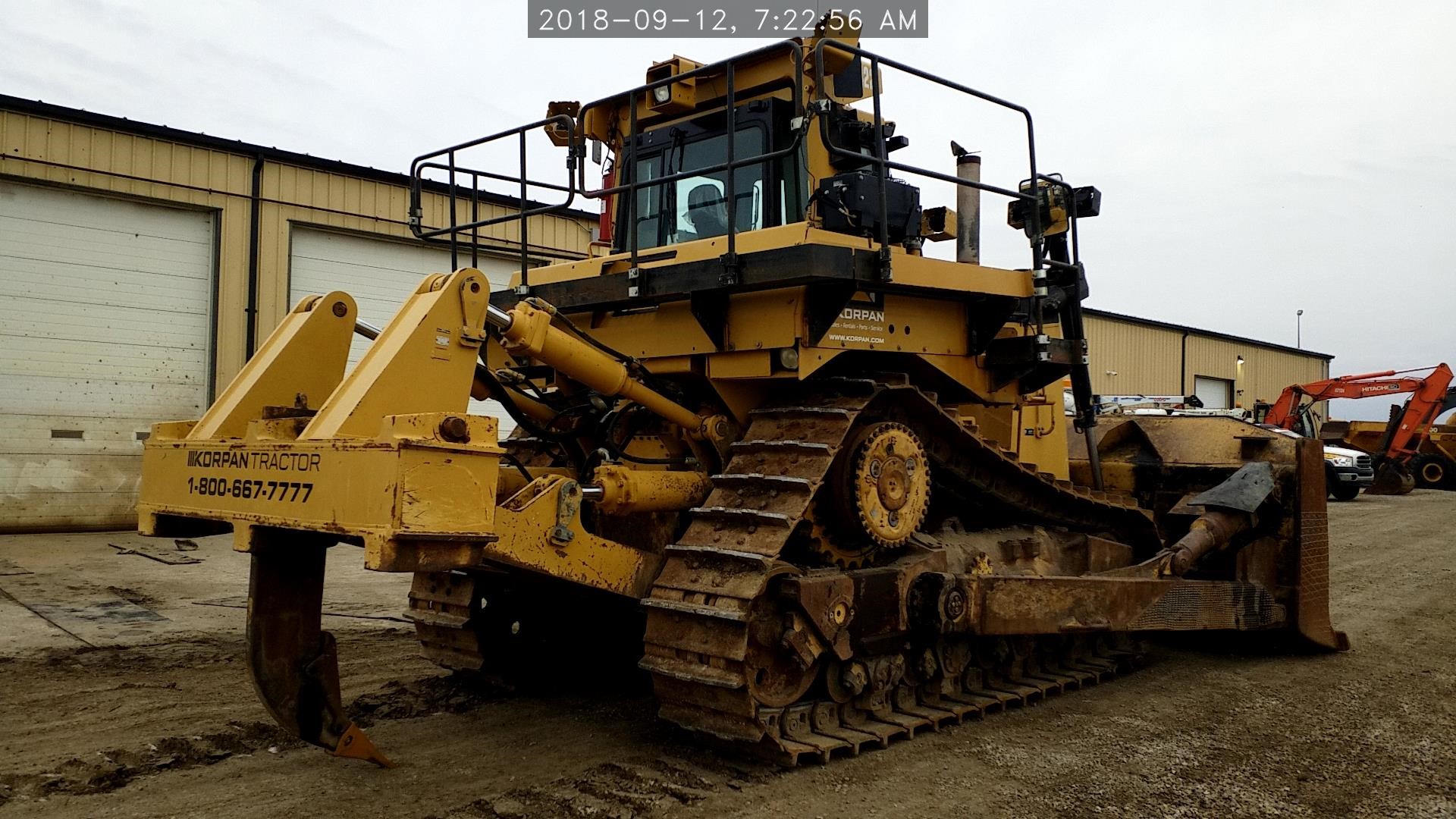

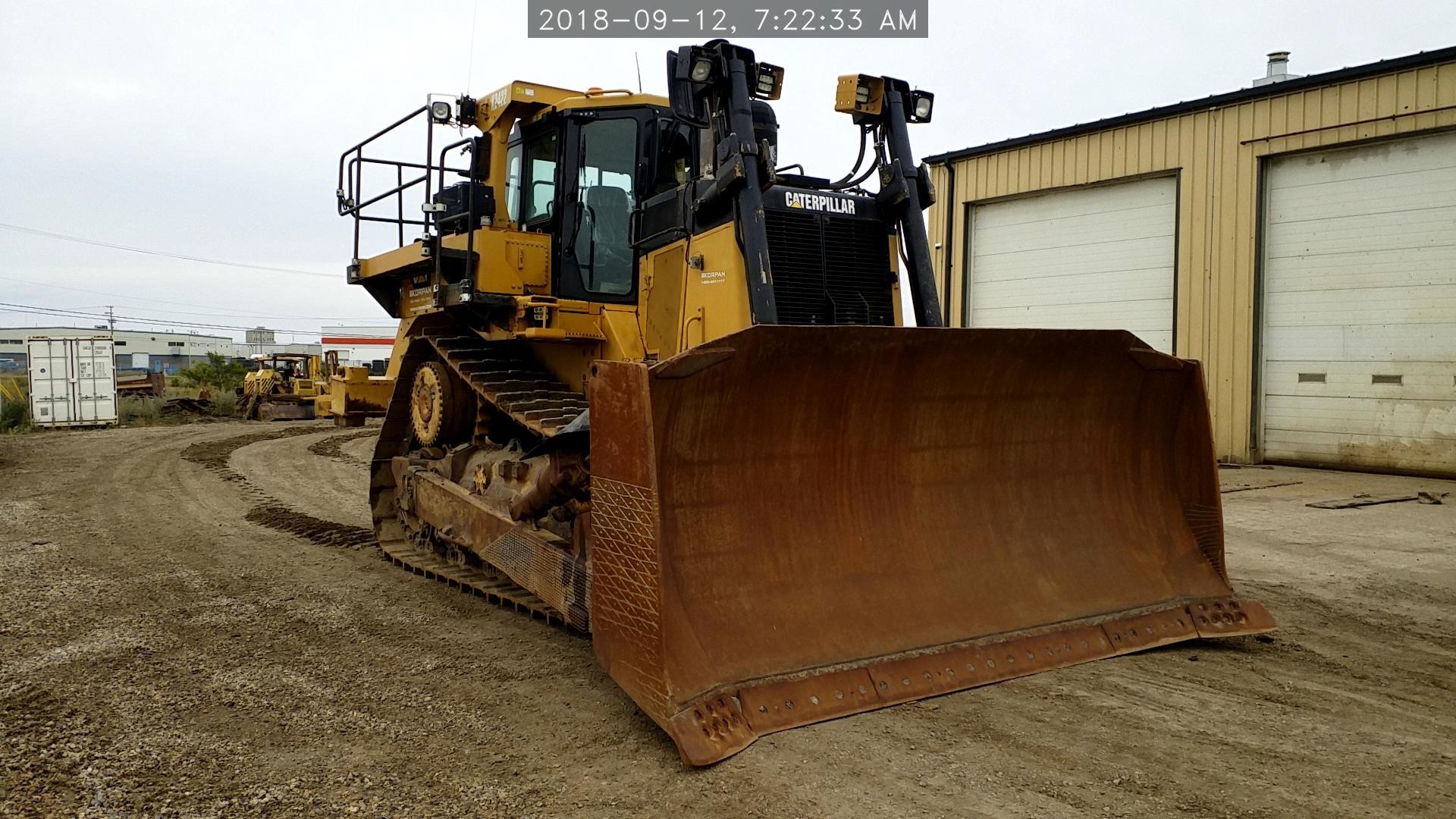

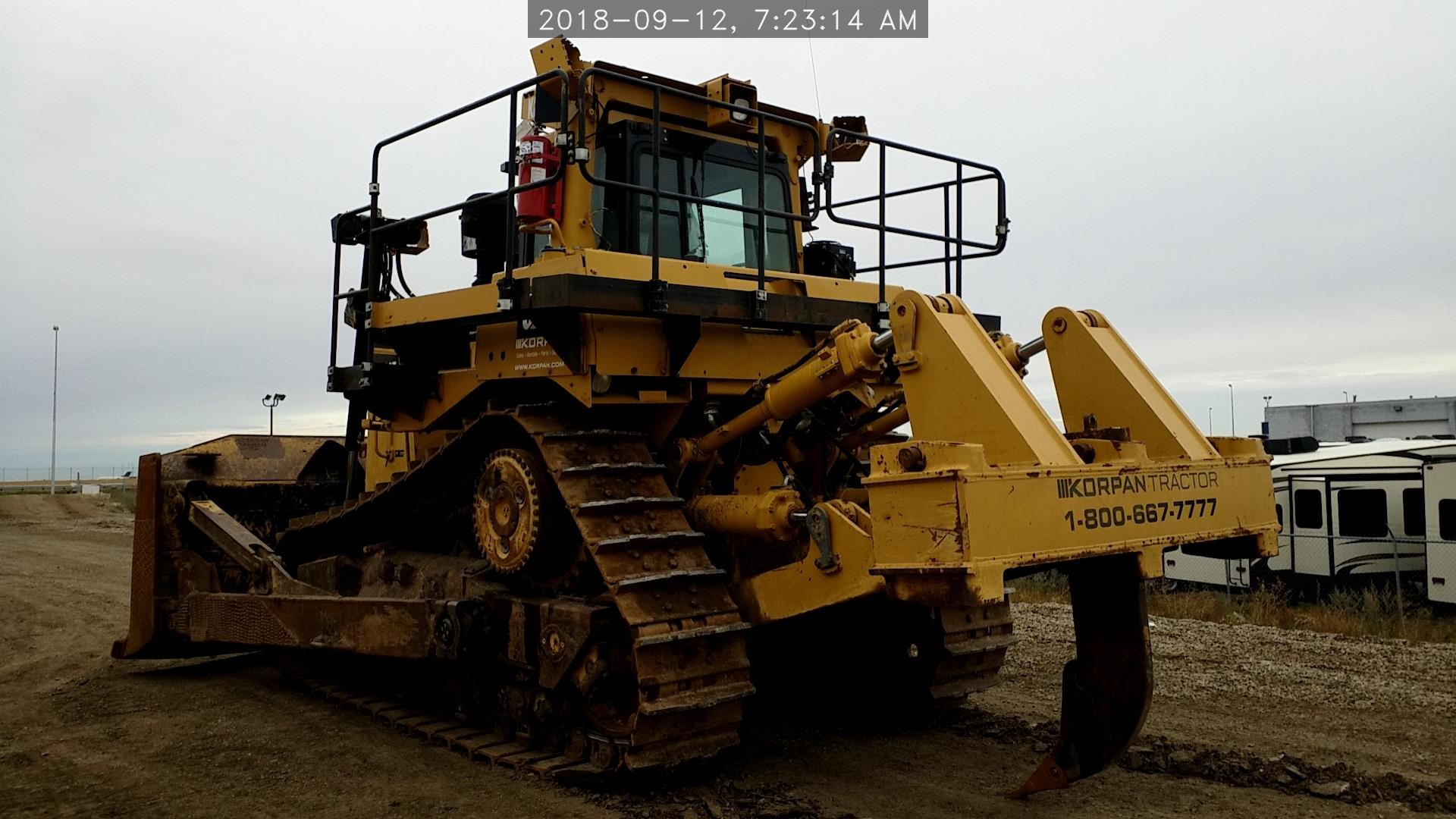

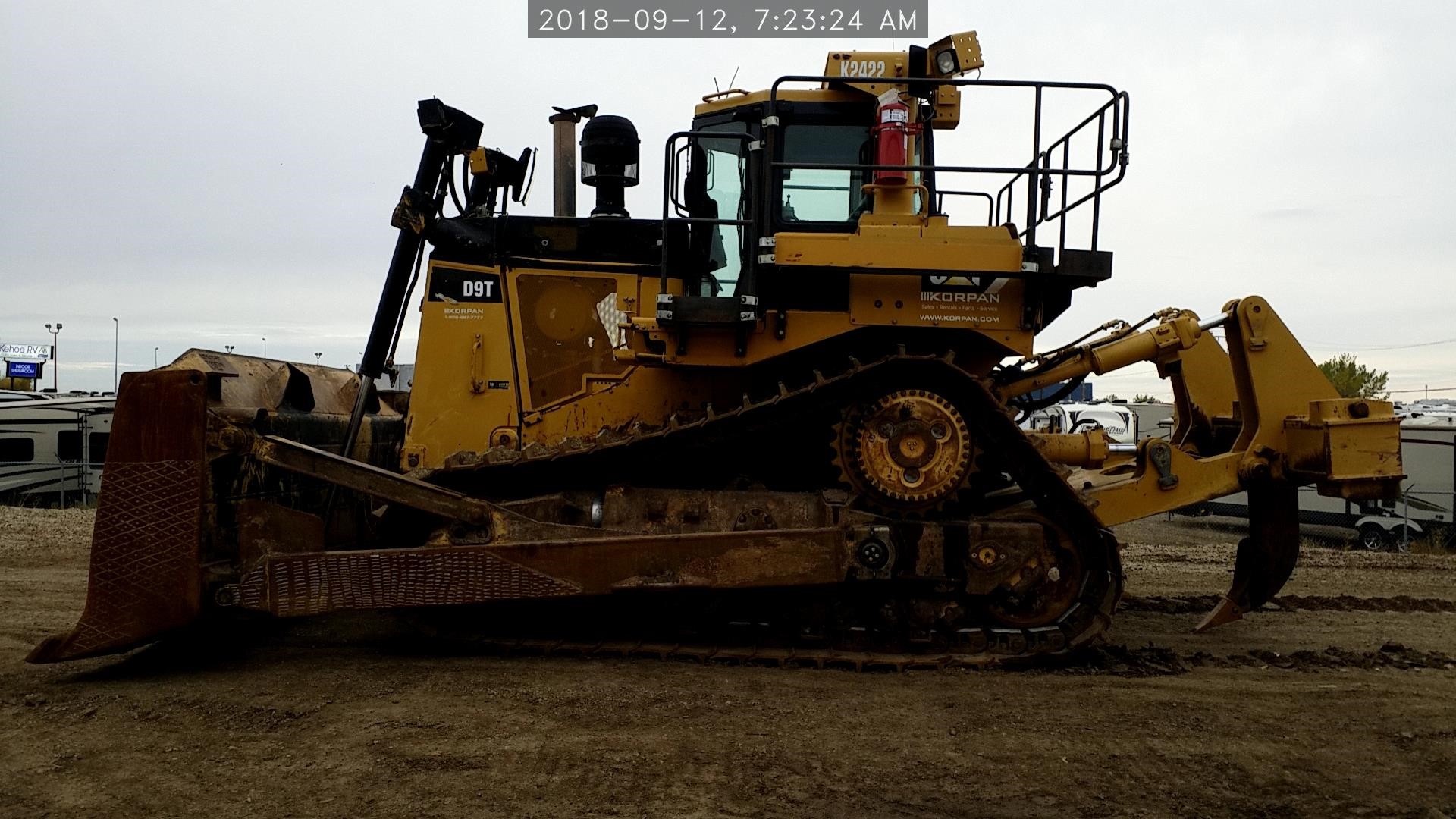

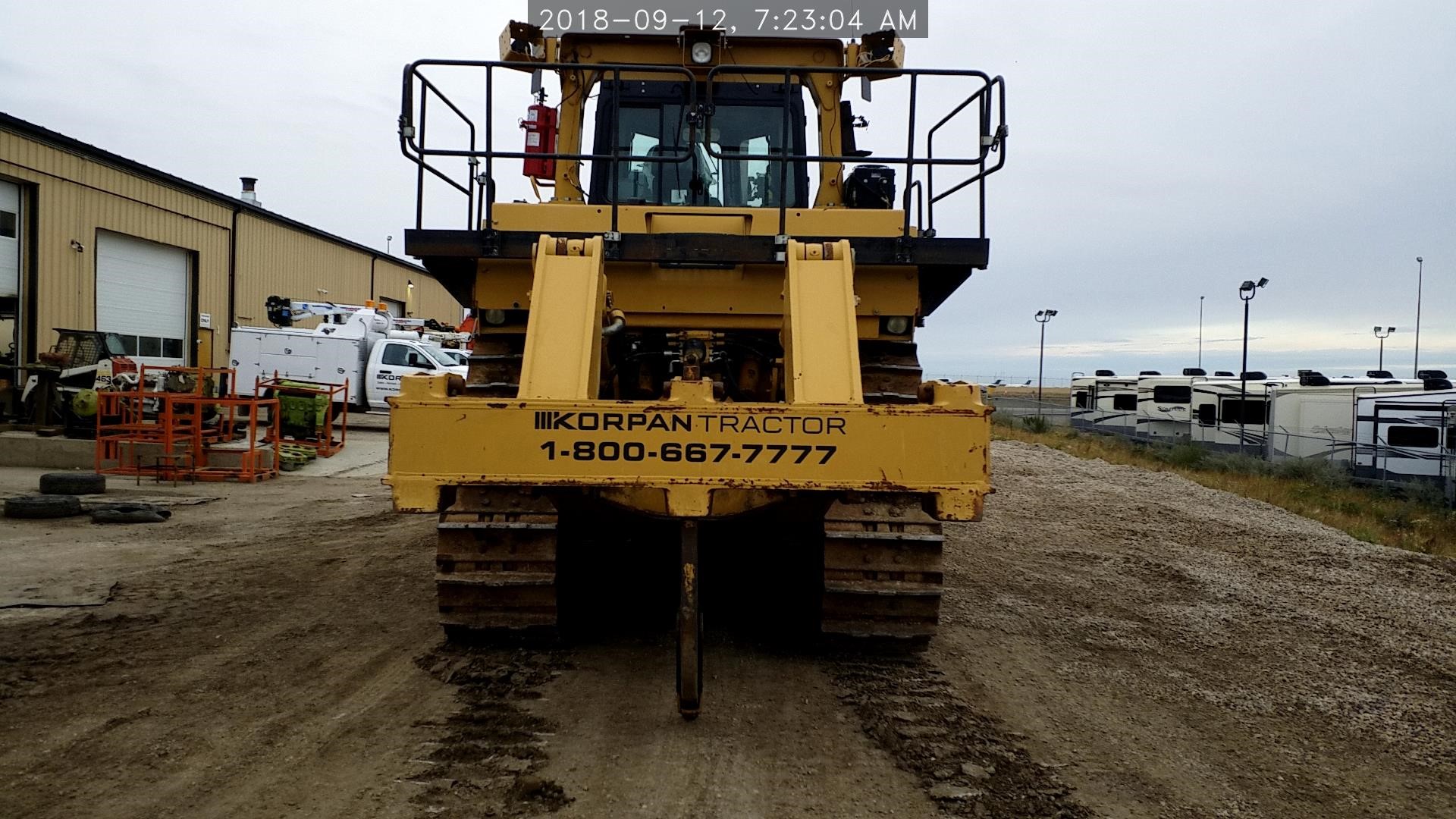

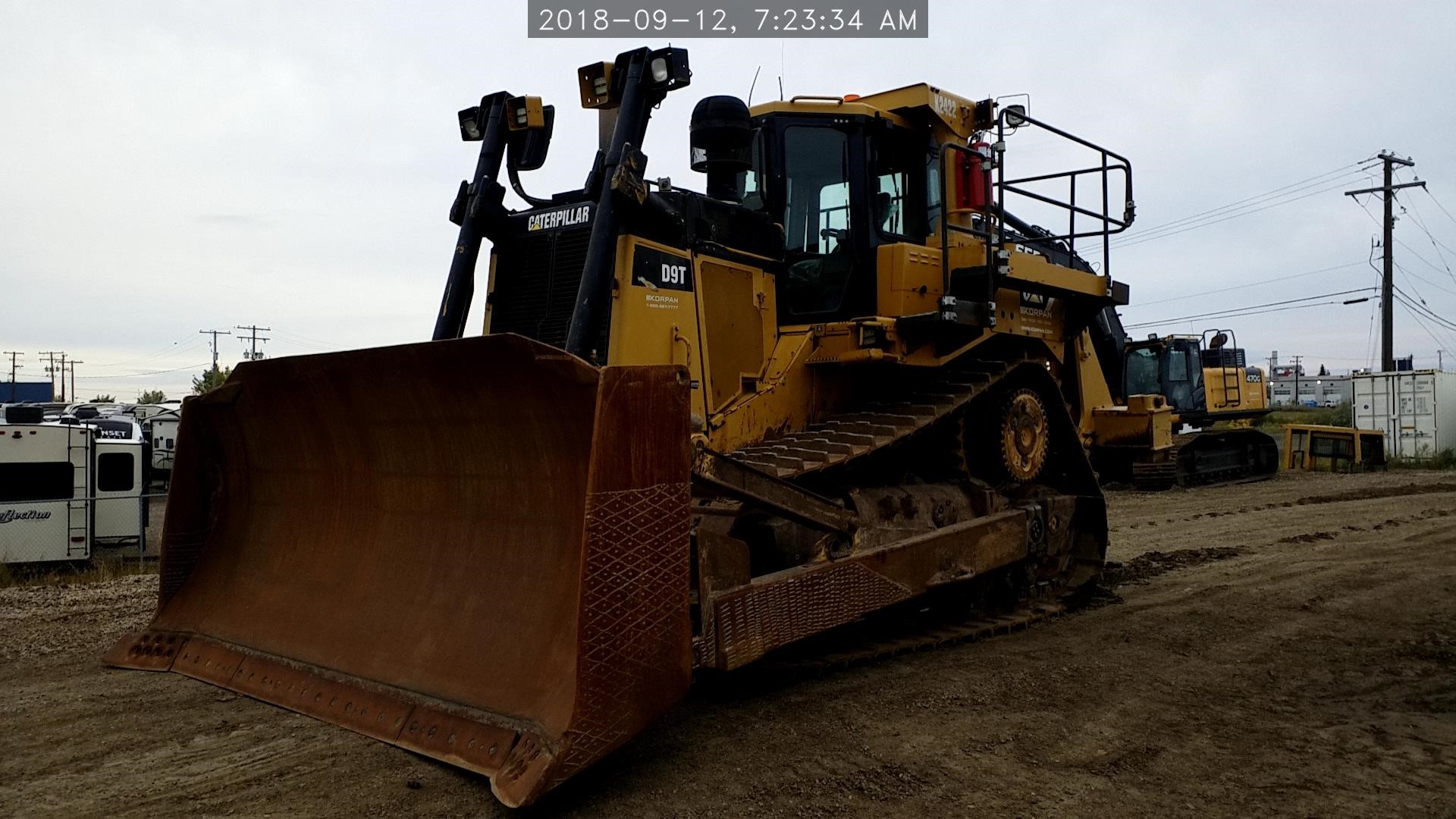

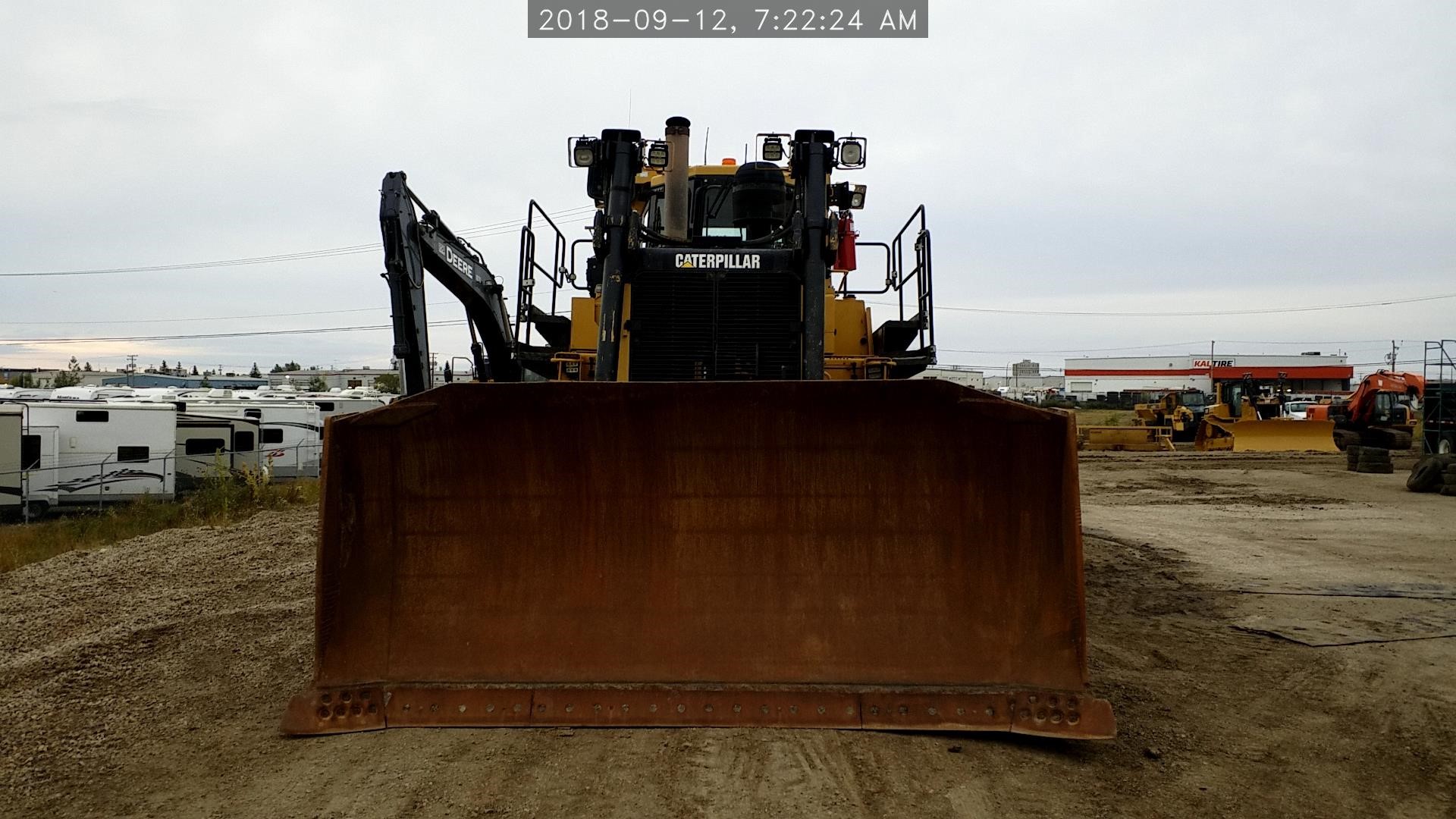

Name: 2009 Caterpillar D9T
Brand: Caterpillar
SKU: 87653966
Price: 519000 CAD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $380,839.00 USD
Converted From: 519,000.00 CAD

Apply for Financing

Korpan Tractor

Korpan Tractor Dealer Info

Korpan Tractor Website

Click here to email Korpan Tractor.

Contact: Main

Click for Phone Number

Machine Info:

Stock Number:	K2422
Machine Location:	SASKATOON, SK

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar D9T is a heavy-duty crawler dozer designed for large-scale earthmoving and construction projects. Equipped with a powerful engine and advanced hydraulic systems, the D9T delivers exceptional pushing force and precise blade control. Its robust undercarriage and reinforced frame provide durability and stability in challenging terrains. The D9T features operator comfort enhancements, including an ergonomic cab and intuitive controls, improving productivity and safety. Commonly used in mining, forestry, and heavy construction, the Caterpillar D9T crawler dozer excels in grading, land clearing, and material handling tasks. Its reliability and performance make it a preferred choice in the heavy equipment industry.

Dimensions
Ground Clearance	2 ft (1 m)
Height - Top of Cab	13 ft (4 m)
Length of Track on Ground	11 ft (3 m)
Length w/ Blade	22 ft (7 m)
Length w/o Blade	16 ft (5 m)
Width Over Tracks	9 ft (3 m)
Engine
Displacement	1,106 cu in (18,124 cu cm)
Engine Model	C18 ACERT
Gross Power	464 hp (346 kw)
Make	Cat
Power Measured @	1,800 rpm
General Specifications
Engine Power hp (kW) (Since 2016)	410 (306)
Engine Power hp (kW) (2017)	410 (306)
Engine Power hp (kW) (2018)	410 (306)
Engine Power hp (kW) (2019)	410 (306)
Engine Power hp (kW) (2020)	410 (306)
Engine Power hp (kW) (2021)	410 (306)
Engine Type (Since 2016)	C18 ACERT
Engine Type (Since 2017)	Cat C18 ACERT
Engine Type (2018)	Cat C18 ACERT
Engine Type (2019)	Cat C18 ACERT
Engine Type (2020)	Cat C18 ACERT
Engine Type (2021)	Cat C18 ACERT
Weight lb. (kg) (Since 2016)	94,265 (42,758)
Weight lb. (kg) (2017)	94,265 (42,758)
Weight lb. (kg) (2018)	94,265 (42,758)
Weight lb. (kg) (2019)	94,265 (42,758)
Weight lb. (kg) (2020)	94,265 (42,758)
Weight lb. (kg) (2021)	94,265 (42,758)
Hydraulic System
Pump Flow Capacity	101 gpm (382 lpm)
Pump type	Piston
Relief Valve Pressure	5,875 psi
Operating Specifications
Alternator Supplied Amperage	95 amps
Cooling System Fluid Capacity	28 gal (104 l)
Engine Oil Capacity	10 gal (38 l)
Final Drives Fluid Capacity	4 gal (15 l)
Fuel Capacity	235 gal (889 l)
Hydraulic Fluid Capacity	24 gal (89 l)
Operating Voltage	24 volts
Standard Blade
Capacity	18 cu yd (14 cu m)
Height	7 in (17 cm)
Width	14 ft (4 m)
Transmission
Max Speed - Forward	7 mph (12 kph)
Max Speed - Reverse	9 mph (14 kph)
Number of Forward Gears	3
Number of Reverse Gears	3
Transmission Type	Power Shift
Undercarriage
Ground Contact Area	6,569 cu in (107,647 cu cm)
Ground Pressure	16 psi
Number of Shoes per Side	43
Number of Track Rollers per Side	8
Standard Shoe Size	24 in (61 cm)
Track Gauge	7 ft (2 m)
Track Pitch	10 in (24 cm)
