Equipment ↠ Caterpillar ↠ Excavators ↠ 1990 Caterpillar 235C

1990 Caterpillar 235C For Sale in Chicago, Il

Name: 1990 Caterpillar 235C
Brand: Caterpillar
SKU: 87132883
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-12 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

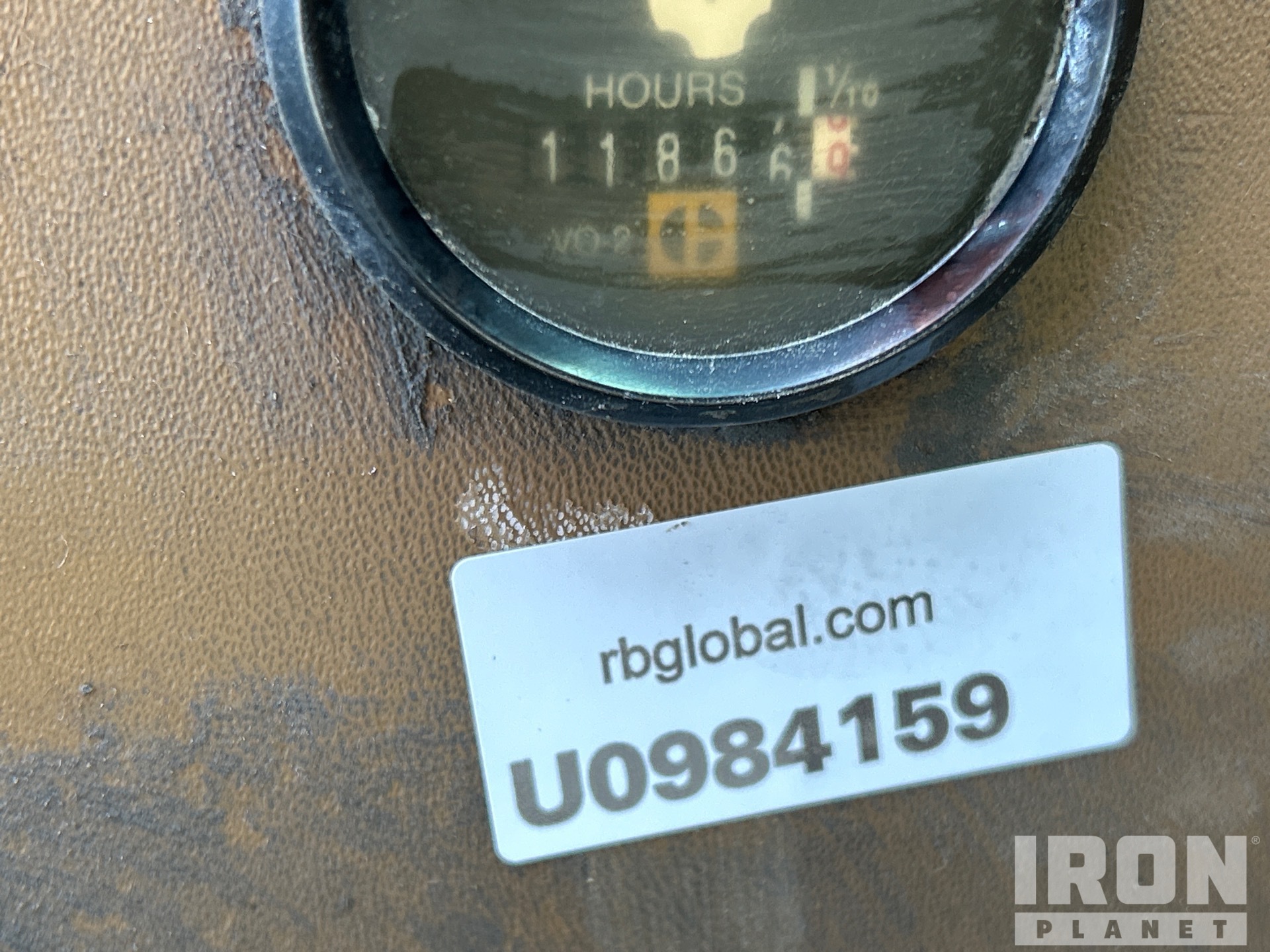

Hours:	11866

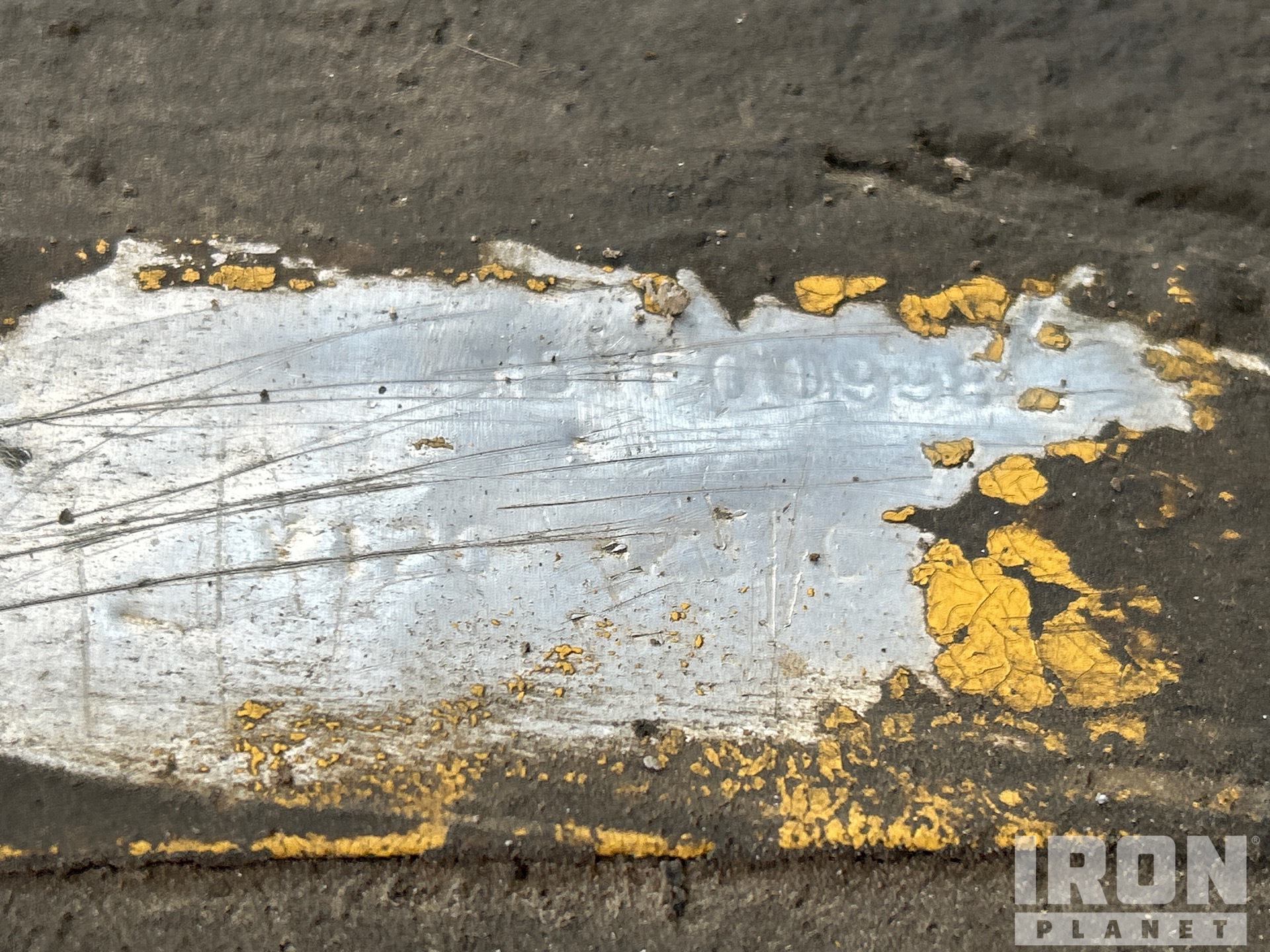

Serial Number:	5AF00996
Machine Location:	CHICAGO, IL

Description:

9 ft 4 in Stick, Auxiliary Hydraulic Plumbing, 36 in Triple Grouser Track Shoes Closing Time: 2026-05-12 03:51:10 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Backhoe Boom / Stick 1
Max Cutting Height	31 ft (10 m)
Max Dig Depth	23 ft (7 m)
Max Dump Height	21 ft (6 m)
Max Reach on Ground	36 ft (11 m)
Max Vertical Wall Dig Depth	16 ft (5 m)
Backhoe Boom / Stick 2
Max Cutting Height	32 ft (10 m)
Max Dig Depth	24 ft (7 m)
Max Dump Height	21 ft (6 m)
Max Reach on Ground	37 ft (11 m)
Max Vertical Wall Dig Depth	17 ft (5 m)
Backhoe Boom / Stick 3
Max Cutting Height	33 ft (10 m)
Max Dig Depth	27 ft (8 m)
Max Dump Height	22 ft (7 m)
Max Reach on Ground	39 ft (12 m)
Max Vertical Wall Dig Depth	19 ft (6 m)
Dimensions
Height - Top of Cab	11 ft (3 m)
Length of Tracks	17 ft (5 m)
Upper Structure Ground Clearance	4 ft (1 m)
Engine
Displacement	641 cu in (10,501 cu cm)
Engine Model	3,306
Net Power	250 hp (186 kw)
Loading Shovel
Max Cutting Height	30 ft (9 m)
Max Dig Reach	27 ft (8 m)
Max Dump Height	17 ft (5 m)
Operating Specifications
Fuel Capacity	130 gal (492 l)
Undercarriage
Backhoe Ground Pressure - Shoe 1	9 psi
Backhoe Ground Pressure - Shoe 2	8 psi
Backhoe Operating Weight - Shoe 1	92,903 lbs (42,140 kg)
Backhoe Shoe Width 1	30 in (76 cm)
Backhoe Shoe Width 2	36 in (91 cm)
Loading Shovel Ground Pressure	15 psi
Loading Shovel Operating Weight	26,478 lbs (12,010 kg)
Loading Shovel Shoe Width	18 in (46 cm)
Max Travel Speed	2 mph (3 kph)
Wide Gauge Trencher Option
Drawbar Pull (Wide Gauge Trencher)	69,691 lbs (31,611 kg)
Ground Clearance (Wide Gauge Trencher)	2 ft (1 m)
Ground Pressure (Wide Gauge Trencher)	10 psi
Height - Top of Cab (Wide Gauge Trencher)	11 ft (3 m)
Hydraulic Pump Flow Capacity (Wide Gauge Trencher)	184 gpm (698 lpm)
Hydraulic System Relief Valve Pressure (Wide Gauge Trencher)	4,800 psi
Max Cutting Height (Wide Gauge Trencher)	33 ft (10 m)
Max Digging Depth (Wide Gauge Trencher)	27 ft (8 m)
Max Loading Height (Wide Gauge Trencher)	22 ft (7 m)
Max Reach Along Ground (Wide Gauge Trencher)	39 ft (12 m)
Max Travel Speed (Wide Gauge Trencher)	2 mph (3 kph)
Max Vertical Wall Digging Depth (Wide Gauge Trencher)	19 ft (6 m)
Operating Weight (Wide Gauge Trencher)	101,832 lbs (46,190 kg)
Removal Counterweight Clearance (Wide Gauge Trencher)	4 ft (1 m)
Shoe Size (Wide Gauge Trencher)	30 in (76 cm)
Tail Swing Radius (Wide Gauge Trencher)	11 ft (3 m)
Track Gauge (Wide Gauge Trencher)	11 ft (3 m)
Width to Outside of Tracks (Wide Gauge Trencher)	12 ft (4 m)
