Equipment ↠ Caterpillar ↠ Excavators ↠ 2006 Caterpillar 312CLN

2006 Caterpillar 312CLN For Sale in Caorso, Ita

Name: 2006 Caterpillar 312CLN
Brand: Caterpillar
SKU: 87464430
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-21 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

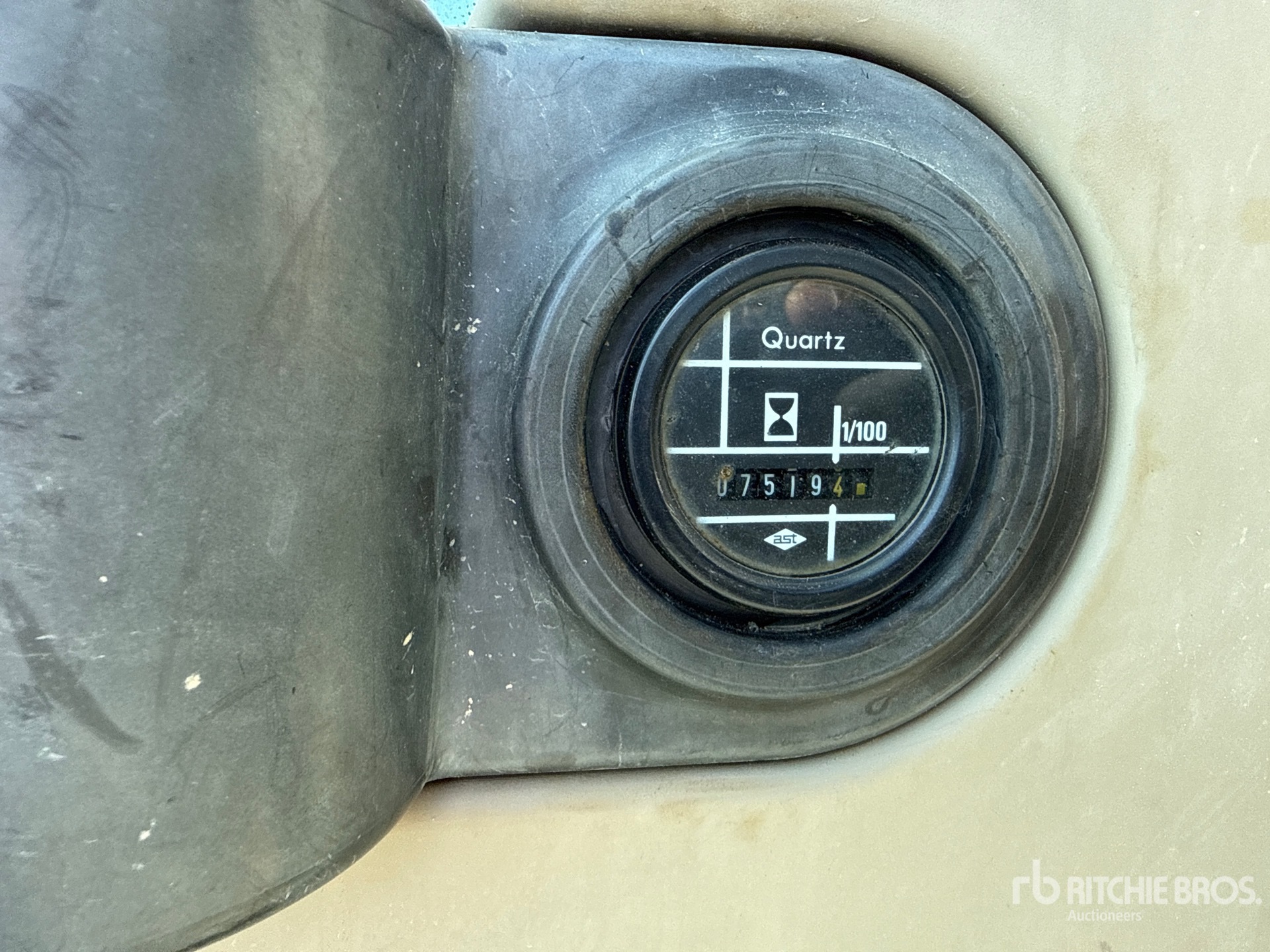

Hours:	7519
Serial Number:	CAT0312CCBWH01298
Machine Location:	CAORSO, ITA

Description:

Auxiliary Hydraulic Plumbing, Stick Check Valve, Boom Check Valves, Triple Grouser Track Shoes, Hydraulic Quick Coupler, Digging Bucket ** Fotocopia Certificato CE/ Copy only of CE Certificate available **, Closing Time: 2026-05-21 08:33:30 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 312C L is a hydraulic excavator designed for medium-duty construction and earthmoving tasks. Featuring a robust Cat C6.4 engine, the 312C L delivers reliable power and fuel efficiency. Its long undercarriage (L) provides enhanced stability and improved digging reach, making it suitable for trenching, material handling, and site preparation. The excavator offers advanced hydraulic systems for precise control and smooth operation. Operator comfort is ensured with an ergonomic cab equipped with climate control and intuitive controls. The Caterpillar 312C L is widely used in construction, landscaping, and utility projects, combining durability, performance, and versatility in a compact excavator platform.

Boom/Stick Excavator Option 1
Max Cutting Height	27 ft (8 m)
Max Digging Depth	18 ft (6 m)
Max Loading Height	20 ft (6 m)
Max Reach Along Ground	27 ft (8 m)
Max Vertical Wall Digging Depth	16 ft (5 m)
Shipping Height of Unit	9 ft (3 m)
Shipping Length of Unit	25 ft (8 m)
Boom/Stick Excavator Option 2
Max Cutting Height	29 ft (9 m)
Max Digging Depth	20 ft (6 m)
Max Loading Height	21 ft (6 m)
Max Reach Along Ground	28 ft (9 m)
Max Vertical Wall Digging Depth	18 ft (5 m)
Shipping Height of Unit	9 ft (3 m)
Shipping Length of Unit	25 ft (8 m)
Bucket
Maximum Bucket Capacity	1 cu yd (1 cu m)
Minimum Bucket Capacity	0 cu yd (0 cu m)
Reference Bucket Capacity	1 cu yd (1 cu m)
Dimensions
Digging Depth	19 ft (6 m)
Digging Reach	19 ft (6 m)
Ground Clearance	2 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Length of Track on Ground	9 ft (3 m)
Tail Swing Radius	7 ft (2 m)
Transport Width	3 ft (1 m)
Width to Outside of Tracks	9 ft (3 m)
DRIVE SYSTEM
Maximum Drawbar Pull	25,200 lbs (11,431 kg)
Travel Speed	4 mph (6 kph)
Engine
Aspiration	Turbocharged
Bore	4 in (10 cm)
Displacement	259 cu in (4,244 cu cm)
Engine Model	Cat 3064T
Flywheel Power	90 hp (67 kw)
Gross Power	94 hp (70 kw)
ISO 9249	90 hp (67 kw)
Net Power	90 hp (67 kw)
Power Measured @	1,950 rpm
SAE J1349	90 hp (67 kw)
Stroke	5 in (13 cm)
Hydraulic System
Boom Cylinder - Bore	4 in (11 cm)
Boom Cylinder - Stroke	40 in (102 cm)
Bucket Cylinder - Bore	4 in (10 cm)
Bucket Cylinder - Stroke	37 in (94 cm)
Main Implement System - Maximum Flow (2x)	34 gpm (127 lpm)
Maximum Pressure - Implements	4,340 psi
Maximum Pressure - Swing	3,340 psi
Maximum Pressure - Travel	4,980 psi
Stick Cylinder - Bore	5 in (12 cm)
Stick Cylinder - Stroke	47 in (120 cm)
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	5 gal (17 l)
Engine Oil Capacity	5 gal (17 l)
Fuel Capacity	66 gal (250 l)
Hydraulic Pump Flow Capacity	34 gpm (127 lpm)
Hydraulic System Fluid Capacity	43 gal (162 l)
Hydraulic System Relief Valve Pressure	4,340 psi
Operating Voltage	24 volts
Operating Weight	28,970 lbs (13,141 kg)
Swing Drive Fluid Capacity	1 gal (3 l)
Service Refill Capacities
Cooling System	5 gal (17 l)
Engine Oil	5 gal (17 l)
Final Drive - Each	1 gal (3 l)
Fuel Tank	66 gal (250 l)
Hydraulic System - Including Tank	43 gal (162 l)
Hydraulic Tank	24 gal (90 l)
Swing Drive - Each	1 gal (3 l)
Swing Mechanism
Swing Speed	12 rpm
Undercarriage
Drawbar Pull	24,720 lbs (11,213 kg)
Ground Pressure	5 psi
Max Travel Speed	3 mph (5 kph)
Shoe Size	24 in (61 cm)
Track Gauge	7 ft (2 m)
Weights
Operating Weight	28,970 lbs (13,141 kg)
Operating Weight - Long Undercarriage	29,010 lbs (13,159 kg)
