Equipment ↠ Caterpillar ↠ Excavators ↠ 2008 Caterpillar 315DL

2008 Caterpillar 315DL For Sale in Columbia, MO

Name: 2008 Caterpillar 315DL
Brand: Caterpillar
SKU: 87959896
Price: 41900 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $41,900.00 USD

Apply for Financing

Martin Equipment

Martin Equipment Dealer Info

Martin Equipment Website

Click here to email Martin Equipment.

Contact: Josh White, Used Equipment Manager

Click for Phone Number

Machine Info:

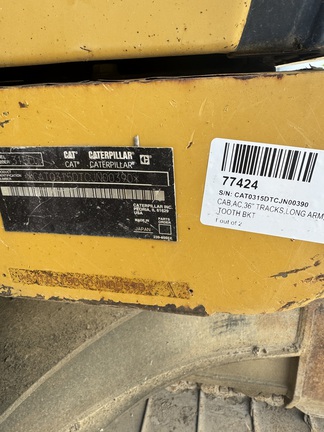

Serial Number:	CAT0315DTCJN00390
Stock Number:	77424
Machine Location:	COLUMBIA, MO

Description:

Cab w/ AC; Long Arm; 36" Pads; w/ Bucket

Machine Details:

General Specifications

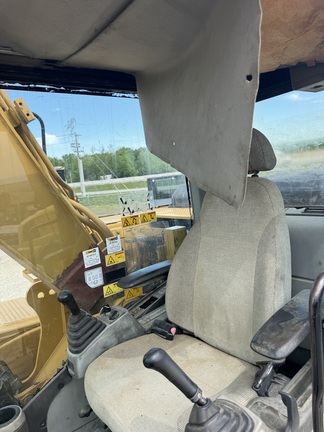

Operators Station	Cab w/ AC
Arms	Long Arm
Pad Size	36" Pads
Buckets	w/ Bucket

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	29 ft (9 m)
Max Digging Depth	19 ft (6 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	20 ft (6 m)
Max Reach Along Ground	30 ft (9 m)
Max Reach Along Ground	28 ft (8 m)
Max Vertical Wall Digging Depth	16 ft (5 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	28 ft (9 m)
Boom/Stick Excavator Option 2
Max Cutting Height	29 ft (9 m)
Max Digging Depth	20 ft (6 m)
Max Loading Height	8 ft (2 m)
Max Reach Along Ground	29 ft (9 m)
Max Vertical Wall Digging Depth	18 ft (5 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	28 ft (9 m)
Boom/Stick Excavator Option 3
Max Cutting Height	29 ft (9 m)
Max Digging Depth	21 ft (6 m)
Max Loading Height	21 ft (6 m)
Max Reach Along Ground	29 ft (9 m)
Max Vertical Wall Digging Depth	18 ft (5 m)
Shipping Length of Unit	28 ft (9 m)
Boom/Stick Excavator Option 4
Max Cutting Height	30 ft (9 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	30 ft (9 m)
Max Vertical Wall Dig Depth	19 ft (6 m)
Shipping Length of Unit	28 ft (9 m)
Bucket
Maximum Bucket Capacity	1 cu yd (1 cu m)
Minimum Bucket Capacity	1 cu yd (0 cu m)
Reference Bucket Capacity	1 cu yd (1 cu m)
Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	11 ft (3 m)
Removal Counterweight Clearance	3 ft (1 m)
Tail Swing Radius	8 ft (3 m)
Width to Outside of Tracks	9 ft (3 m)
Engine
Displacement	259 cu in (4,251 cu cm)
Engine Model	C4.2 ACERT
Flywheel Power	117 hp (87 kw)
Gross Power	122 hp (91 kw)
Net Power	115 hp (86 kw)
Net Power	115 hp (86 kw)
Operating Specifications
Cooling System Fluid Capacity	6 gal (22 l)
Engine Oil Capacity	5 gal (18 l)
Fuel Capacity	79 gal (300 l)
Hydraulic Pump Flow Capacity	40 gpm (150 lpm)
Hydraulic System Fluid Capacity	50 gal (190 l)
Hydraulic System Relief Valve Pressure	5,076 psi
Operating Weight	38,100 lbs (17,282 kg)
Operating Weight	38,096 lbs (17,280 kg)
Swing Drive Fluid Capacity	1 gal (3 l)
Swing Mechanism
Swing Speed	10 rpm
Undercarriage
Drawbar Pull	35,295 lbs (16,010 kg)
Ground Pressure	6 psi
Max Travel Speed	4 mph (6 kph)
Shoe Size	24 in (60 cm)
Track Gauge	7 ft (2 m)
Weights
Operating Weight	36,817 lbs (16,700 kg)

Dealer Contact Info:

Martin Equipment

Martin Equipment Dealer Info

Martin Equipment Website

Email Martin Equipment.

Contact: Josh White, Used Equipment Manager

Click for Phone Number
