Equipment ↠ Caterpillar ↠ Excavators ↠ 2008 Caterpillar 320D LRR

2008 Caterpillar 320D LRR For Sale in Fort Worth, Tx

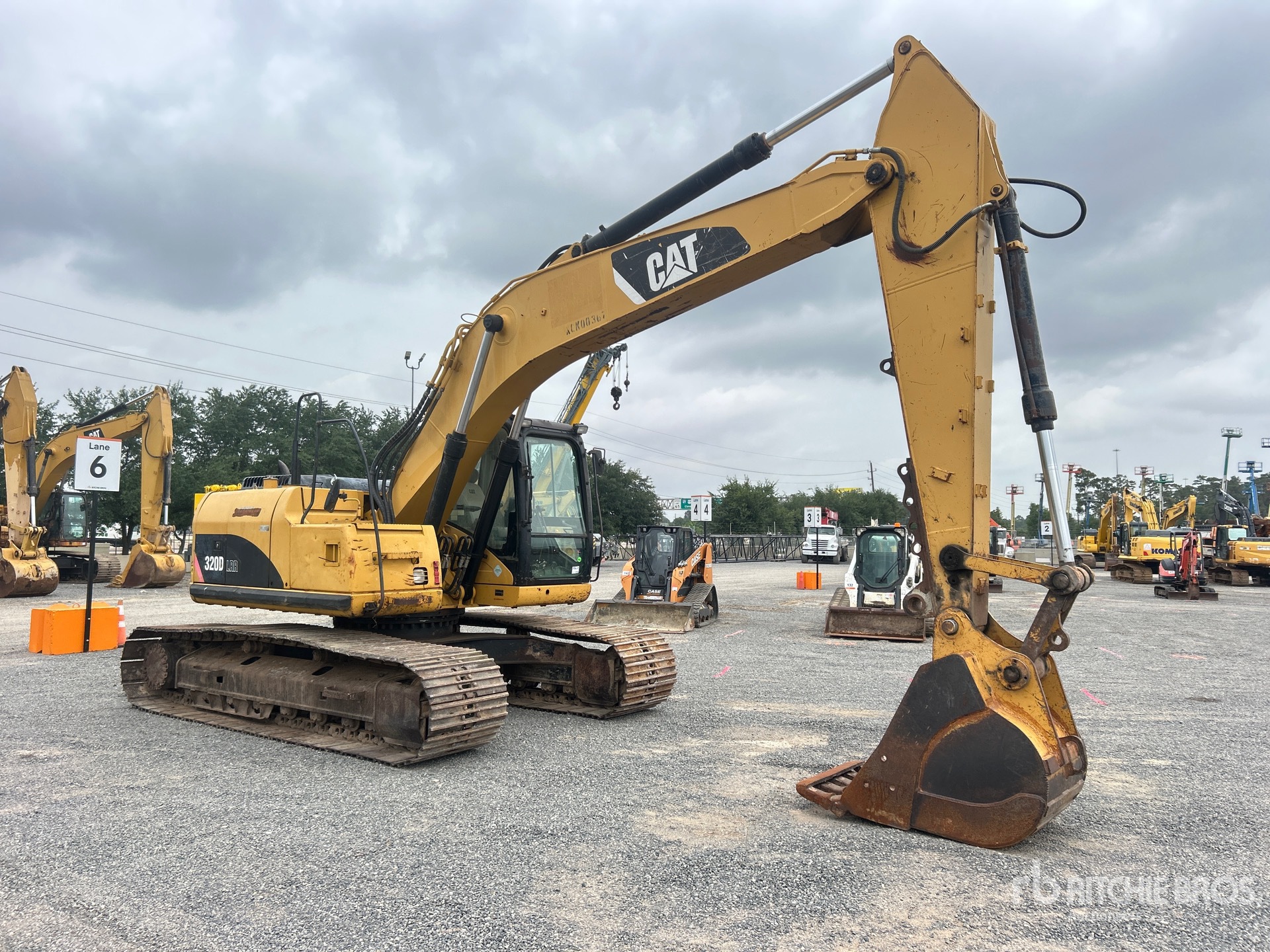

Name: 2008 Caterpillar 320D LRR
Brand: Caterpillar
SKU: 87329557
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-13 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

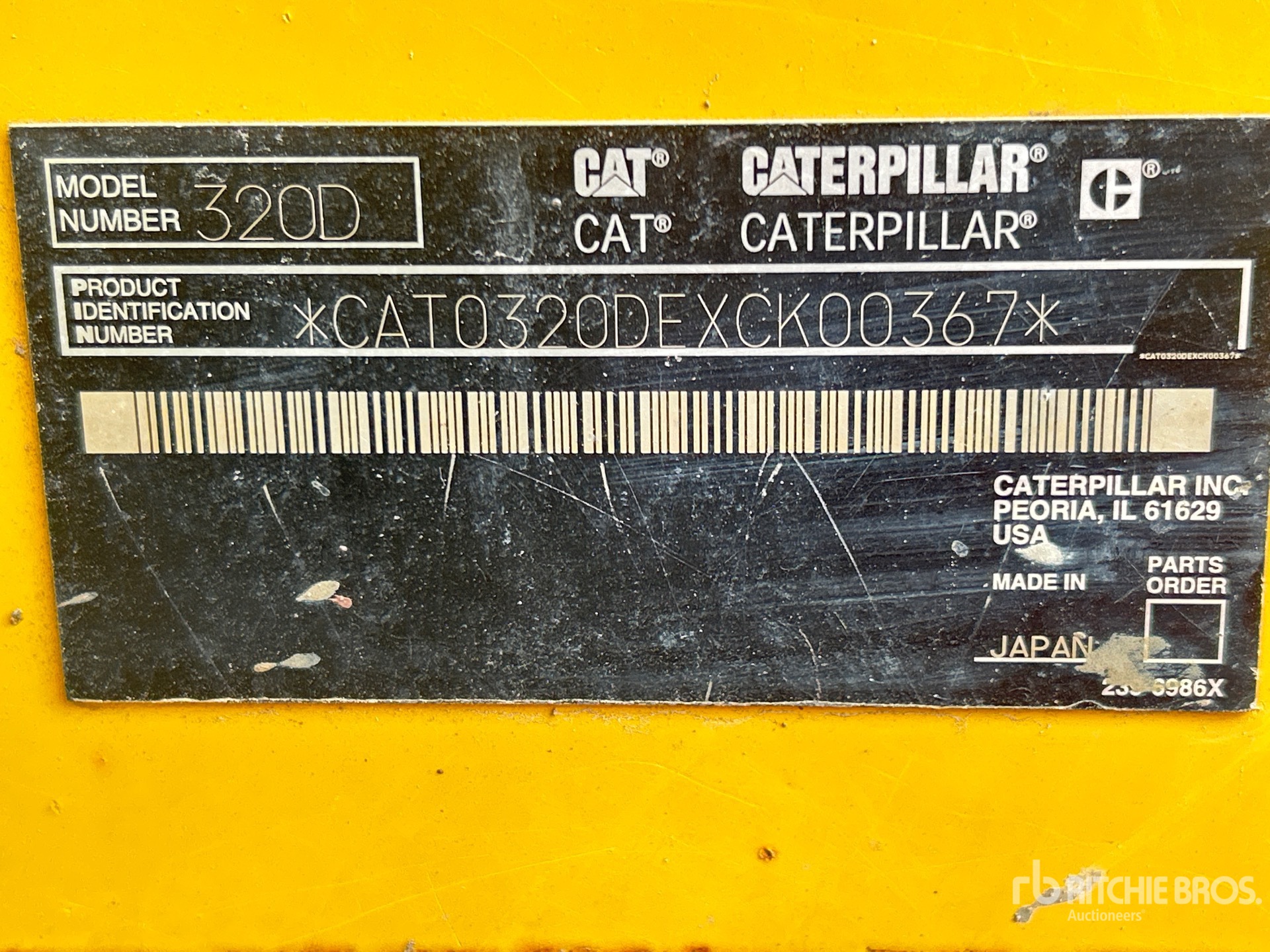

Serial Number:	CAT0320DEXCK00367
Machine Location:	FORT WORTH, TX

Description:

Located in Lane 3 Spot 11, Air Conditioner, Straight Travel Pedal, Control Pattern Changer, 9 ft 6 in Stick, 31.5 in Triple Grouser Track Shoes, 36 in Digging Bucket, Thumb Bracket Closing Time: 2026-05-13 11:33:38 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	33 ft (10 m)
Max Loading Height	23 ft (7 m)
Max Vertical Wall Digging Depth	23 ft (7 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	29 ft (9 m)
Boom/Stick Excavator Option 2
Max Cutting Height	31 ft (10 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	21 ft (7 m)
Max Reach Along Ground	32 ft (10 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	29 ft (9 m)
Boom/Stick Excavator Option 3
Max Cutting Height	31 ft (9 m)
Max Digging Depth	21 ft (6 m)
Max Loading Height	21 ft (6 m)
Max Reach Along Ground	31 ft (9 m)
Max Vertical Wall Digging Depth	19 ft (6 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	29 ft (9 m)
Bucket
Reference Bucket Capacity	1 cu yd (1 cu m)
Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	12 ft (4 m)
Shipping Height	11 ft (3 m)
Tail Swing Radius	7 ft (2 m)
Transport Width	11 ft (3 m)
Width to Outside of Tracks	11 ft (3 m)
DRIVE SYSTEM
Maximum Drawbar Pull	46,311 lbs (21,006 kg)
Engine
Bore	4 in (10 cm)
Displacement	389 cu in (6,375 cu cm)
Engine Model	Cat C6.4 ACERT
Net Power	148 hp (110 kw)
Net Power - EEC 80/1269	148 hp (110 kw)
Net Power - ISO 9249	148 hp (110 kw)
Net Power - SAE J1349	148 hp (110 kw)
Stroke	5 in (13 cm)
Hydraulic System
Boom Cylinder - Bore	5 in (12 cm)
Boom Cylinder - Stroke	50 in (126 cm)
Main Implement System - Maximum Flow (2x)	54 gpm (204 lpm)
Maximum Pressure - Equipment	5,076 psi
Maximum Pressure - Swing	3,626 psi
Maximum Pressure - Travel	5,076 psi
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	7 gal (25 l)
Engine Oil Capacity	8 gal (30 l)
Fuel Capacity	77 gal (291 l)
Hydraulic Pump Flow Capacity	54 gpm (204 lpm)
Hydraulic System Fluid Capacity	56 gal (212 l)
Hydraulic System Relief Valve Pressure	5,221 psi
Operating Voltage	24 volts
Swing Drive Fluid Capacity	2 gal (8 l)
Service Refill Capacities
Cooling System	7 gal (25 l)
Engine Oil	8 gal (30 l)
Final Drive - Each	2 gal (8 l)
Fuel Tank Capacity	77 gal (291 l)
Hydraulic System - Including Tank	56 gal (212 l)
Swing Drive	2 gal (8 l)
Standards
Brakes	SAE J1026 APR90
Cab/FOGS	SAE J1356 FEB88
Swing Mechanism
Swing Speed	12 rpm
Track
Number of Carrier Rollers - Each Side - Long Undercarriage	2
Number of Shoes - Each Side - Long Undercarriage	49
Number of Track Rollers - Each Side - Long Undercarriage	8
Undercarriage
Drawbar Pull	46,311 lbs (21,006 kg)
Max Travel Speed	4 mph (6 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	49
Number of Track Rollers per Side	8
Shoe Size	32 in (81 cm)
Track Gauge	8 ft (2 m)
Weights
Operating Weight	52,249 lbs (23,700 kg)
