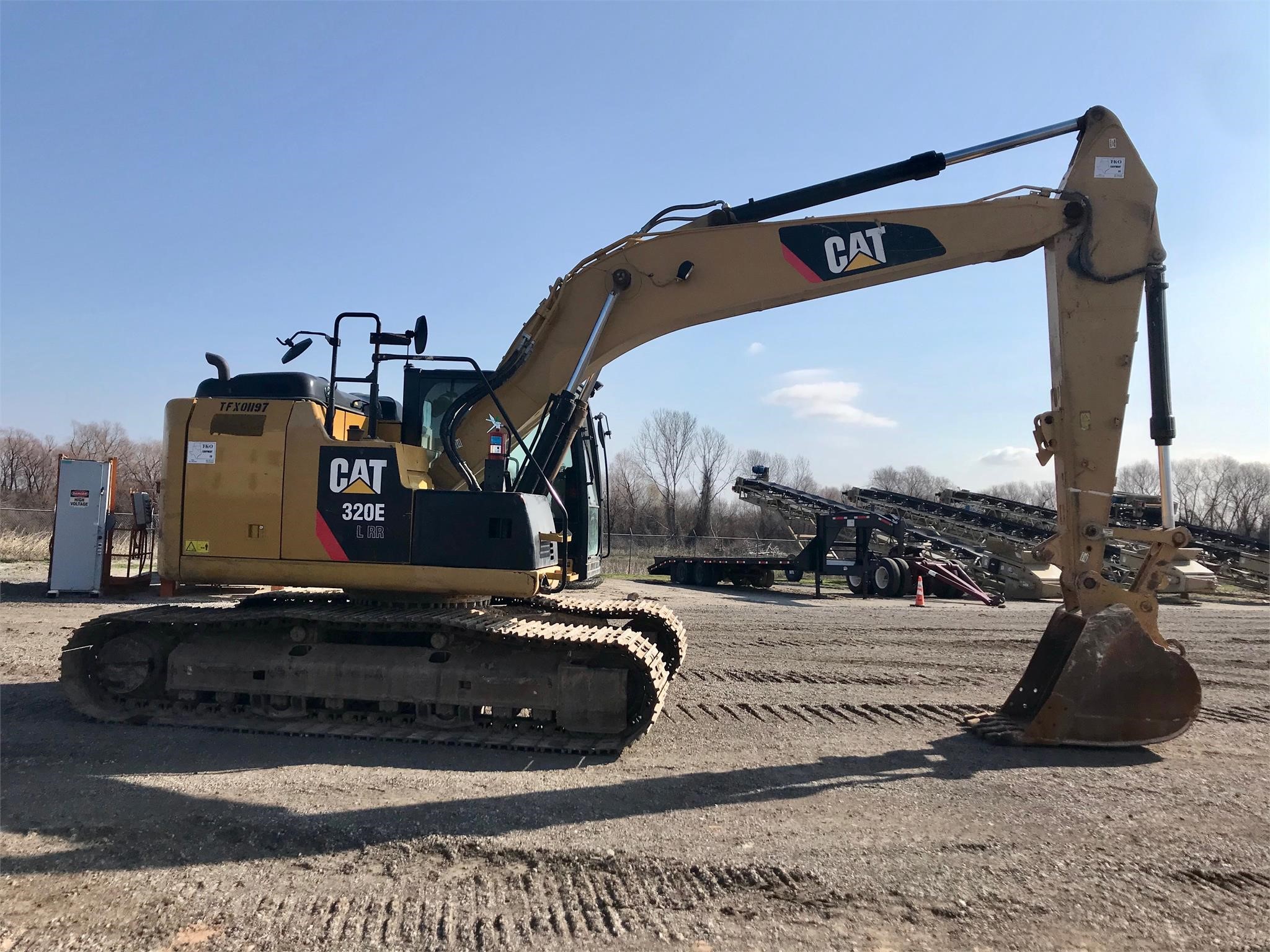

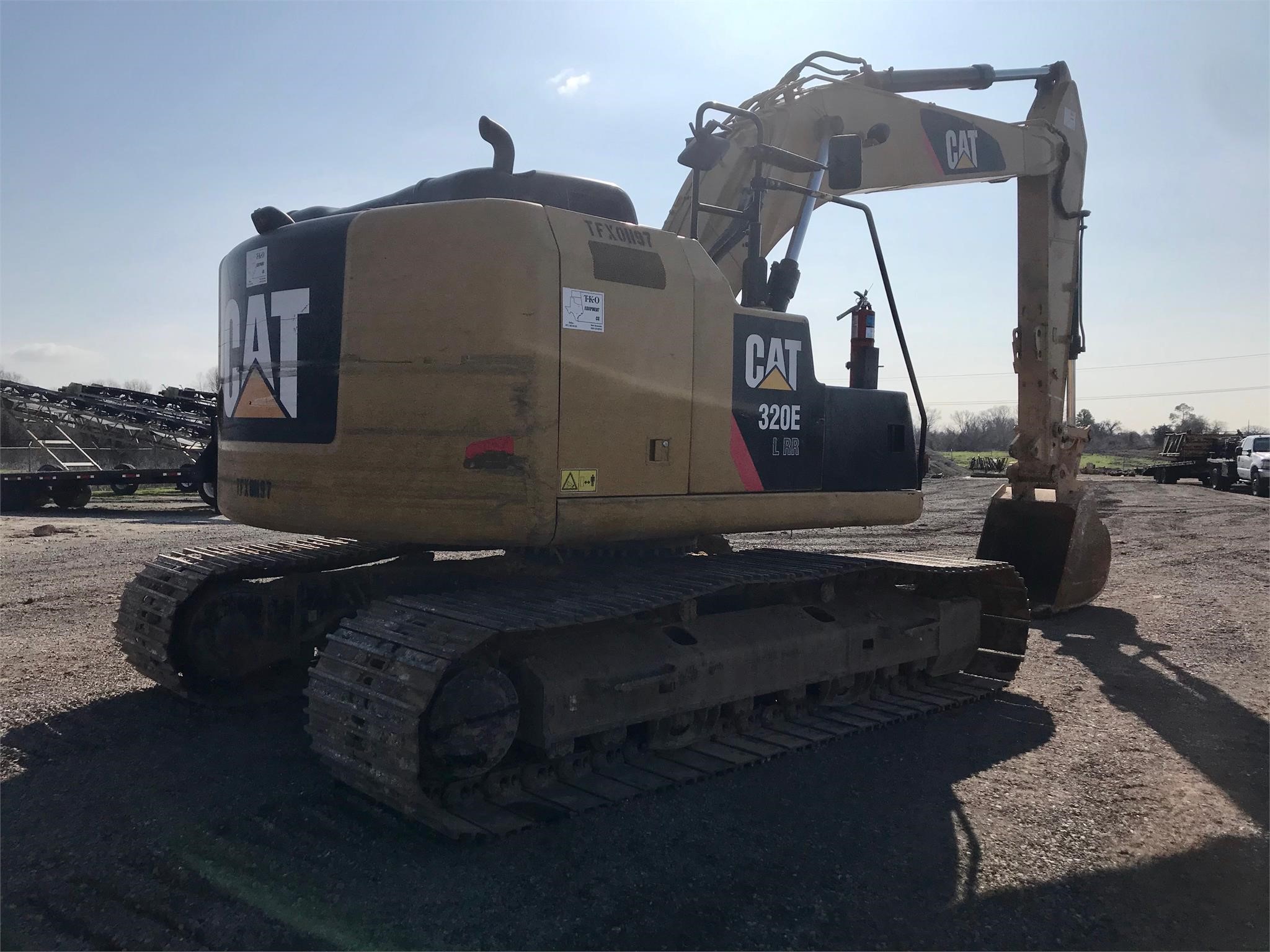

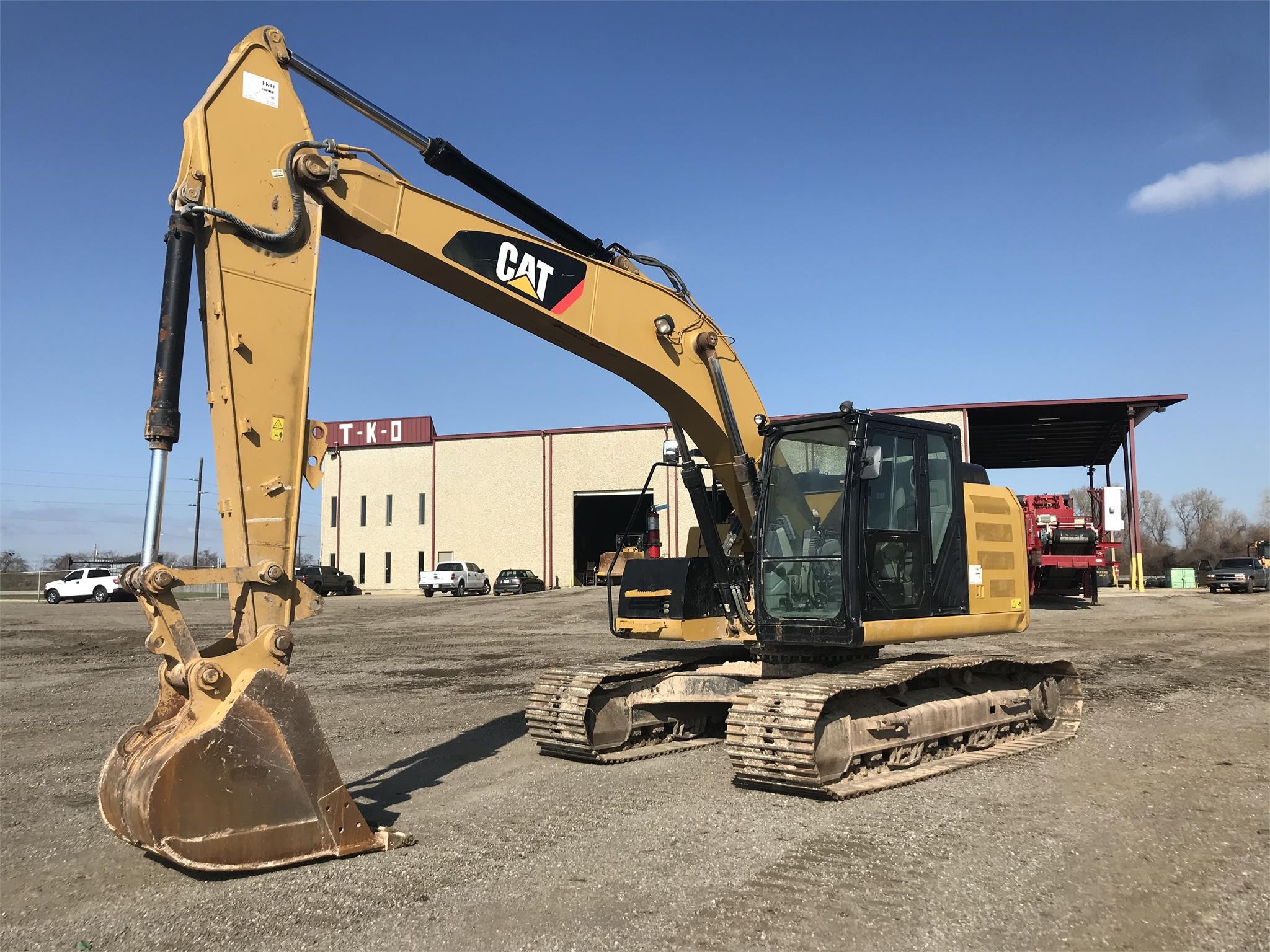

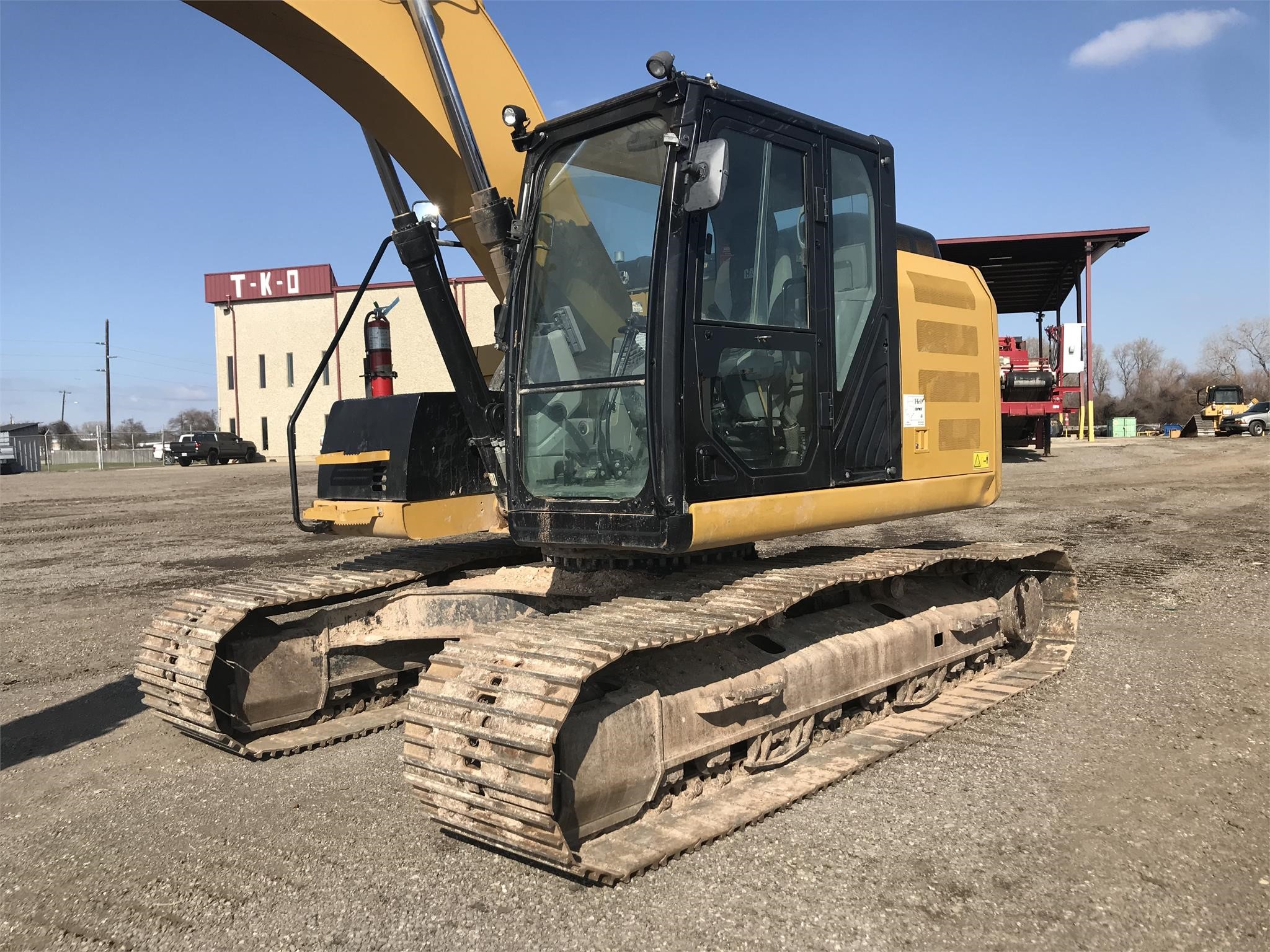

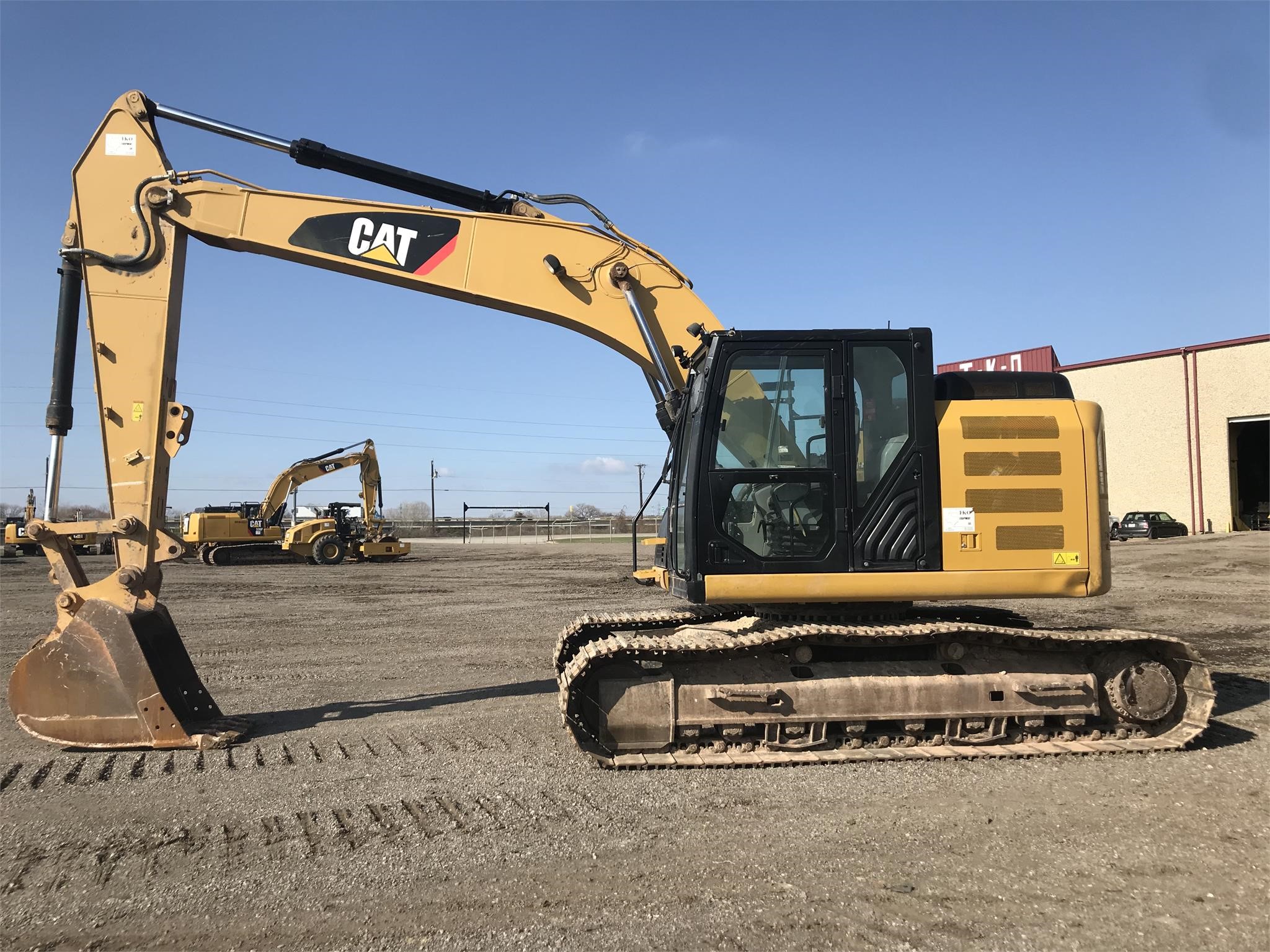

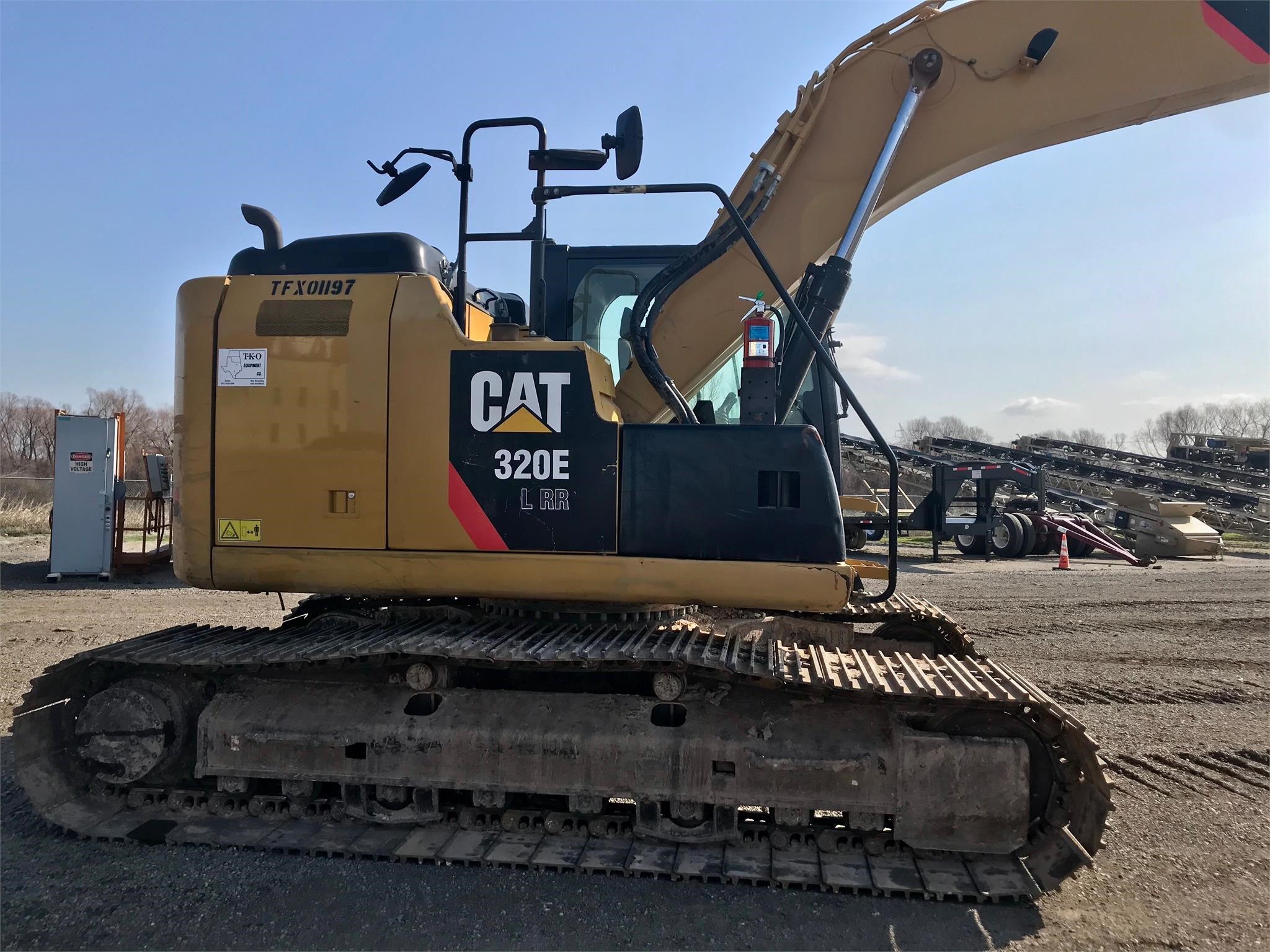

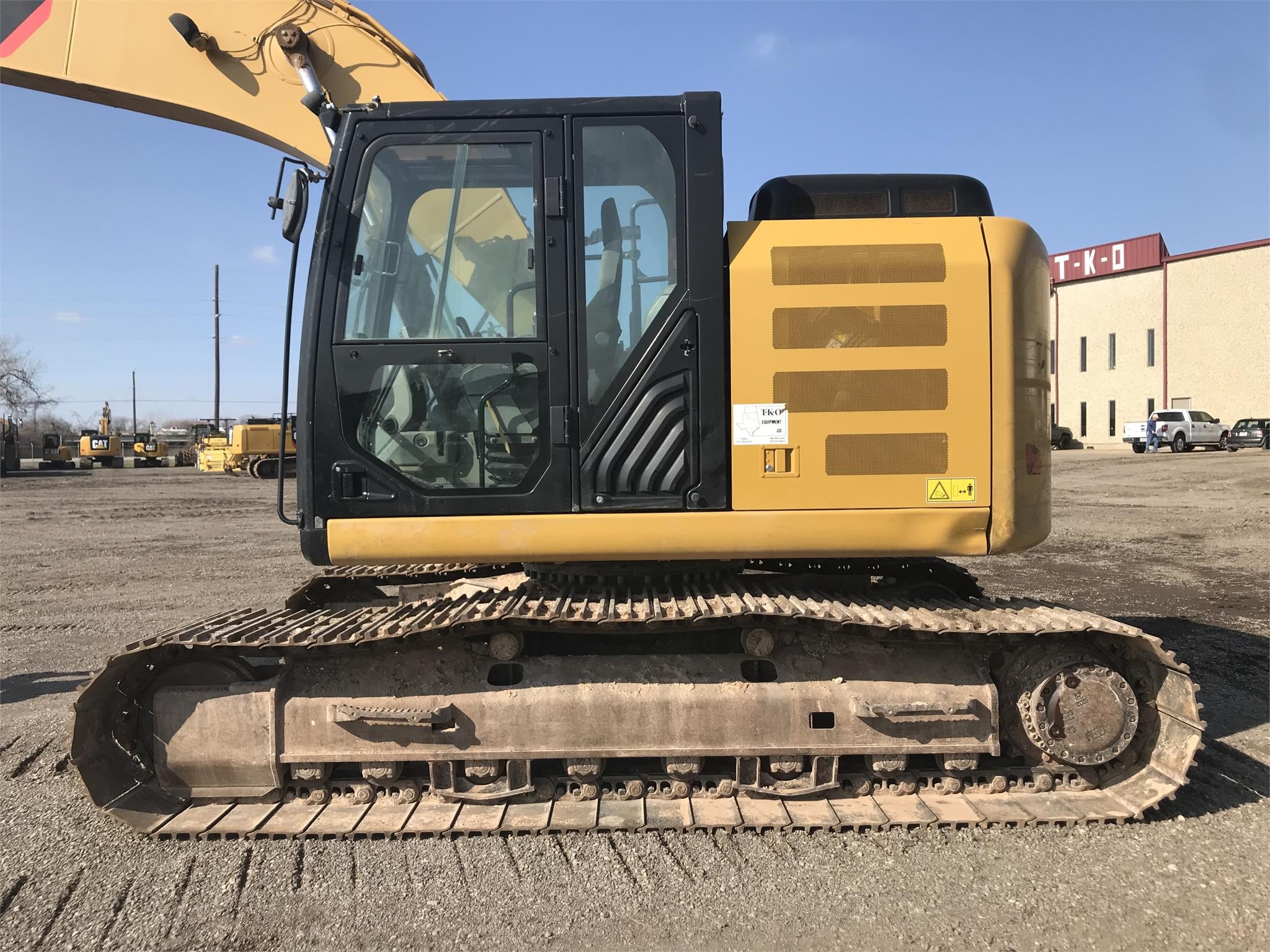

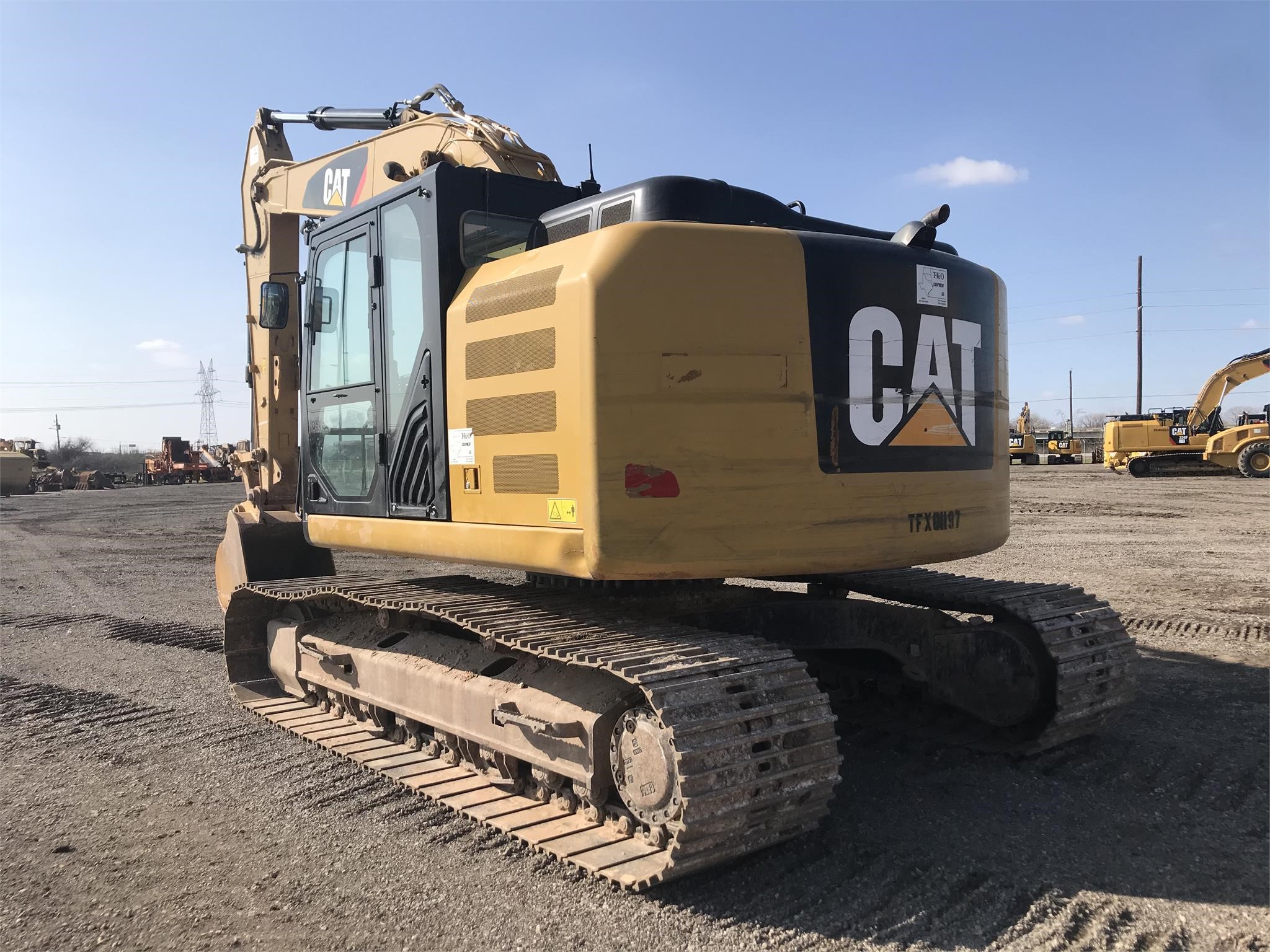

2015 Caterpillar 320ELRR For Sale in Grand Prairie, TX

Name: 2015 Caterpillar 320ELRR
Brand: Caterpillar
SKU: 87653531
Price: 125000 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $125,000.00 USD

Apply for Financing

T-K-O Equipment Co.

T-K-O Equipment Co. Dealer Info

T-K-O Equipment Co. Website

Click here to email T-K-O Equipment Co..

Click for Phone Number

Machine Info:

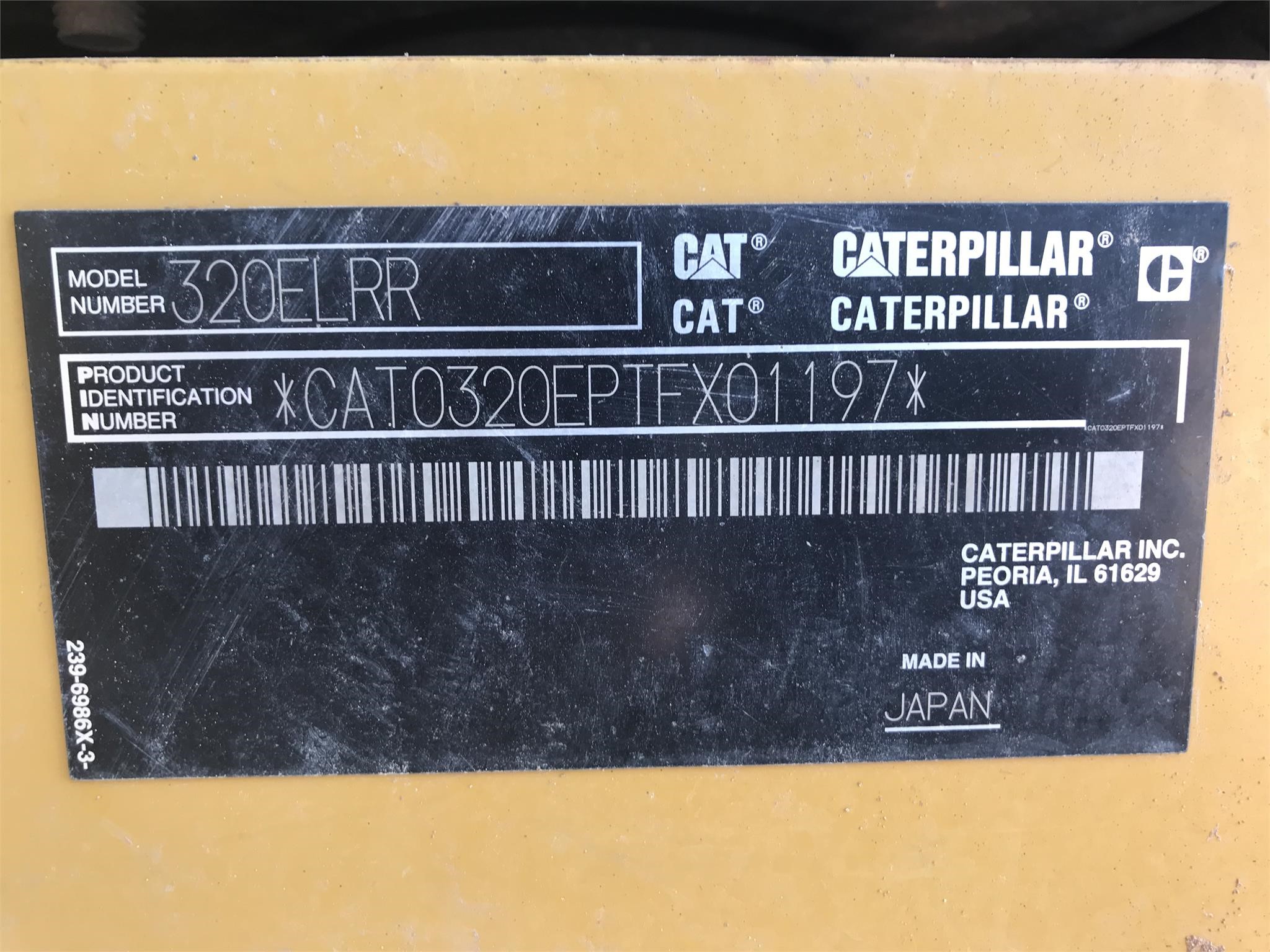

Serial Number:	TFX1197
Machine Location:	GRAND PRAIRIE, TX

Description:

Bucket, "B1" Family, Reach Boom, 9'6" Stick, Pattern Change Valve, 3rd Pedal For Straight Travel, ECab, A/C, Heater, 31" TBG New Track Groups And Sprocket Rims - 4,121 Hours (08/19)

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 320E L RR is a hydraulic excavator designed for medium to heavy-duty construction and earthmoving applications. Featuring a long-reach (LR) boom and radius-reduced (RR) tail swing, this model offers enhanced digging depth and maneuverability in confined spaces. Powered by a fuel-efficient Cat C7.1 engine, the 320E L RR delivers reliable performance with reduced emissions. Its advanced hydraulic system provides precise control and increased productivity. Commonly used in excavation, trenching, demolition, and material handling, the Caterpillar 320E L RR combines durability, versatility, and operator comfort, making it suitable for various construction, mining, and infrastructure projects worldwide.

Dimensions
Ground Clearance	8 ft (2 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	15 ft (4 m)
Removal Counterweight Clearance	3 ft (1 m)
Tail Swing Radius	7 ft (2 m)
DRIVE SYSTEM
Maximum Drawbar Pull	46,086 lbs (20,904 kg)
Engine
Bore	4 in (10 cm)
Displacement	403 cu in (6,604 cu cm)
Engine Make	Caterpillar
Engine Model	Cat C6.6 ACERT
Gross Power	164 hp (122 kw)
Gross Power - SAE J1995	164 hp (122 kw)
Net Power	153 hp (114 kw)
Net Power - SAE J1349	153 hp (114 kw)
Stroke	5 in (13 cm)
Hydraulic System
113.1	113 gpm (428 lpm)
Boom Cylinder - Bore	5 in (12 cm)
Boom Cylinder - Stroke	50 in (126 cm)
Maximum Pressure - Equipment - Normal	5,076 psi
Maximum Pressure - Swing	3,626 psi
Maximum Pressure - Travel	5,076 psi
Stick Cylinder - Bore	6 in (14 cm)
Stick Cylinder - Stroke	59 in (150 cm)
Operating Specifications
Cooling System Fluid Capacity	8 gal (30 l)
Engine Oil Capacity	6 gal (23 l)
Fuel Capacity	77 gal (290 l)
Hydraulic System Fluid Capacity	54 gal (205 l)
Operating Weight	52,250 lbs (23,700 kg)
Service Refill Capacities
Cooling System	8 gal (30 l)
Final Drive - Each	2 gal (8 l)
Fuel Tank Capacity	77 gal (290 l)
Hydraulic System - Including Tank	54 gal (205 l)
Hydraulic Tank	30 gal (115 l)
Swing Drive	2 gal (8 l)
Standards
Brakes	ISO 10265 2008
Cab/FOGS	ISO 10262 1998
Swing Mechanism
Swing Speed	11 rpm
Track
Number of Carrier Rollers - Each Side - Long Undercarriage	2 pieces
Number of Shoes - Each Side - Long Undercarriage	49 pieces
Number of Track Rollers - Each Side - Long Undercarriage	8 pieces
Undercarriage
Drawbar Pull	46,086 lbs (20,904 kg)
Max Travel Speed	4 mph (6 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	49
Number of Track Rollers per Side	8
Weights
Maximum Operating Weight	56,440 lbs (25,601 kg)
Minimum Operating Weight	52,250 lbs (23,700 kg)
Operating Weight	56,440 lbs (25,601 kg)
