Equipment ↠ Caterpillar ↠ Excavators ↠ 2017 Caterpillar 320FL

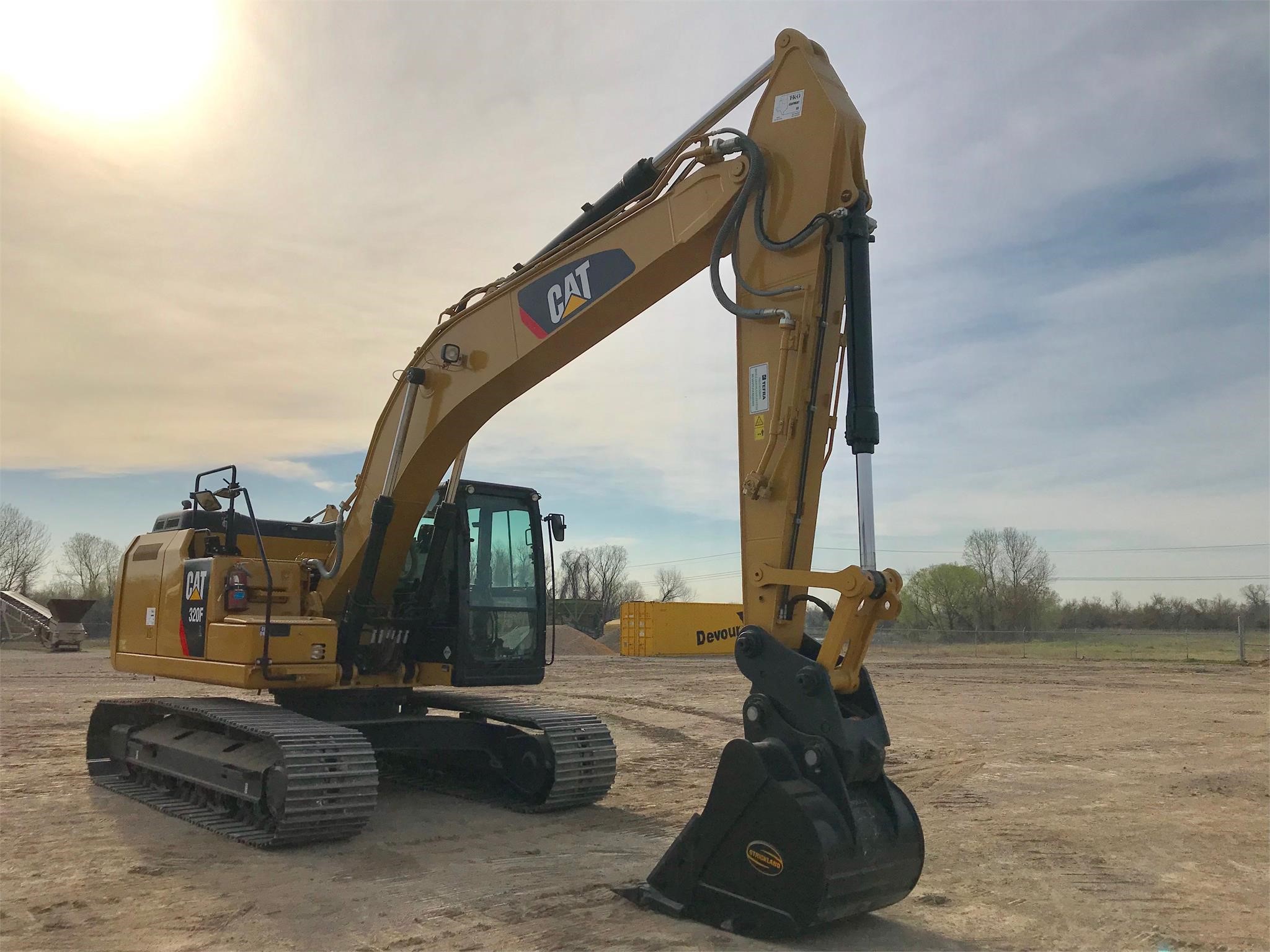

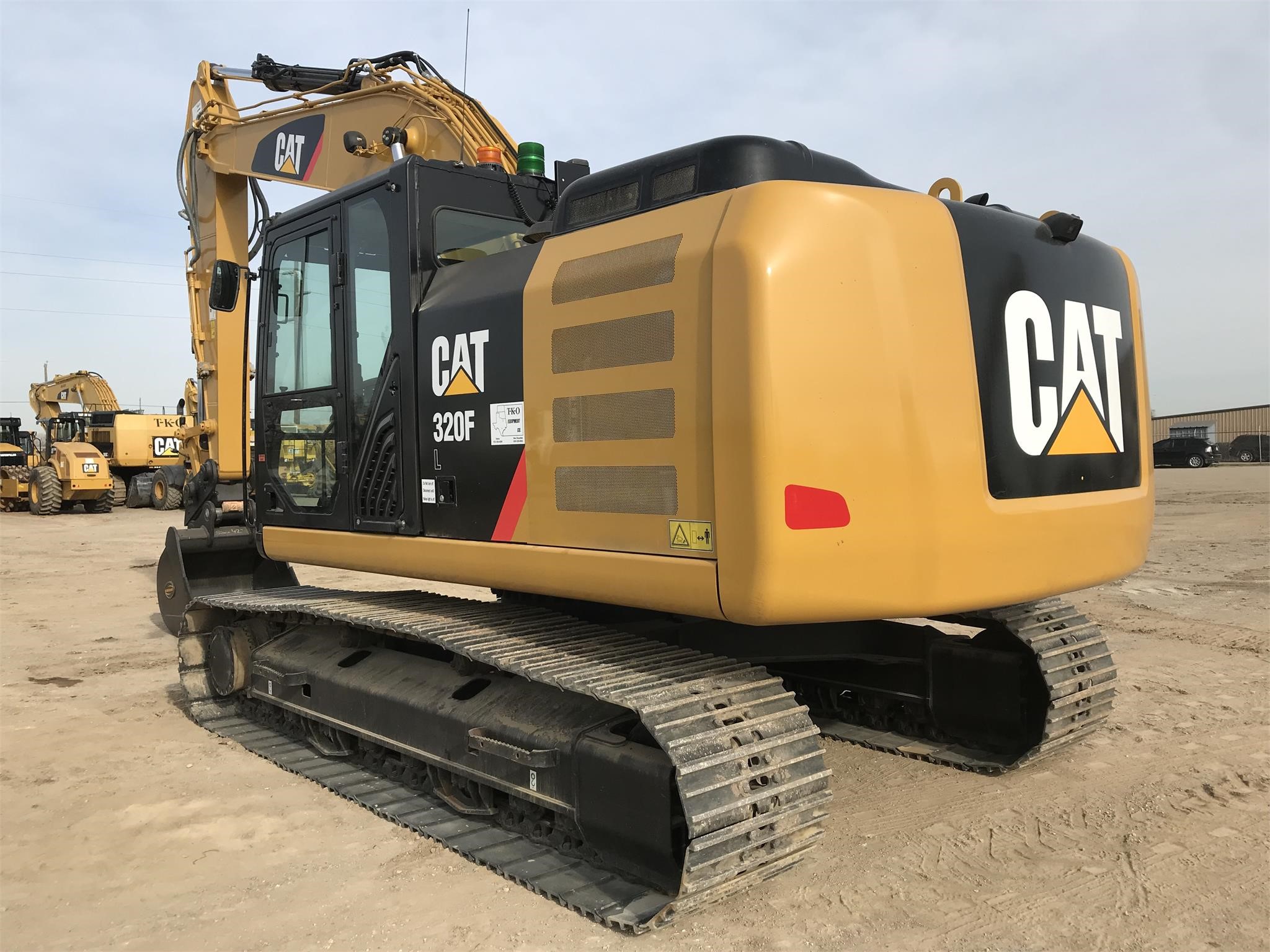

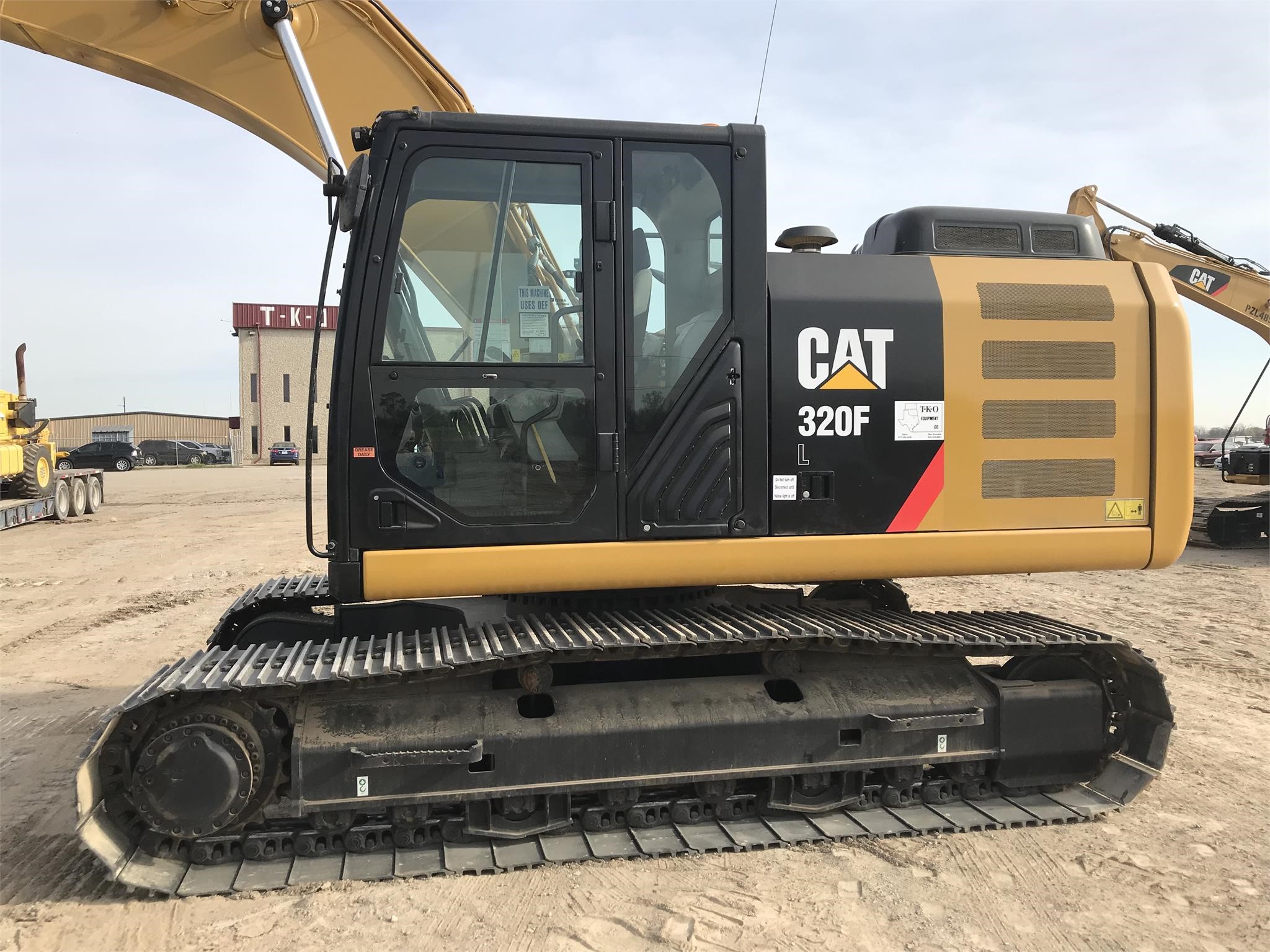

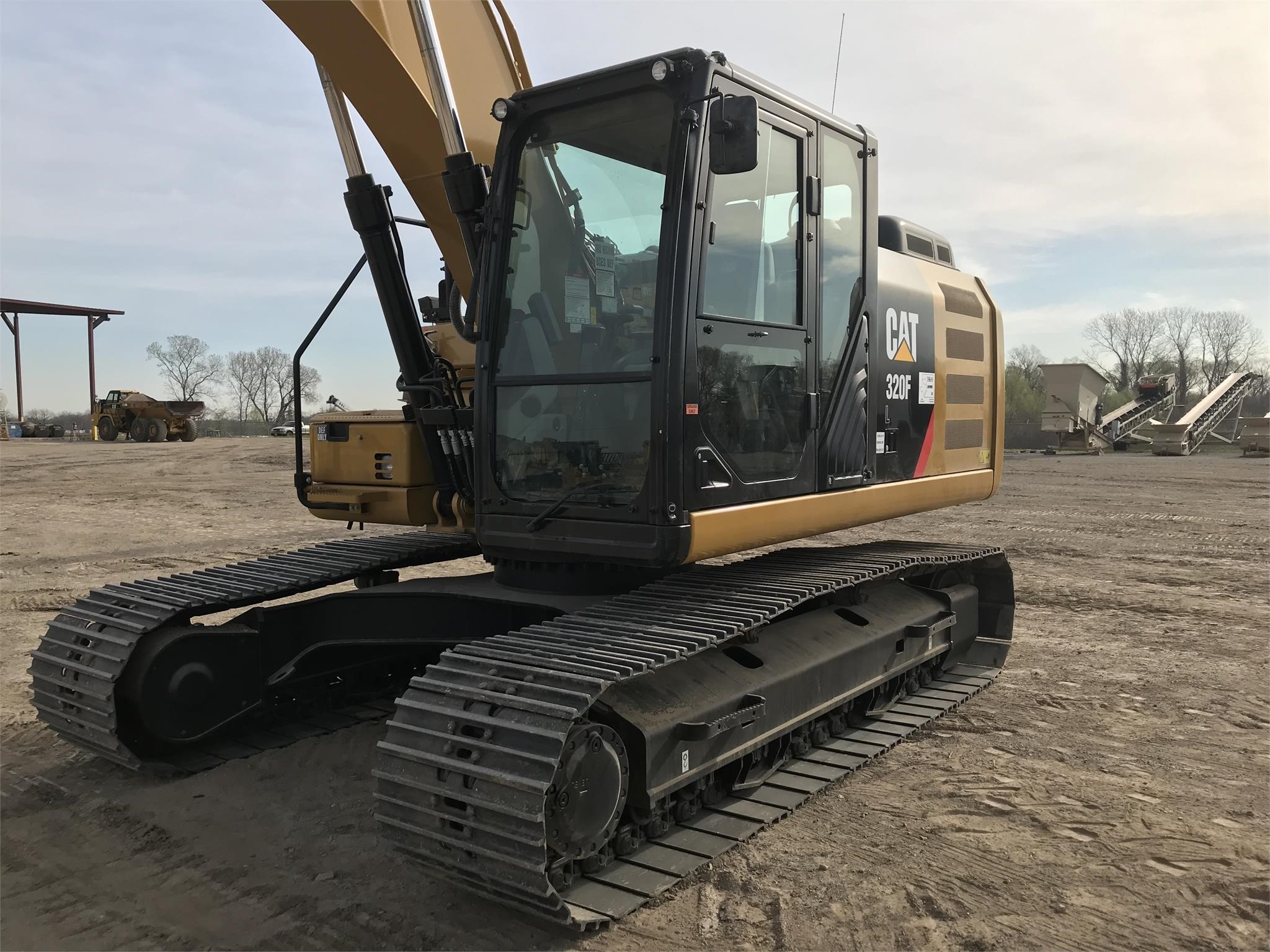

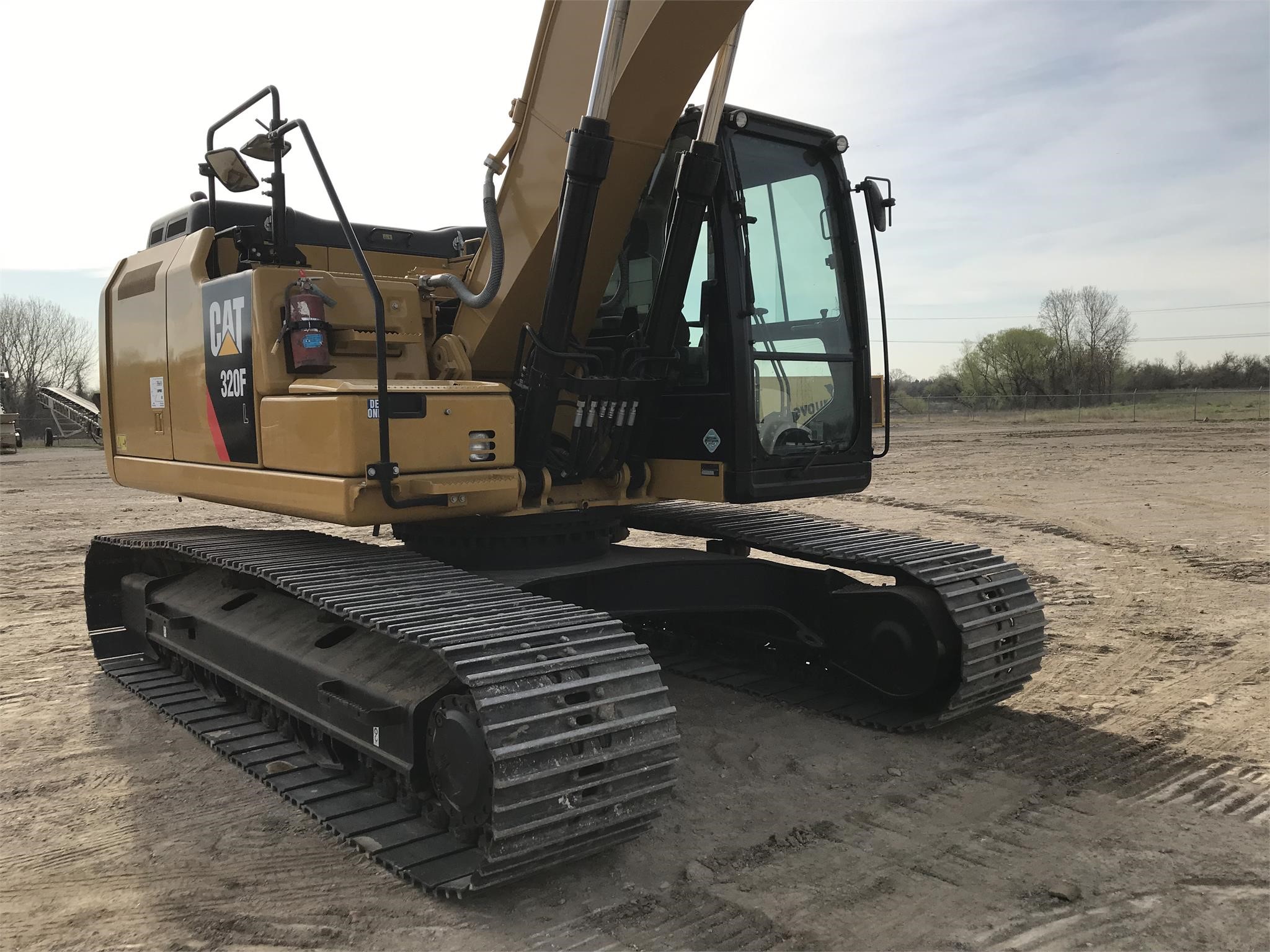

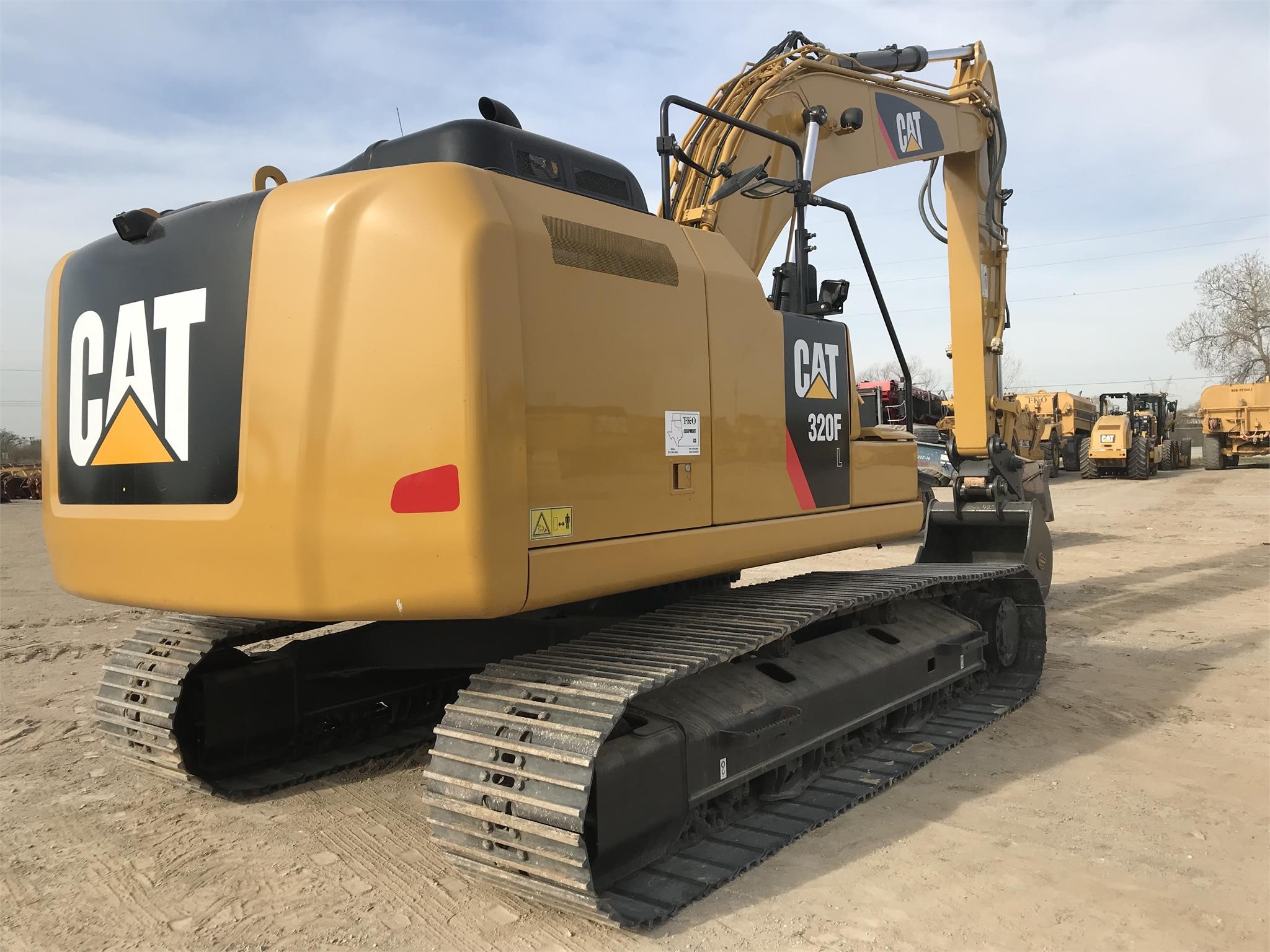

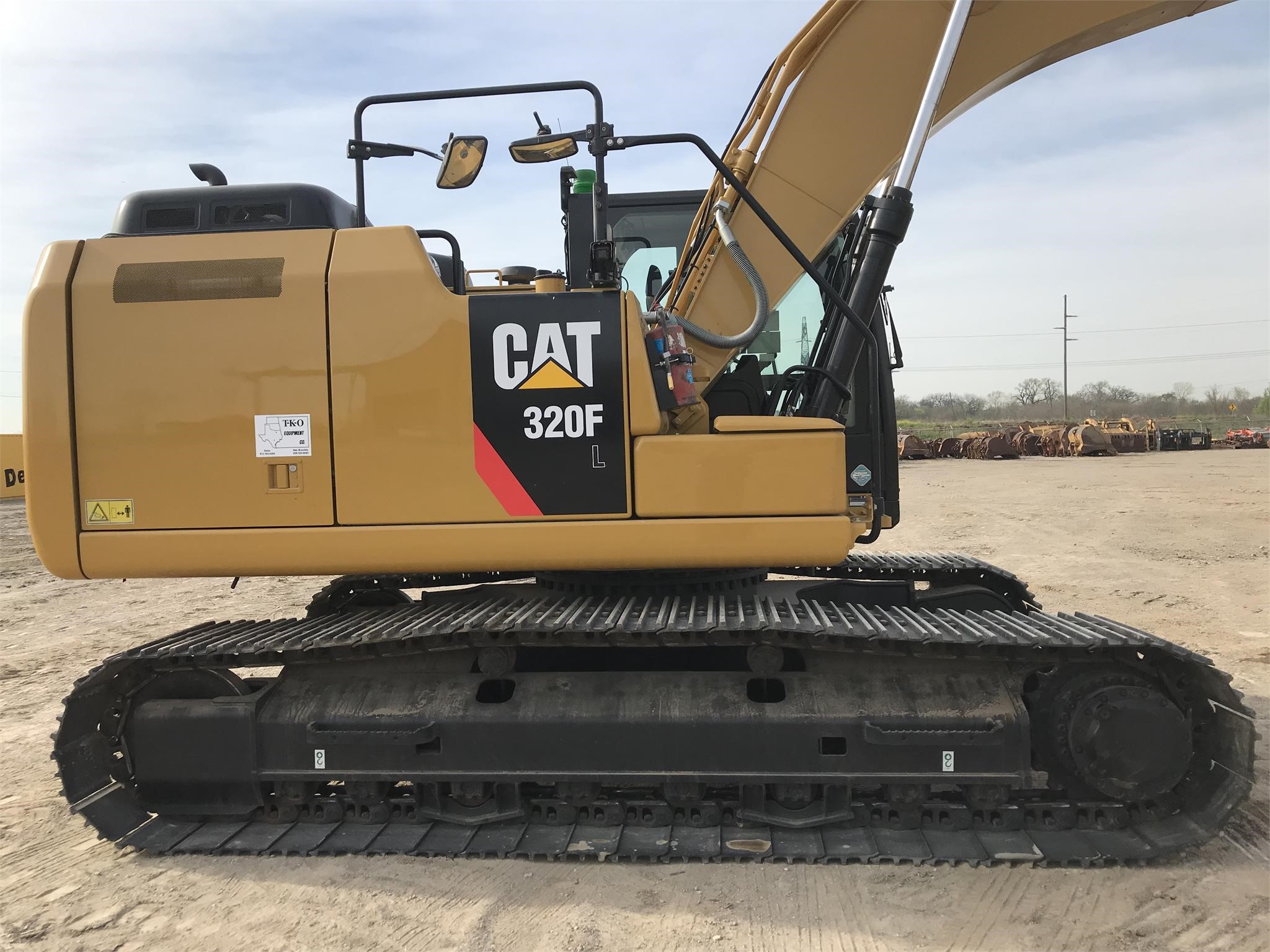

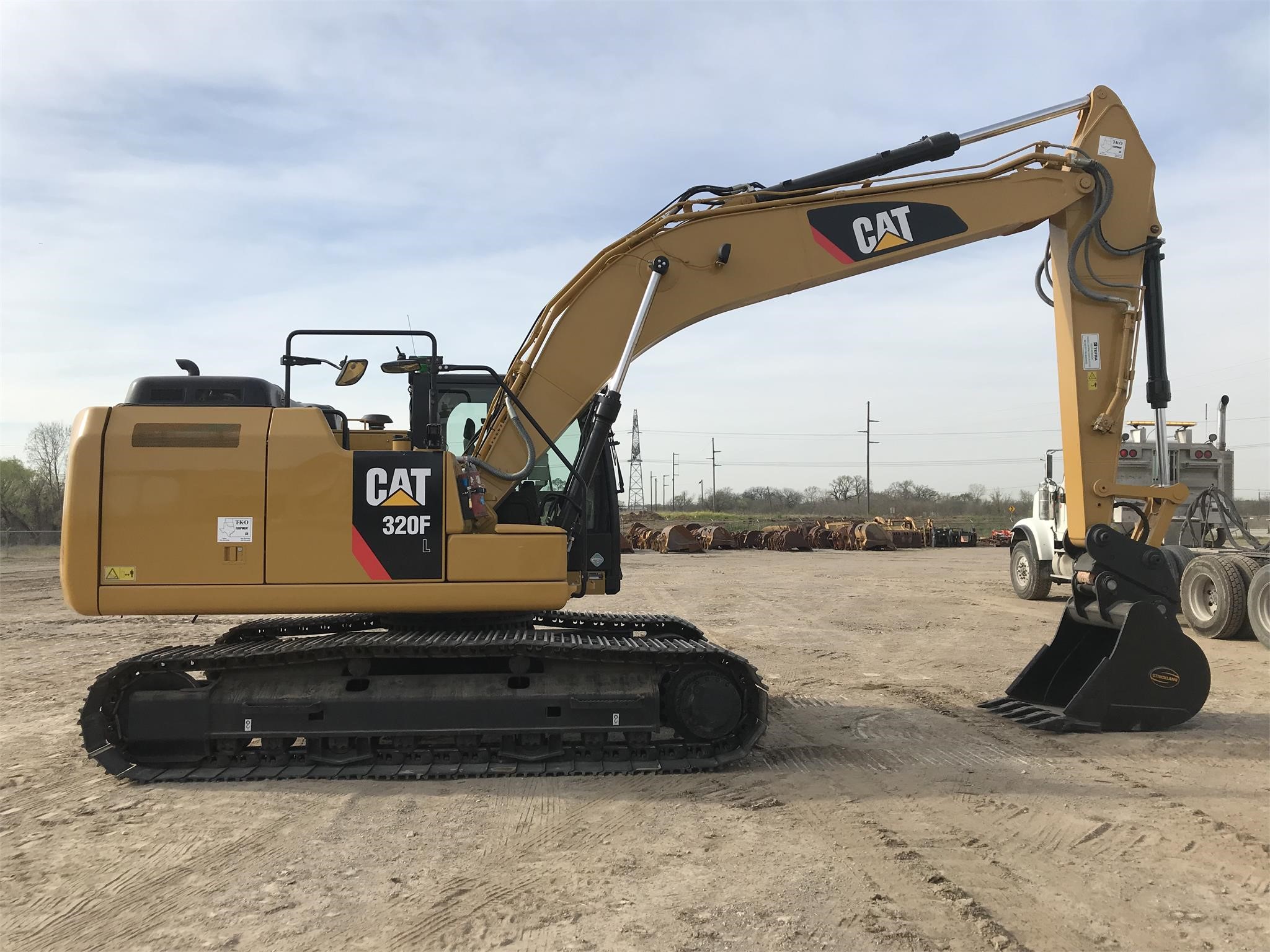

2017 Caterpillar 320FL For Sale in Grand Prairie, TX

Name: 2017 Caterpillar 320FL
Brand: Caterpillar
SKU: 87653525
Price: 185000 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $185,000.00 USD

Apply for Financing

T-K-O Equipment Co.

T-K-O Equipment Co. Dealer Info

T-K-O Equipment Co. Website

Click here to email T-K-O Equipment Co..

Click for Phone Number

Machine Info:

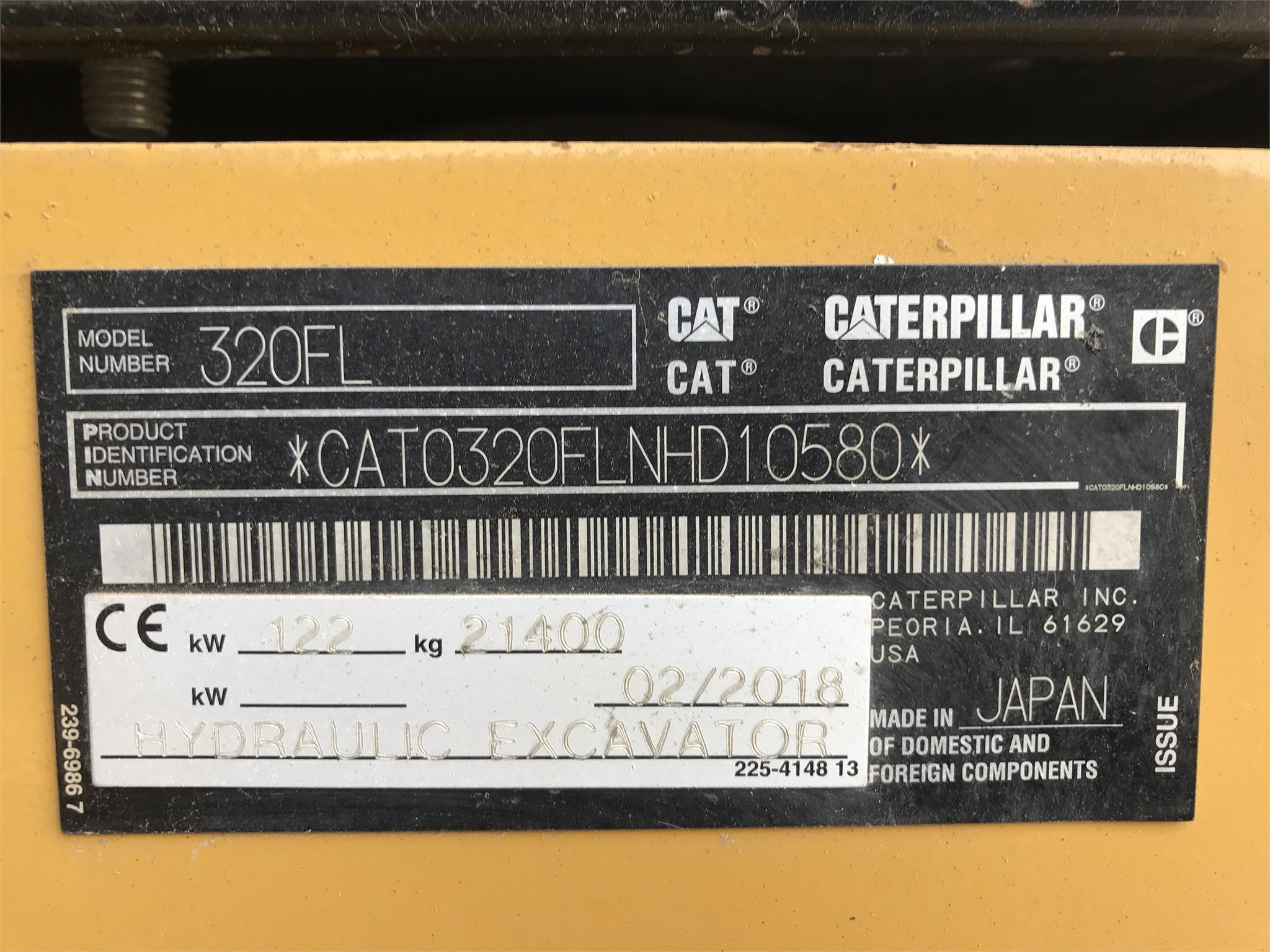

Serial Number:	NHD10580
Machine Location:	GRAND PRAIRIE, TX

Description:

Bucket, "B1" Family, Reach Boom, 9'6" Stick, QC, Auxiliary Hydraulics, Final Tier IV Engine, Rear And Right Side Cameras, ECab, A/C, Heater, 70CM TBG

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 320F L is a versatile hydraulic excavator designed for medium to large-scale construction and earthmoving projects. Featuring advanced Cat C7.1 ACERT engine technology, the 320F L delivers efficient fuel consumption and reduced emissions. Its long undercarriage (L) configuration enhances stability and lifting capacity, making it suitable for heavy-duty digging, trenching, and material handling tasks. Equipped with a spacious operator cabin, the 320F L offers improved visibility and ergonomic controls for increased productivity. This excavator supports various attachments, including buckets, hammers, and grapples, providing adaptability across multiple applications in construction, mining, and infrastructure development.

Boom/Stick Excavator Option 1
Max Digging Depth	22 ft (7 m)
Max Reach Along Ground	32 ft (10 m)
DRIVE SYSTEM
Maximum Drawbar Pull	46,086 lbs (20,904 kg)
Maximum Travel Speed	4 mph (6 kph)
Engine
Bore	4 in (11 cm)
Displacement	269 cu in (4,408 cu cm)
Engine Model	C4.4 ACERT
Net Power	161 hp (120 kw)
Stroke	5 in (13 cm)
Hydraulic System
Main System - Maximum Flow - Total	113 gpm (428 lpm)
Maximum Pressure - Swing	3,626 psi
Maximum Pressure - Travel	5,076 psi
Pilot System - Maximum Flow	6 gpm (24 lpm)
Pilot System - Maximum Pressure	569 psi
Operating Specifications
Operating Weight	49,200 lbs (22,317 kg)
Service Refill Capacities
Cooling System	8 gal (30 l)
Engine Oil	7 gal (25 l)
Final Drive - Each	2 gal (8 l)
Fuel Tank Capacity	108 gal (409 l)
Hydraulic System - Including Tank	69 gal (260 l)
Hydraulic Tank	42 gal (159 l)
Swing Drive	2 gal (8 l)
Swing
Swing Speed	11 rpm
Swing Torque	45,581 lbs ft (61,799 nm)
